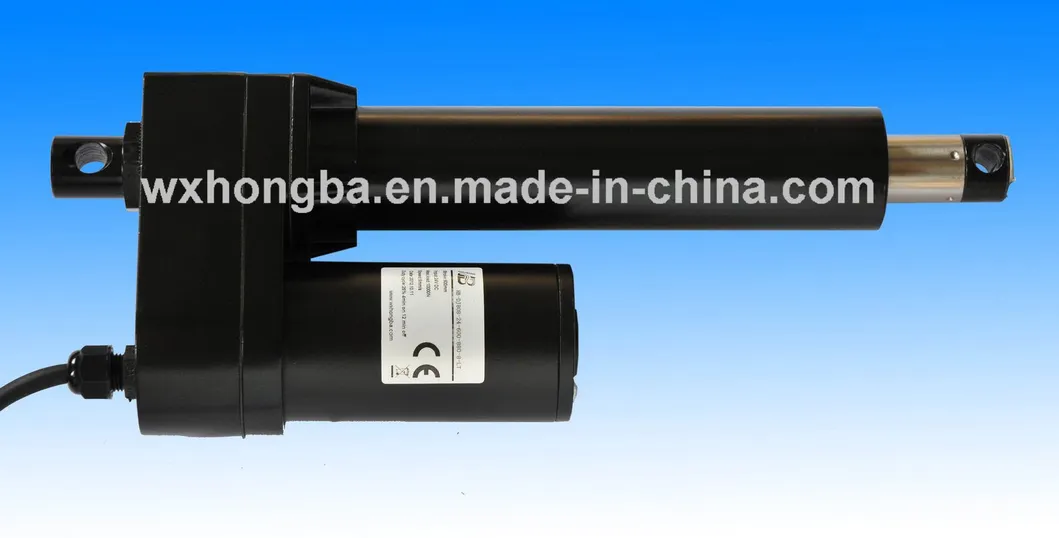

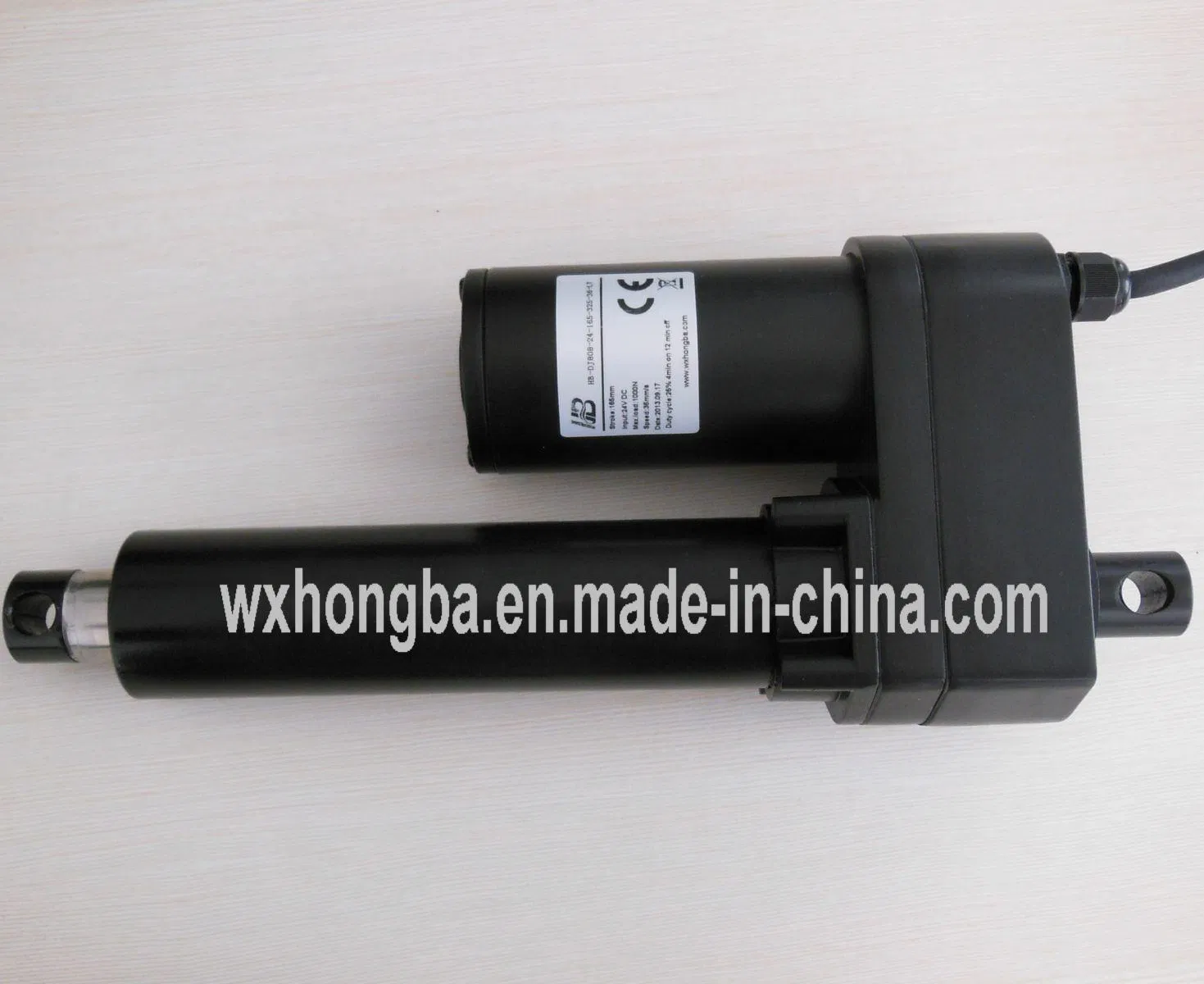

12V DC Electric Linear Actuator High Power Motor for Indurstrial Machinery Linear Actuator (HB-DJ808)

1 / 5

12V DC Electric Linear Actuator High Power Motor for Indurstrial Machinery Linear Actuator (HB-DJ808)

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

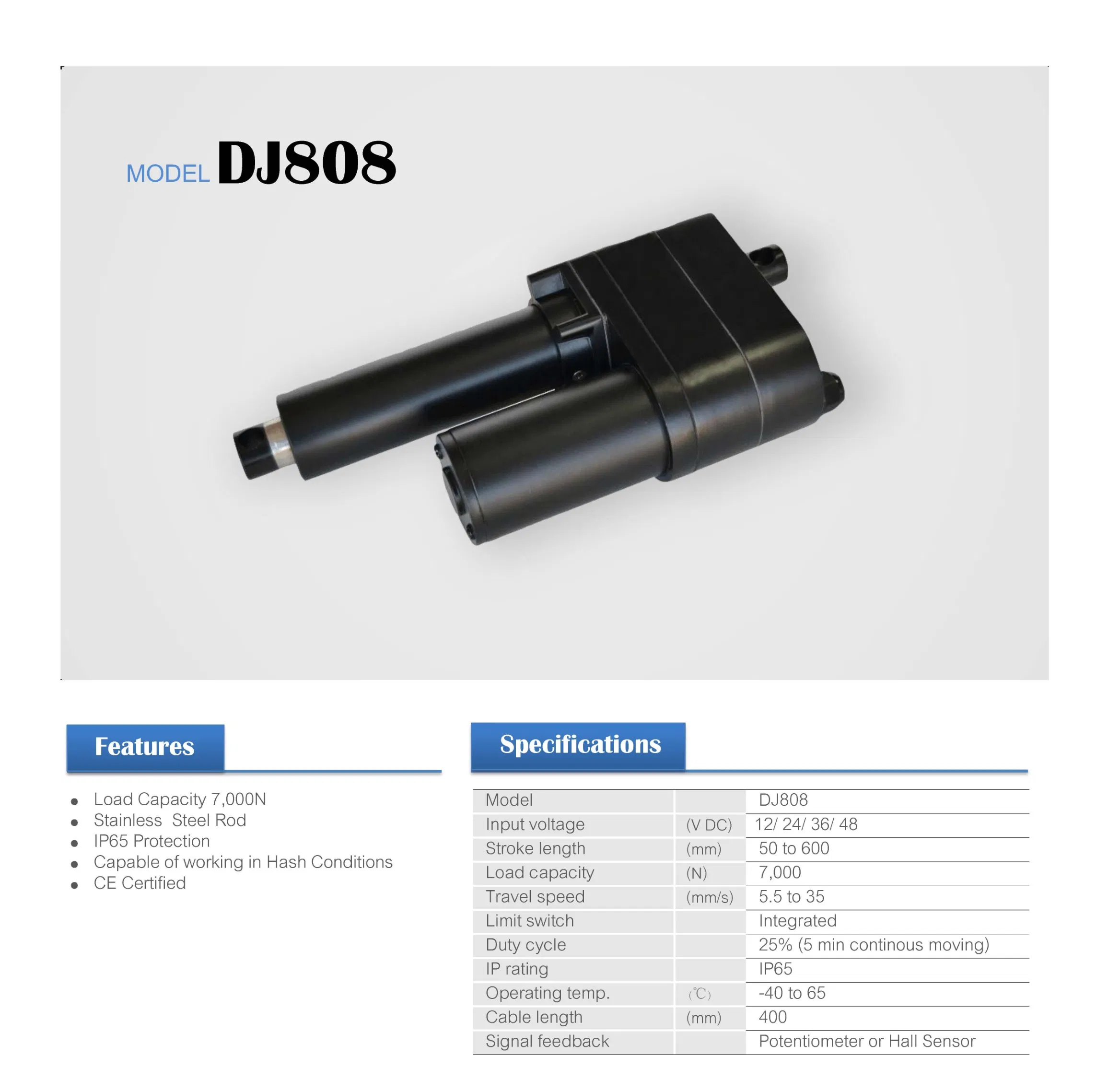

Basic Specifications

Model NO.

HB-DJ808

Function

Driving

Voltage

12V/24V/36V/48VDC

Stroke

50-600mm

Speed

High Speed

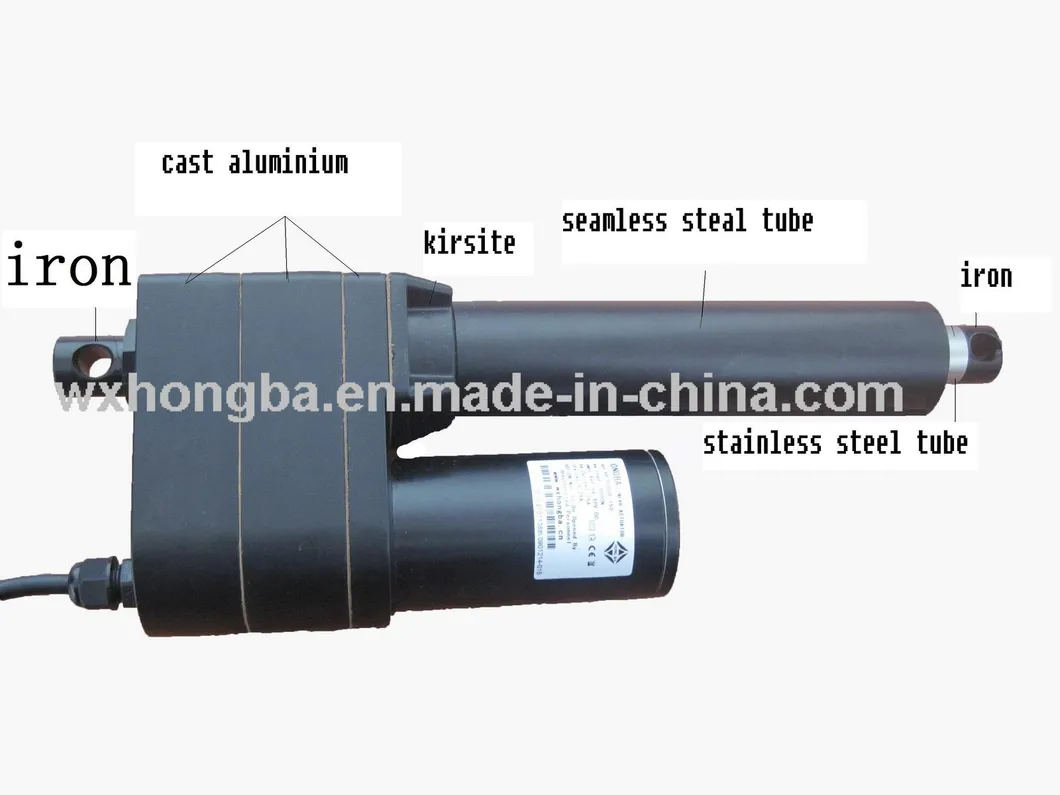

Material

Stainless Steel

Load

Heavy Duty

Screw Rod

Acme

Certifications

CE, ISO9001

Capacity

40000PCS/Month

Product Overview

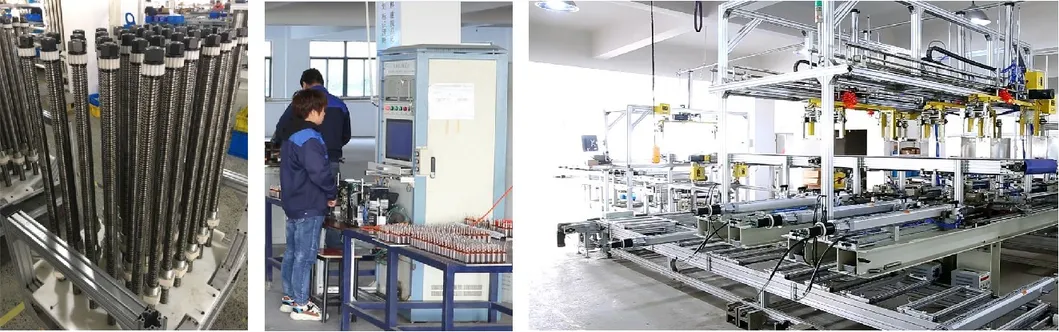

We are a professional manufacturer specialized in linear actuators. Our manufacturing processes are certified under QMS ISO9001 and CE/EMC+LVD standards. We provide high-quality solutions for global industrial applications.

Ordering Notice

To ensure we recommend the most suitable product and improve efficiency, please confirm the following specifications during your inquiry:

Required Voltage (12V/24V/36V/48V)
Max Load Capacity Requirement
Operation Speed (mm/s)
Stroke Length (mm)

Heavy-Duty Parameters

Load Capacity

7000N

Speed Range

5~40mm/s

Min Installation

A=250mm+S

Limit Switch

Built-in

Working Temp

-40~65°C

Protection Class

IP65

Duty Cycle

25% S4-16min

Control Mode

Wired, Wireless

Primary Competitive Advantages

Electronic Link & Experienced Technical Staff
Competitive Pricing & Superior Product Features
Robust Product Performance & Quality Approvals
Small Orders Accepted with Timely Delivery
Outstanding Customer Service and Integrity

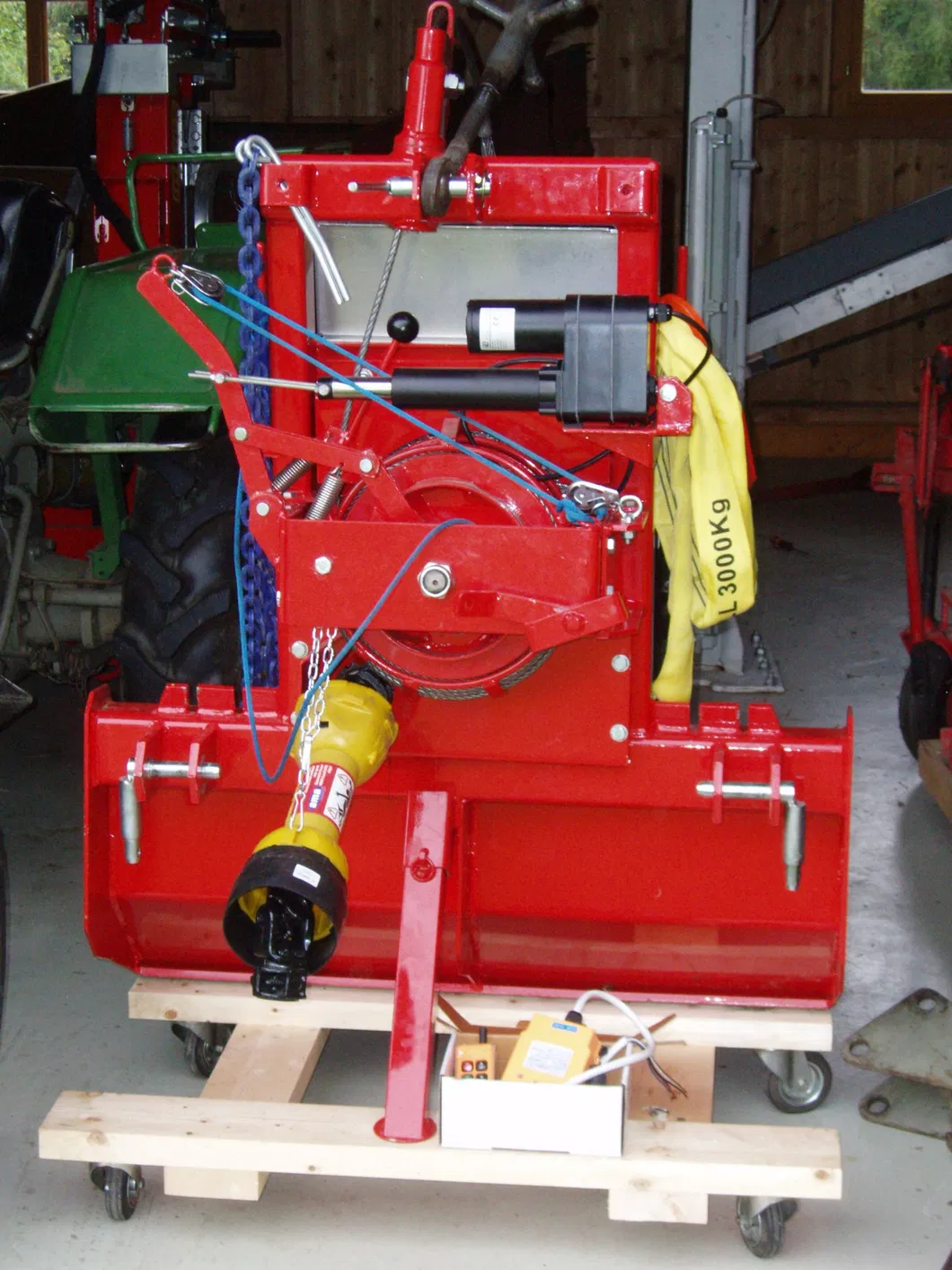

Industrial Applications

Our heavy-duty actuators are widely used across multiple sectors including Medical Care, Furniture, Sofa systems, Machinery, Chemicals, and Leisure equipment. They are specifically optimized for:

Medical beds and operating tables
Traction beds and massage/dental chairs
Industrial electric equipment and automation

Product Model Comparison

Model No.	Max Thrust	Standard Stroke	Min. Install Dim	Max Speed	Duty Cycle
HB-DJ801	6000N	50-300mm	175+Stroke	30mm/s	10%
HB-DJ802	1600N	30-330mm	160+Stroke	32mm/s	10%
HB-DJ806	1200N	20-300mm	105+Stroke	60mm/s	25%
HB-DJ807	6000N	50-300mm	175+Stroke	25mm/s	10%
HB-DJ808	7000N	100-400mm	250+Stroke	40mm/s	25%

Service & Logistics

Global Logistics: Fast delivery direct from China to major destinations (Europe, US, Australia, etc.) typically takes 5-10 days via DHL, TNT, UPS, FedEx, or EMS. Container shipping by sea is available for large orders.

Support: We provide quick replies within 24 hours and offer full customization services for our linear actuators to meet your specific project needs.

Frequently Asked Questions

Q1: What is the maximum load capacity of the HB-DJ808? The HB-DJ808 model is a heavy-duty actuator with a maximum thrust and pull capacity of up to 7000N.

Q2: Can the stroke length be customized? Yes, the standard stroke is between 100-400mm, but we can customize the stroke length up to 600mm based on your requirements.

Q3: Is this linear actuator suitable for outdoor use? Yes, the device features an IP65 protective class rating and can operate in temperatures ranging from -40°C to 65°C, making it suitable for demanding environments.

Q4: What voltage options are available for this motor? The actuator supports multiple DC voltage inputs including 12V, 24V, 36V, and 48VDC.

Q5: Does the actuator include safety limit switches? Yes, the HB-DJ808 comes with built-in internal limit switches to automatically stop the motor at the end of the stroke.

Q6: What is the duty cycle for this heavy-duty model? This model has a duty cycle of 25% (S4-16min), which is higher than many standard industrial actuators.
