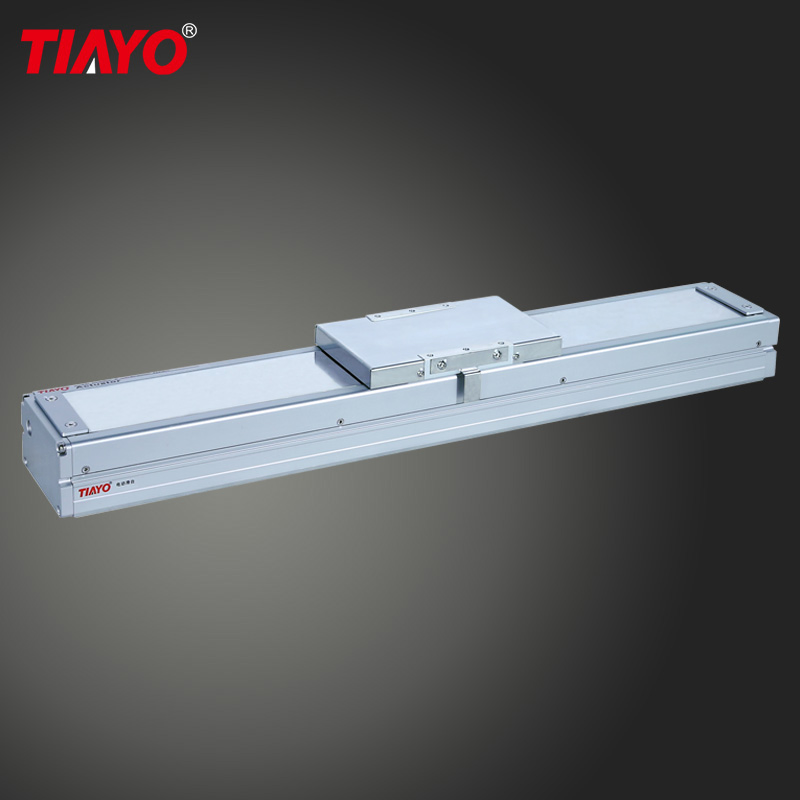

Linear Motor Dispenser Device for Large-Size LCD Glass Substrate Boards

1 / 5

Linear Motor Dispenser Device for Large-Size LCD Glass Substrate Boards

Customization:	Available
Application:	PC, LCD, PCB, PDP, Biotechnology, Semiconductor, etc
Carrying Capacity:	120kg

Send Inquiry

Product Description

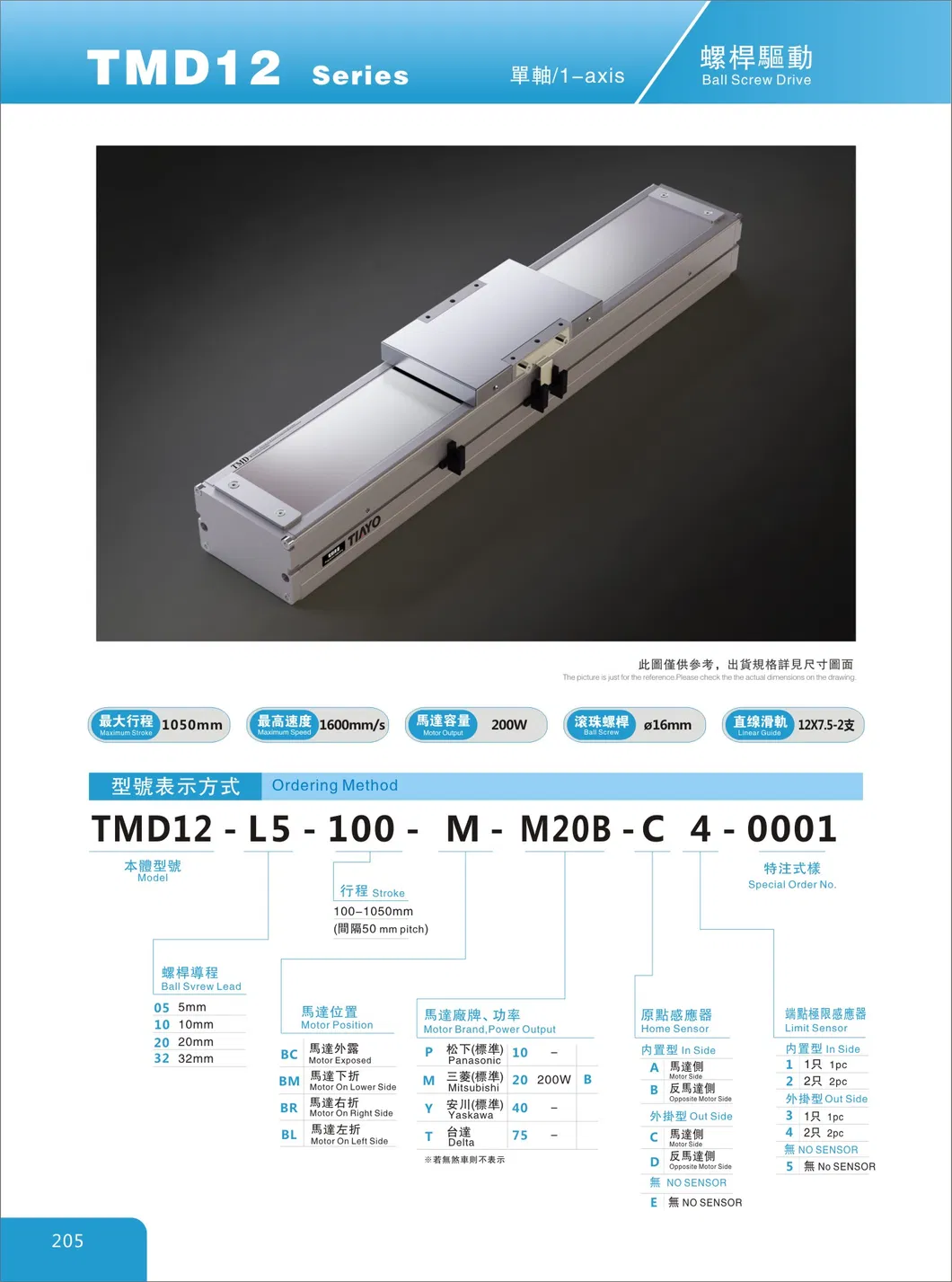

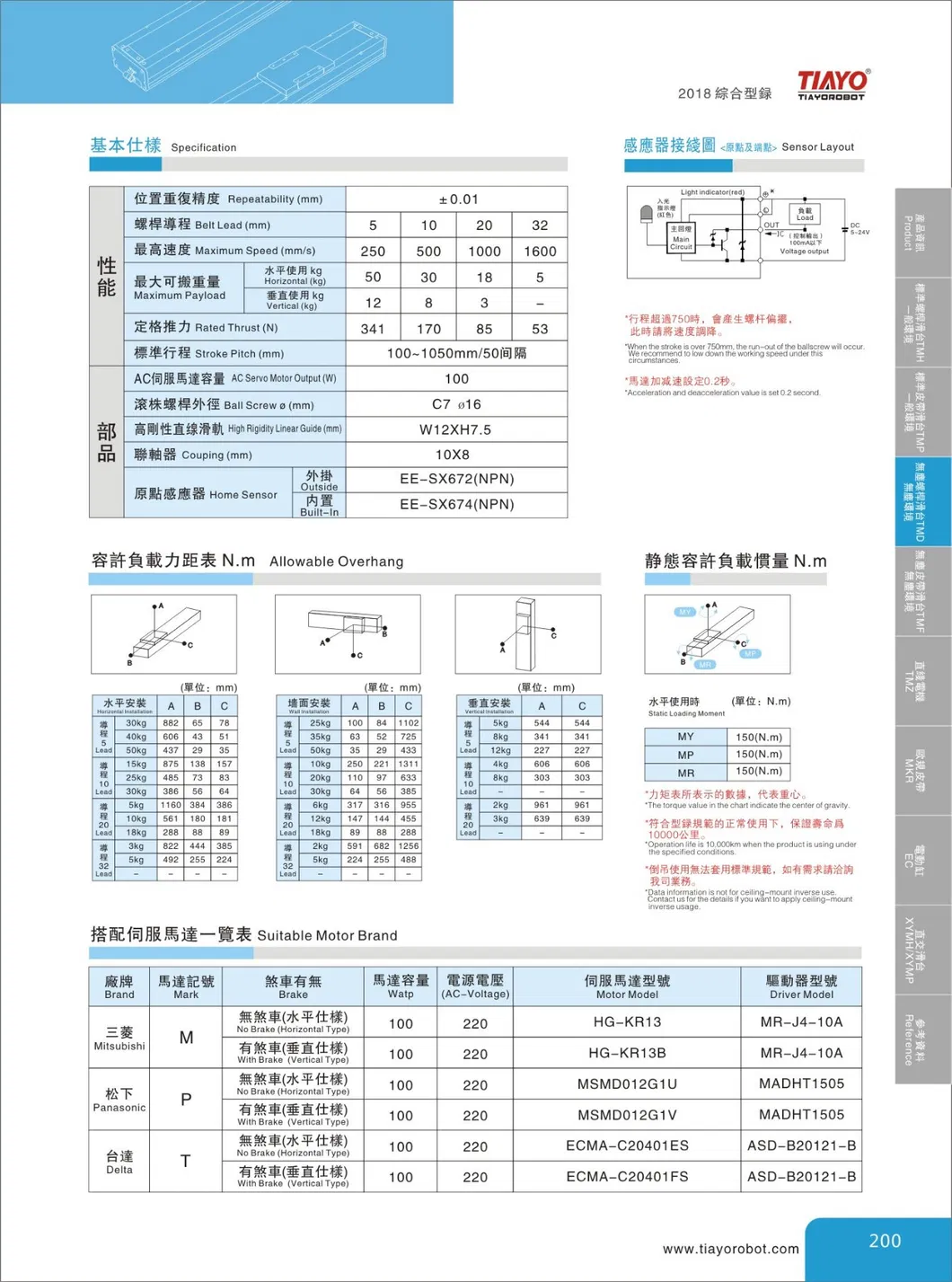

Technical Specifications

Material

Aluminium

Product Type

Ball Screw Linear Stage

Max Payload

Horizontal 50kg; Vertical 12kg

Accuracy

+-0.01mm

Maximum Stroke

100-1050mm

Maximum Speed

1600mm/S

Ball Screw

C7@16

Screw Lead

5/10/20/32mm

Linear Guide

W12 X H7.5

Couping

10 X 8 mm

Drive Motor

Step Motor, Servo Motor

Motor Position

Exposed/Lower Side/Right Side/Left Side

Sensor

Inside/Outside/No Sensor

Installation Way

Horizontal/Wall/Vertical

Warranty

24 Months

Structure

Semi-Sealed

Driven Type

Servo Motor

Capacity

5000 Sets/Month

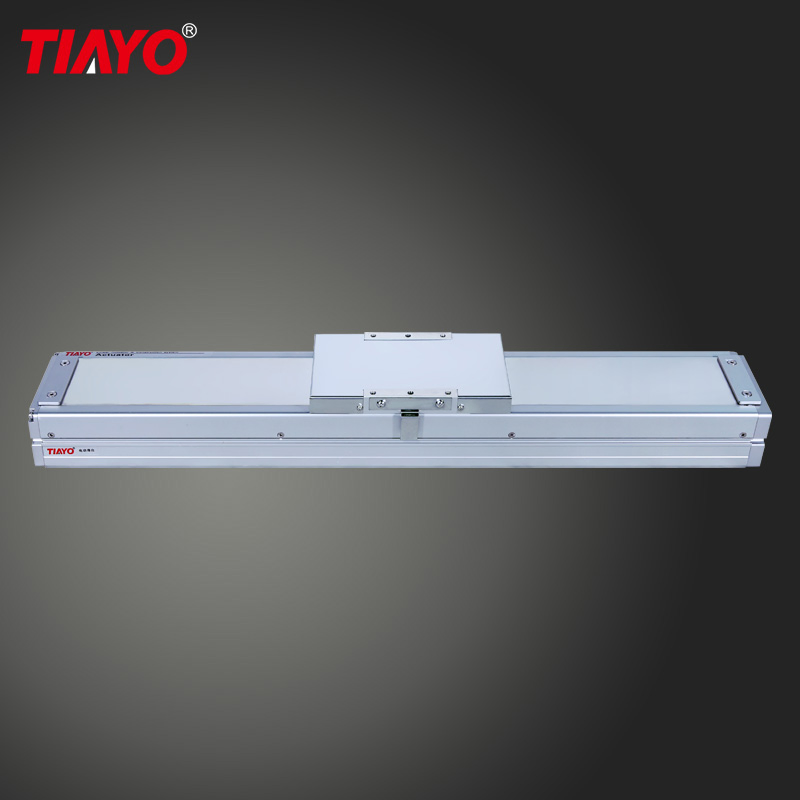

Product Features

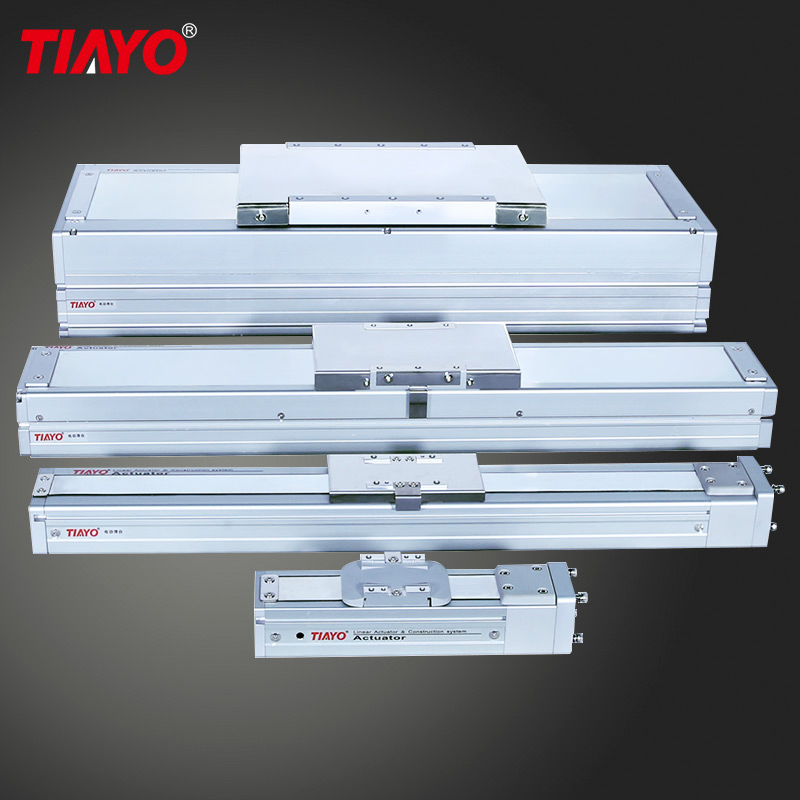

Series Linear Module

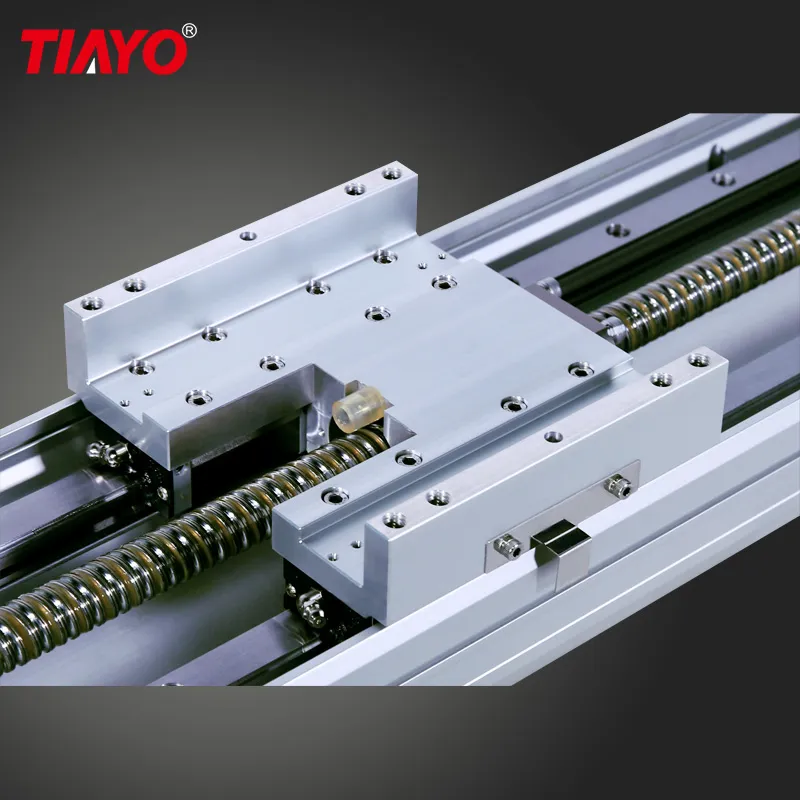

Equipped with two guides and one slider, this linear module offers high precision, multi-segment repeat positioning, and a compact structure with strong versatility.

Maximum stroke: 1050mm

Repeat accuracy: +-0.01mm

Maximum speed: 1600mm/s

High rigidity mainframe and cover: one-piece extruded aluminum structure

Easy maintenance and long stroke without speed reduction

Range of Application

Our linear modules can be used in combination with single or multiple axes. They are suitable for various industries including:

Electronics & Medical Equipment

IC Printing & CCD Online Inspection

Laser Cutting, Marking & Engraving

Precision Assembly & Machine Tools

3D Printing Equipment

Semiconductor Production

Our Professional Services

High-quality materials and mature processing methods.

Extensive product series available for various industrial needs.

2-year warranty provided for our products.

Customized processing based on provided technical drawings.

Standard delivery within 20 days under normal circumstances.

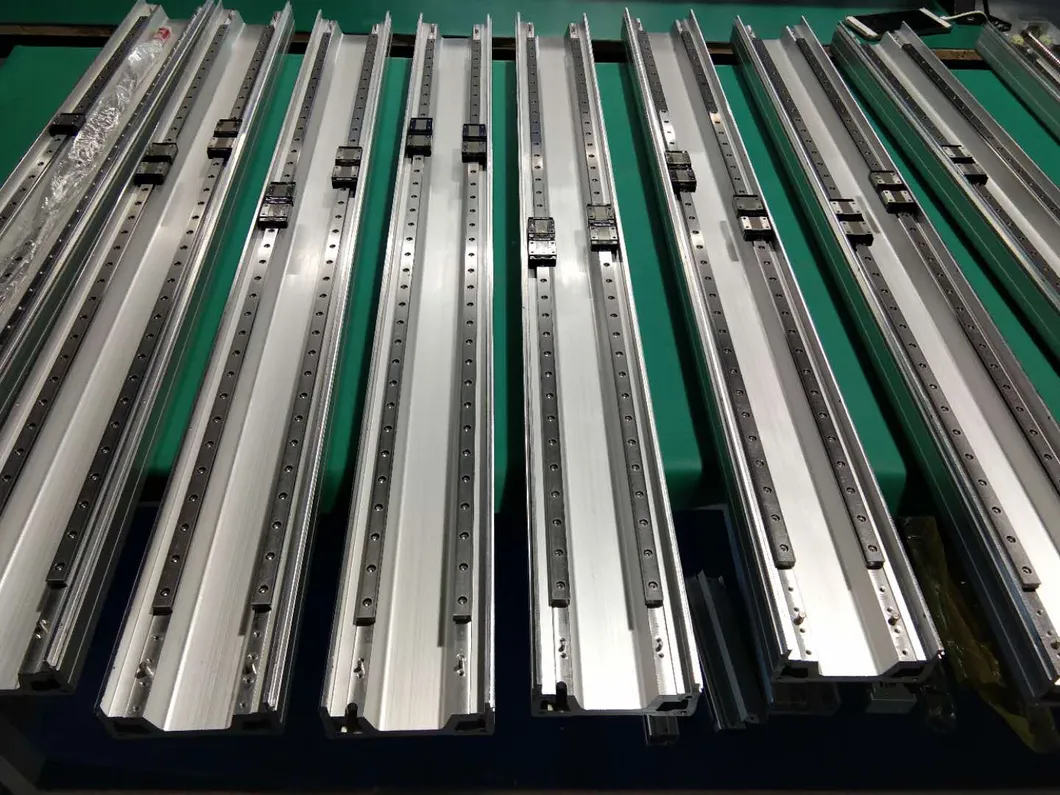

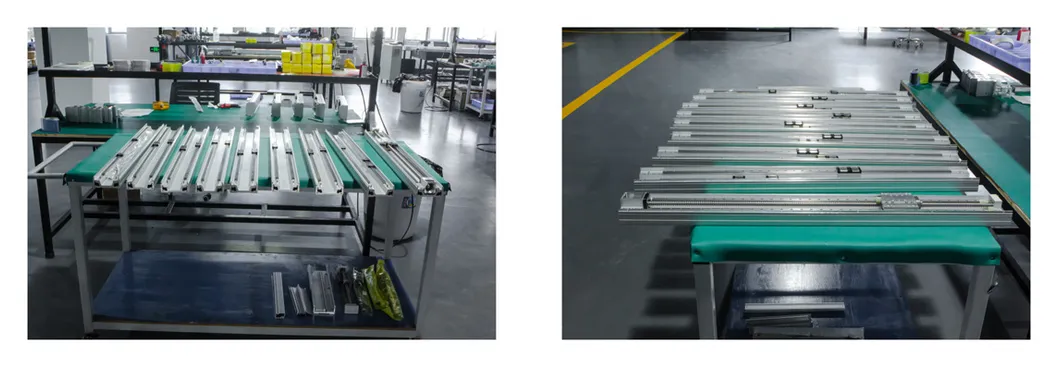

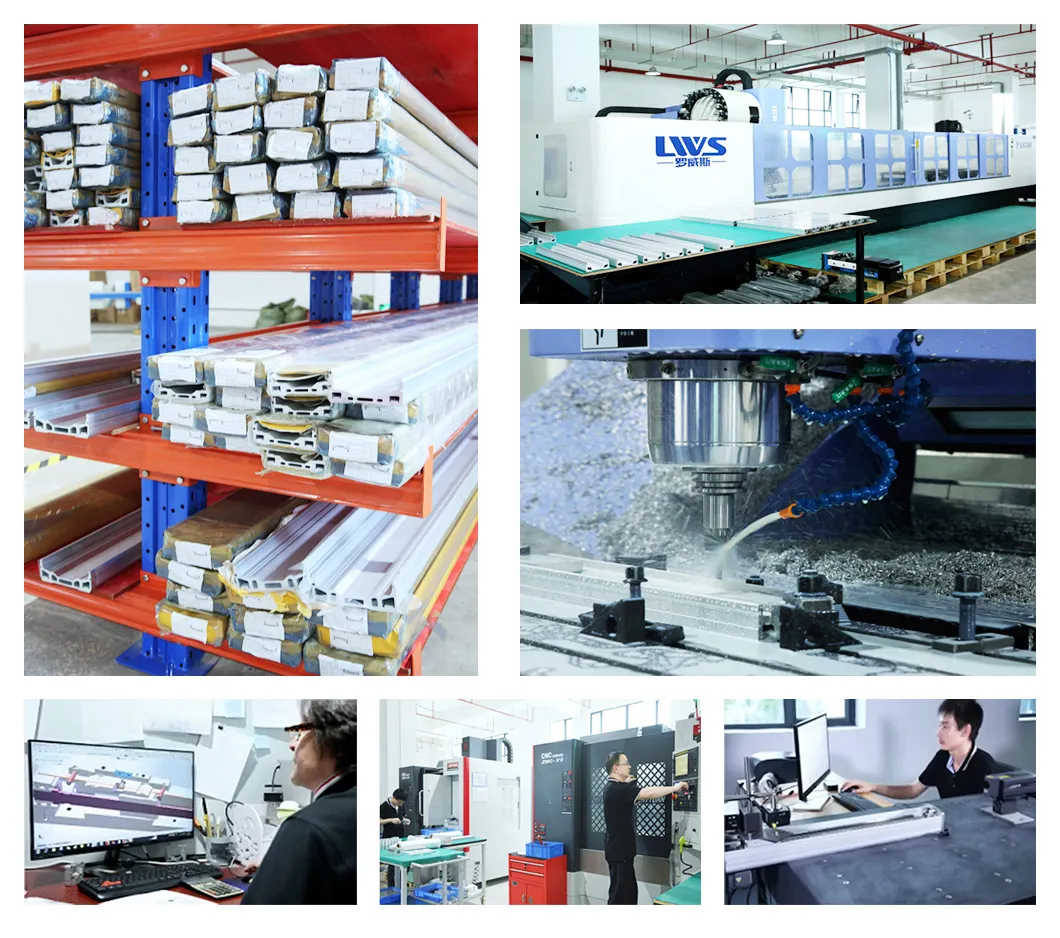

Production Excellence

Quality control starts from the material source. We accept OEM services to meet specific customization requirements for your automation projects.

Exhibition Presence

Frequently Asked Questions

Why choose our linear modules?

With over 10 years of experience, we provide strict inspection processes, high-quality products at reasonable prices, and efficient delivery from our warehouse.

How do you ensure product quality?

We implement ISO9001 quality management and use 3D testing equipment to ensure accuracy. All modules are 100% inspected before leaving the factory.

What are the available payment methods?

We accept several payment options for your convenience, including T/T (preferred), Western Union, and L/C.

What is your after-sales service policy?

We have a comprehensive after-sale system. If you receive defective goods, please contact us immediately for a professional resolution.

Can products be customized?

Yes, we provide OEM and customized services. Simply provide your technical drawings and requirements, and we will customize the solution for you.

What is the typical lead time for orders?

Under normal circumstances, goods are delivered within 20-25 days, depending on the specific order quantity.
