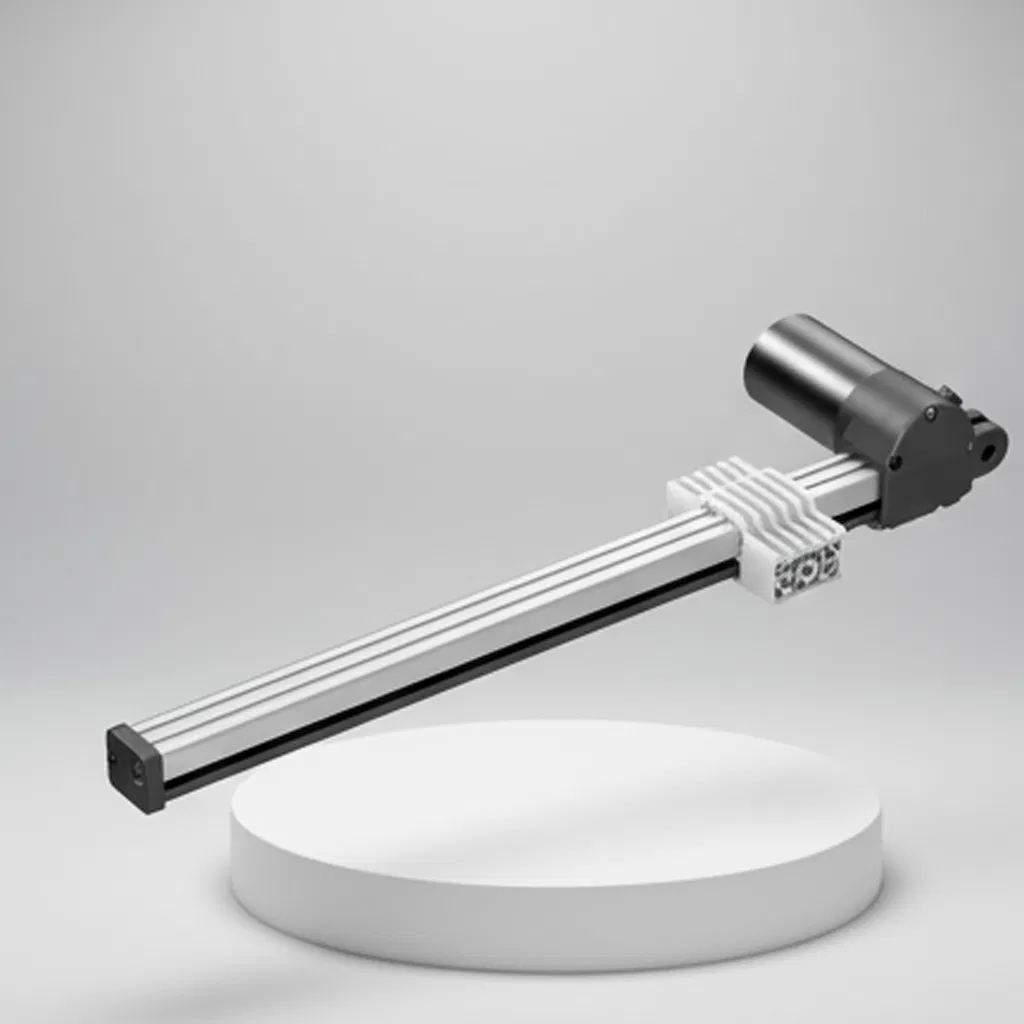

50-500mm Built-in Carton Export Packing Motor Mini Electr Actuat for Car 4000n Linear Actuator Jc35j1

i

Basic Information

Model NO.

JC35J1

Limit Switch

Built-in

Max Thrust

2000N

Standard Stroke

500mm

Voltage

24VDC

Load in Push

2000n

Load in Pull

1500n

IP Grade

Max. IP20

Input Voltage

24VDC

Stroke Length

50-500mm

Noise Level

50dB

Hall Sensor

Optional

Production Capacity

5000piece/Month

📦

Packaging & Delivery

Package Size

10.00cm * 10.00cm * 10.00cm

Gross Weight

5.000kg

Transport Package

Carton Export Packing

⚙️

Product Description

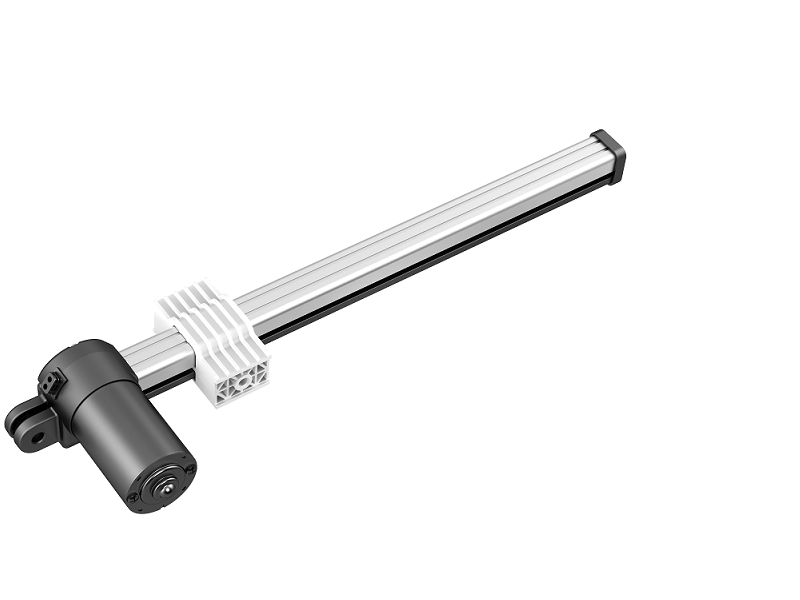

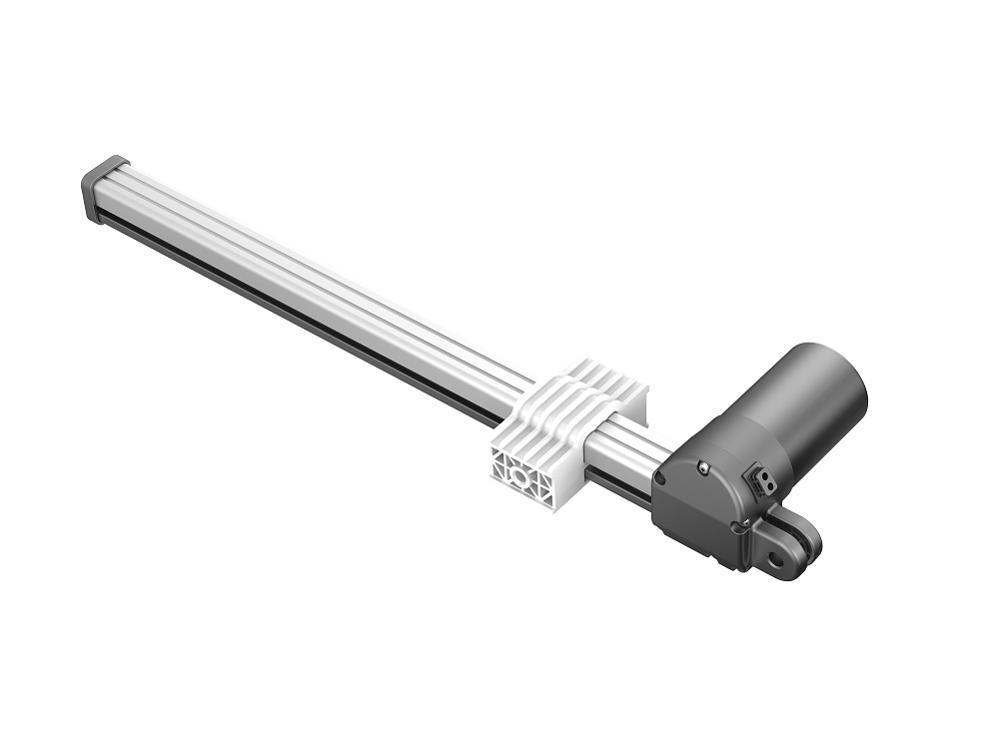

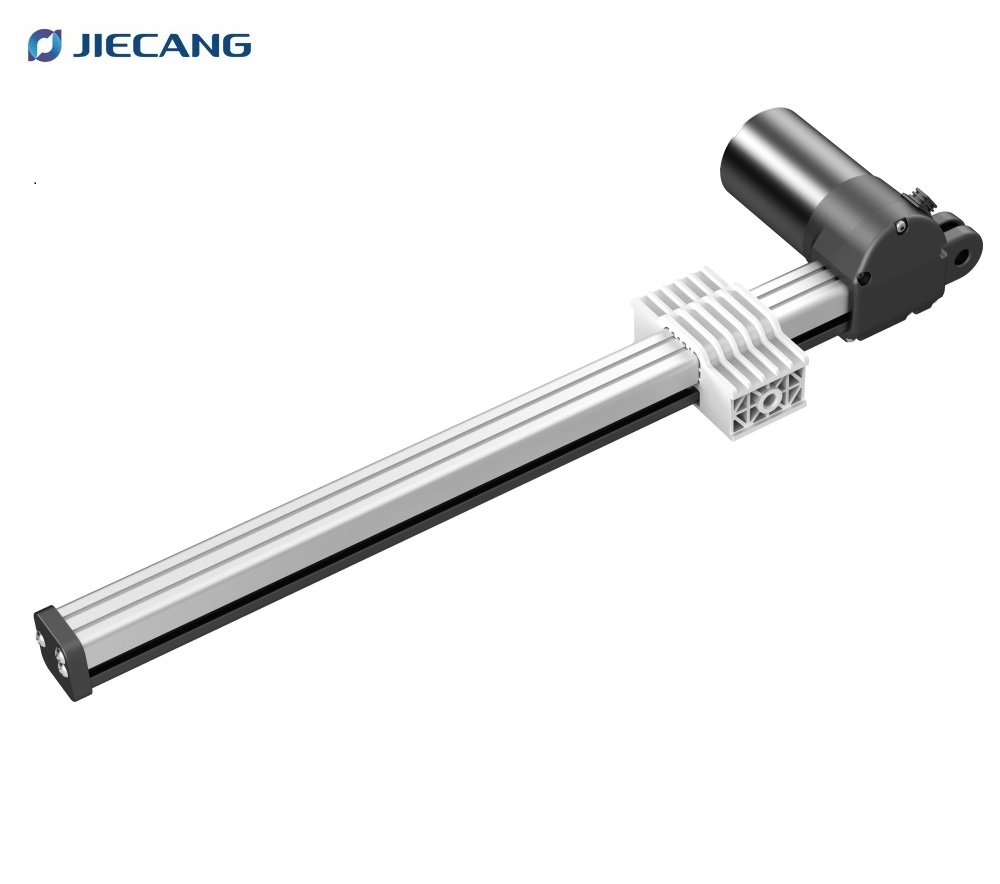

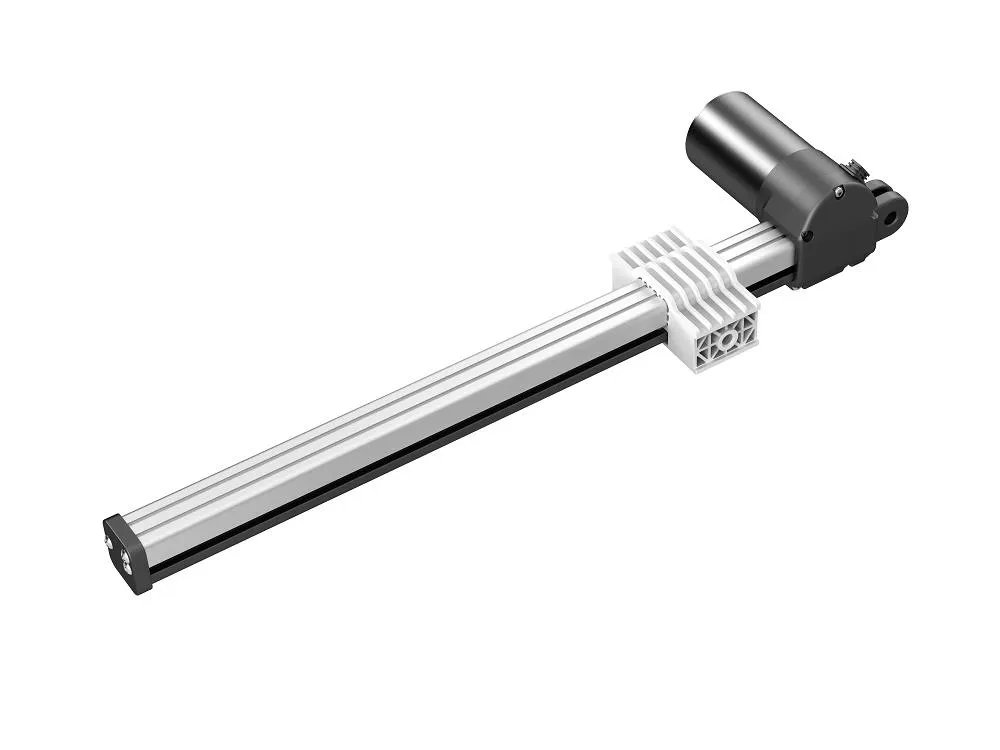

JC35J1 DC Electric Micro Motor 24V Linear Actuator

1. JC35J1 is an actuator with small-size and low noise, designed for smart furniture applications to provide advanced solutions for smart homes.

2. Perfectly suitable for smart leisure chairs, massage chairs, foot bath chairs, and other similar fields.

🏢

Profile

DRIVE A BETTER AND HIGH-QUALITY LIFE

Commitment to becoming a leading provider of linear drive solutions, creating smart and healthy emerging technologies to help partners succeed and drive a better and high-quality life.

❓

FAQ

Do you have relevant certifications?

Yes, so far we have received certifications including CE, TUV, UL, PSE, KC, SAA, ROSH, ISO9001:2015, and ISO14001:2015.

May I have a sample order before a bulk one?

Of course, we can provide a sample order for your evaluation and testing before proceeding with a bulk purchase.

What is the shipping port?

The primary shipping ports are Shanghai or Ningbo Port.

How can I get a quotation?

Please provide your details such as material, size, input voltage, load capacity, quantity, and speed requirements. Our sales team will then contact you with a formal quote.

What is the noise level of the JC35J1 actuator?

The noise level is approximately 50dB, making it ideal for quiet environments like smart homes and massage therapy rooms.

Is the stroke length customizable?

Yes, while the standard stroke is 500mm, it can be customized within the range of 50mm to 500mm based on your specific application needs.
