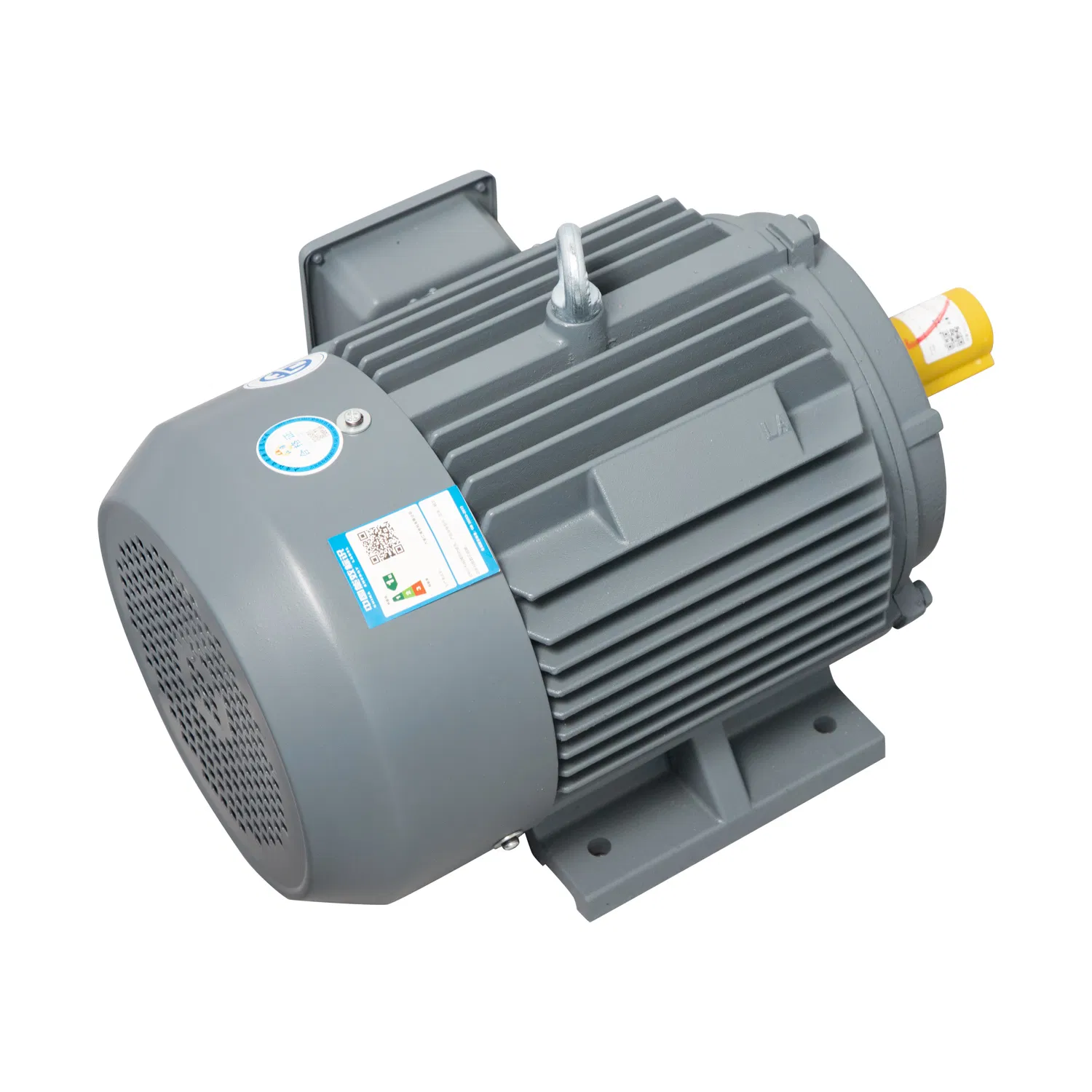

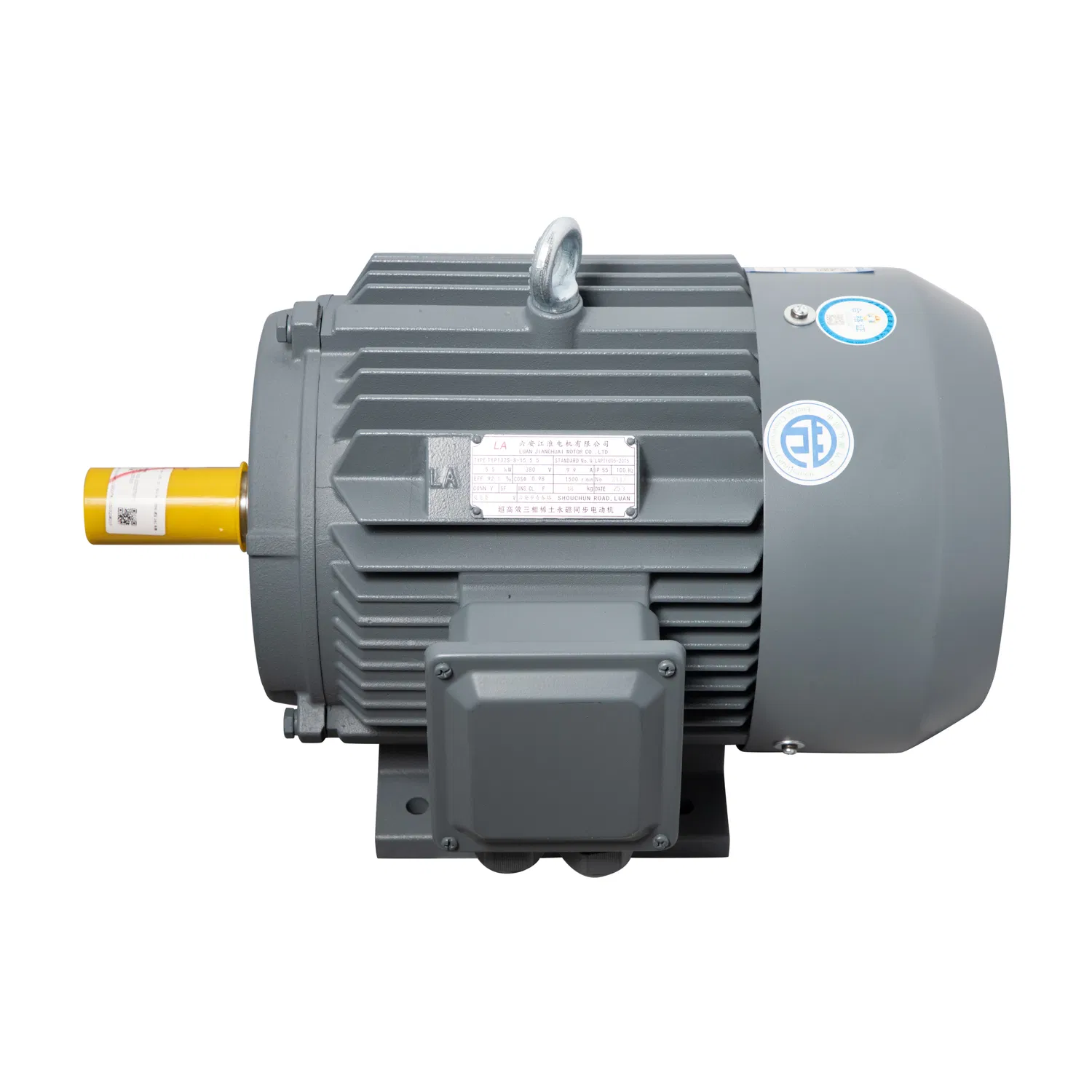

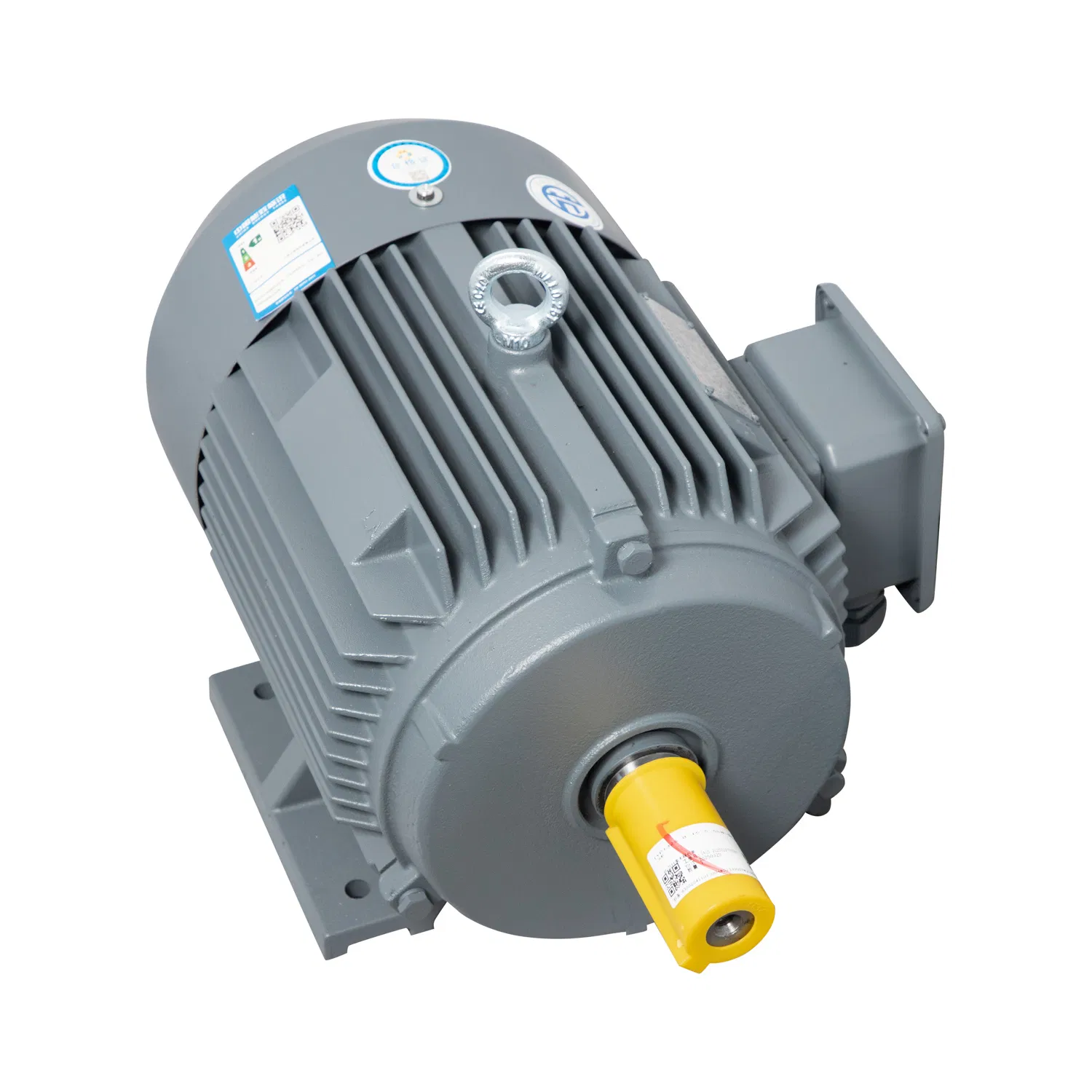

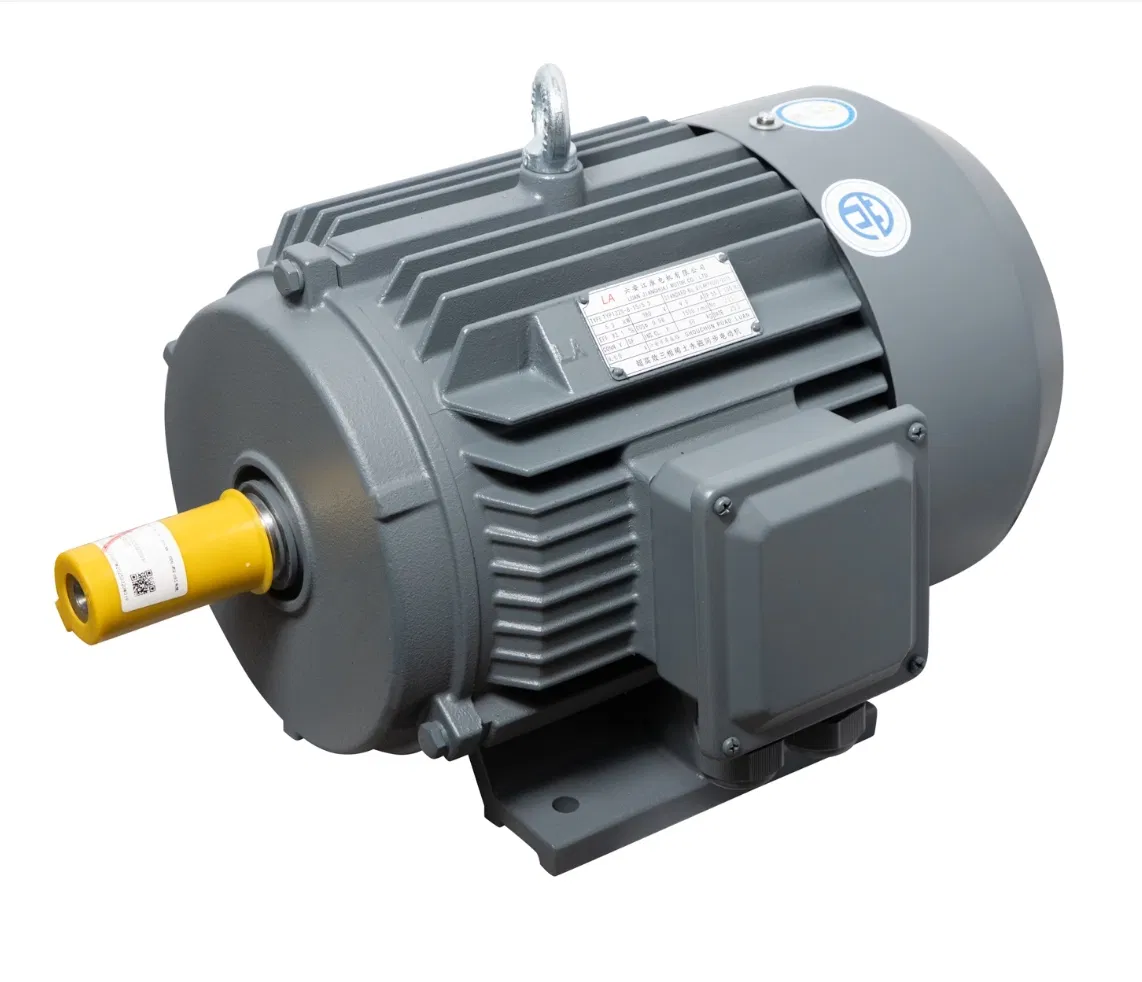

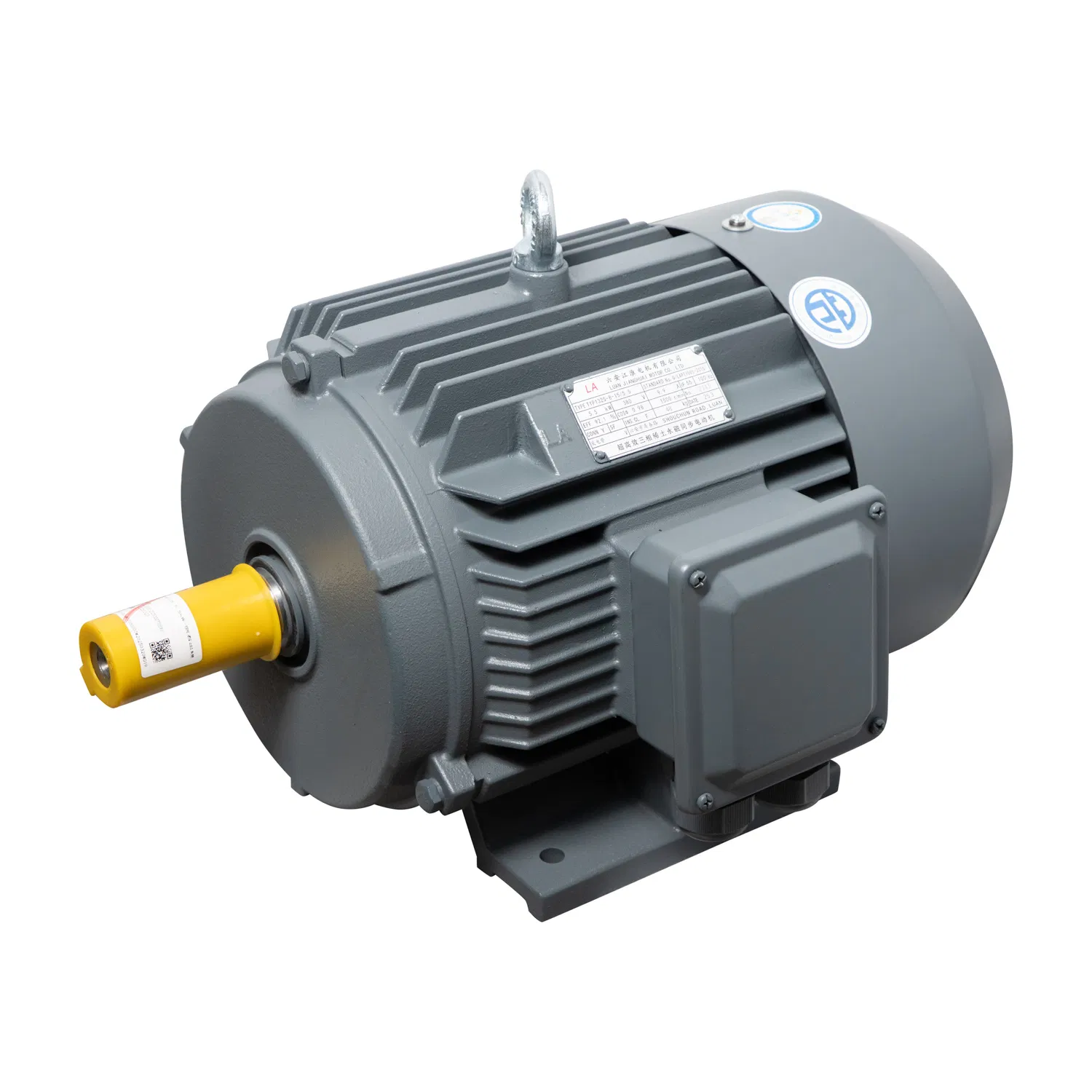

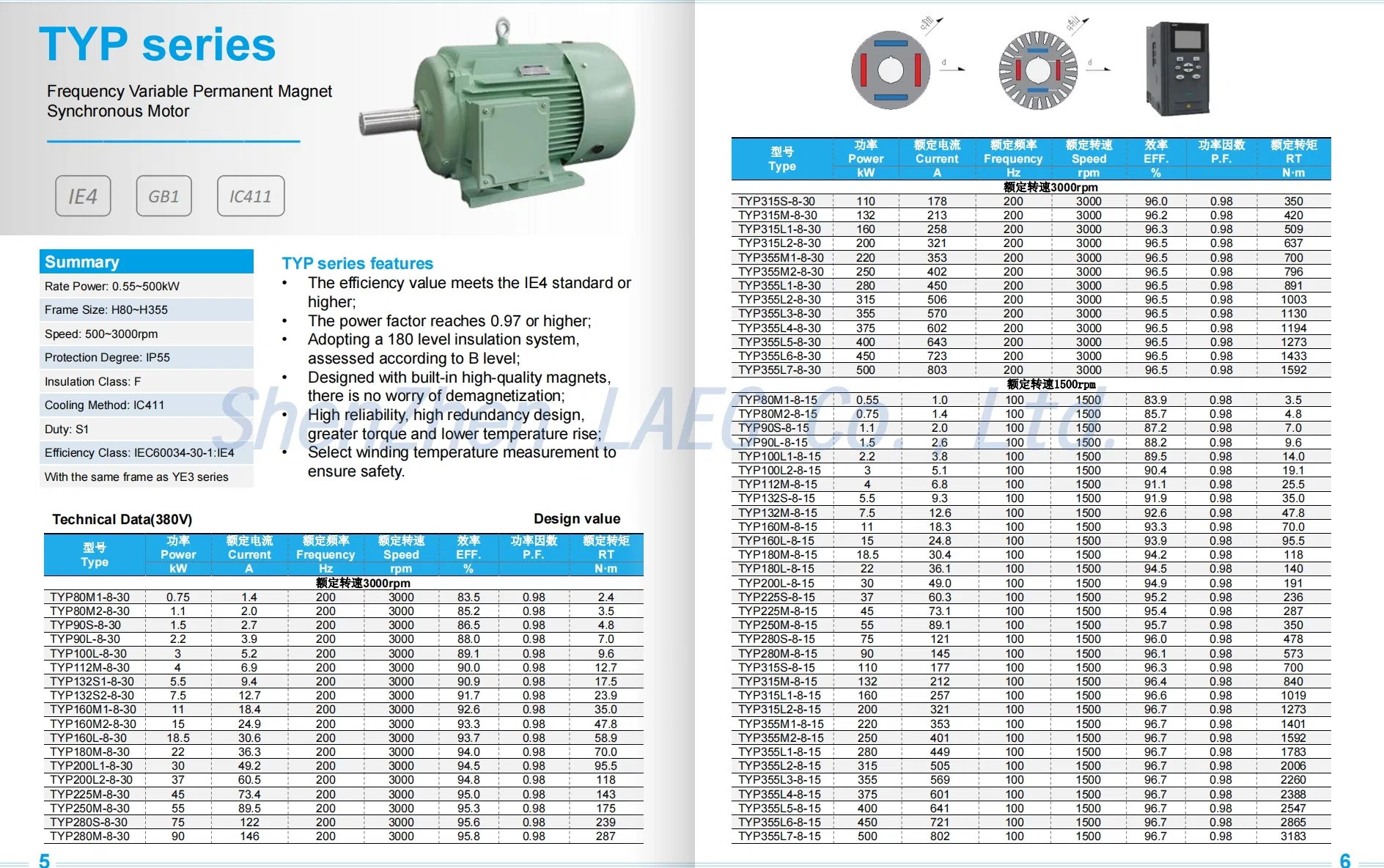

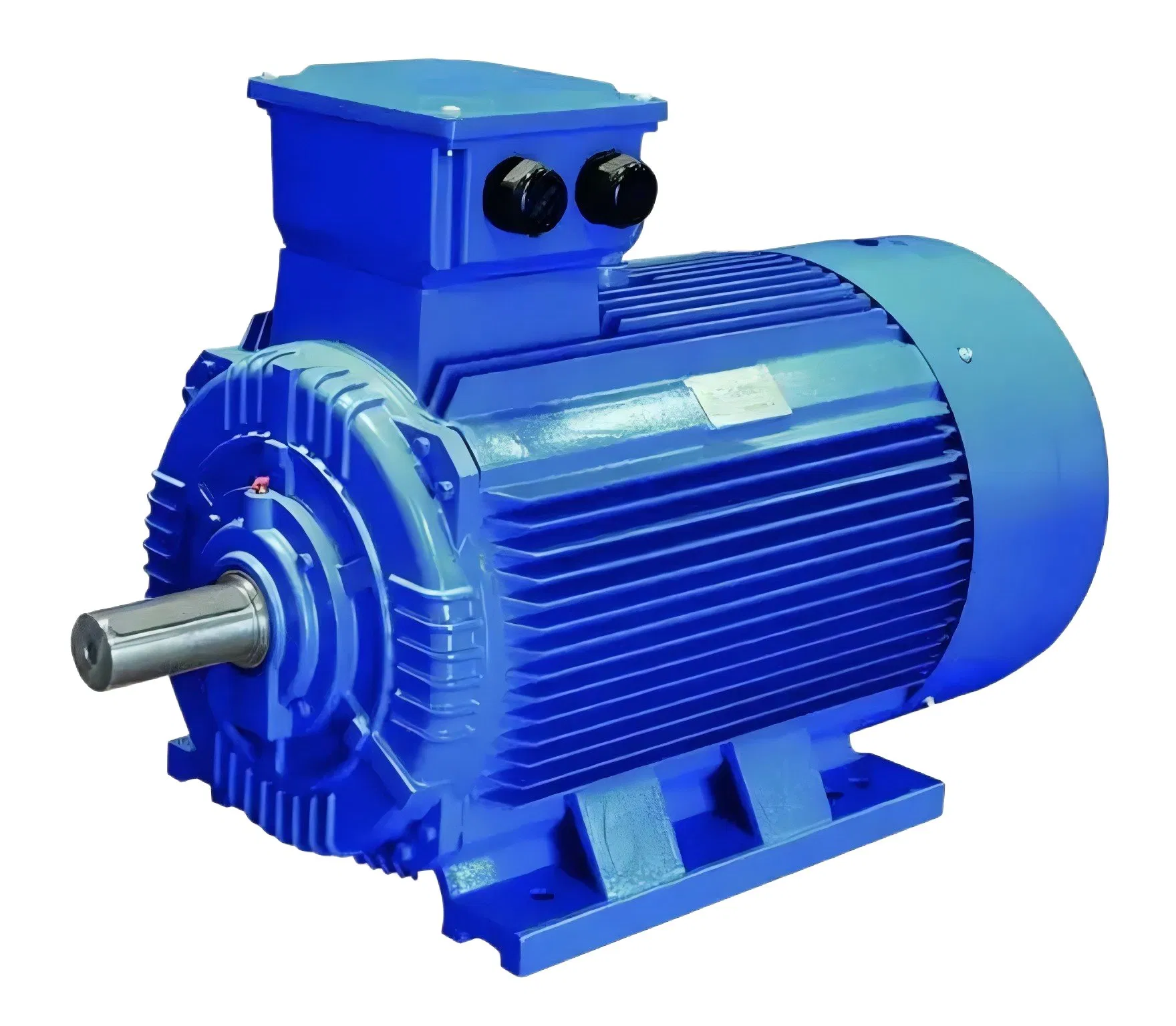

TYP Series Frequency Variable Permanent Magnet Synchronous Motors (H80~450mm) generate magnetic fields through permanent magnets on the rotor, offering high efficiency, large power density, and excellent dynamic response. Compared with ordinary asynchronous motors, they don't require excitation current, making them significantly more energy-efficient.
These motors adopt Squirrel Cage construction with steel plate welded frames for light weight and stiffness. Features include VPI (Vacuum Pressure Impregnation) varnish technology, Class F insulation, and advanced casting aluminum rotor cages. Protection classes range from IP44 to IP65 based on requirements.
| Rated voltage | 220V, 380V, 400V, 440V, 660V |
| Output power | 0.55KW~500KW |
| Poles | 2~12 |
| Protection Class | IP54, IP55, IP65 |
| Cooling Method | IC411 |
| Insulation Class | F class, H class |
| Starting Method | Direct Start, VFD start, Soft starter |
| Duty Cycle | Continuous (S1) |

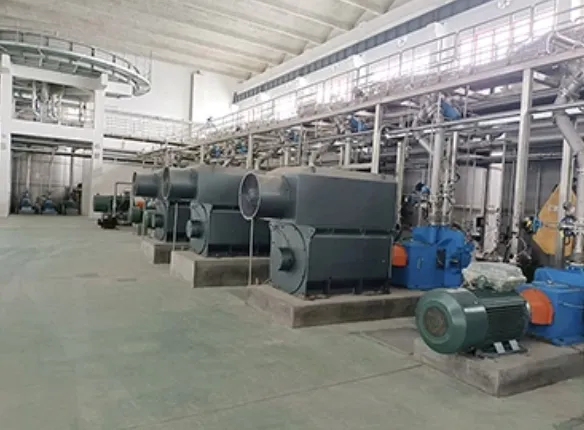

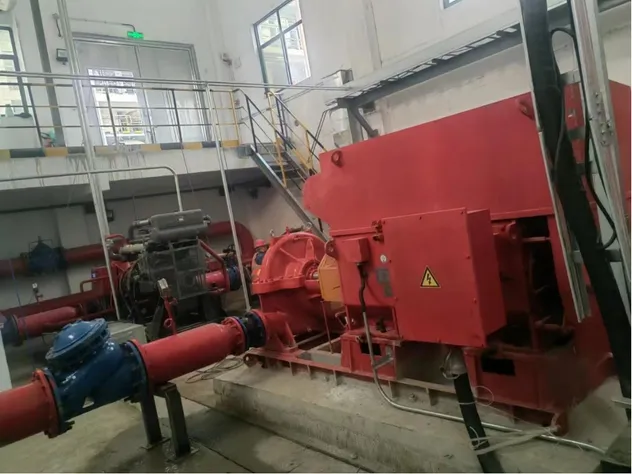

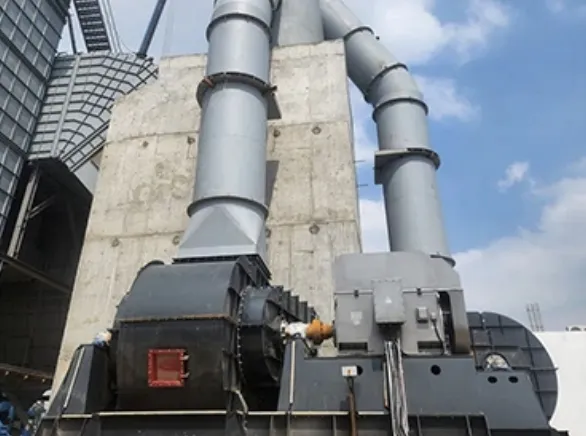

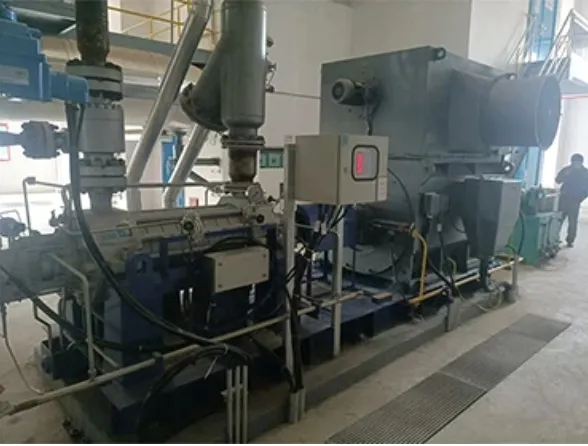

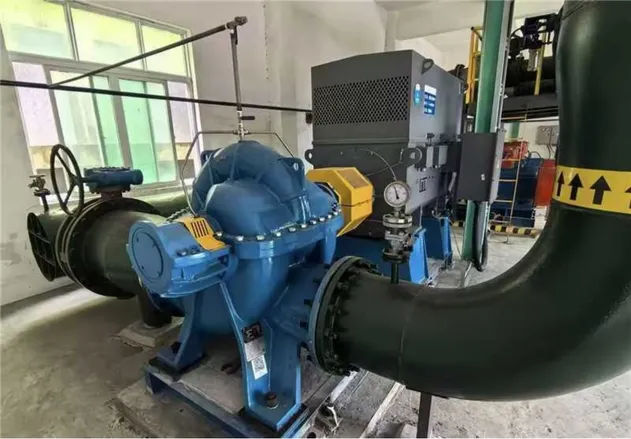

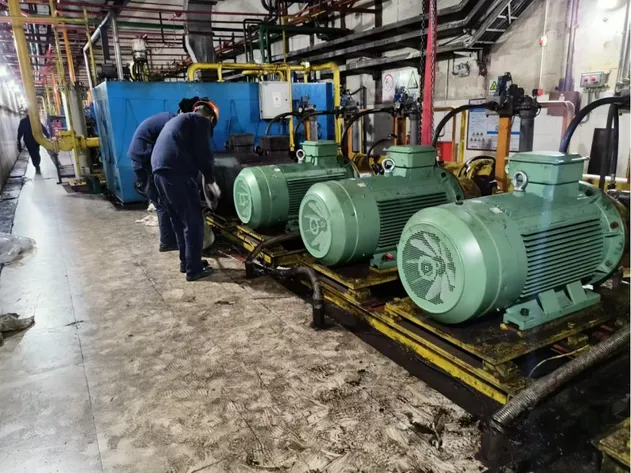

Ideal for machines requiring continuous duty, including:

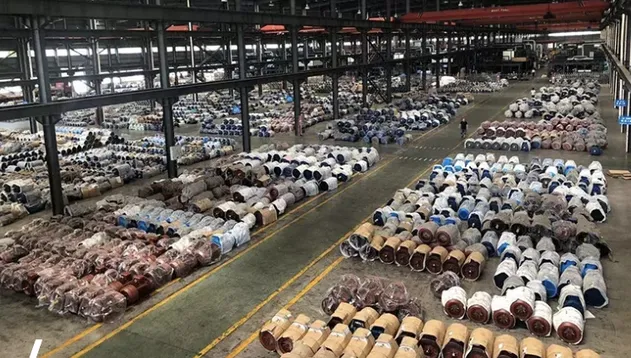

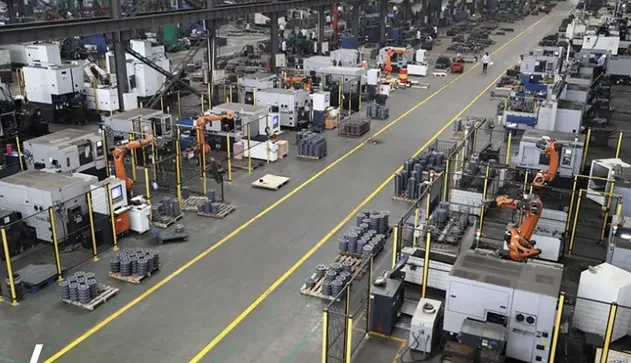

The manufacturing facility covers an area of 614 acres, featuring more than 1,500 sets of processing and testing equipment and 12 assembly production lines. With over 50 years of development, the enterprise has established a robust network for small and medium-sized motor production.
Our products hold CE, CCC, and ISO international certificates, ensuring compliance with global quality and safety standards.
