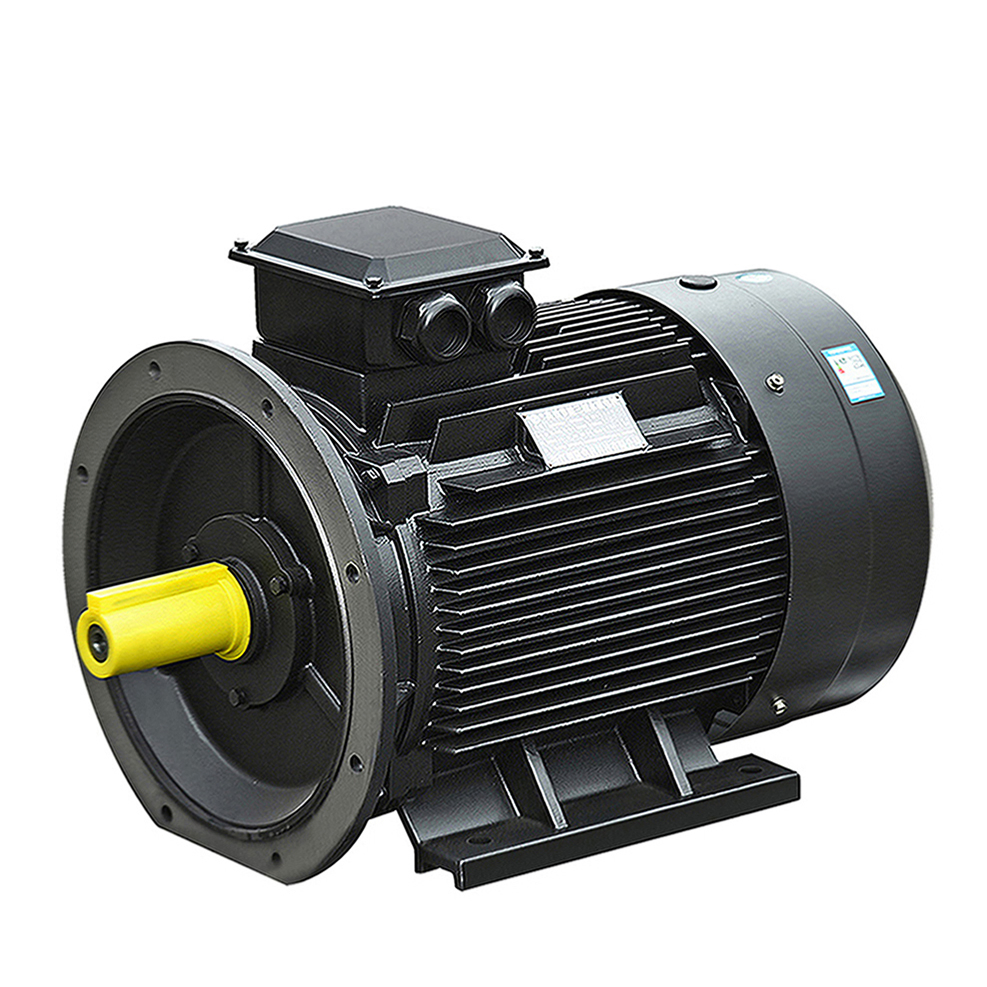

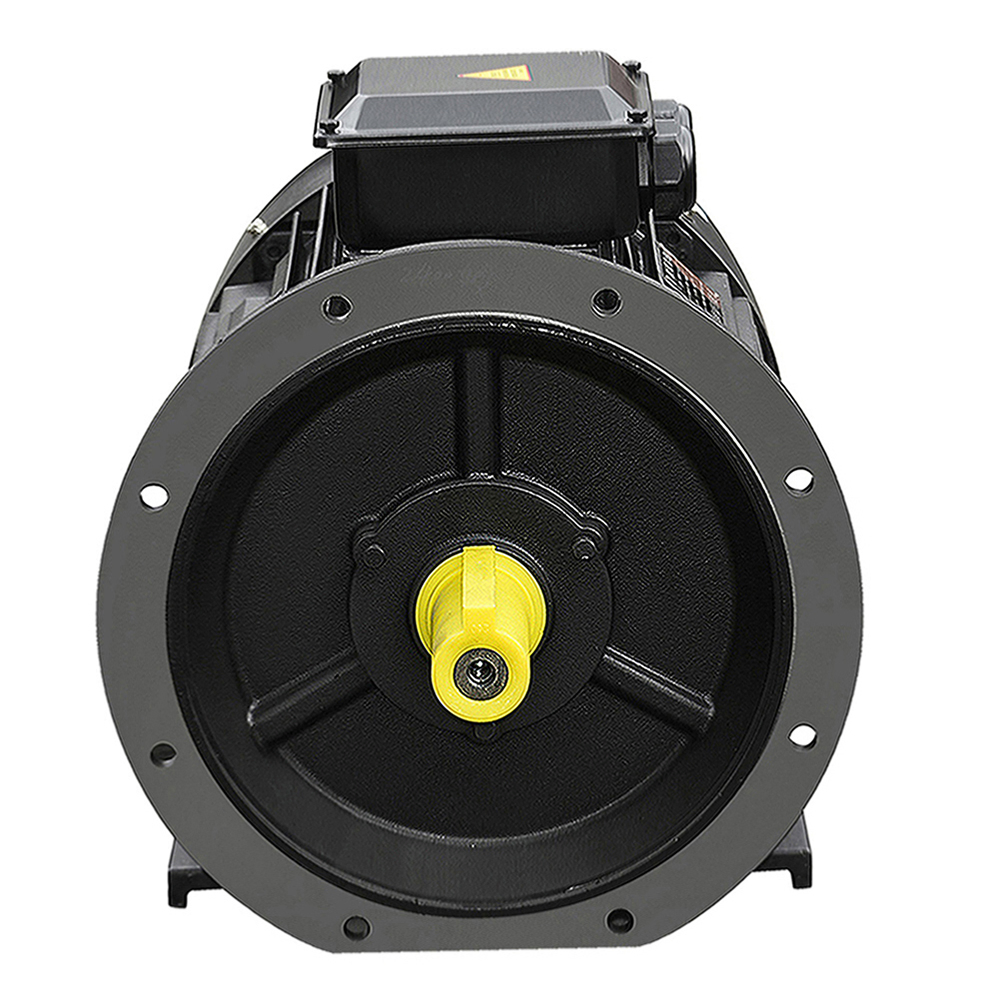

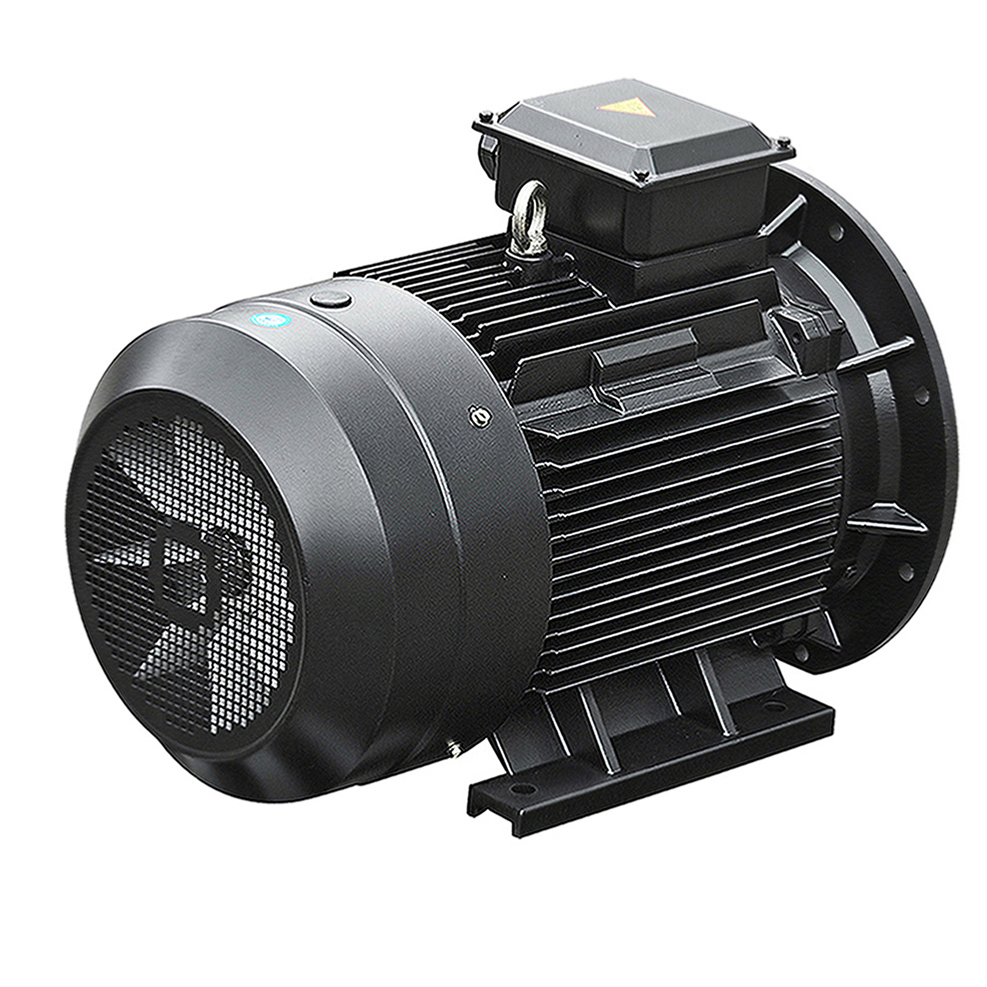

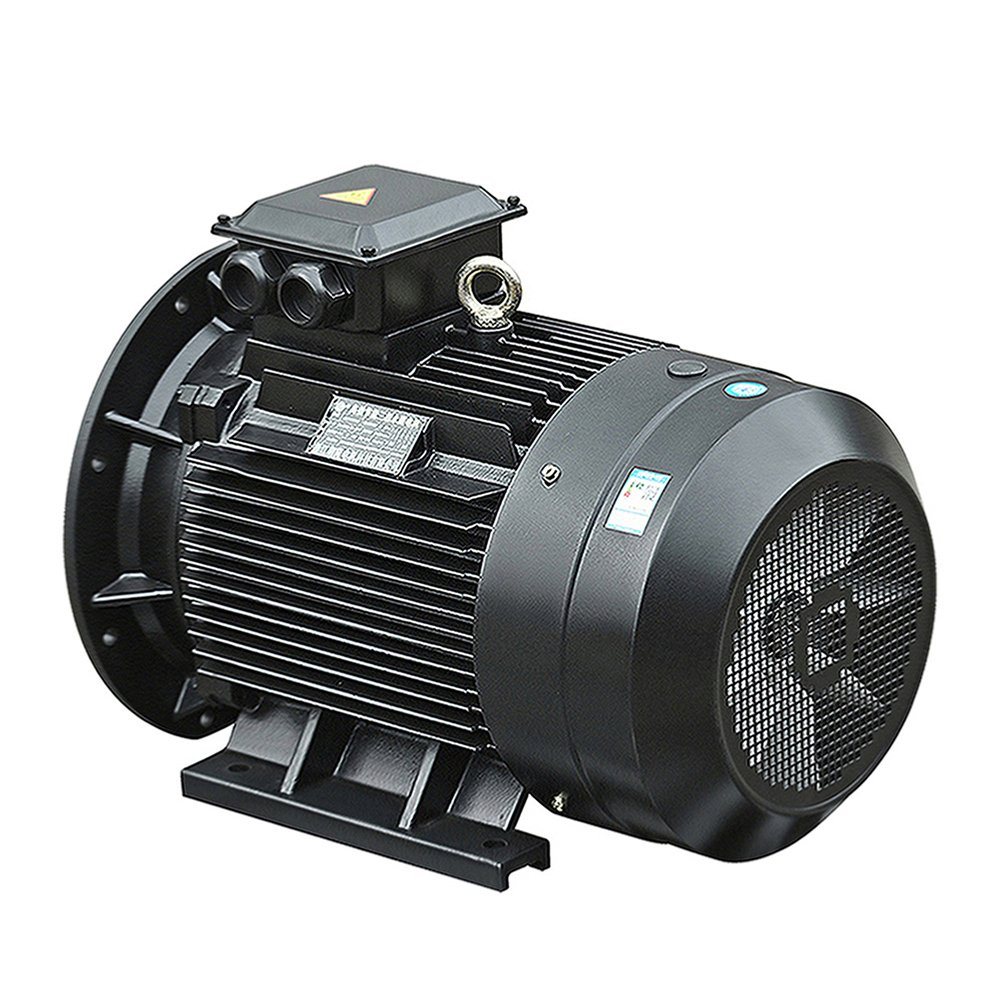

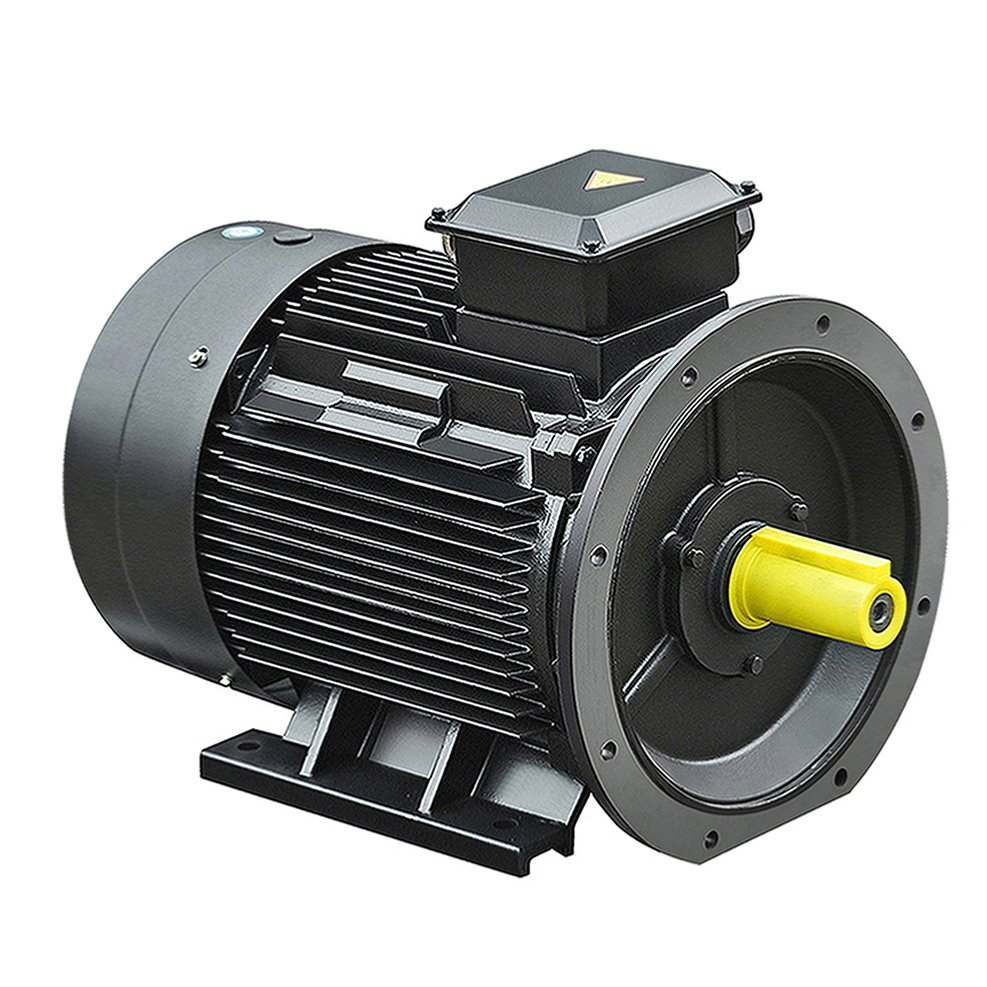

Ultra-High Efficiency Ie5 Permanent Magnet AC Electrical Electric Motors with Low Voltage
Ultra-High Efficiency Ie5 Permanent Magnet AC Electrical Electric Motors with Low Voltage
Ultra-High Efficiency Ie5 Permanent Magnet AC Electrical Electric Motors with Low Voltage
Ultra-High Efficiency Ie5 Permanent Magnet AC Electrical Electric Motors with Low Voltage
Ultra-High Efficiency Ie5 Permanent Magnet AC Electrical Electric Motors with Low Voltage
1 / 5
Ultra-High Efficiency Ie5 Permanent Magnet AC Electrical Electric Motors with Low Voltage
Ultra-High Efficiency Ie5 Permanent Magnet AC Electrical Electric Motors with Low Voltage
Ultra-High Efficiency Ie5 Permanent Magnet AC Electrical Electric Motors with Low Voltage
Ultra-High Efficiency Ie5 Permanent Magnet AC Electrical Electric Motors with Low Voltage
Ultra-High Efficiency Ie5 Permanent Magnet AC Electrical Electric Motors with Low Voltage

Ultra-High Efficiency Ie5 Permanent Magnet AC Electrical Electric Motors with Low Voltage

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info & Specifications
Model NO.
ALTYP132S2-4(7.5KW)
Number of Stator
Three-Phase
Function
Driving
Casing Protection
Closed Type
Number of Poles
4
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC, Explosion Proof Motor Test Report
Insulation Class
F
Voltage
220V, 380V, 440V, 660V and Others
Winding
100% Pure Copper
Package Size
56.00cm * 50.00cm * 50.00cm
Gross Weight
25.000kg
Product Description
Electric Motor

The YBX4-BT4 series flameproof ultra-high efficiency three-phase asynchronous motor is a fully enclosed, self-fan cooling squirrel cage motor manufactured using new materials and optimized design. It meets energy efficiency level 2 (GB18613-2020), consistent with IE4 of IEC60034-30. The explosion-proof marks are: Ex db I AT4/BT4 Mb, Ex db II AT4/BT4/CT4 Gb.

The YBX4-CT4 series dust explosion-proof motor meets standards GB12476.1-2013 and GB12476.5-2013. Designation: Ex tD A21 IP65 T130ºC and Ex tD A22 IP65 T130ºC.

Explosion Proof Electric Motors Parameter (380V 50Hz)
Type KW HP Rated Current(A) Speed(r/min) Efficiency(%) Power Factor
YBX4-80M1-20.7511.7288080.70.82
YBX4-90S-21.523.2289084.20.84
YBX4-100L-2346.0291087.10.87
YBX4-132S2-27.51014.4294090.10.88
YBX4-160L-218.52534.2295092.40.89
YBX4-200L2-2375067.4297593.70.89
YBX4-315L2-2200270349297595.80.91
Our Quality Control Advantages
  • 100% Inspection: Incoming parts and finished motors are 100% tested according to standards.
  • Premium Winding: 100% pure copper 180# enamelware wire from famous brands.
  • High-End Steel: IE4/IE5 motors use high-end 270# silicon steel sheets (0.35mm thickness).
  • Advanced Dipping: Vacuum dipping and multi-stage drying (up to 135°C) ensure superior insulation.
  • Superior Components: Famous brand bearings (Tianma/Renben) with high/low temperature grease.
  • Rotor Precision: Hot sleeve assembling (450-500°C) for higher balance accuracy.
  • Durable Shells: Unique junction box design, waterproof and wired from both sides.
Motor Features
Frame Size
H63 - 450
Power Range
0.75 - 630KW
Rated Frequency
50Hz / 60Hz
Protection Class
IP54 to IP65
Duty Cycle
Continuous (S1)
Cooling Method
IC411 Standards
Product Gallery

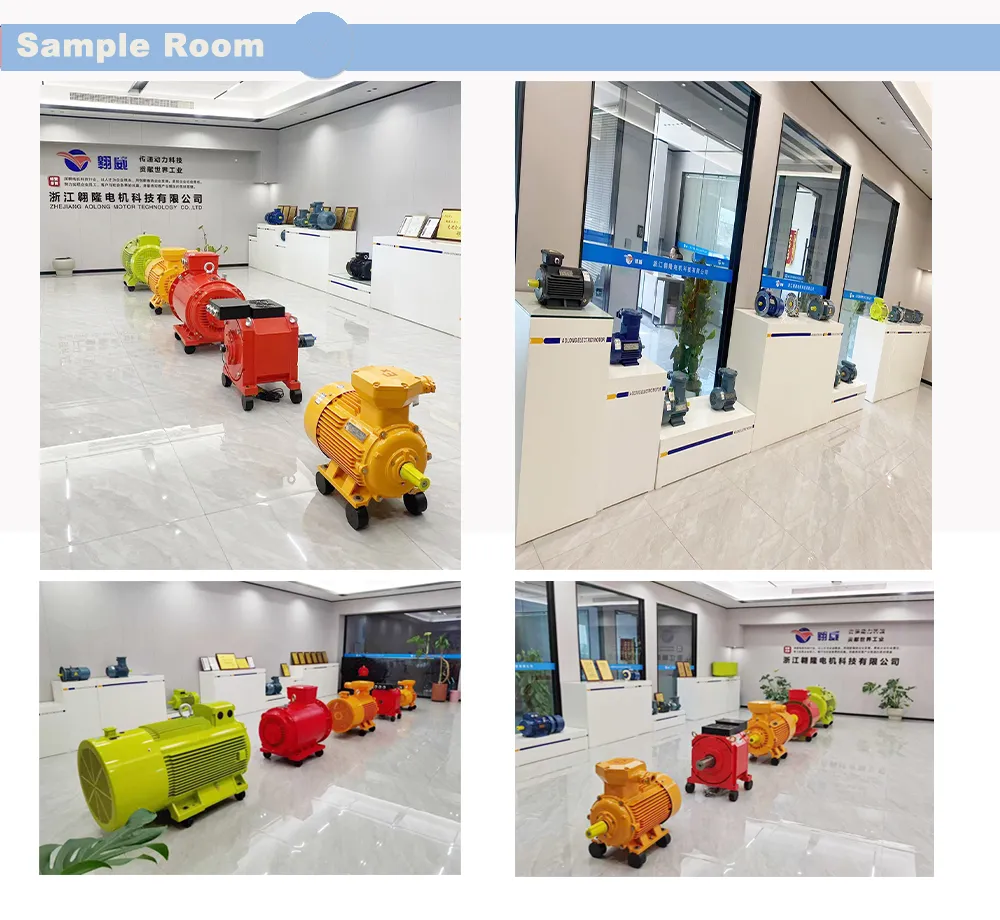

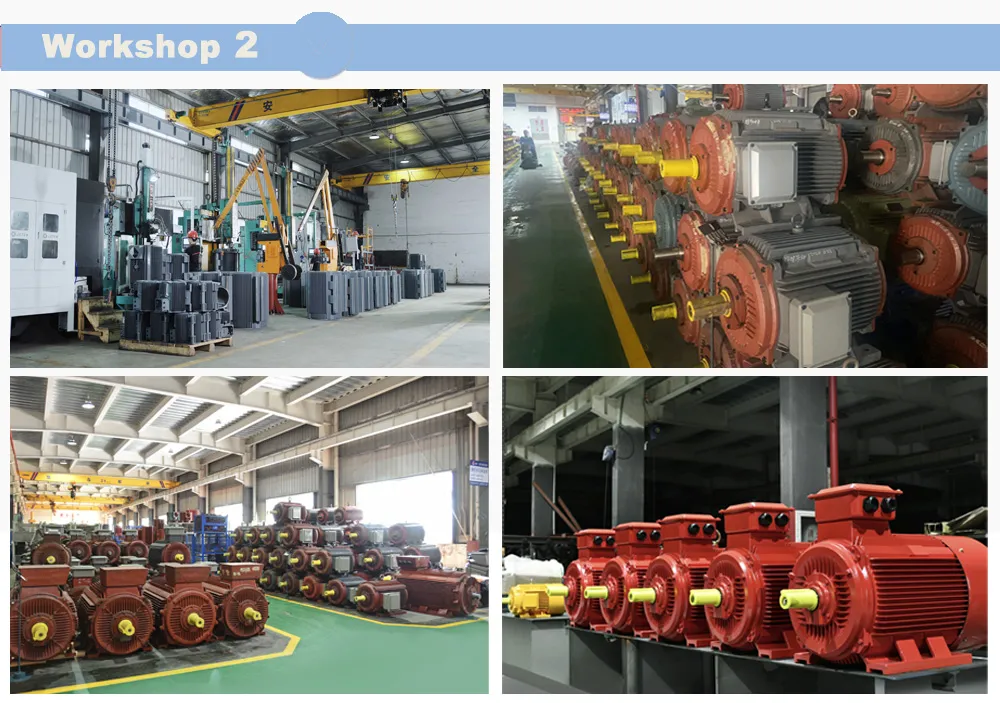

Motor Overview 1 Motor Overview 2 Motor Application 1 Motor Application 2 Technical Drawing 1 Technical Drawing 2
Frequently Asked Questions
Are you a factory or a trading company?
We are a professional factory focusing on manufacturing and developing high-quality electric motors for more than 36 years.
Is customized service available?
Yes, both OEM and ODM services are available to meet your specific requirements.
How do you ensure quality control?
We implement professional standards including 100% inspection of incoming parts, process testing, and a final check before packing.
What is the lead time for orders?
Typically, delivery takes about 15-30 days after receiving the deposit or original L/C.
What certifications do your motors have?
Our products are certified with CE, ISO9001-2015, CCC, and specific Explosion Proof certificates with test reports.
What is your warranty policy?
We provide a one-year quality warranty. During this period, we supply easily damaged parts freely for any non-operational issues.
