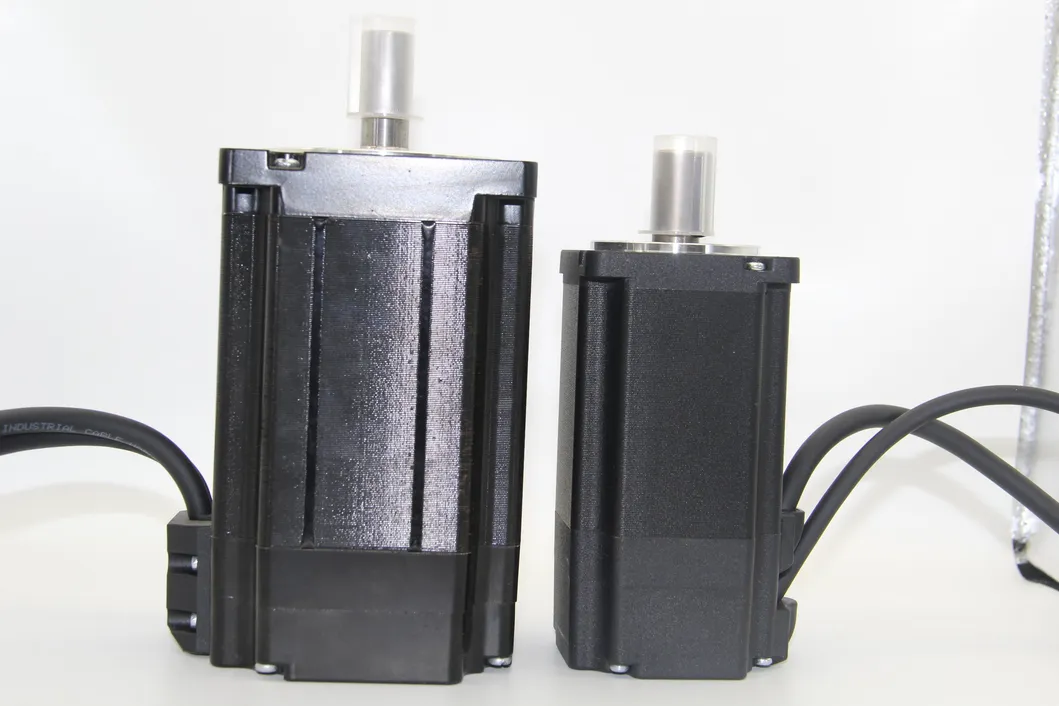

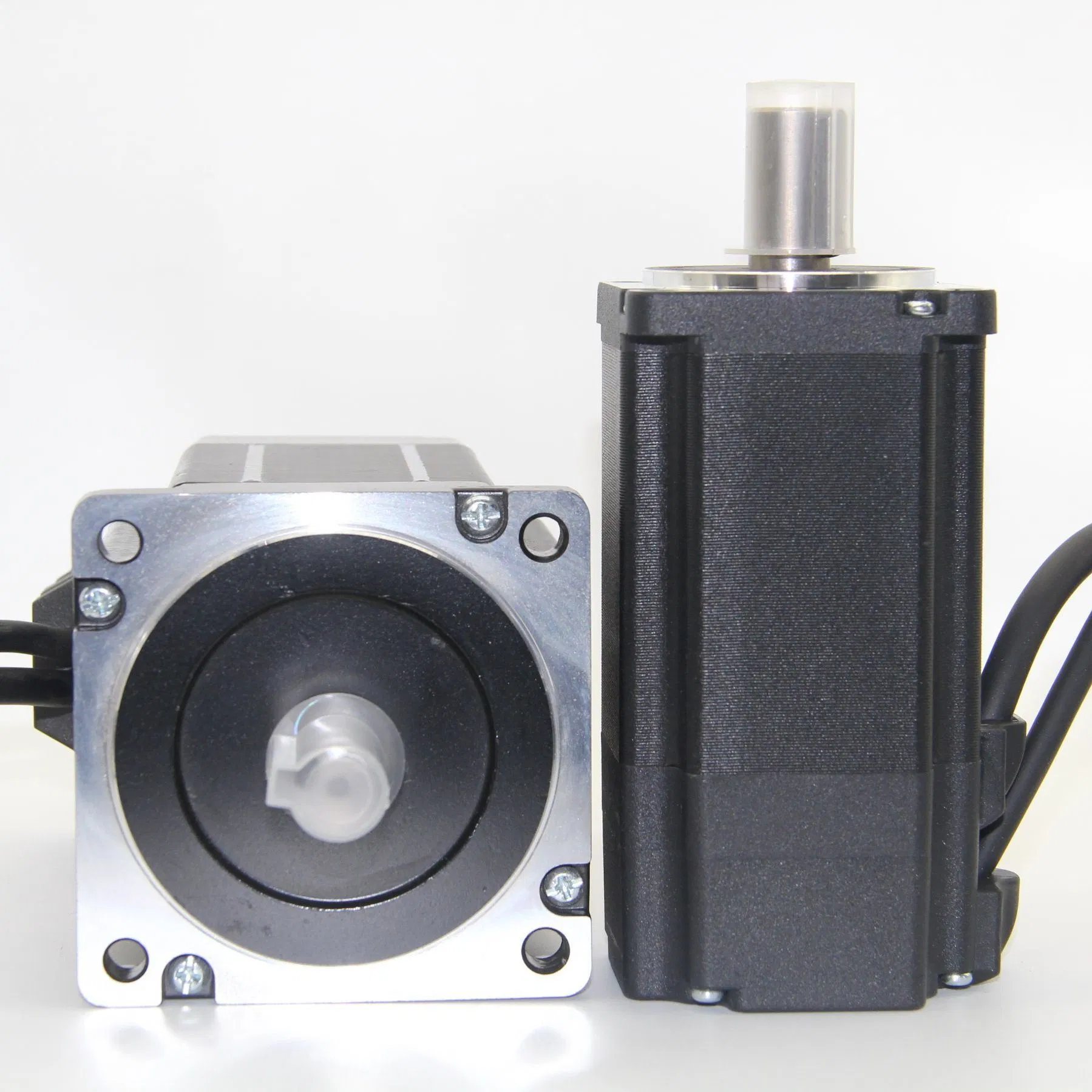

60BL DC Brushless Motor
Introducing the Electrical High Power Permanent Magnet 24V 48V 3000RPM 100W BLDC Servo Brushless Gear DC Motor with Gearbox / Brake / Encoder / Controller for Universal applications. This motor operates at a constant speed and is excited by a brushless DC motor. Ideal for use in industrial, household appliances, cars, and power tools. Experience the reliability and efficiency of this electric motor.
✓ Product Description
| Projects |
Specifications |

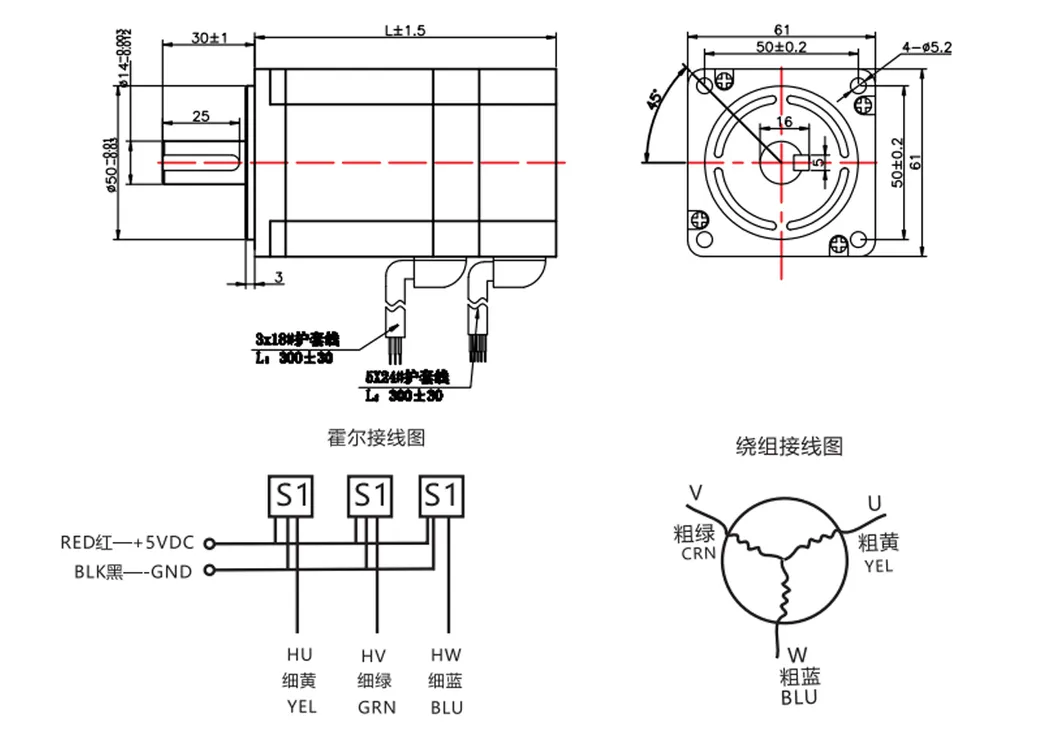

| Winding Type | Star |
| Hall Effect Angle | 120° electrical angle |
| Shaft Axial Play | 0.025mm |
| Ambient Temperature | -20~ + 50°C |
| Ambient Humidity | <80% |
| Max. Radial Force | 115N@20mm from the flange |
| Max. Axial Force | 45N |
| Insulation Class | Class B |
| Dielectric Strength | one minute@500VAC |
| Insulation Resistance | 100MΩMin.@500VDC |
📊 Product Parameters
| Model |
Rated Voltage (VDC) |
Rated Torque (N.M) |
Rated Speed (RPM) |
Rated Current (A) |
Rated Power (W) |
Peak Torque (N.M) |
Torque Constant (N.M/A) |
Body Length (MM) |
Weight (KG) |
| 60BL80-230 | 24 | 0.32 | 3000 | 5.6 | 100 | 0.96 | 0.057 | 77 | 0.85 |
| 60BL80-215 | 24 | 0.32 | 1500 | 2.8 | 50 | 0.96 | 0.114 | 77 | 0.85 |
| 60BL100-230 | 24 | 0.64 | 3000 | 11.1 | 200 | 1.92 | 0.057 | 98 | 1.25 |
| 60BL100-215 | 24 | 0.64 | 1500 | 5.6 | 100 | 1.92 | 0.114 | 98 | 1.25 |
| 60BL120-430 | 48 | 0.96 | 3000 | 8.3 | 300 | 2.88 | 0.115 | 119 | 1.7 |
| 60BL120-415 | 48 | 0.96 | 1500 | 4.2 | 150 | 2.88 | 0.228 | 119 | 1.7 |
| 60BL140-430 | 48 | 1.28 | 3000 | 11.1 | 400 | 3.84 | 0.115 | 140 | 2.1 |
| 60BL140-415 | 48 | 1.28 | 1500 | 5.6 | 200 | 3.84 | 0.228 | 140 | 2.1 |
Note: Brake, reducer, encoder, handwheel and other devices can be installed. Please feel free to contact us for more details.

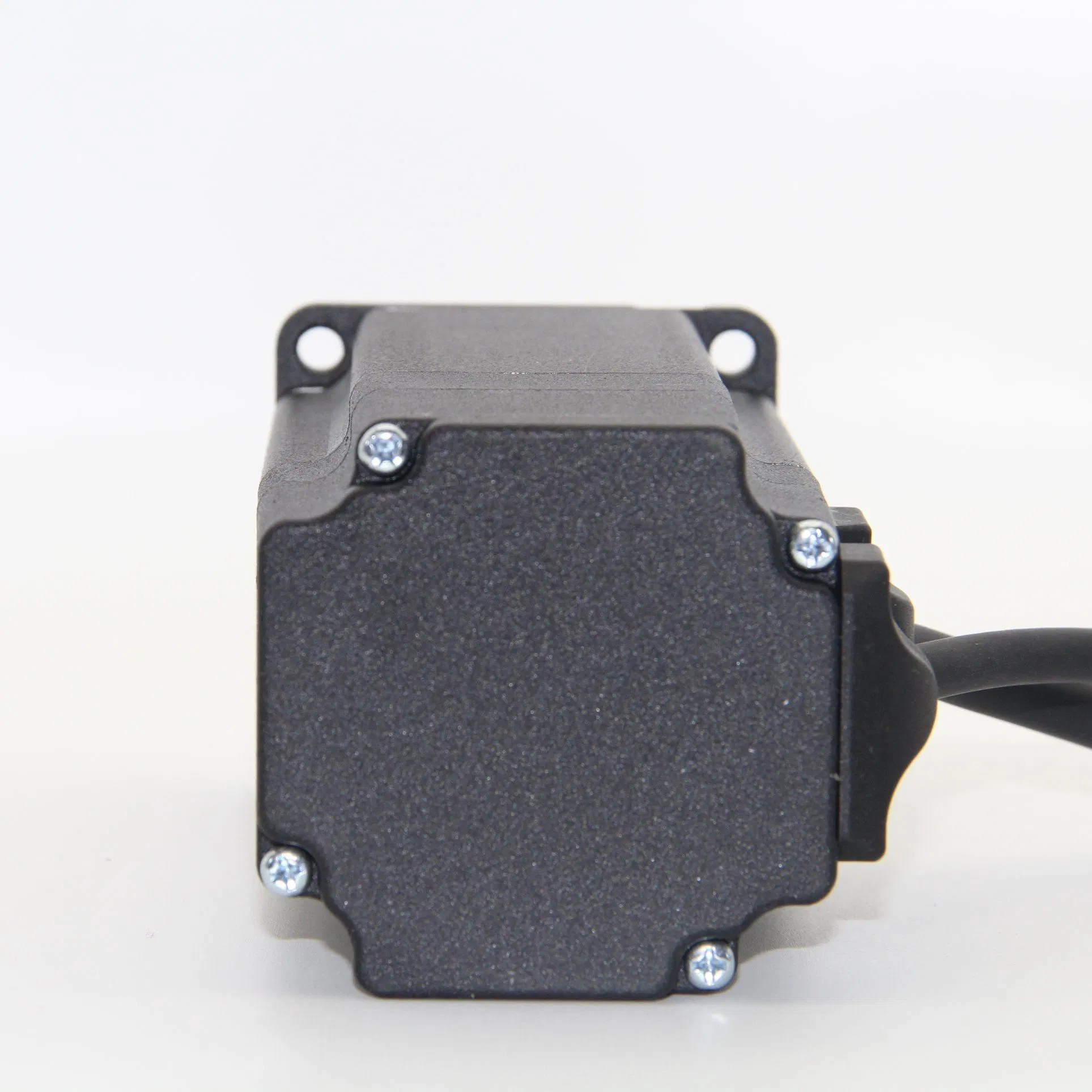

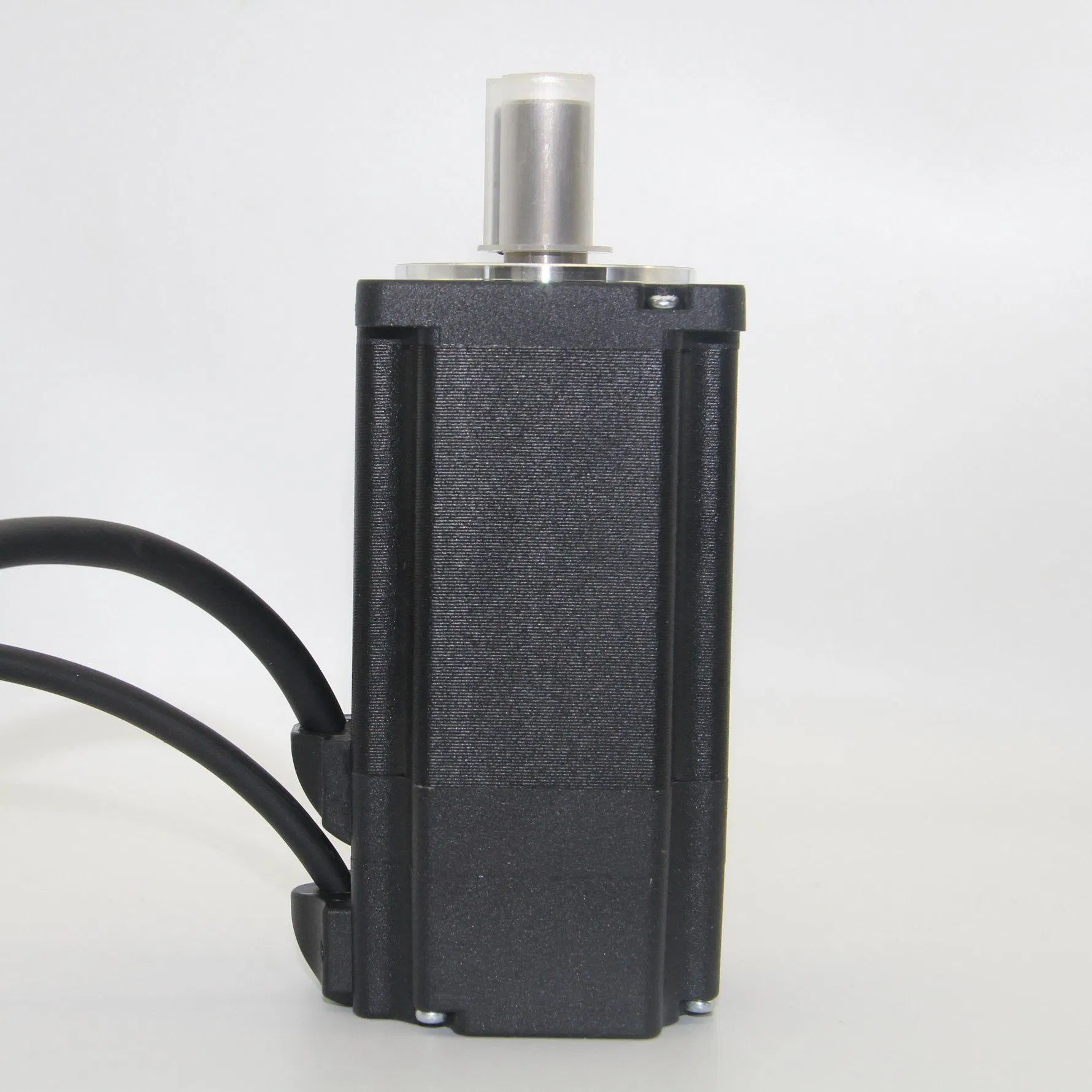

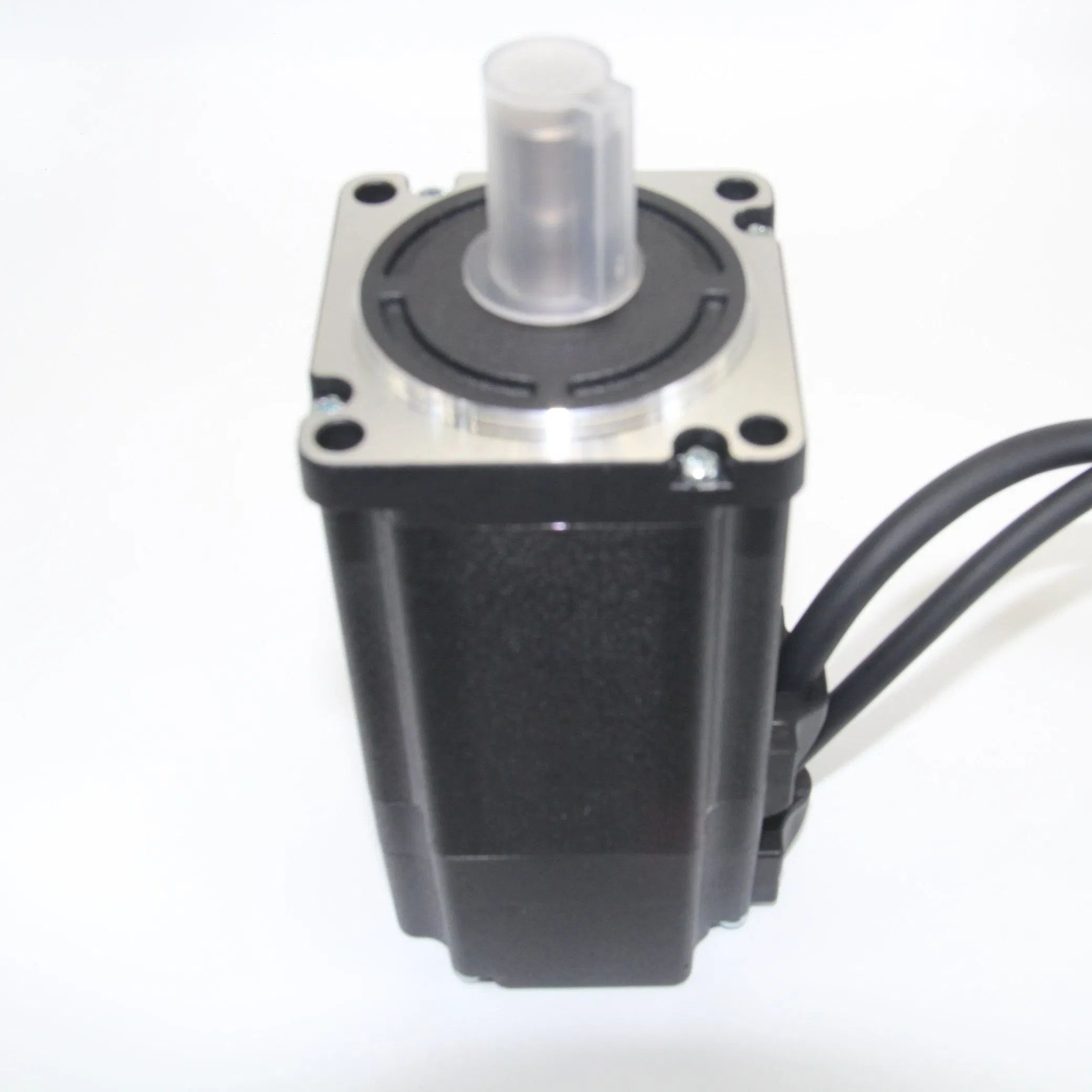

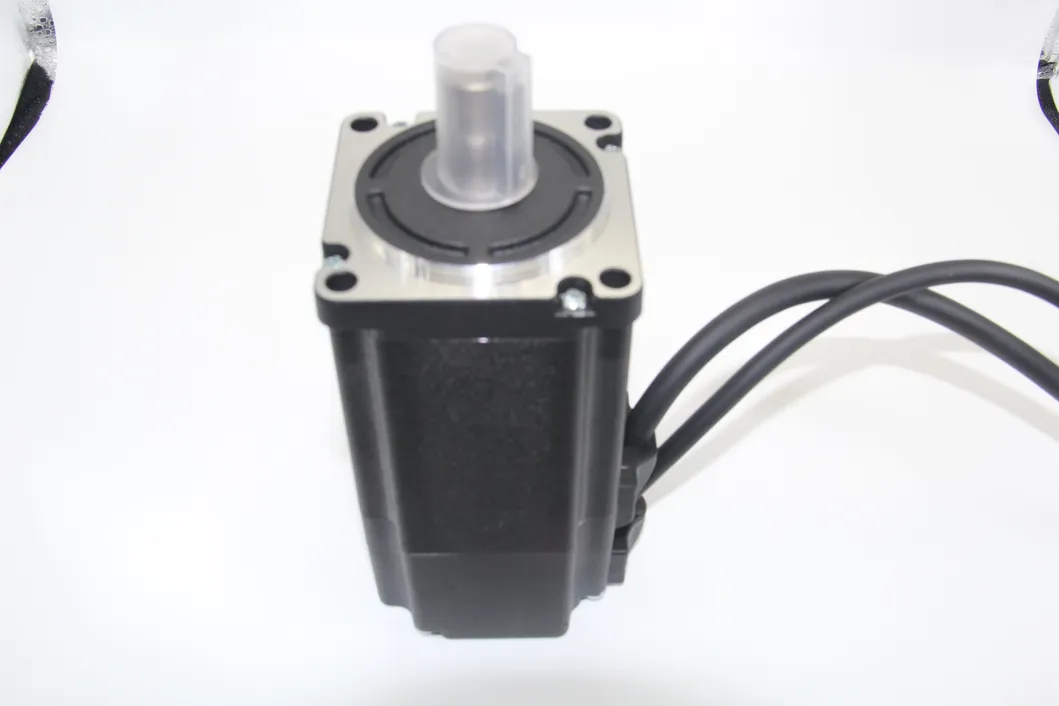

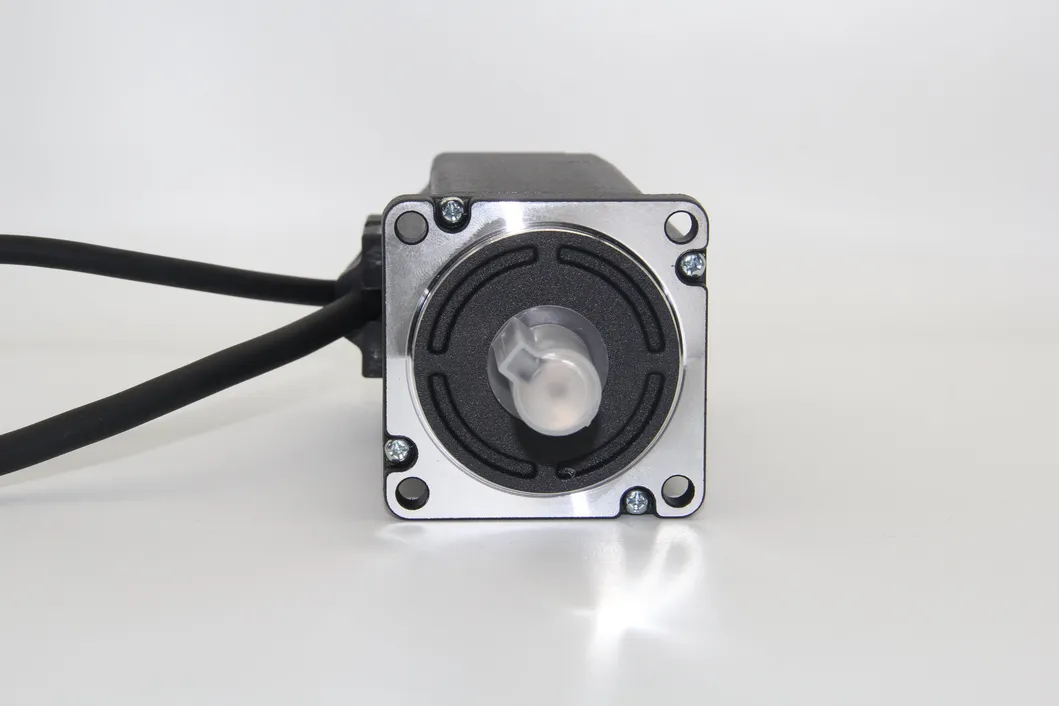

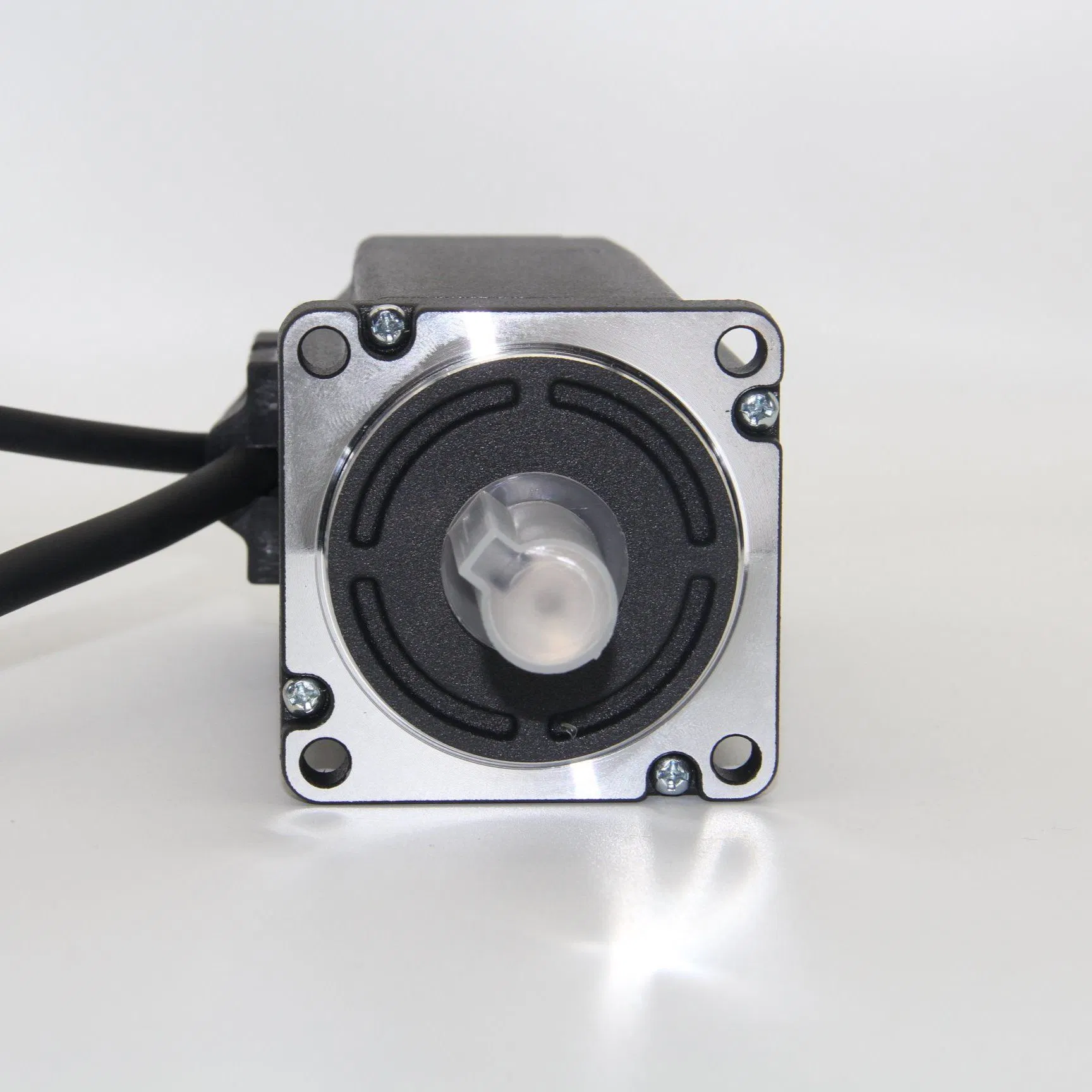

📷 Detailed Photos
⚙️ Application Area
★ Product Recommendation

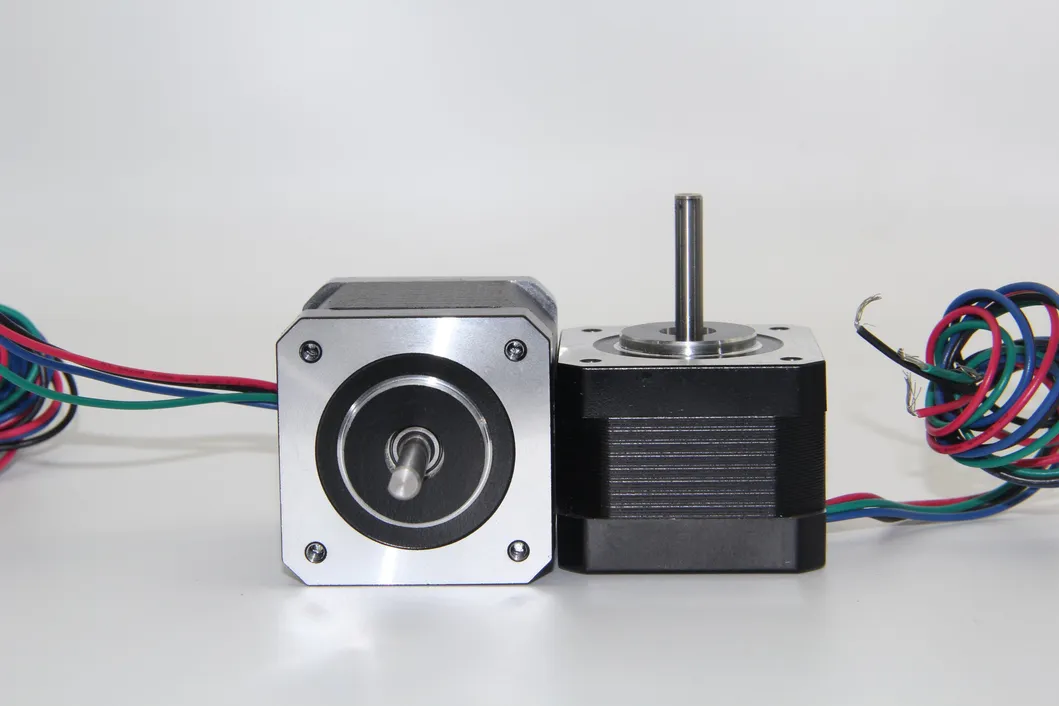

| Stepper motor |

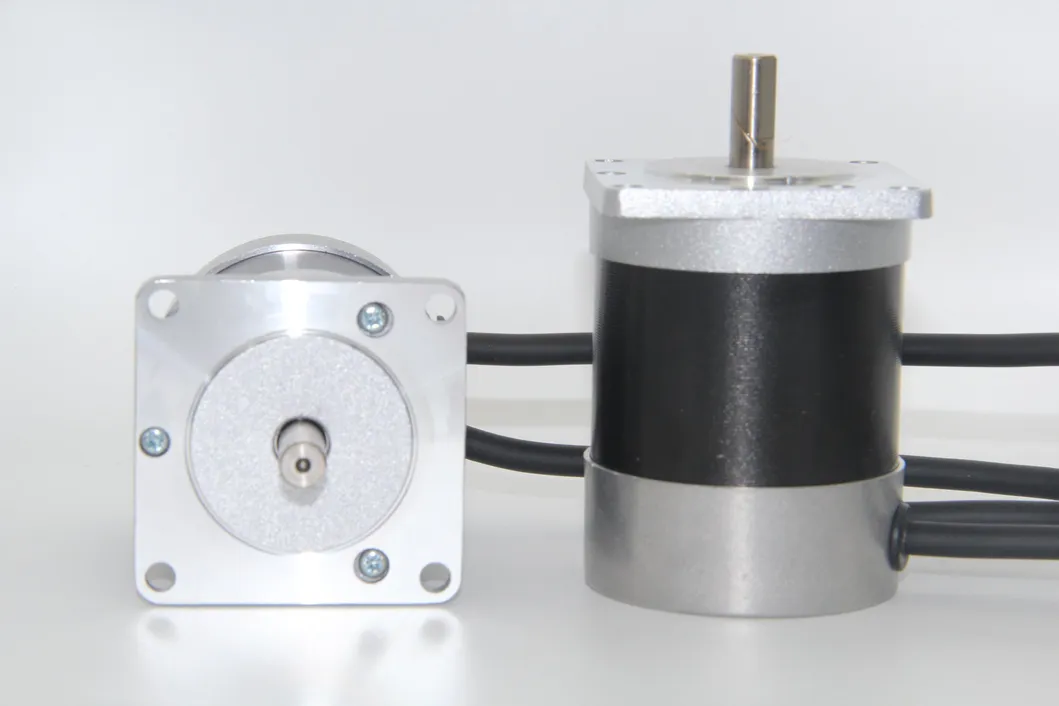

Brushless motor |

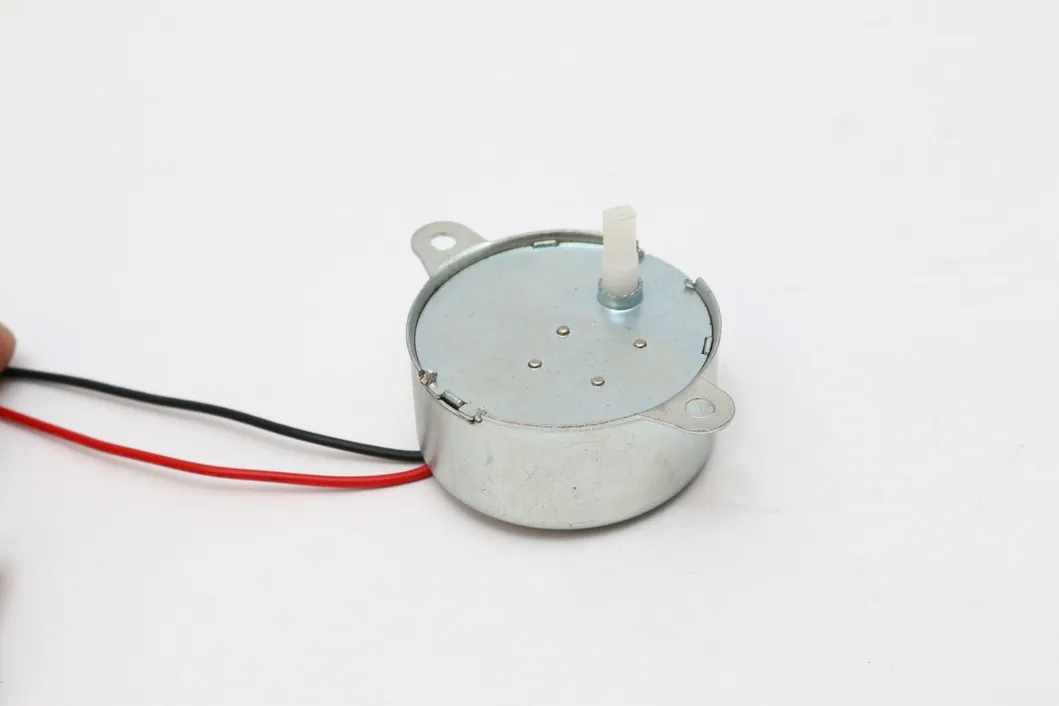

Synchronous motor |
📦 Packaging & Shipping
Frequently Asked Questions
Can I provide sample orders for your products?
Of course, you can check our quality before ordering. If you have any requirements, please contact us.
What is your delivery time?
It depends on the order quantity. Usually, it takes about 3-7 days after receiving the small deposit. Bulk ordering takes 10-20 days.
What kind of customers and what kind of companies do you work with?
We have 20 years of export experience and serve more than 100 customers, such as retailers, wholesalers, and online store owners.
Is it possible to put our logo on your product or product packaging?
Of course, we have a factory, welcome to customize your brand, LOGO, color, product manual, packaging, etc.
Can you OEM for me?
We accept all OEM orders, just contact us and give me your design. We will provide you with a reasonable price and make samples for you as soon as possible.
What are your payment terms?
According to T/T, LC AT SIGHT, 30% deposit in advance, and the balance 70% before shipment.
