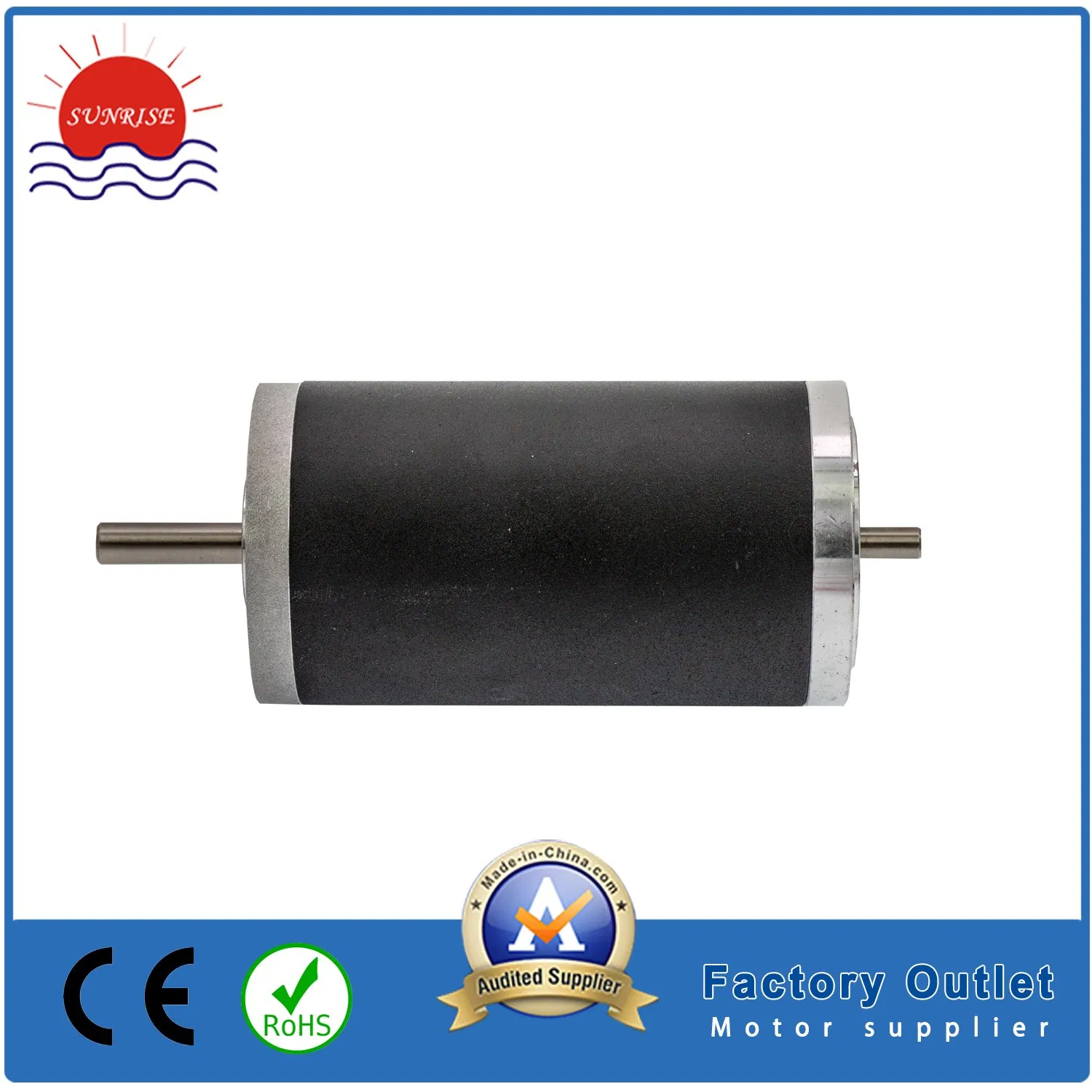

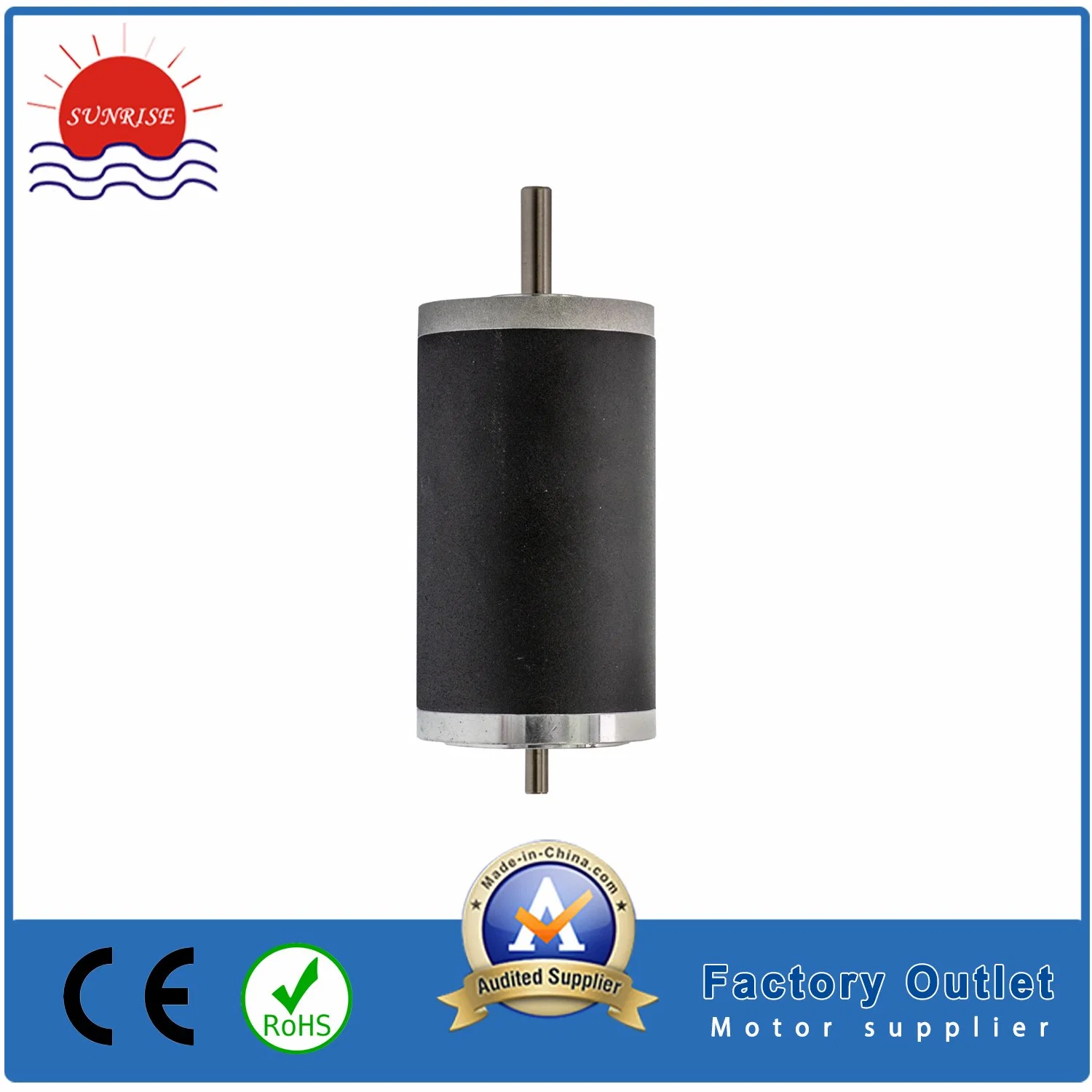

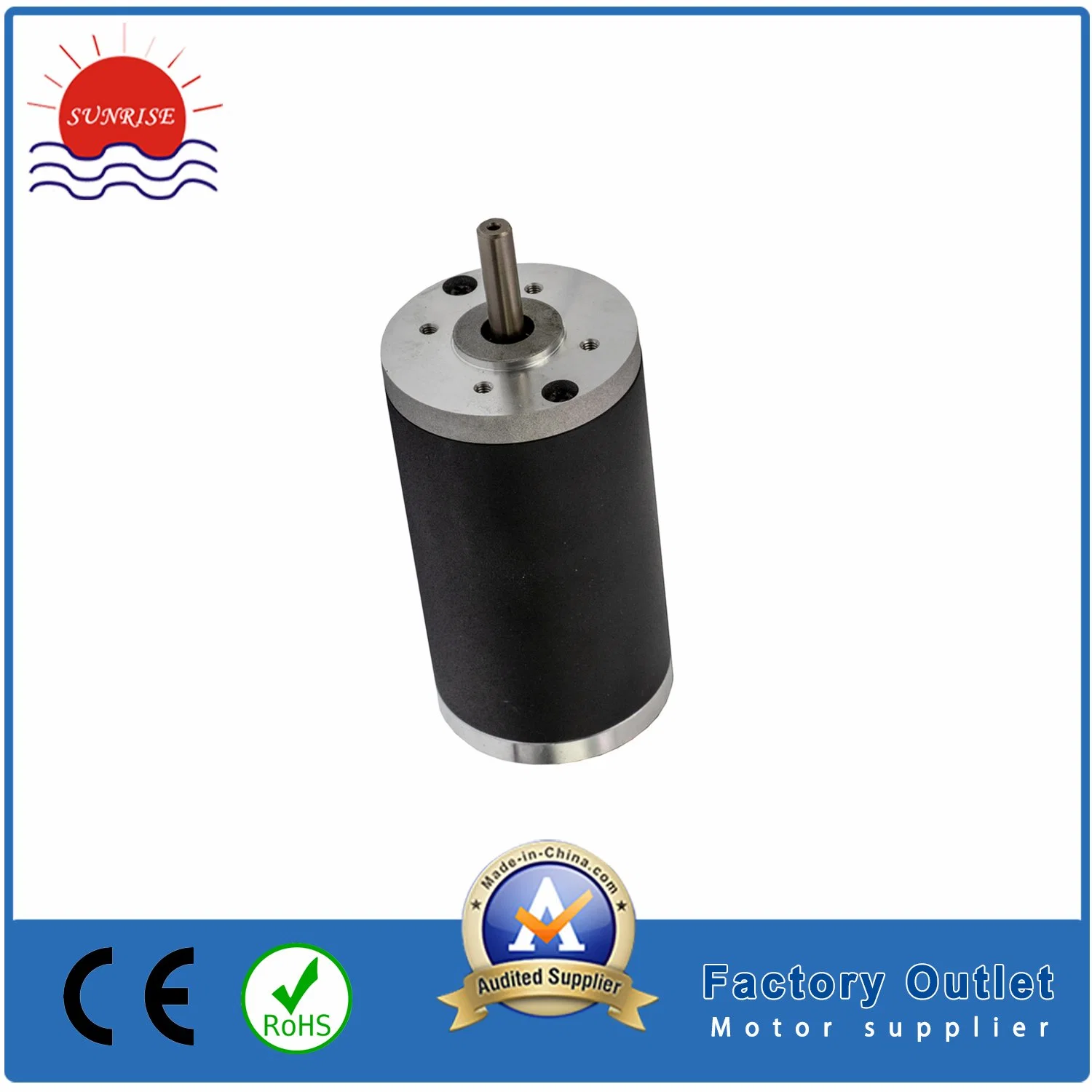

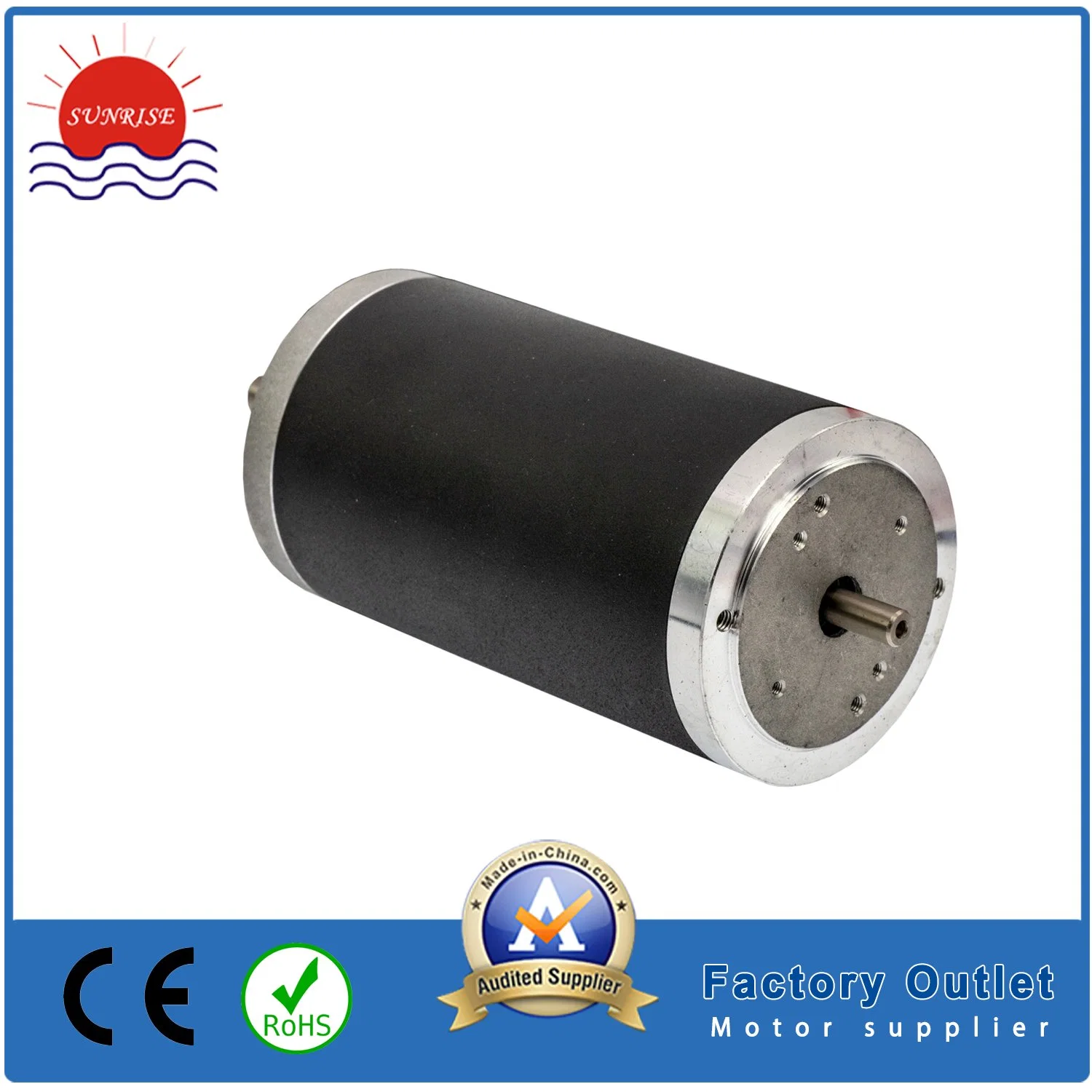

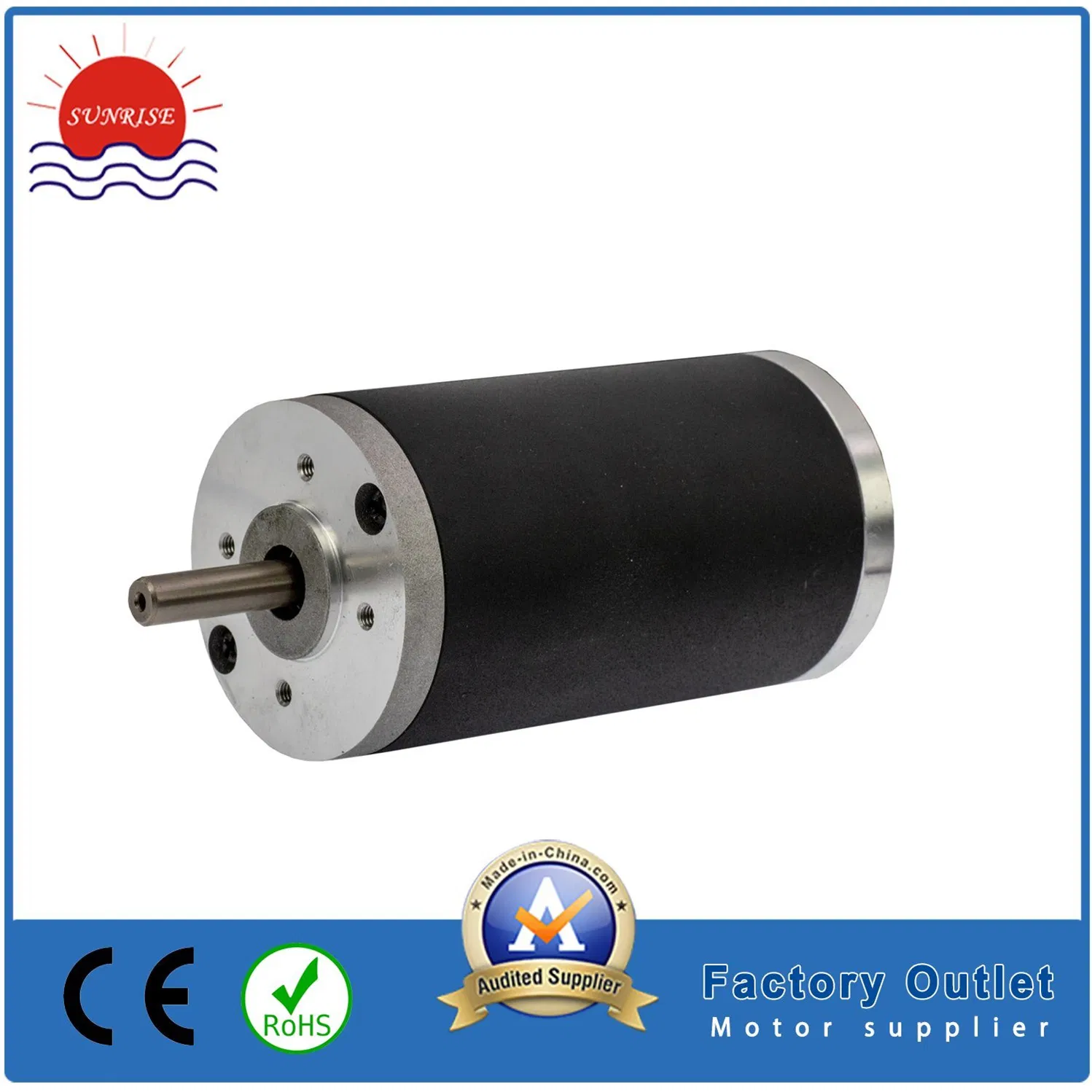

24VDC 0.18n. M 2800RPM 2.8A Electric Brush Brushed Permanent Magnet PMDC DC Motor
24VDC 0.18n. M 2800RPM 2.8A Electric Brush Brushed Permanent Magnet PMDC DC Motor
24VDC 0.18n. M 2800RPM 2.8A Electric Brush Brushed Permanent Magnet PMDC DC Motor
24VDC 0.18n. M 2800RPM 2.8A Electric Brush Brushed Permanent Magnet PMDC DC Motor
24VDC 0.18n. M 2800RPM 2.8A Electric Brush Brushed Permanent Magnet PMDC DC Motor
1 / 5
24VDC 0.18n. M 2800RPM 2.8A Electric Brush Brushed Permanent Magnet PMDC DC Motor
24VDC 0.18n. M 2800RPM 2.8A Electric Brush Brushed Permanent Magnet PMDC DC Motor
24VDC 0.18n. M 2800RPM 2.8A Electric Brush Brushed Permanent Magnet PMDC DC Motor
24VDC 0.18n. M 2800RPM 2.8A Electric Brush Brushed Permanent Magnet PMDC DC Motor
24VDC 0.18n. M 2800RPM 2.8A Electric Brush Brushed Permanent Magnet PMDC DC Motor

24VDC 0.18n. M 2800RPM 2.8A Electric Brush Brushed Permanent Magnet PMDC DC Motor

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.:
64zyt100-2433 PMDC Motor
Excitation Mode:
Excited
Function:
Driving
Casing Protection:
Closed Type
Number of Poles:
4
Structure:
Brush
Type:
PMDC Motor
Certification:
ISO9001, CCC
Voltage:
24VDC
Speed:
2800 RPM
Capacity:
35,000 PCS/Year
HS Code:
85013100

Product Description

Permanent Magnet DC PMDC Brush Motor 64ZYT
In a Permanent Magnet DC (PMDC) motor, permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings. PMDC motors are generally smaller but still offer an impressive output performance, making them an excellent choice for use in mobility, patient care, industrial and leisure products.
Advantages of PMDC motors:
Cost-effective and with a high starting torque, PMDC motors offer impressive output performance in a compact size. They are often combined with gearboxes to reduce speed and increase torque for the ultimate geared motor solution.
Performance Range:
  • Speed: 1000 - 5000 RPM
  • Power: Up to 2030 Watts
  • Torque: 0.1 - 4.9 Nm

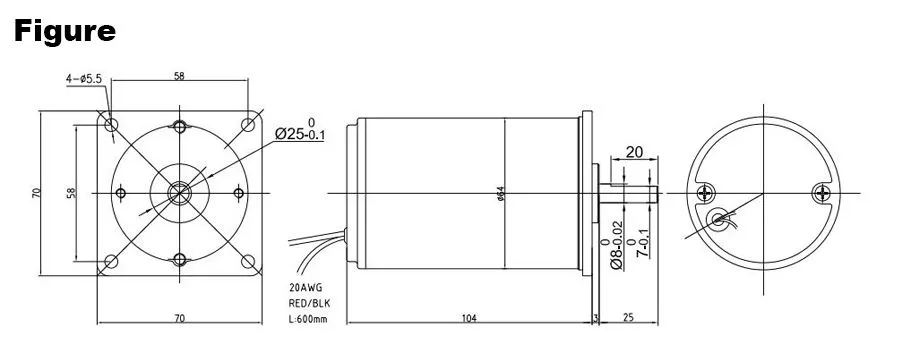

PMDC Motor Specifications

Product Parameters

Model Voltage (VDC) No Load Rated Load Winding Class
Current (A) Speed (r/min) Torque (N.m) Current (A) Speed (r/min)
64ZYT100-2433240.333000.182.82800100
64ZYT105-2436240.336000.234.03000105
64ZYT116-2436240.336000.325.43000116
64ZYT125-2445240.445000.408.53700125

Special motors can be customized per your requirements. Encoders and gear boxes can be fixed.

Production Display

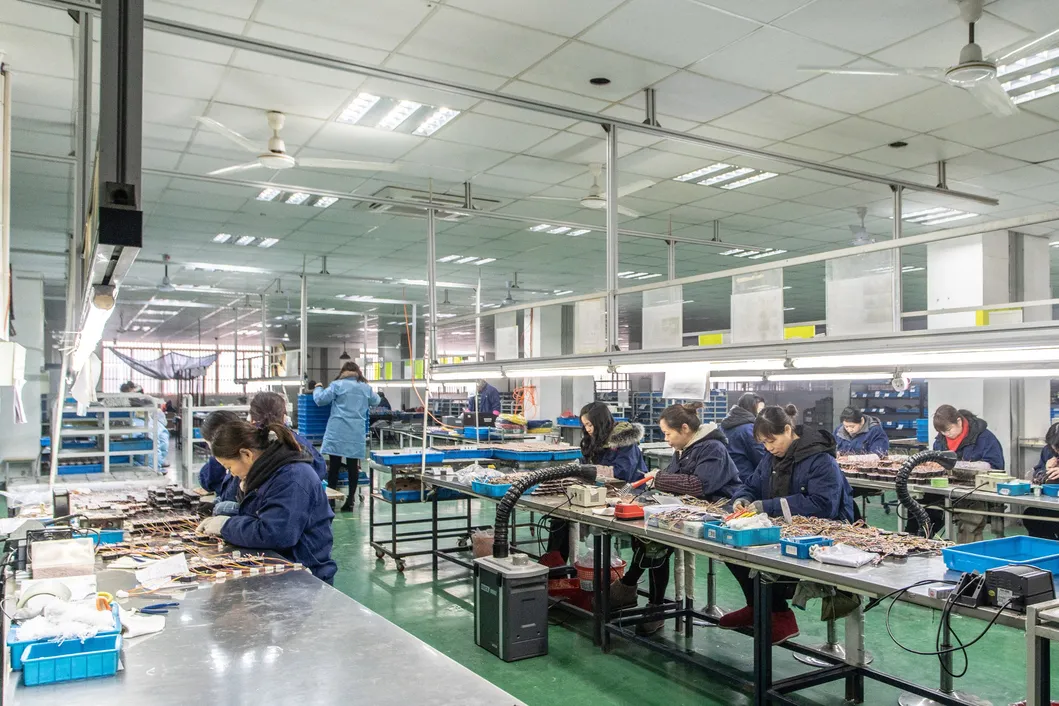

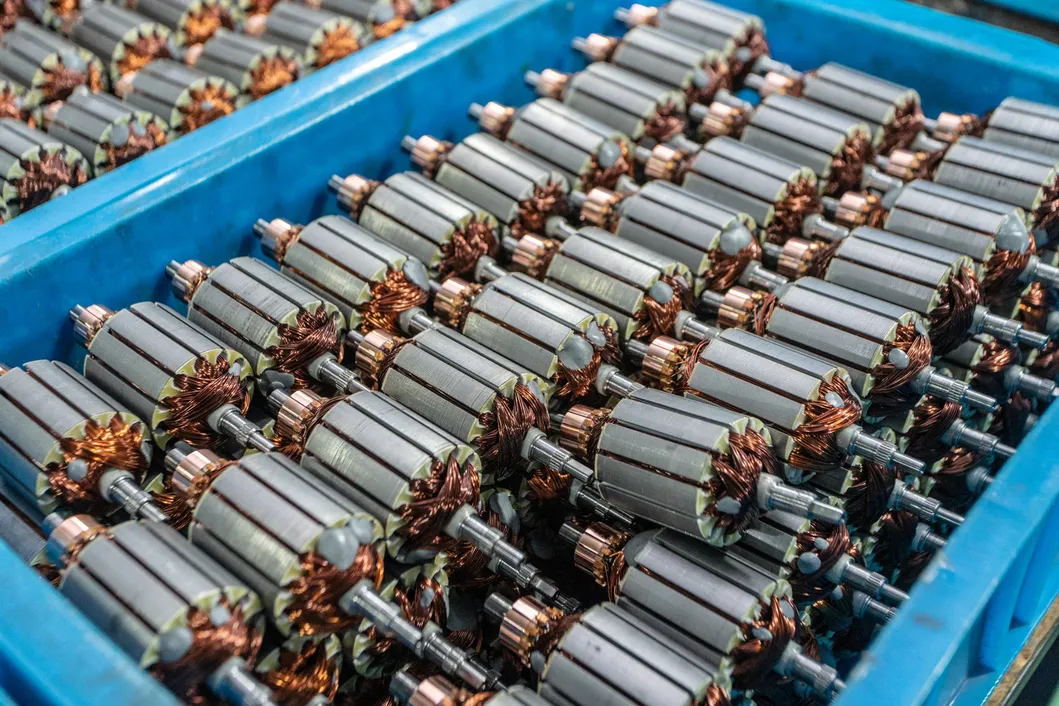

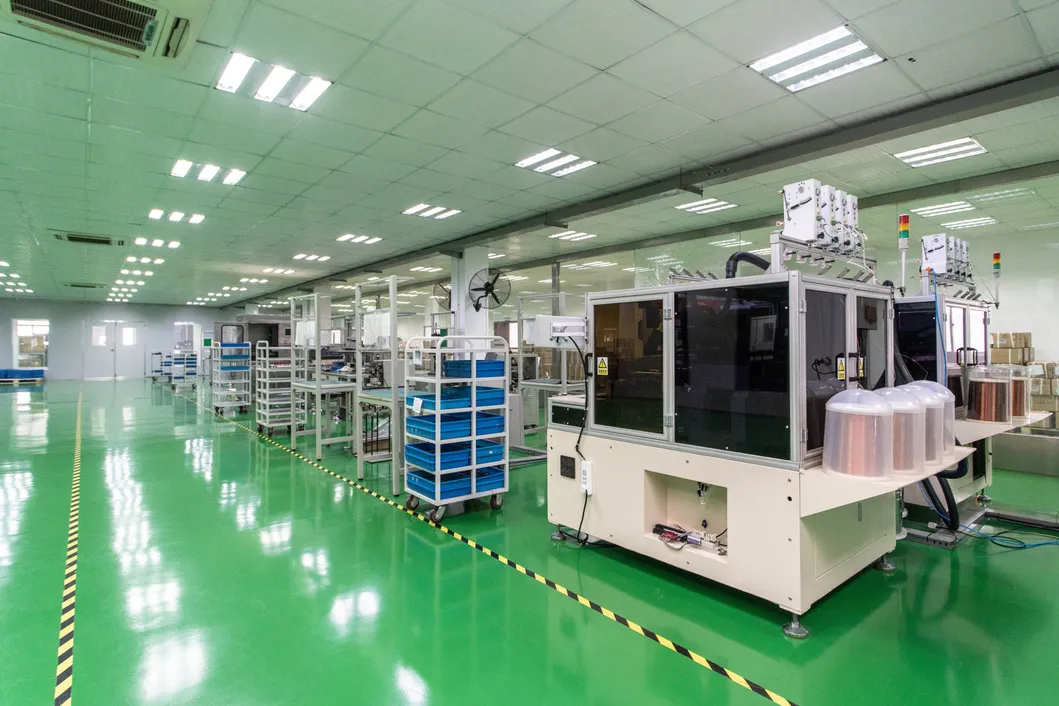

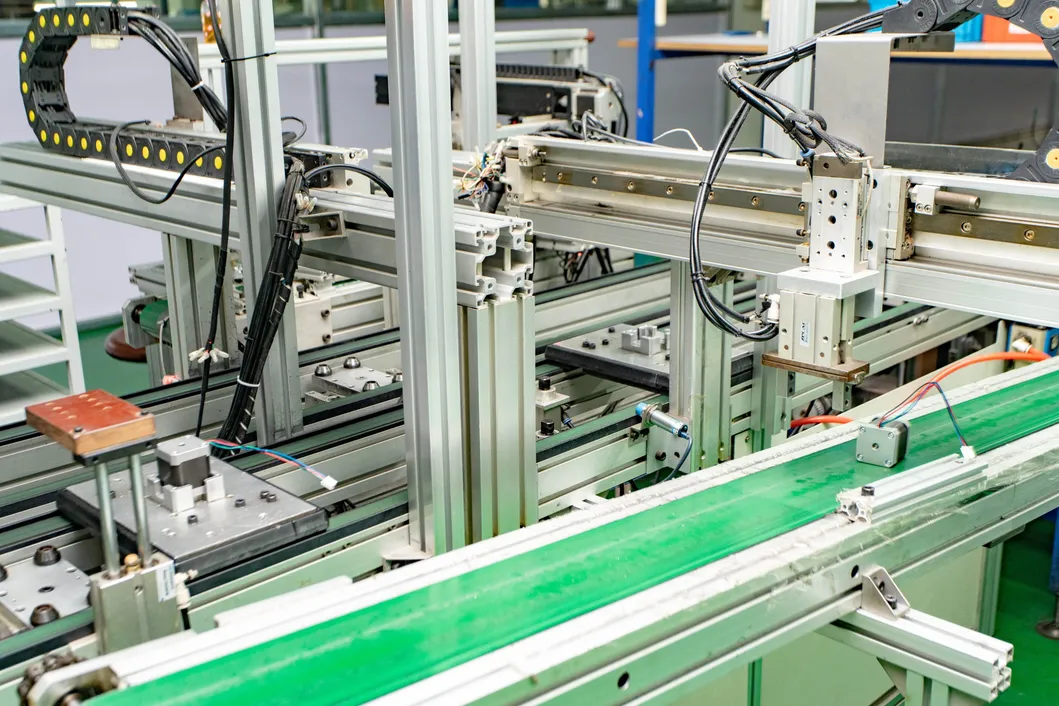

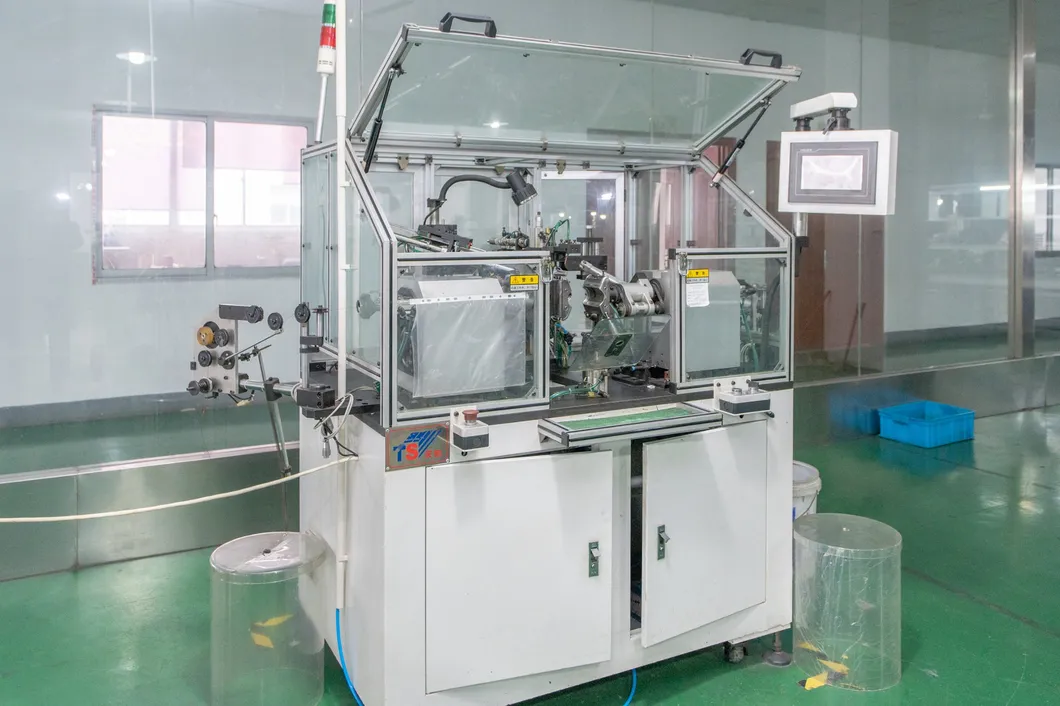

Production View 1 Production View 2 Production View 3 Production View 4 Production View 5

Advantages & Certifications

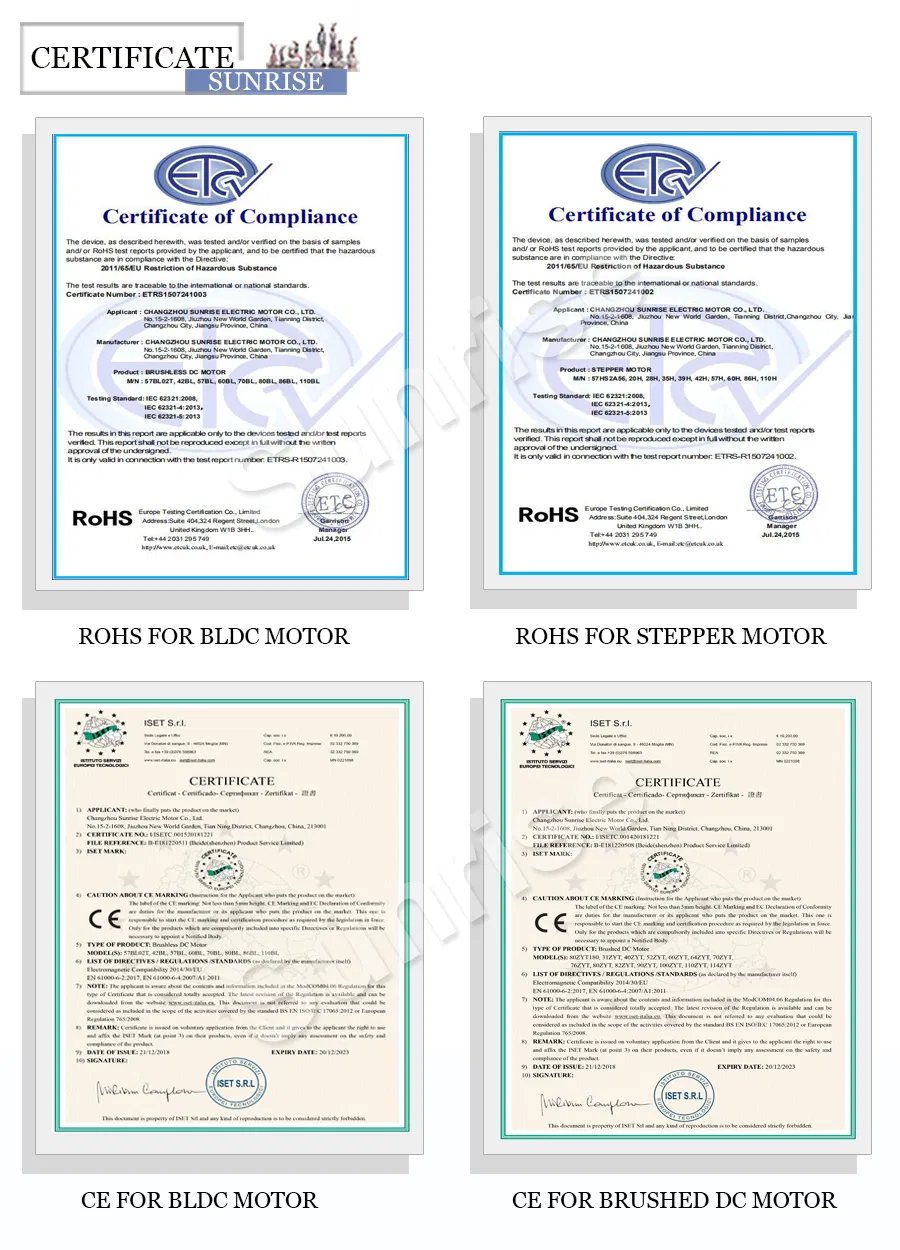

Our Advantages Quality Control Certifications

Frequently Asked Questions

How to place an order?
Send us an inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery.
Are samples available for testing?
Yes, samples are available for you. Please contact us for further details regarding sample production and shipping.
What shipping methods are provided?
We offer shipping via DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight. Other shipping ways are available upon request.
What is the typical delivery timeframe?
Delivery time depends on the specific quantity ordered. Usually, mass production takes between 15-25 working days.
How is payment confirmed?
We accept payment by T/T and PayPal. A 30-50% deposit is standard, with the remaining balance due before shipping.
What should I do if my package has missing products?
Please contact our support team immediately. We will verify your order against the package contents and resolve the discrepancy.
