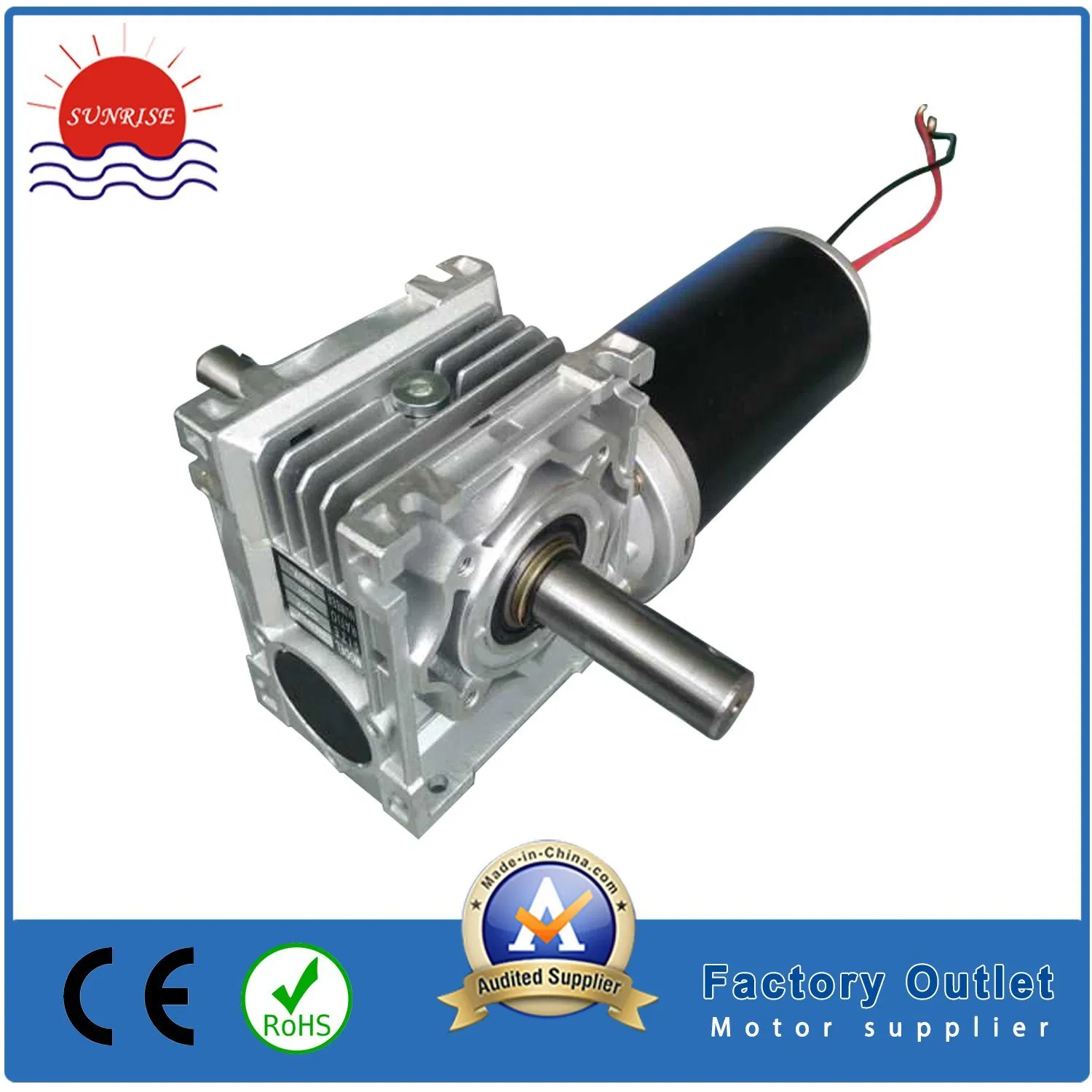

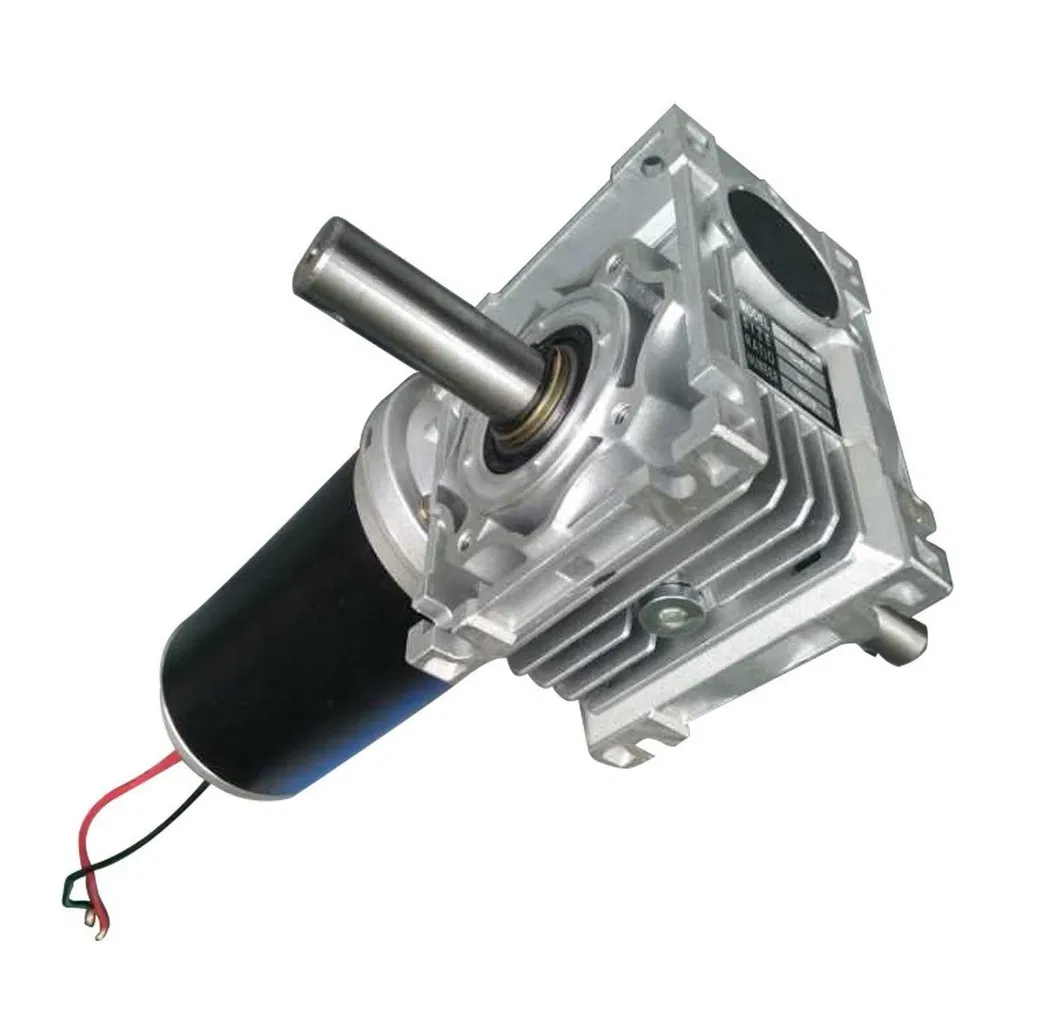

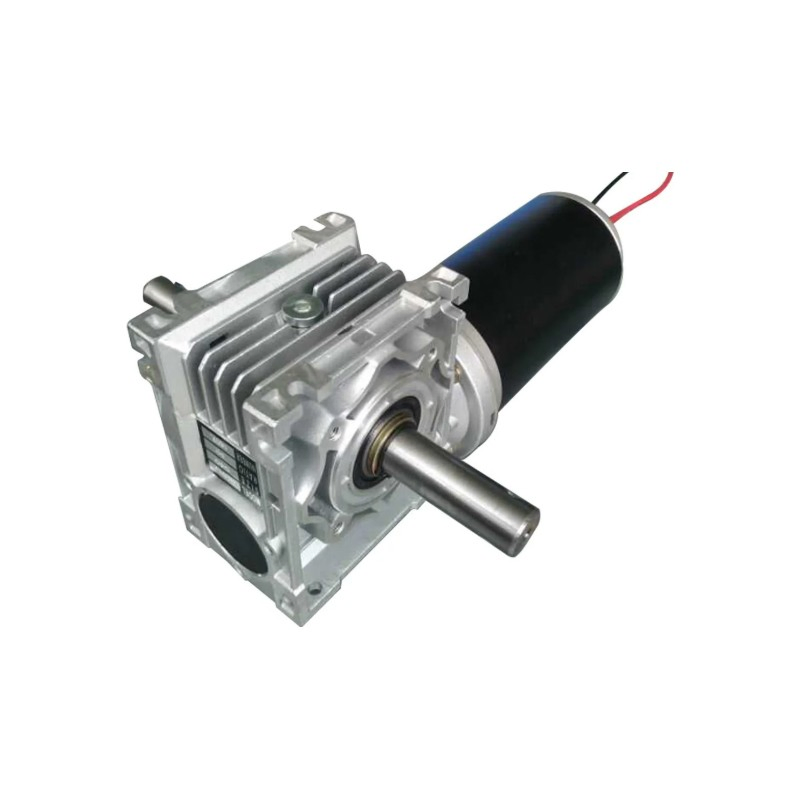

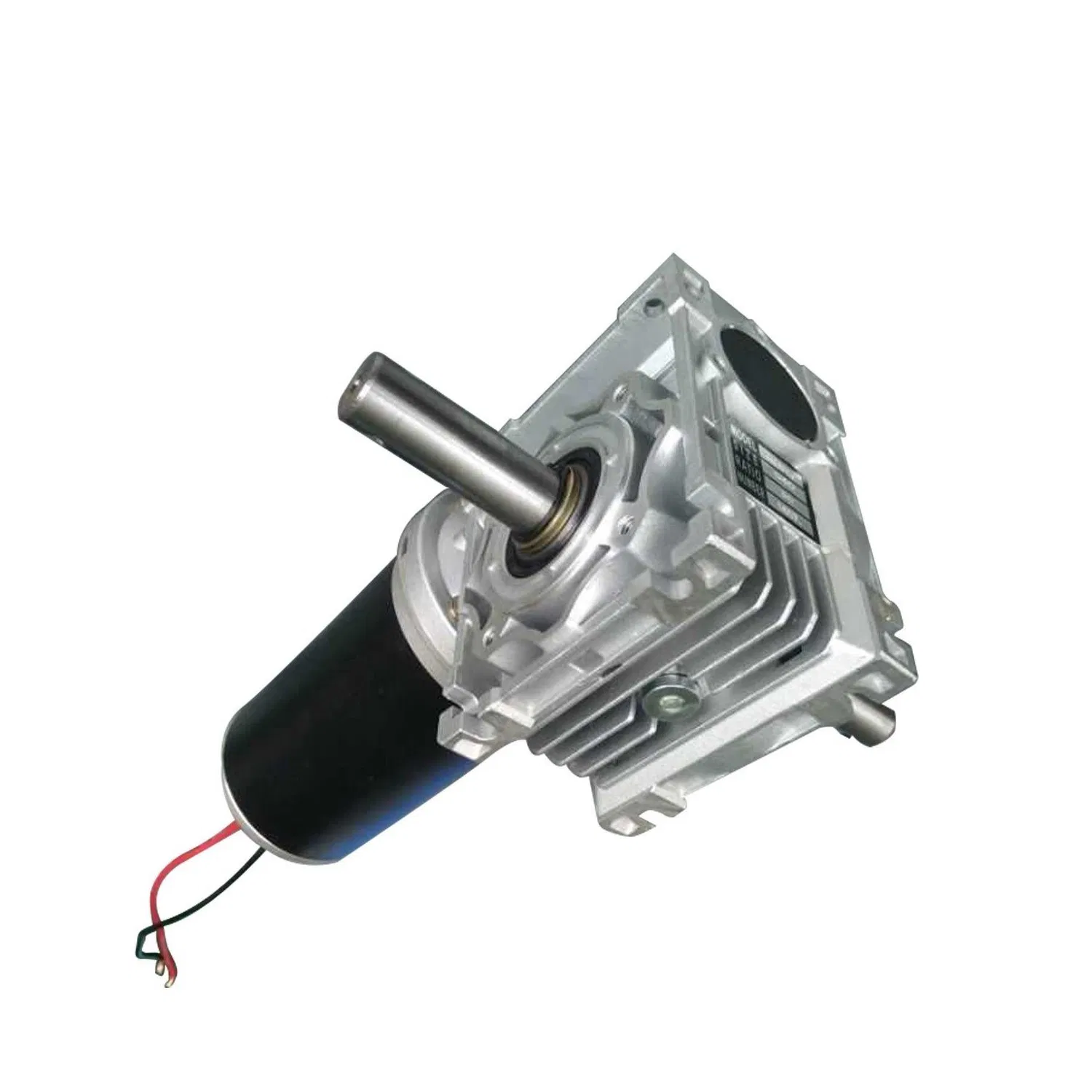

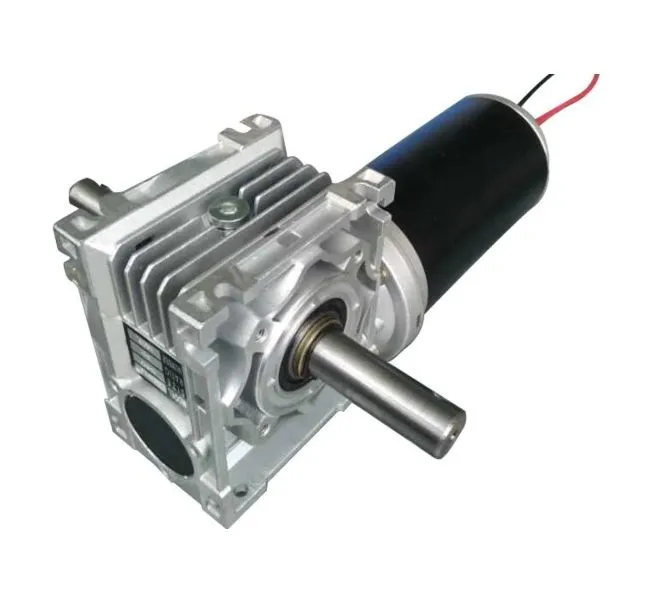

Permanent Magnet DC (PMDC) Brushed Motor
In a Permanent Magnet DC (PMDC) motor, permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings. PMDC motors are generally smaller but still offer an impressive output performance, making them an excellent choice for use in mobility, patient care, industrial and leisure products.
Cost-effective and with a high starting torque, PMDC motors offer impressive output performance in a compact frame. They are ideal for applications requiring speed reduction and increased torque when combined with gearboxes. These motors are widely utilized in industrial automation, medical equipment, and consumer leisure products.
| Parameter | Details |
|---|---|

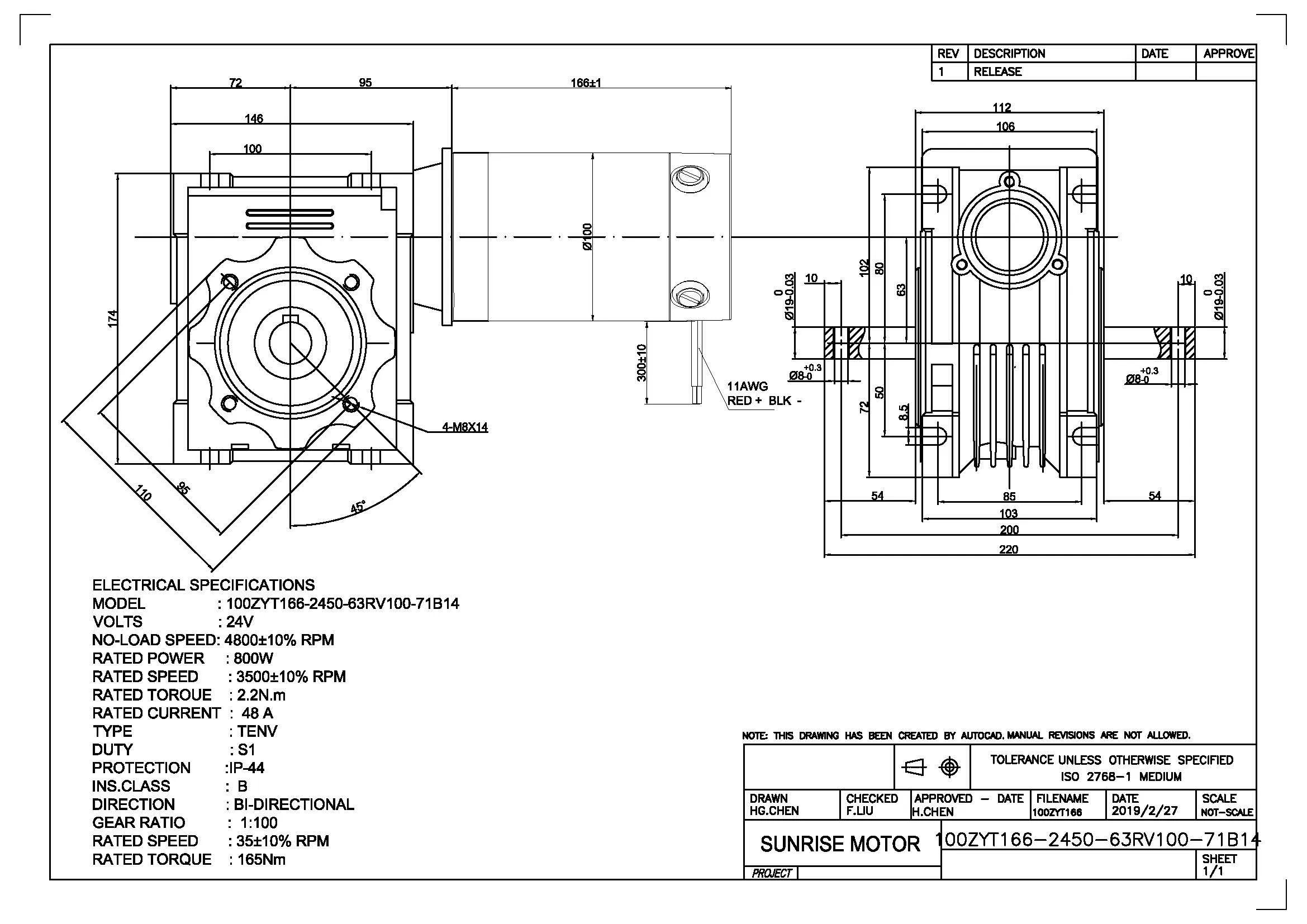

| Model | 100ZYT166-2450-63RV100-71B14 |
| Voltage | 24V |
| No-Load Speed | 4800±10%RPM |
| Rated Power | 800W |
| Rated Speed | 3500±10%RPM |
| Rated Torque | 2.2 N.m |
| Rated Current | 48A |
| Duty Cycle | S1 |
| Protection Class | IP44 |
| Insulation Class | B |
| Model | Voltage (VDC) | No load (r/min) | Torque (N.M) | Current (A) | Power (W) | Rated Speed | Gear Ratio |
|---|---|---|---|---|---|---|---|
| 80ZYT165-2420-30RV25 | 24 | 3800 | 2.2 | 48 | 220 | 1500 | 25:1 |
* Special motors can be customized per your specific requirements including shaft variations, flange options, and integrated brakes or encoders.
