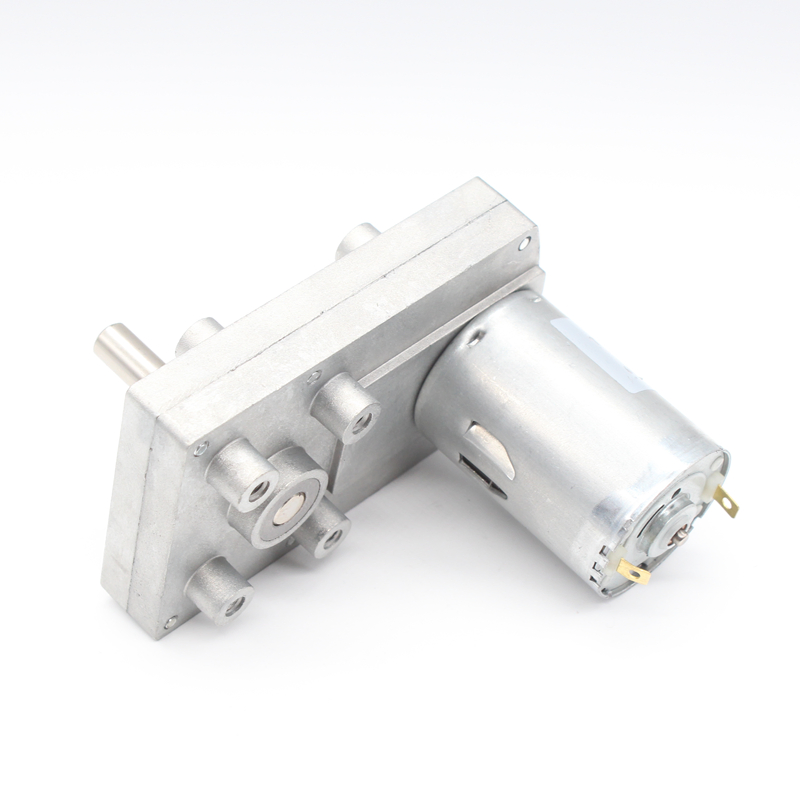

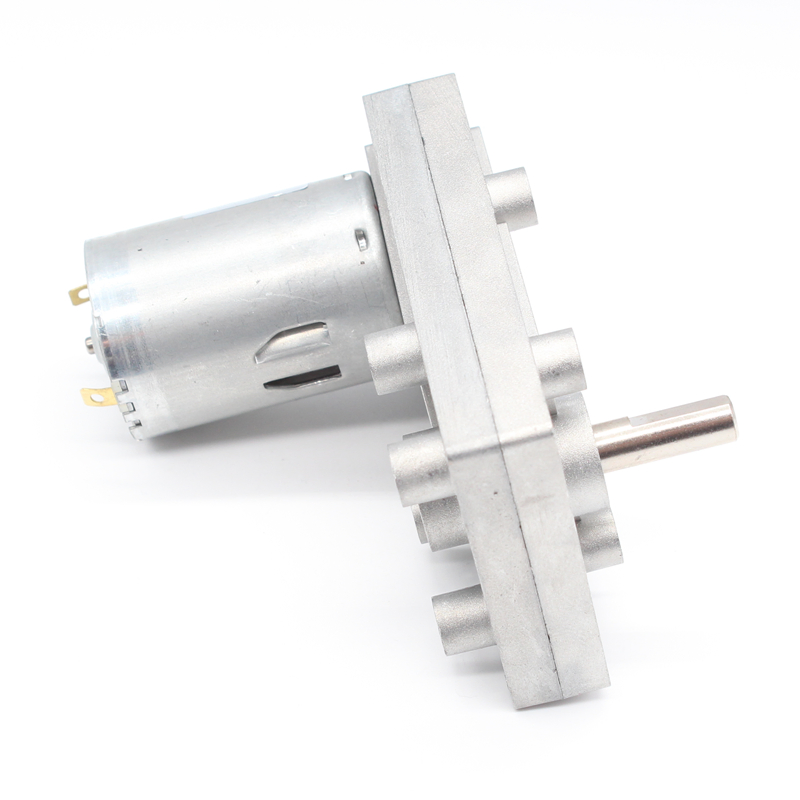

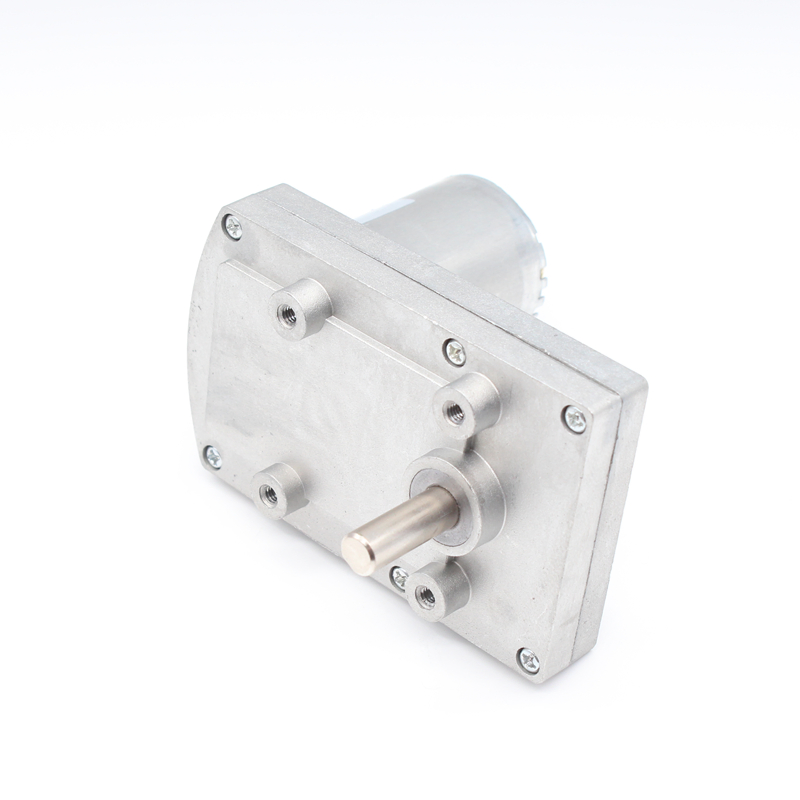

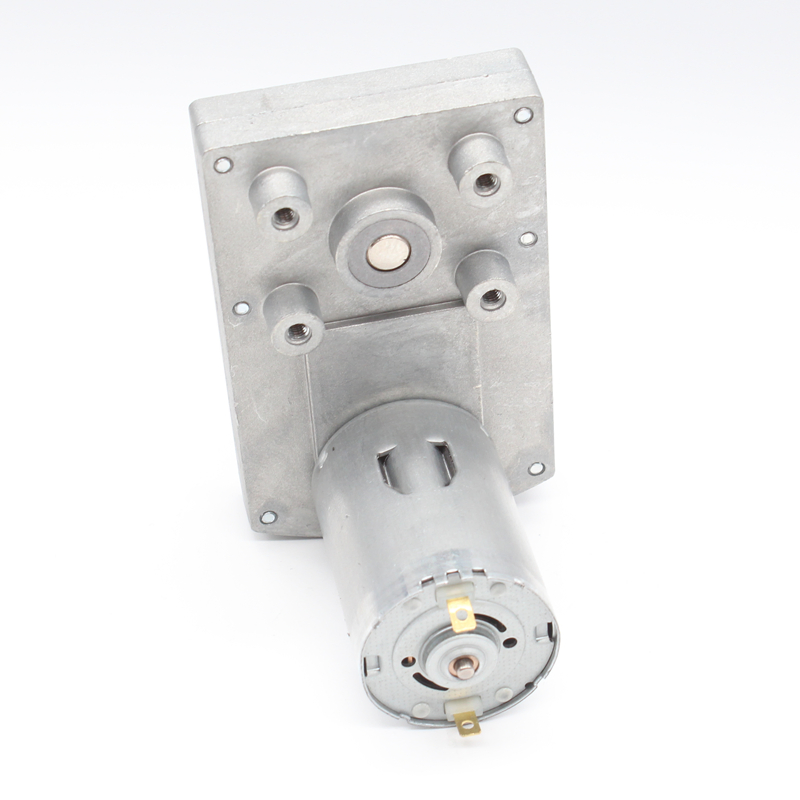

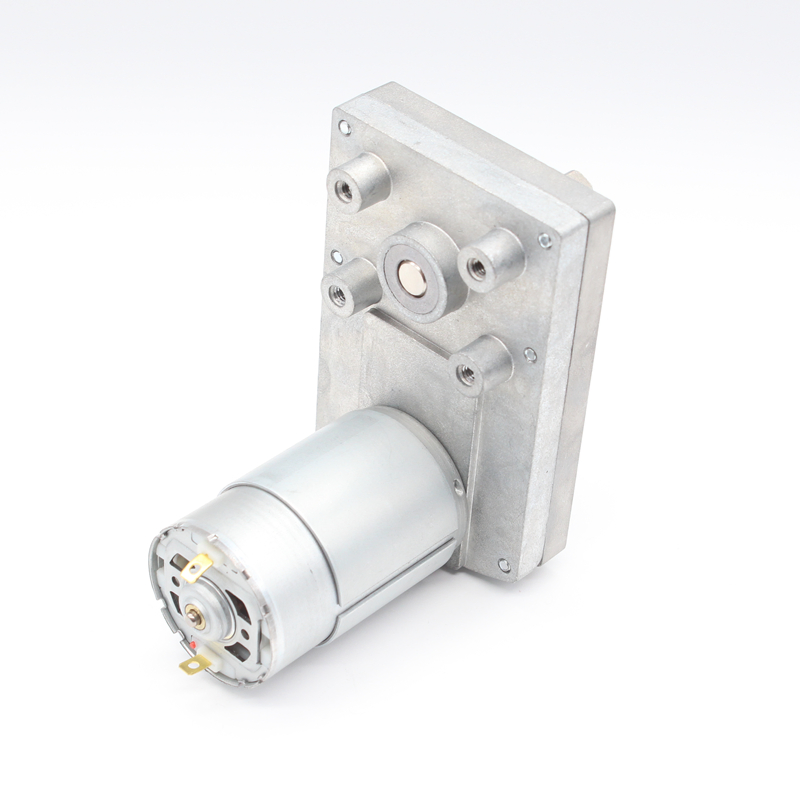

Model: RS-555
Custom design services available according to your special requirements.
📊 Gear Box Data:
| Number of stages |
Stages reduction |
Stages reduction |
Stages reduction |
| Reduction ratio |
36, 66, 94 |
129, 139, 155, 196, 219, 277 |
232, 392, 456, 555, 833 |
| Max. Running torque |
30kgf.cm |
40kgf.cm |
50kgf.cm |
| Max. Gear breaking torque |
90kgf.cm |
120kgf.cm |
150kgf.cm |
| Max. Gearing efficiency |
73% |
65% |
59% |
⚡ Motor Data:
| Type |
Rated Voltage (V) |
No Load |
Load Torque |
Stall Torque |
| Current (mA) |
Speed (rpm) |
Current (mA) |
Speed (rpm) |
Torque (gf.cm) |
Power (W) |
Torque (gf.cm) |
Current (mA) |
| RS555-123000 |
12 |
≤140 |
3000 |
≤800 |
2200 |
150 |
3.3 |
600 |
3000 |
| RS555-124500 |
12 |
≤220 |
4500 |
≤1200 |
3300 |
220 |
7.2 |
880 |
4800 |
| RS555-126000 |
12 |
≤350 |
6000 |
≤2000 |
4500 |
300 |
13.5 |
1200 |
6000 |
| RS555-243000 |
24 |
≤70 |
3000 |
≤400 |
2200 |
150 |
3.3 |
600 |
1600 |
| RS555-244500 |
24 |
≤110 |
4500 |
≤600 |
3300 |
220 |
7.2 |
880 |
3000 |
| RS555-246000 |
24 |
≤180 |
6000 |
≤1000 |
4500 |
300 |
13.5 |
1200 |
4000 |
❓ Frequently Asked Questions
What is the main application of the RS-555 DC Gear Motor?
This motor is primarily designed for home appliances and driving functions that require high quality and reliable low-speed operation.
Can the gear reduction ratio be customized?
Yes, we offer multiple stages of reduction with ratios ranging from 36 up to 833 to meet various torque and speed requirements.
What voltages are supported for this model?
The RS-555 series supports both 12V and 24V DC rated voltages with different speed configurations.
What is the maximum torque the gear box can handle?
The gear box can handle a maximum running torque of up to 50kgf.cm and a breaking torque of up to 150kgf.cm for multi-stage configurations.
Does this motor have any certifications?
Yes, the RS-555 DC Gear Motor is CE certified, ensuring compliance with safety and quality standards.
What is your monthly production capacity for this model?
We have a production capacity of approximately 30,000 PCS per month to support large-scale orders.
