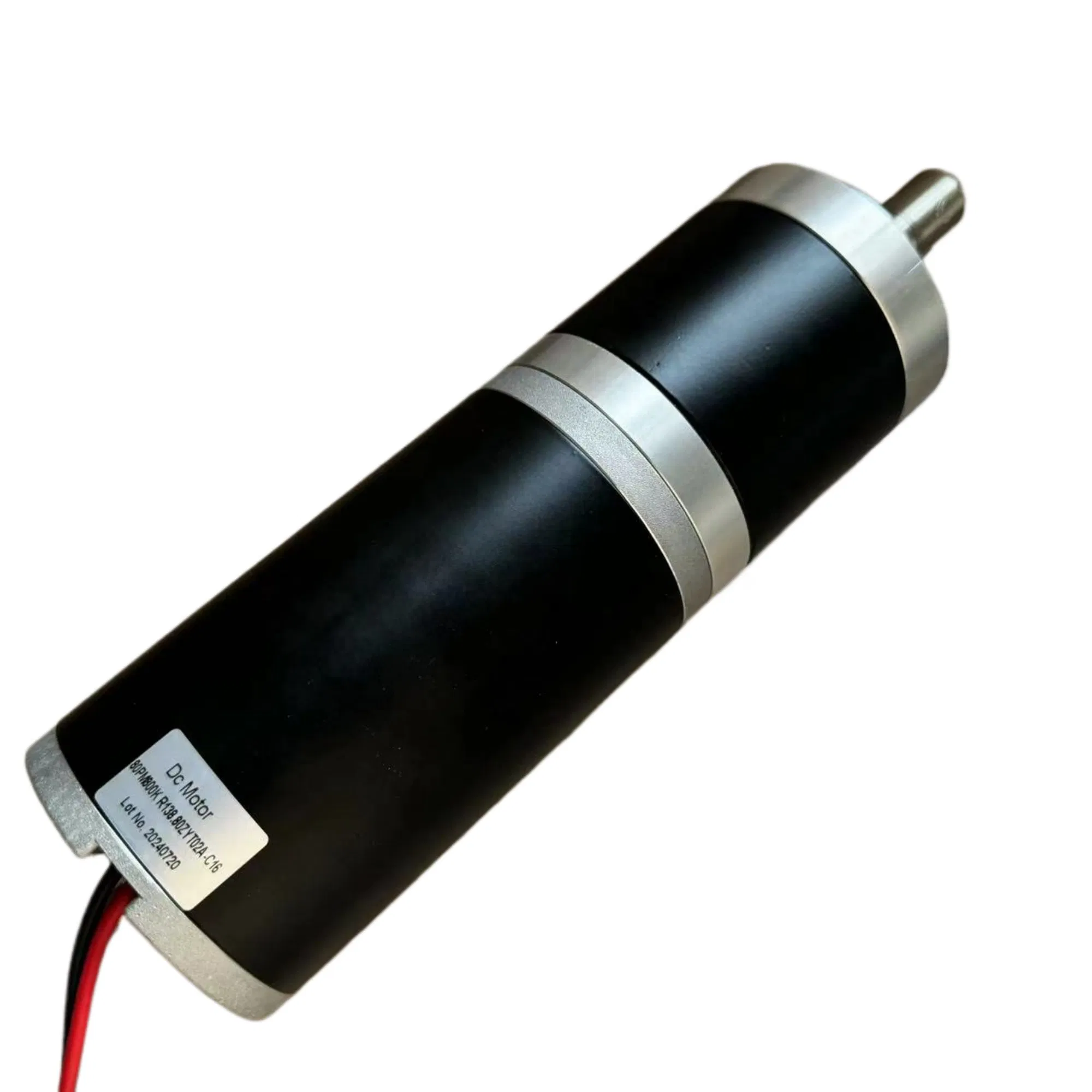

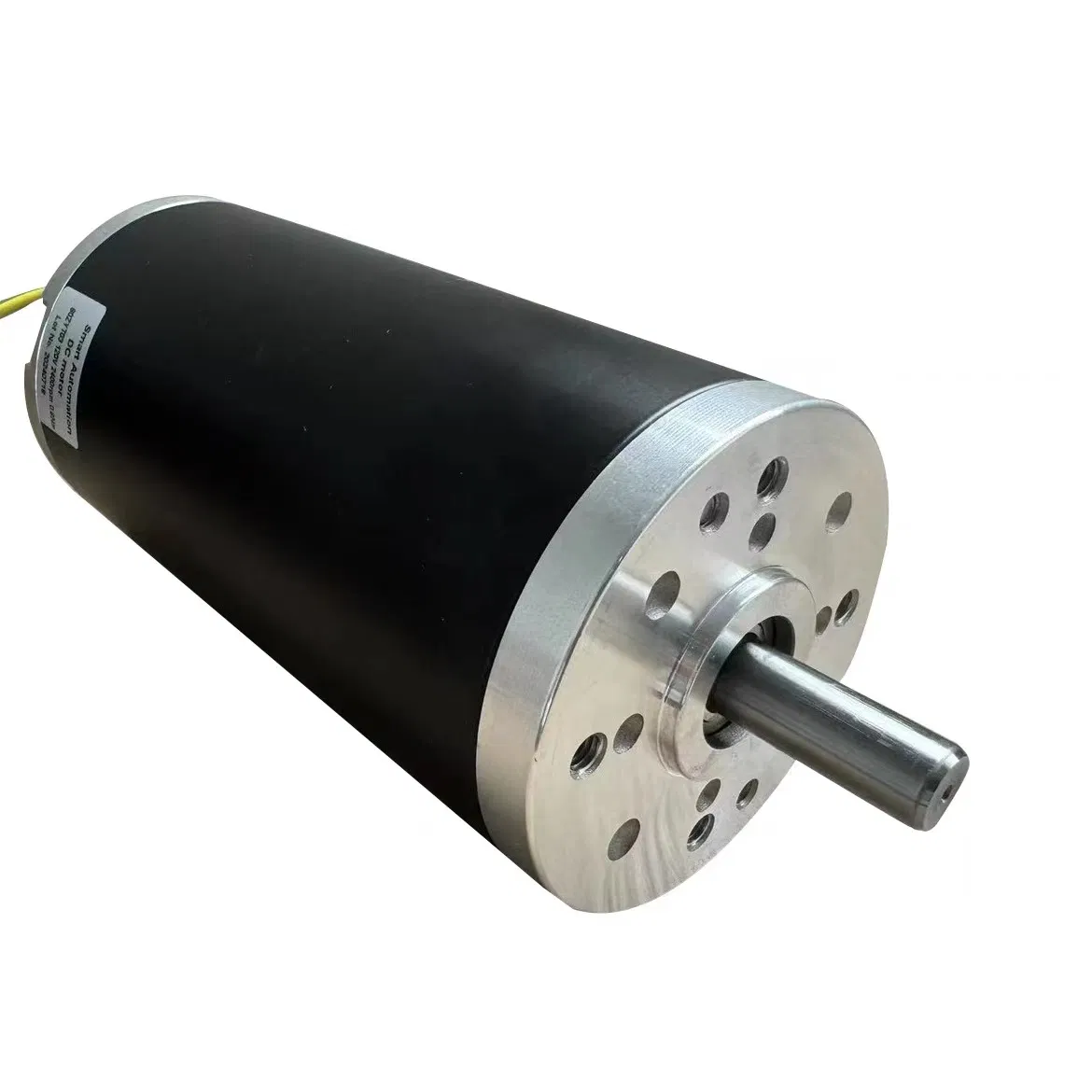

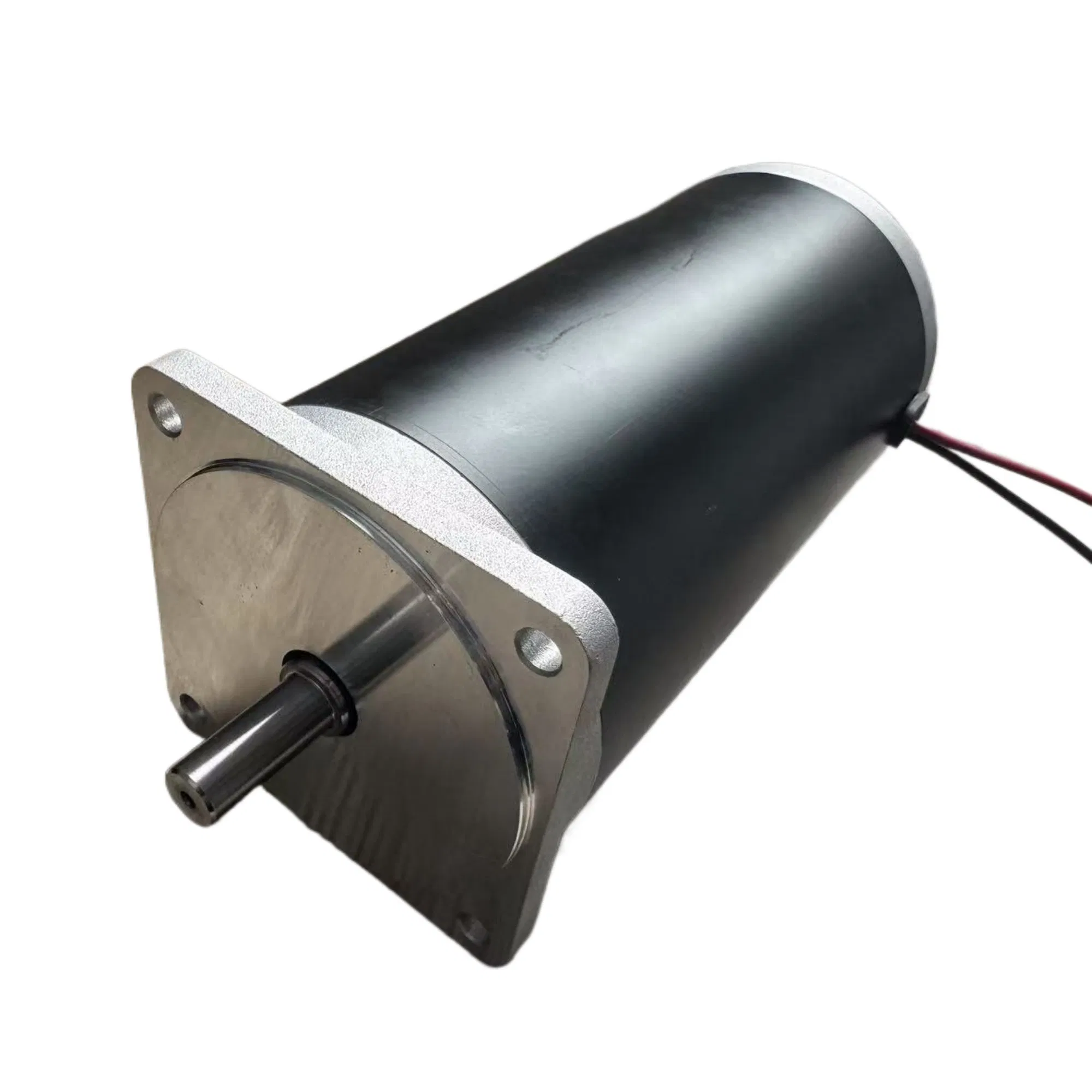

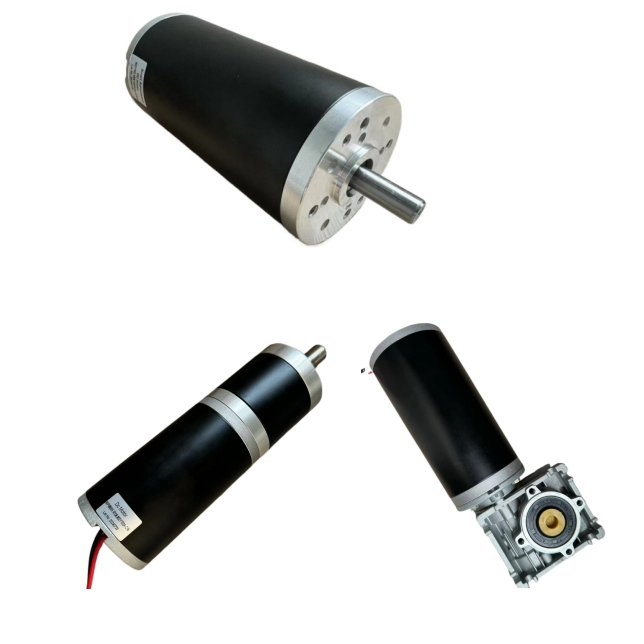

80mm High Torque Electric DC Brushed Motor Gr80 Equivalent 12V 24V 36V 48V 60V 115V 230V 200W 250W 300W 400W Option with Planetary Worm Gearbox Encoder Brake
80mm High Torque Electric DC Brushed Motor Gr80 Equivalent 12V 24V 36V 48V 60V 115V 230V 200W 250W 300W 400W Option with Planetary Worm Gearbox Encoder Brake
80mm High Torque Electric DC Brushed Motor Gr80 Equivalent 12V 24V 36V 48V 60V 115V 230V 200W 250W 300W 400W Option with Planetary Worm Gearbox Encoder Brake
80mm High Torque Electric DC Brushed Motor Gr80 Equivalent 12V 24V 36V 48V 60V 115V 230V 200W 250W 300W 400W Option with Planetary Worm Gearbox Encoder Brake
80mm High Torque Electric DC Brushed Motor Gr80 Equivalent 12V 24V 36V 48V 60V 115V 230V 200W 250W 300W 400W Option with Planetary Worm Gearbox Encoder Brake
1 / 5
80mm High Torque Electric DC Brushed Motor Gr80 Equivalent 12V 24V 36V 48V 60V 115V 230V 200W 250W 300W 400W Option with Planetary Worm Gearbox Encoder Brake
80mm High Torque Electric DC Brushed Motor Gr80 Equivalent 12V 24V 36V 48V 60V 115V 230V 200W 250W 300W 400W Option with Planetary Worm Gearbox Encoder Brake
80mm High Torque Electric DC Brushed Motor Gr80 Equivalent 12V 24V 36V 48V 60V 115V 230V 200W 250W 300W 400W Option with Planetary Worm Gearbox Encoder Brake
80mm High Torque Electric DC Brushed Motor Gr80 Equivalent 12V 24V 36V 48V 60V 115V 230V 200W 250W 300W 400W Option with Planetary Worm Gearbox Encoder Brake
80mm High Torque Electric DC Brushed Motor Gr80 Equivalent 12V 24V 36V 48V 60V 115V 230V 200W 250W 300W 400W Option with Planetary Worm Gearbox Encoder Brake

80mm High Torque Electric DC Brushed Motor Gr80 Equivalent 12V 24V 36V 48V 60V 115V 230V 200W 250W 300W 400W Option with Planetary Worm Gearbox Encoder Brake

Customization: Available
Application: Universal, Industrial, Household Appliances, Car, Power Tools, Machine, Robot
Operating Speed: Constant Speed
Send Inquiry

Product Description

Technical Specifications

Model NO.:80zyt
Function:Driving
Casing Protection:Closed Type
Number of Poles:2
Structure:Brushed
Certification:ISO9001, CE, RoHS
Gearbox Option:Worm and Planet Gearbox
Specification:Size 80mm
HS Code:8501310000
Capacity:10000 PCS Per Month

80zyt Series Brushed DC Motor

The 80zyt Series is a high-performance brushed DC motor solution designed for versatile industrial and commercial driving applications. We provide comprehensive customization options including voltage, dimensions, performance characteristics, shaft configurations, and mounting styles.

  • Customizable integrated components: Encoders, Gearboxes, and Brakes.
  • Wide voltage range availability for diverse power requirements.
  • Highly cost-effective solutions tailored to specific application proposals.
Diameter80mm
Rated Voltage12V, 18V, 24V, 36V, 48V up to 380VDC
Rated TorqueWith gearbox up to 120Nm
Rated SpeedCustomized
Rated Power50W - 500W
Protection ClassOptions: IP00, IP40, IP50, IP54, IP56, IP66, IP67
EMI SuppressionAvailable
Thermal ProtectionAvailable
Gearbox OptionsPlanetary or Worm Gearbox assembled
Brake OptionsElectric brake assembled
Encoder OptionsOptical or Magnetic encoders

Product Visuals

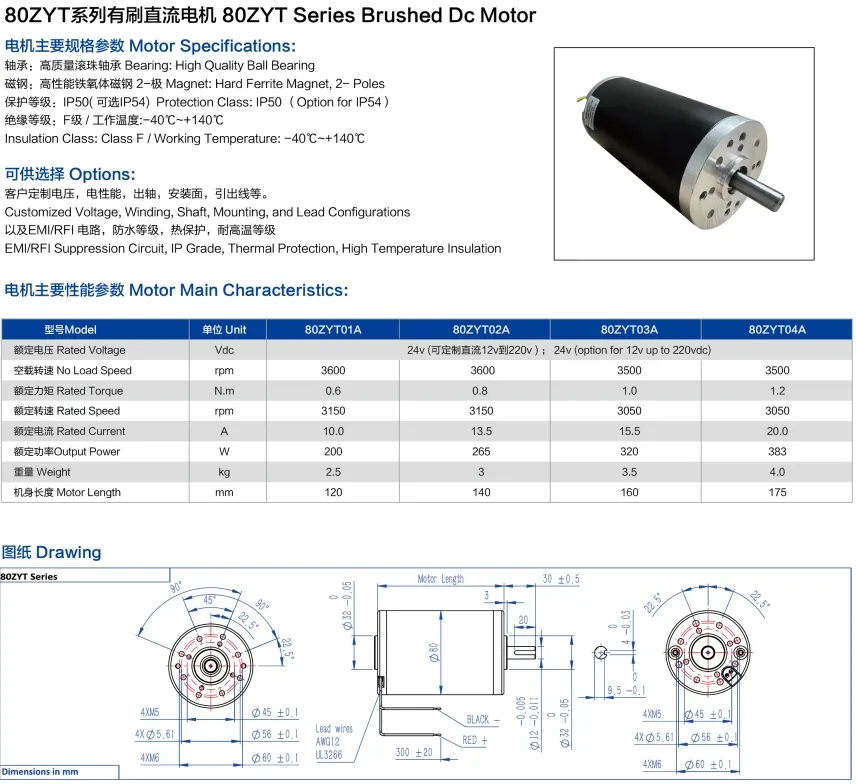

80mm Brushed DC Motor

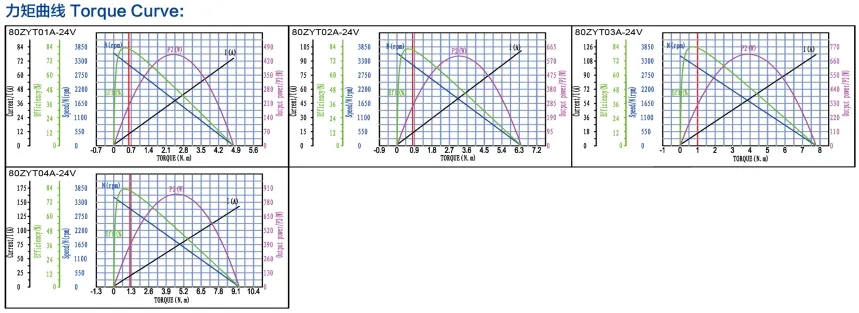

DC Motor Dimensions
80mm Electric Motor

Planetary Gear Motor Version

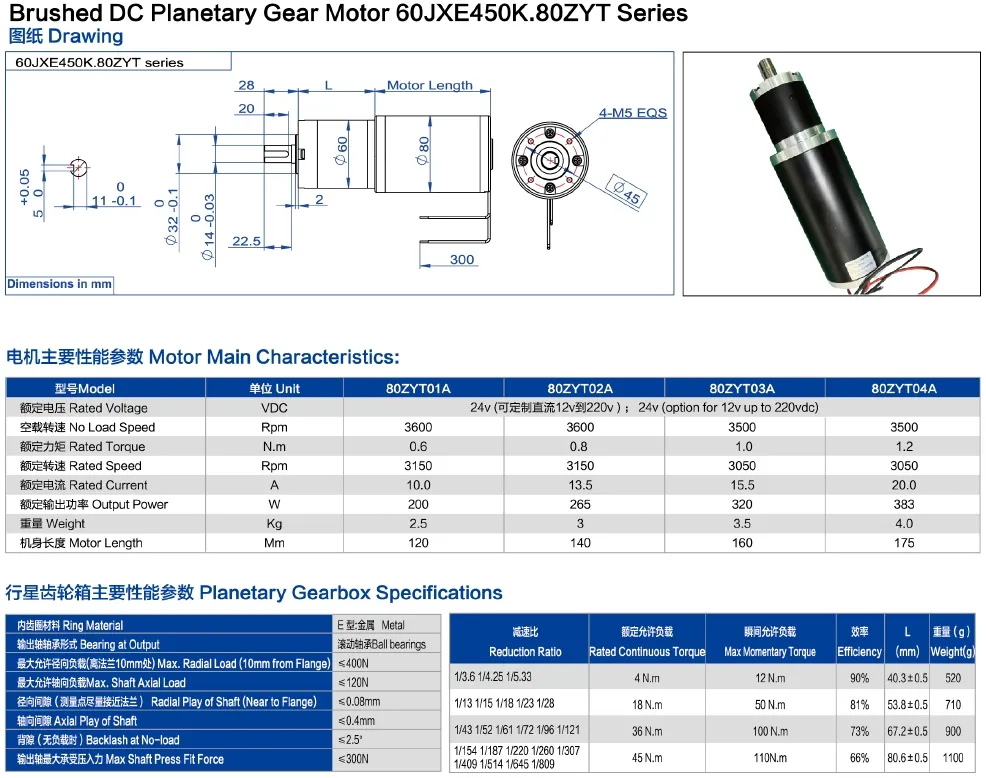

Planetary Gear Motor

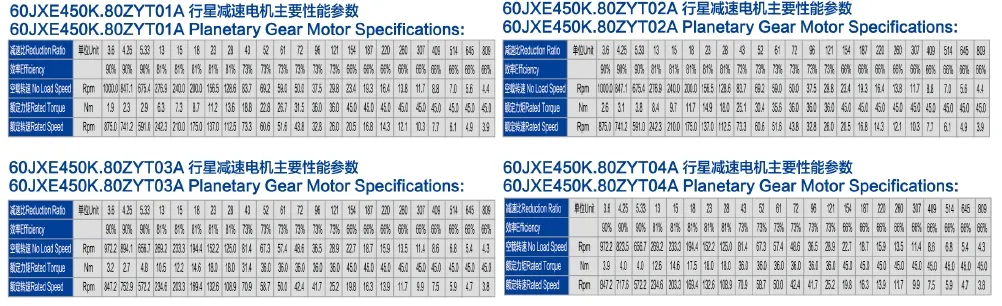

Planetary Specs

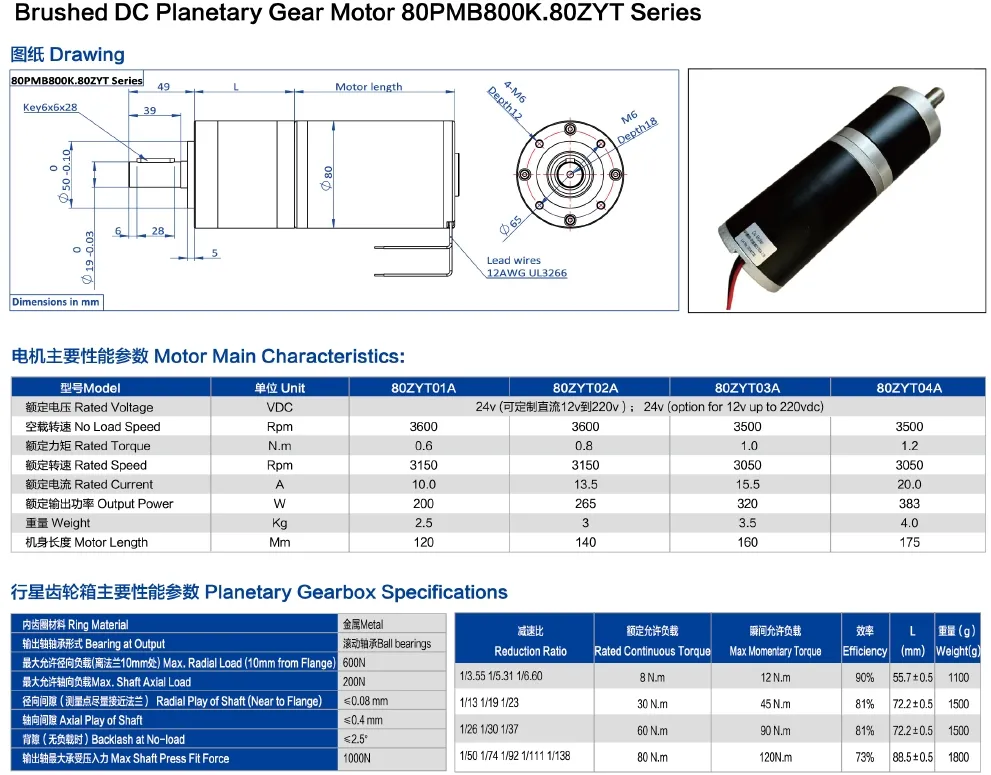

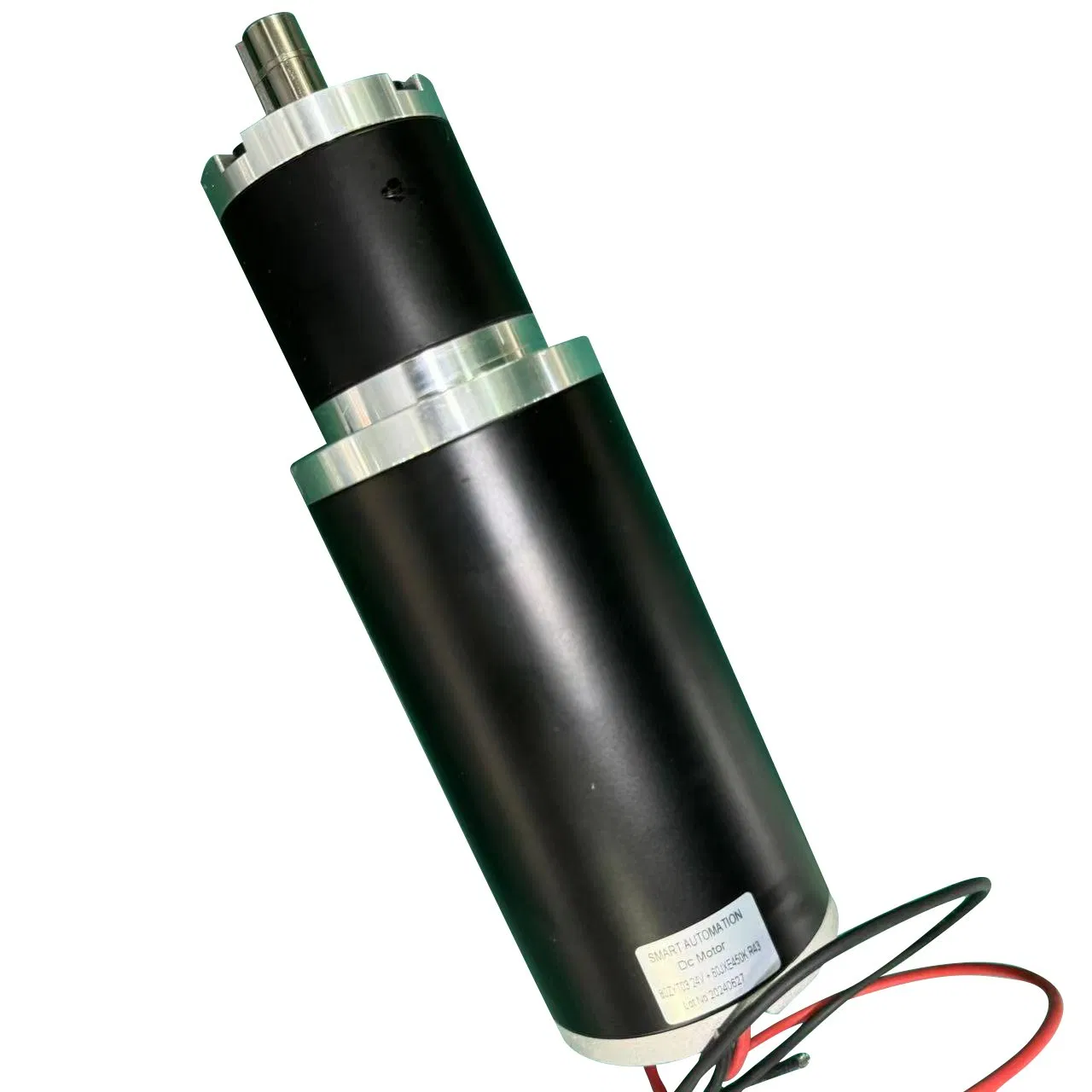

Planetary Motor Side View

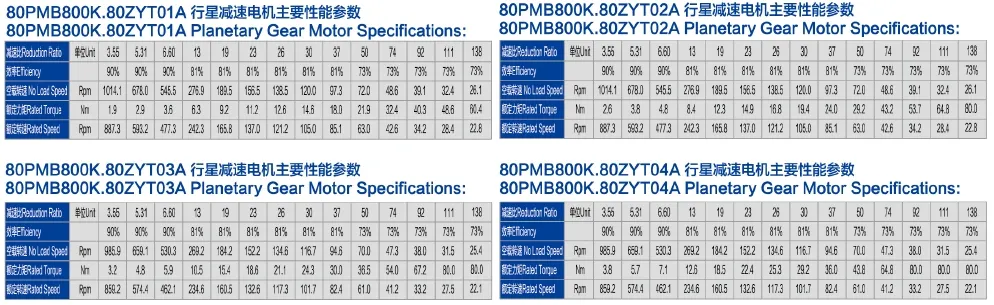

Planetary Motor Data

Worm Gear Version

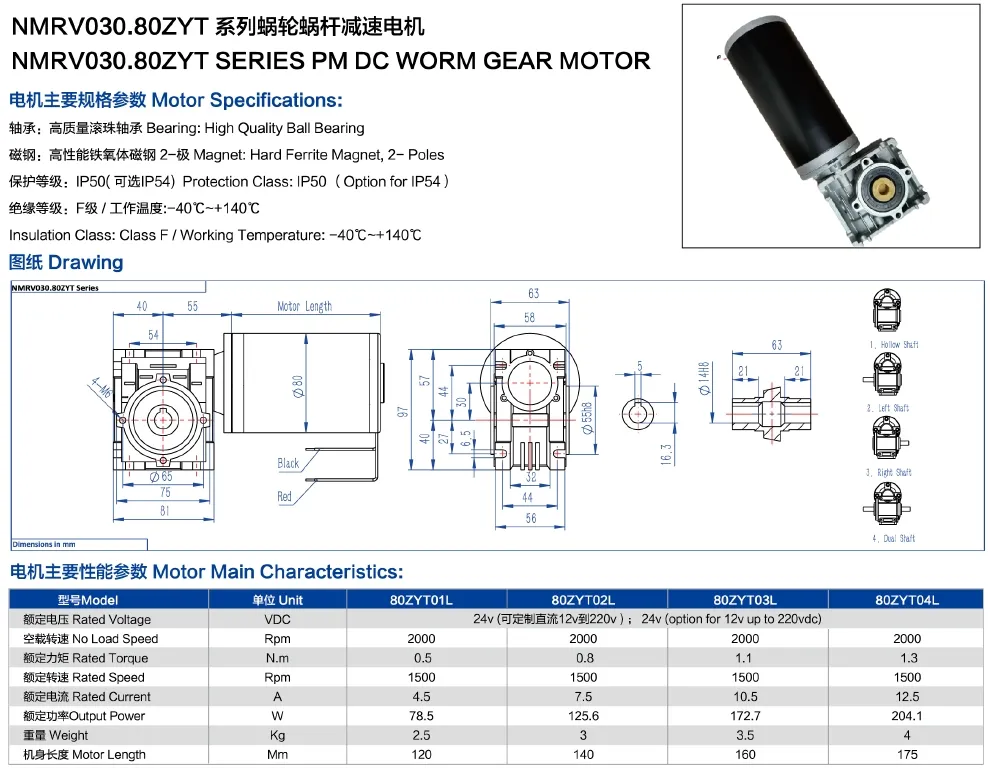

Worm Gear Motor

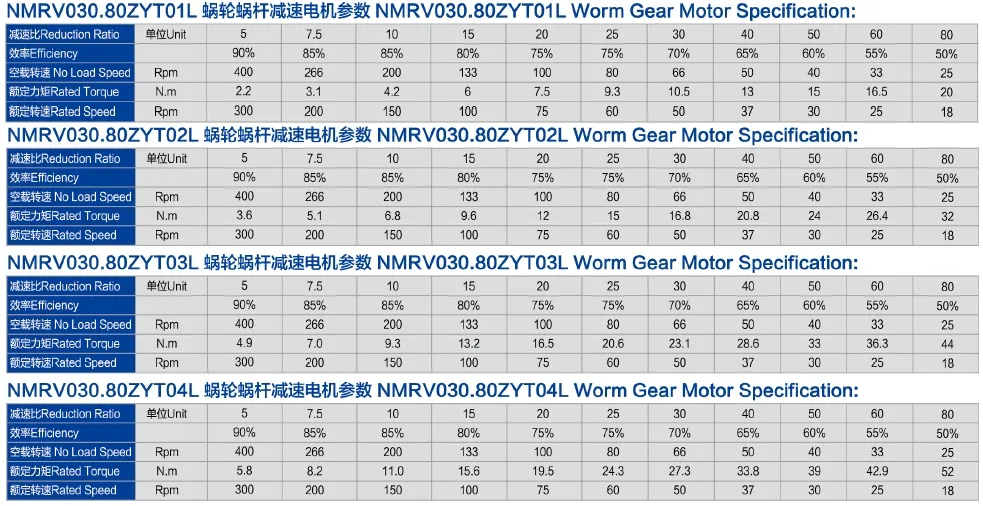

Worm Gear Specs

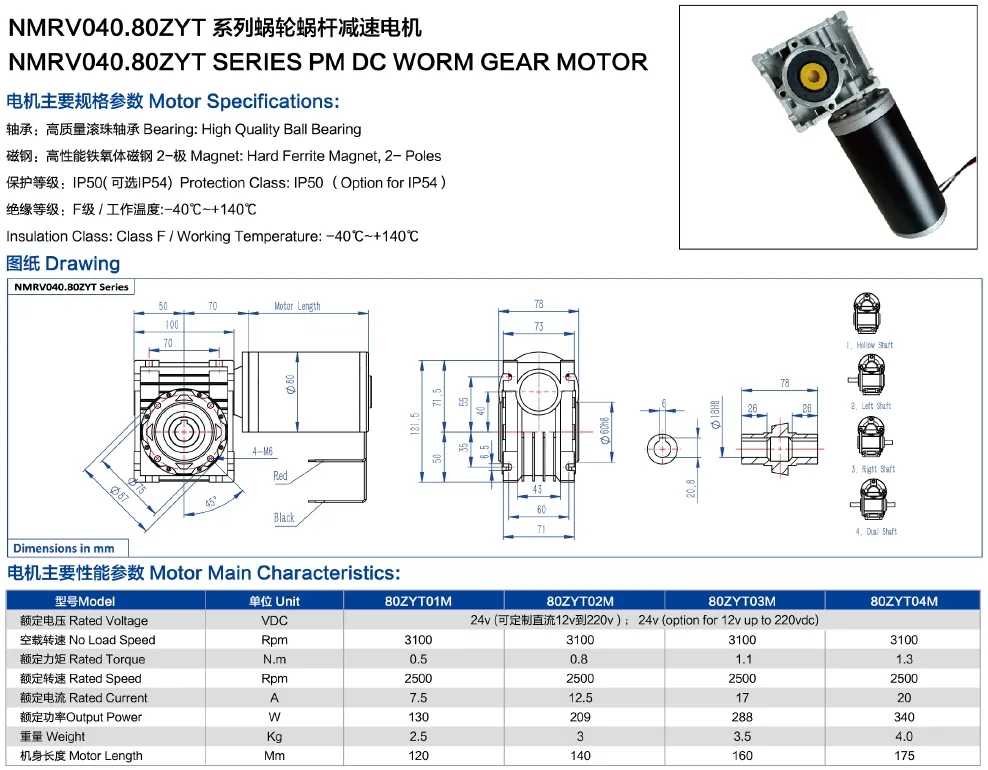

Worm Gear Configuration

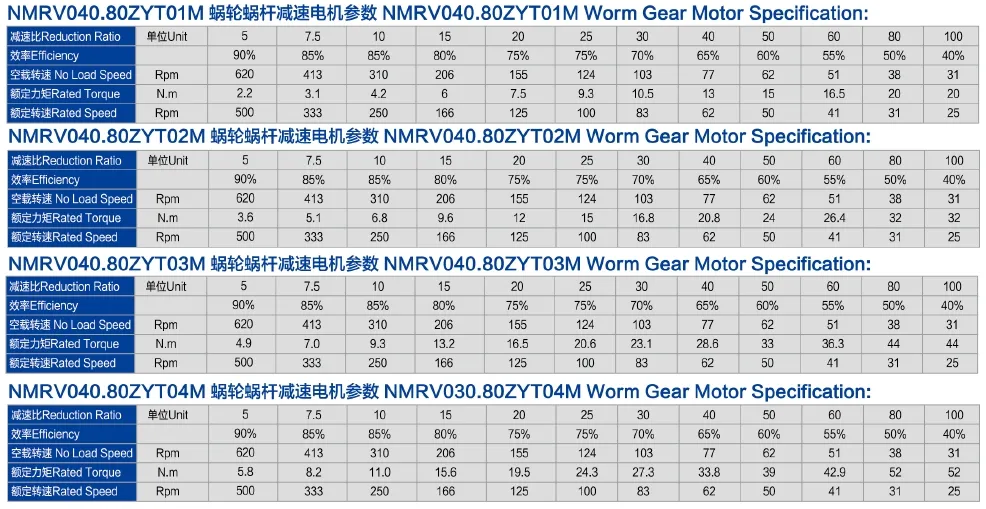

Gearbox Detail

Packaging & Delivery

Package Size:10.00cm * 10.00cm * 20.00cm
Gross Weight:2.000kg
Package Type:Standard Export Package

Frequently Asked Questions

1. Can the 80zyt motor voltage be customized for specific needs? Yes, we offer customizable voltage options ranging from 12V DC up to 380V DC to meet various application requirements.
2. What types of gearboxes can be integrated with this motor? The 80zyt series can be assembled with either Planetary or Worm gearboxes, providing torque output up to 120Nm.
3. Does the motor support feedback systems like encoders? Yes, there are options to assemble Optical or Magnetic encoders for precise speed and position control.
4. What is the standard production capacity for this model? Our current production capacity for the 80zyt series is approximately 10,000 PCS per month.
5. What environmental protection ratings are available? Depending on your requirements, we offer multiple protection classes including IP40, IP54, IP66, and up to IP67.
6. Is thermal protection available for heavy-duty applications? Yes, thermal protection and EMI suppression are available options to ensure motor longevity and reliability in sensitive environments.
