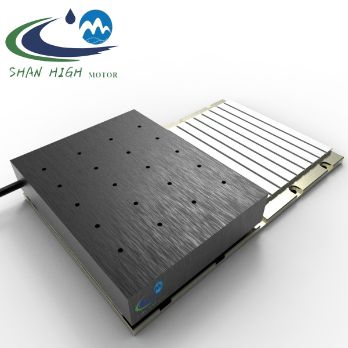

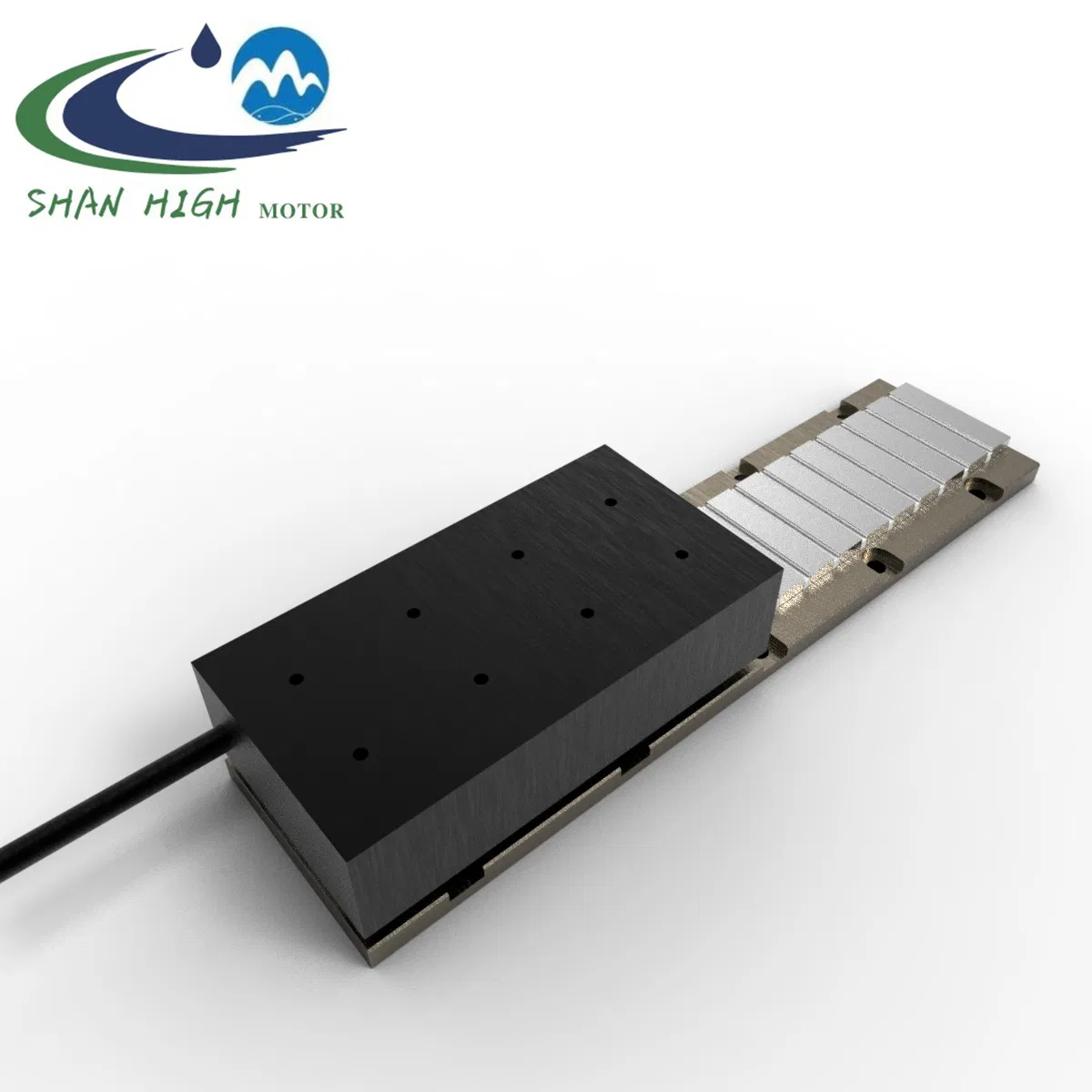

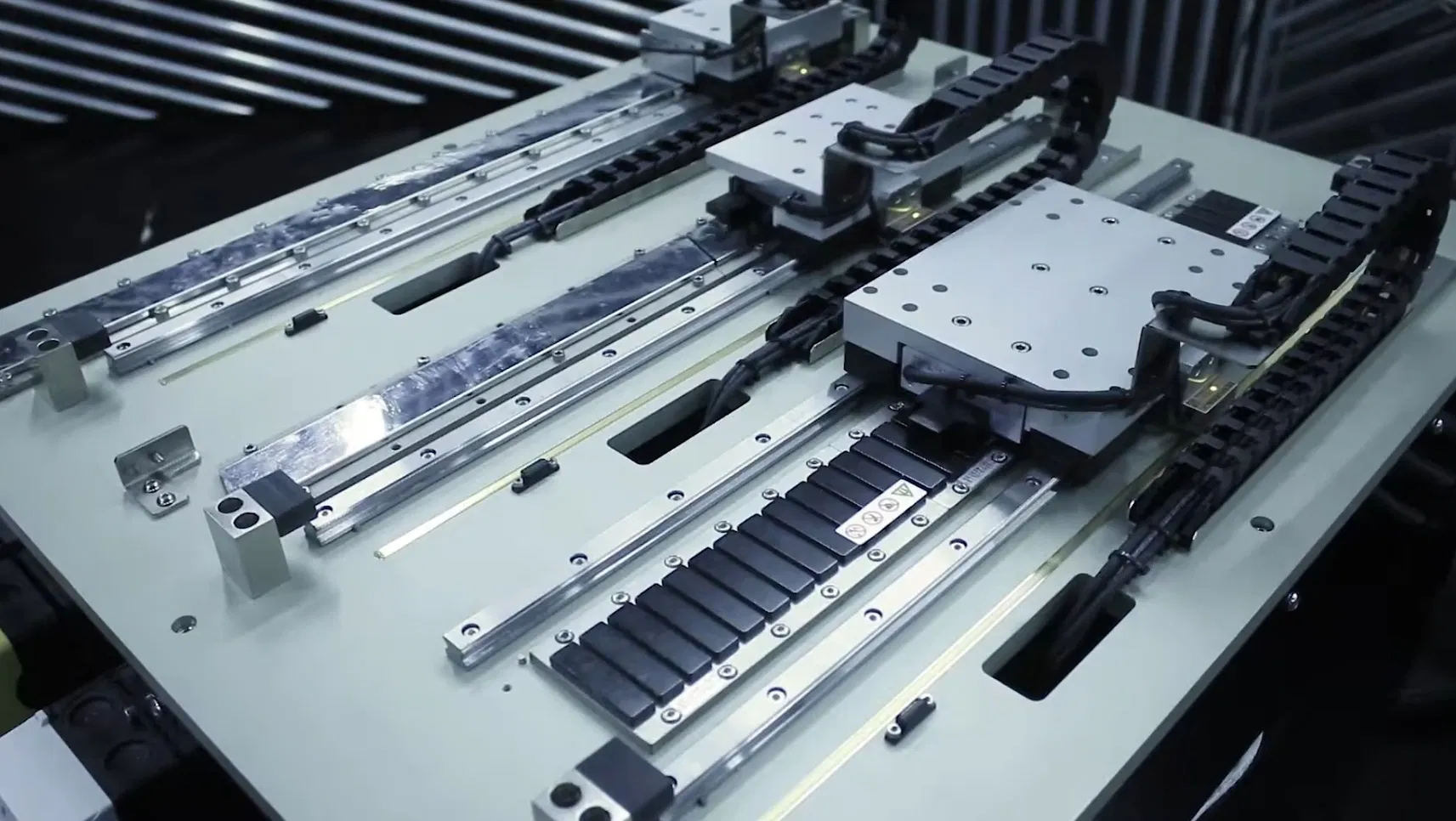

3 Phase Brushless Ironcore Brushless Linear Motor AC 220V or DC 12~48V

3 Phase Brushless Ironcore Brushless Linear Motor AC 220V or DC 12~48V

3 Phase Brushless Ironcore Brushless Linear Motor AC 220V or DC 12~48V

3 Phase Brushless Ironcore Brushless Linear Motor AC 220V or DC 12~48V

3 Phase Brushless Ironcore Brushless Linear Motor AC 220V or DC 12~48V

1 / 5

3 Phase Brushless Ironcore Brushless Linear Motor AC 220V or DC 12~48V

3 Phase Brushless Ironcore Brushless Linear Motor AC 220V or DC 12~48V

3 Phase Brushless Ironcore Brushless Linear Motor AC 220V or DC 12~48V

3 Phase Brushless Ironcore Brushless Linear Motor AC 220V or DC 12~48V

3 Phase Brushless Ironcore Brushless Linear Motor AC 220V or DC 12~48V

3 Phase Brushless Ironcore Brushless Linear Motor AC 220V or DC 12~48V

Customization:	Available
Application:	Industrial
Operating Speed:	Constant Speed

Send Inquiry

Product Description

i

Basic Information

Model NO.

LSHMF010

Excitation Mode

Compound

Casing Protection

Protection Type

Number of Poles

2

Structure

Brushless

Continuous Force

79n to 162n

Peak Force

600n

Origin

China

Production Capacity

500,000 pieces/Year

3 Phase Brushless Ironcore Linear Motor

✓

Standard Specifications

Environment & Capacity Parameters
Insulation Capacity	AC1500V 1min
Operating Range	0~25ºC
Cooling Method	Self-cool
Insulation Resistance	DC500V 100MΩ or more
Operating Humidity	20~80% (No condensation)
Maximum Temperature	125ºC

⚙

Technical Parameters

Parameter	Unit	LSHMF010-DP96	LSHMF010-DP176
Performance Specifications
Continuous Force	N	79	162.2
Peak Force	N	309.2	635.4
Electrical Specifications
BEMF Constant (line-line, peak)	V/(m/s)	26.9	27.6
Continuous Current	Arms	2.4	4.8
Peak Current, Stall	Arms	9.4	18.8
Force Constant	N/Arms	32.9	33.8
Motor Constant	N/Sqrt(W)	14.4	20.3
Resistance, 25ºC (line-line)	Ω	3.5	1.84
Inductance (line-line)	mH	16.5	8.2
Thermal Resistance	ºC/W	2	0.909
Maximum Bus Voltage	VDC	600	600
Mechanical Specifications
Coil Weight	kg	0.6	1.1
Coil Length	mm	96	176
Magnet Track Weight	kg/m	3.3	3.3
Magnet Pole Pitch (NN)	mm	20	20

Notes:

Performance depends on heat sink, cooling, and ambient temperature.
Values shown at 100ºC rise above 25ºC ambient with specified heat sink.
Peak force assumes correct RMS current usage.
All performance and electrical specifications ±10%.

⚓

Wiring & Dimensions

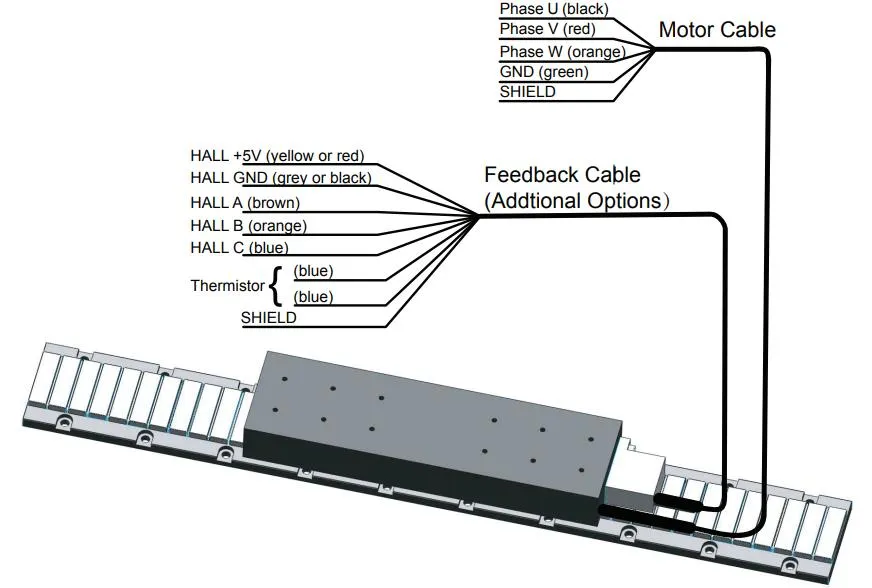

Motor Wiring Diagram:

Motor Wiring

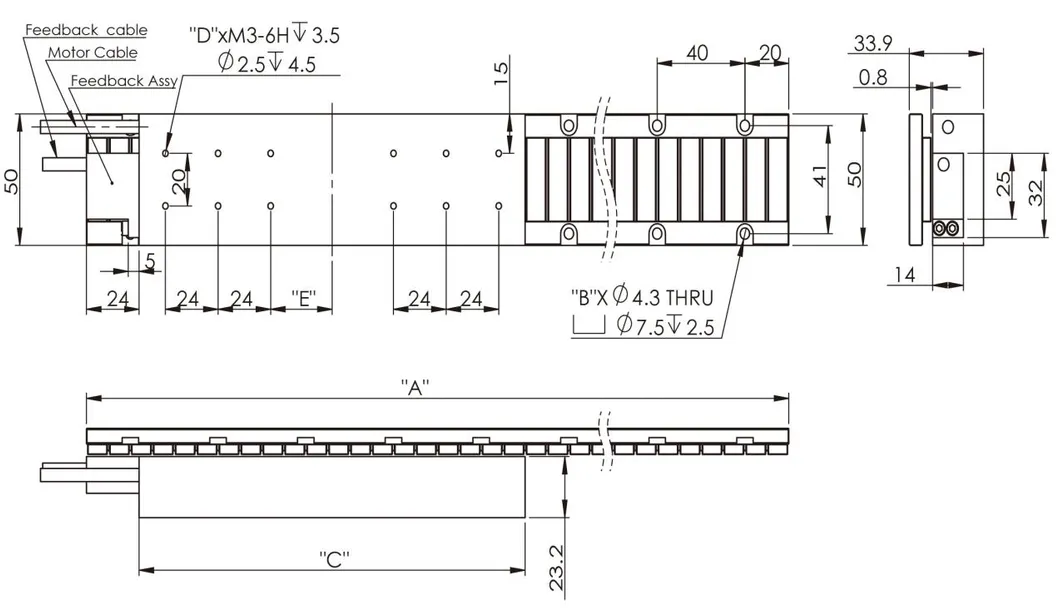

Dimension Overview:

Dimensions

▦

Plate Specifications

Magnet Plate			Coil Plate
Model No.	A (mm)	B	Model No.	C (mm)	D	E
LSHMF010-GP80	80	4	LSHMF010-DP96	96	8	12
LSHMF010-GP200	200	10	LSHMF010-DP176	176	12	28
LSHMF010-GP400	400	20	-	-	-	-

?

Frequently Asked Questions

What is the cooling method for the LSHMF010 series?

The motor utilizes a self-cooling method, meaning it dissipates heat naturally based on the environment and its mounting configuration.

What is the maximum operating temperature?

The motor can handle a maximum internal temperature of 125ºC. Typical operating range is 0~25ºC ambient.

Can this motor be used with DC power?

Yes, it is designed to be compatible with AC 220V or DC 12~48V systems, with a maximum bus voltage of up to 600VDC.

Is the motor structure brushless?

Yes, the LSHMF010 is a 3-phase brushless ironcore linear motor, offering high efficiency and reduced maintenance.

What is the difference in peak force between the DP96 and DP176 models?

The DP96 model has a peak force of 309.2N, while the DP176 model offers a significantly higher peak force of 635.4N.

What is the insulation capacity of this linear motor?

The insulation capacity is rated at AC1500V for 1 minute, ensuring high electrical safety during operation.
