Customization: Available
Application: Universal, Industrial, Household Appliances, Car, Power Tools, Machine, Robot
Operating Speed: Constant Speed
Send Inquiry

Product Description

Basic Specifications
Model NO.
63zyt series
Function
Control, Driving
Casing Protection
Closed Type
Number of Poles
2
Working Principle
Brush
Certification
ISO9001, CE, RoHS
Voltage
12V 24V Upto 230VDC
Power Range
10W Upto 300W
Specification
Size 63mm
Capacity
10000 PCS Per Month
Product Overview
63zyt Series Brushed DC Motor

We provide Customizable solutions for voltage, dimensions, performance, shafts, and mounting options to meet your specific industrial needs.

Integrated Encoders Gearbox Options Electronic Brakes Custom Performance

Please Send Inquiry to get the Best and Most Cost-Effective Solution.

Technical Options
Parameter Specifications & Options
Diameter 63mm
Rated Voltage 12v, 18v, 24v, 36v, 48v up to 380vdc
Rated Torque With gearbox up to 30Nm / 45Nm
Rated Speed Fully Customized
Rated Power 30W - 200W
Protection Class IP00, IP40, IP50, IP54, IP56, IP66, IP67
EMI Suppression Available upon request
Thermal Protection Available upon request
Gearbox Planetary or Worm gearbox options
Brake Electric brake assembly options
Encoder Optical or Magnetic encoder options
Controller Integrated controller options for BLDC motors
Product Gallery

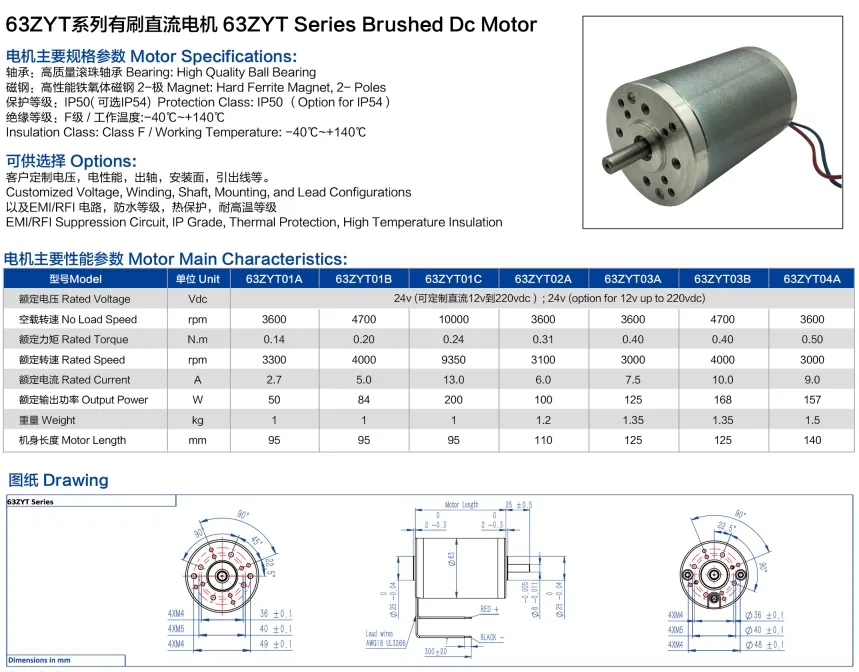

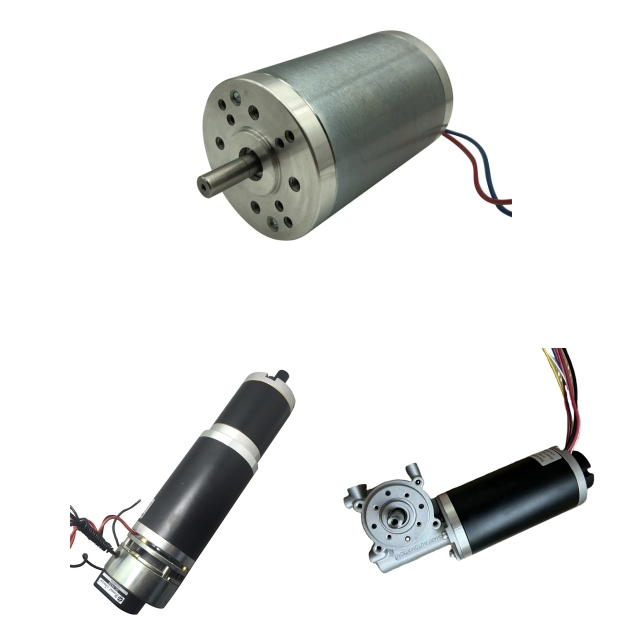

63zyt Brushed DC Motor

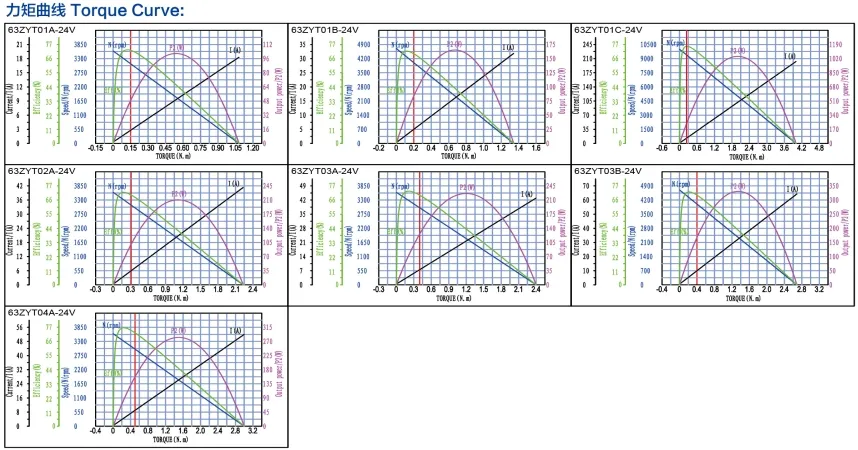

DC Motor Specifications

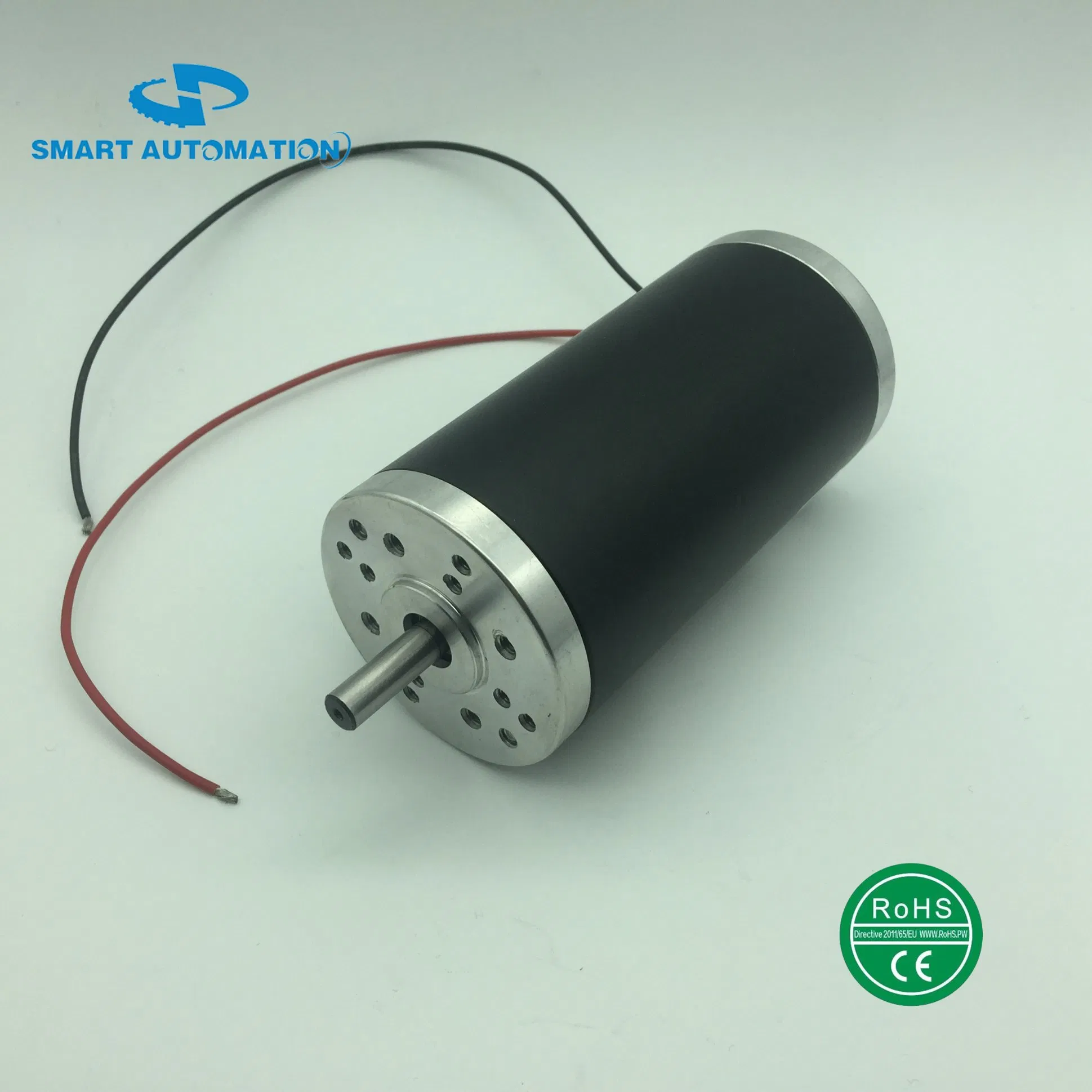

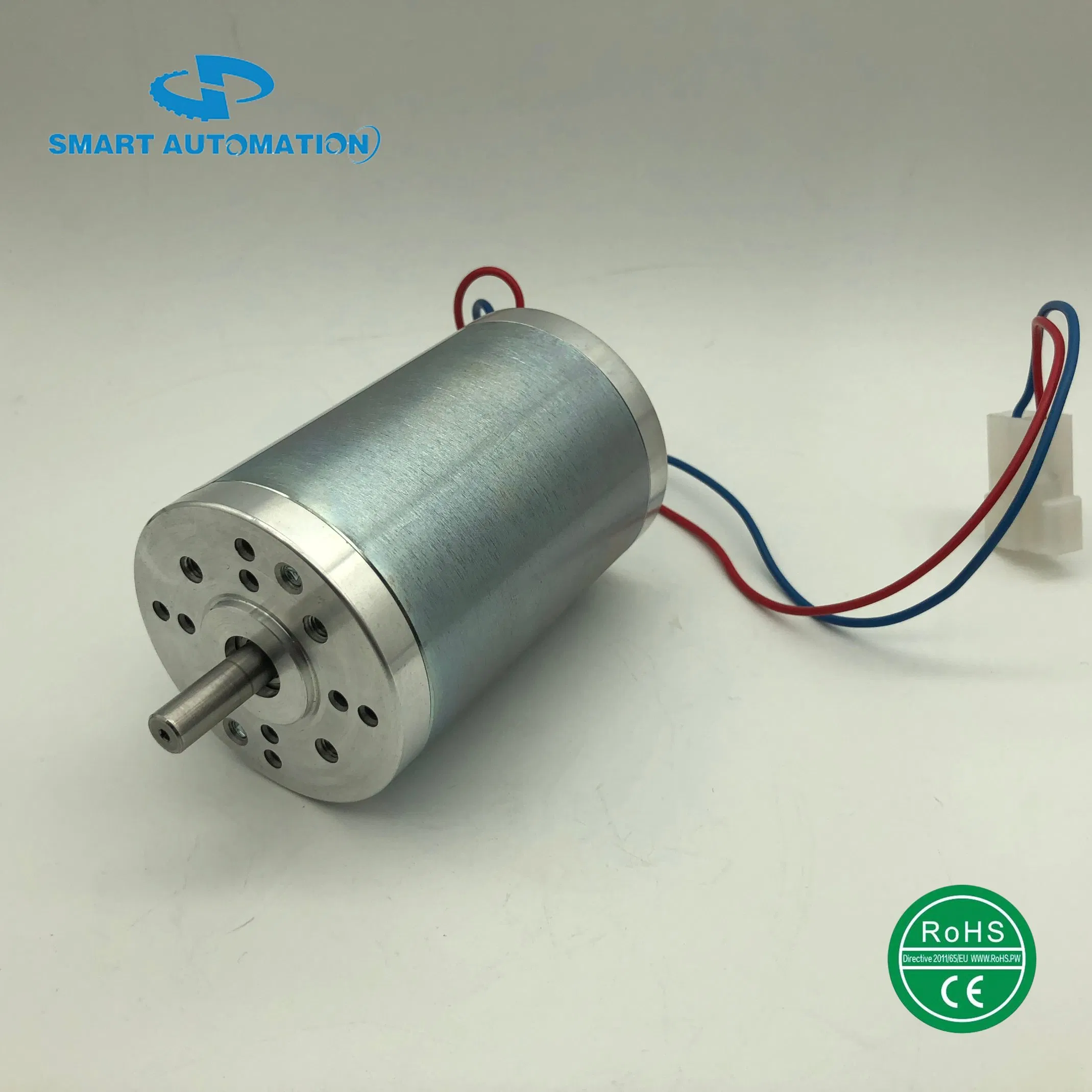

63mm Motor Front View
63mm Motor Side View

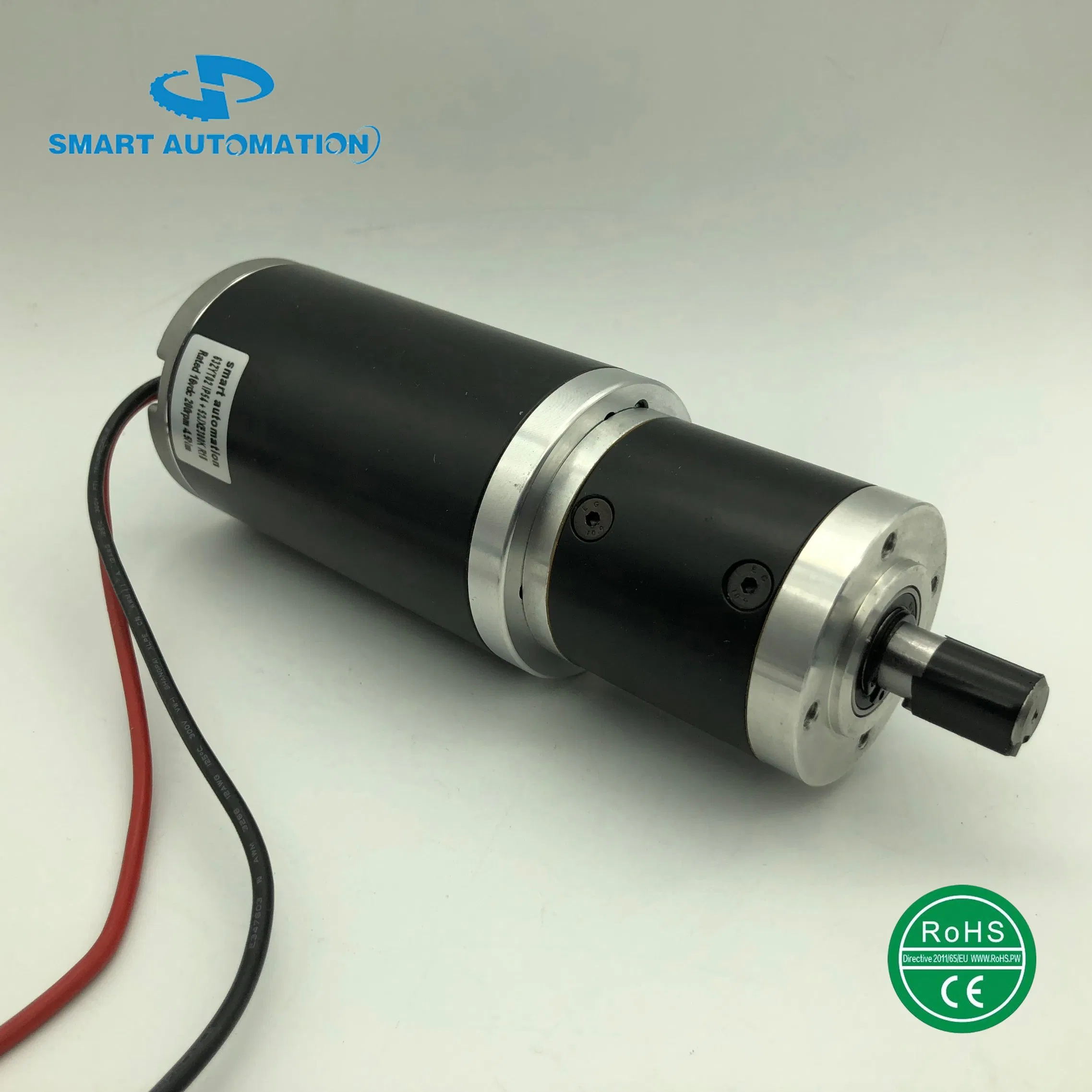

63mm Planetary Gear Motor

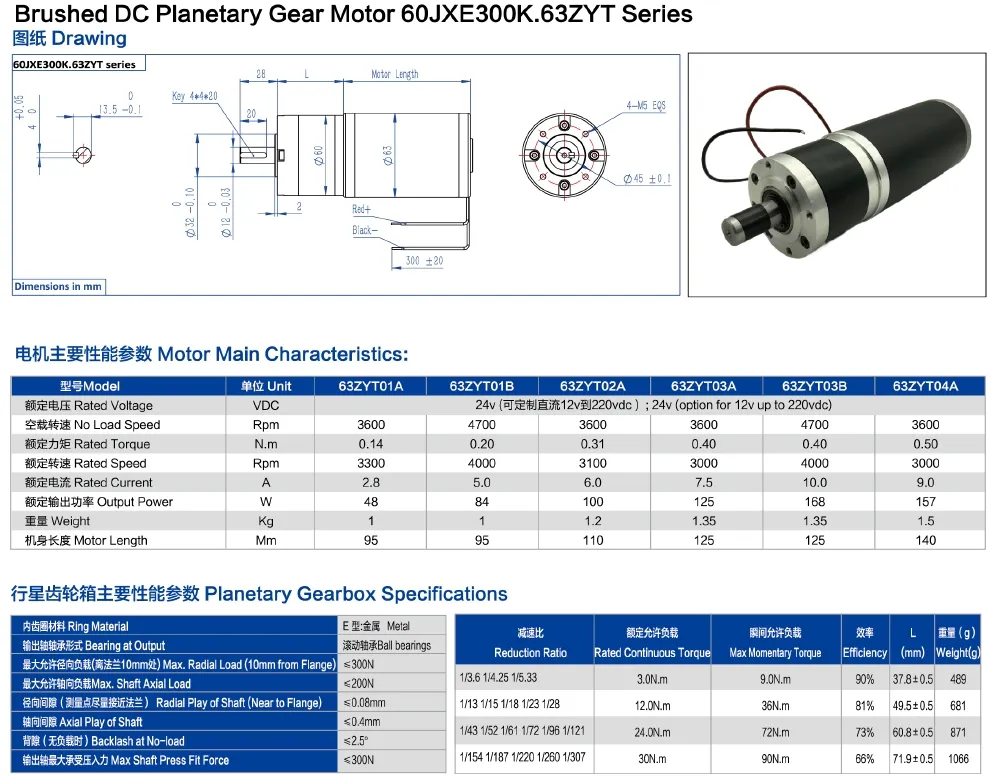

Planetary Gearbox Motor
Planetary Motor Dimensions
63zyt Series Worm Gear Motor
Worm Gear DC Motor

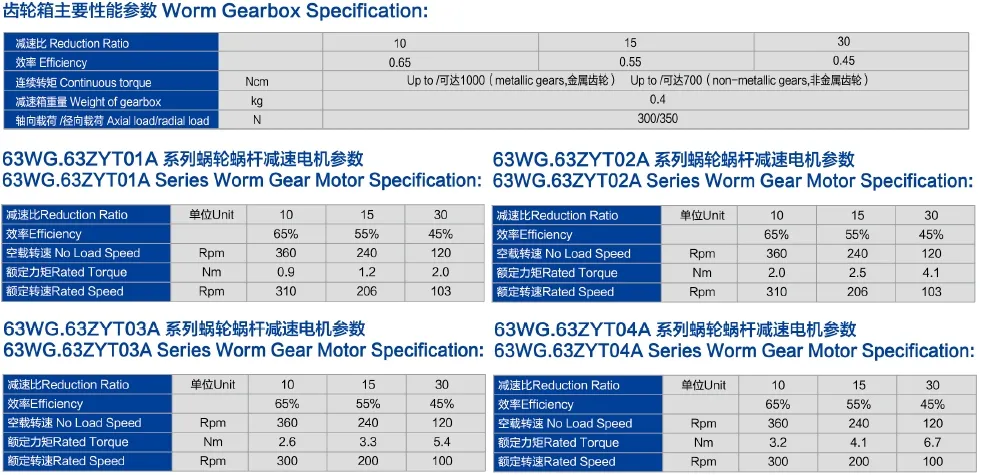

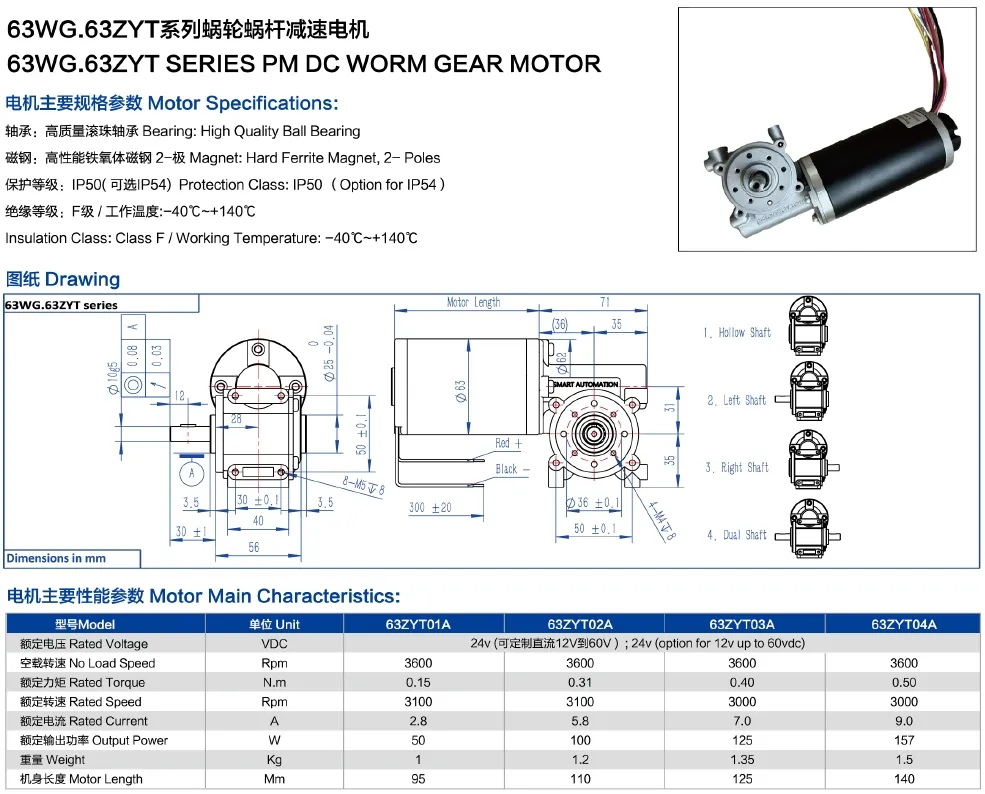

Worm Gear Motor Specifications
Frequently Asked Questions
What is the voltage range for the 63zyt motor?
The 63zyt series supports a wide range of DC voltages, including 12V, 24V, 36V, 48V, and can be customized up to 230VDC or 380VDC.
Can I request a custom shaft or mounting?
Yes, we specialize in customizable dimensions, performance parameters, shaft designs, and mounting configurations to suit your application.
What gearboxes are compatible with this series?
The 63zyt motors can be integrated with either Planetary gearboxes or Worm gearboxes, providing torque up to 30Nm or 45Nm.
What is the maximum power output?
Standard customization ranges from 30W to 200W, but performance can be adjusted from 10W up to 300W depending on requirements.
Are these motors protected against environmental factors?
Yes, we offer multiple protection classes starting from IP00 up to IP67 for demanding environments.
Do you provide encoders or brakes?
Yes, options for Optical or Magnetic encoders and electric brakes are available to be assembled with the motor.
