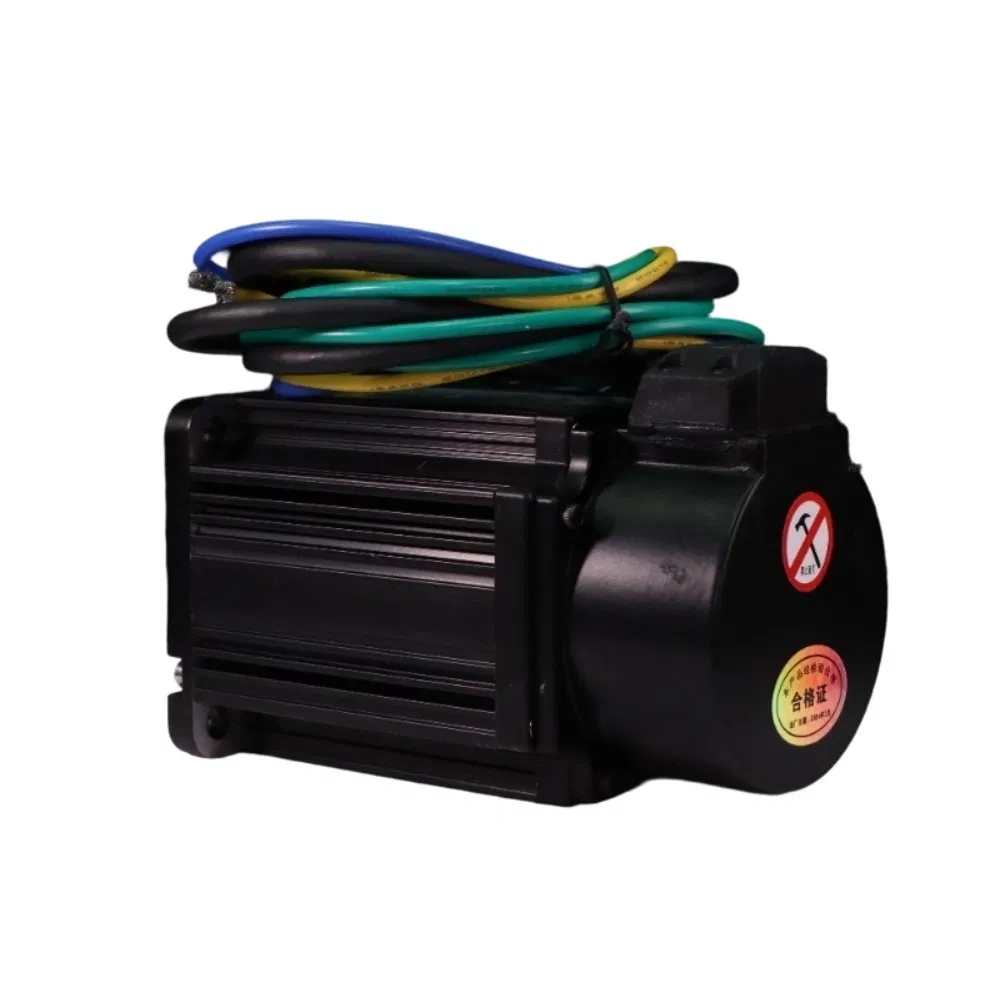

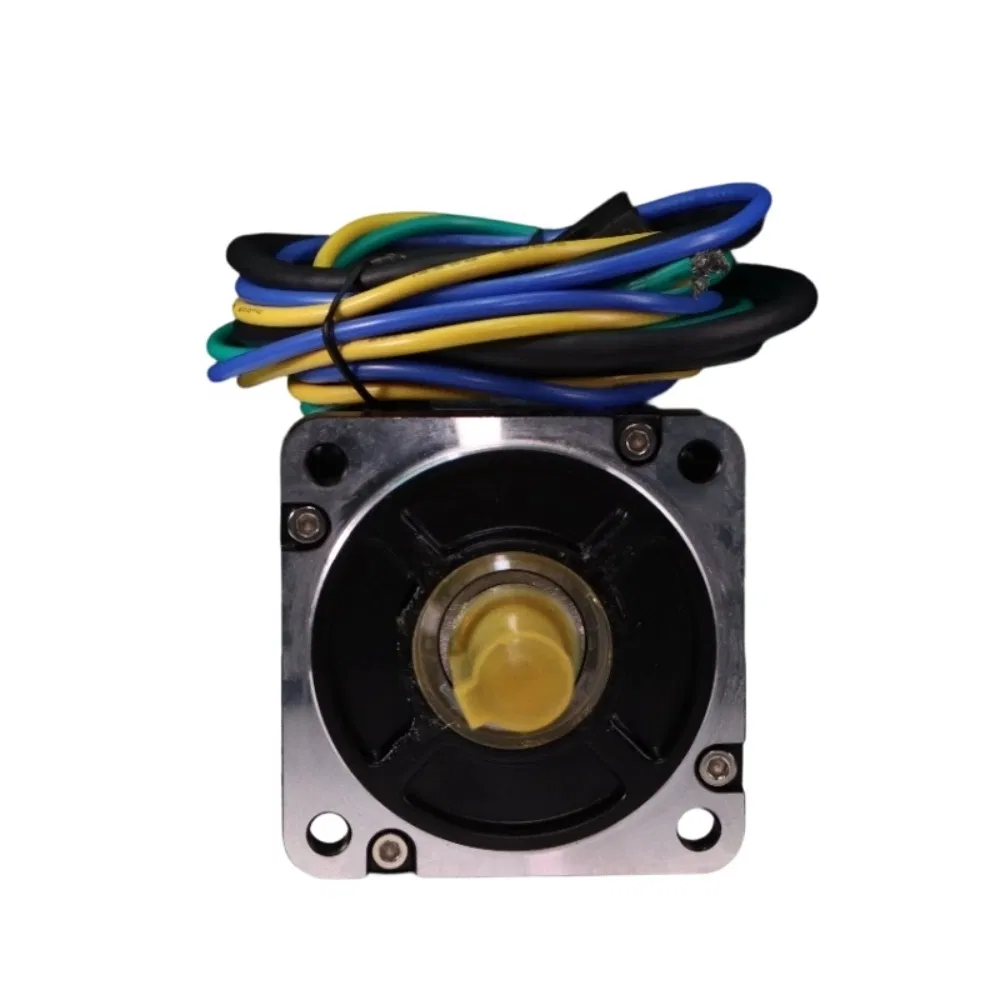

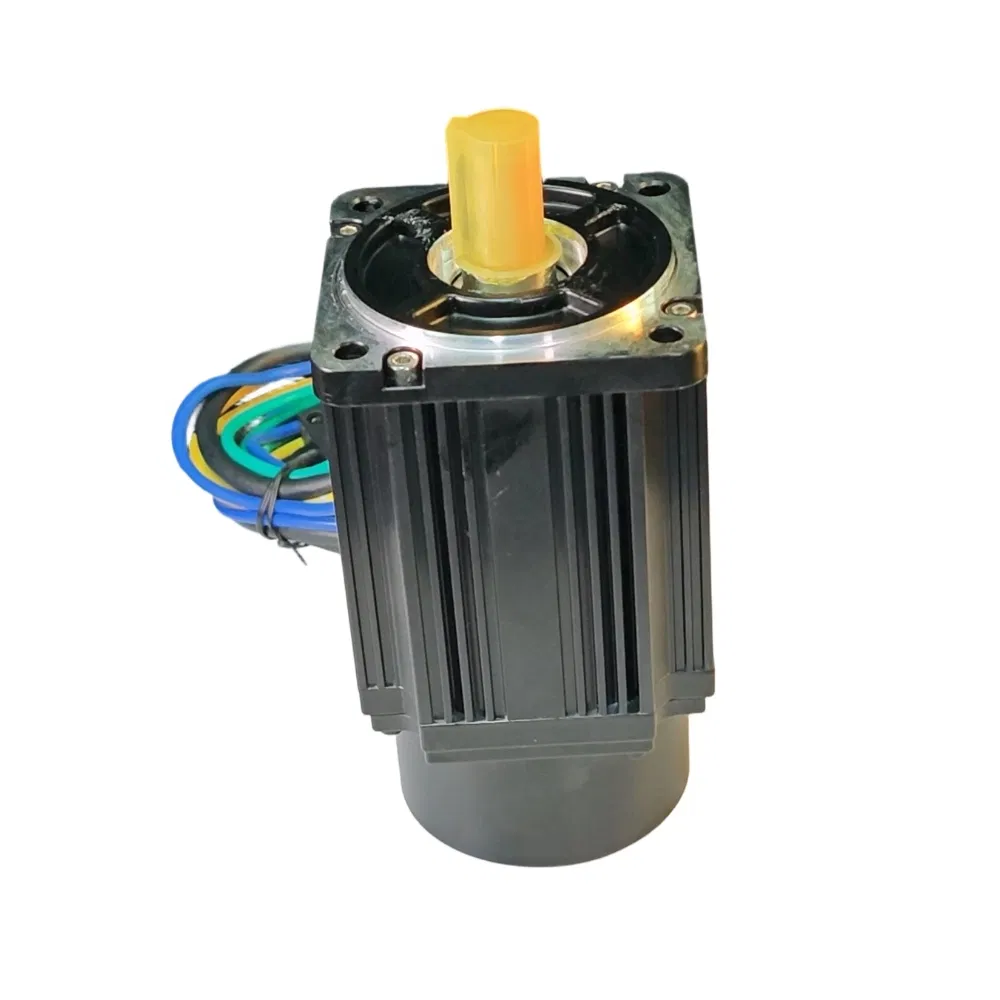

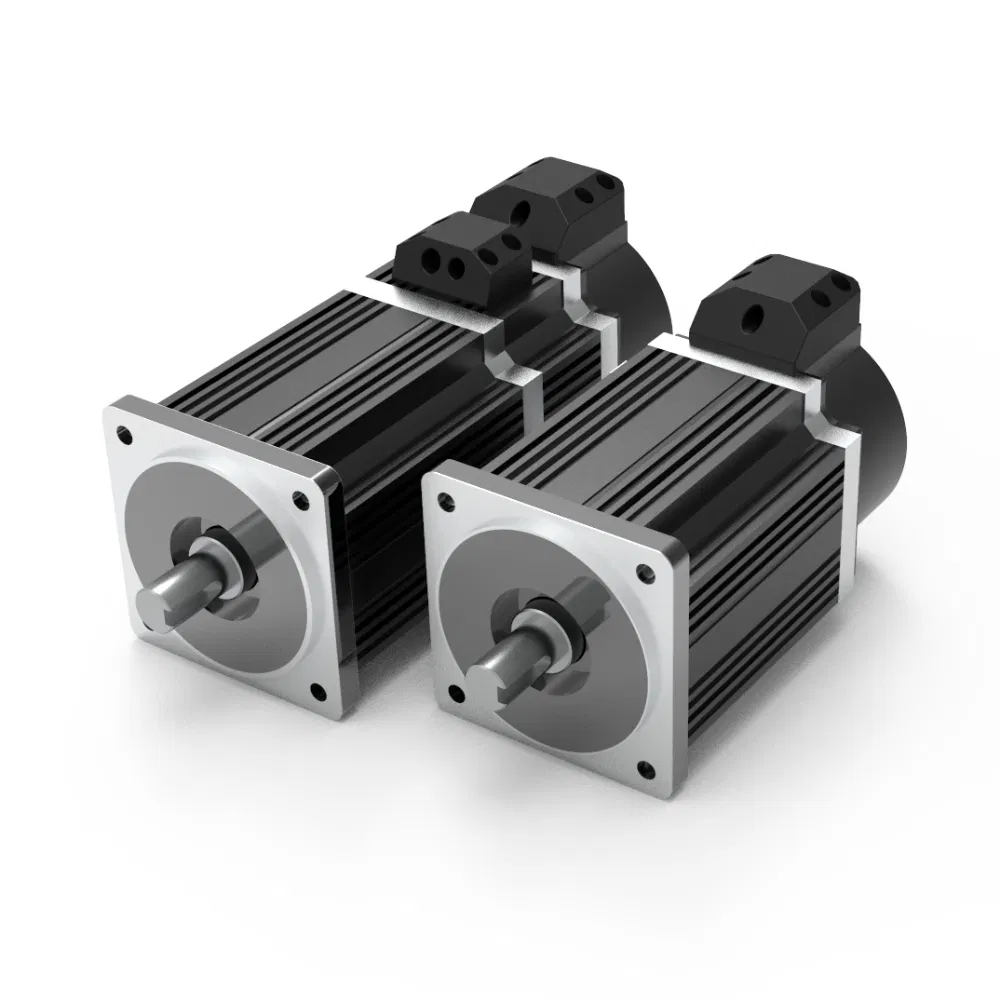

48V 96V 750W 3000rpm DC Servo Motor Permanent Magnet Synchronous Motor with Incremental Encoder Support Customization

Basic Information

Model NO.:KY80ACS0407-30

Function:Driving

Casing Protection:Closed Type

Number of Poles:10

Structure:Brushless

Certification:ISO9001, CE

Rated Voltage:48V/96V

Rated Power:750W

Rated Current:19.5A

Rated Speed:3000rpm

Rated Torque:2.39n·M

Protection Grade:IP55

Cooling Method:Natural Cooling

Weight:2.3kg

Product Description

750W 3000rpm DC Servo Motor

Permanent Magnet Synchronous Motor with Incremental Encoder (KY80ACS0407-30)

Rated Voltage: DC 12-96V; Rated Power: 50W-15KW.
Reaches grade 1 energy efficiency.
Fast response speed and high heat conduction efficiency.
Multi-slot pole design for small cogging pulsation torque and smooth operation.
H-class enameled wire stator, resistant to high temperatures.
National patented rotor technology for strong stability.
Supports full customization.

Technical Specification

Parameters	Value / Description
Model	KY80ACS0407-30 / KY80ACS0407-30B
Rated Voltage	48V/96V
Rated Power	750W
Rated Current	19.5A
Rated Speed	3000RPM
Rated Torque	2.39N·m
Max. Speed	4000RPM
Instantaneous Max. Current	58.5A
Instantaneous Max. Torque	7.17N·m
Number of Poles	10
Feedback	Incremental encoder (Standard), Absolute encoder (Optional)
Brake Voltage (Optional)	24V
Ambient Temp.	-25 to +50℃
Protection Grade	IP55
Weight (Without Brake)	2.3kg

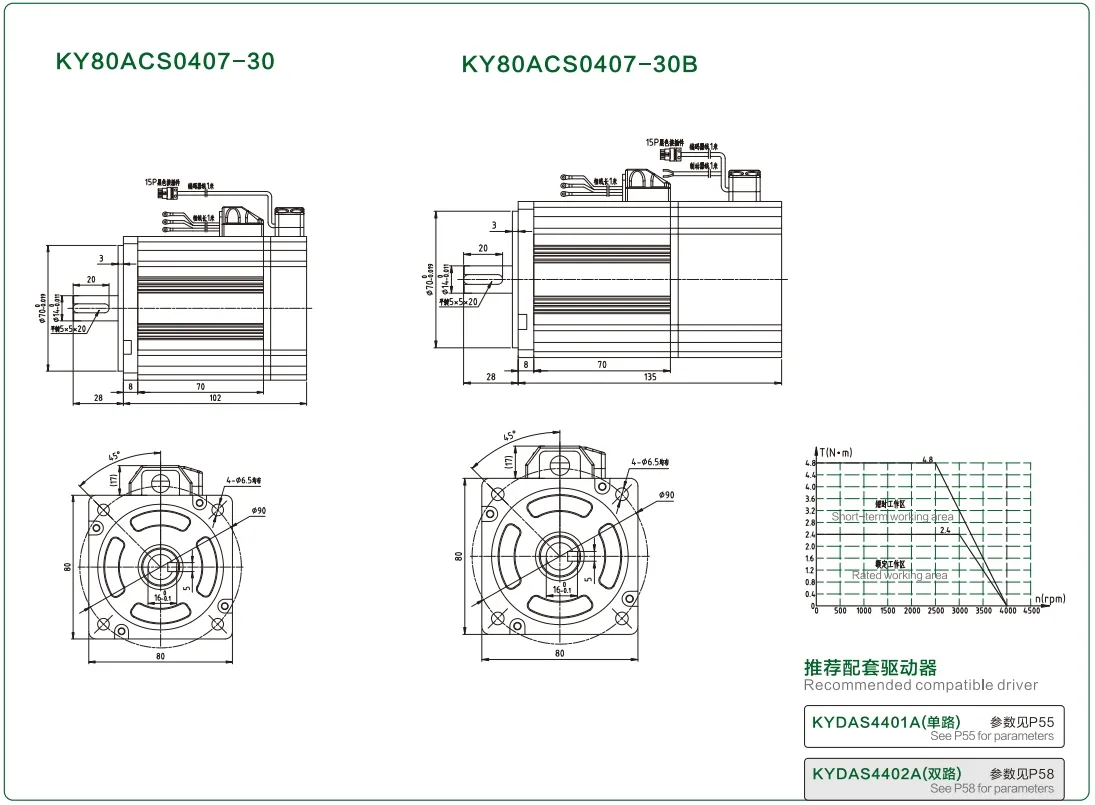

Technical Drawings

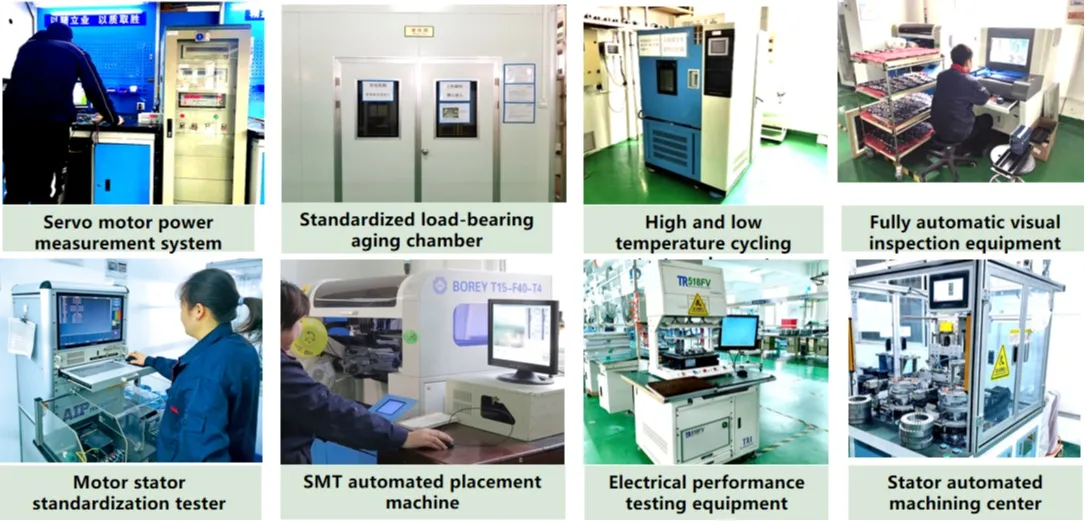

Advanced Equipment & Workshop

Our facility implements a comprehensive product quality control system, having obtained the ISO9001 international quality certification. We utilize a "four controls" process: first item control, inspection control, final inspection control, and finished product inspection before shipping. We adopt the "8D" model and PDCA cycle for continuous improvement.

Frequently Asked Questions

Is there any price discount for bulk purchase?

Yes, we offer competitive tiered pricing. The larger the order quantity, the more favorable the unit price. Please contact us with your specific requirements for a dedicated quotation.

What is the production and delivery cycle?

For in-stock items, shipping is arranged within 3-5 working days. For out-of-stock products, delivery time depends on order volume and production cycles, which we will estimate clearly before order confirmation.

How is the product quality guaranteed?

We strictly implement the ISO quality management system from raw materials to finished products. Every motor undergoes rigorous testing, and we provide professional R&D support along with product manuals.

Do you support product customization?

Yes, we support customization for various specifications, including voltage, power, and encoder types (Incremental or Absolute) to meet your specific application needs.

What is the protection grade of this motor?

The motor features an IP55 protection grade, providing reliable operation against dust and low-pressure water jets, suitable for various industrial driving applications.

Is a braking system available for this model?

The standard model comes without a brake, but a 24V power loss braking system is available as an optional add-on for applications requiring static friction holds.
