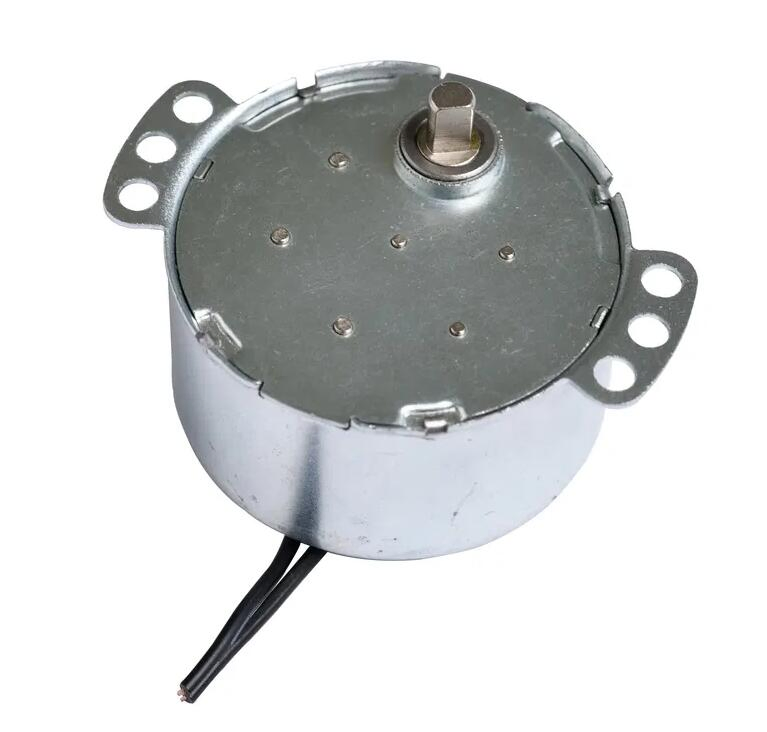

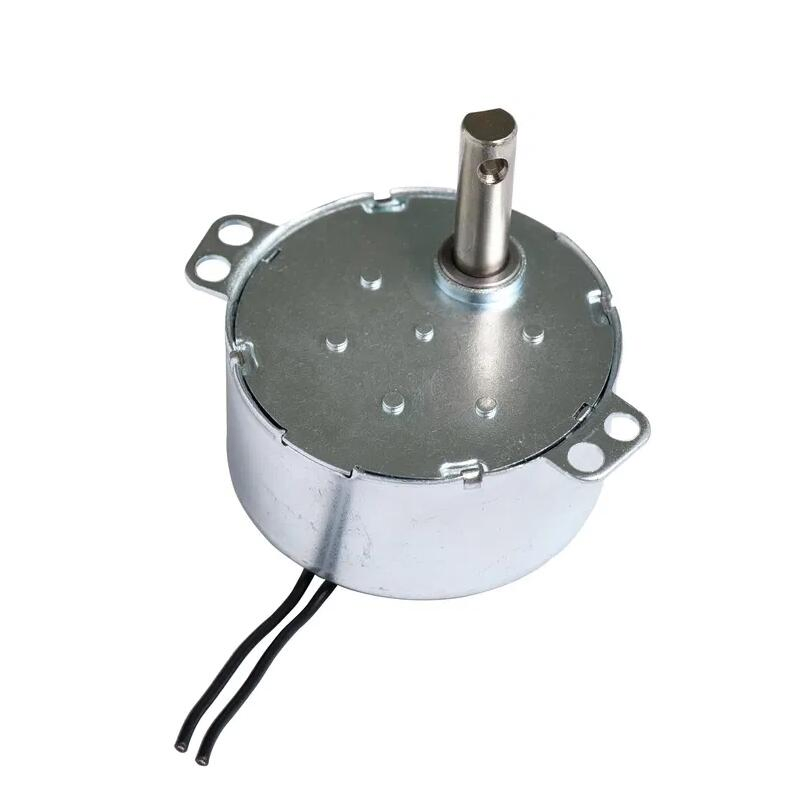

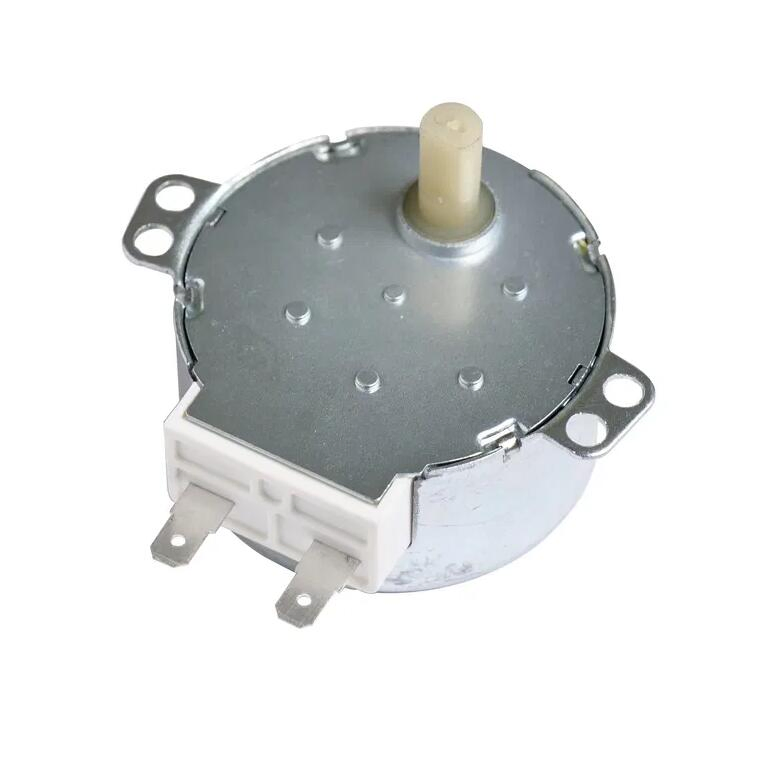

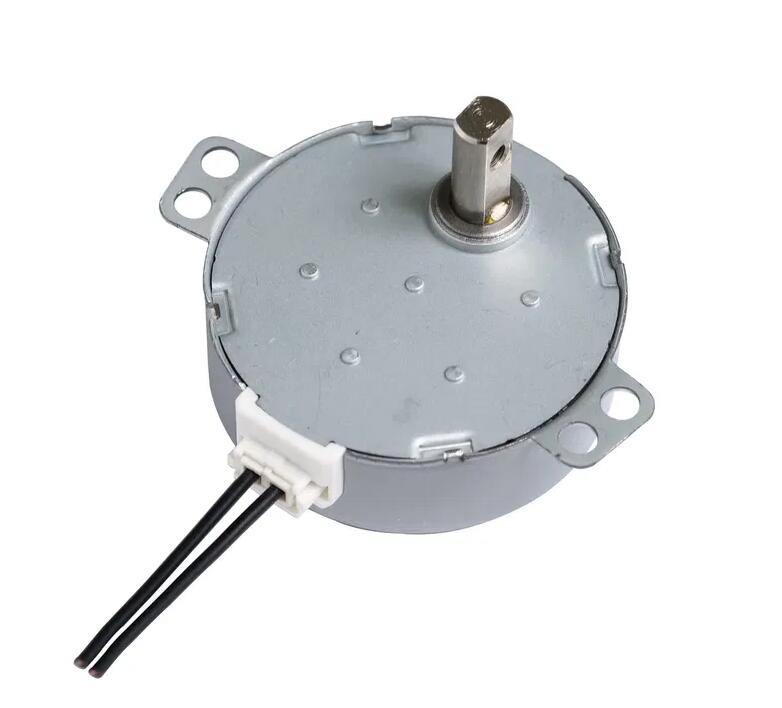

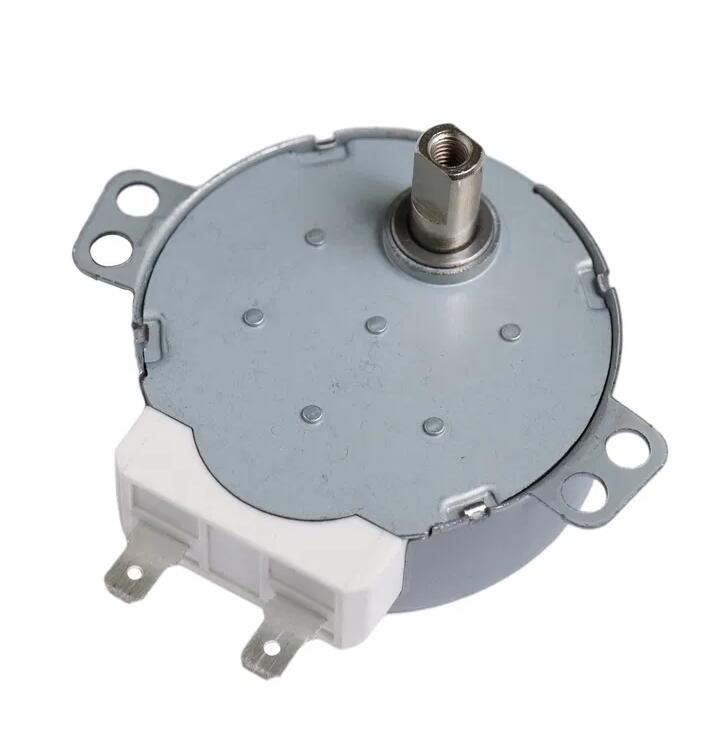

Best Price AC Synchronous Motor 49tyj 4W 12/24V 110/220V for Electric Fireplace

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

DR49TYJ

Operation Mode

Electric Motor

Magnetic Structure

Permanent Magnet

Function

Driving, Control

Structure

Rotating Pole Type

Number of Poles

Ventilation

Open Type

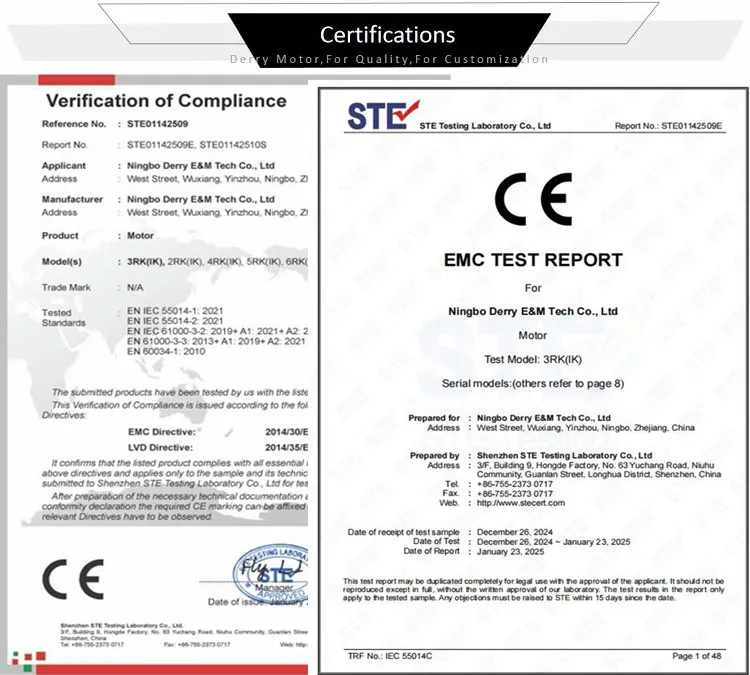

Certification

CCC, ISO9001

Production Capacity

5000PCS/Month

Origin

China

Product Description

Synchronous motors of the DR49TYJ series are widely used in various household appliances, such as fans, air conditioners, ice makers, dishwashers, oscillating fans, air circulation fans, etc.

🛡️

High Quality Shell

Made from High quality galvanized sheet, good Anti-Corrosion Performance ensure a longer service Life.

⚙️

Precision Gear

POM, PA66 and Metal, high Abrasion Resistant, Precise, Stable and low Noise.

🧲

Magnetic Core

Made of Ferrite, Effectively improve the Magnetic Field and improve the Performance of the Rotor.

🌀

Pure Copper Coil

Pure Copper Enameled wire, uniform Arrangement, stable Performance and better Heat Dissipation effect.

Technical Specifications

Rated Voltage: 24V, 36V, 100V, 120V, 220/240V
Dielectric Strength: 1500VAC/min
Power Consumption: <4W
Noise Level: <45db
Input Current: <25mA
Insulation Class: E
Frequency: 50/60Hz
Insulation Resistance: >100MΩ
Speed Options: 1, 2.5/3, 5/6, 10, 15, 18, 33/40 rpm
Direction: CW, CCW or Free direction

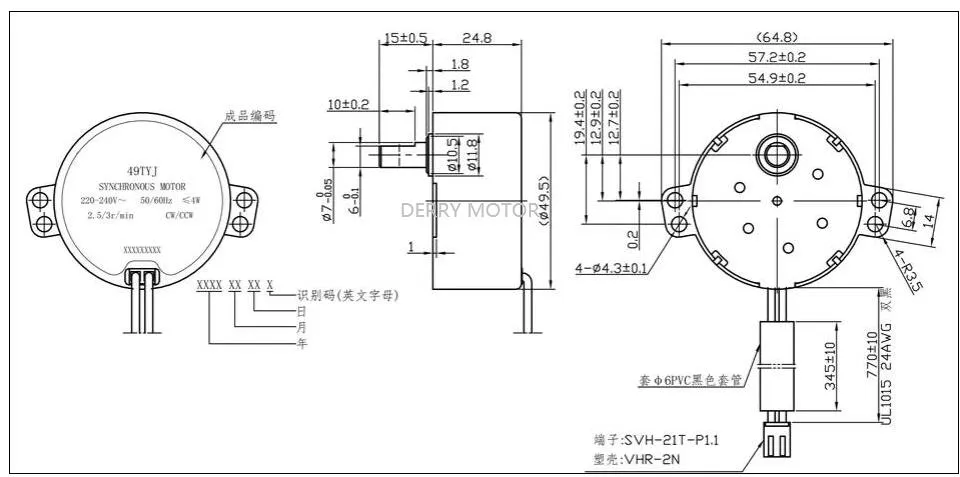

Dimensions & Product Display

Customization Options

Frequently Asked Questions

What is your term of payment?

T/T in advance is our standard payment term. We also accept L/C and Trade Assurance.

How about your delivery time?

Generally, it will take 30 days after receiving your advance payment. The specific time depends on the items and quantity of your order.

Can you produce according to the samples?

Yes, we can produce motors in accordance with your samples or technical drawings. OEM/ODM services are available.

What is the Minimum Order Quantity (MOQ)?

Different products have different MOQs. Please contact us for specific requirements for the DR49TYJ series.

What are the primary applications for this synchronous motor?

These motors are ideal for household appliances including fans, air conditioners, ice makers, dishwashers, and air circulation systems.

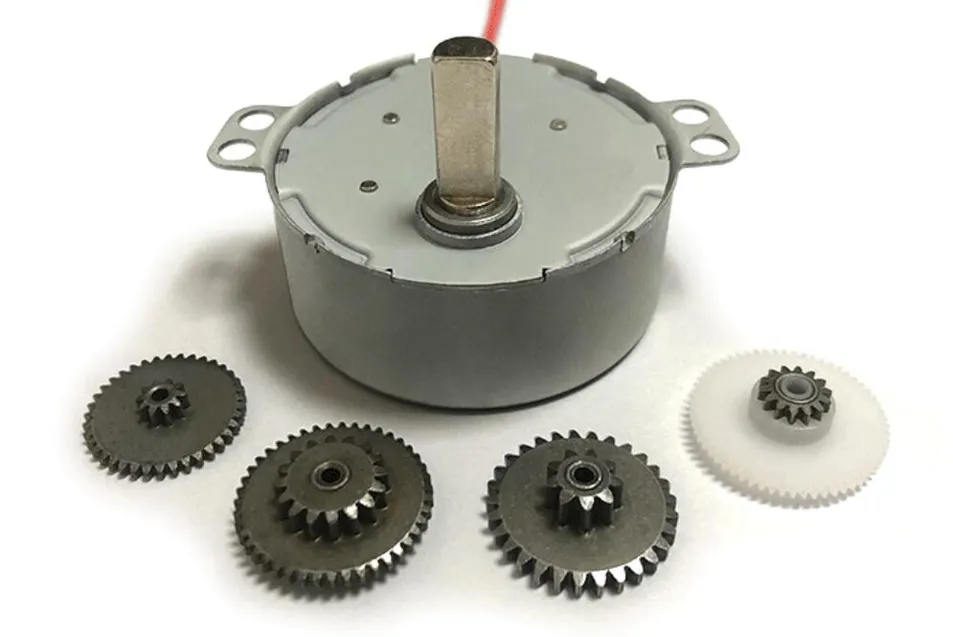

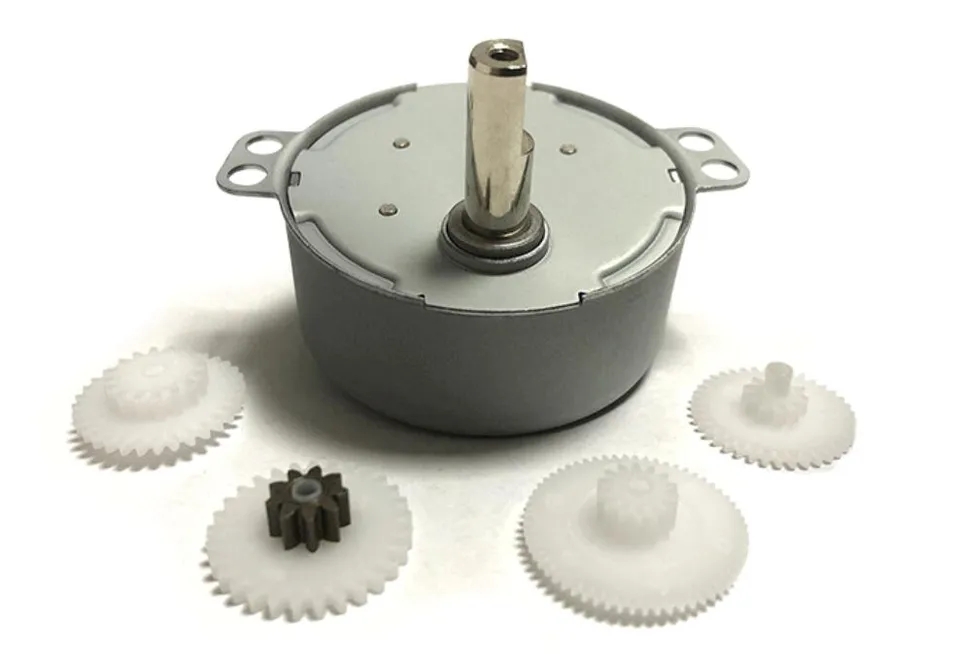

Is it possible to customize the motor shaft and speed?

Yes, both the motor shaft (shape/dimensions) and the speed can be customized according to your specific technical requirements.
