RedCat Motors
1 / 5

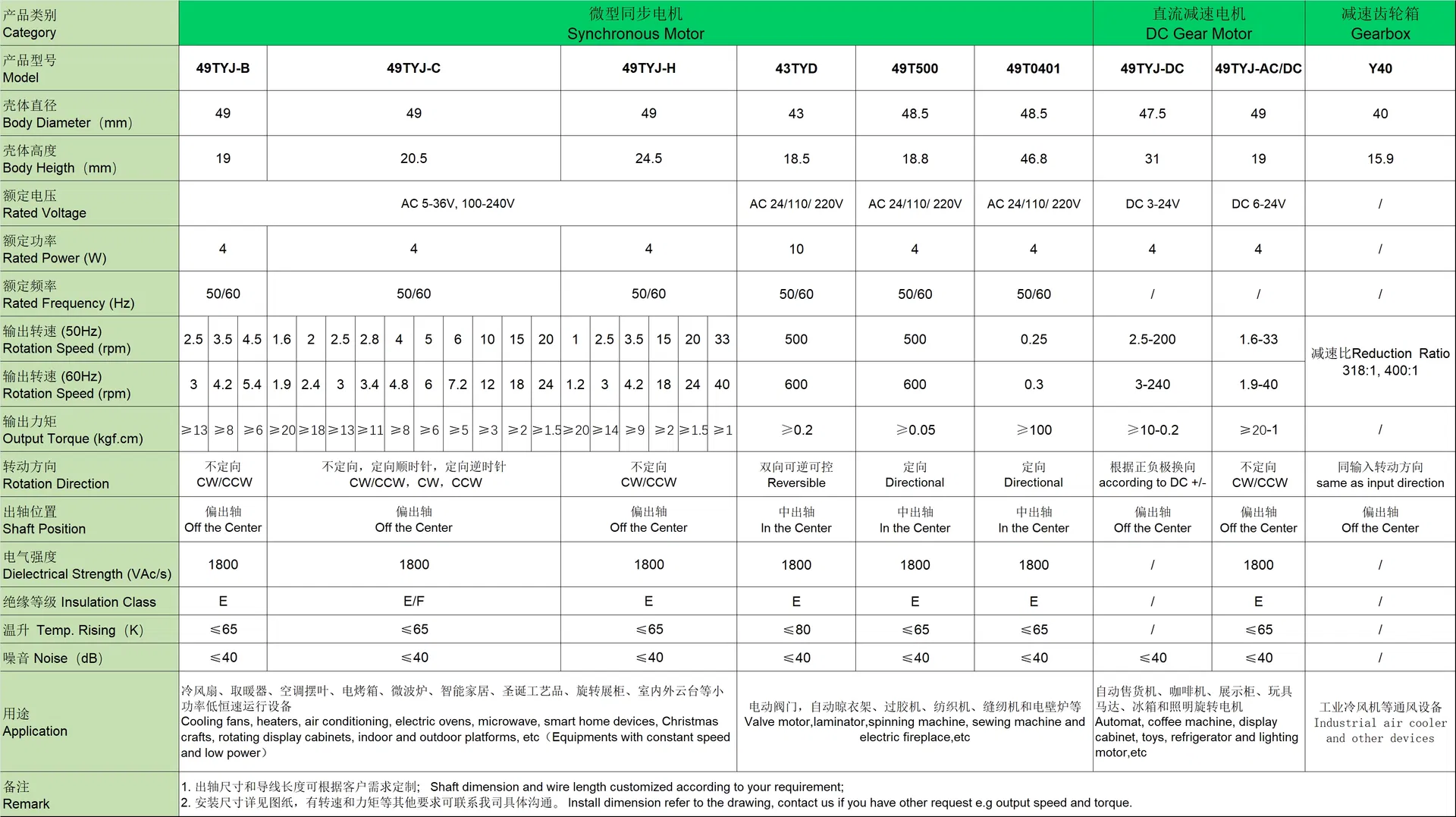

| Model NO. | 49TYJ-C |
| Operation Mode | Electric Motor |
| Magnetic Structure | Permanent Magnet |
| Function | Driving, Control |
| Structure | Rotating Pole Type (Armature Fixed) |
| Number of Poles | 4 |
| Ventilation | Protection Type |
| Certification | CCC, ISO9001, VDE, RoHS |
| Rotation Speed | 1.6/2/2.5/2.8/4/5/6/10/15/20 Rpm |
| Rated Voltage | AC5-36V, 100-240V |
| Rated Power | 4W |
| Material | Metal and POM |
| Phase | Single Phase |

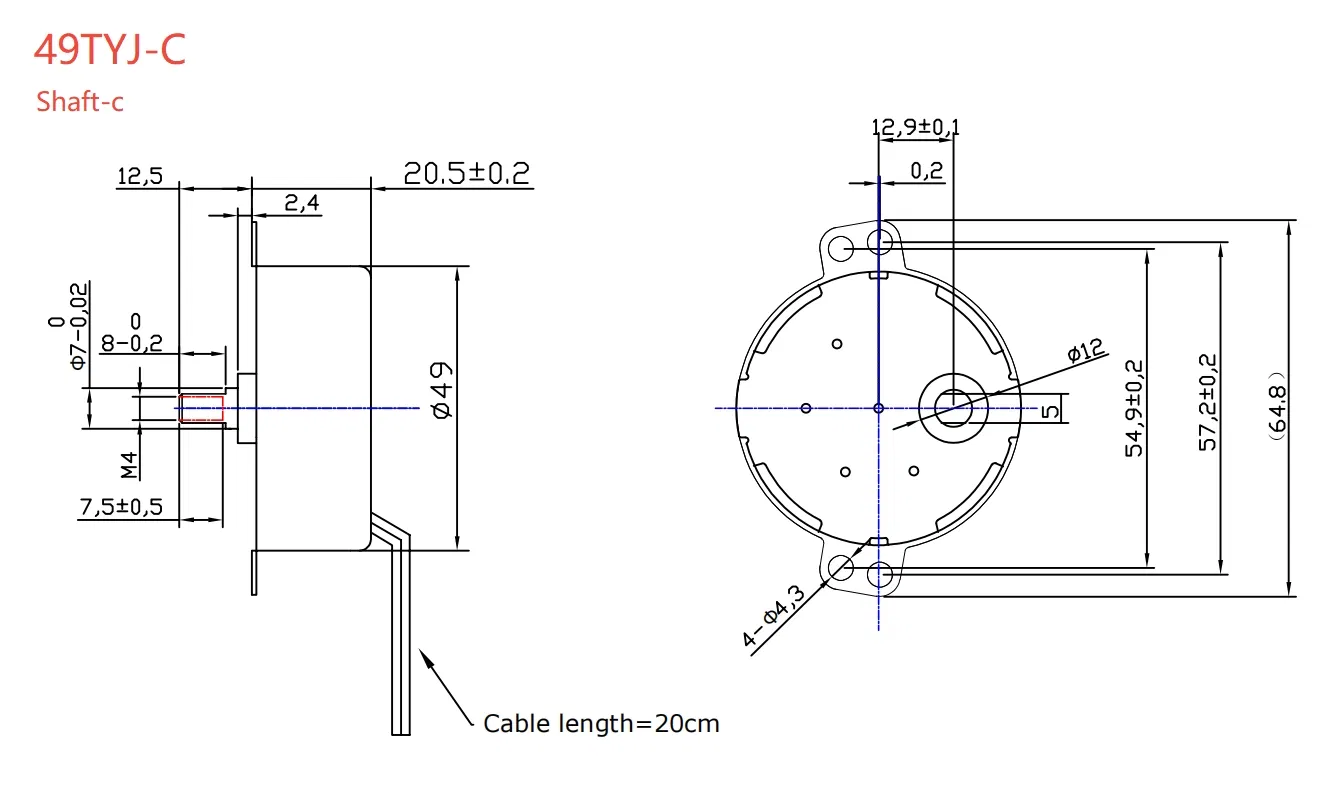

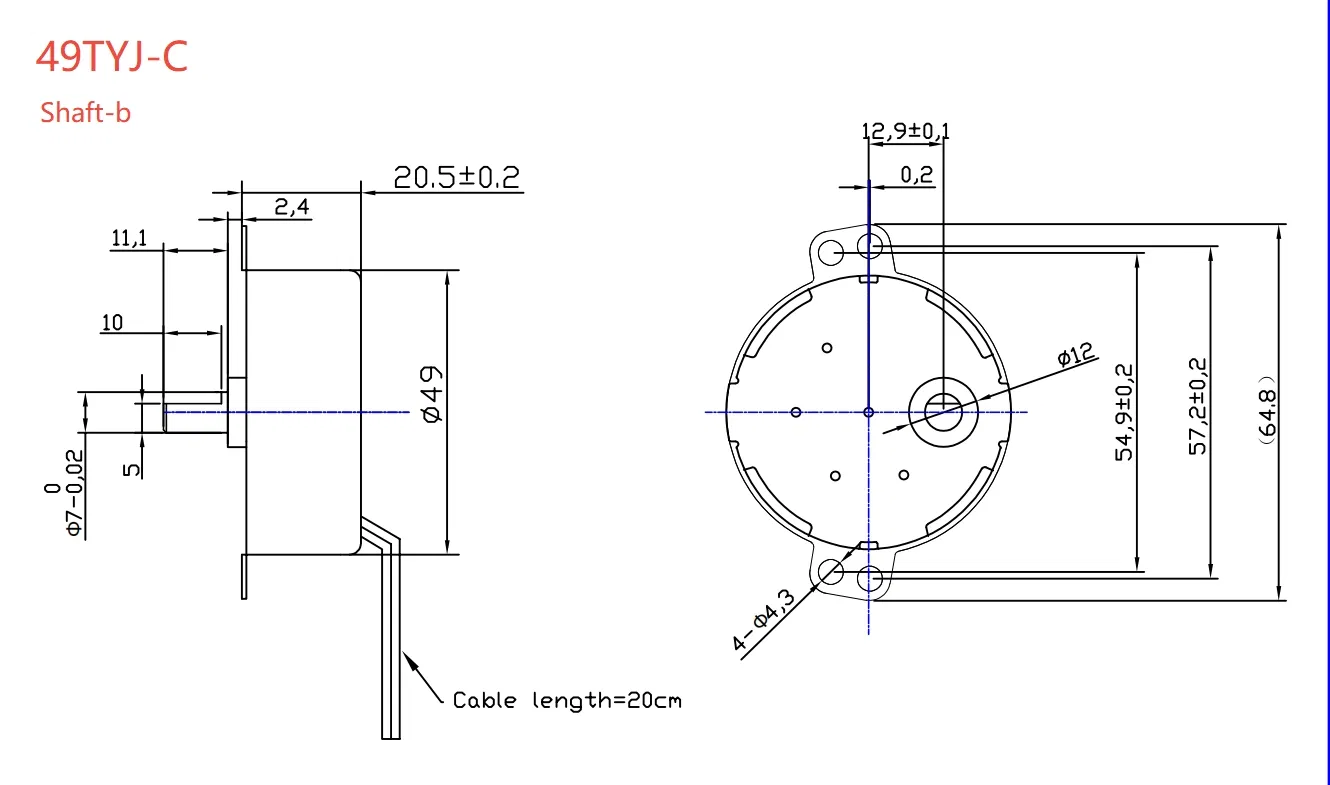

| Specification | Dia49mm * H20.5mm |
| HS Code | 8501109990 |
| Package Size | 27.00cm * 27.00cm * 18.00cm |
| Gross Weight | 9.000kg |

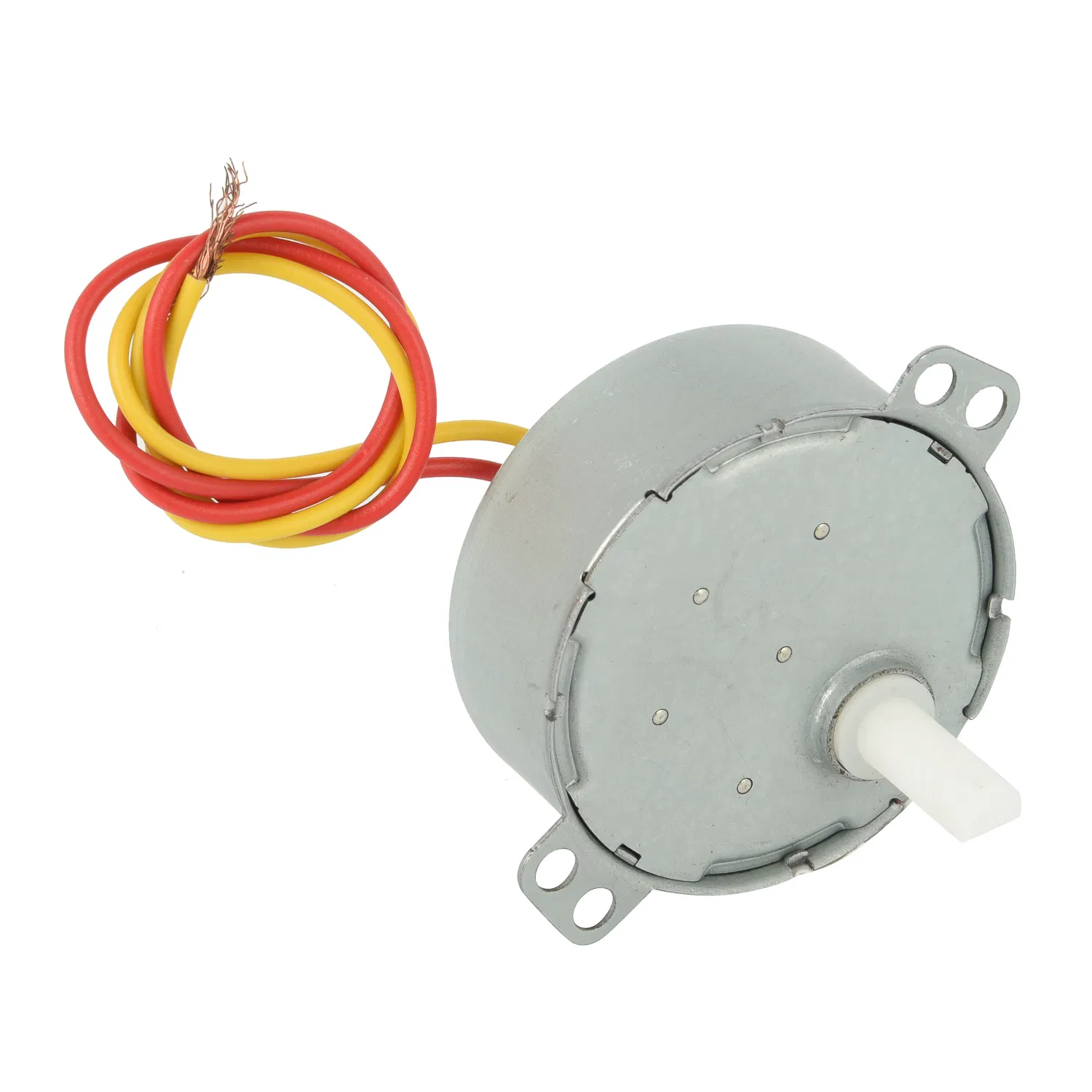

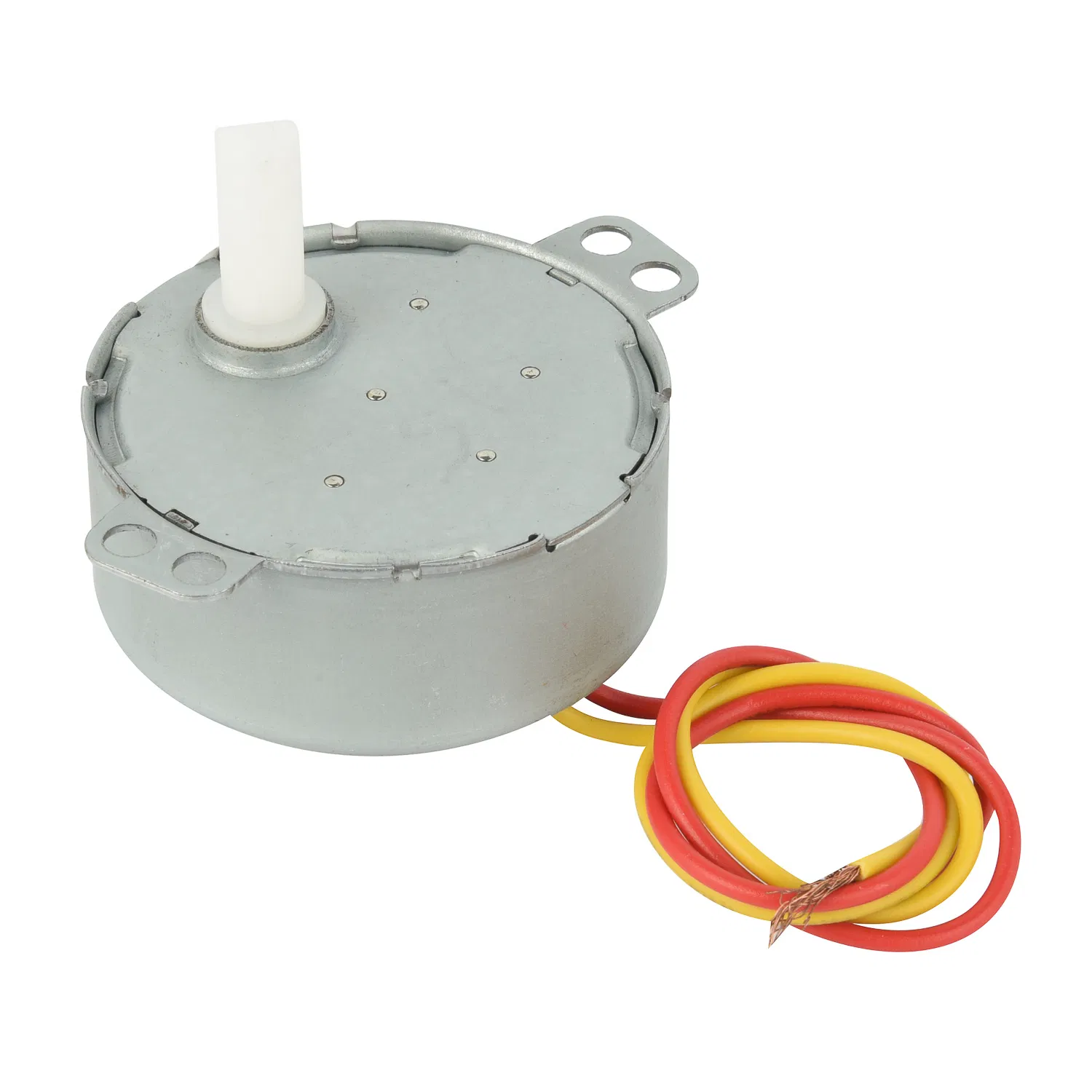

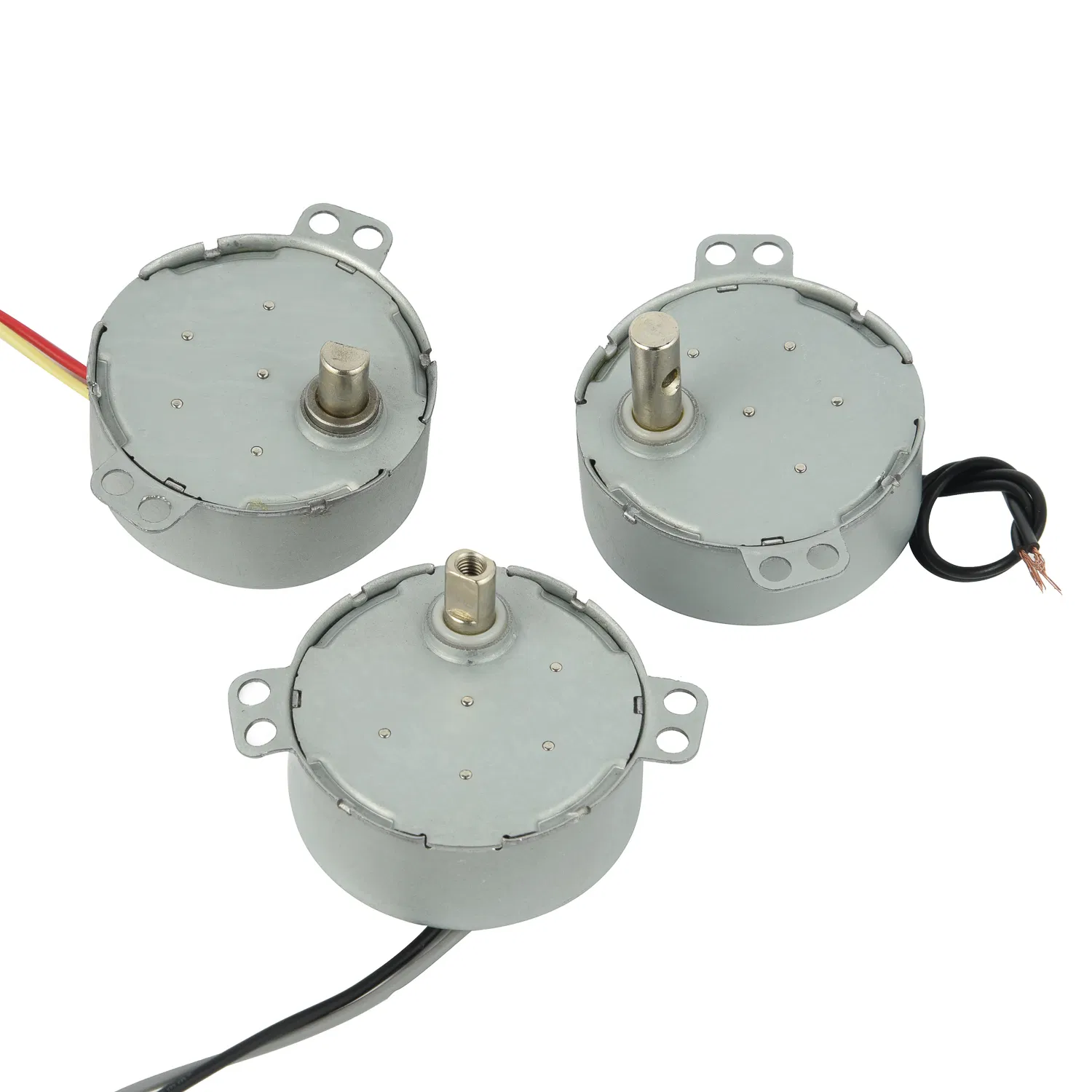

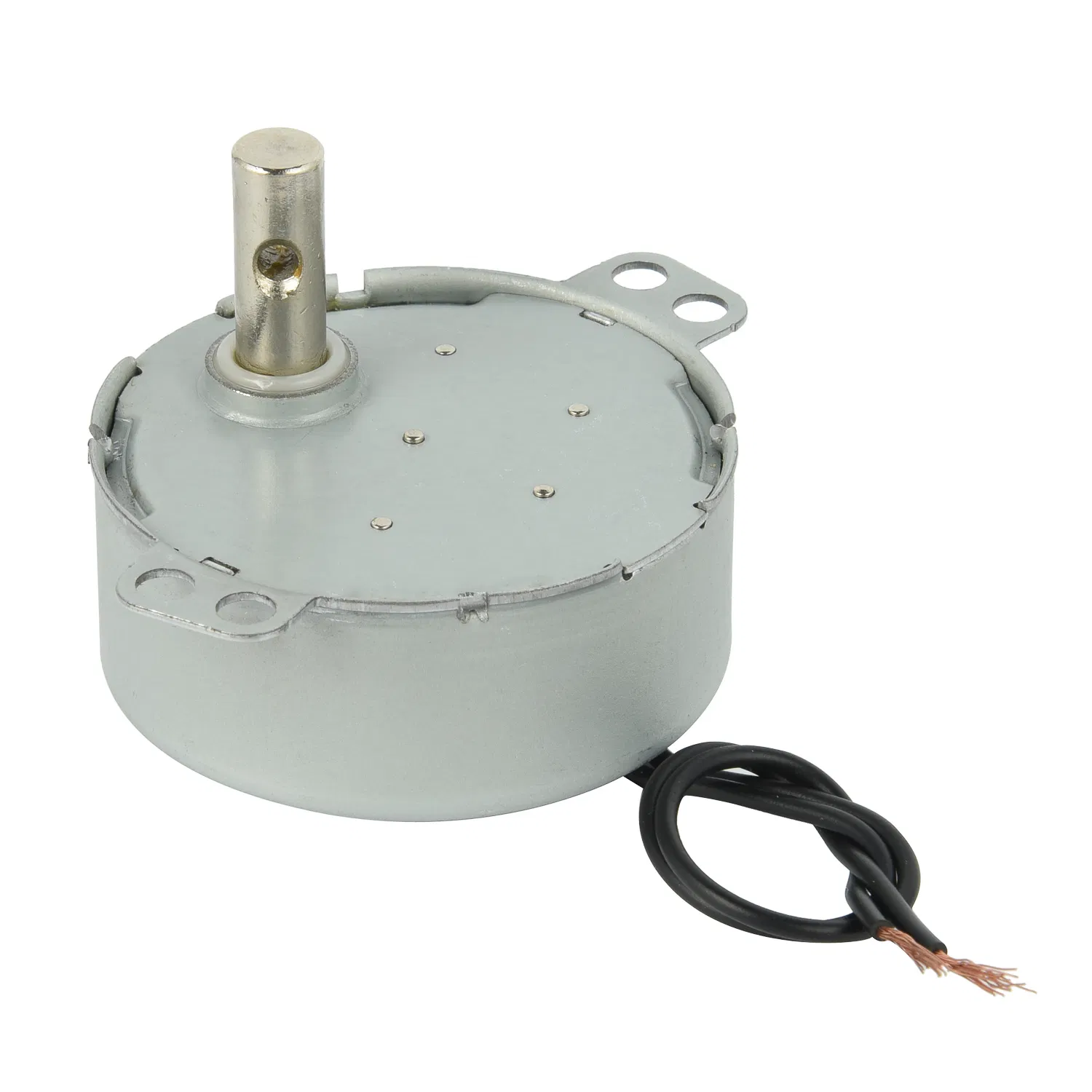

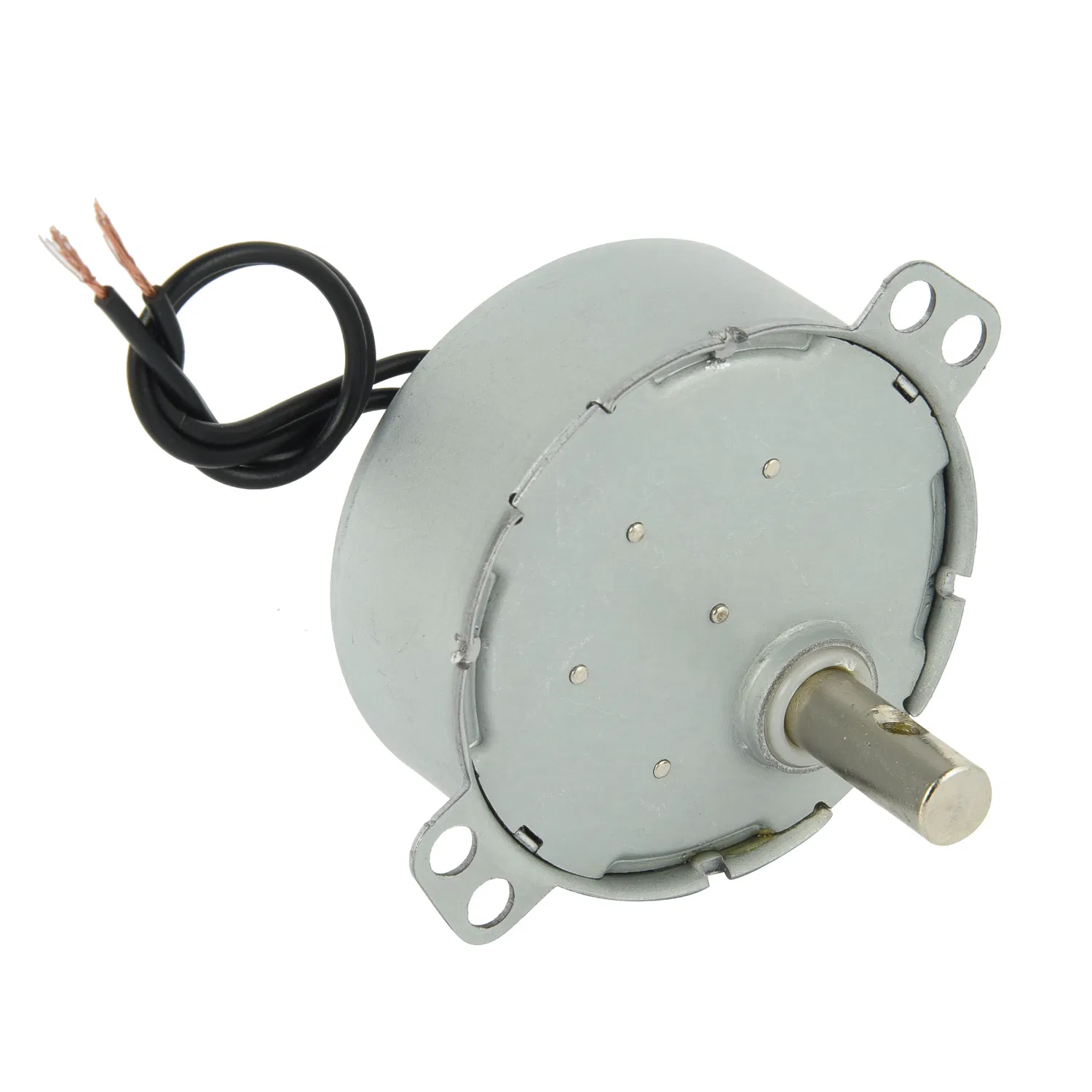

Integrated by a permanent magnet and reduction gearbox, this Synchronous motor features:
At rated frequency, the rotation speed is not affected by voltage. If overloaded or stalled, the motor coil will not burn. Available rotation directions: CW, CCW, and CW/CCW (automatic reverse upon overload).

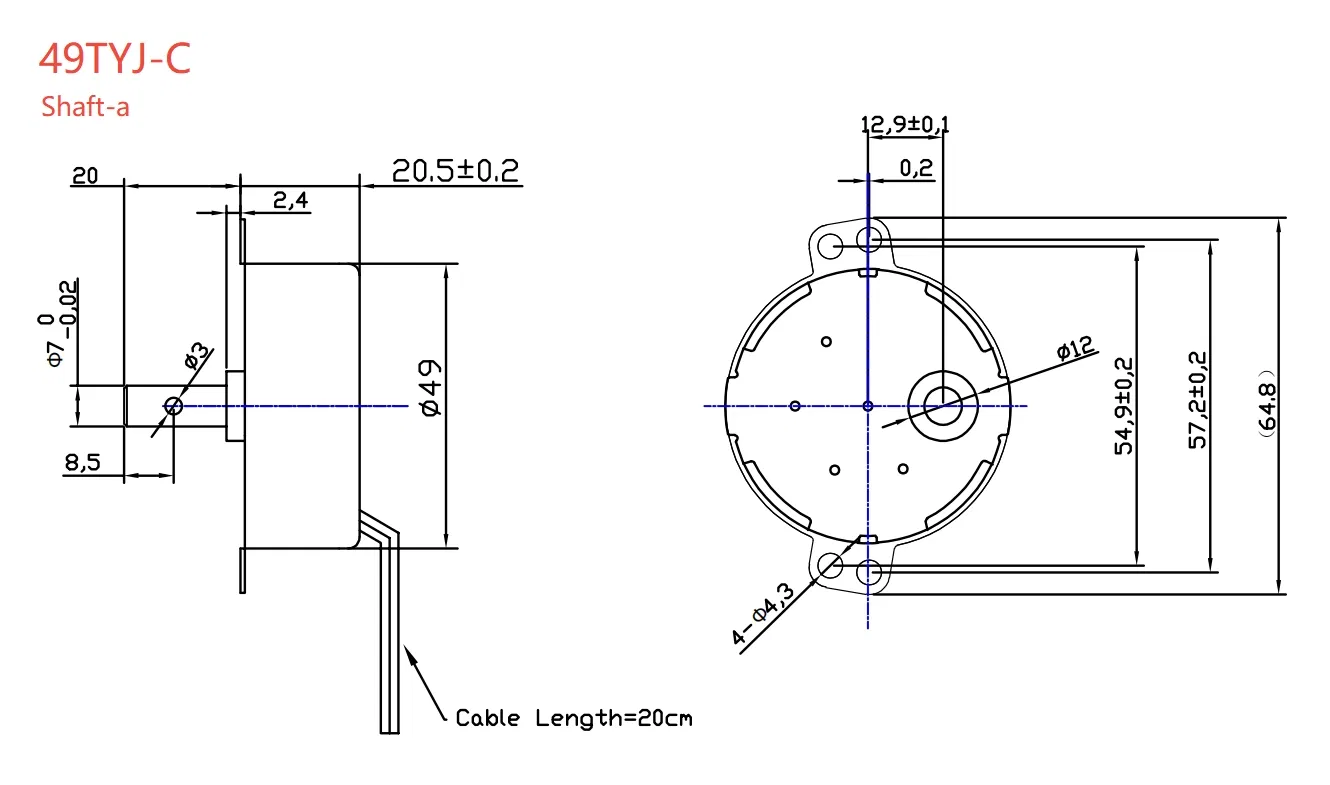

Example Configuration: 49TYJ-C, Shaft-a, 220V 50Hz, 2RPM, CW, wire length=20cm.

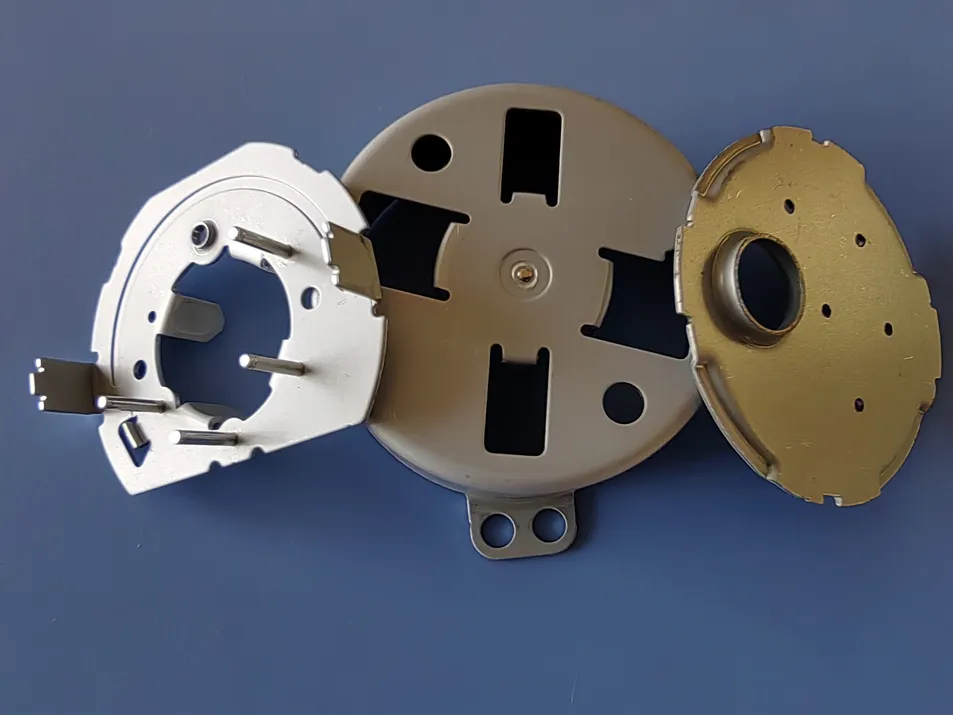

High Quality Shell: Made from galvanized sheet with excellent anti-corrosion performance.

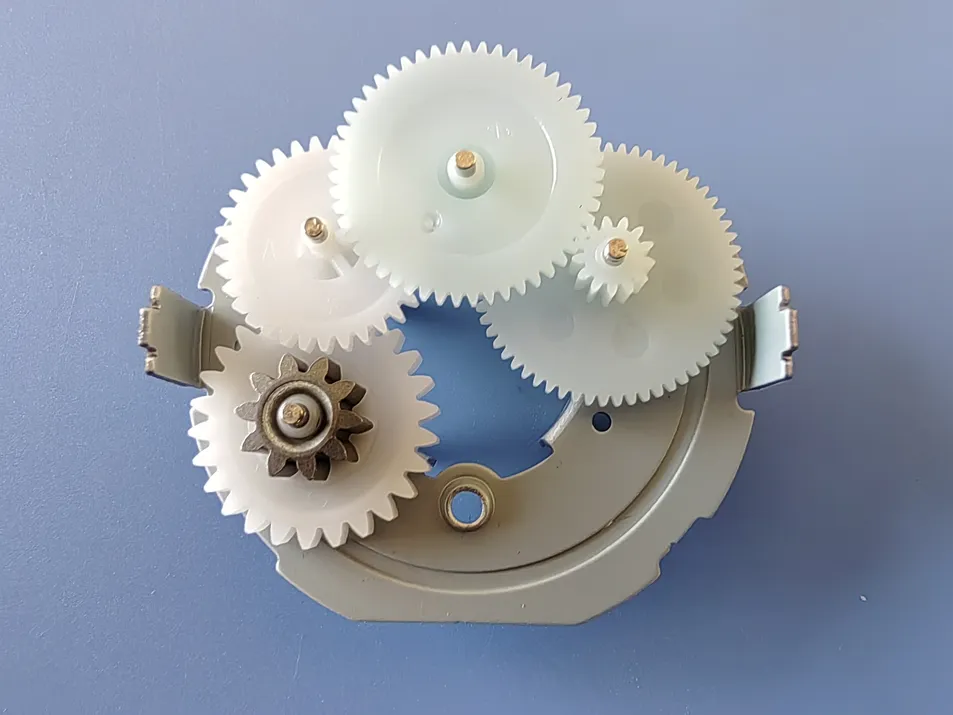

Precision Gear: POM, PA66 and Metal construction for high abrasion resistance and low noise.

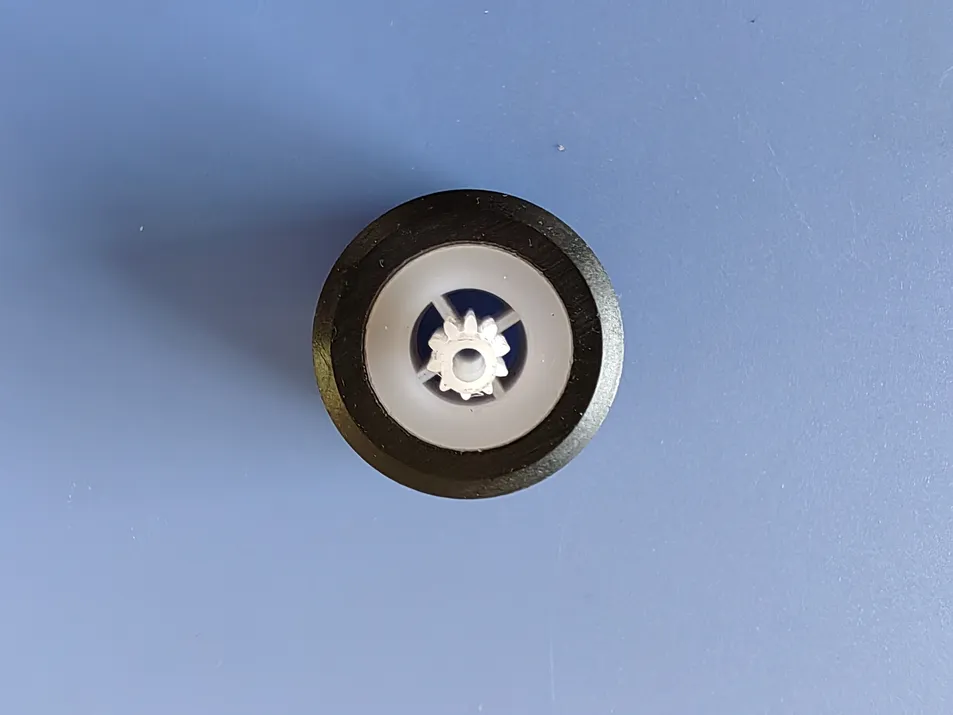

Magnetic Core: Made of Ferrite to effectively improve the magnetic field and rotor performance.

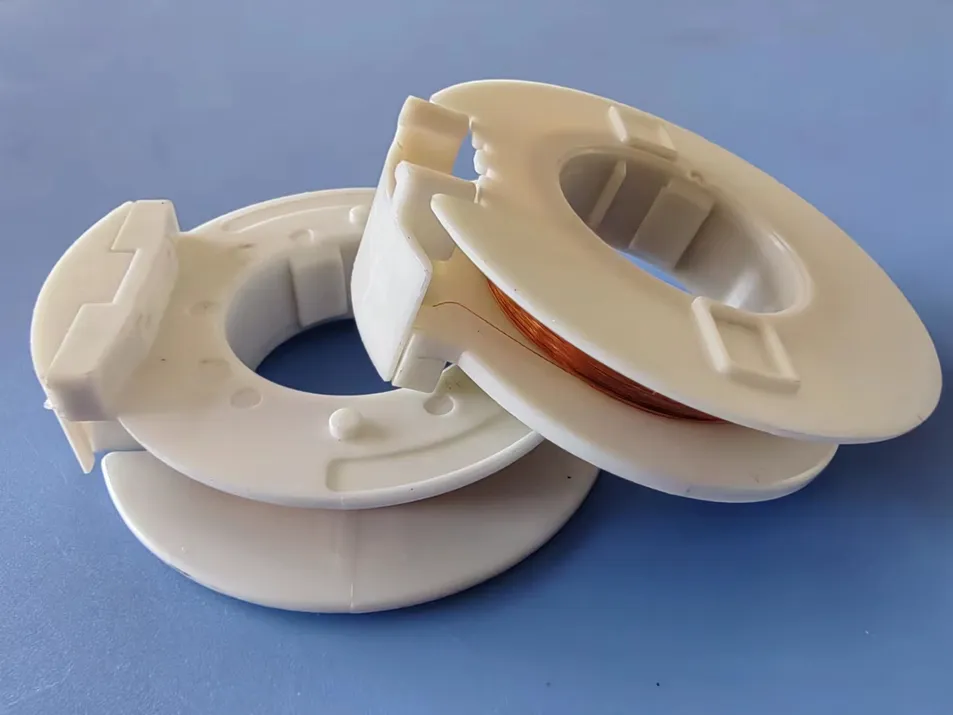

Pure Copper Coil: Enameled wire with uniform arrangement for stable performance and heat dissipation.
