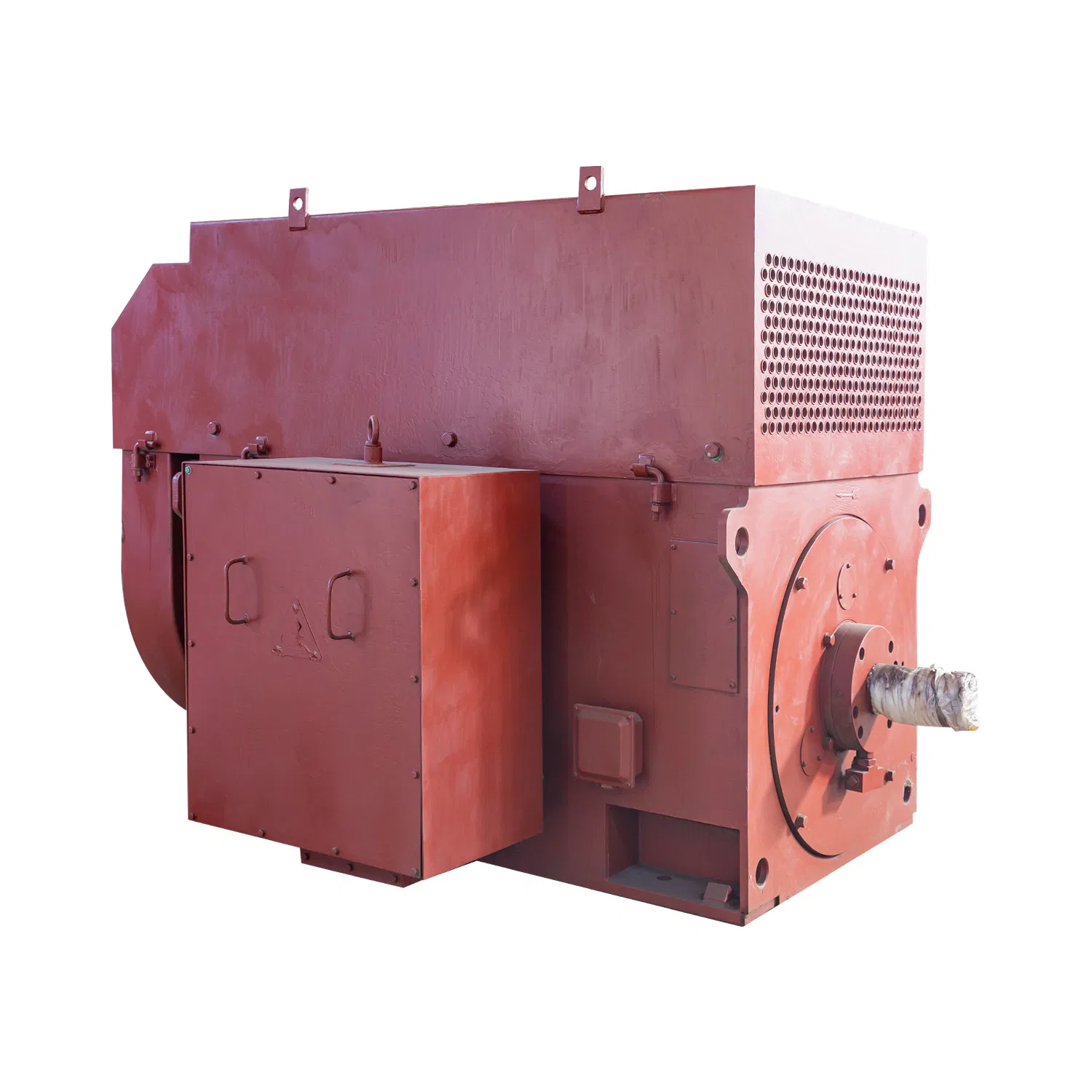

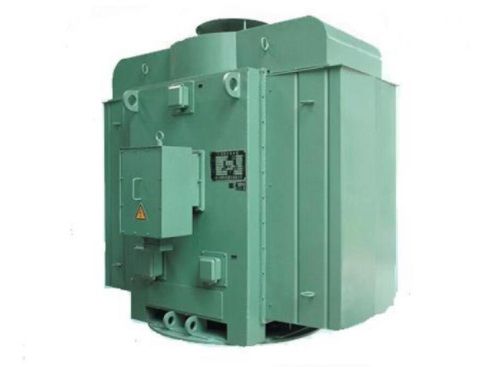

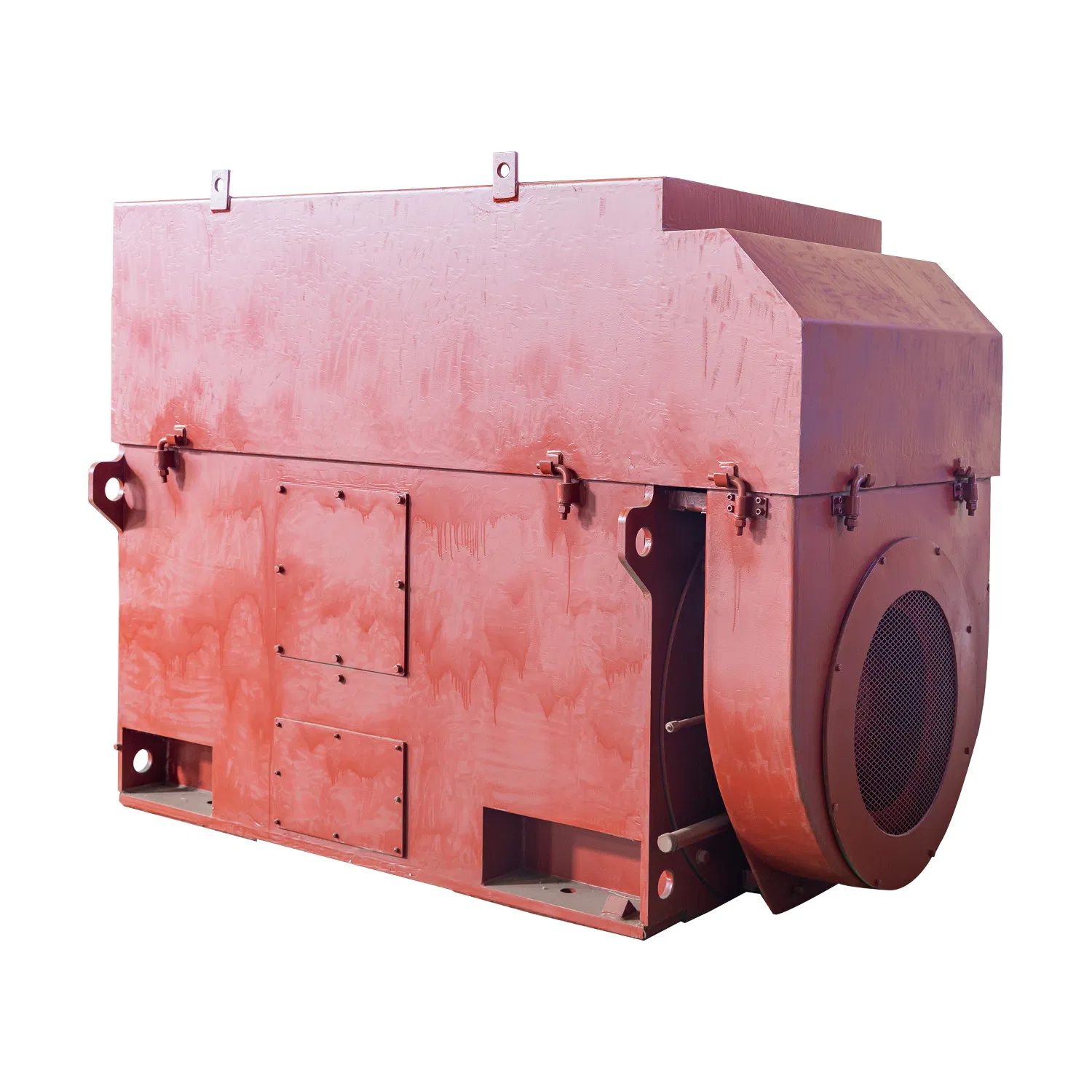

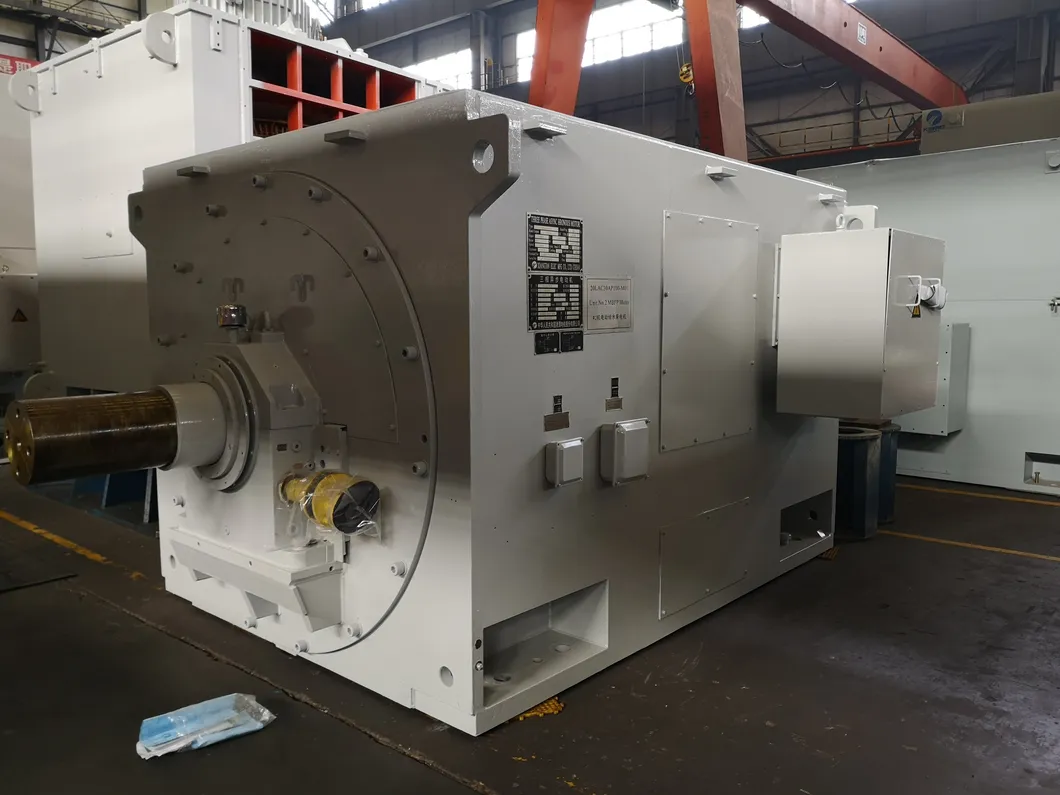

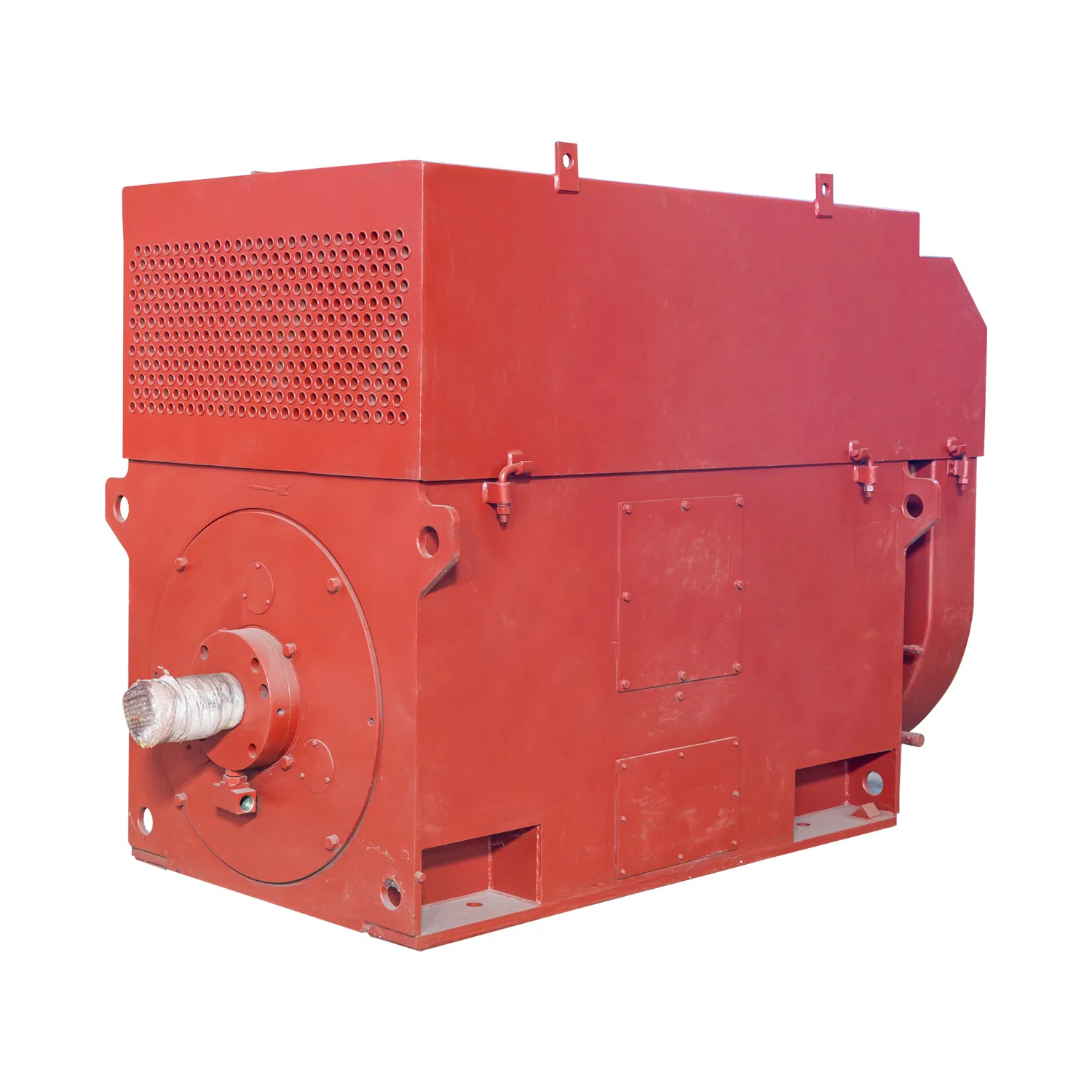

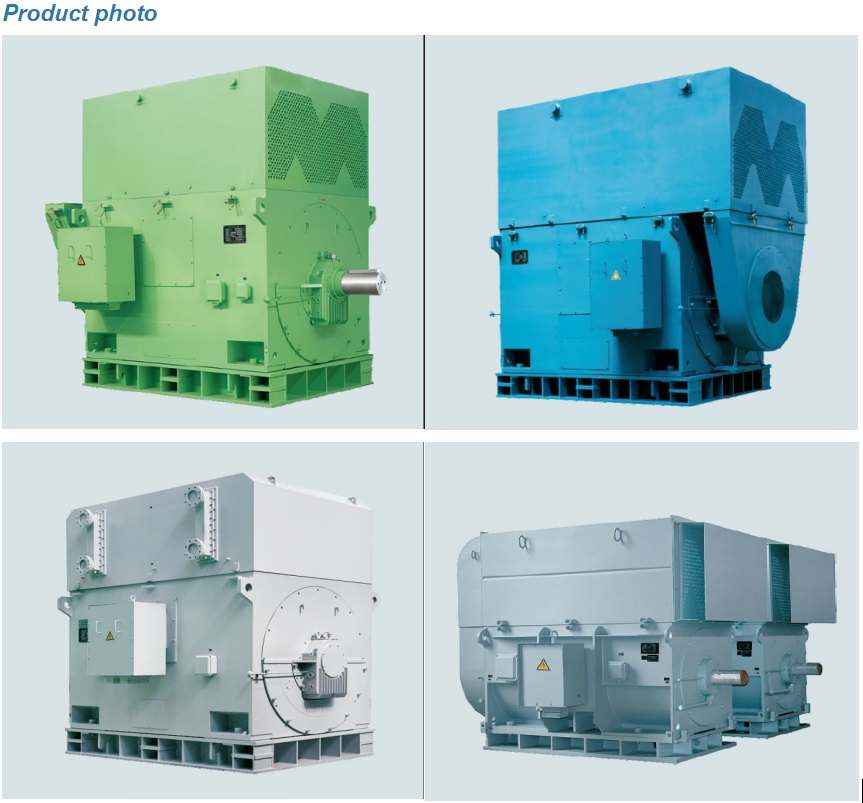

Type: Y Asynchronous Synchronous AC Electric Motor
This series of motors are specially used as prime movers for various fans of large thermal power equipment, such as exhaust fans, induced draft fans, blowers, etc.
✓
Efficiency: High efficiency energy-saving
✓
Rated Output: 150~8000 kW
✓
Frame Size: 355~800 frame
✓
Insulation: Class F (155ºC)
✓
Protection: IP44, IP54, IP55
Frequently Asked Questions
What are the primary applications for Y series motors?
Y series motors are primarily used as prime movers for various fans in large thermal power equipment, including exhaust fans, induced draft fans, and blowers.
What is the range of rated output and voltage?
The rated output ranges from 150 kW to 8000 kW, with support for various voltages including 3000V, 6000V, 10000V, and other regional standards up to 11kV.
How is the motor protected and cooled?

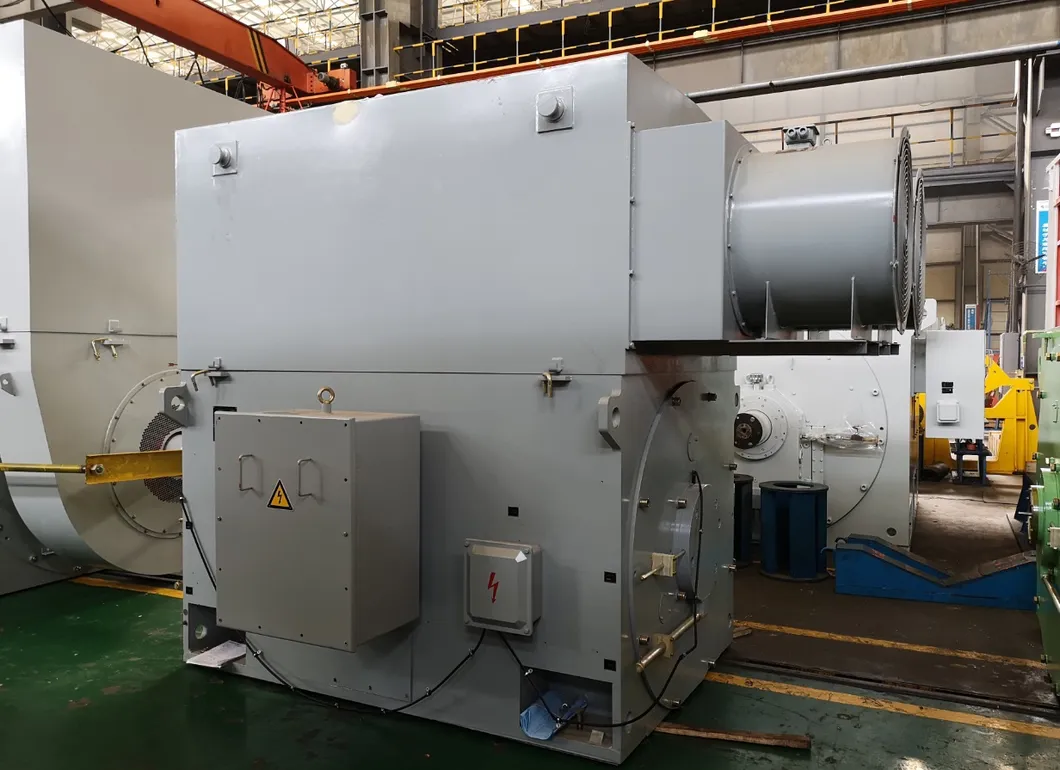

The motors feature IP44, IP54, or IP55 protection classes. Cooling is achieved via the IC611 method, which is self-ventilated with an air-to-air heat exchanger located on top of the motor.
What insulation and temperature standards are followed?
These motors use Class F (155ºC) insulation with a temperature rise limit of ΔT=80°K, ensuring high durability and safety under continuous S1 duty.
Can the motor handle extreme environmental conditions?
Yes, they are designed to operate in ambient temperatures from -20°C to 40°C, at altitudes up to 1000 meters, and in humidity levels up to 90%.
What materials are used for the motor housing?
The frame and housing are fabricated using a high-quality welded steel plate frame for maximum structural integrity.
