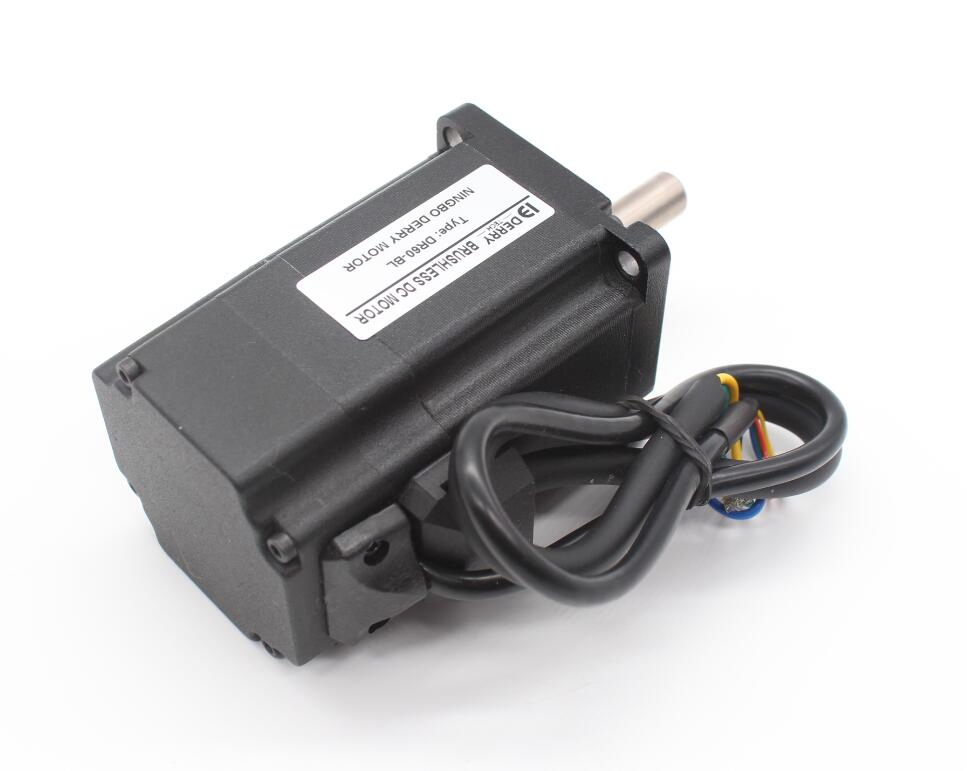

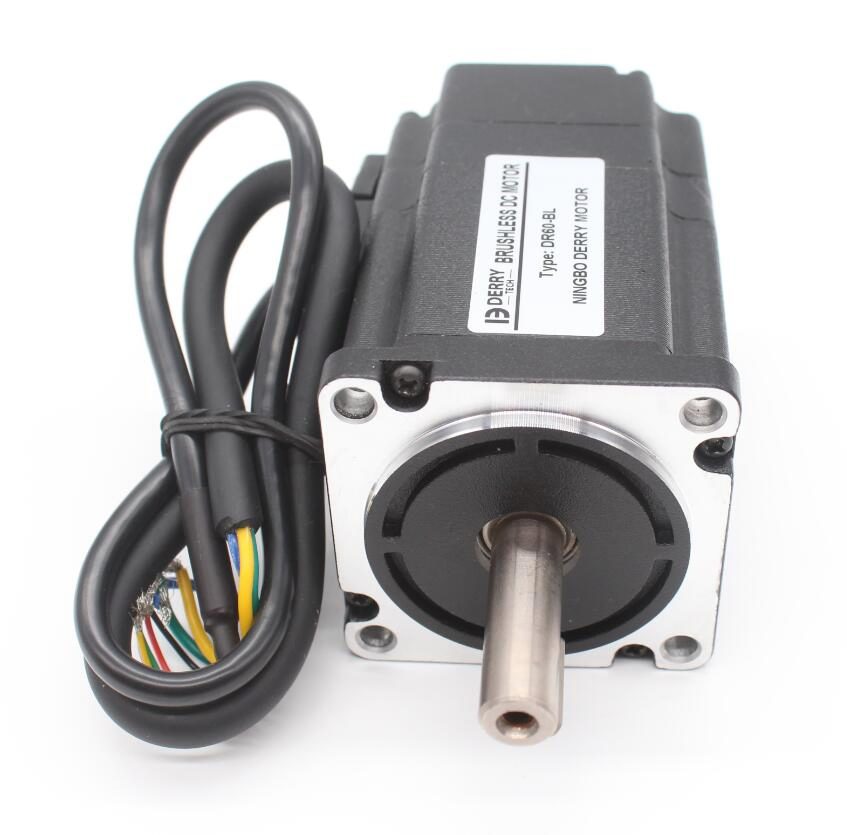

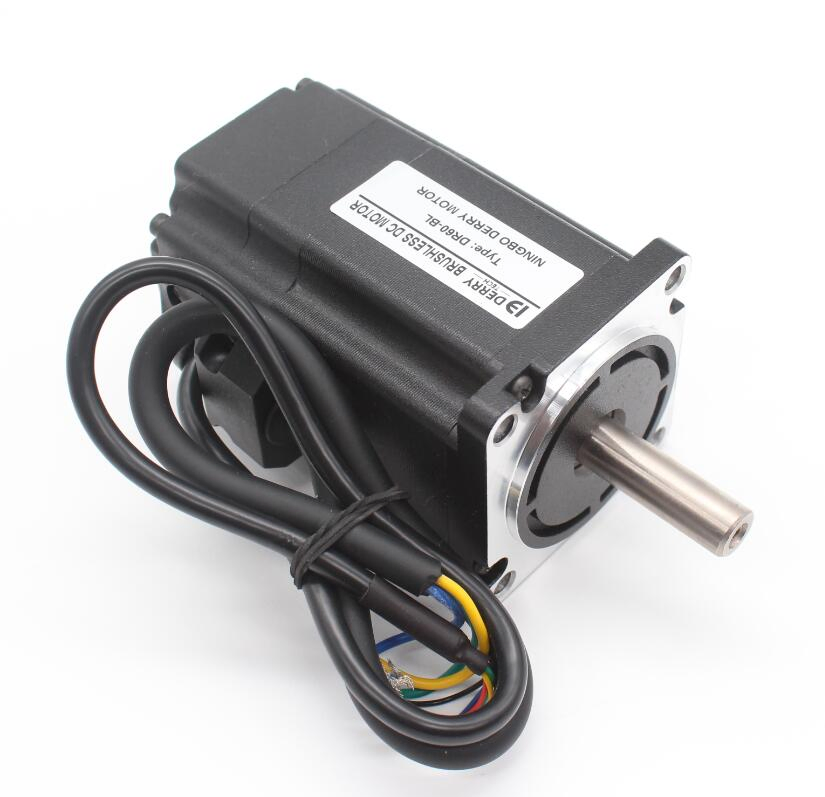

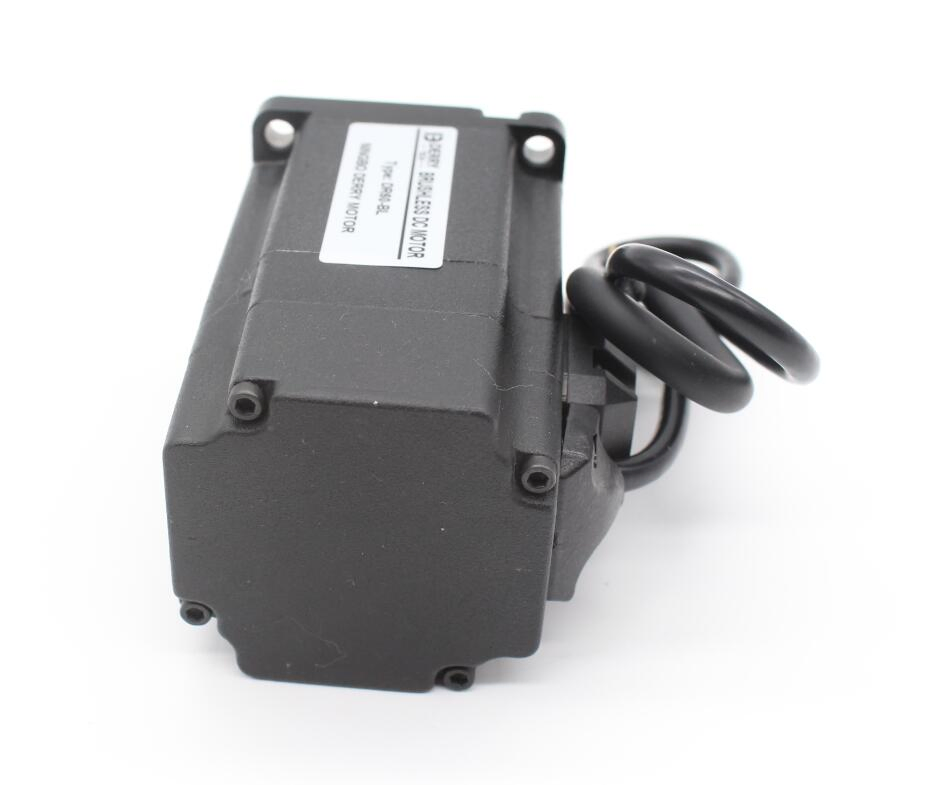

Brushless 24V 172W DC Servo Motor High Speed 2200rpm for Sewing Machine
Brushless 24V 172W DC Servo Motor High Speed 2200rpm for Sewing Machine
Brushless 24V 172W DC Servo Motor High Speed 2200rpm for Sewing Machine
Brushless 24V 172W DC Servo Motor High Speed 2200rpm for Sewing Machine
Brushless 24V 172W DC Servo Motor High Speed 2200rpm for Sewing Machine
1 / 5
Brushless 24V 172W DC Servo Motor High Speed 2200rpm for Sewing Machine
Brushless 24V 172W DC Servo Motor High Speed 2200rpm for Sewing Machine
Brushless 24V 172W DC Servo Motor High Speed 2200rpm for Sewing Machine
Brushless 24V 172W DC Servo Motor High Speed 2200rpm for Sewing Machine
Brushless 24V 172W DC Servo Motor High Speed 2200rpm for Sewing Machine

Brushless 24V 172W DC Servo Motor High Speed 2200rpm for Sewing Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

iBasic Information
Model NO. DR60BL-D
Structure Brushless
Excitation Mode Excited
Rated Voltage 12VDC, 24VDC
Rated Speed 2200rpm or Customized
Number of Poles 4 / 8
Certification ISO9001, CCC, CE, ROHS
Specification 60mm*60mm
★Product Description
Brushless 24V 172W Servo Motor High Speed 2200rpm for Sewing Machine

Features of Dia.60mm BLDC motors:

  • Balanced performance between 57mm and 80mm models
  • High torque density in a compact size
  • Smooth operation, low vibration
  • Suitable for precision transmission with medium load
  • Typical applications: packaging machines, small CNC machines, AGV drive systems
⚙Technical Specifications
Rated voltage24VDC
Rated power172W
Rated speed2200RPM
Rated current9.6A
Rated torque0.75N.m
Peak torque2.25N.m
Number of poles8
Net Weight800g

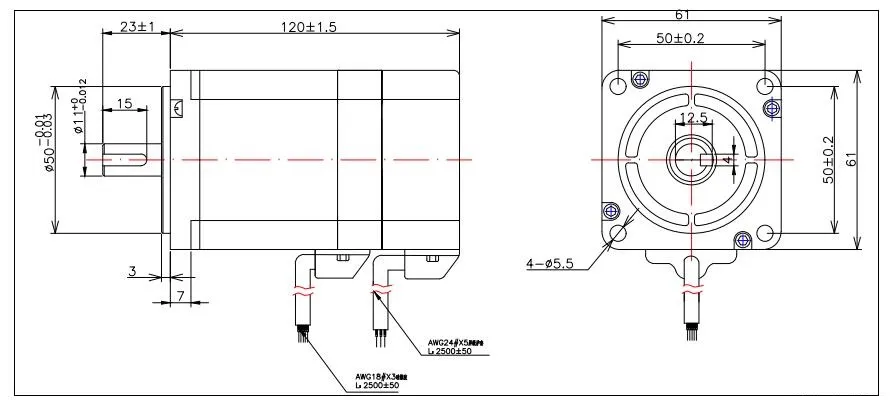

📐Drawing & Dimensions
Brushless 24V 172W DC Servo Motor Drawing
DC Servo Motor Specifications

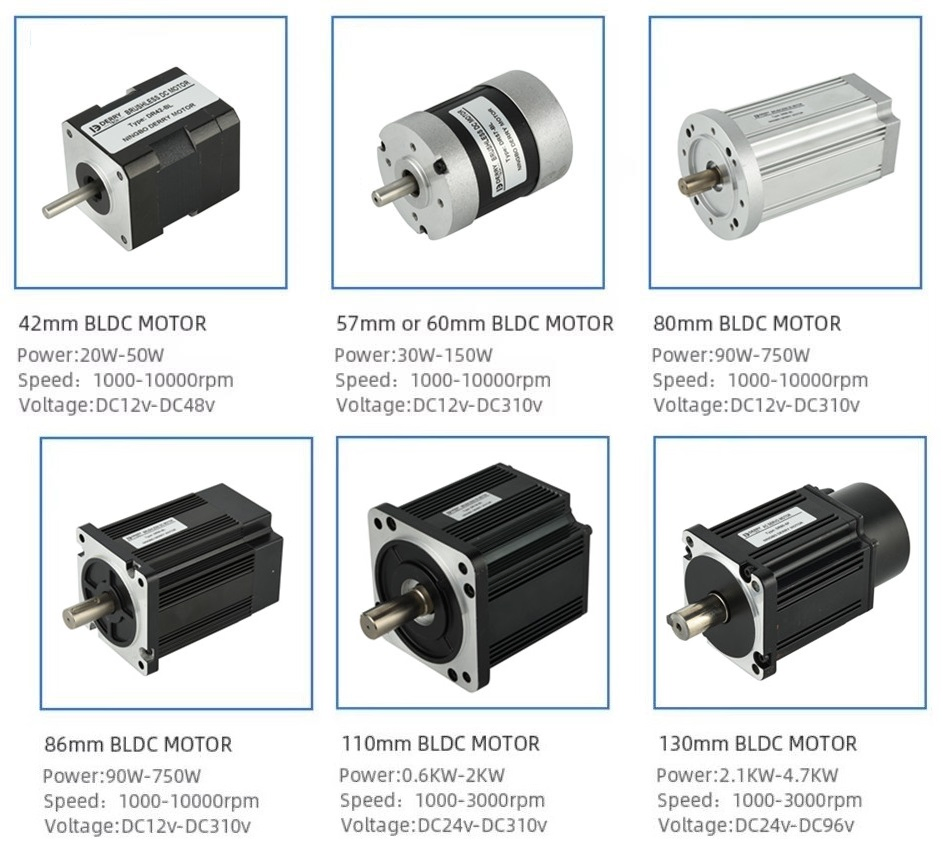

📋Full BLDC Motor Series

A professional manufacturer focusing on high-quality brushless DC motors in a full range of sizes, including 42mm, 57mm, 60mm, 70mm, 80mm, 86mm, 110mm and 130mm models.

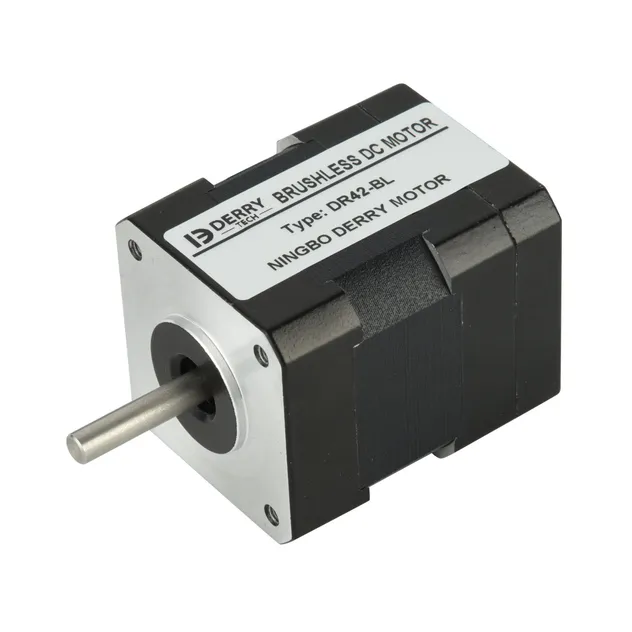

Dia42mm BLDC Motor
Dia42mm BLDC Motor
Compact structure, low inertia, fast response. Ideal for 3D printers and small robots.

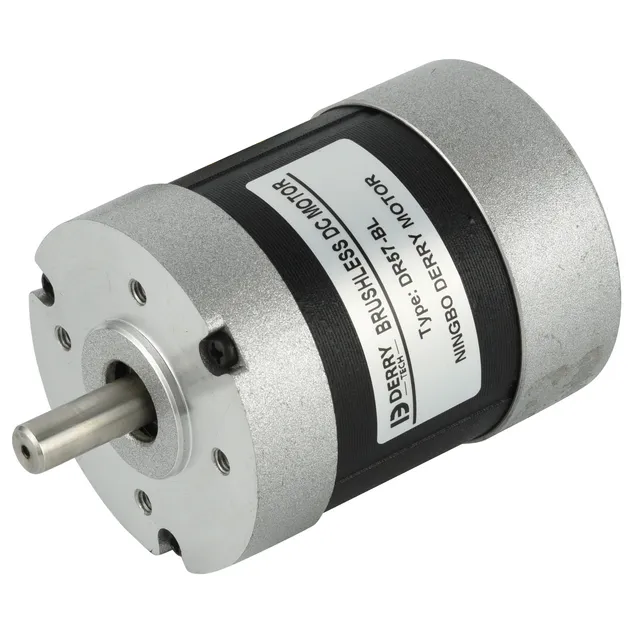

Dia57mm Round Flange
Dia57mm Round Flange
General-purpose standard size, high cost-performance for medical devices and conveyors.

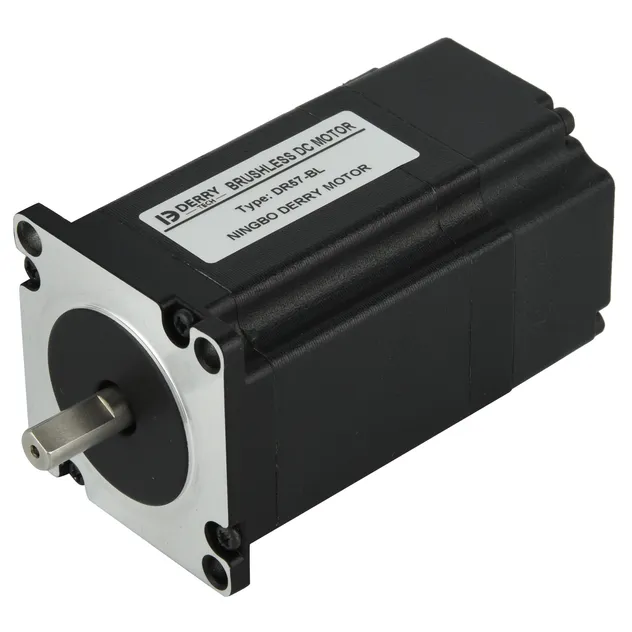

Dia57 Square Flange
Dia57 Square Flange
Stable stability and controllability for small automation equipment.

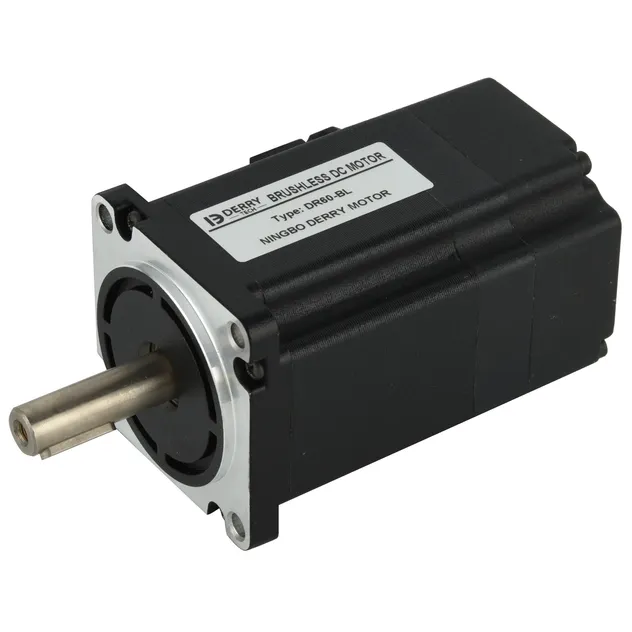

Dia60mm BLDC Motor
Dia60mm BLDC Motor
High torque density, smooth operation for AGV drive systems and CNC.

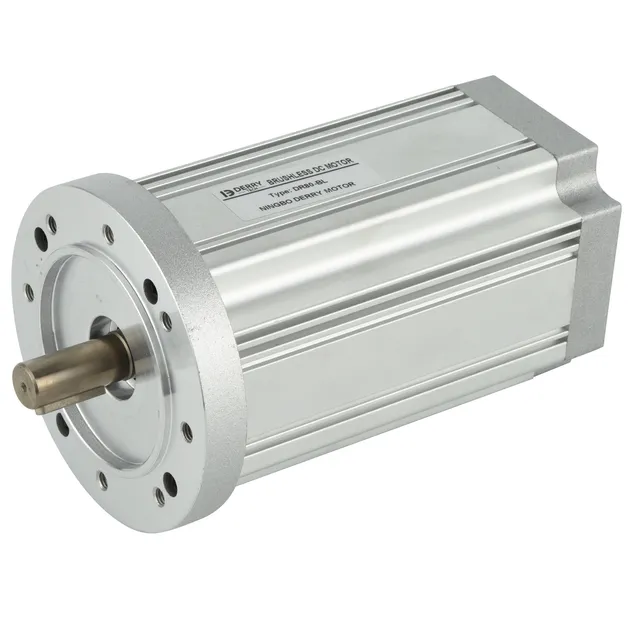

Dia80mm Round Flange
Dia80mm Round Flange
Medium power, excellent heat dissipation, strong overload capacity.

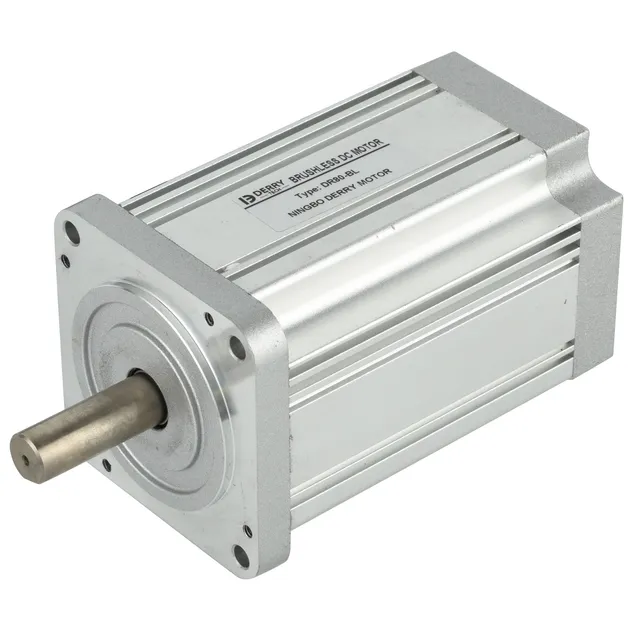

Dia80mm Square Flange
Dia80mm Square Flange
Robust performance for industrial automation and machine tools.
📦Packaging & Delivery
Motor Packaging

Package Standard: Export carton or pallets for secure transit.

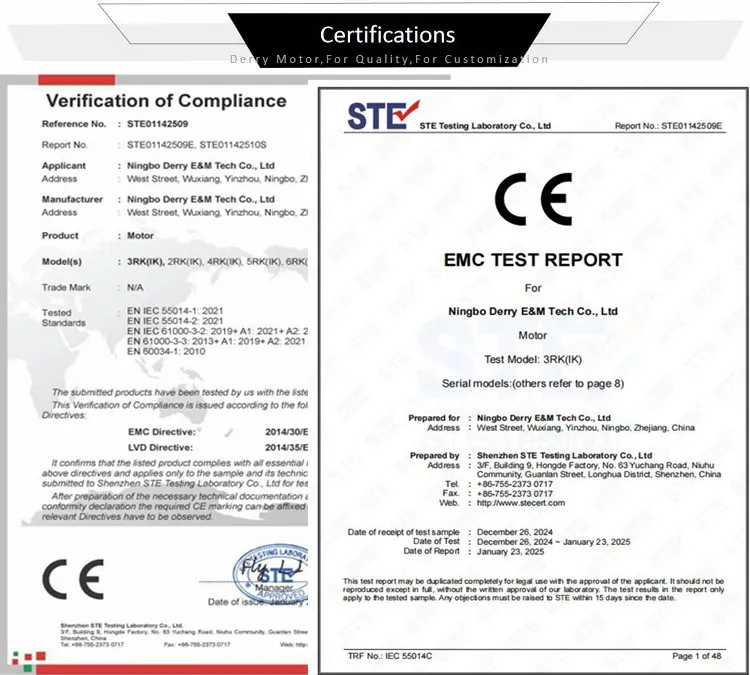

Certifications

Certifications: Products meet CCC, CE, and ROSH standards.

?Frequently Asked Questions
1. What is the standard voltage range for these motors?
The standard voltages are 12V, 24V, 48V, and 220V. Other voltage requirements can be customized upon request.
2. What are the typical applications for the 60mm BLDC motor?
The 60mm series is widely used in packaging machines, small CNC machines, AGV drive systems, and sewing machines due to its high torque density.
3. What is the expected service life of these brushless motors?
Under rated conditions, the service life typically ranges between 3,000 to 8,000 hours, significantly longer than traditional brushed motors.
4. Can I get a customized speed or torque configuration?
Yes. We support customized development. Speed ranges from 1000-15000rpm and torque from 0.05-30N·m depending on the specific model.
5. What is the lead time for samples and bulk orders?
Sample orders generally take 3-7 working days. Bulk production orders typically require 15-30 working days.
6. What protection class do these motors offer?
Standard motors are rated at IP54, but IP65 protection is available as an optional upgrade for harsher environments.
