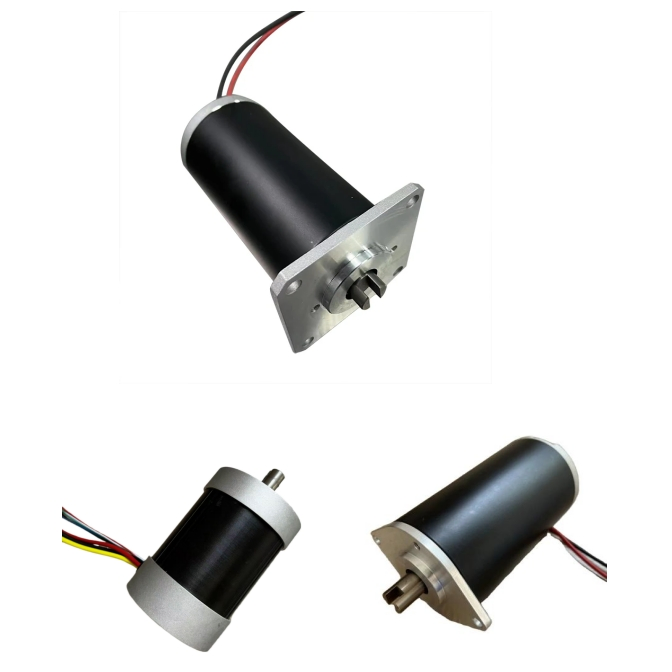

Customized Brushed or Brushless DC Air Pump Motor Hydraulic Pump Motor 12V 24V 48V for Water/ Fuel/Oil/Vacuum/Medical Pumps 15W 30W 50W 100W 200W 500W
Customized Brushed or Brushless DC Air Pump Motor Hydraulic Pump Motor 12V 24V 48V for Water/ Fuel/Oil/Vacuum/Medical Pumps 15W 30W 50W 100W 200W 500W
Customized Brushed or Brushless DC Air Pump Motor Hydraulic Pump Motor 12V 24V 48V for Water/ Fuel/Oil/Vacuum/Medical Pumps 15W 30W 50W 100W 200W 500W
Customized Brushed or Brushless DC Air Pump Motor Hydraulic Pump Motor 12V 24V 48V for Water/ Fuel/Oil/Vacuum/Medical Pumps 15W 30W 50W 100W 200W 500W
Customized Brushed or Brushless DC Air Pump Motor Hydraulic Pump Motor 12V 24V 48V for Water/ Fuel/Oil/Vacuum/Medical Pumps 15W 30W 50W 100W 200W 500W
1 / 5
Customized Brushed or Brushless DC Air Pump Motor Hydraulic Pump Motor 12V 24V 48V for Water/ Fuel/Oil/Vacuum/Medical Pumps 15W 30W 50W 100W 200W 500W
Customized Brushed or Brushless DC Air Pump Motor Hydraulic Pump Motor 12V 24V 48V for Water/ Fuel/Oil/Vacuum/Medical Pumps 15W 30W 50W 100W 200W 500W
Customized Brushed or Brushless DC Air Pump Motor Hydraulic Pump Motor 12V 24V 48V for Water/ Fuel/Oil/Vacuum/Medical Pumps 15W 30W 50W 100W 200W 500W
Customized Brushed or Brushless DC Air Pump Motor Hydraulic Pump Motor 12V 24V 48V for Water/ Fuel/Oil/Vacuum/Medical Pumps 15W 30W 50W 100W 200W 500W
Customized Brushed or Brushless DC Air Pump Motor Hydraulic Pump Motor 12V 24V 48V for Water/ Fuel/Oil/Vacuum/Medical Pumps 15W 30W 50W 100W 200W 500W

Customized Brushed or Brushless DC Air Pump Motor Hydraulic Pump Motor 12V 24V 48V for Water/ Fuel/Oil/Vacuum/Medical Pumps 15W 30W 50W 100W 200W 500W

Customization: Available
Application: Universal, Industrial, Household Appliances, Car, Power Tools, DC Pumps
Operating Speed: Constant Speed
Send Inquiry

Product Description

Basic Information
Model NO.
pump series
Function
Driving
Casing Protection
Closed Type
Number of Poles
2
Certification
ISO9001, Ce, RoHS
Transport Package
Standard Export Package
Specification
size 20mm TO 110mm
Origin
China
HS Code
8501310000
Production Capacity
10000 PCS Per Month
Product Description

Customized Specification Dc Motor for Pumps

We provide comprehensive Customizable solutions including voltage, dimension, performance, shaft, and mounting to meet your specific requirements. We also offer integrated options such as encoders, gearboxes, and brakes.

Customizable Voltage
Custom Dimensions
Integrated Encoders
Gearbox Options
Brake Systems

Please Send Inquiry, and We Will Get You the Best and Most Cost Effective Solution/Proposal.

Technical Options
Diameter30mm 36mm 38mm 42mm 52mm 57mm 60mm 63mm 70mm 76mm 80mm 86mm 90mm 110mm 130mm
Rated voltage10v 12v 18v 24v 36v 48v up to 380vdc
Rated torqueUp to 10Nm
Rated speed1000rpm 1500rpm 2000rpm 3000rpm 5000rpm or customized
Rated power10w up to 2000w
Protection classOption IP00 40 50 54 56 66 67
EMIEMI suppression available
ThermalThermal protection available
GearboxOption with planetary or worm gearbox assembled
BrakeOption with electric brake assembled
EncoderOption with Optical or Magnetic encoders assembled
ControllerOption with controller integrated for BLDC Motors
Typical Brushed Motors

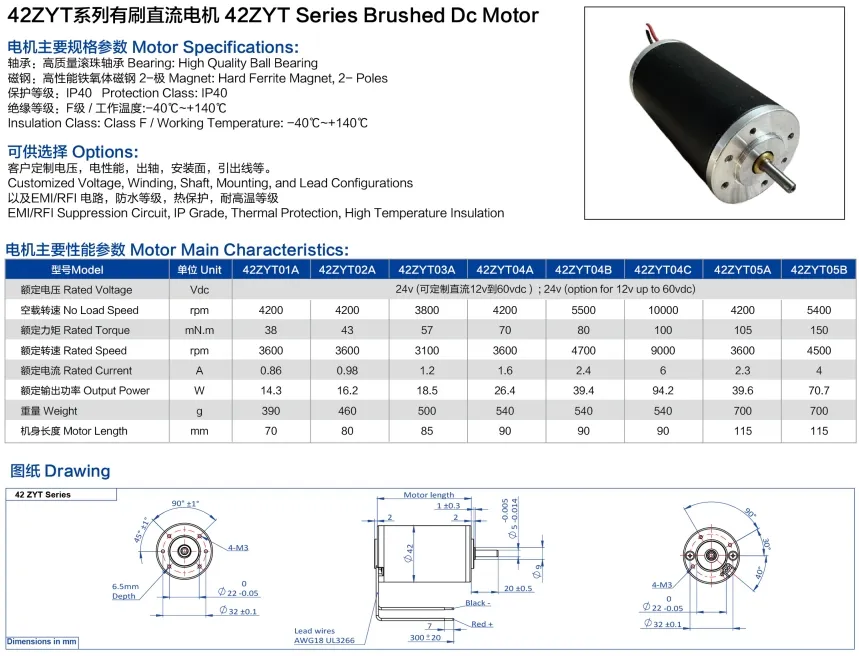

Brushed Motor 1

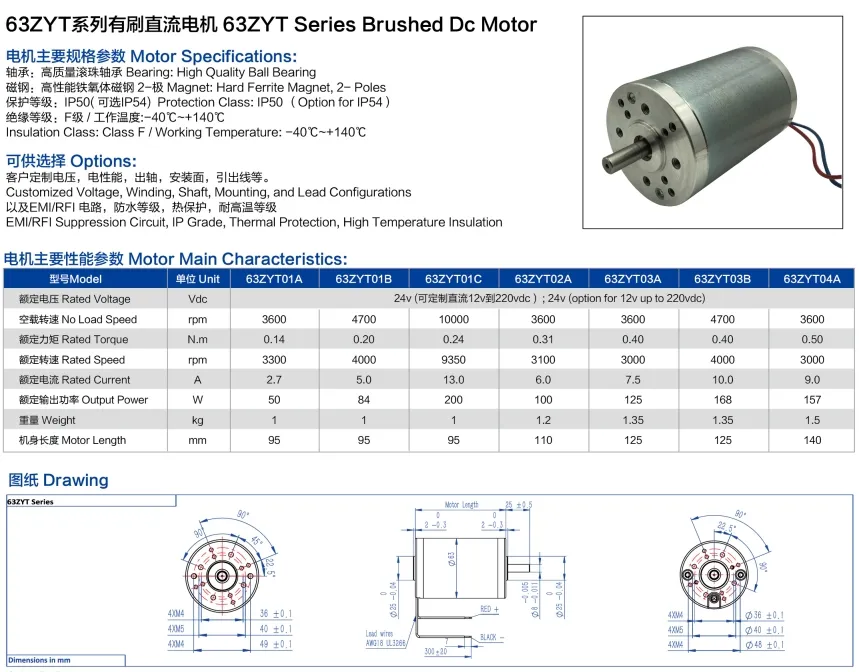

Brushed Motor 2

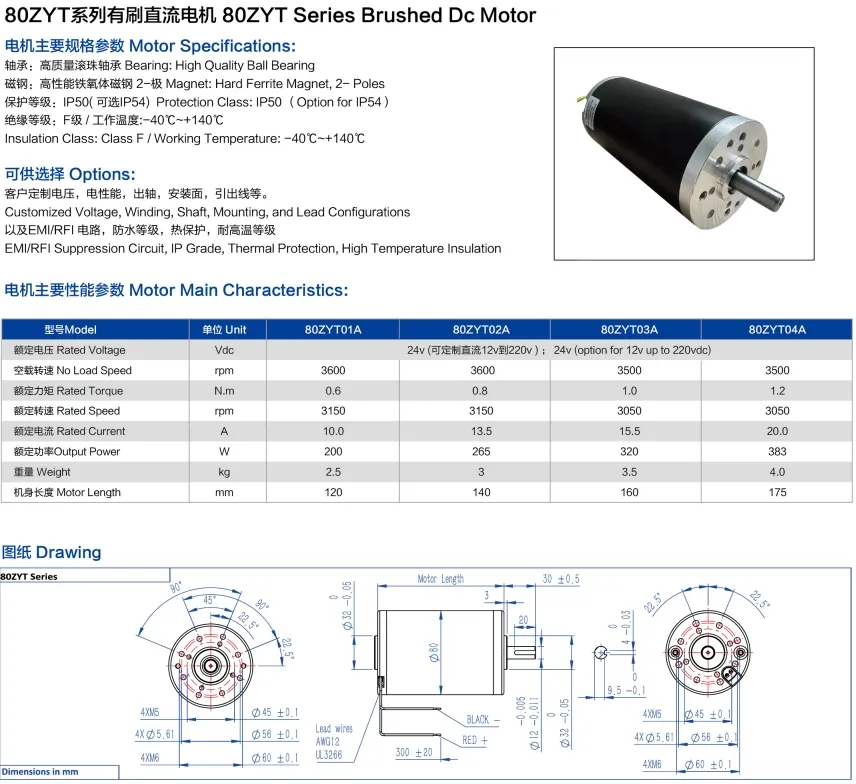

Brushed Motor 3

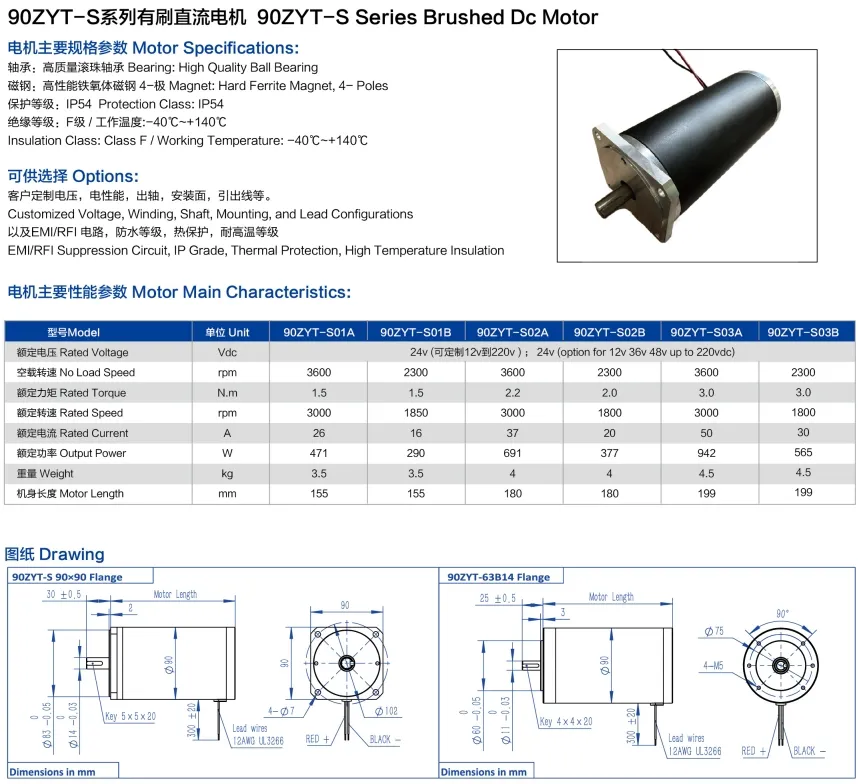

Brushed Motor 4
Typical Brushless Motors

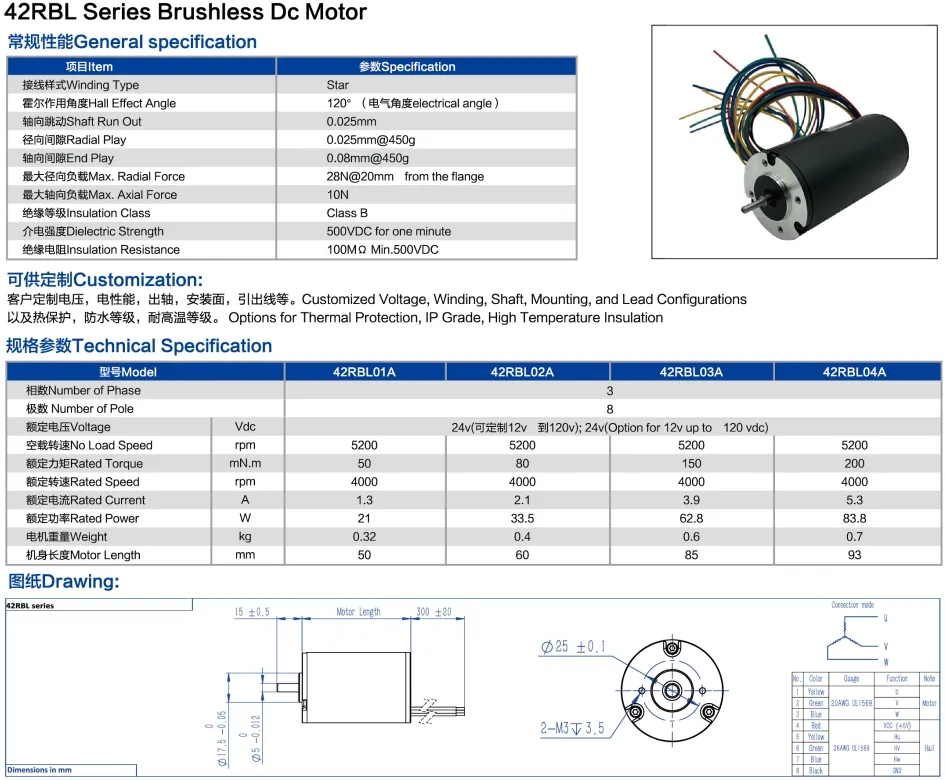

Brushless Motor 1

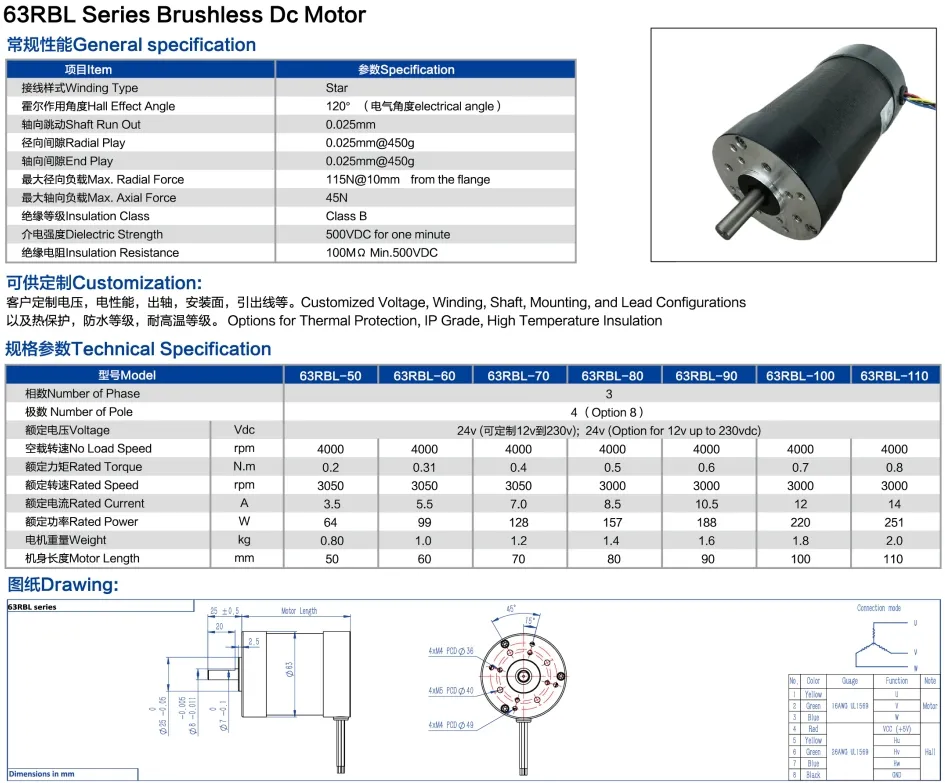

Brushless Motor 2

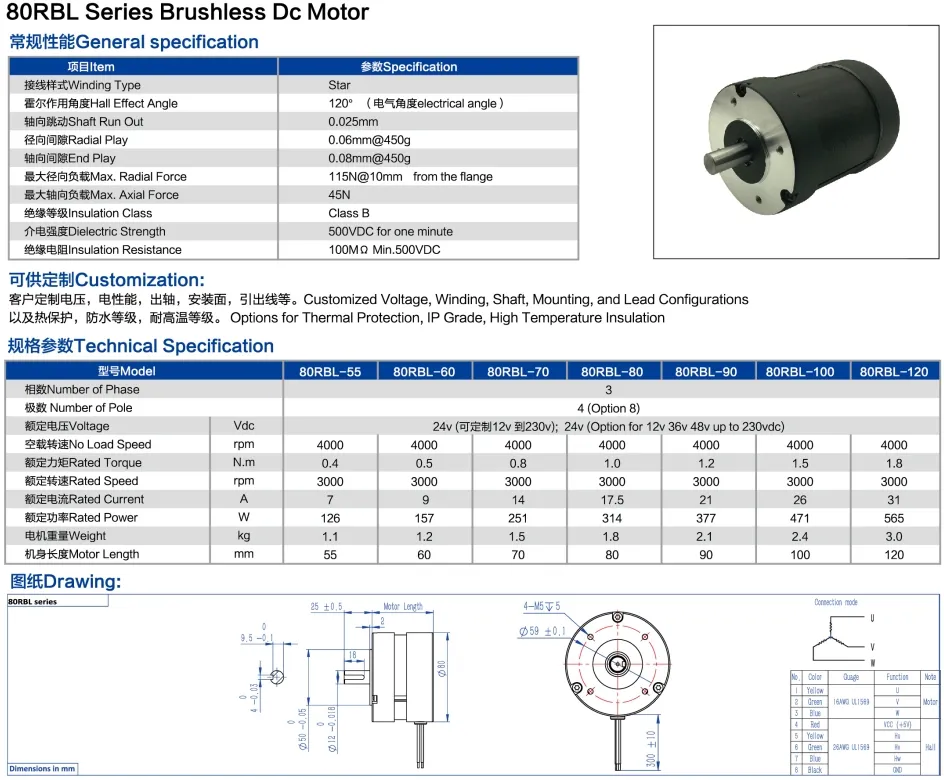

Brushless Motor 3

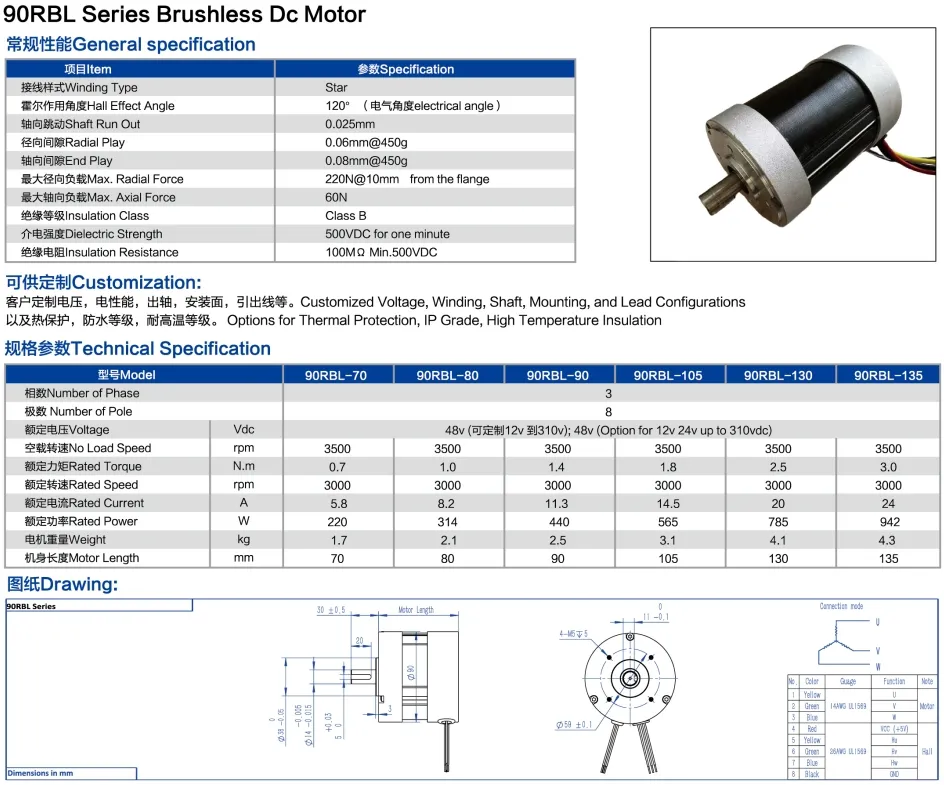

Brushless Motor 4
Customized DC Pump Motors

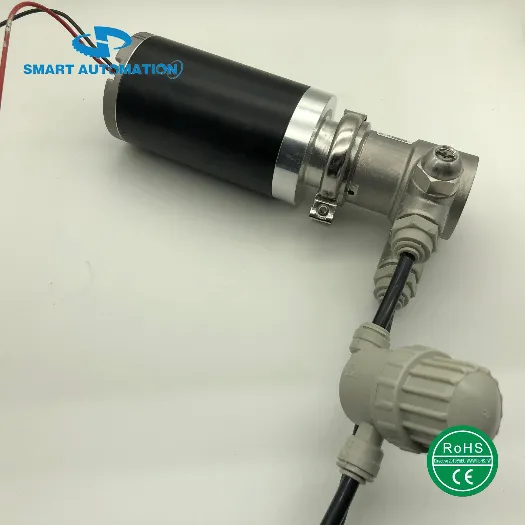

Pump Motor 1

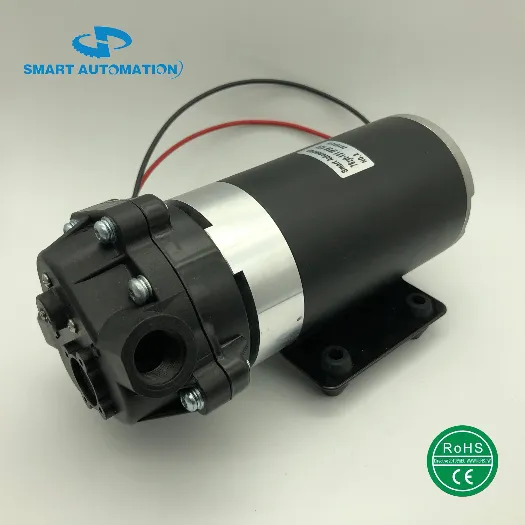

Pump Motor 2
Pump Motor 3
Pump Motor 4

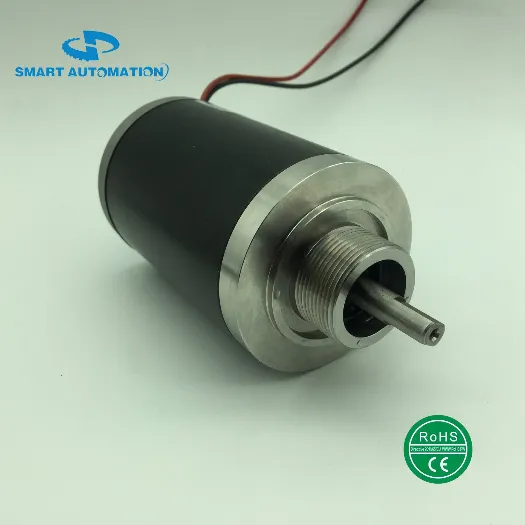

Pump Motor 5
Frequently Asked Questions
What is the range of rated voltage for these DC pump motors?
We offer a wide range of rated voltages starting from 10V, 12V, 18V, 24V, 36V, 48V, up to 380VDC to suit various industrial applications.
Can the motor dimensions and performance be customized?
Yes, we specialize in customizable specifications including dimensions, performance parameters, shaft types, and mounting configurations.
What protection classes are available for harsh environments?
Our motors come with multiple protection class options, ranging from IP00 to high-level protection like IP66 and IP67 for waterproof and dustproof needs.
Are there integrated gearbox or brake options?
Absolutely. You can choose to have planetary or worm gearboxes, as well as electric brakes, assembled directly with the motor.
Do you support feedback systems like encoders?
Yes, we offer options for both Optical and Magnetic encoders to be integrated into the motor for precise control.
What is your monthly production capacity?
Our current production capacity is approximately 10,000 pieces per month, ensuring stable supply for large-scale orders.
