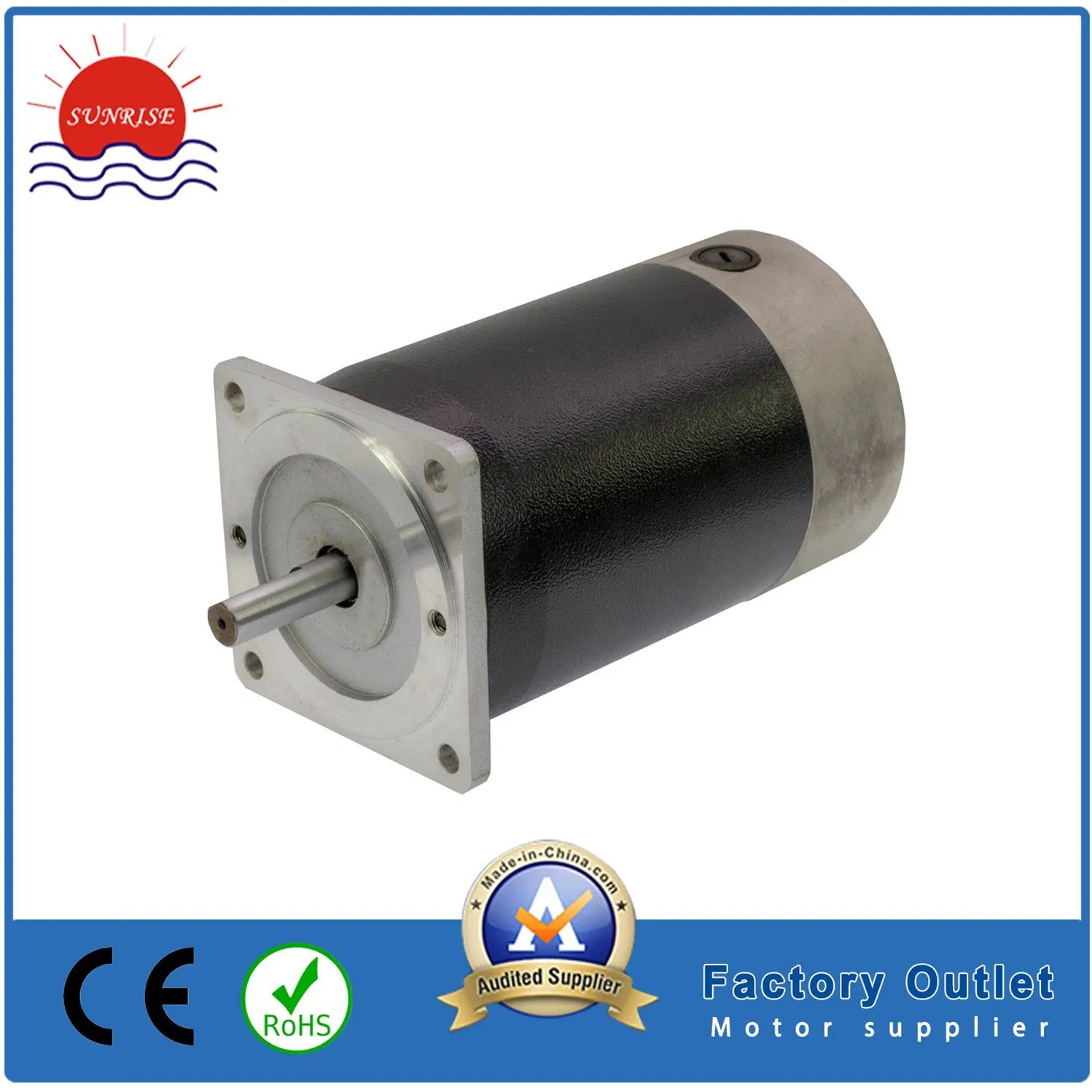

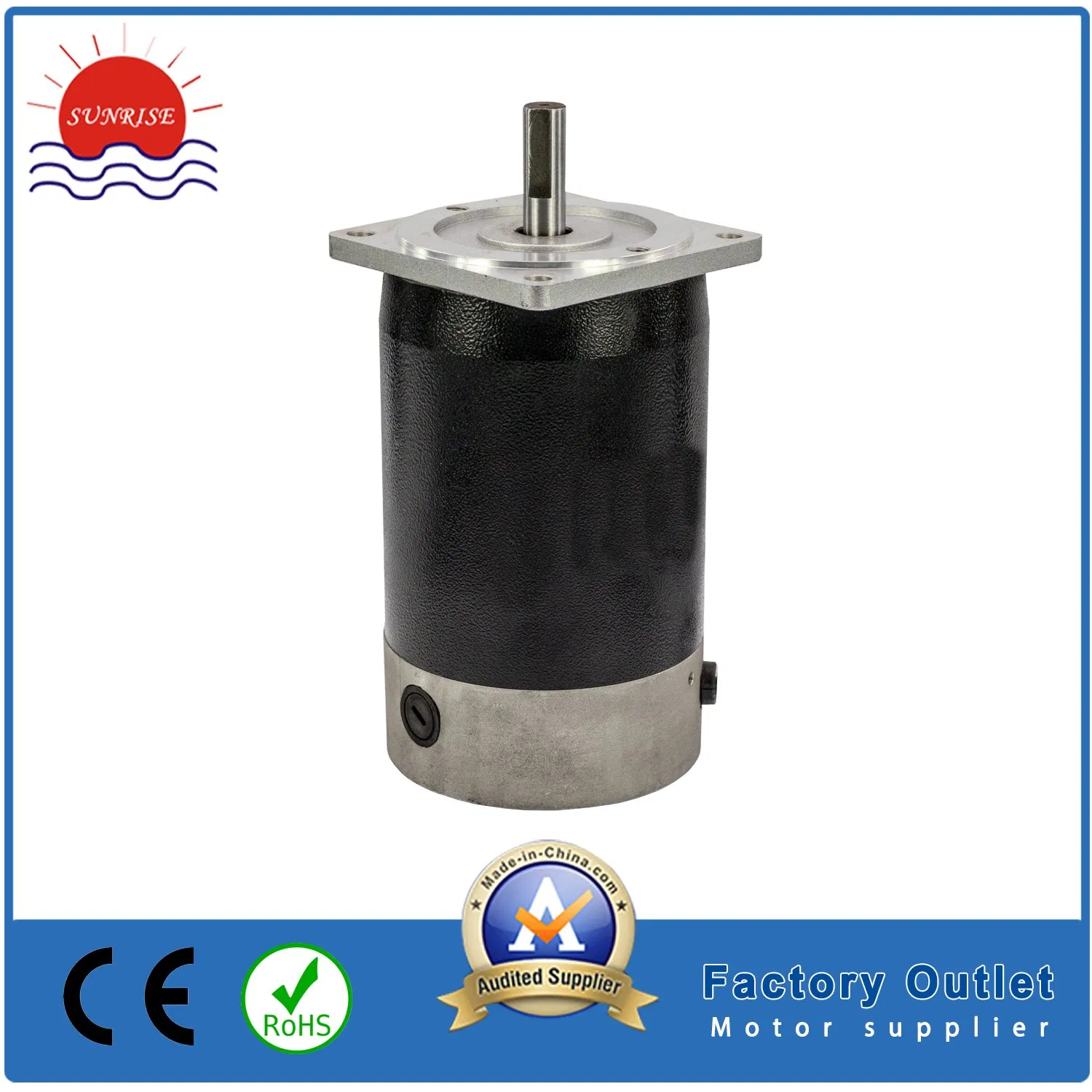

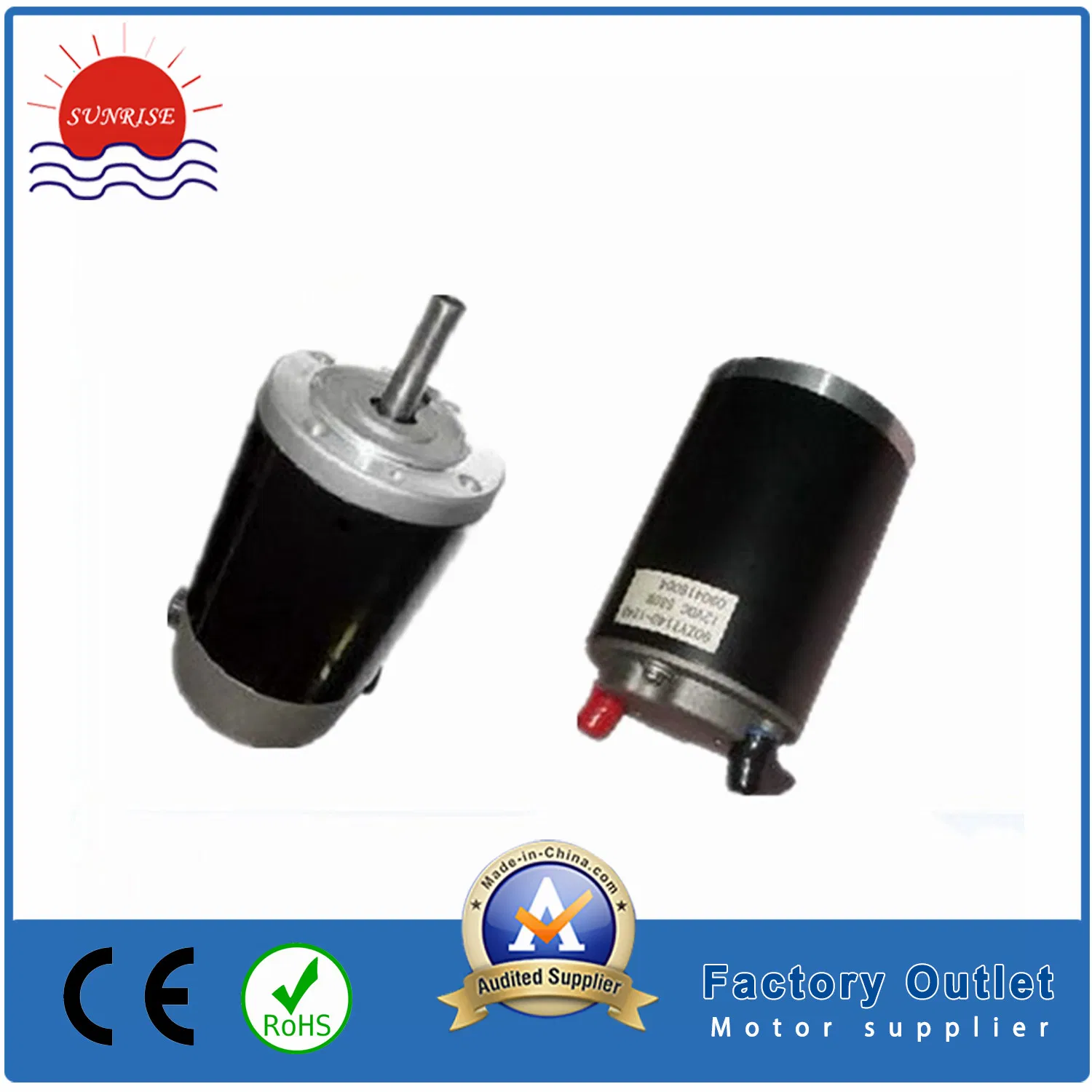

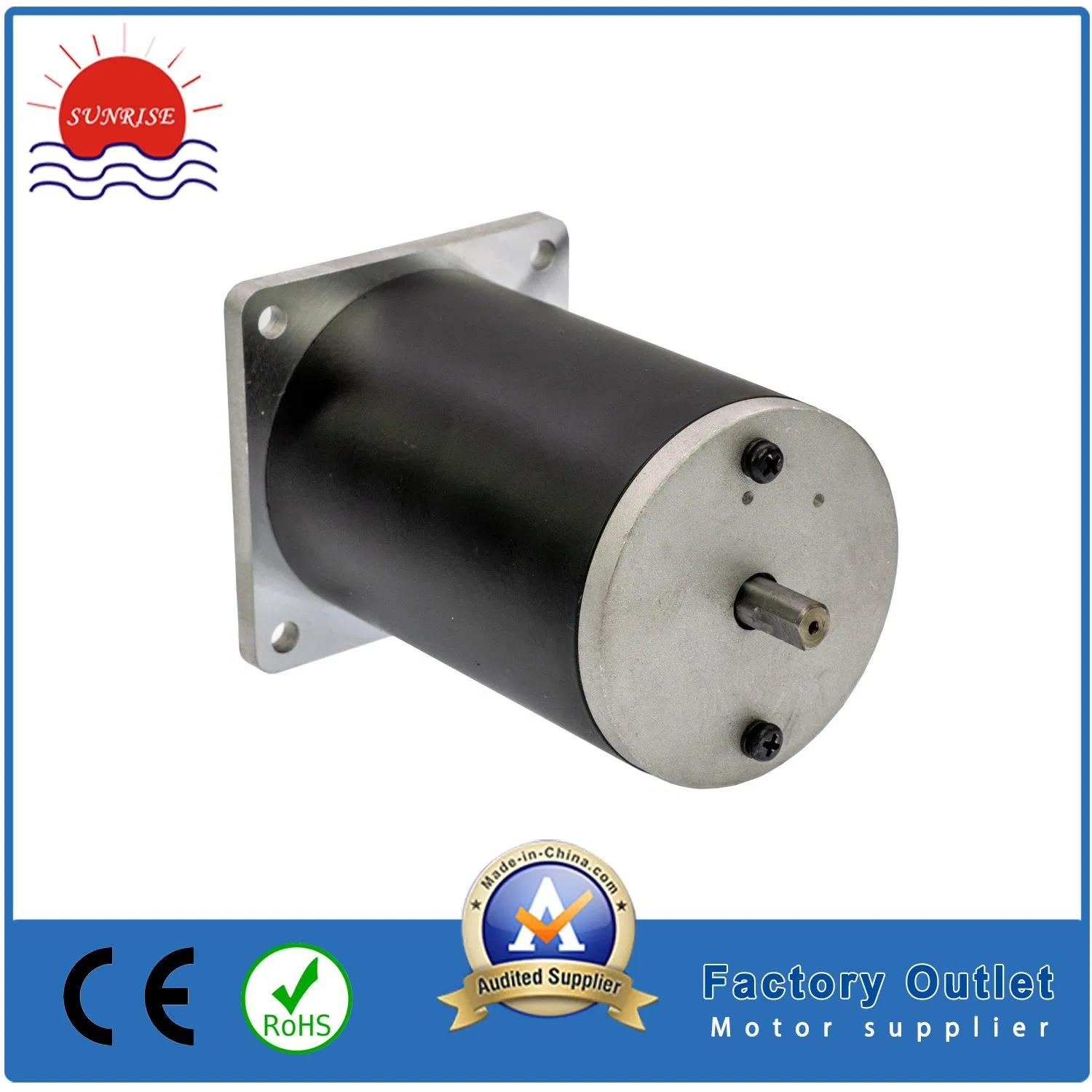

In a Permanent Magnet DC (PMDC) motor, permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings. PMDC motors are generally smaller but still offer an impressive output performance, making them an excellent choice for use in mobility, patient care, industrial and leisure products.
In PMDC motors (Permanent Magnet Direct Current), permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings.
Cost-effective and with a high starting torque, PMDC motors are generally smaller but still offer an impressive output performance, which makes them a popular choice for use in many applications.
The manufacturer produces an extensive range of PMDC motors trusted by global industries for more than 30 years. They are most often combined with gearboxes to reduce speed and increase torque for the ultimate geared motor solution. These motors are suitable for a wide range of applications in mobility, patient care, industrial automation, and leisure products.

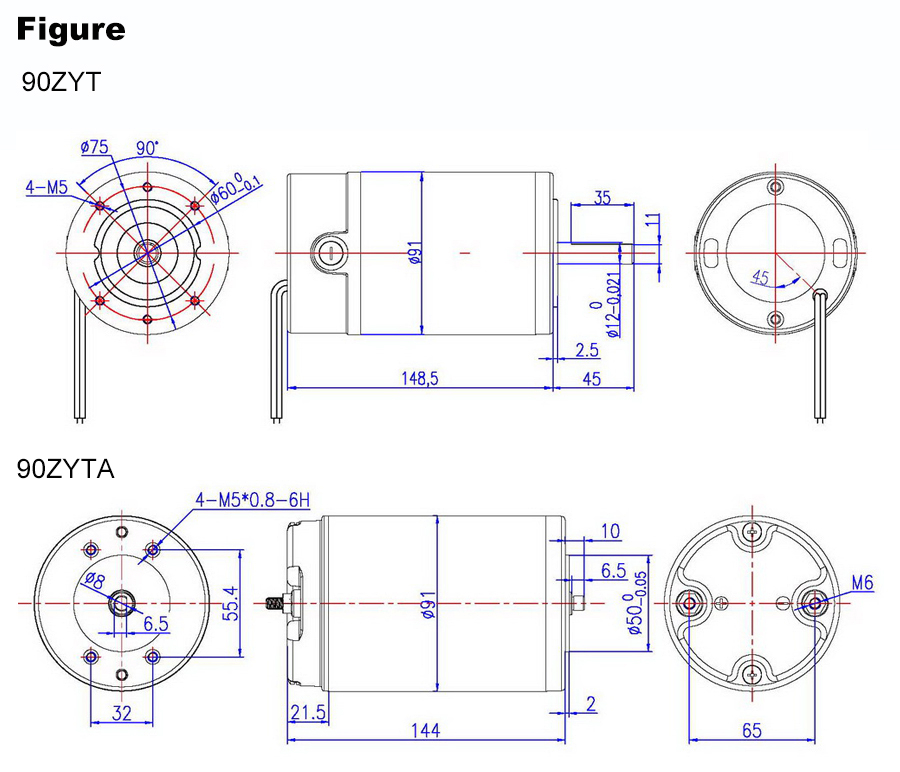

| Model | Voltage (V DC) | No Load | Rated Load | Length (mm) | |||
|---|---|---|---|---|---|---|---|
| Current (A) | Speed (r/min) | Torque (N.m) | Current (A) | Speed (r/min) | |||
| 90ZYT150-2433 | 24 | 1.1 | 3300 | 0.58 | 10 | 3000 | 150 |
| 90ZYT155-2453 | 24 | 2.5 | 5300 | 0.8 | 23 | 4700 | 155 |
| 90ZYT165-3623 | 36 | 1.2 | 2300 | 1.2 | 10 | 1600 | 165 |
| 90ZYT195-15025 | 150 | 0.2 | 2500 | 1.15 | 3 | 2000 | 195 |
| 90ZYTA144-1253 | 12 | 3 | 5300 | 0.9 | 50 | 4700 | 144 |
Note: Special motors can be customized per your requirements. Encoder and gearbox can be fixed.

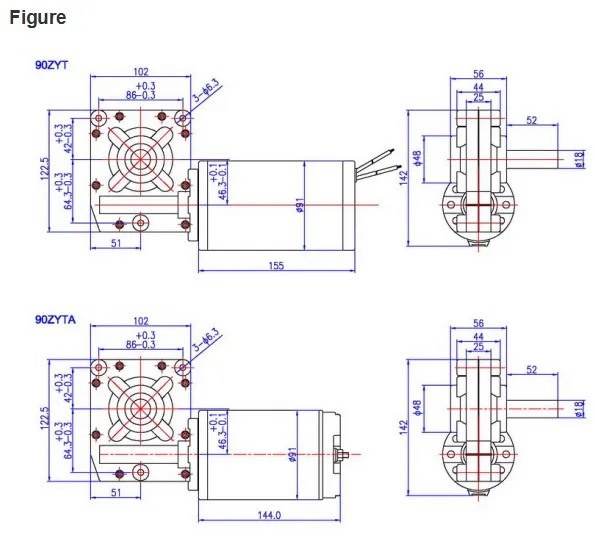

| Model | Voltage (V DC) | No Load | Rated Load | Gear Ratio | |||
|---|---|---|---|---|---|---|---|
| Current (A) | Speed (r/min) | Torque (N.m) | Current (A) | Speed (r/min) | |||
| 90ZYT150-1250WG50 | 12 | 3.8 | 100 | 25 | 20 | 90 | 50:01:00 |
| 90ZYT155-1250WG50 | 12 | 3.8 | 100 | 45 | 38 | 90 | 50:01:00 |
| 90ZYTA144-1251WG50 | 12 | 5 | 102 | 45 | 26 | 94 | 50:01:00 |
| 90ZYTA144-1253WG30 | 12 | 5 | 175 | 30 | 26 | 155 | 30:01:00 |
We offer several levels of PMDC motor customization, including shaft variations, output flange options, various cable lengths, brakes, encoders, paint finishes, and terminal boxes.
Our engineering teams have extensive application-specific knowledge, enabling us to produce a PMDC motor that is completely tailored to your individual needs.
