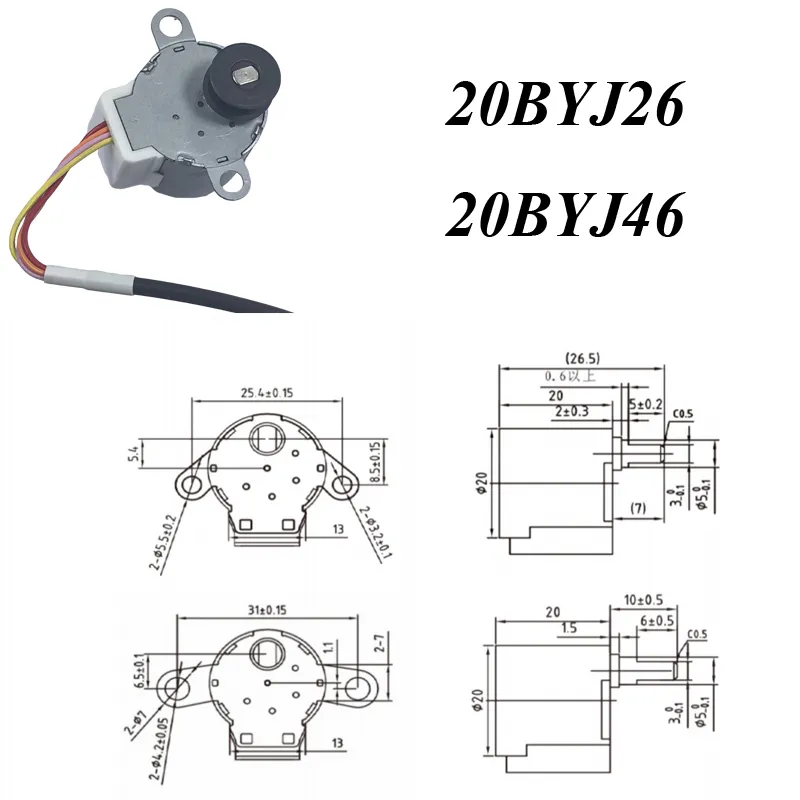

20BYJ26 is a high-performance micro permanent magnet stepper motor, widely recognized for its compact design, reliable performance and cost-effectiveness, making it an ideal choice for various small-scale automation and precision control applications.
📌 Typical Applications
NOTED: Transmission Shaft can be made according to customer's requirement.
📊 Technical Specifications
| Model |
Rated Voltage (V) |
Resistance (Ω) |
Frequency (PPS) |
Pull-in torque (m.Nm) |
Detent torque (m.Nm) |
No-load Pull-in rate (PPS) |
No-load Pull-out rate (PPS) |
Temp rise (K) |
| 20BYJ46 |
5 |
20 |
100 |
≥49 |
≥29.4 |
≥500 |
≥900 |
≤60 |
| 20BYJ26 |
12 |
200 |
100 |
≥49 |
≥29.4 |
≥550 |
≥900 |
≤60 |
| 20BYJ26 |
12 |
300 |
100 |
≥29.4 |
≥29.4 |
≥550 |
≥900 |
≤60 |
| 1-2 phase 7.5°/85 |
| 2-2 phase 15°/85 |

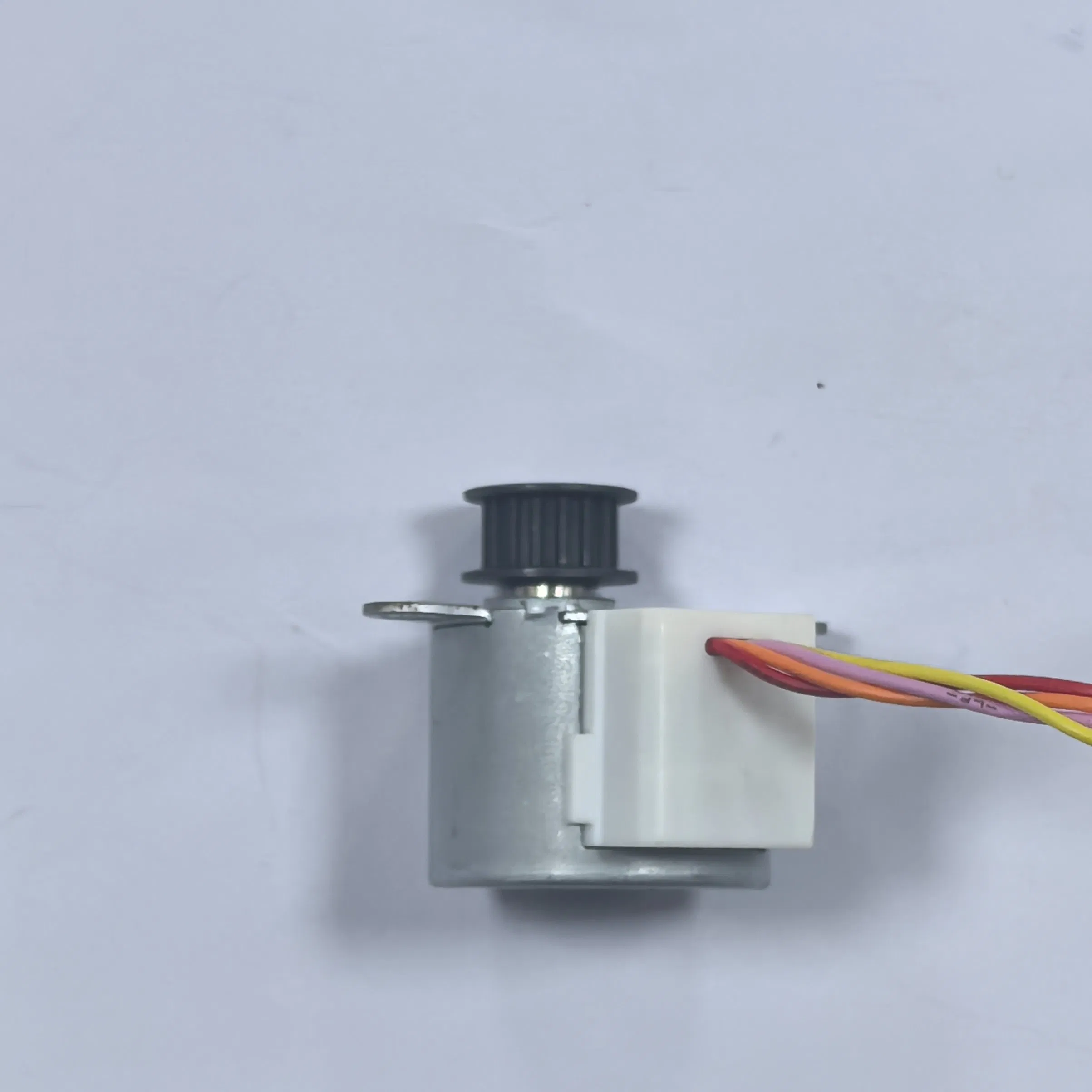

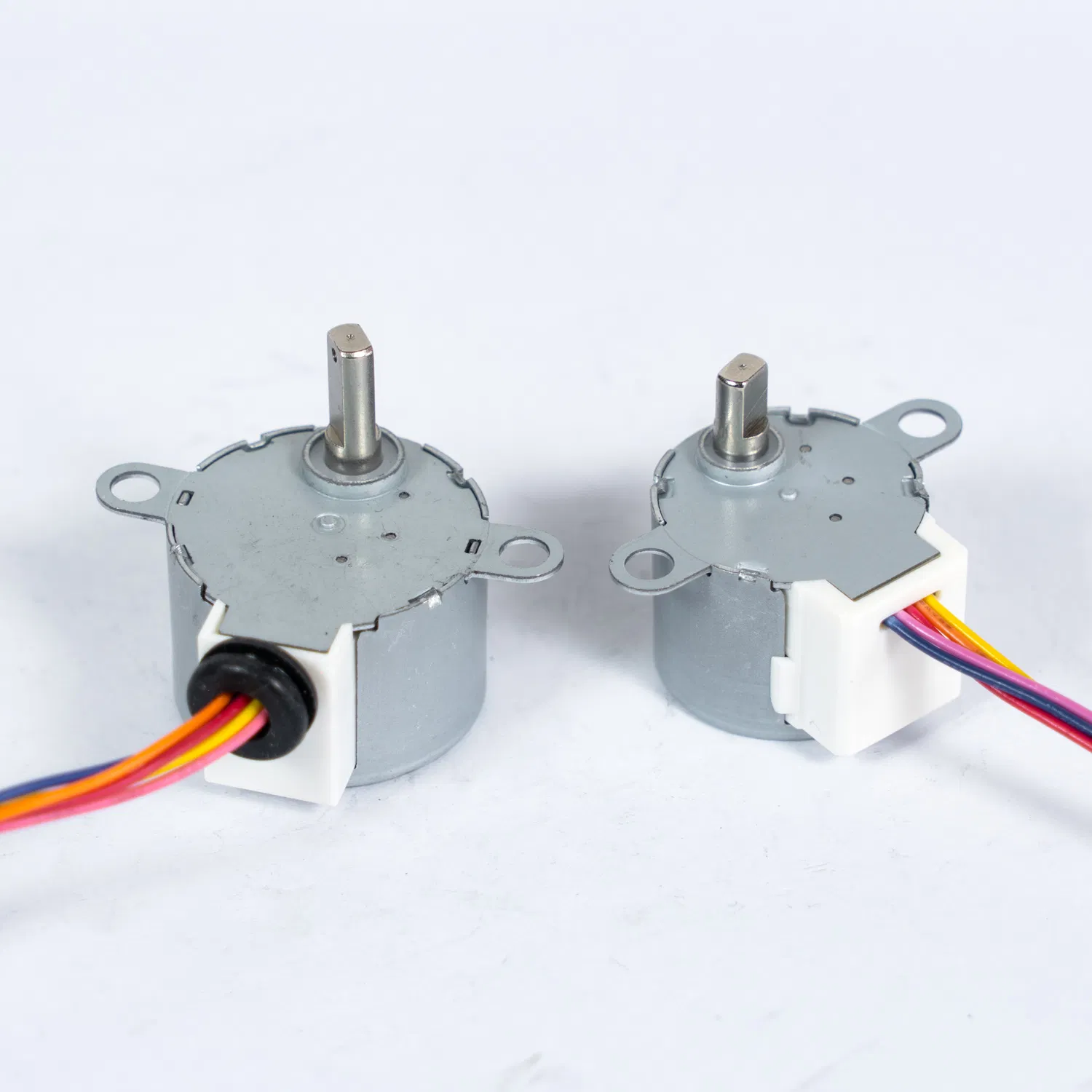

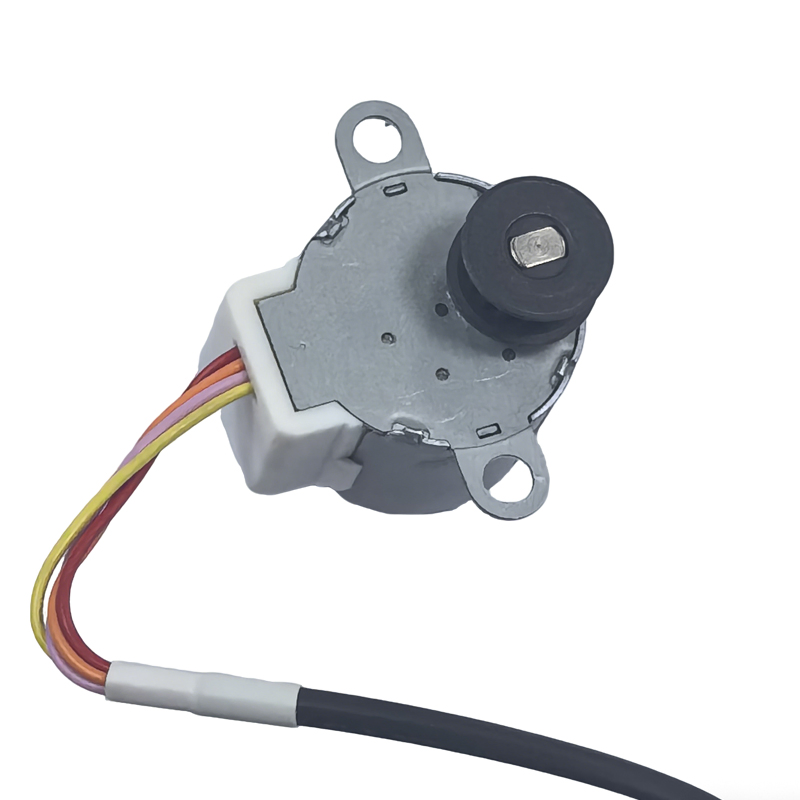

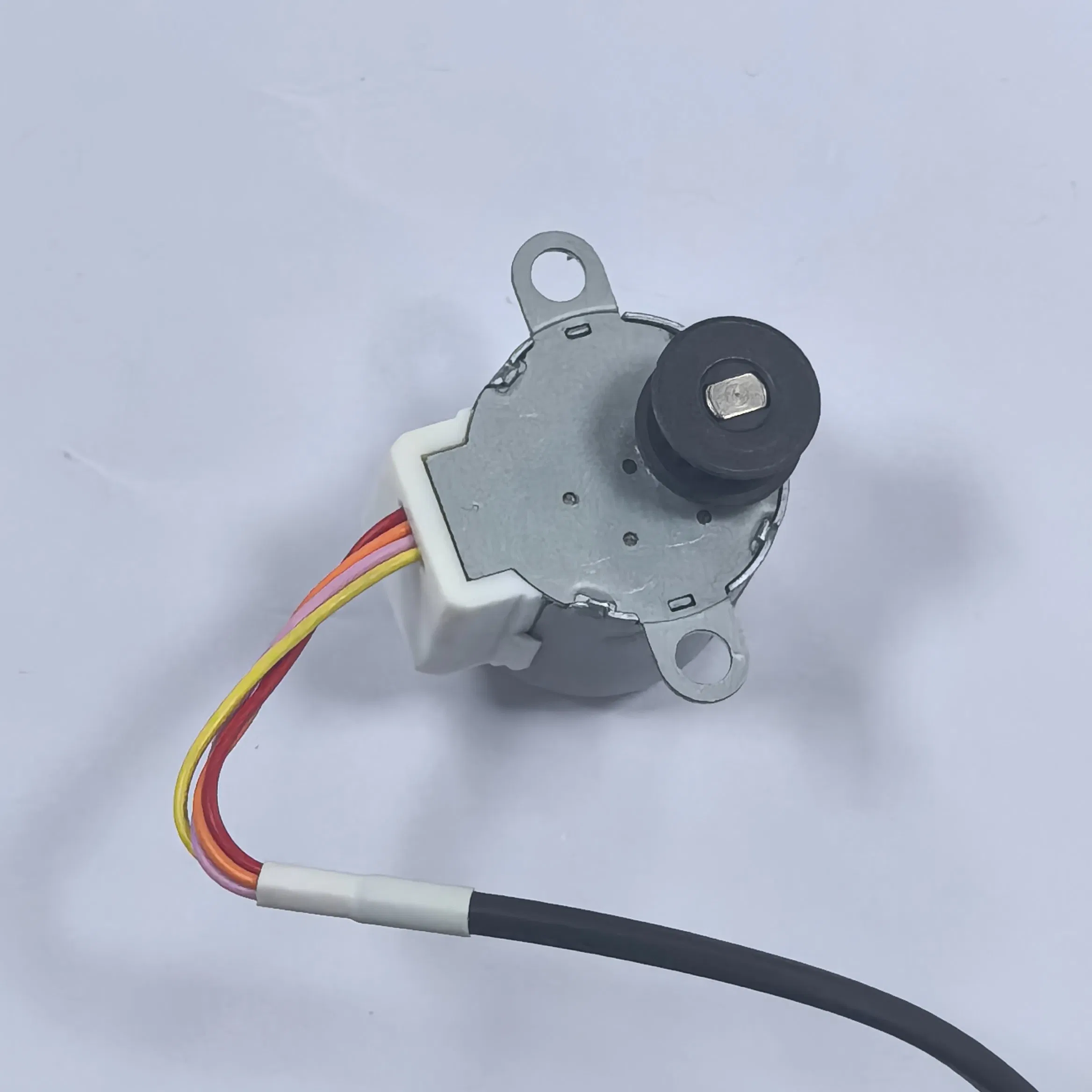

📷 Product Display

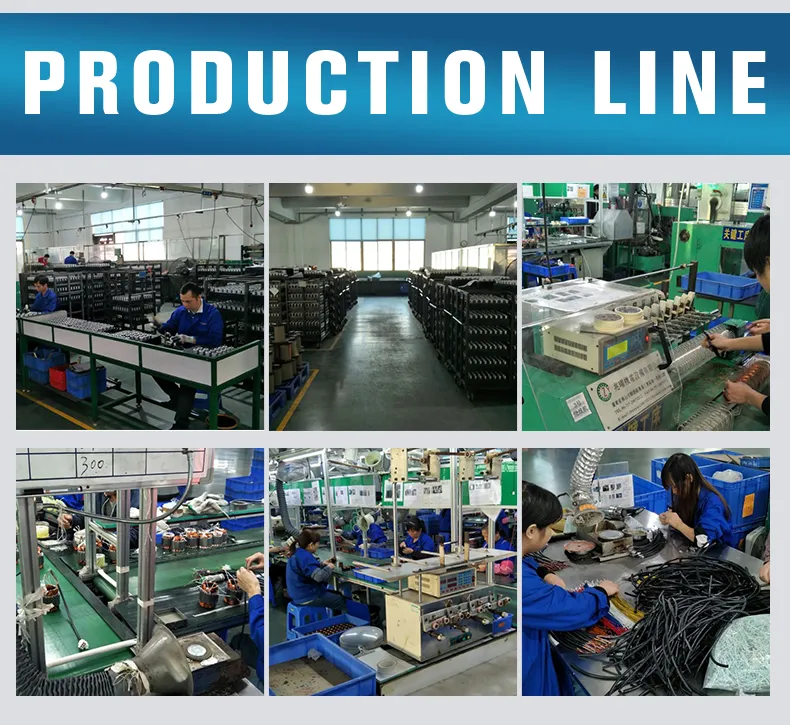

⚙ Manufacturing Capabilities

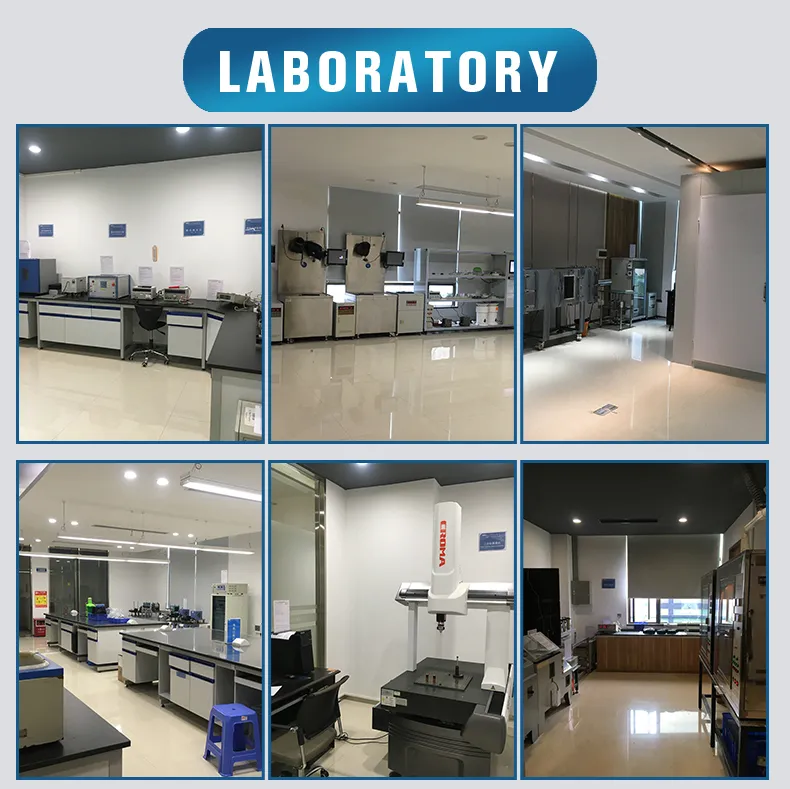

With professional micro-motor factories, our facilities span 50,000 square meters and employ more than 500 skilled professionals. We have an annual output of 5 million units and a production capacity of up to 10 million units. We focus on technological innovation and strict quality control through dedicated R&D and QC departments to ensure the highest standards for household and industrial electrical appliances.
❓ Frequently Asked Questions
Q1: What kind of motors can you provide?
We mainly provide a wide range of motors including Kitchen Hood Motors, DC Motors, Gear Motors, Fan Motors, Refrigerator Motors, Hair Dryer Motors, Blender/Mixer Motors, Shaded Pole Motors, Capacitor Motors, BLDC Motors, PMDC Motors, Synchronous Motors, and Stepping Motors.
Q2: Can the transmission shaft be customized?
Yes, the transmission shaft can be manufactured according to specific customer requirements and technical drawings.
Q3: Is it possible to visit your manufacturing facility?
Sure. Please kindly inform us a few days in advance so we can check our schedule and make the necessary arrangements for your visit.
Q4: Can I request samples for testing?
We provide samples for testing before official orders. While most motors are custom-made, if terms like MOQ and pricing are acceptable, we would be happy to provide samples for your evaluation.
Q5: What is the Minimum Order Quantity (MOQ)?
The MOQ typically ranges between 1,000 to 10,000 pieces depending on the model. However, for initial orders after sample approval, we can accept smaller batches of dozens or hundreds.
Q6: What are the typical applications for the 20BYJ26 motor?
It is widely used in air conditioning units, refrigerators, intelligent sanitary equipment, automatic door locks, CCTV monitors, and various electronic instruments.
