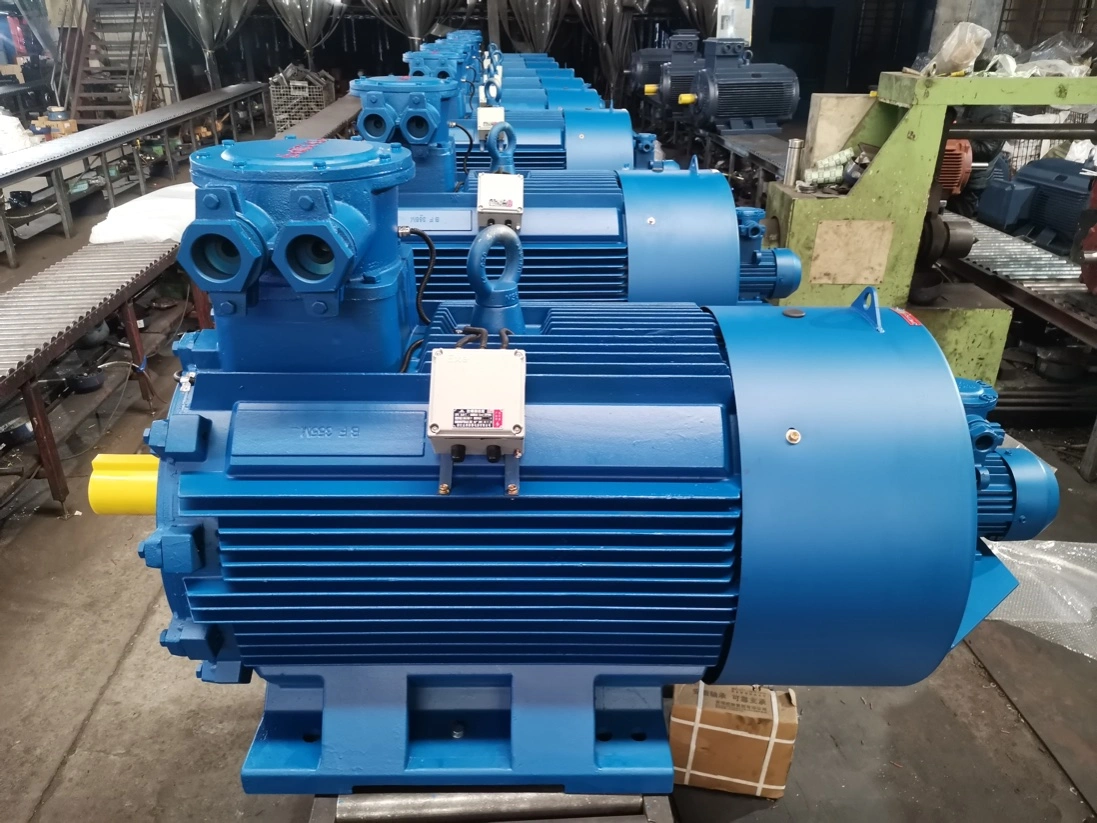

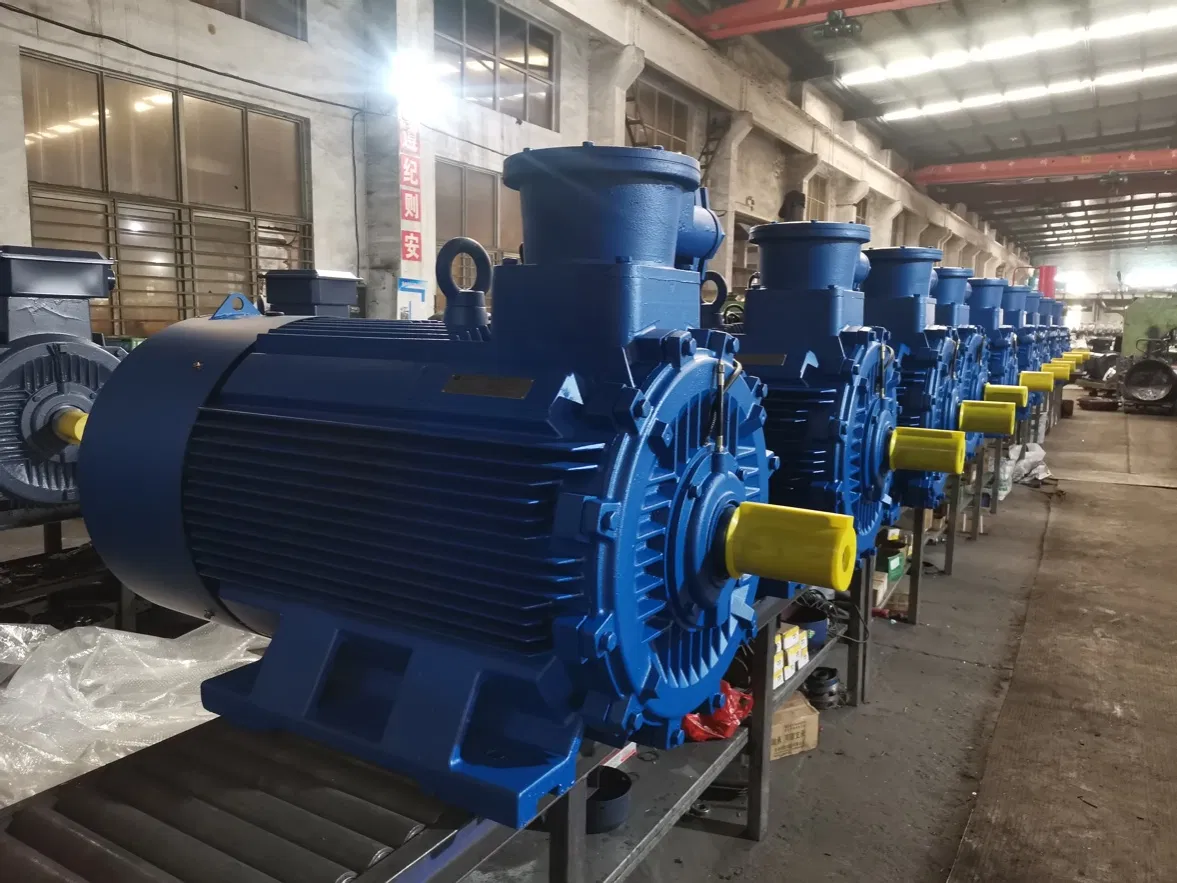

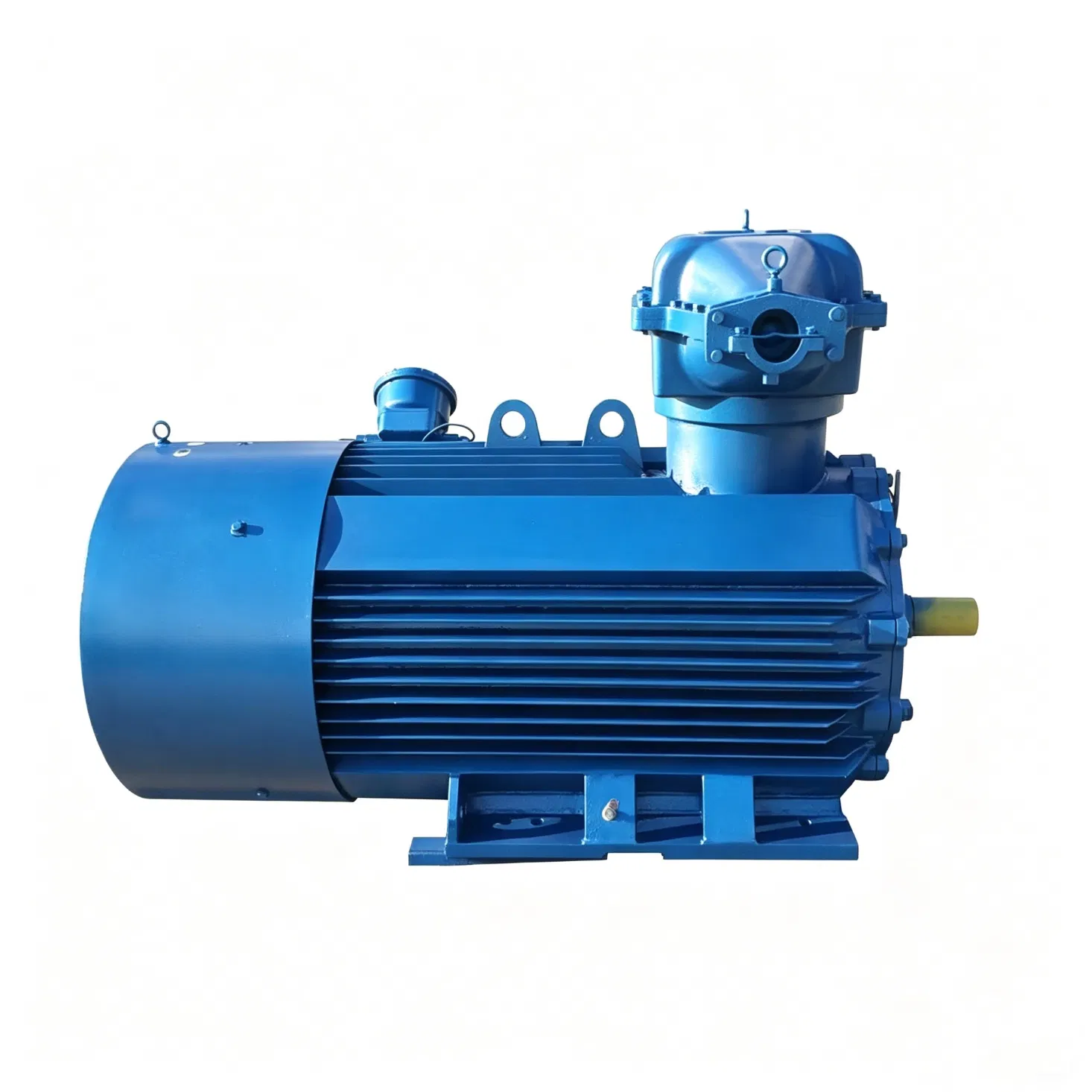

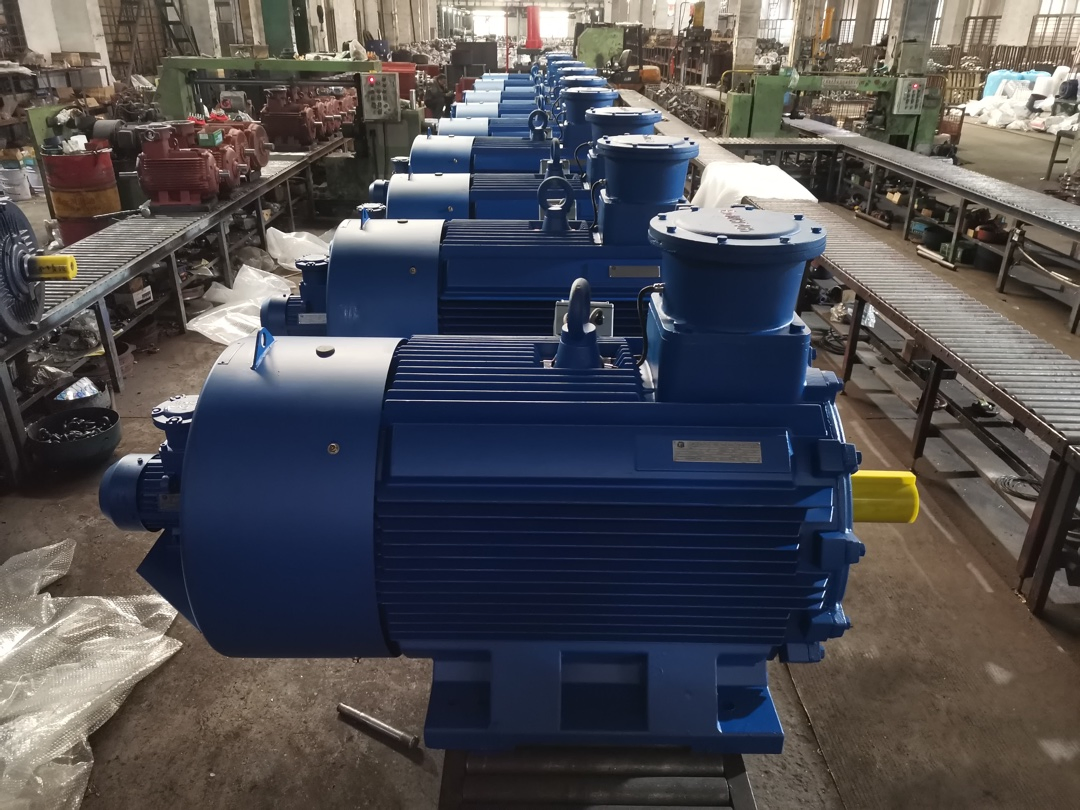

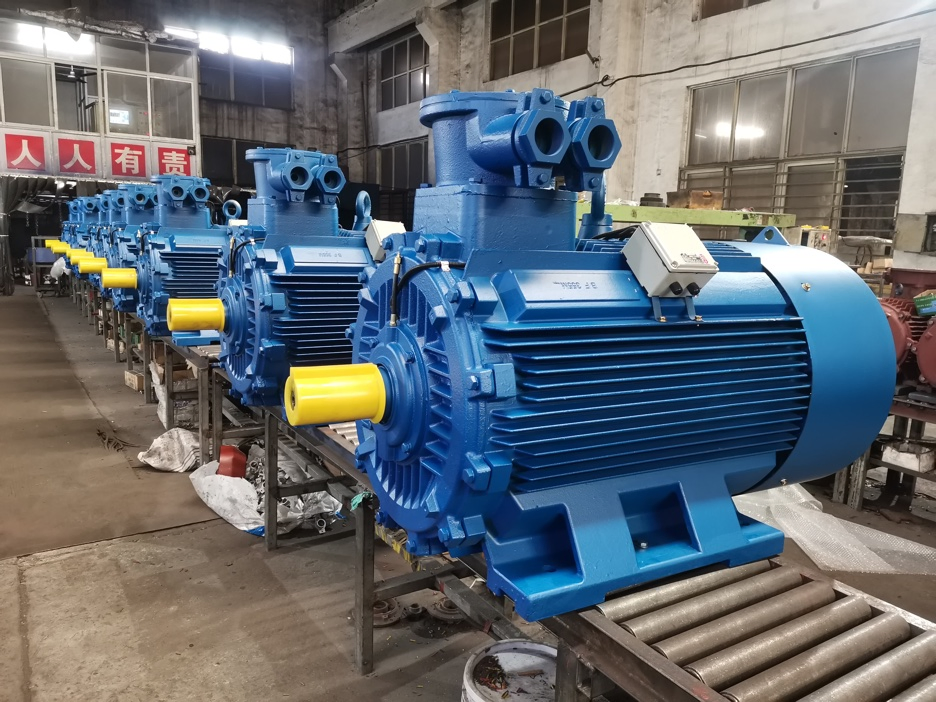

Product Name: Three Phase Explosion Proof Flameproof ATEX AC Asynchronous Induction Ex Electric Motor.

It confirms to energy saving standard stipulated in GB18613-2012 Minimum Allowable Values and Grades of Energy Efficiency for Small & Minimum Sized Three Phase Induction Motors.

YBX3/YBBP series 3 phase EX d proof motors are featured with high performance, reliability, small vibration and low noise, whose energy efficiency grade is Class 2 in CHINA, EFF1 in Europe. The motors also conform to IEC standard for its power rank and mounting dimension, as well as in line with DIN42673 in German and energy request of EPACT.

YBX3/YB3/YBBP series explosion-proof performance is in accordance to the standards of GB3836.1-2010 Explosive Atmosphere Part 1: General Requirements for Equipment, GG3836.2-2010 Explosive Atmosphere Part 2: Equipment Protected by Type D flameproof Enclosure, and it also consistent with the stipulation of IEC79-1, 4BS4683 and EN50018.

The explosion-proof grade is Ex db IIB T4 Gb, Ex d IIC T4 Gb Ex tD A21 IP65 T130 with ATEX certificate. Suitable for explosive gas atmospheres in mechanical equipment power drives, divided into Class I (coal mines) and Class II (other explosive gas environments including IIA, IIB, IIC and temperature groups T1-T4).

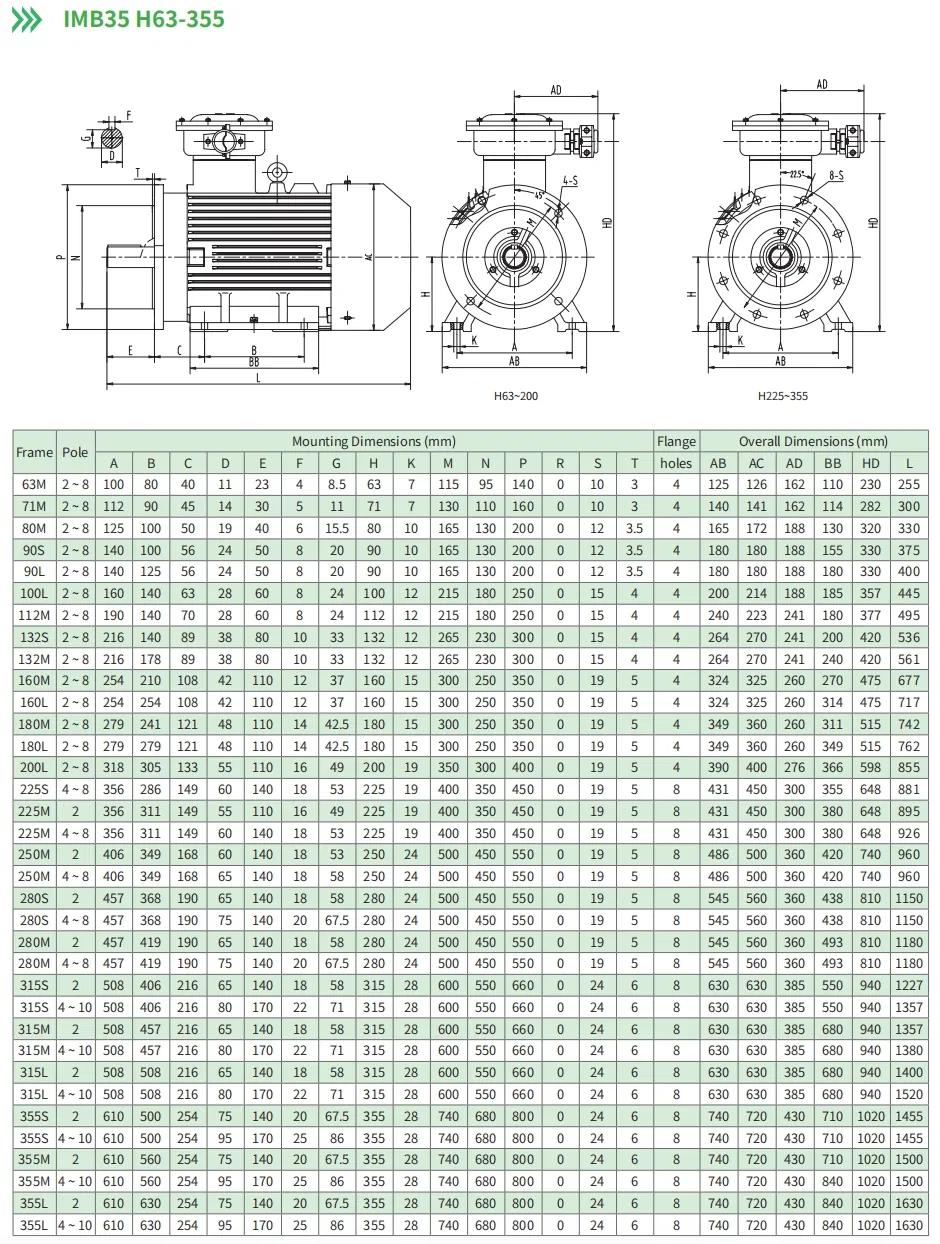

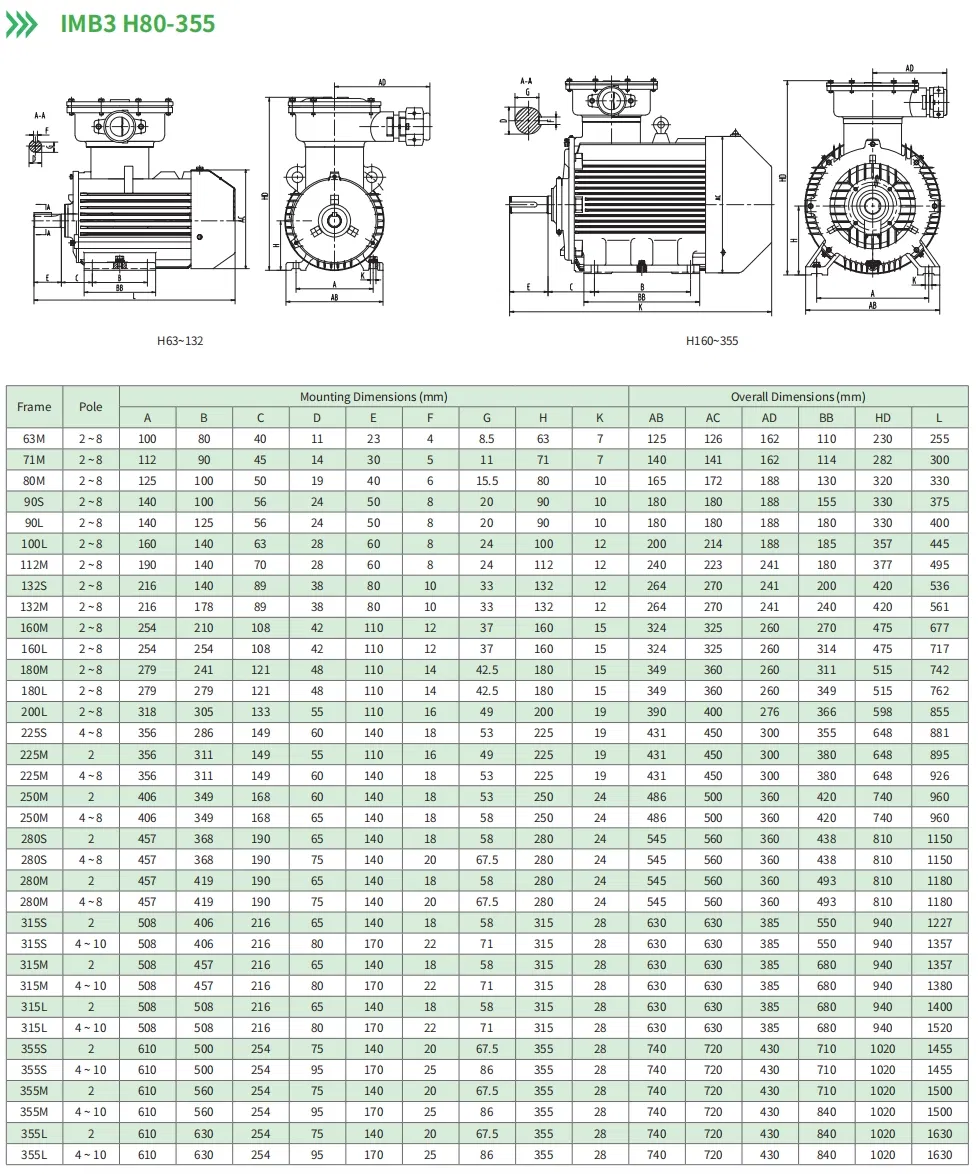

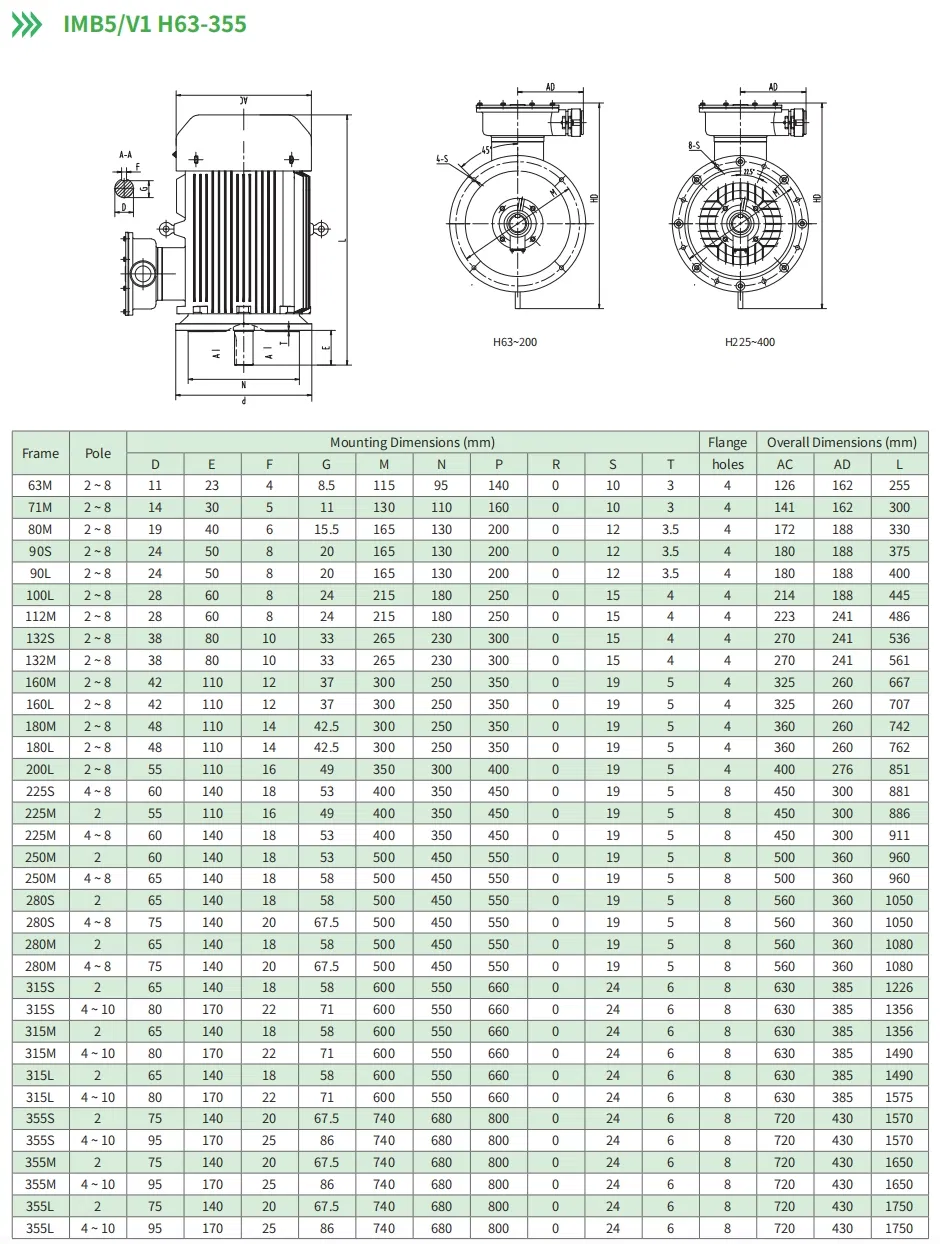

Frame size range: H80 ~ H355. Power rating and installation dimensions comply with GB/T4772.1/IEC 60072-1 and GB/T4772.2/IEC 60072-2 standards.

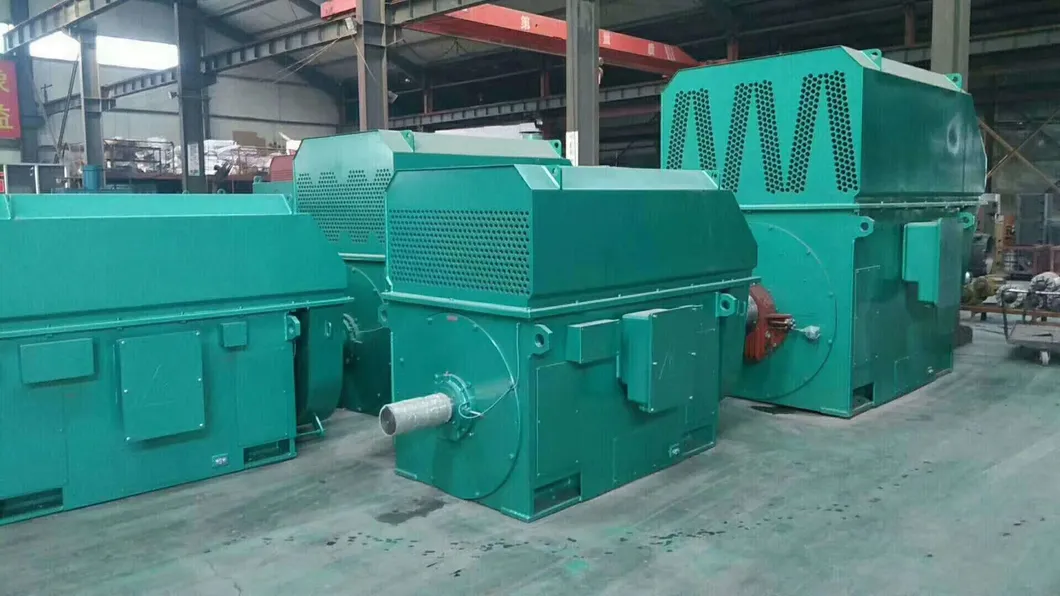

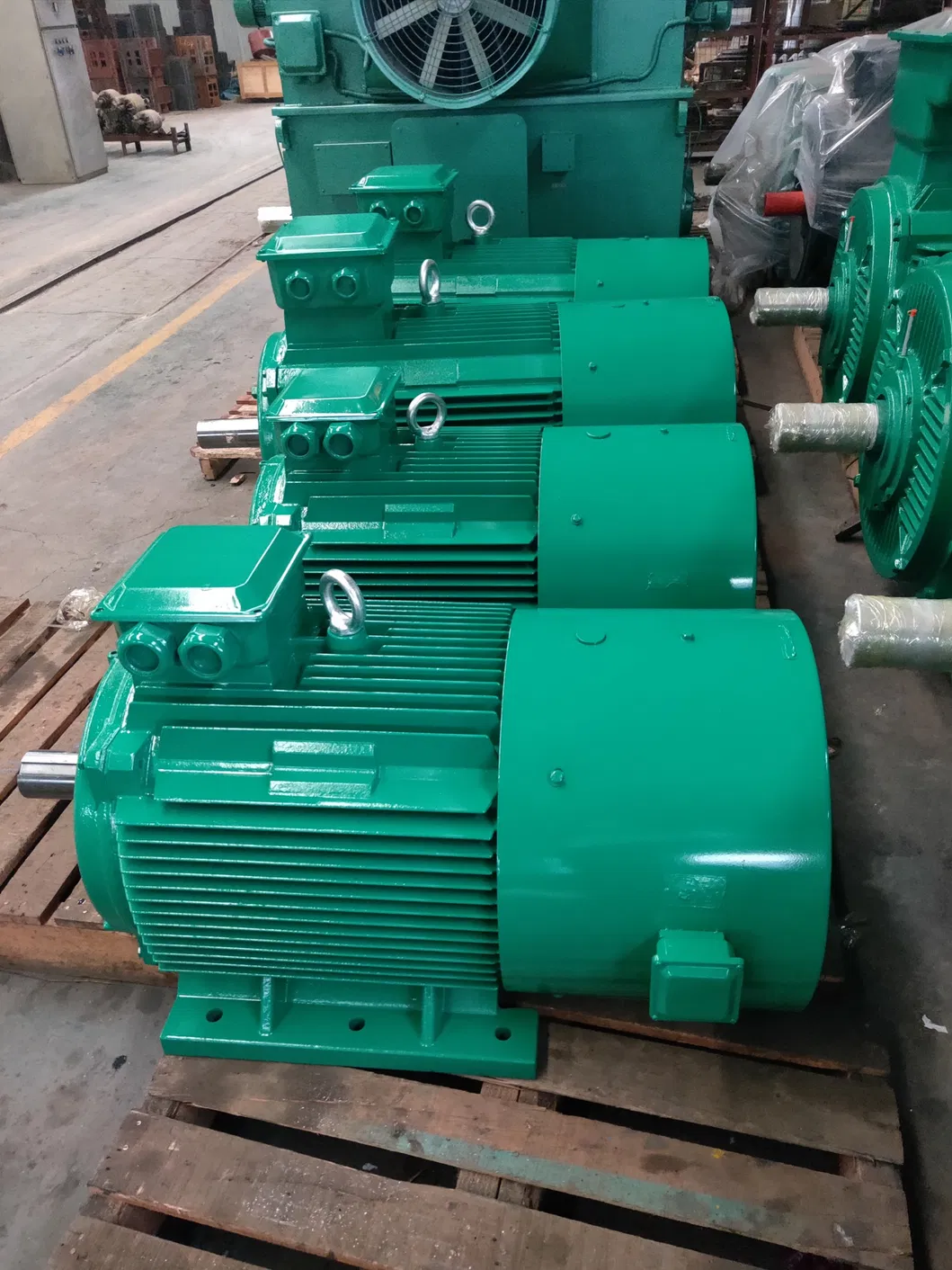

Reliable electric motor manufacturer supplying single phase and three phase induction motors, squirrel cage, slip ring, wound rotor, explosion proof, and various customized AC/DC motors. Operations are authorized by ISO9001:2008 standards.

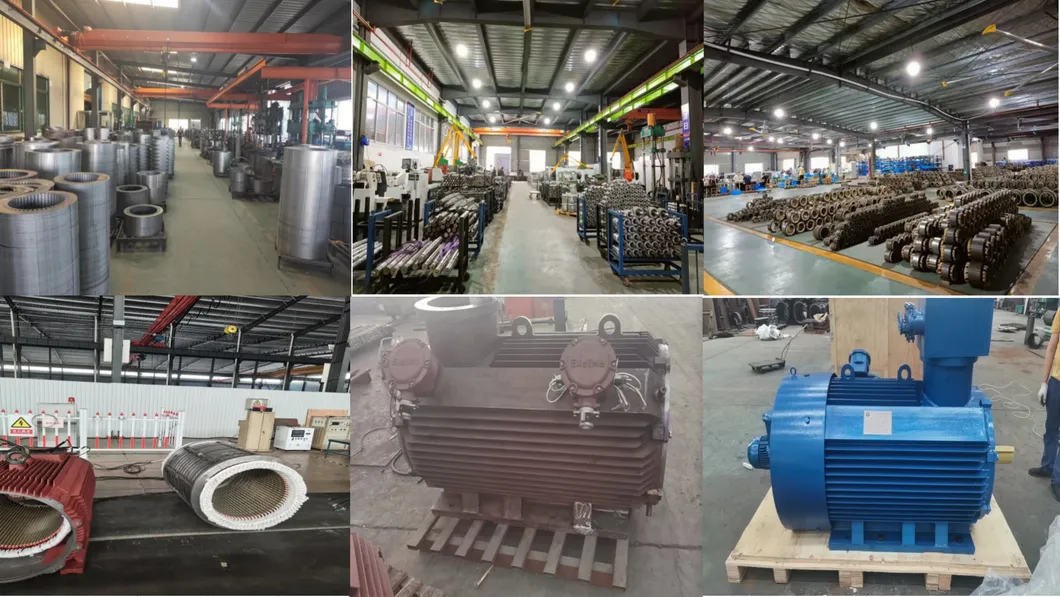

Full-service integration including R&D, manufacturing, quality control, and technical support. Products have gained a worldwide reputation across Europe, Asia, Africa, and the Americas.
