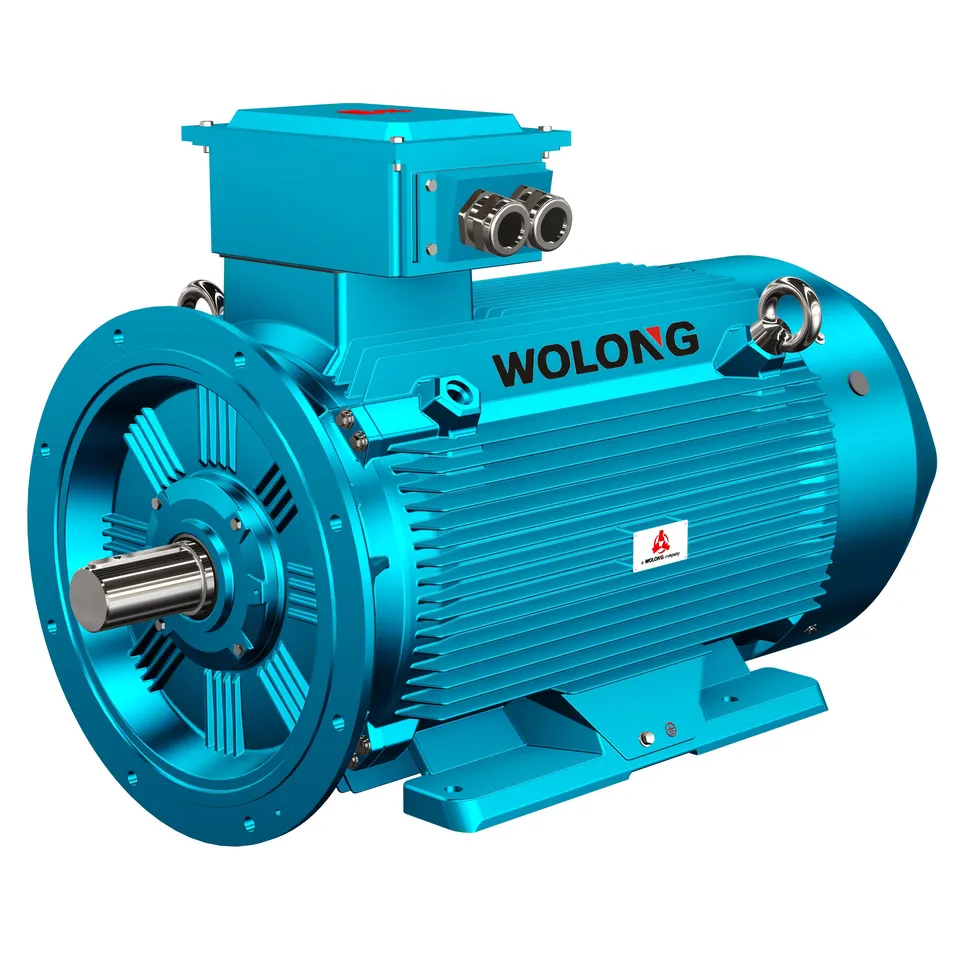

The YFB3 Series Dust Explosion-Proof Three-Phase Asynchronous Motor is a fully enclosed, self-fan-cooled, squirrel-cage design. It features compact size, light weight, reliable operation, and modern appearance. With high efficiency, low noise, small vibration, and advanced explosion-proof structure, the YFB3 motor ensures safe and dependable performance in demanding environments.
Applications: Complying with IEC standards and achieving IE3 efficiency level, the YFB3 series is widely used in food processing, chemical industry, coal mines, and other hazardous areas with explosive dust mixtures. With large terminal box volume, enhanced safety, frequency conversion capability, and professional design, it significantly improves competitiveness in explosion-proof applications.
| Parameter | Specification |
|---|---|
| Product Series | YFB3 Series Dust Explosion-proof Three-Phase Asynchronous Motor |
| Efficiency Class | IE3 Level (Energy Efficiency Class 2 / Energy Efficiency Class 3) |
| Frame Size | H80 |
| Rated Power Range | 0.75kW |
| Number of Poles | 2 |
| Rated Voltage | 380V, 660V, 380/660V (Special voltage customizable) |
| Rated Frequency | 50Hz |
| Insulation Class | 155 (F) class |
| Protection Rating (IP) | IP65 (Standard), IP55 |
| Cooling Method | IC411 (Self-fan-cooled) |
| Duty Cycle | S1 (Continuous Service) |
| Mounting Method | IMB3 (Other methods customizable) |
| Key Features | Large terminal box volume, improved safety, frequency conversion capability |
| Applicable Standards | Complies with IEC Standards |
