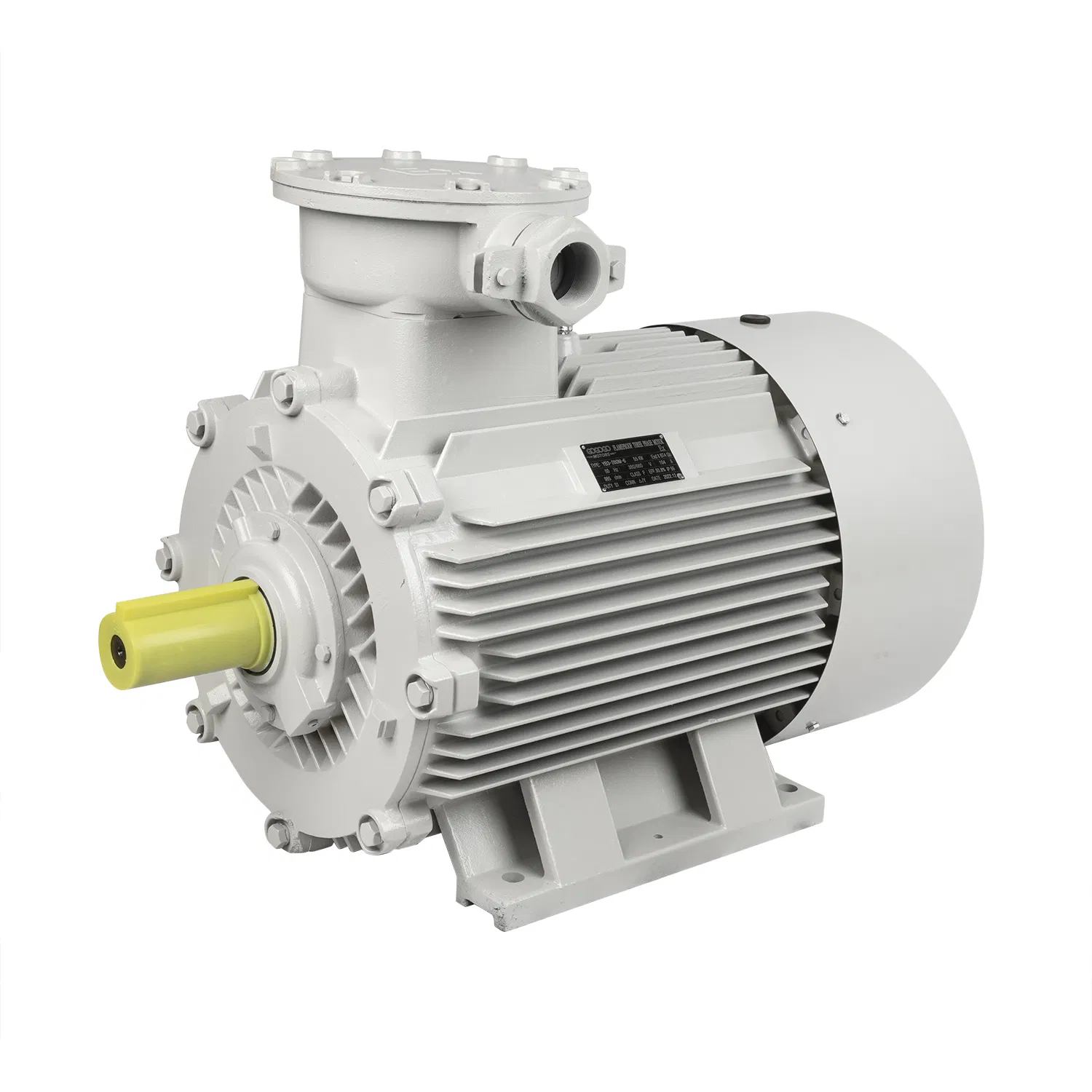

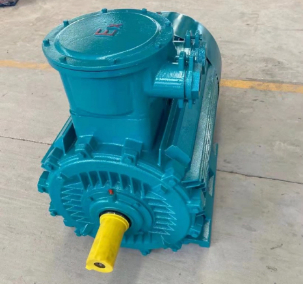

CE ISO9001 60Hz Ye2 Y2 Ie2 Ie3 Ie4 Yb2 Yb3 Ybx3 Ybx4 Yd Yej Three Phase Explosion Proof Flame Proof Electric Motor for Blower Compressor Pump LPG (0.75KW-315KW)

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Info
Model NO.:YBX3
Number of Stator:Three-Phase
Species:Explosion-Proof Three-Phase
Rotor Structure:Squirrel-Cage
Casing Protection:Explosion-Proof Type
Number of Poles:6
Starting Mode:Direct on-line Starting
Certification:ISO9001, CCC, CE
Frequency:50Hz 60Hz
Protection Class:IP22 IP44 IP54 IP55 IP56 IP66
Insulation Class:E,B,F,H
Winding:Copper Wire
Mount Type:B3, B14, B5, B35, B34, C Face
Housing Material:Cast Iron, Aluminum, Steel, Stainless Steel
Power:0.37kw-400kw
HS Code:8501520000
Packaging & Delivery
Package Size:80.00cm * 52.00cm * 50.00cm
Package Gross Weight:17.000kg
Transport Package:Carton/Woodencase/Plywood Case
Product Description

Specializing in high quality energy-efficient electric motors, our main range includes three-phase general use motors and explosion-proof motors (0.75kw-315kw, 2pole, 4pole, 6pole, 8pole).

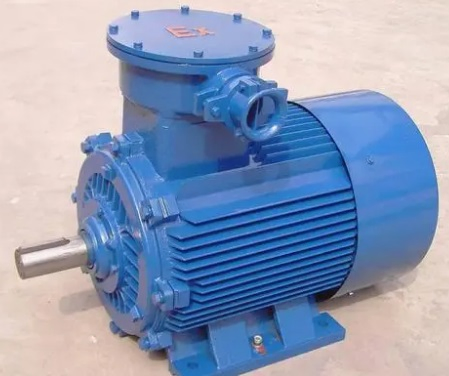

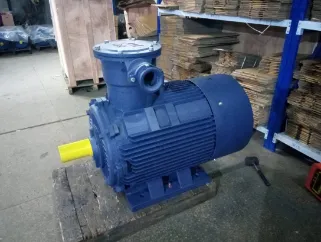

YB2 series explosion-proof three-phase asynchronous motor is a new generation product developed with the latest electromagnetic structures and materials. It features high efficiency, energy saving, large temperature rise margin, long life, and low noise with advanced flameproof structure.

Operating Conditions:
• Rated voltage: 230v/400v, 380v, 415v, 440v, 660v, 575v, 690v, 380/660v.
• Rated frequency: 50Hz, 60Hz
• Operation type: S1, S2, S3
• Elevation: Less than 1000 meters.
• Temperature range: -20°C to 40°C.
• Explosion-proof mark: EXDI, EXDII AT4, EXDII BT4.
• Protection structure: IP54, IP55, IP65.
Power: 0.18kw-315kw Voltage: 230/400V - 6300V
Frequency: 50/60Hz Enamelled Wire: 100% Copper Wire
Insulation Class: F/B/H Mounting Way: B3/B5/B14/B34/B35
Protection Grade: IP54/IP55/IP44 Motor Body: Cast Iron / Aluminum

Our comprehensive motor ranges include: IE3 / YE3, IE2 / YE2, IE1 / Y2, YB2/YB3, YEJ, YCT, YVF, Y, YS, MS, YC, YL, YY, MC, MY, ML motors. We also provide American standard NEMA motors, Russian standard GOST ANP motors, and Taiwan type AEEF motors.

Why choose our motors?
• Guarantee: 18-24 months
• Delivery time: 15-30 days
• Packing: Strong export cartons / wooden cases / plywood cases
• Sample orders: Acceptable
• Shipment: Sea, Air, Express, Land
Frequently Asked Questions
Q1: What industries are these explosion-proof motors suitable for? A: They are widely used in underground coal mines, petroleum, natural gas, petrochemical, chemical, textile, and metallurgy industries where explosive gas mixtures may be present.
Q2: What is the standard warranty period for your electric motors? A: We provide a comprehensive guarantee of 18 to 24 months for our motors.
Q3: Do these motors support both 50Hz and 60Hz frequencies? A: Yes, our motors are designed to operate at both 50Hz and 60Hz rated frequencies.
Q4: What materials are used for the motor housing? A: Depending on the specific model and requirements, we offer housings made of cast iron, aluminum, steel, or stainless steel.
Q5: Are the windings made of pure copper? A: Yes, we use high-quality copper wire for the windings to ensure maximum efficiency and durability.
Q6: Can the motors be customized for special voltages? A: Yes, we can customize motors to meet specific voltage needs ranging from 220V up to 660V or higher as per customer requirements.
