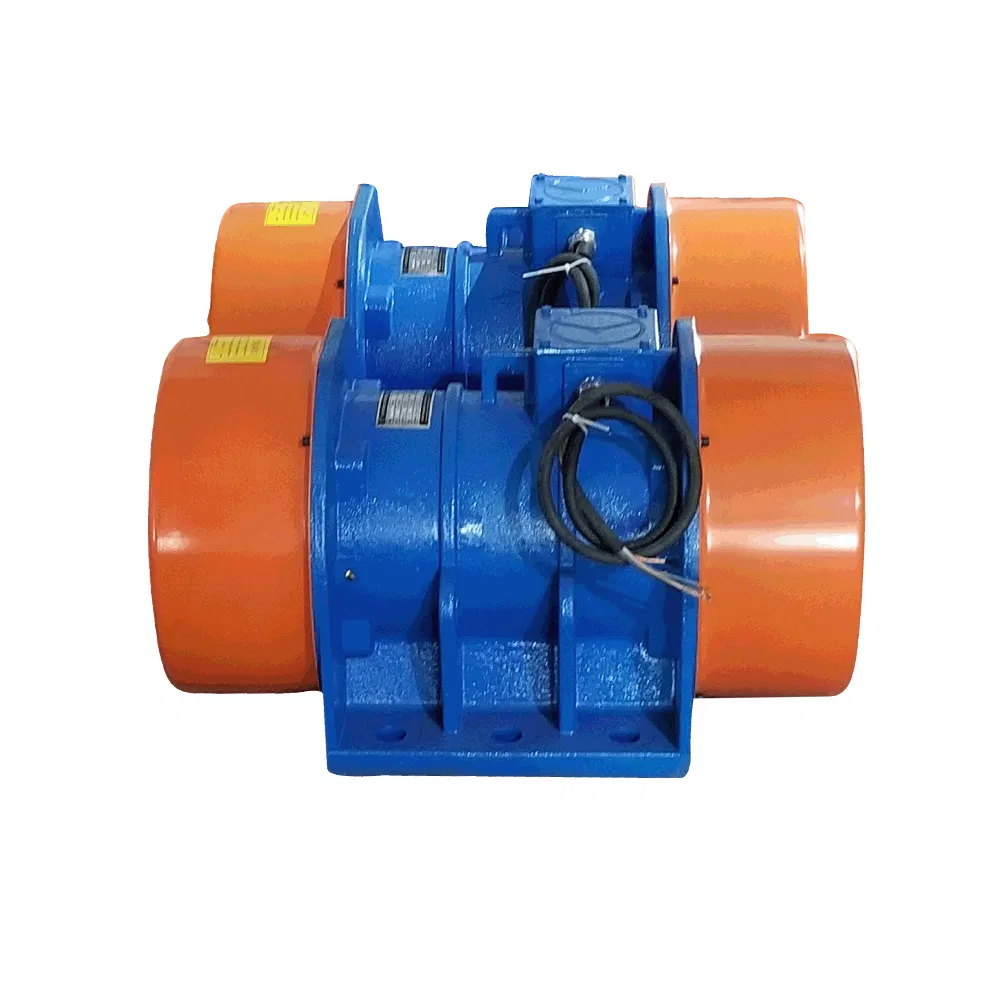

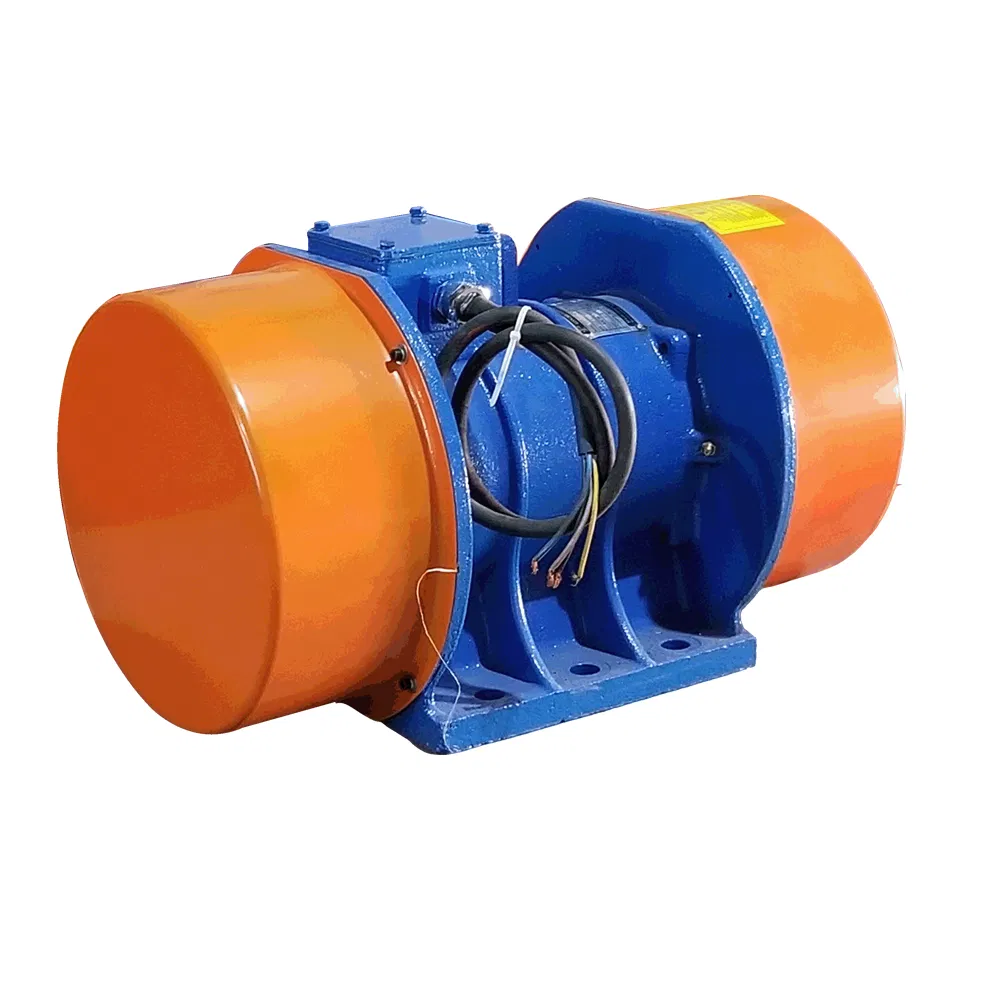

High Quality AC Linear Horizonal Eccentric Vibration Motor

Customization:	Available
Application:	Industrial
Speed:	Constant Speed

Basic Product Information

Model NO.

XVM-32-4

Phase

Three-Phase

Function

Driving

Number of Poles

4

Starting Mode

Direct on-line

Certification

ISO9001

Voltage

220~480V

Frequency

50 or 60Hz

Rated Speed

1500 Rpm

Power

2.20kw

Vibration Force

30kN

Protection

IP55 / IP65

Insulation Class

F

Package

Plywood Case

Product Introduction

XVM Series Vibrator Motor

Adjustable Vibration Force

Min Vibration Force: 0.7 KN

Max Vibration Force: 300 KN

Min Power: 0.15 KW

Max Power: 25 KW

Voltage: 220V~660V (Customizable)

Frequency: 50HZ / 60HZ

Insulation Class: F

Protection Grade: IP55 / IP65

Support Custom Appearance

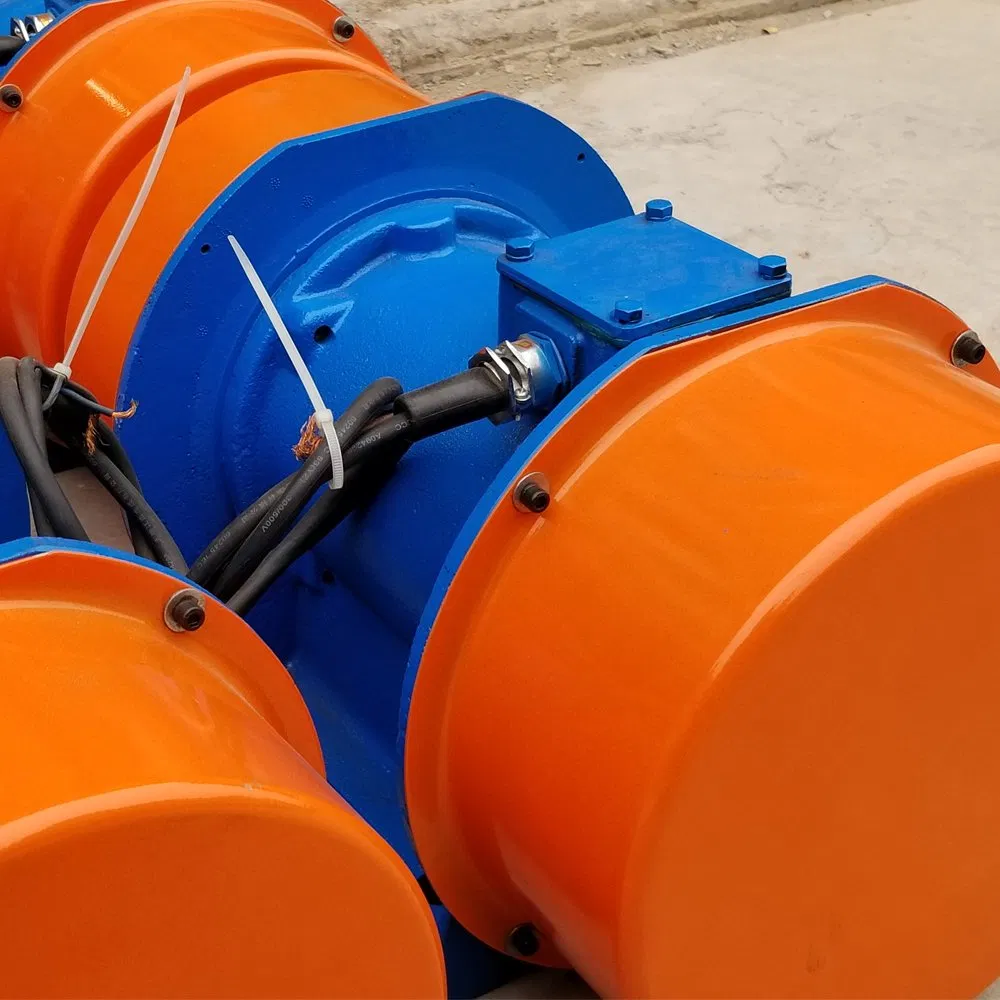

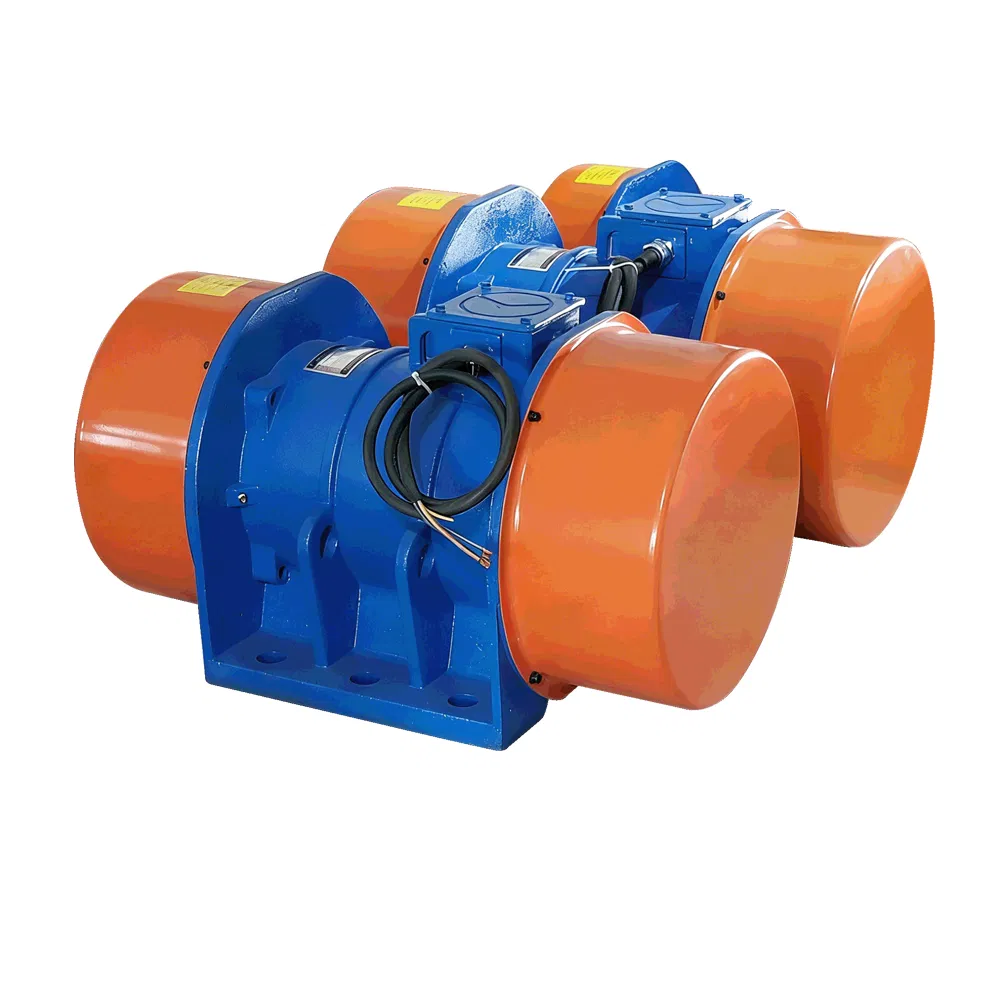

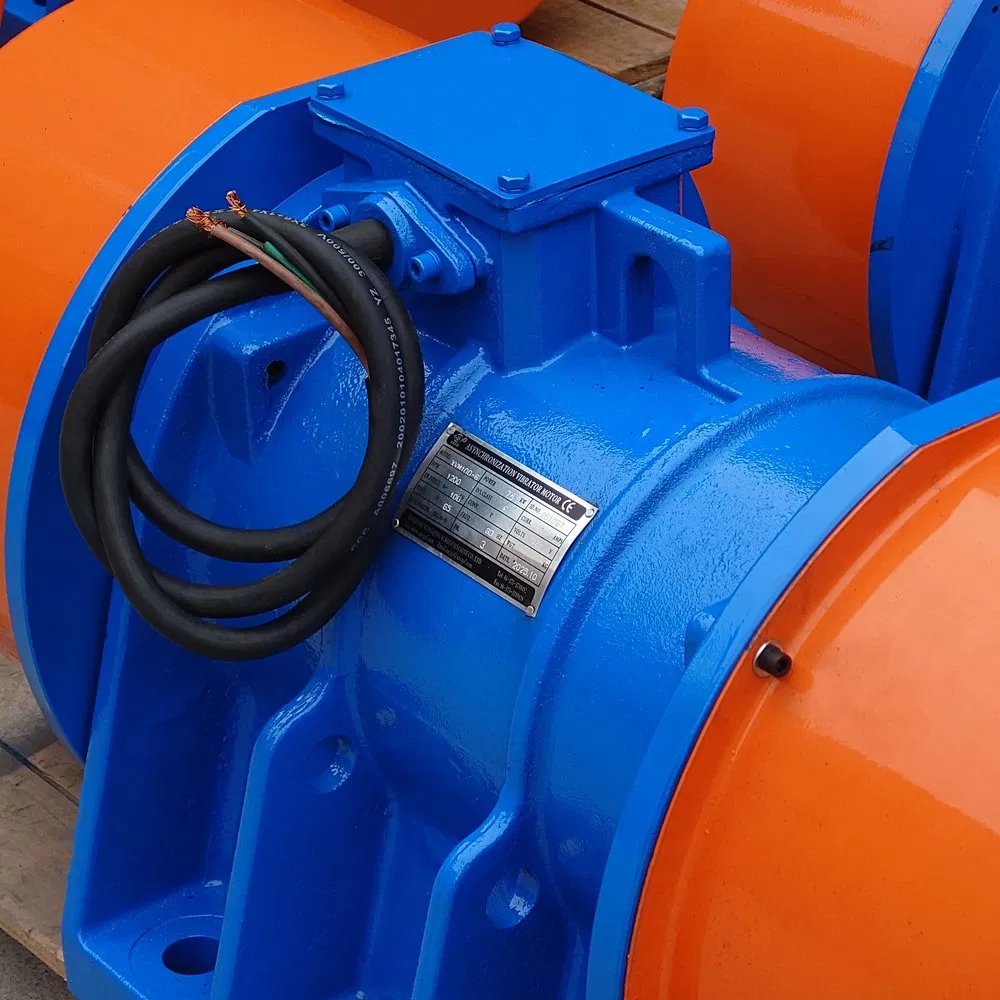

Production Showcase

Technical Specifications

2 Poles - 3000 RPM

Model	Vibration Force (KN)	Power (KW)	Current (A)	Weight (KG)	Speed (RPM)
XVM0.7-2	0.7	0.15	0.4	11	3000
XVM2.5-2	2.5	0.25	0.4	13	3000
XVM 8-2	8.0	0.75	1.6	41	3000
XVM 20-2	20	1.80	4.0	62	3000
XVM 45-2	45	3.00	6.8	185	3000

4 Poles - 1500 RPM

Model	Force (KN)	Power (KW)	Current (A)	Weight (KG)	Speed (RPM)
XVM5-4	5	0.20	0.5	27	1500
XVM16-4	16	0.75	1.8	65	1500
XVM32-4	32	2.00	4.5	107	1500
XVM75-4	75	4.00	10.0	271	1500
XVM160-4	160	10.0	24.3	521	1500

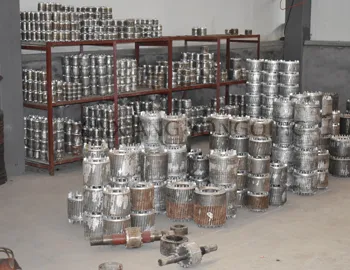

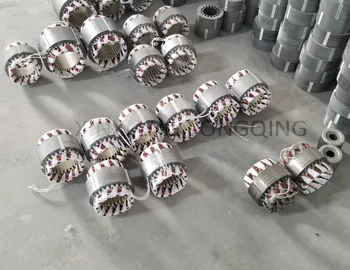

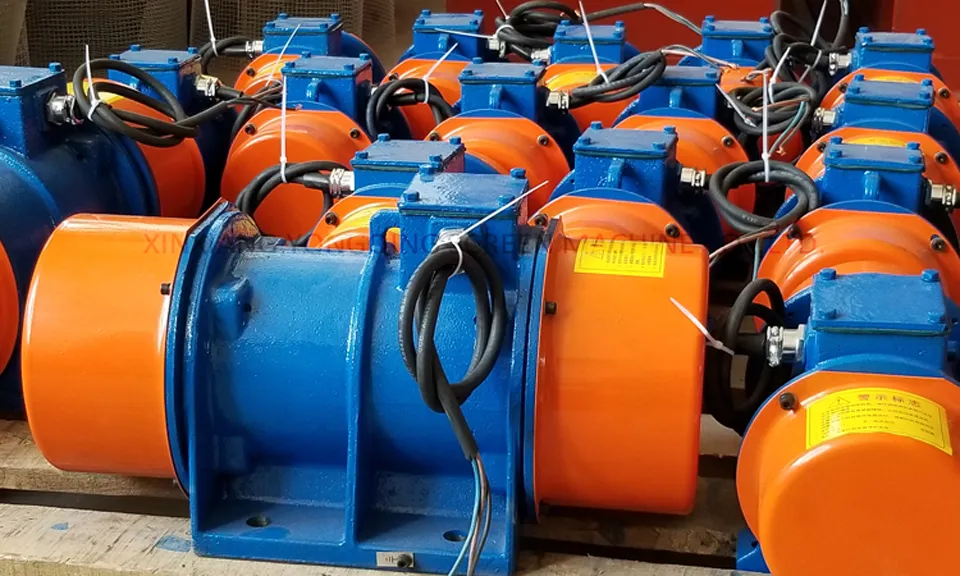

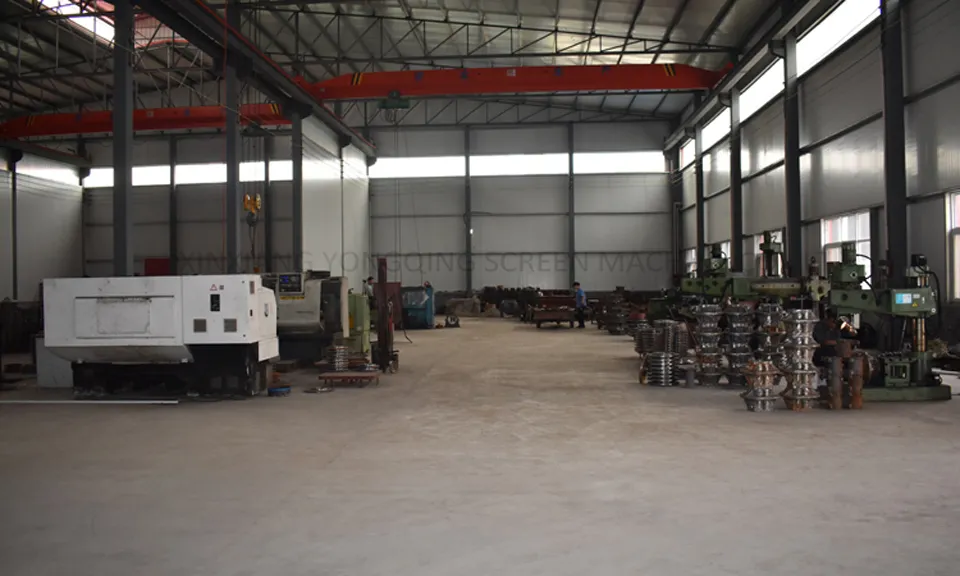

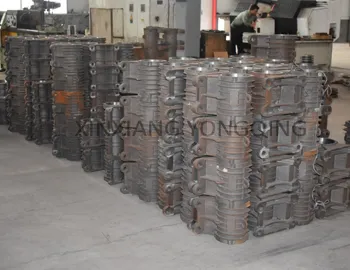

Manufacturing Process

Support & After-Sales Service

Warranty

1-year warranty covering defects in materials, workmanship, and structure (excluding wearing parts). Extended warranty available upon request.

Technical Support

Assistance for installation, operation, and troubleshooting via phone, email, or video chat.

Life-long Spare Parts

Continuous inventory of spare parts available for purchase beyond the warranty period.

Training Programs

Training on proper usage, cleaning, and maintenance to optimize performance and lifespan.

Frequently Asked Questions

What voltages are supported by the XVM vibrator motor?

The standard voltage range is 220V to 480V, but we can customize the motor to support up to 660V depending on your requirements.

Is the vibration force adjustable?

Yes, the eccentric blocks at both ends of the motor can be adjusted to change the vibration force from 0% to 100%.

What is the protection level of these motors?

Our motors come with standard IP55 protection, and IP65 is available for more demanding or dusty environments.

Can I customize the motor's appearance or installation dimensions?

Absolutely. We support customization for technical specifications, mounting dimensions, and even the external color/appearance.

How long is the typical lifespan of the motor?

With Class F insulation and high-quality bearings, our motors are built for long-term industrial use. Regular maintenance and proper installation can extend the life significantly beyond the warranty.

What kind of packaging is used for delivery?

We use heavy-duty plywood cases to ensure the motor is protected from impact and moisture during international shipping.
