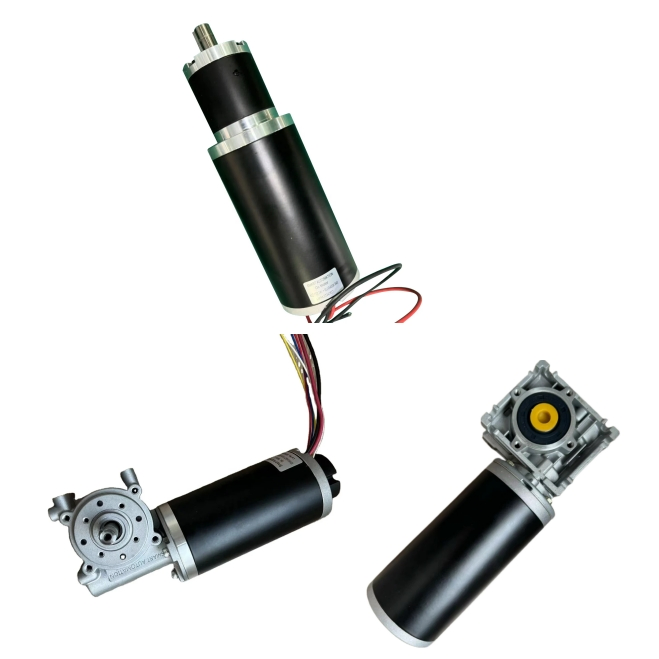

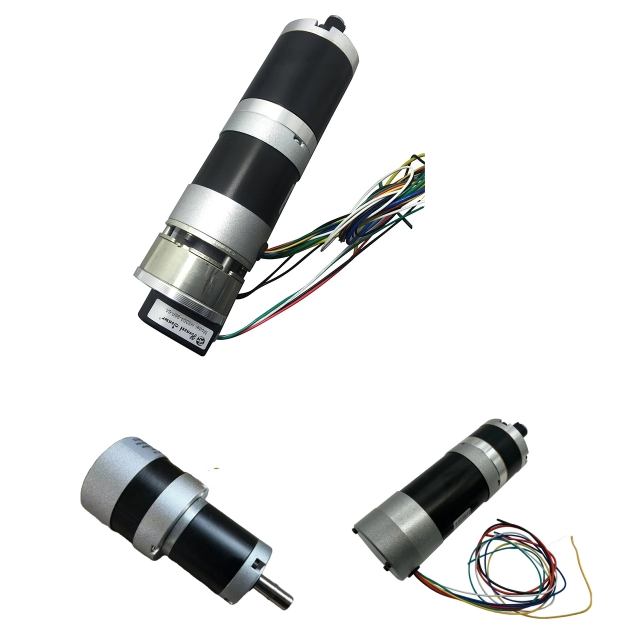

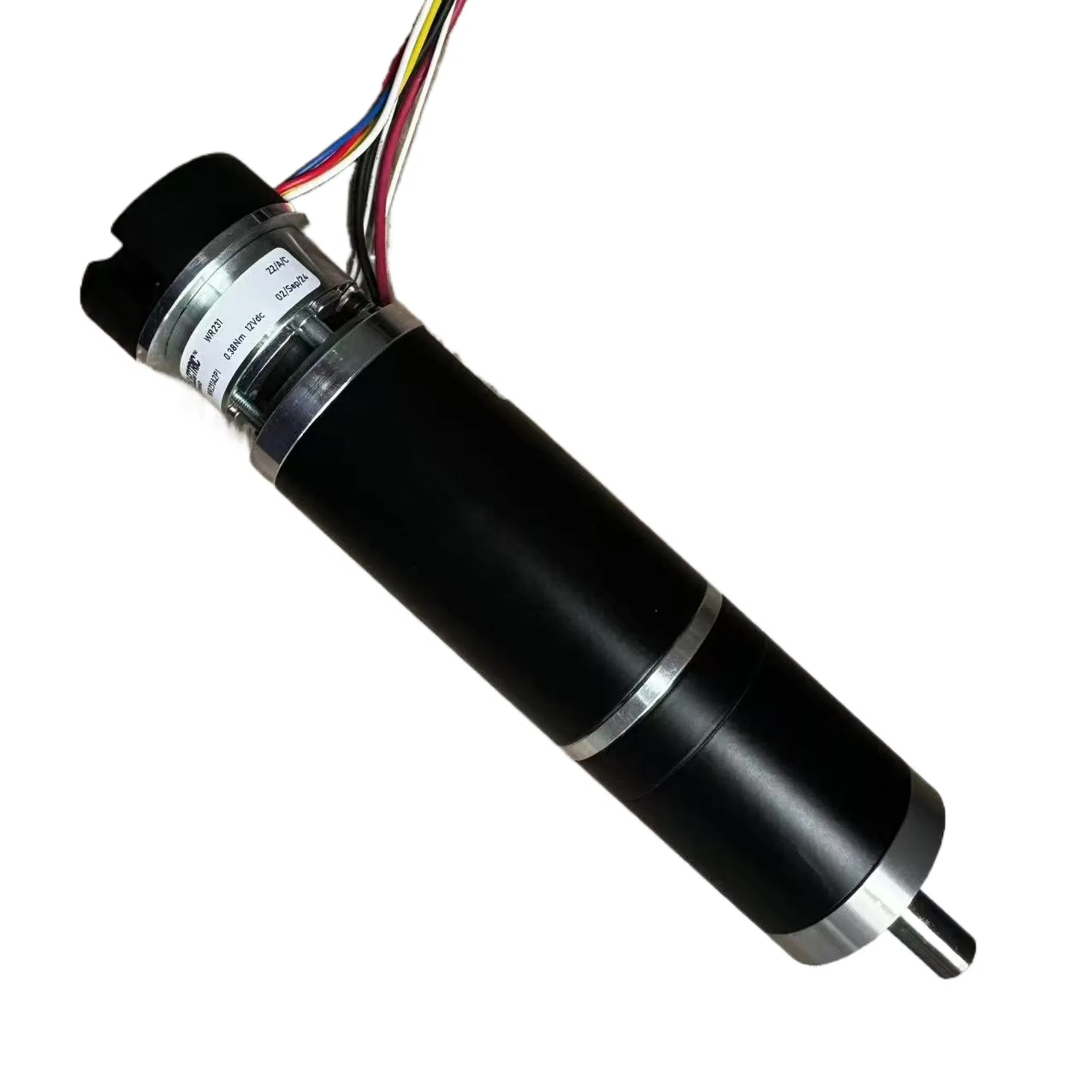

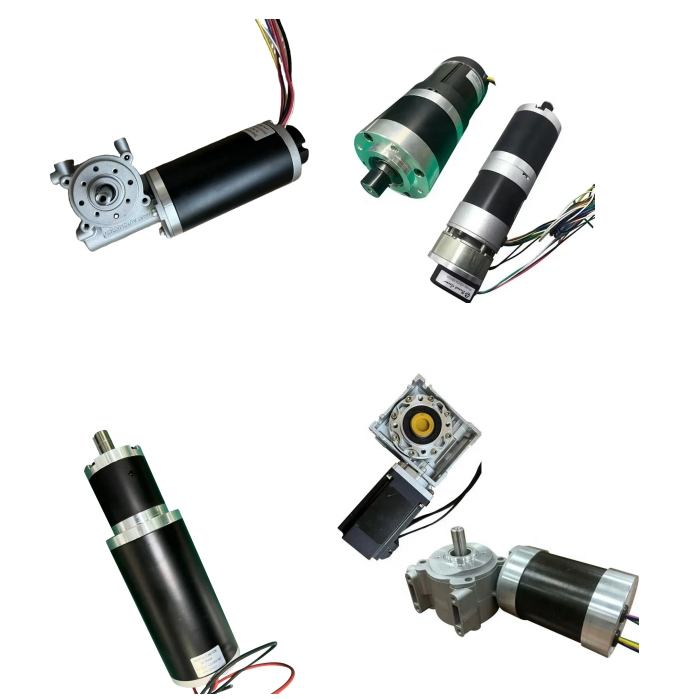

High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
1 / 5
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated

High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated

Customization: Available
Application: Universal, Industrial, Household Appliances, Car, Power Tools, Machine, Robot
Operating Speed: Constant Speed
Send Inquiry

Product Description

Basic Information
Model NO.
GEAR
Function
Control, Driving
Casing Protection
Closed Type
Number of Poles
2
Certification
ISO9001, CE, RoHS
Power
10W Upto 2000W
Voltage
12V 24V Upto 380VDC
Transport Package
Standard Export Package
Specification
size 28mm TO 110mm
Trademark
OEM ODM
Origin
China
HS Code
8501310000
Production Capacity
10000 PCS Per Month
Product Description
Brushed or Brushless DC Gear Motors
⚙️ Customizable voltage, dimension, performance, shaft, mounting, etc.
🧩 Integrated encoder, gearbox, brake, controller options available.

Please send inquiry to receive the most cost-effective solution and proposal.

Technical Options:
Diameter30mm to 130mm
Rated Voltage10v 12v 18v 24v 36v 48v up to 380vdc
Rated TorqueWith gearbox up to 120Nm
Rated Speed1rpm up to 15000rpm
Rated Power10w up to 2000w
Protection ClassOptions: IP00, IP40, IP50, IP54, IP56, IP66, IP67
EMIEMI suppression available
ThermalThermal protection available
GearboxOption with planetary or worm gearbox assembled
BrakeOption with electric brake assembled
EncoderOption with Optical or Magnetic encoders assembled
ControllerOption with controller integrated for BLDC Motors
Typical Models (Contact for More Customized Models)
1. Brushed DC Gear Motors

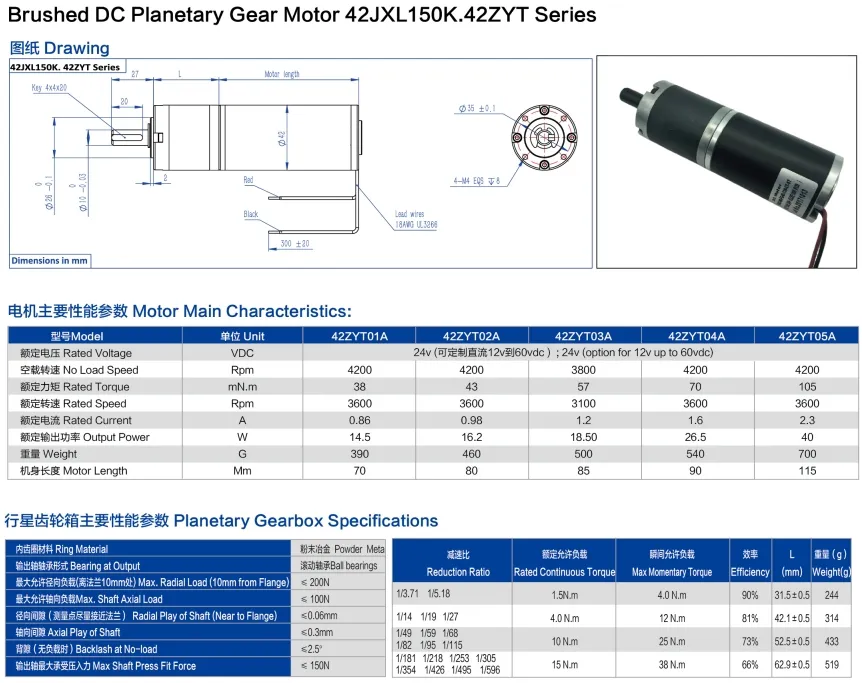

Brushed DC Gear Motor

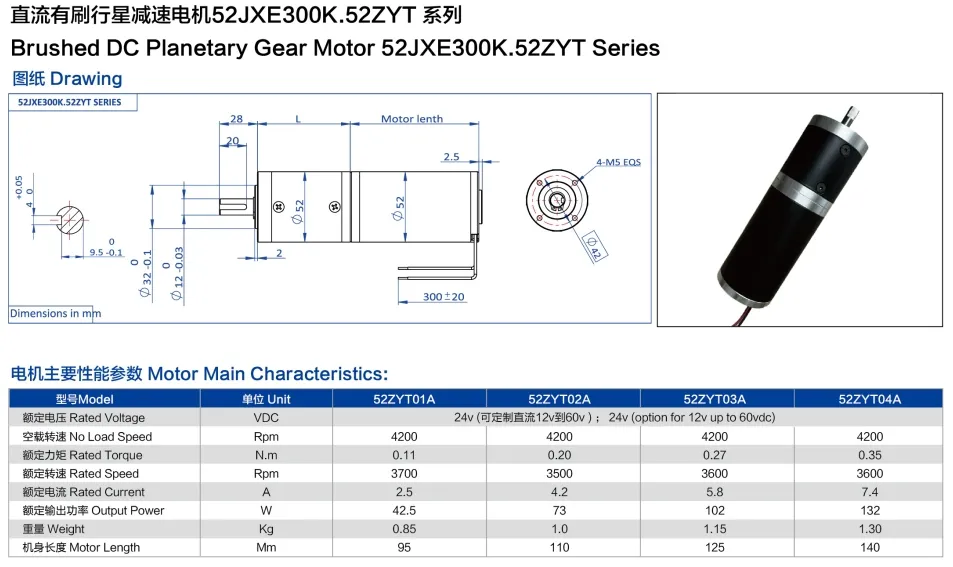

Brushed DC Gear Motor Details

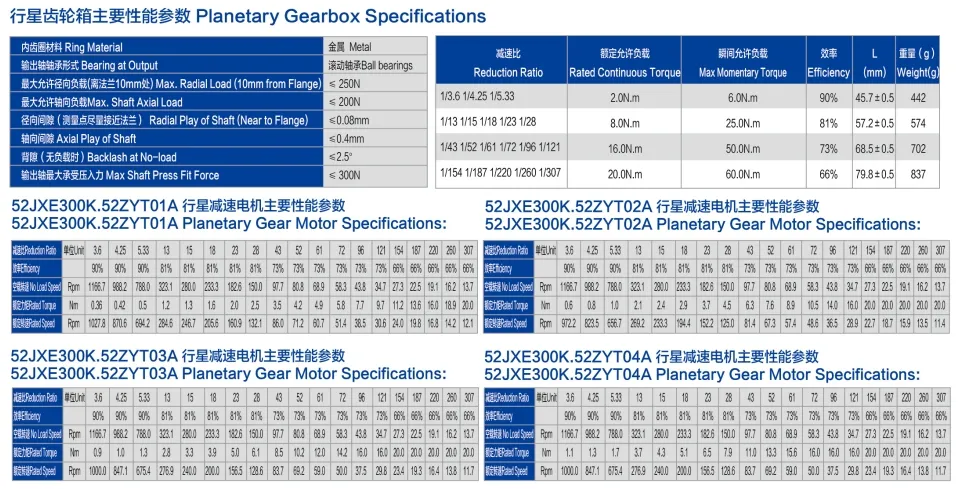

Motor Reducer

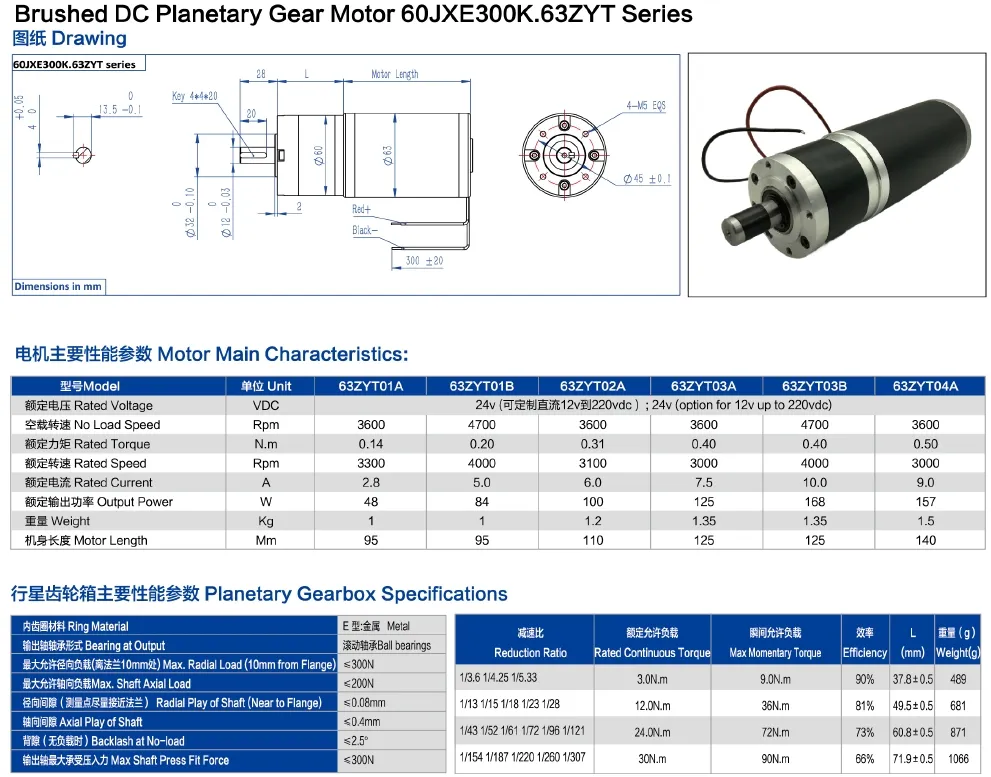

Worm Gear Motor

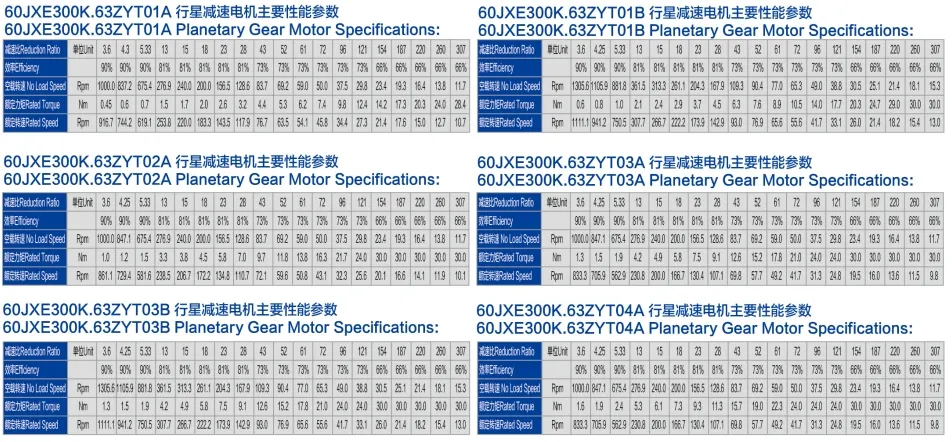

Brushed Motor Performance

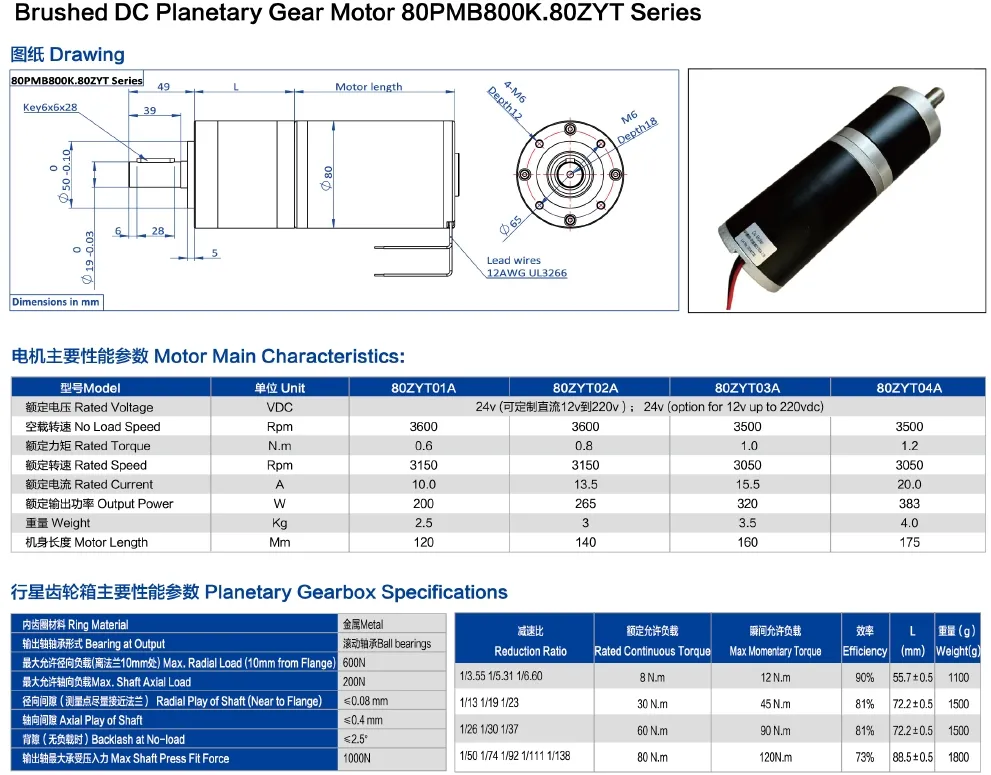

DC Motor with Encoder

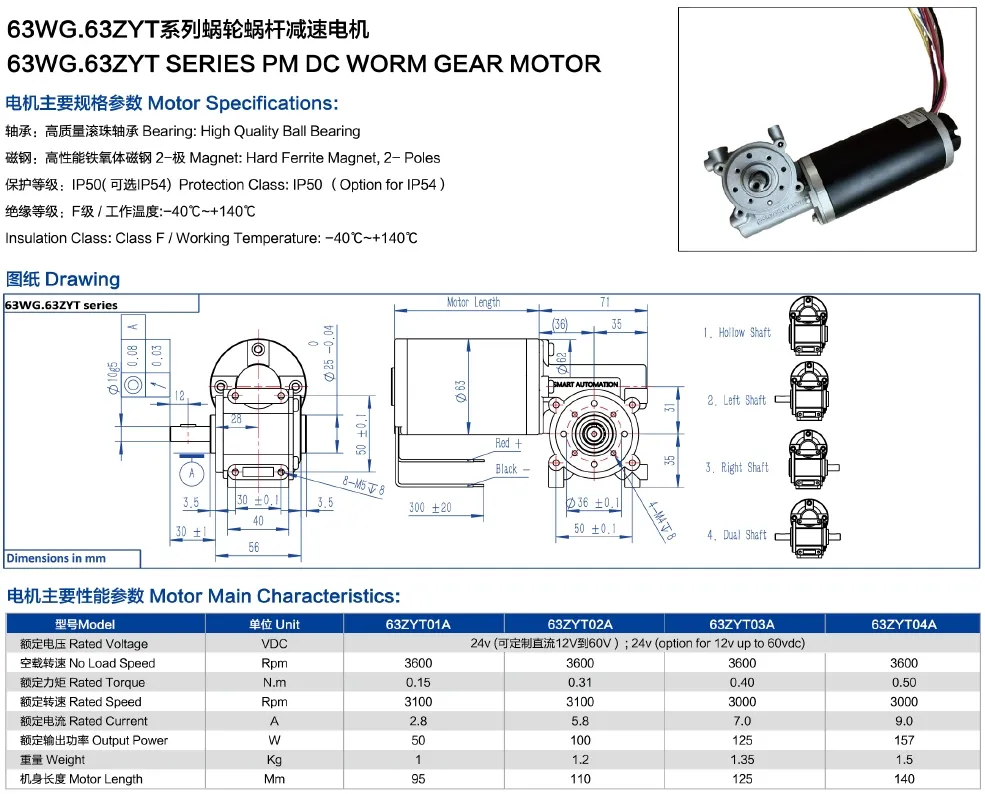

High Torque Motor

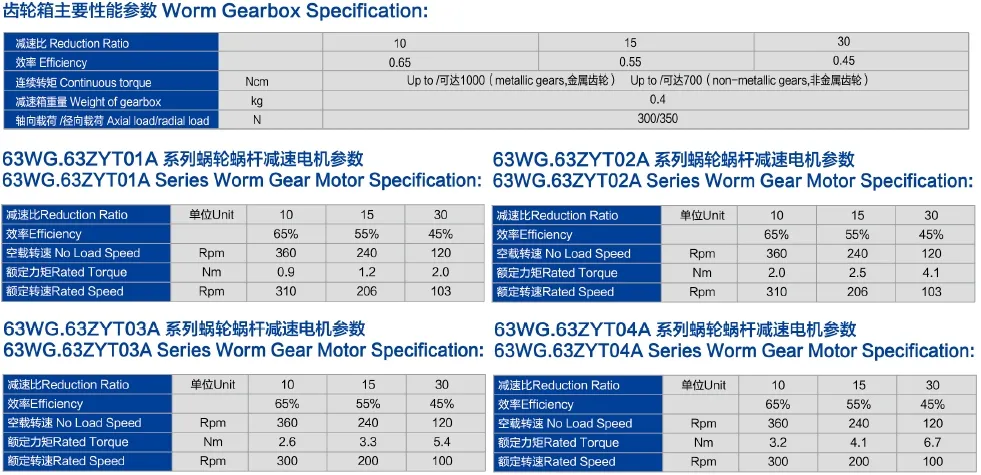

Compact Gear Motor

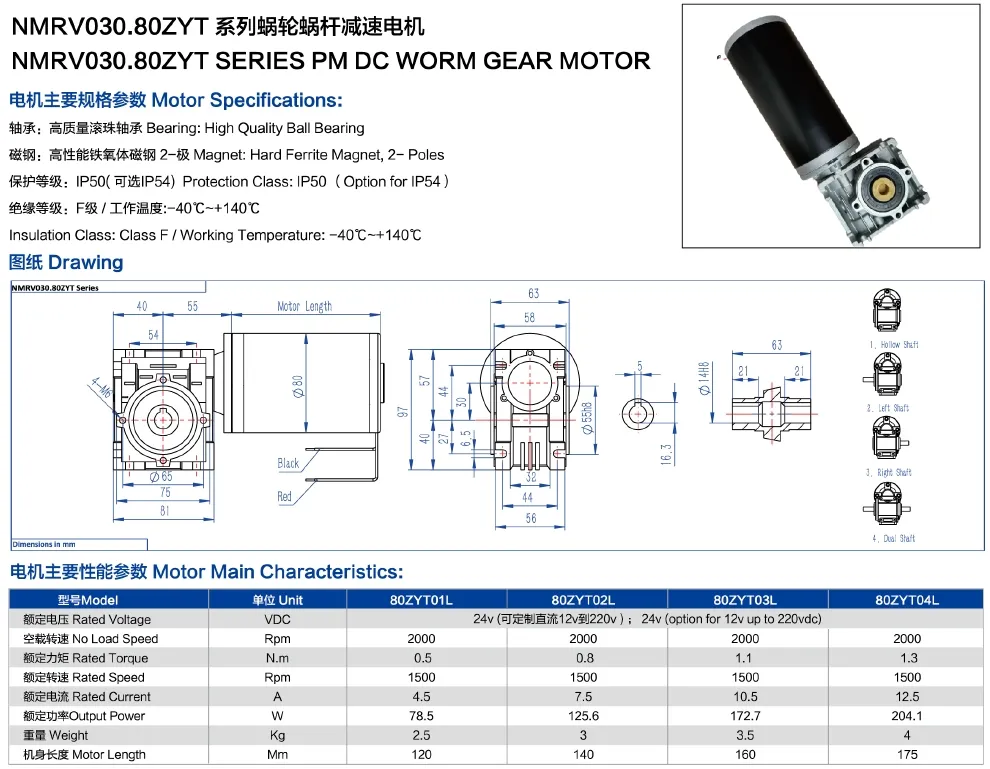

Industrial DC Motor

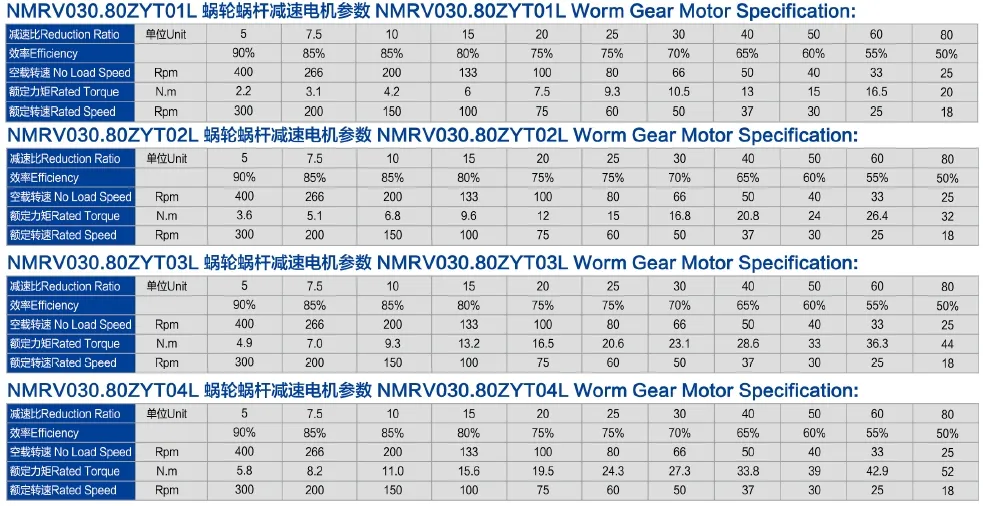

Gearbox Options

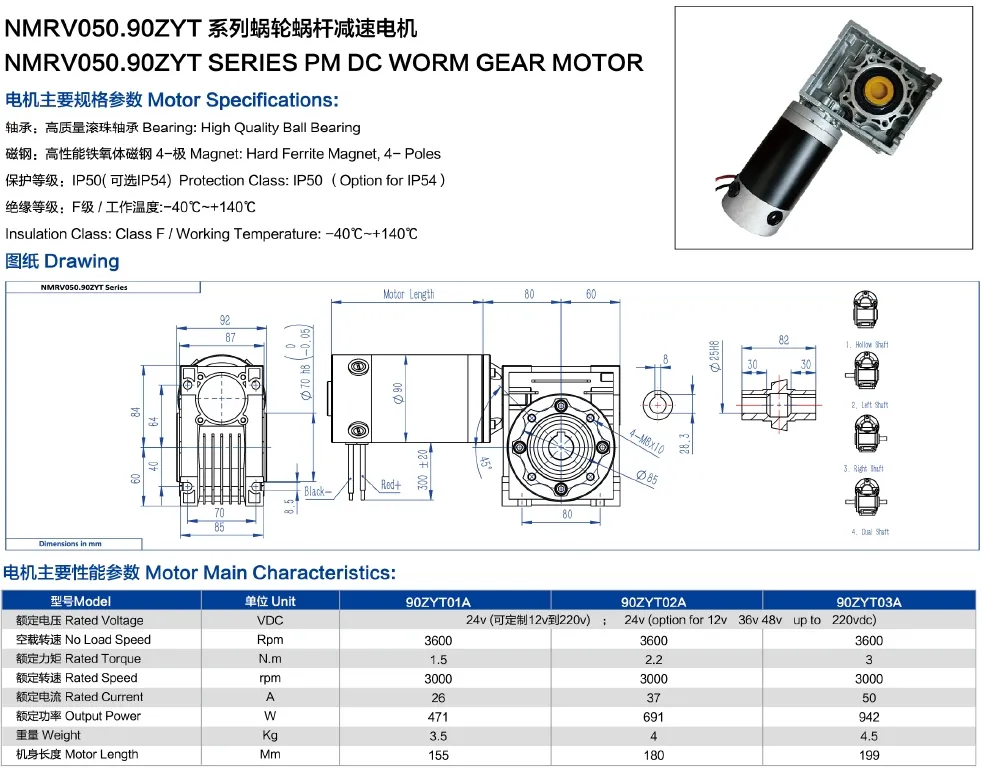

Custom Shaft Motor

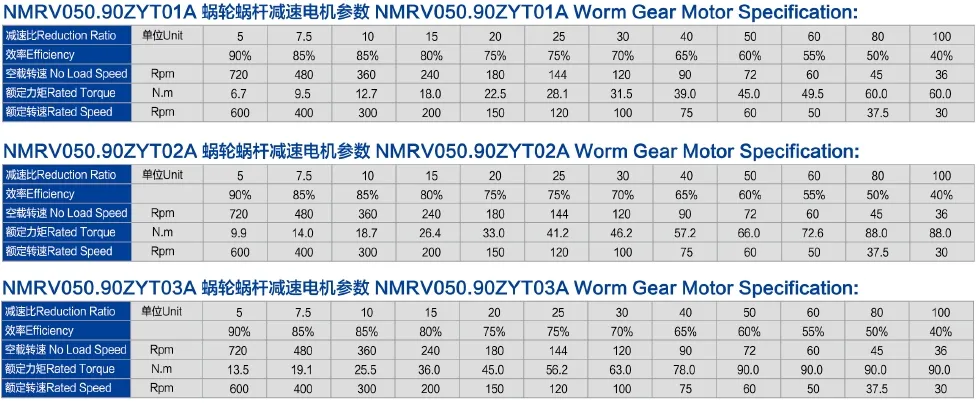

DC Gear Motor Specifications
2. BLDC Gear Motors

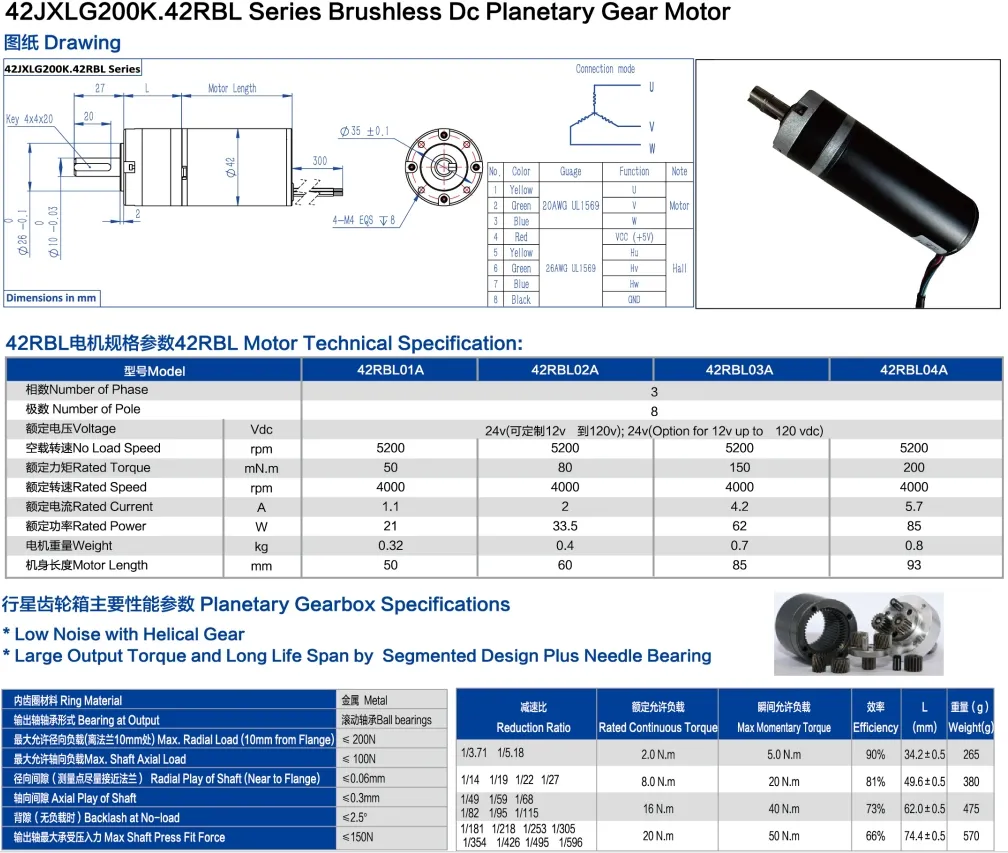

Brushless DC Motor

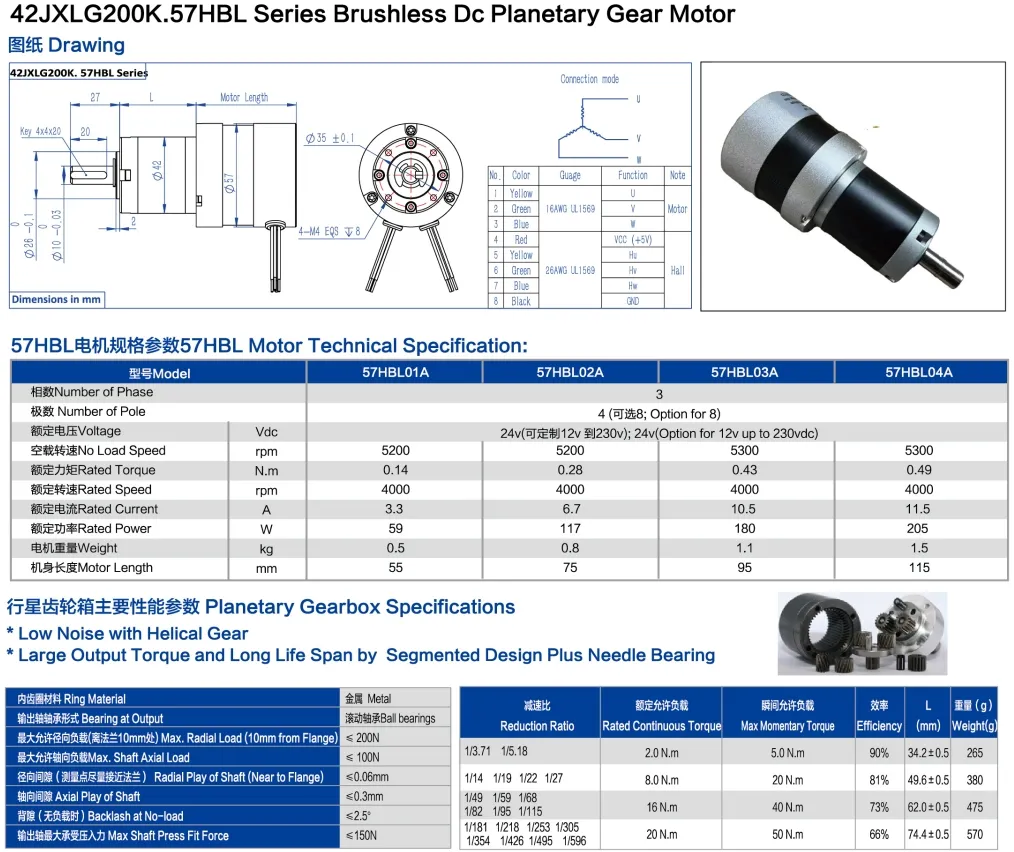

BLDC Planetary Gear Motor

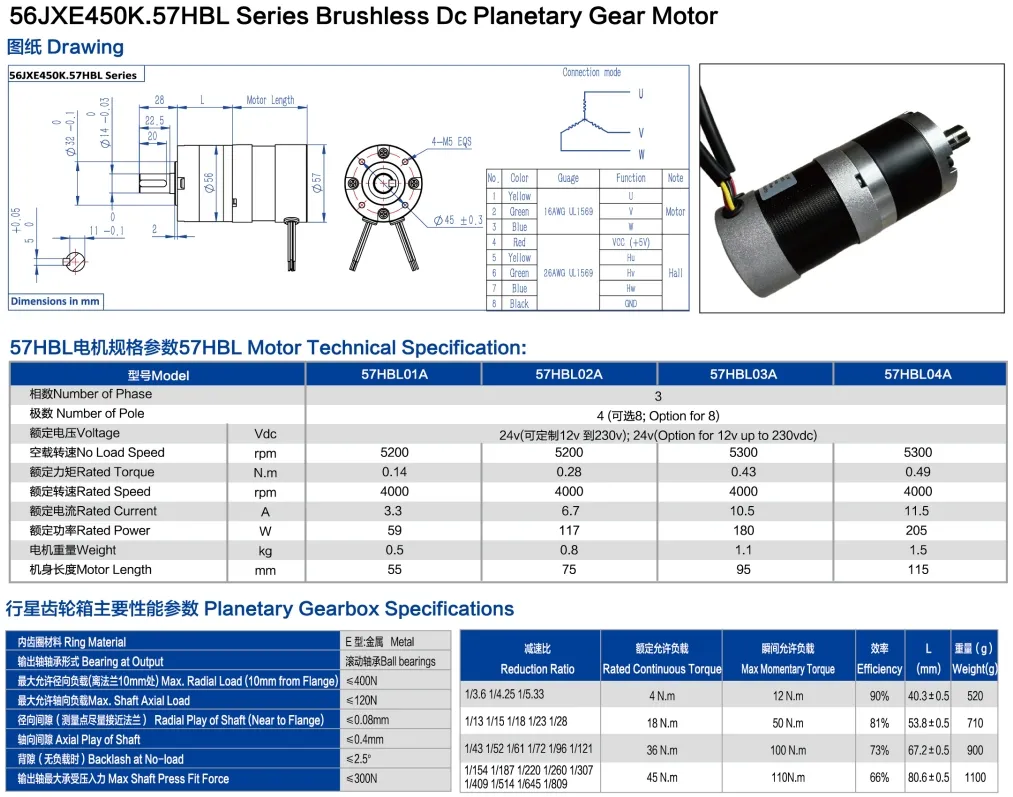

BLDC Motor with Brake

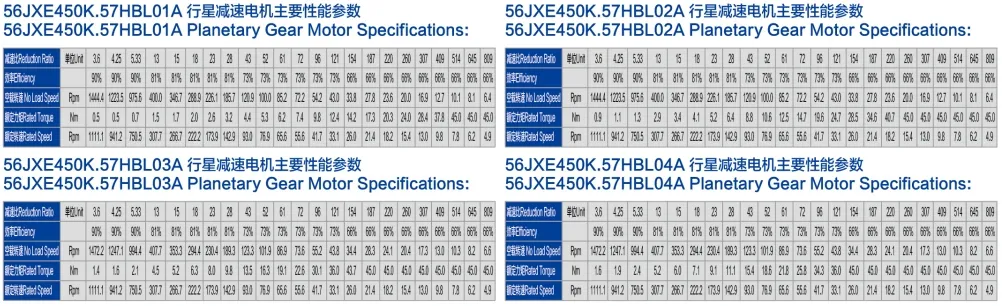

Integrated Controller BLDC

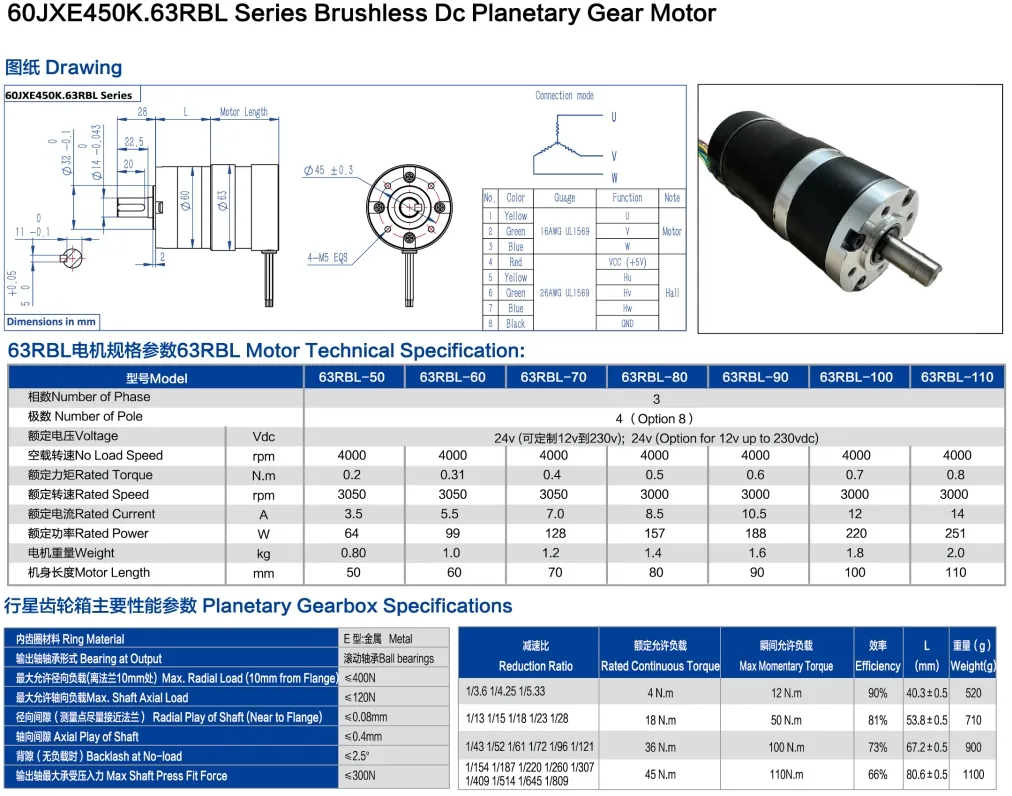

High Power BLDC

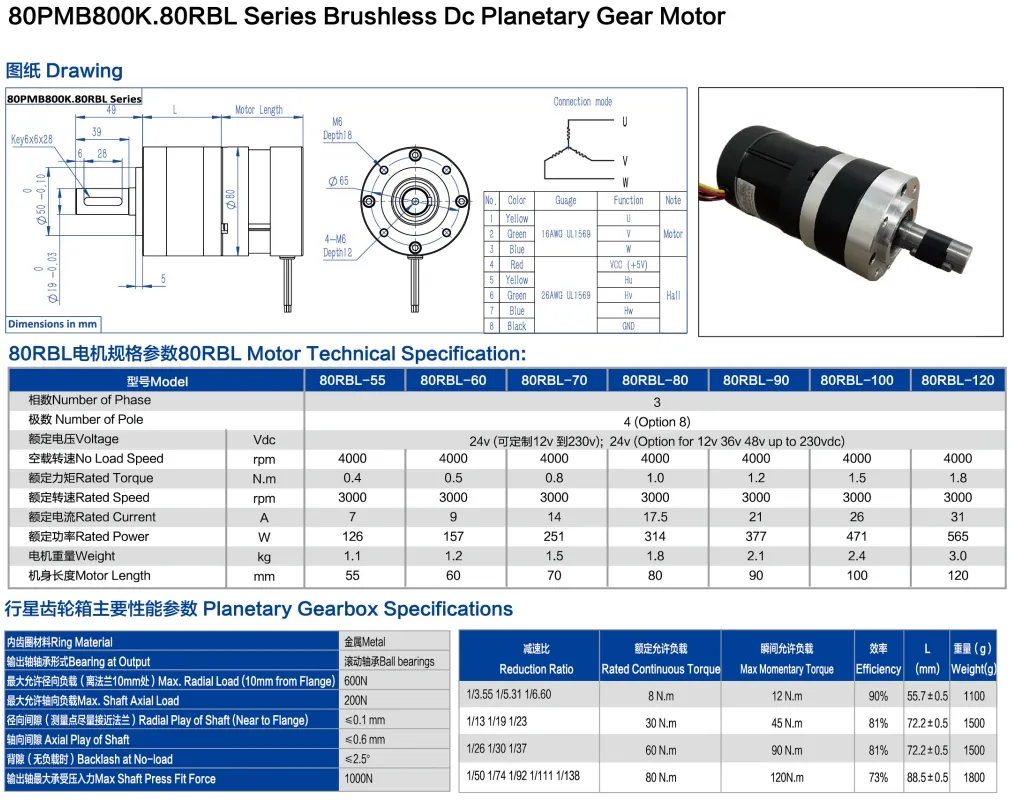

Planetary Reducer BLDC

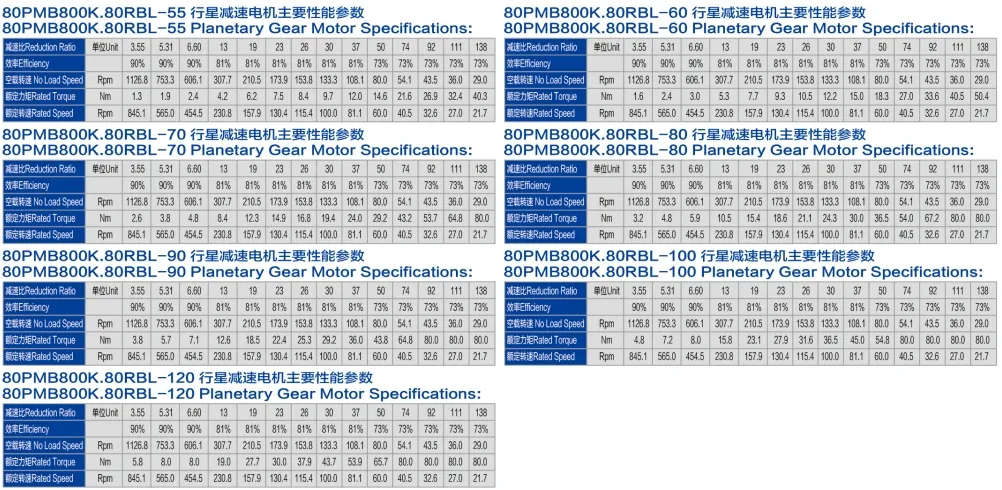

Brushless Motor Gearbox

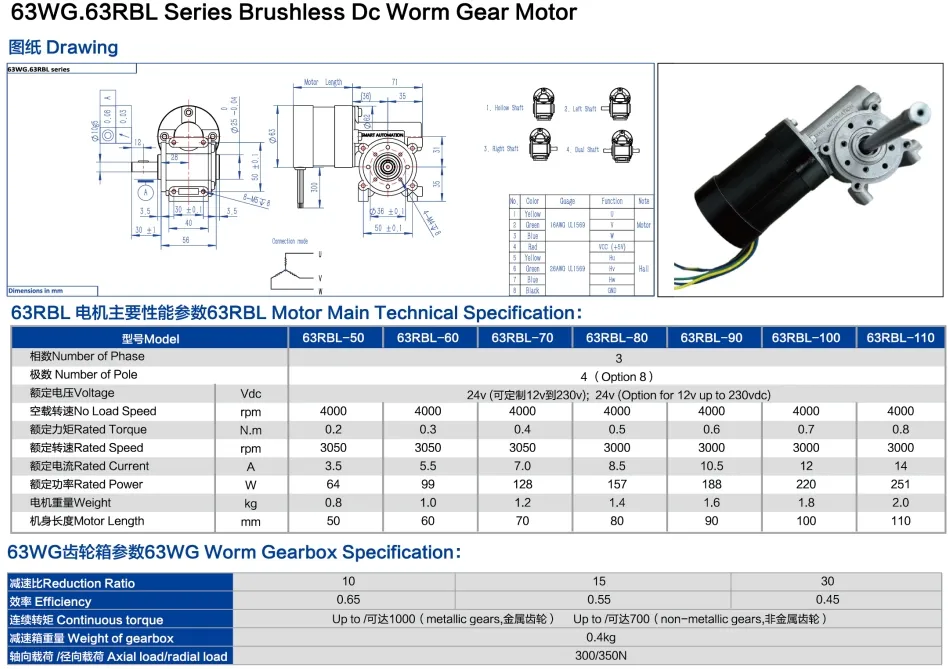

Precision BLDC Motor

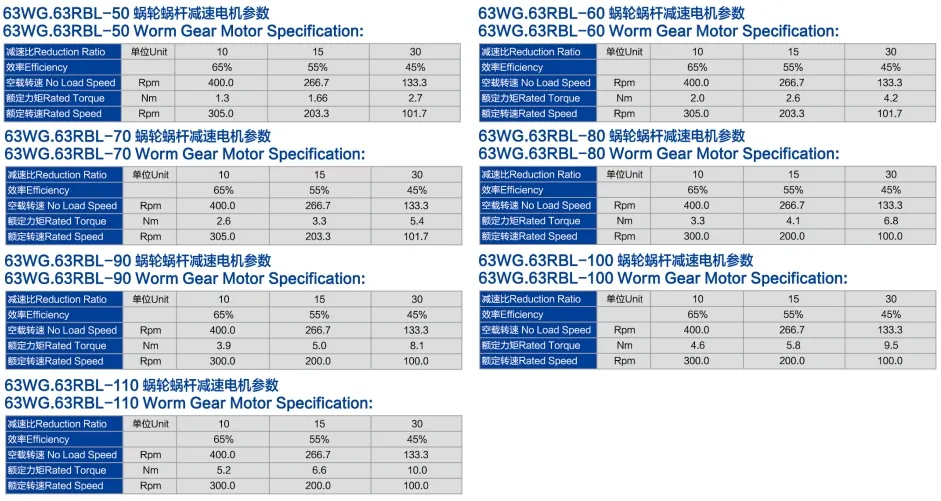

BLDC Drive Solution

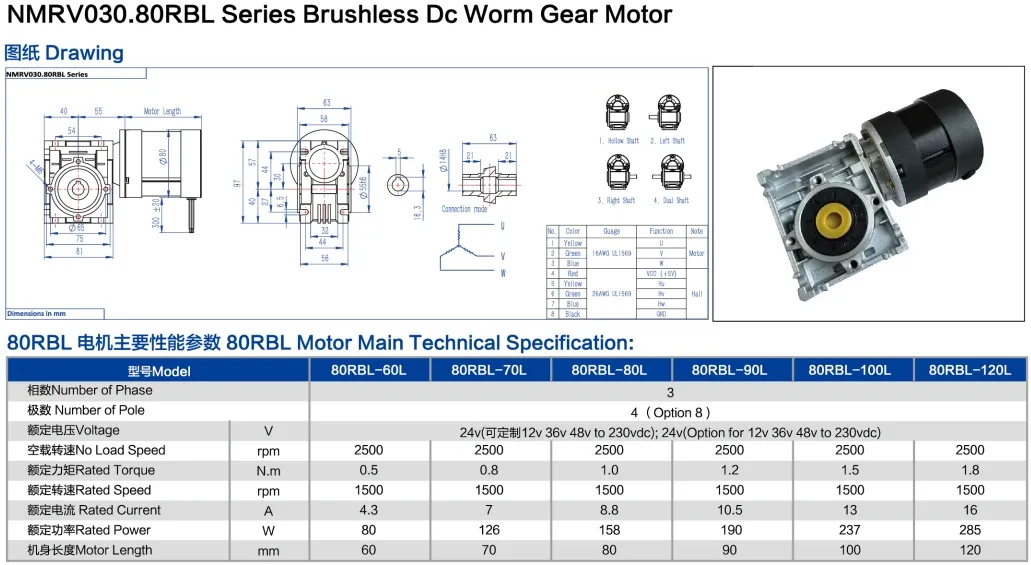

Brushless Motor with Encoder

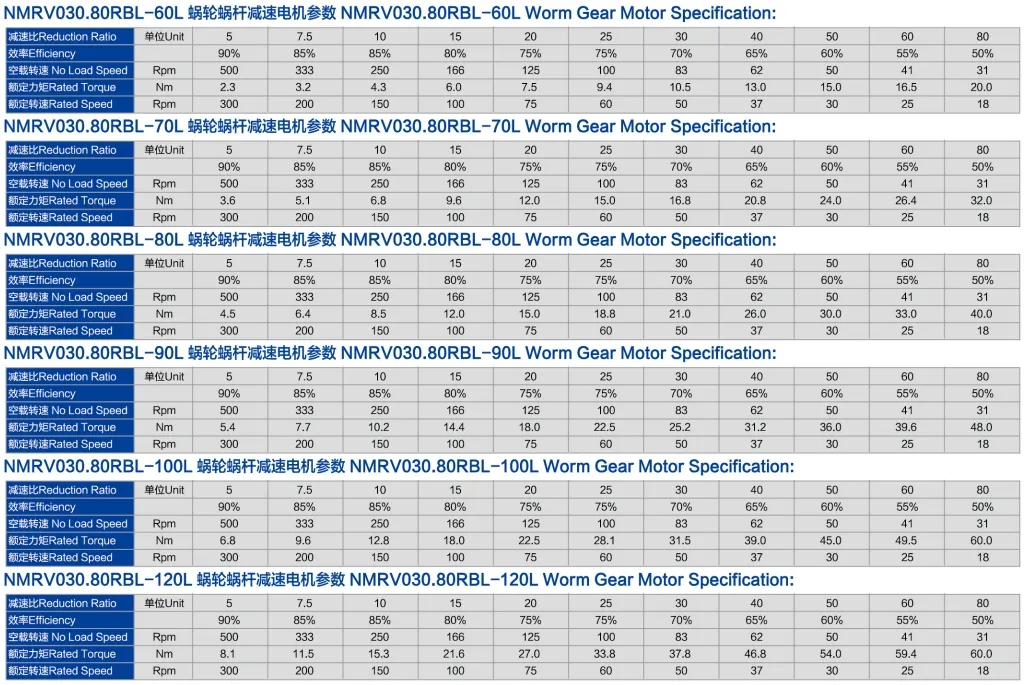

DC Motor Control

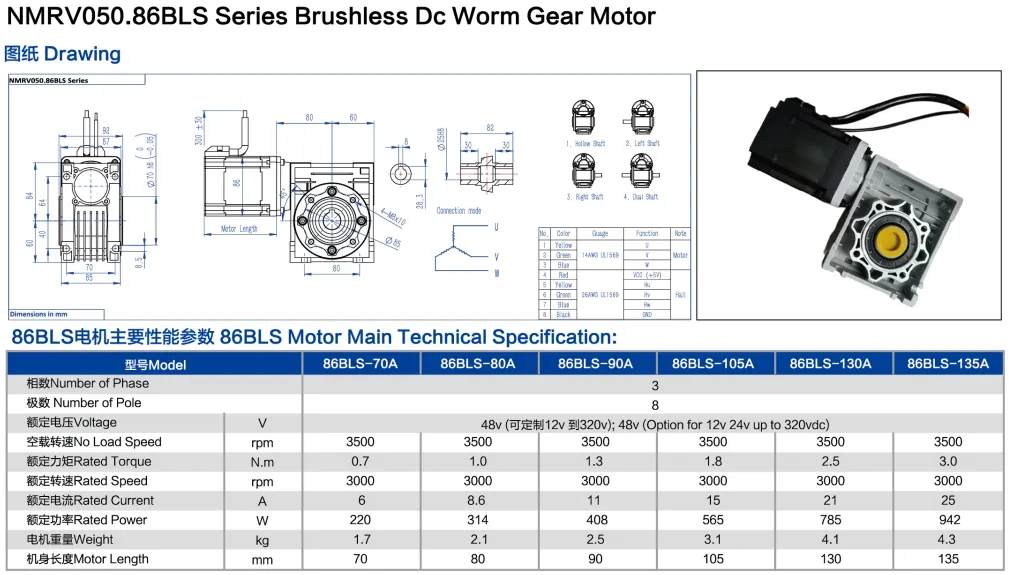

Heavy Duty BLDC

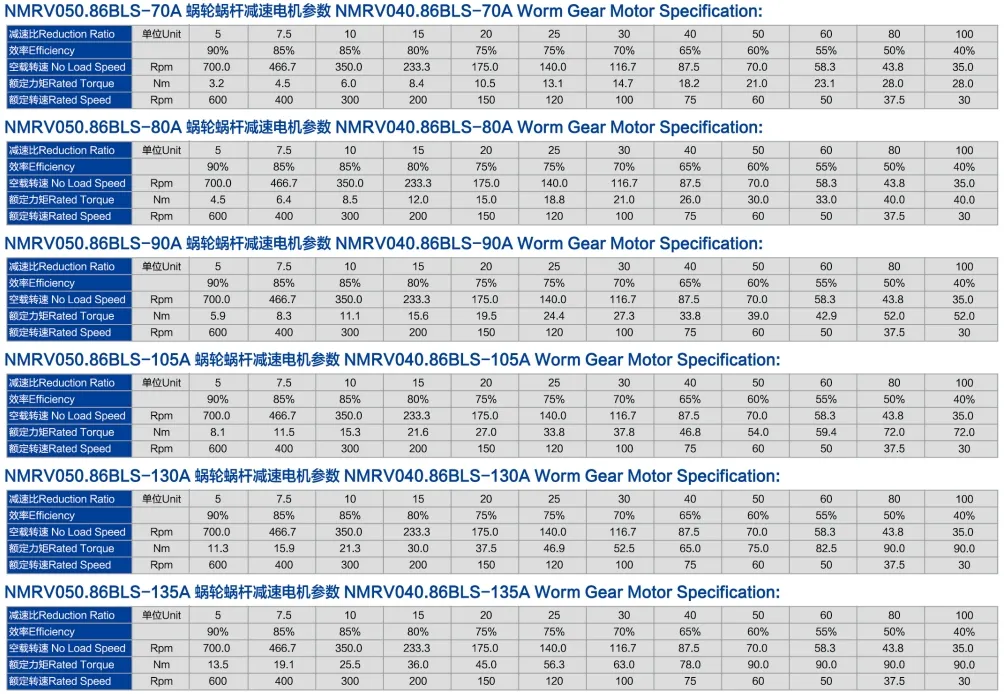

Brushless Gear Motor Assembly
Frequently Asked Questions
What is the range of voltage available for these motors?
We provide a wide range of voltage options including 10V, 12V, 18V, 24V, 36V, and 48V, extending up to 380VDC for specific applications.
Can I request a custom shaft or mounting dimension?
Yes, we specialize in customization. We can adjust dimensions, performance parameters, shafts, and mounting interfaces to meet your specific requirements.
What types of gearboxes can be integrated with the motors?
We offer both planetary and worm gearbox assemblies, allowing for rated torque outputs of up to 120Nm depending on the configuration.
Do you provide integrated control solutions for Brushless DC motors?
Yes, our BLDC motors can be equipped with integrated controllers, as well as optional optical or magnetic encoders and electric brakes.
Are these motors suitable for harsh environments?
We offer multiple protection classes ranging from IP00 to IP67, along with options for thermal protection and EMI suppression for industrial use.
What is the typical production capacity for these gear motors?
Our production capacity is approximately 10,000 PCS per month, supporting both small-scale and high-volume industrial orders.
