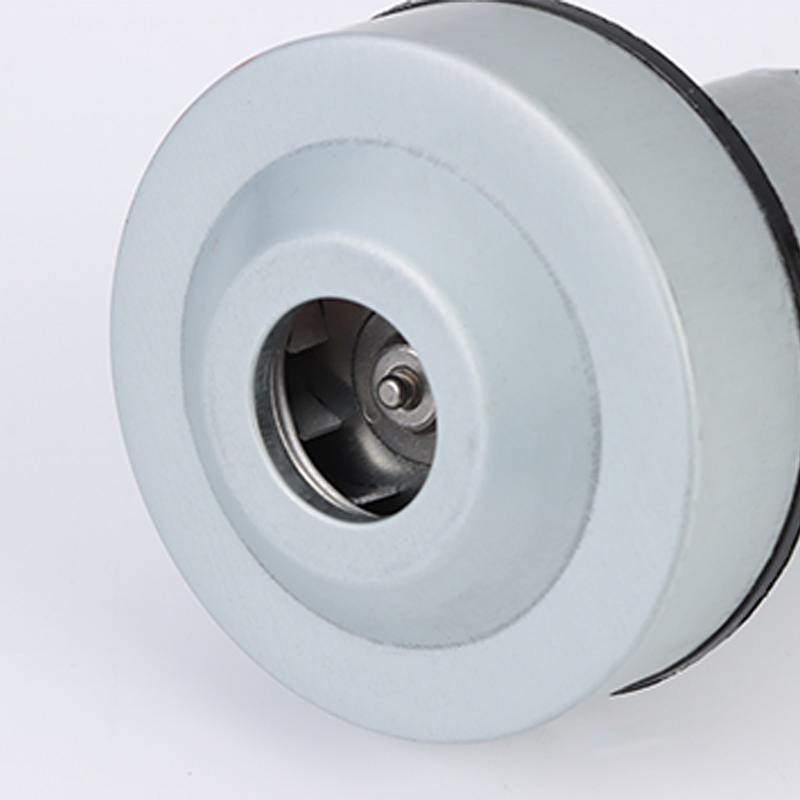

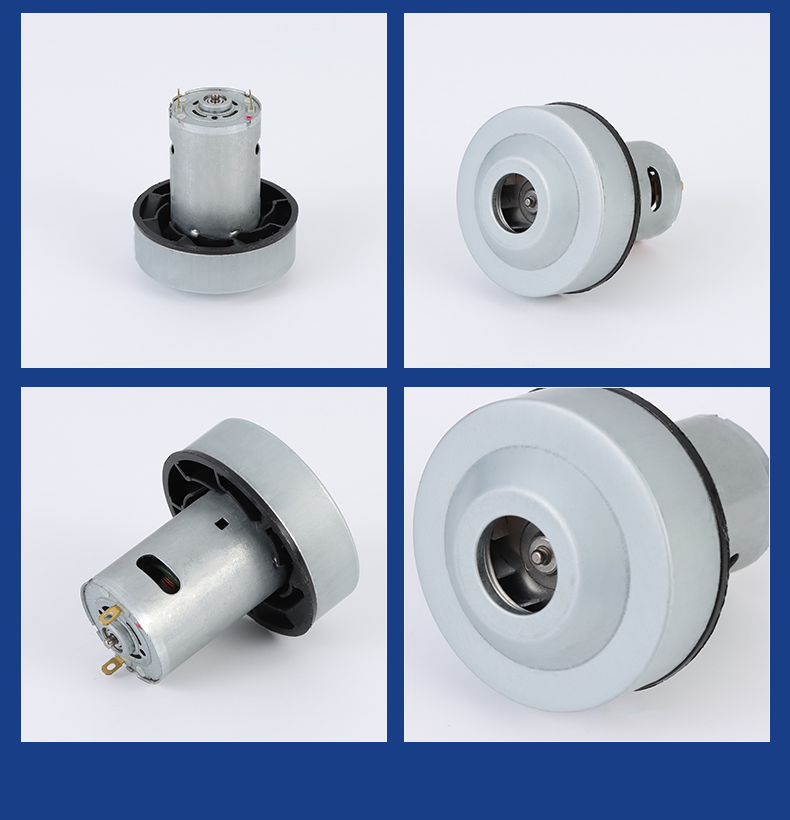

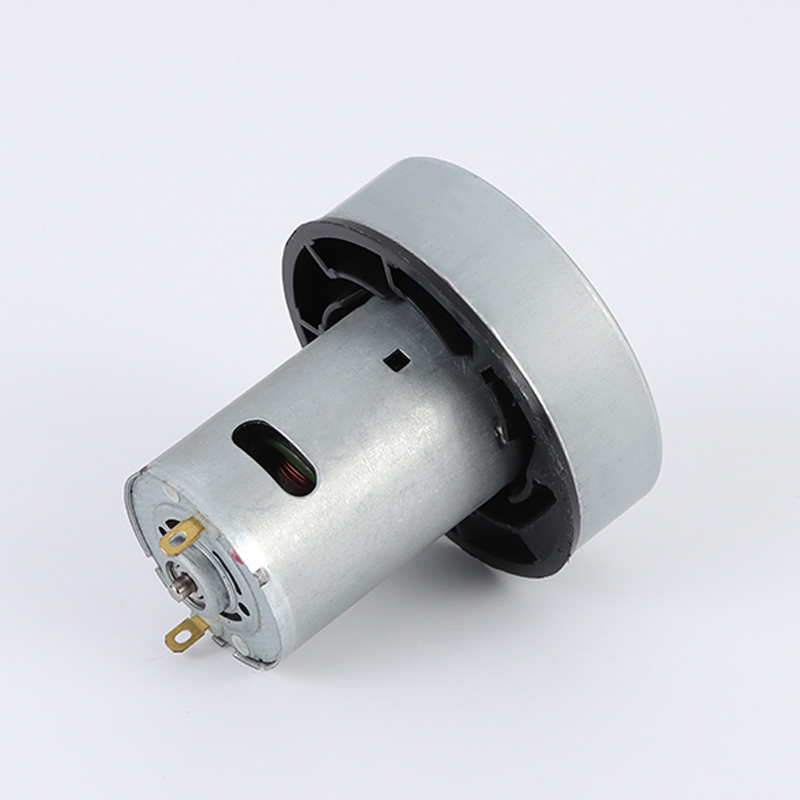

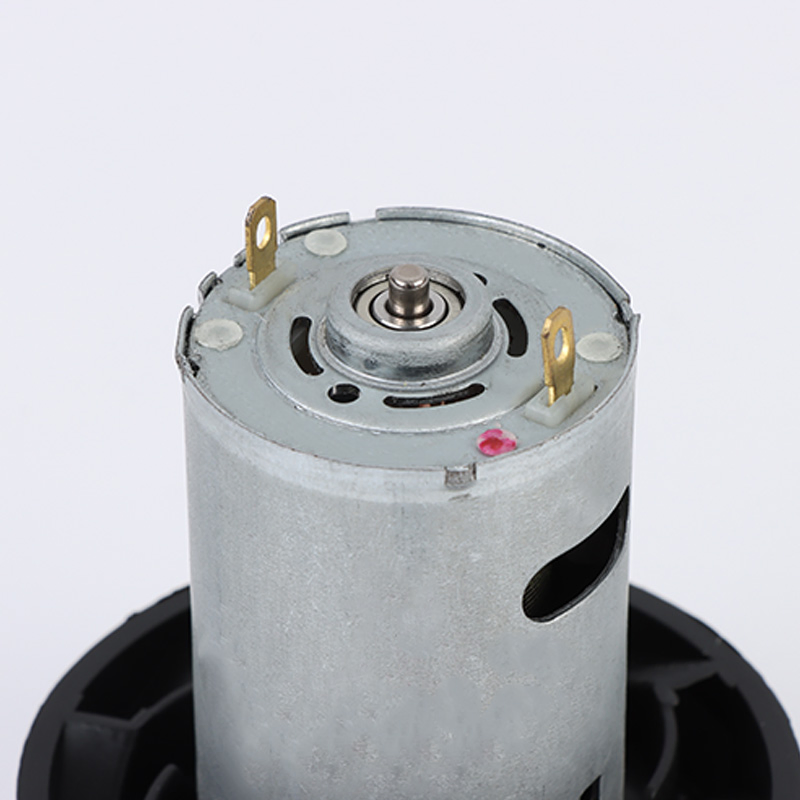

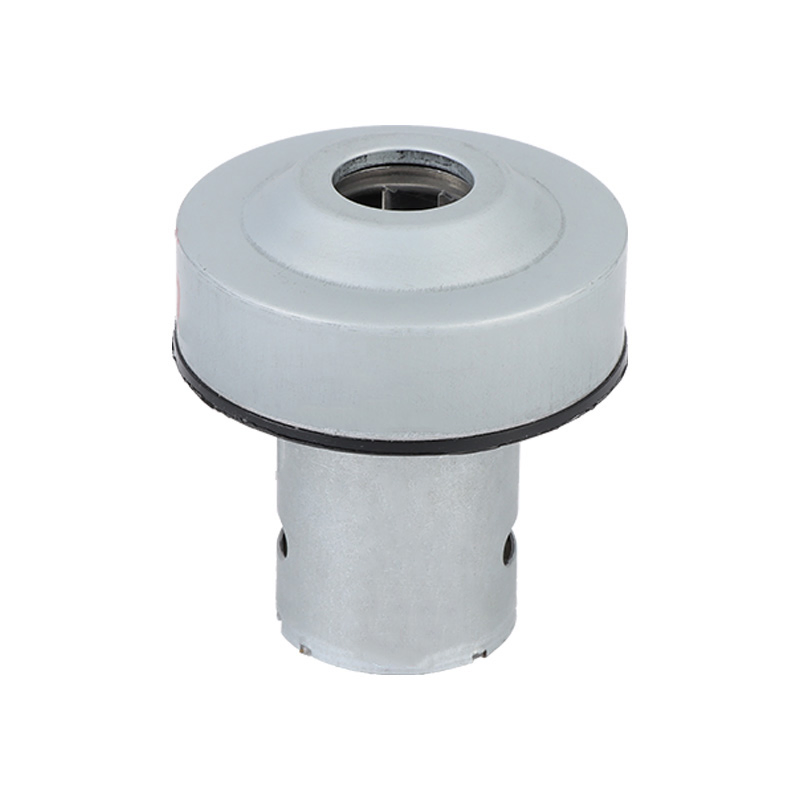

High-Speed 800W Brushed DC Motor for Handheld Vacuums

📋 Basic Information

Model NO.

CY545-6A

Excitation Mode

Excited

Function

Control, Driving

Casing Protection

Closed Type

Structure

Brushless

Type

PMDC Motor

Rated Voltage

100-240V

Rated Input Power

800W

Max Vacuum Degree

19 Kpa

Max Airflow

40 L/S

Max Suction Power

240W

Class of Insulation

E/F

🚀 Product Description

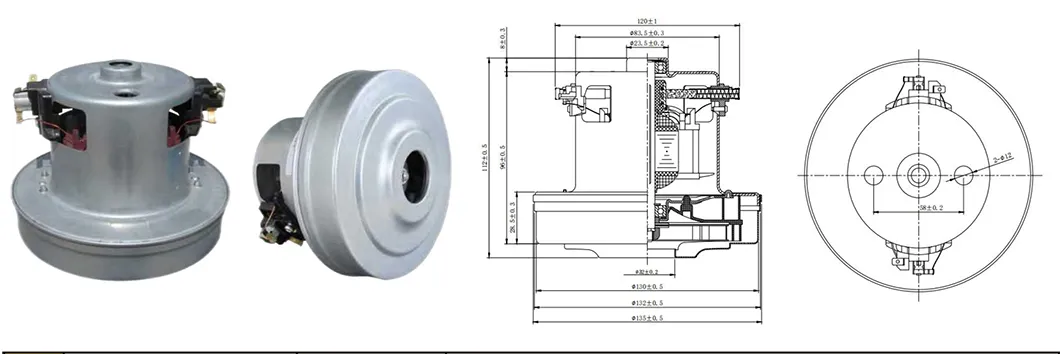

📊 Technical Specifications

Parameters	800W	1000W	1200W	1400W	1600W
Rated Voltage(V)	100-240
Rated Frequency(Hz)	50/60Hz
Max Vacuum (Kpa)	19	21	23	26	27
Max Airflow (L/S)	40	42	44	45	47
Max Suction Power (W)	240	300	360	420	480
Suction Efficiency (%)	33	34	36	37	39
Noise (dB(A))	<90	<95	<98	<102	<102

🛠 Cooperation Process

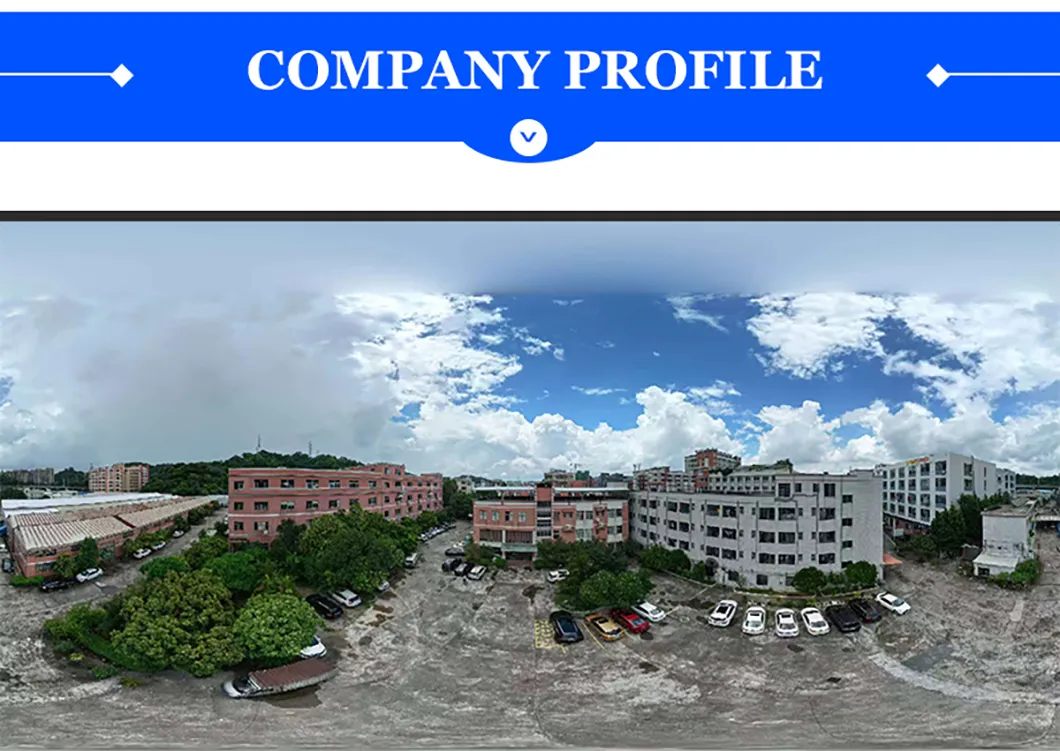

🏭 Professional Capabilities

We specialize in the R&D, manufacturing, and operation of micro-motors, boasting solid technical strength and comprehensive production capabilities. Equipped with sophisticated equipment such as fully automatic rotor winding machines, high-frequency spot welders, and intelligent testing machines, our annual output reaches over 3 million units. Our products are characterized by low noise, high torque, and stable operation, widely used in household vacuum cleaners, small home appliances, and fitness equipment.

Key Highlights:

10+ Patents and 4 Qualification Certificates.
Supplying to over 50 well-known domestic home appliance brands.
Exporting to over 40 countries and regions worldwide.
Strict adherence to ISO9001 and CCC standards.

📜 Certifications

❓ Frequently Asked Questions

Are you a trade company or a manufacturer?

We are a professional manufacturer established in 2018, specializing in single-phase series motors and vacuum motors.

What is your sample policy?

Customers cover the sample and express fees initially. However, these fees can be returned based on specific future order quantities.

What are your payment terms?

We accept T/T with a 30% deposit in advance and a 70% balance before shipment for amounts exceeding 3000 USD.

How long is the typical delivery time?

The delivery date is approximately 20-35 days after receiving your deposit, depending on the order quantity.

Is it possible to visit your factory?

Sure! Please notify us a few days in advance so we can check our schedule and arrange for your visit.

How do you handle after-sales service?

We confirm issues through photos or samples. If a manufacturing defect is verified, we will redo the product at no additional charge.
