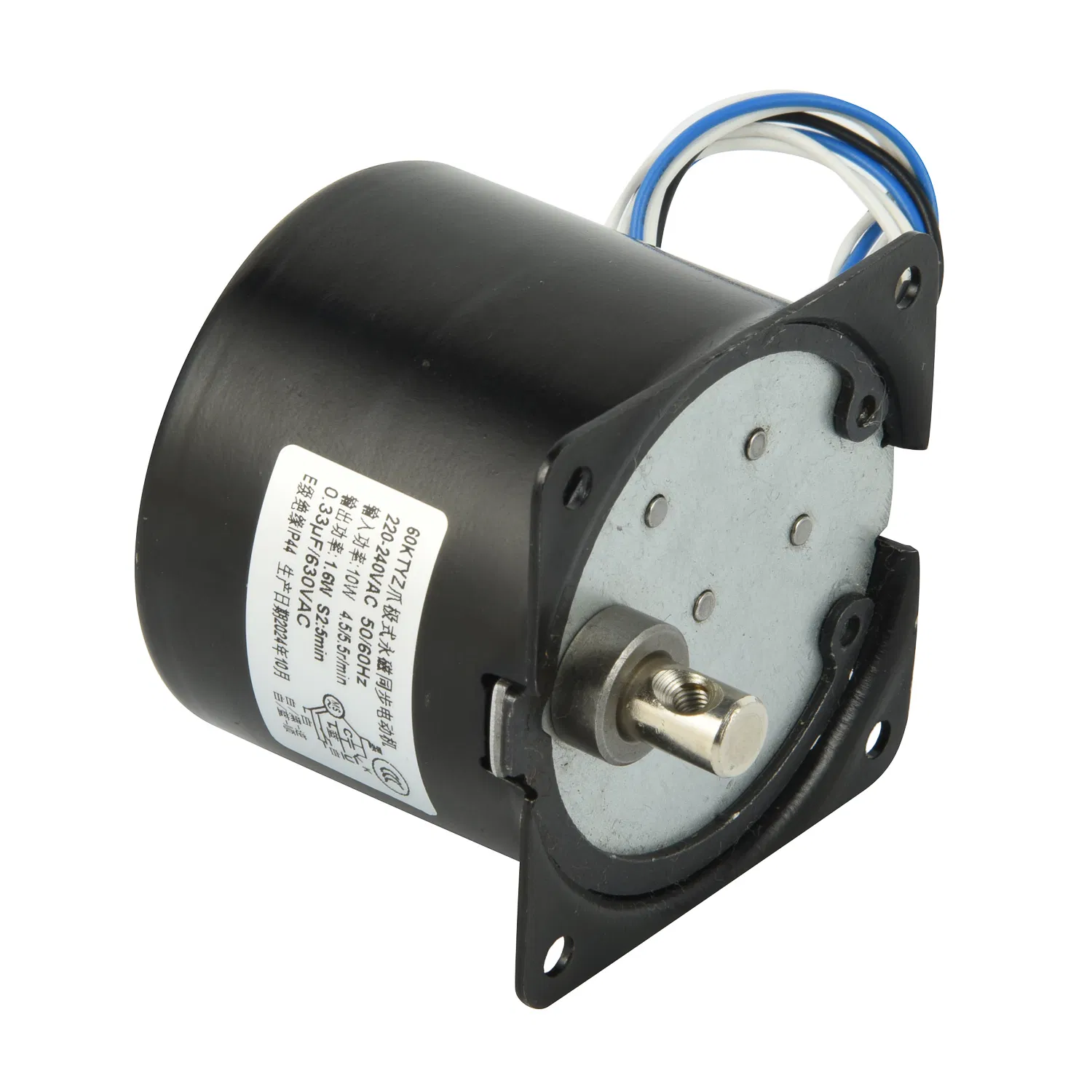

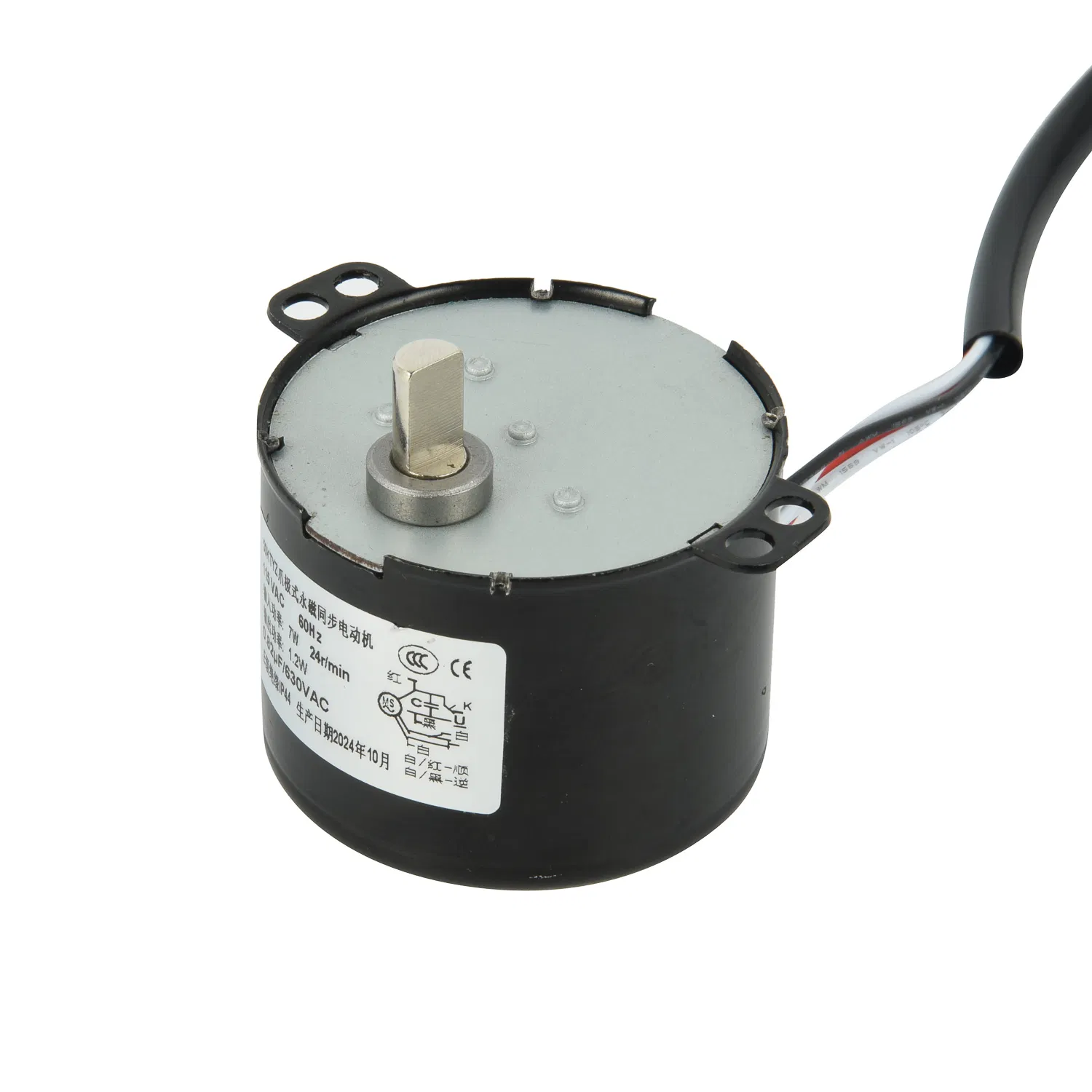

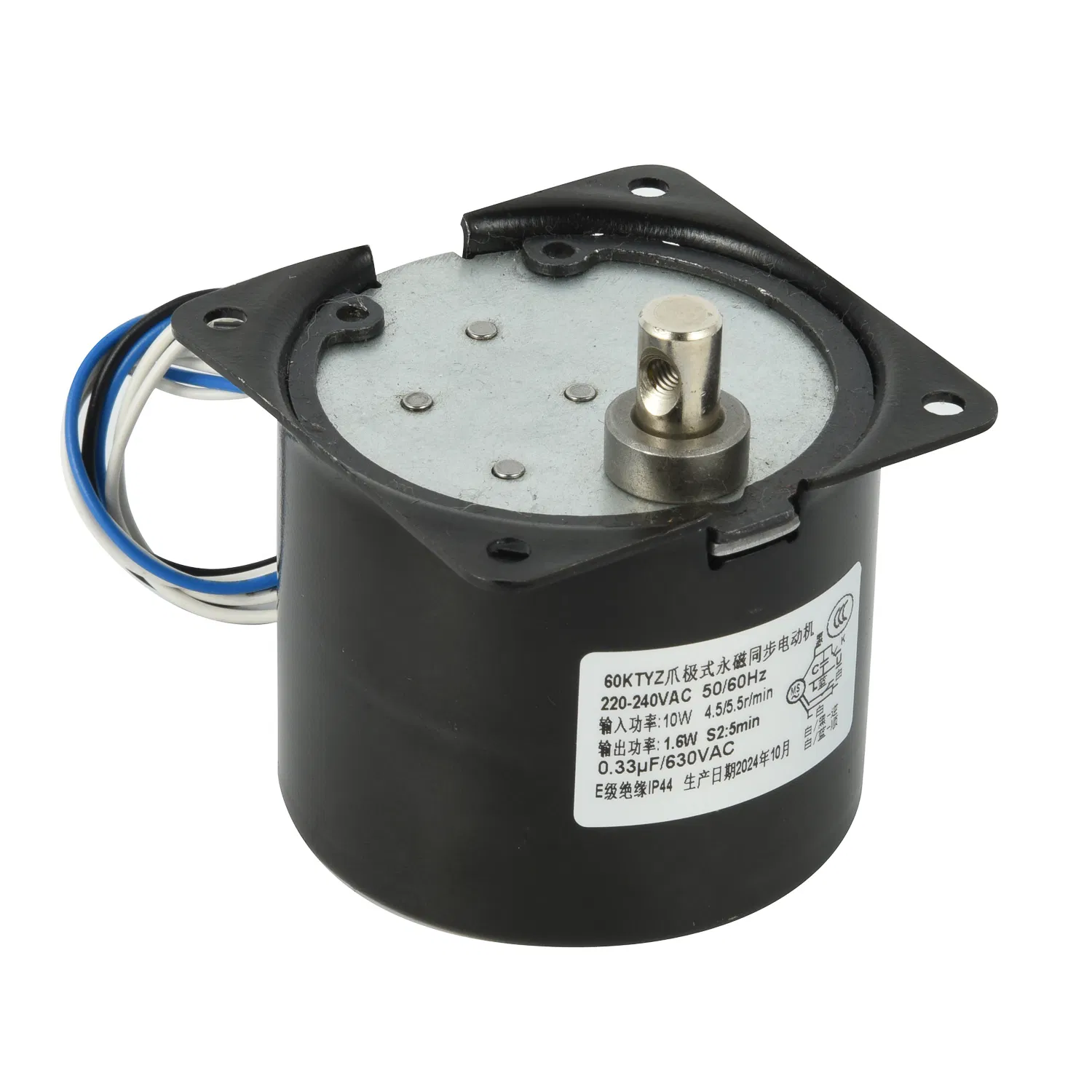

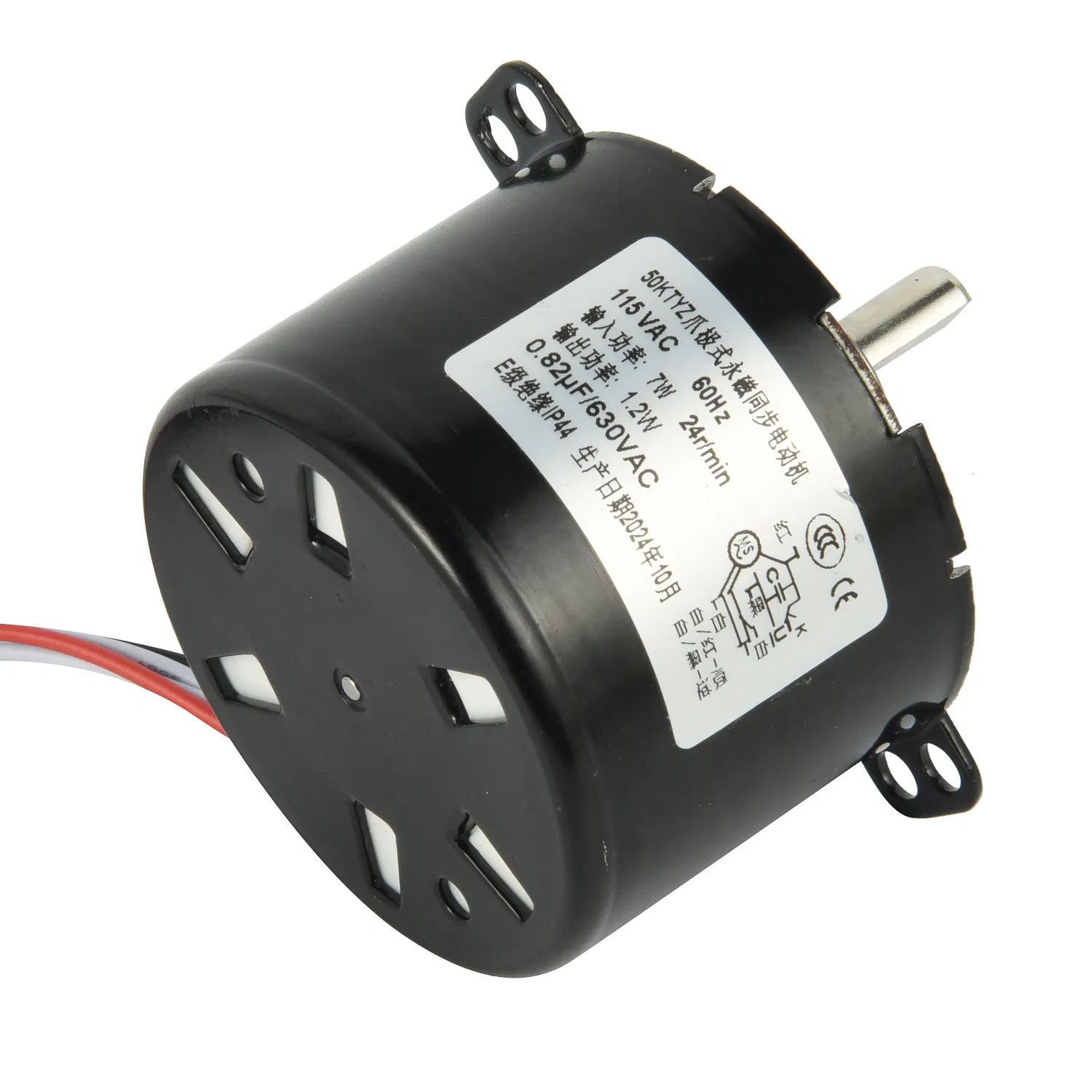

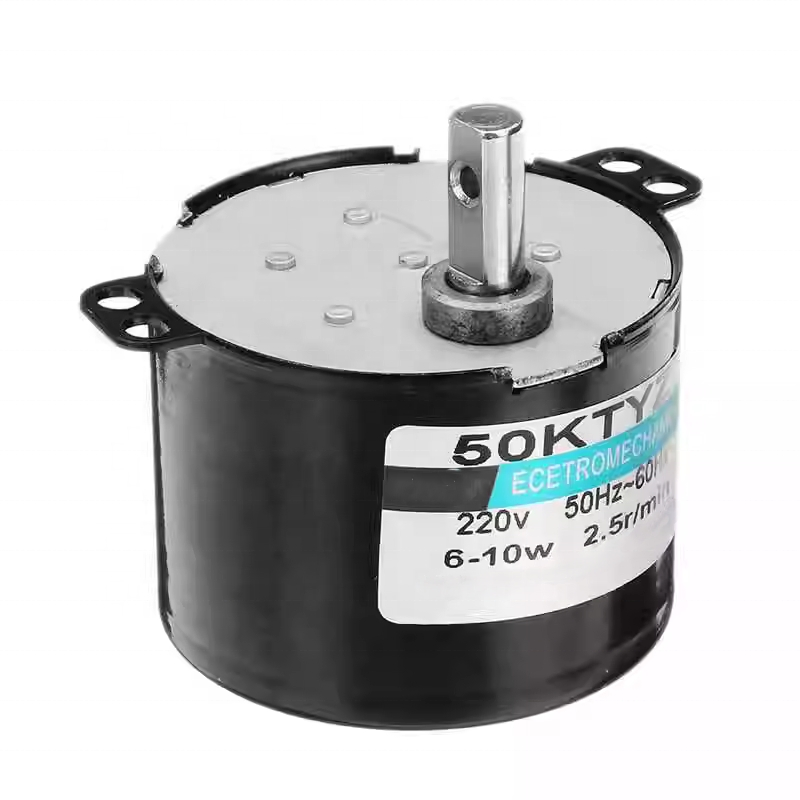

50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
1 / 5
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation
50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation

50ktyz High Torque AC Synchronous Motor 110V 220V 6W Low Rpm Reversible Gear Motor for BBQ, Electric Valve and Home Automation

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
50KTYZ
Operation Mode
Electric Motor
Magnetic Structure
Permanent Magnet
Function
Driving, Control
Structure
Rotating Pole Type (Armature Fixed)
Number of Poles
6
Ventilation
Protection Type
Certification
CCC, ISO9001, VDE, RoHS
Rotation Speed
1/2.5/5/10/15/20/25/30/50/80/100 Rpm
Voltage
AC110V/220V
Rated Power
6W
Weight
200g
Phase
Single Phase
Material
Metal and POM
Insulation Class
E
Specification
Dia50mm*H37.5mm
HS Code
8501109990
Production Capacity
2000/Day
Product Drawing

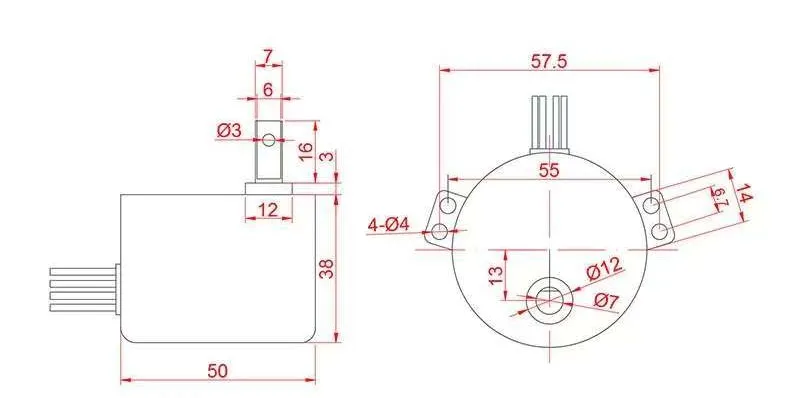

Product Drawing 1
Product Drawing 2

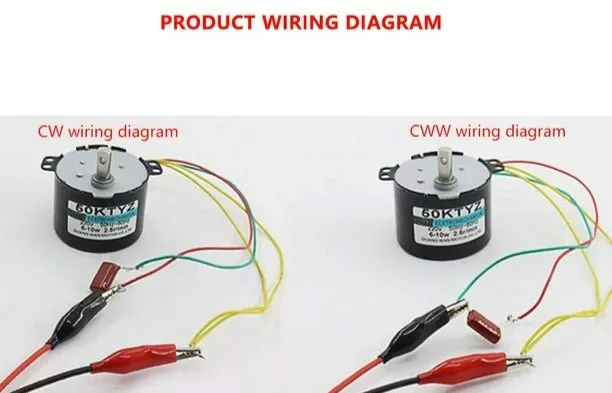

Product Drawing 3
Product Overview

Integrated by a permanent magnet and reduction gearbox, this Synchronous motor features:

  • Slim Design and Stable Performance
  • Low Power Consumption and Constant Rotation Speed
  • Low Noise and High Torque
  • Small Size and Light Weight
  • No Drive Circuit required and easy to use

At rated frequency, the rotation speed is not affected by voltage. If overload or stall occurs when loaded, the motor coil will not burn. Three rotation directions are available: CW, CCW, and CW/CCW.

Important Note:
- If you choose CW/CCW and apply load over rated torque, the rotation direction will automatically reverse.
- If you choose CW or CCW, the motor will maintain its rotation direction without changing.

Customization for various shafts, speed, torque, wire, and lead is available upon request. Example specification: 49TYJ-C, Shaft-a, 220V 50Hz, 2RPM, CW, wire length=20cm.

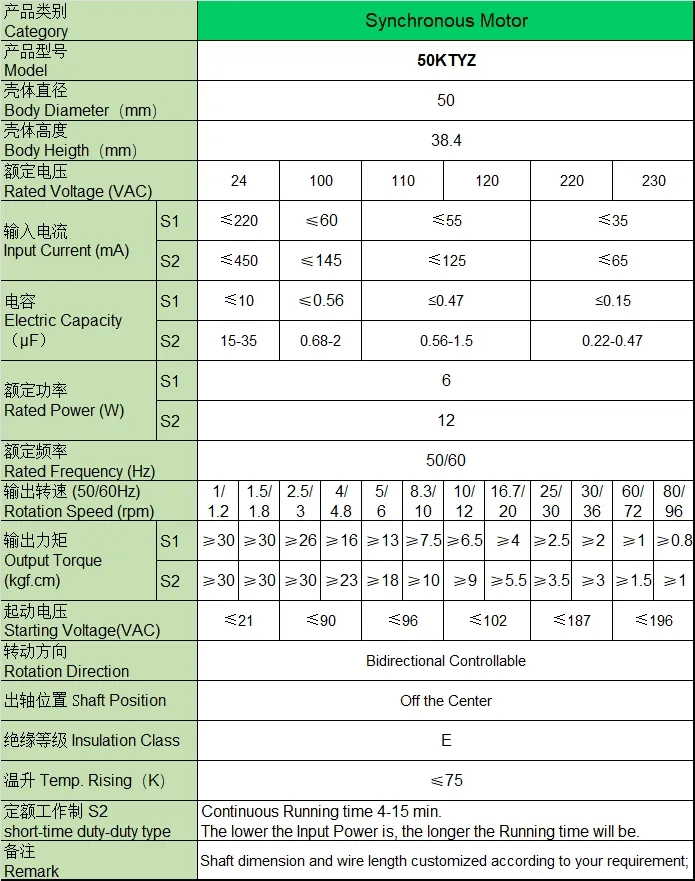

Product Parameters

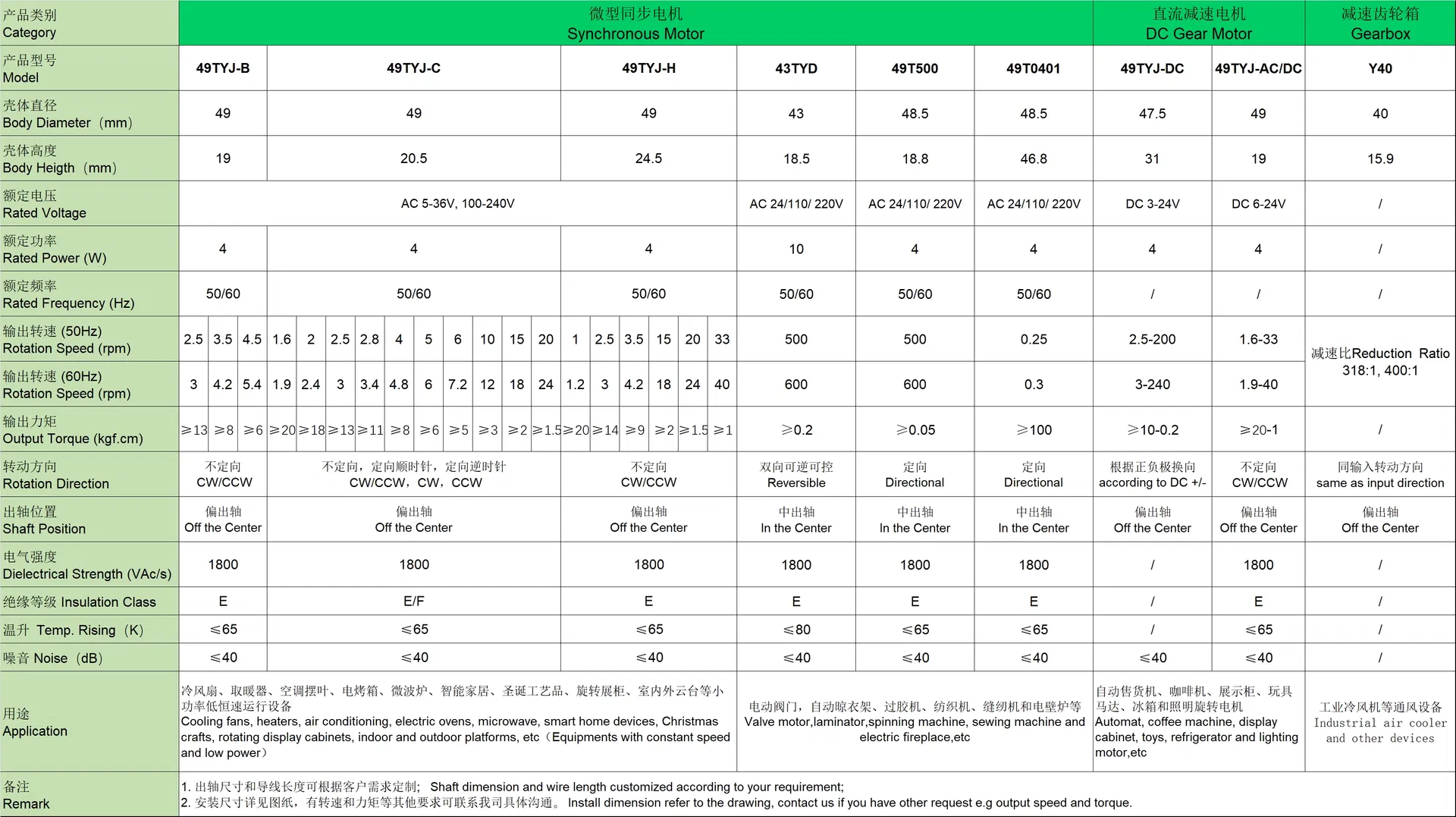

Product Parameters Table
Component Details

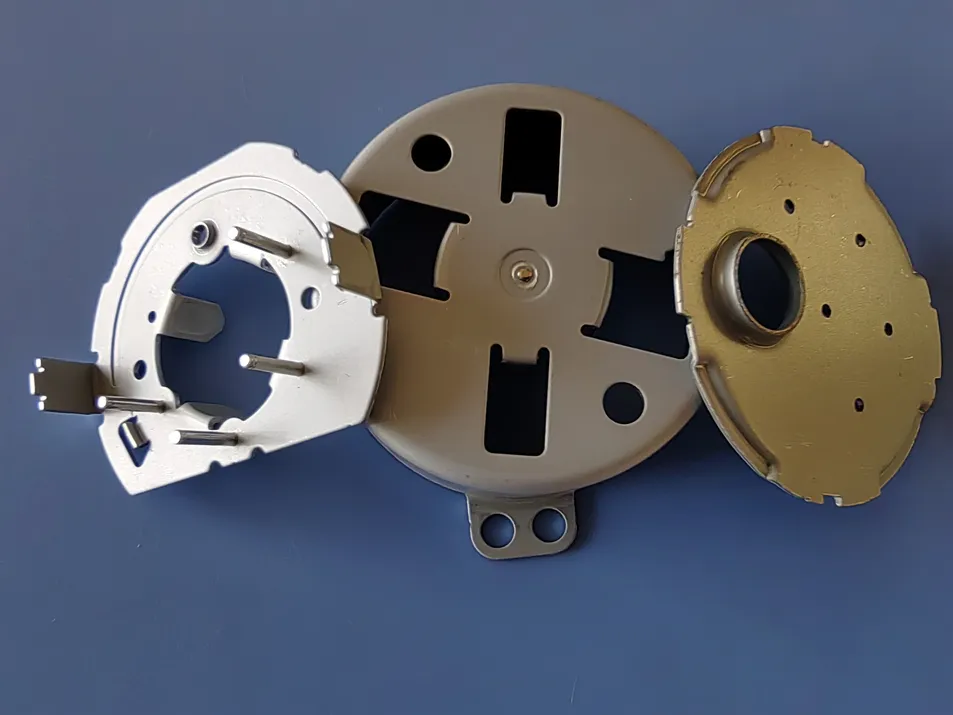

Shell Details

Shell

Made from High quality galvanized sheet, providing excellent anti-corrosion performance for a longer service life.

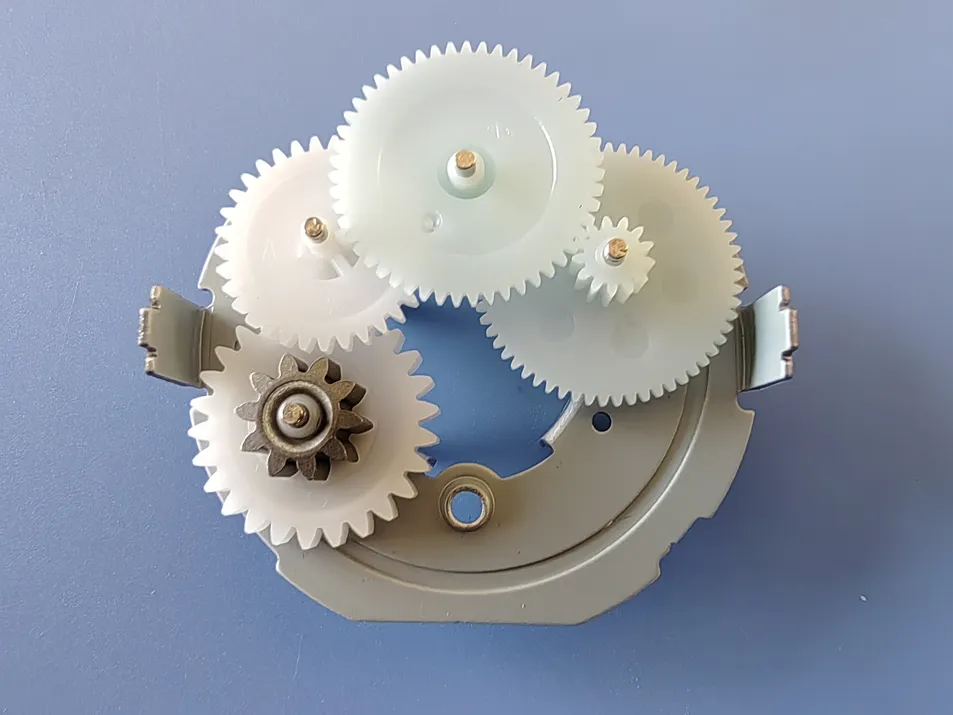

Gear Details

Gear

Utilizes POM, PA66 and Metal materials for high abrasion resistance, precision, and low noise stability.

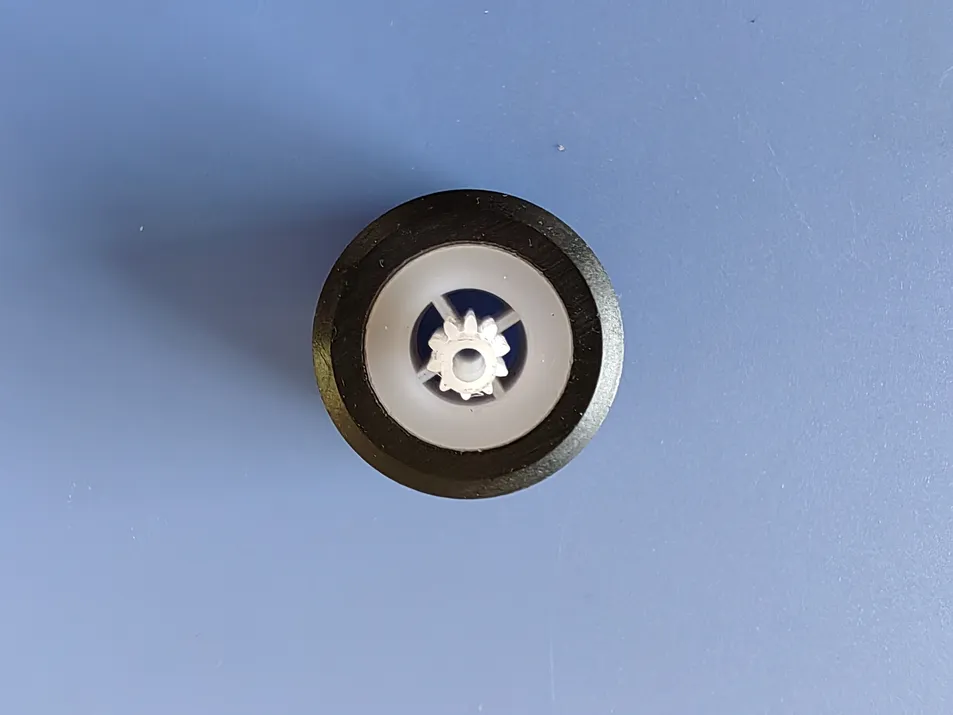

Core Details

Magnetic Core

Made of Ferrite to effectively improve the magnetic field and enhance the performance of the rotor.

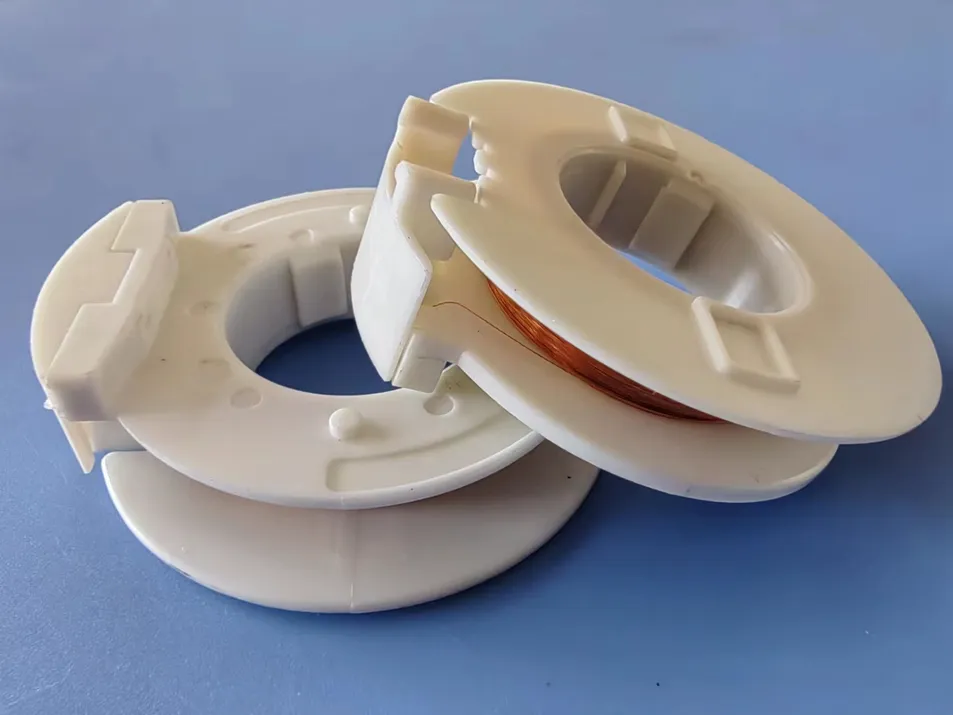

Coil Details

Coil

Pure Copper Enameled wire with uniform arrangement for stable performance and superior heat dissipation.

Product Gallery
Gallery 1
Gallery 2
Gallery 3
Gallery 4
Gallery 5
Gallery 6
Gallery 7
Gallery 8
Gallery 9

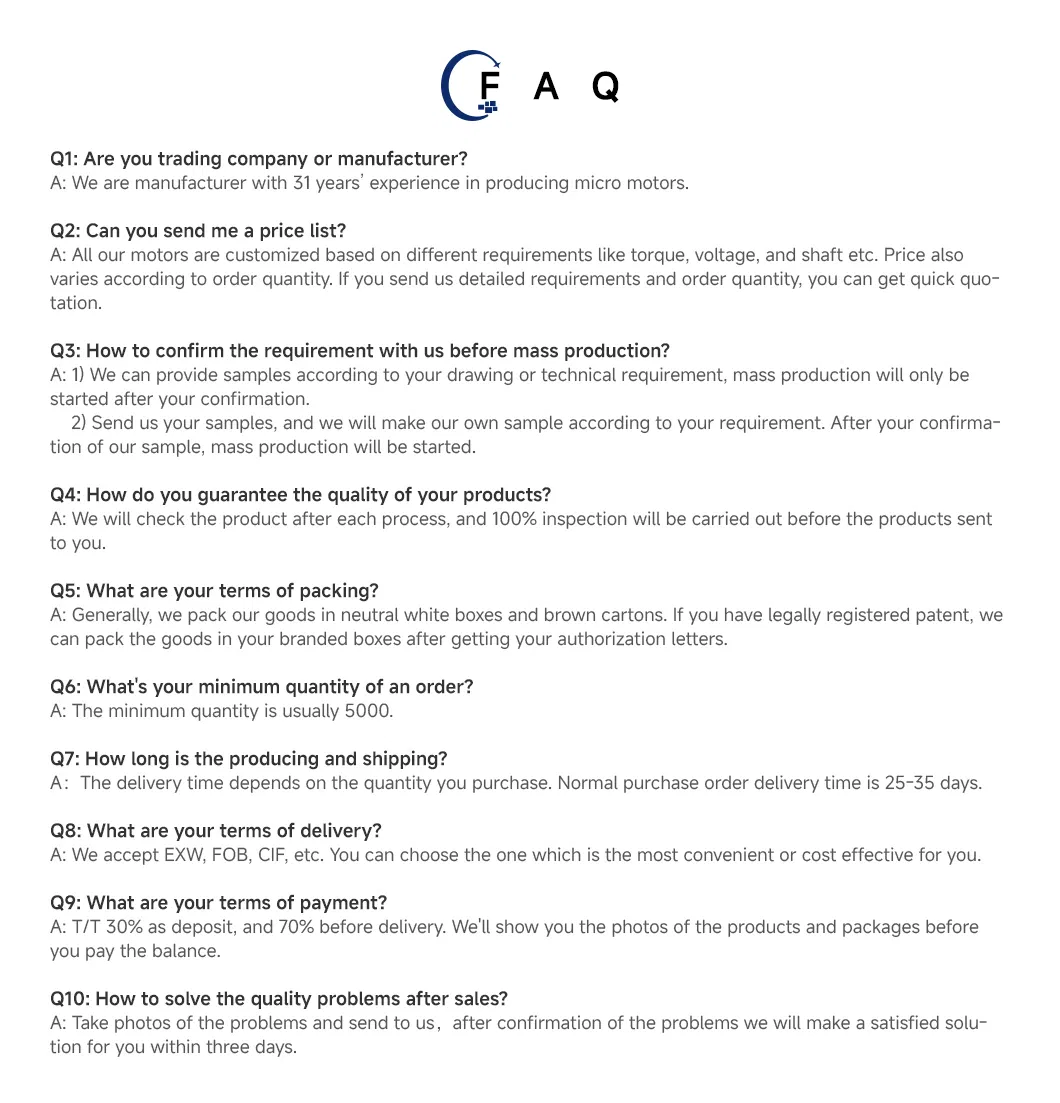

Gallery 10
Frequently Asked Questions
What are the main advantages of the 50KTYZ synchronous motor?
The motor features a slim design, stable performance, low power consumption, and constant rotation speed regardless of voltage changes. It is also compact, lightweight, and low-noise.
Does the motor speed vary with voltage fluctuations?
No, at the rated frequency, the rotation speed remains constant and is not affected by voltage changes.
Will the motor burn out if it stalls or is overloaded?
No, the motor coil is designed not to burn out even if the motor is overloaded or experiences a stall when loaded.
How does the CW/CCW rotation direction function?
If you choose the CW/CCW model, the rotation direction will automatically reverse if the load exceeds the rated torque.
Can I get a customized shaft or different lead lengths?
Yes, we can customize various shafts, speeds, torque ratings, and wire lengths according to your specific project requirements.
What materials are used for the gears?
The gears are made from a combination of POM, PA66, and Metal to ensure high abrasion resistance and stable, quiet operation.
