| Model NO. | 50HM25 |
| Operation Mode | Electric Motor |
| Magnetic Structure | Claw Pole Type |
| Function | Driving |
| Structure | Rotating Pole Type (Armature Fixed) |
| Number of Poles | 4 |
| Ventilation | Open Type |

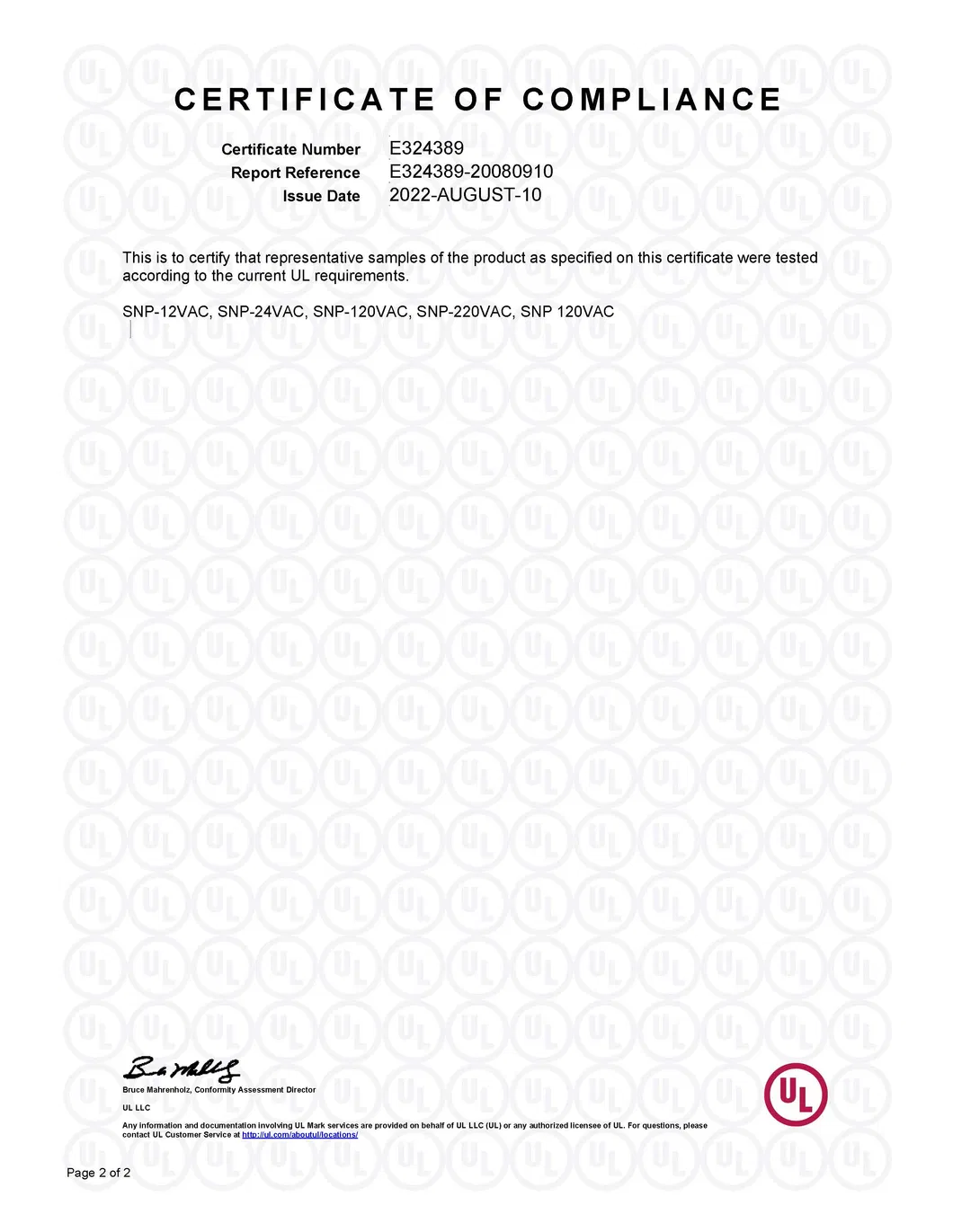

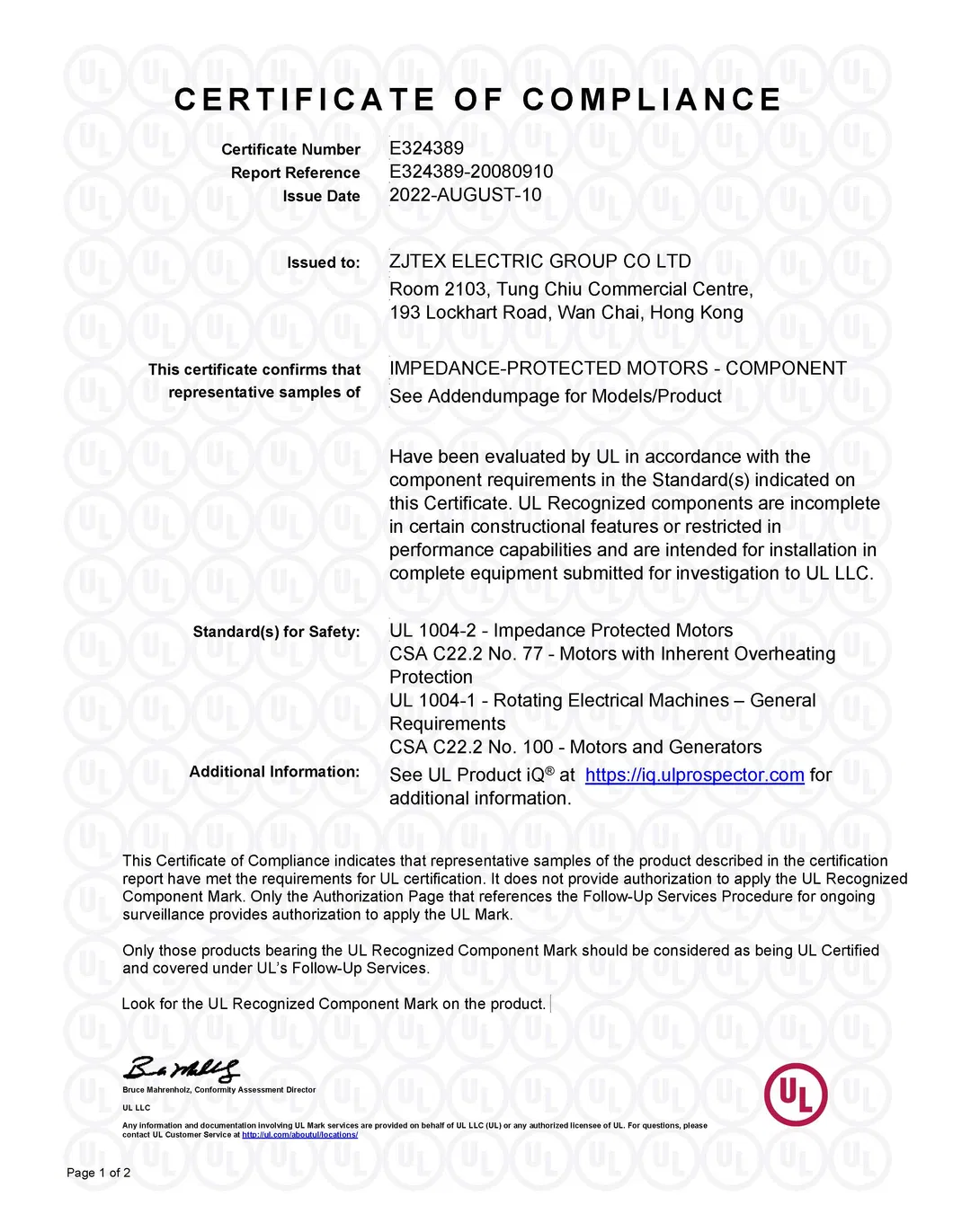

| Certification | CCC, ISO9001 |
| Voltage | 24V AC/110-120V AC/220-240V AC |
| Frequency | 50/60Hz |
| Rotation Direction | Cw/Ccw |
| Speed | 1rpm 2rpm 3rpm 5rpm |
| Transport Package | Carton |
| HS Code | 8501 |
| Production Capacity | 300000PCS/Year |
| Package Size | 33.00cm * 39.00cm * 21.00cm |
| Package Gross Weight | 21.400kg |

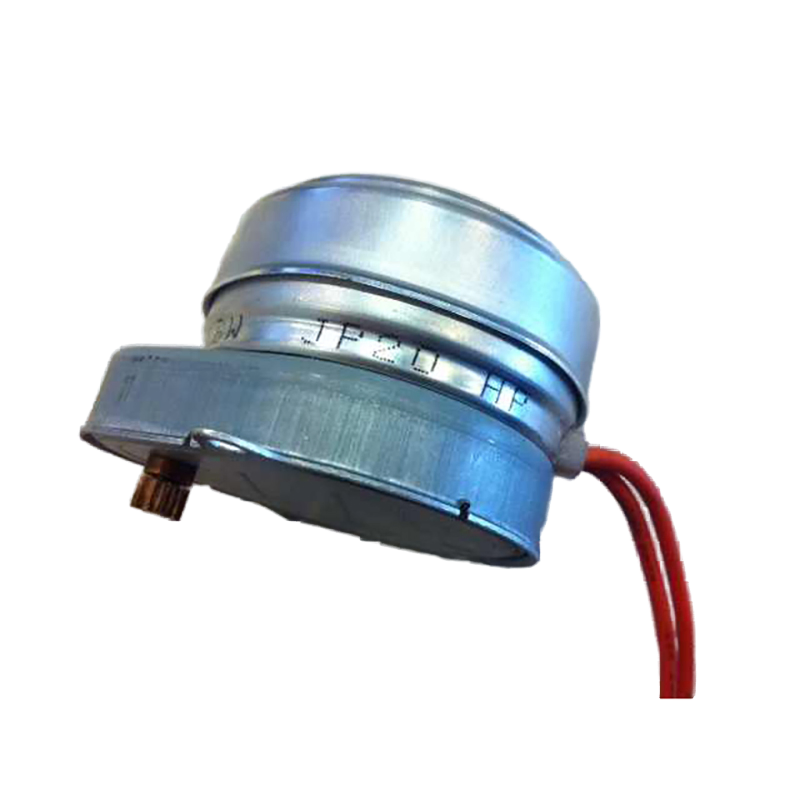

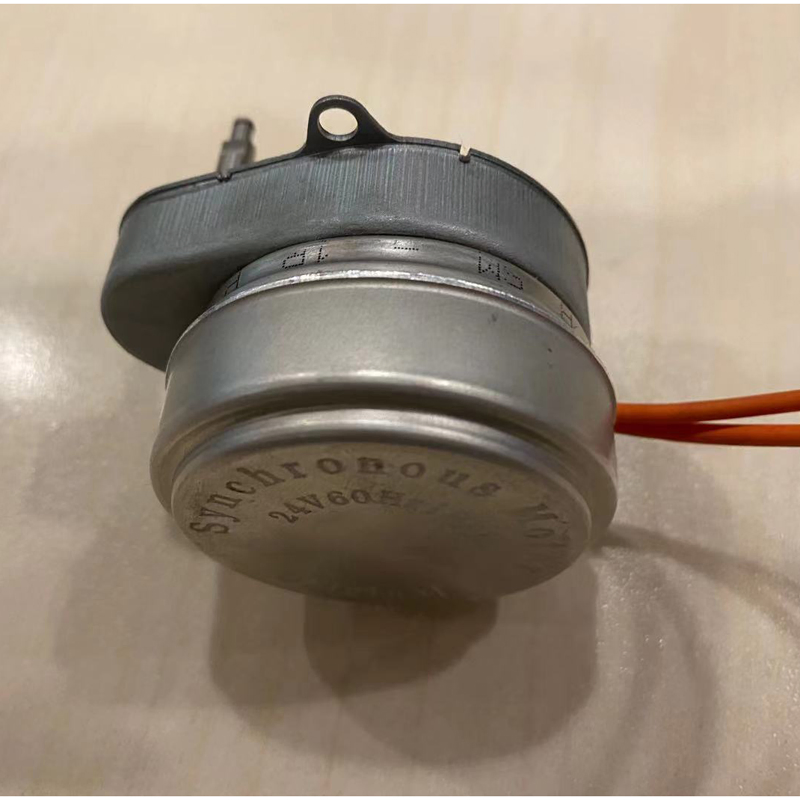

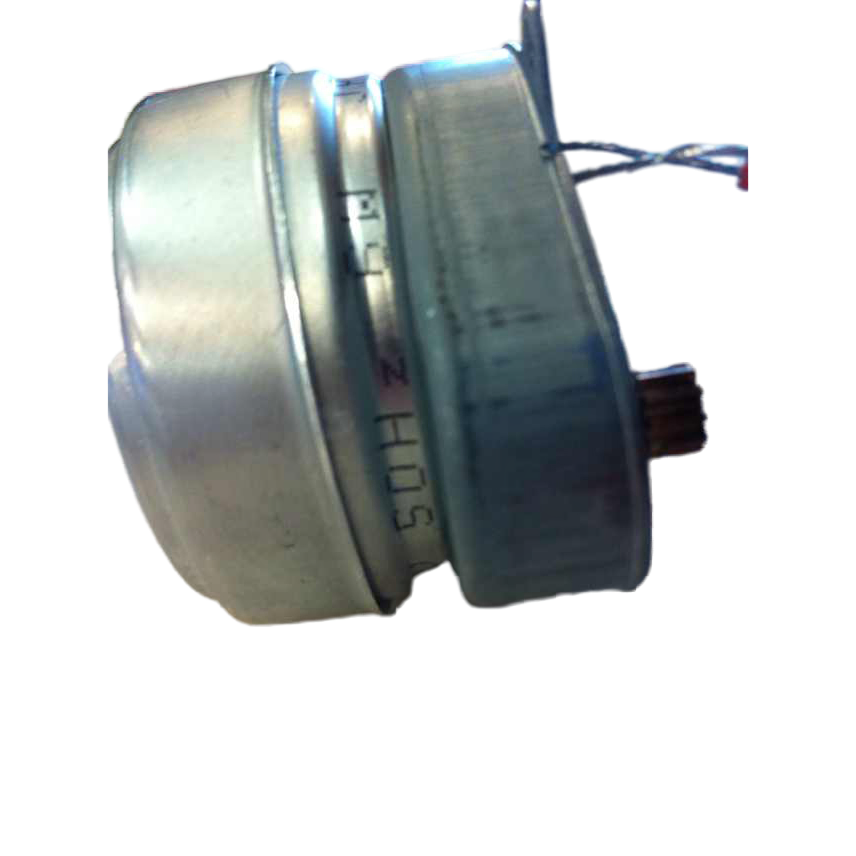

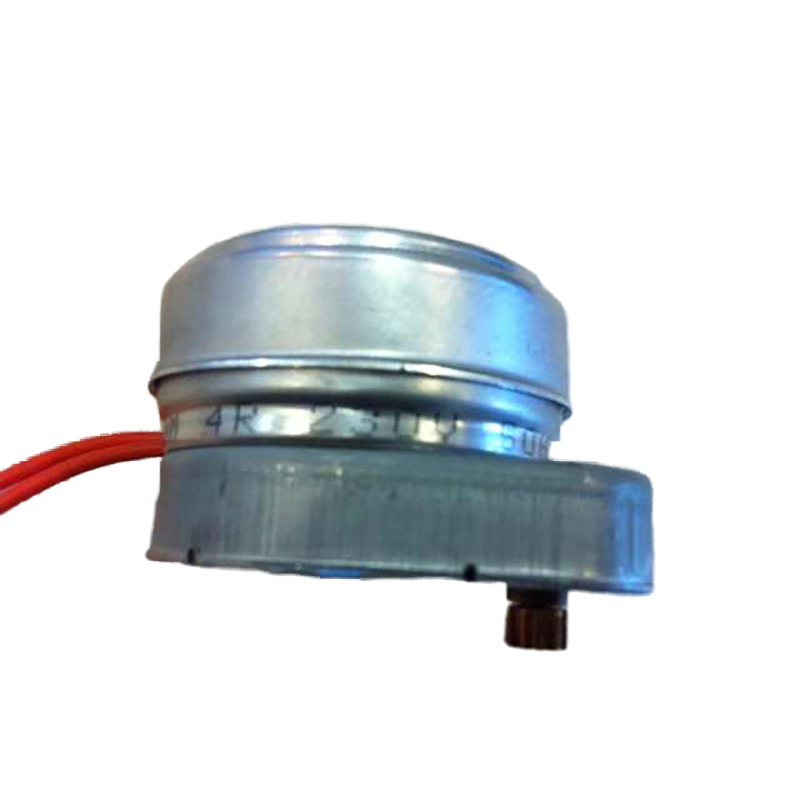

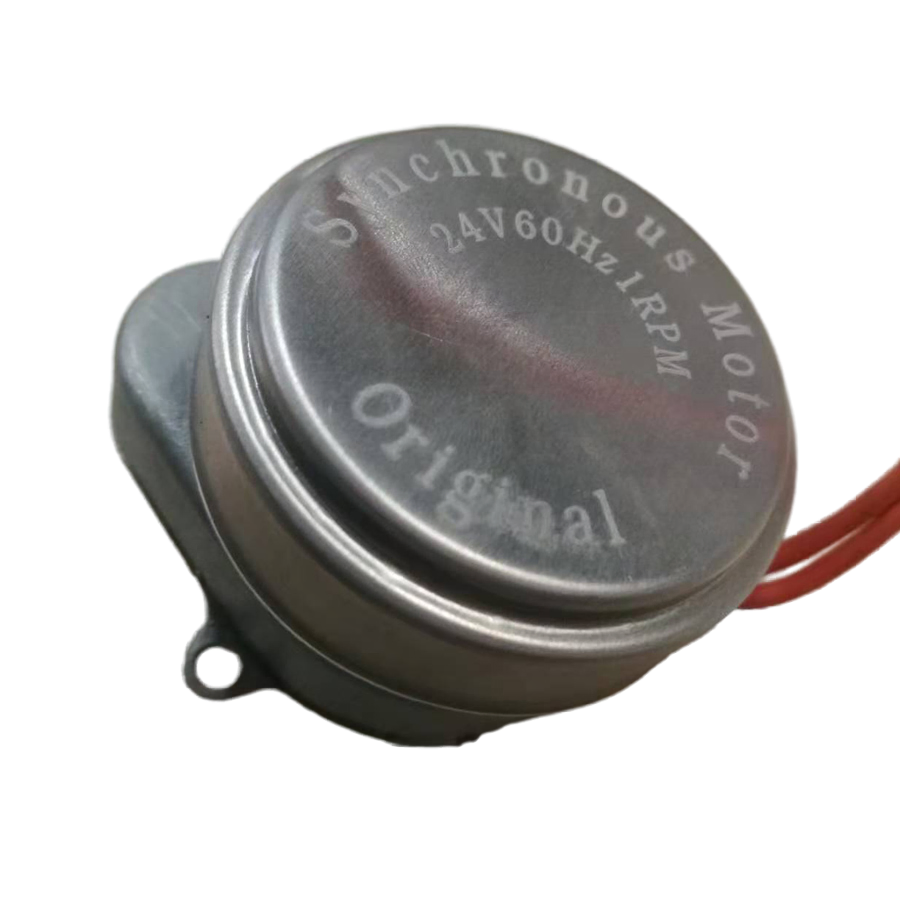

OEM ODM Hysteresis synchronous motor Synchronous motor Hysteresis motor Damper motor

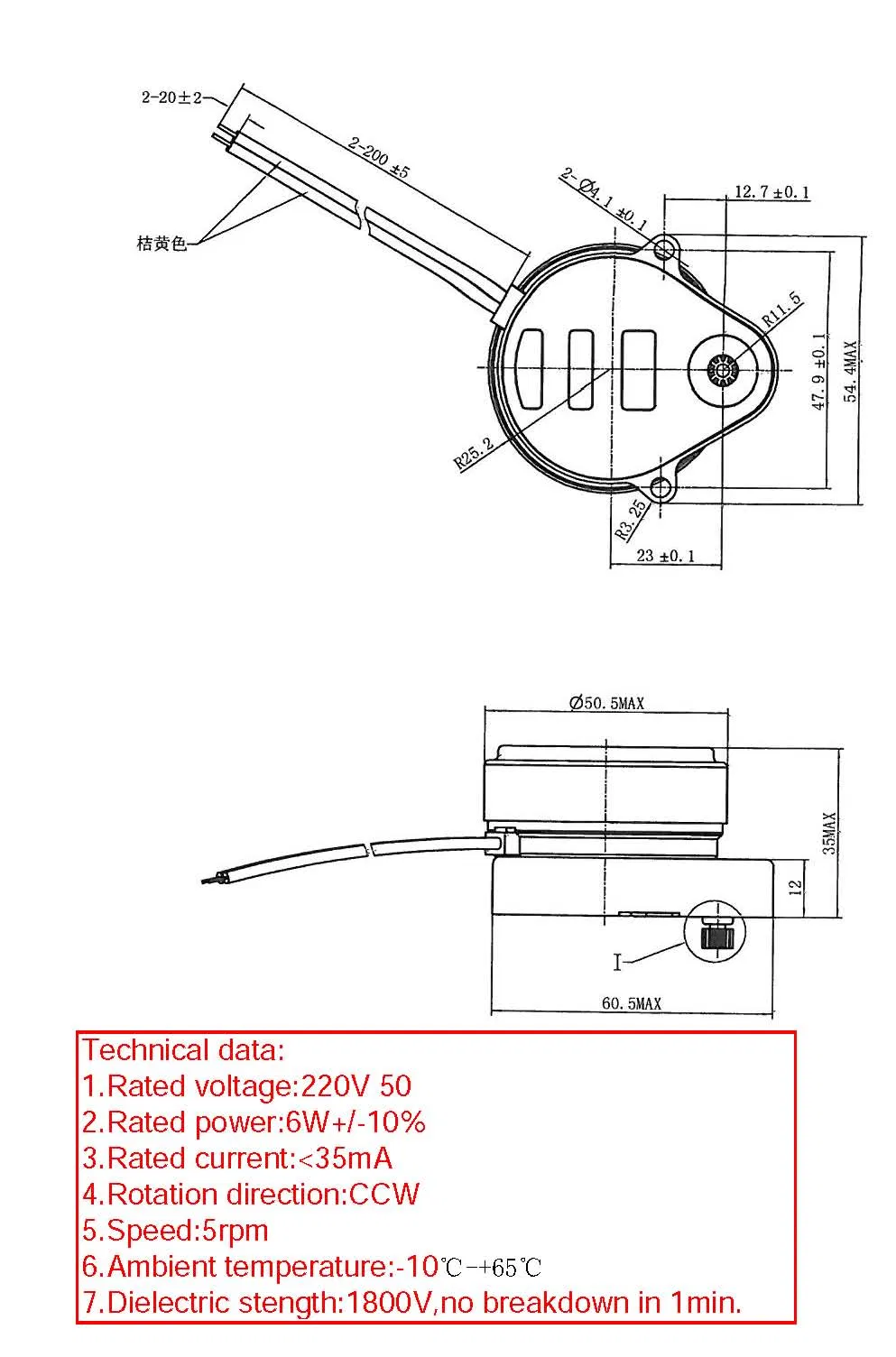

| Rated voltage | 24V AC/110-120V AC/220-240V AC |
| Rated power | 6W |
| Rated speed | 1rpm 2rpm 3rpm 5rpm |
| Stall torque | less than 4.32kgf.cm |
| Rotation direction | CW CCW |
The group is a leading export and manufacturing entity of general electric motors and special electric motors in China.
The main motor range includes AC motors, DC motors, Permanent Magnet motors, Brushless motors, Stepping motors, NEMA Motors, Gear Motors, IEC motors, Synchronous Motors, Hysteresis motors, and Shade pole motors. With six large factories, the annual production capacity exceeds 20 million units, meeting the demands of world-famous multinational companies with large-scale OEM capabilities.
Products are widely used in air conditioning, refrigeration, ventilation, washing machines, microwave ovens, vacuum cleaners, power tools, medical appliances, and automotive industries. With over 30 years of experience and advanced facilities from the USA, Europe, and Japan, products ensure high efficiency, low noise, and long working life.
