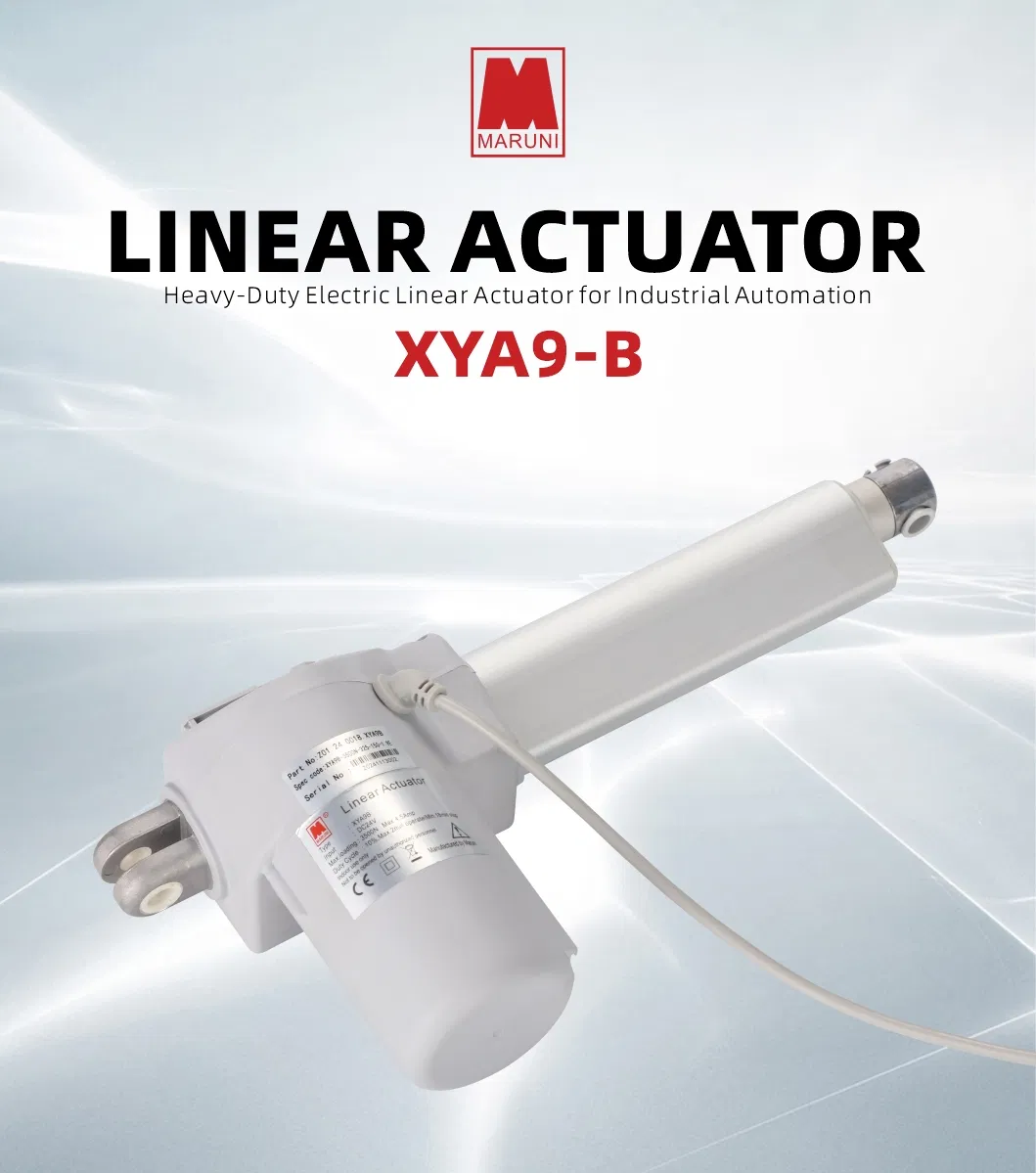

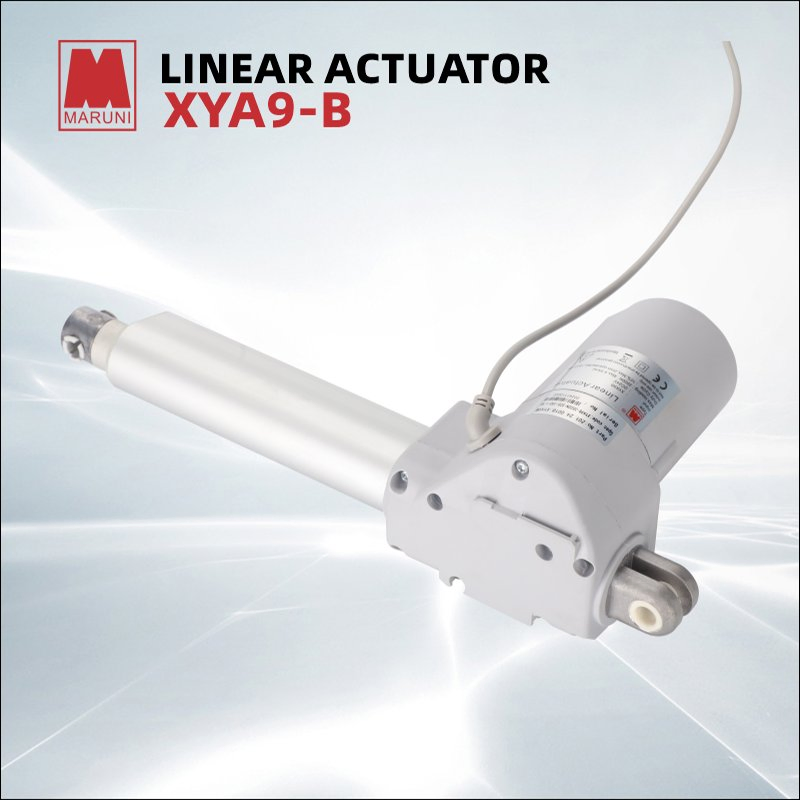

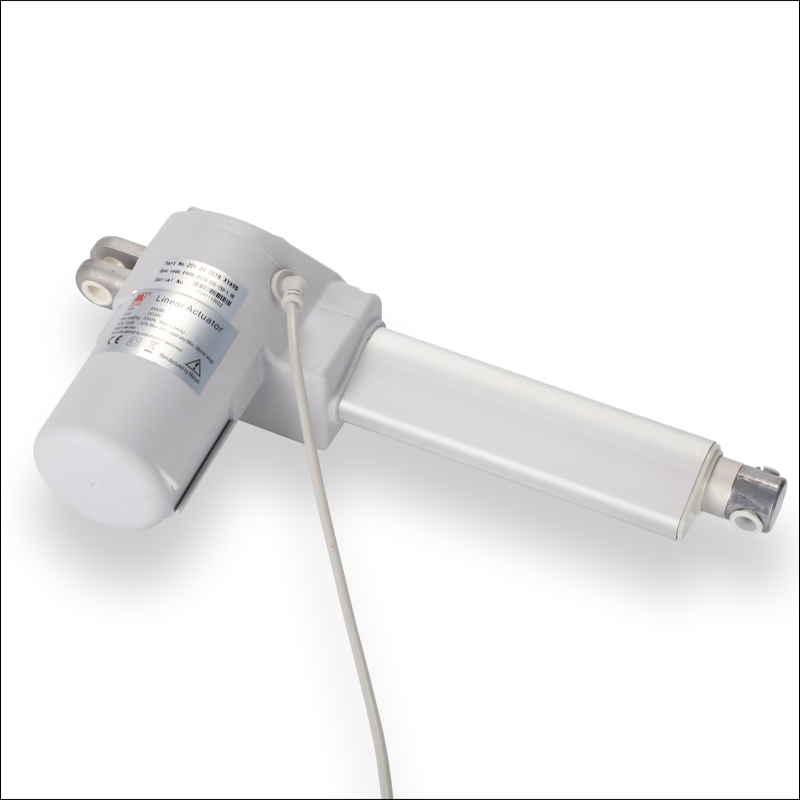

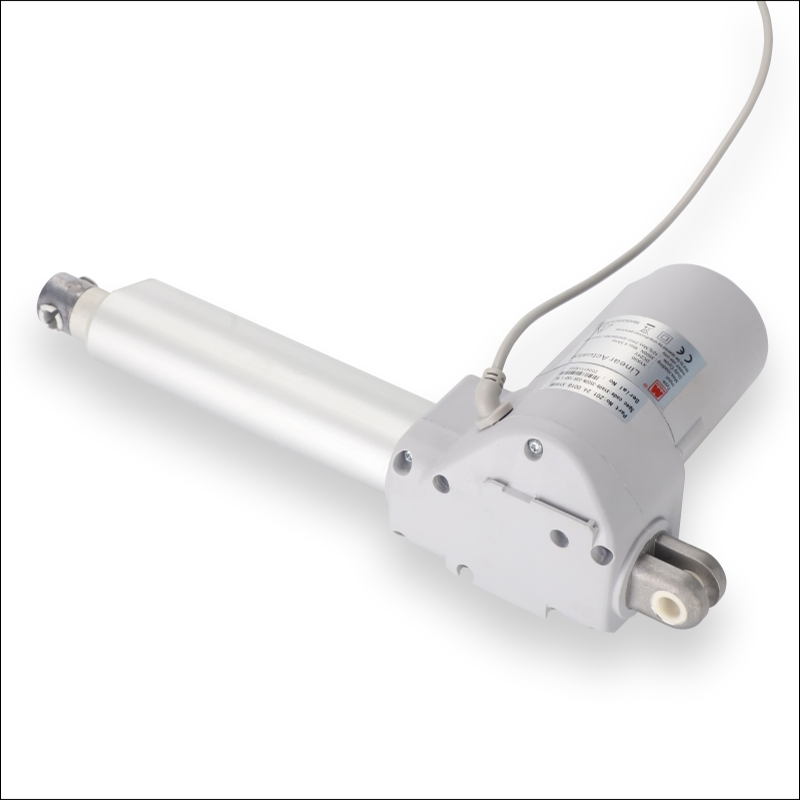

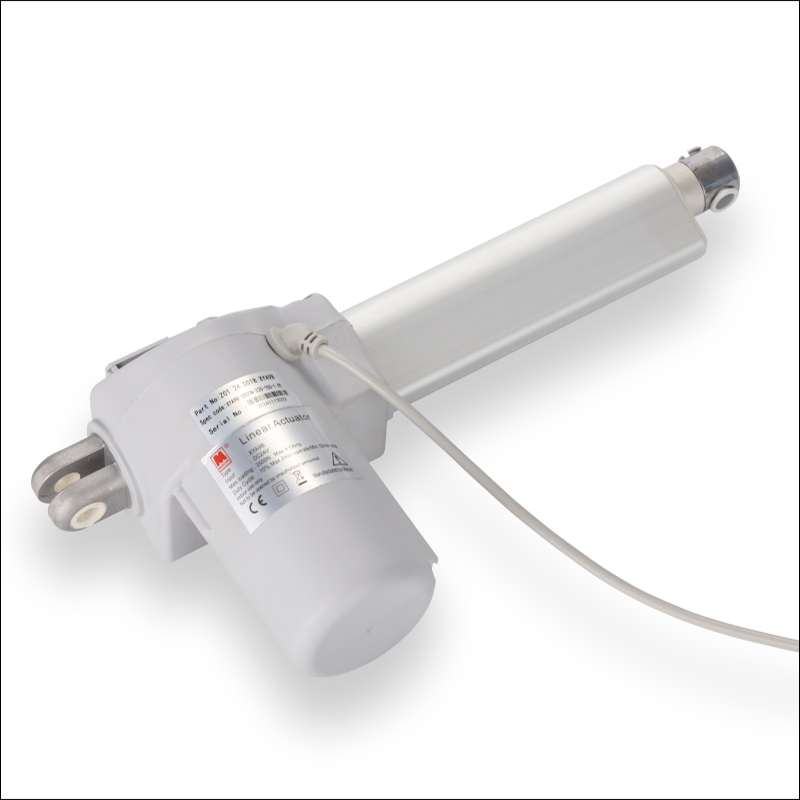

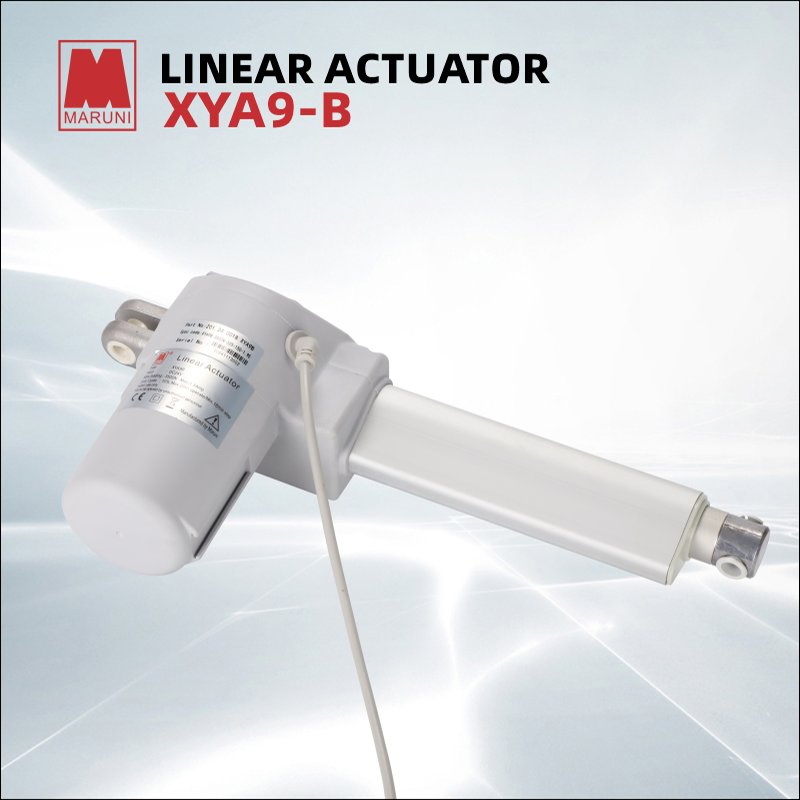

IP54 Waterproof High Quality 12V/24V Linear Actuator Brush 8000n Max Load DC Electric Motor CE RoHS Certified

1 / 5

IP54 Waterproof High Quality 12V/24V Linear Actuator Brush 8000n Max Load DC Electric Motor CE RoHS Certified

Customization:	Available
Application:	Agricultural Machinery, Automotive, Furniture, Industrial Automation, Marine, Medical Equipment, Robotics, Solar Tracking System
Certification:	CCC, CE, FCC, ISO, RoHS

Send Inquiry

Product Description

📋 Basic Product Information

Model NO.

XYA9B

Control Options

Remote Control

IP Rating

IP54

Limit Switch

Built-in

Max Thrust

8000N

Standard Stroke

150mm

Type

DC Linear Actuator

Voltage

24VDC-29VDC

Duty Cycle

10% (2 min work / 18 min stop)

Warranty

Two Years

📍 Product Description

Product Selling Points

✔This product is mainly used in medical, physiotherapy and health care equipment, etc.

✔Compact structure, small volume, strong self-locking force, high reliability, and suitable for installation in various narrow Spaces.

✔The tail joints come in various forms to meet the installation requirements of most customers.

✔The appearance design can be installed as an integrated unit with its controller.

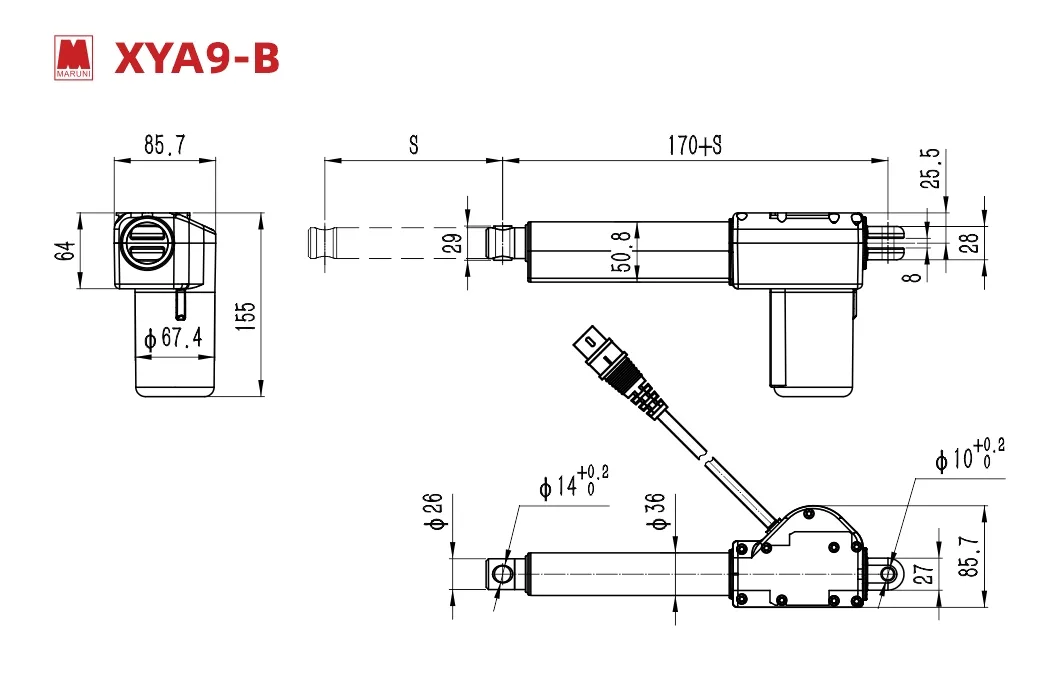

📝 Technical Specifications

Product Model	XYA9B	Overcurrent	5.5A
Reduction Ratio	40:1	Speed	>4.5mm/s
Weight	1.9kg	IP Rating	IP54
Max Thrust	8000N	Material	PA66, Aluminum Alloy
Color	Black / Off-white	Applications	Medical care and rehabilitation

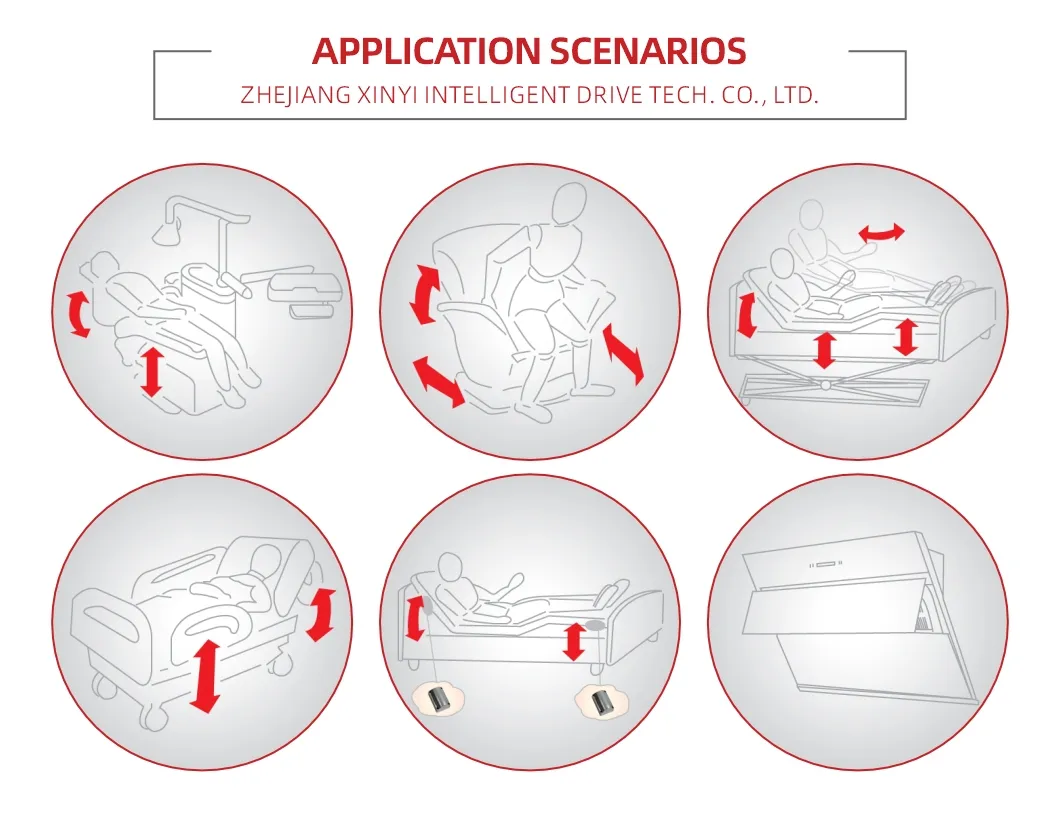

💻 Applications

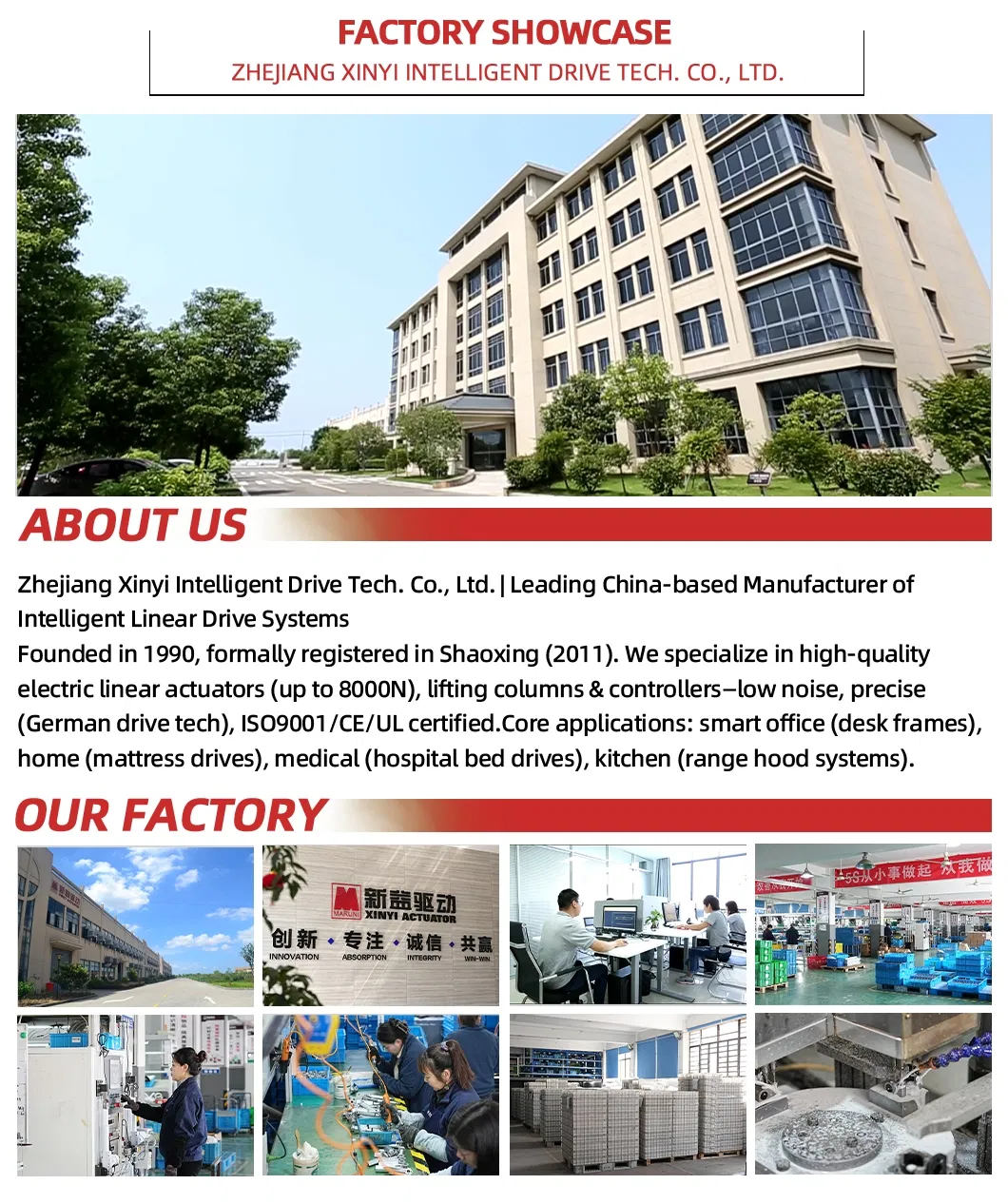

🏭 Manufacturing Strength

📜 Certifications

📦 Packaging & Shipping

Package Size

54.00cm * 37.00cm * 20.00cm

Gross Weight

16.500kg

❓ Frequently Asked Questions

What is a linear actuator and its main applications?

A linear actuator converts motor rotation into linear reciprocating motion. It is widely used in industrial automation, medical equipment, smart home, solar tracking, and agricultural machinery.

What core parameters should be confirmed for model selection?

Key parameters include thrust/load, stroke, speed, voltage, and protection grade (IP rating). Also consider installation size and working frequency.

Does the product have a self-locking function?

Standard models adopt a worm gear structure with mechanical self-locking, providing stable locking even after a power failure.

How do you guarantee product quality?

We use pure copper motors, quenched metal gearboxes, and high-quality screws. Products undergo 100% factory testing and are certified with CE, RoHS, and ISO9001.

What is the expected service life of the actuator?

The service life is typically 5,000-10,000 working hours under standard conditions, depending on the load, frequency, and environment.

Do you support OEM or non-standard customization?

Yes, OEM & ODM are supported. We can customize parameters, brackets, materials, encoders, limit switches, and synchronous control systems.
