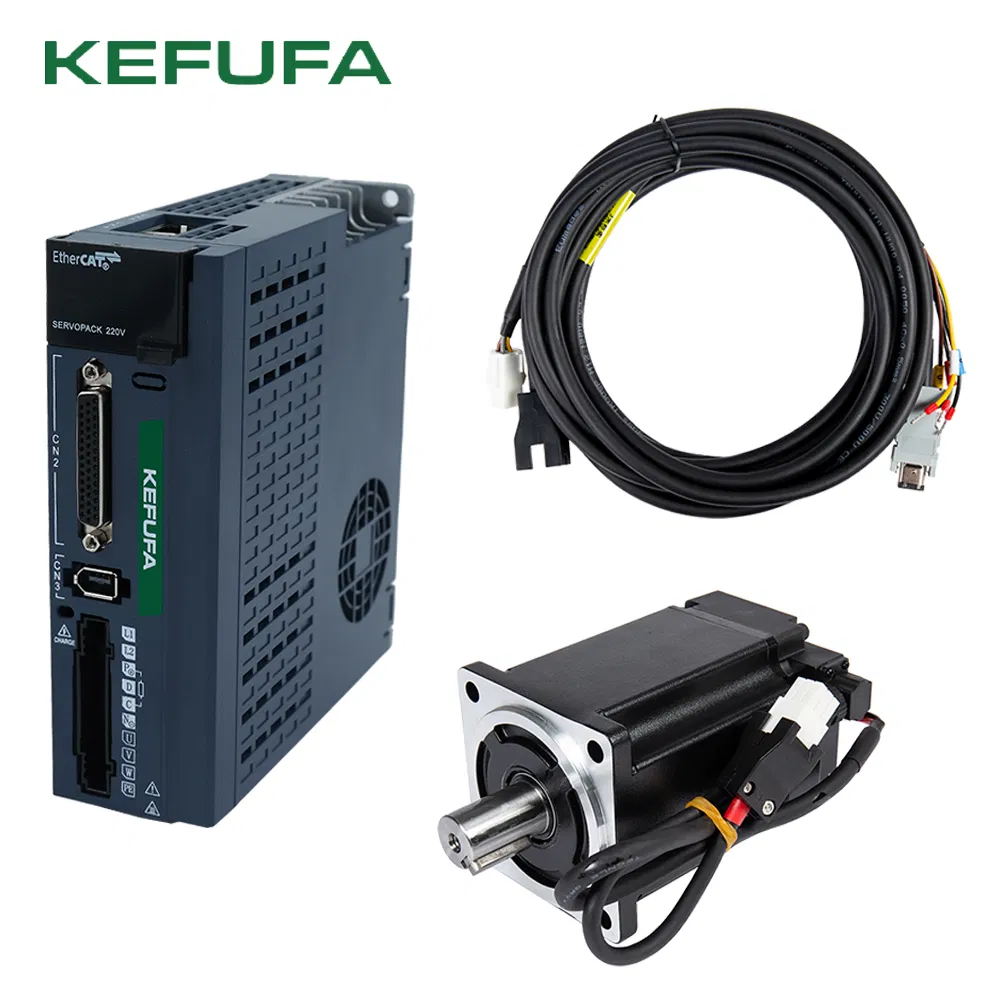

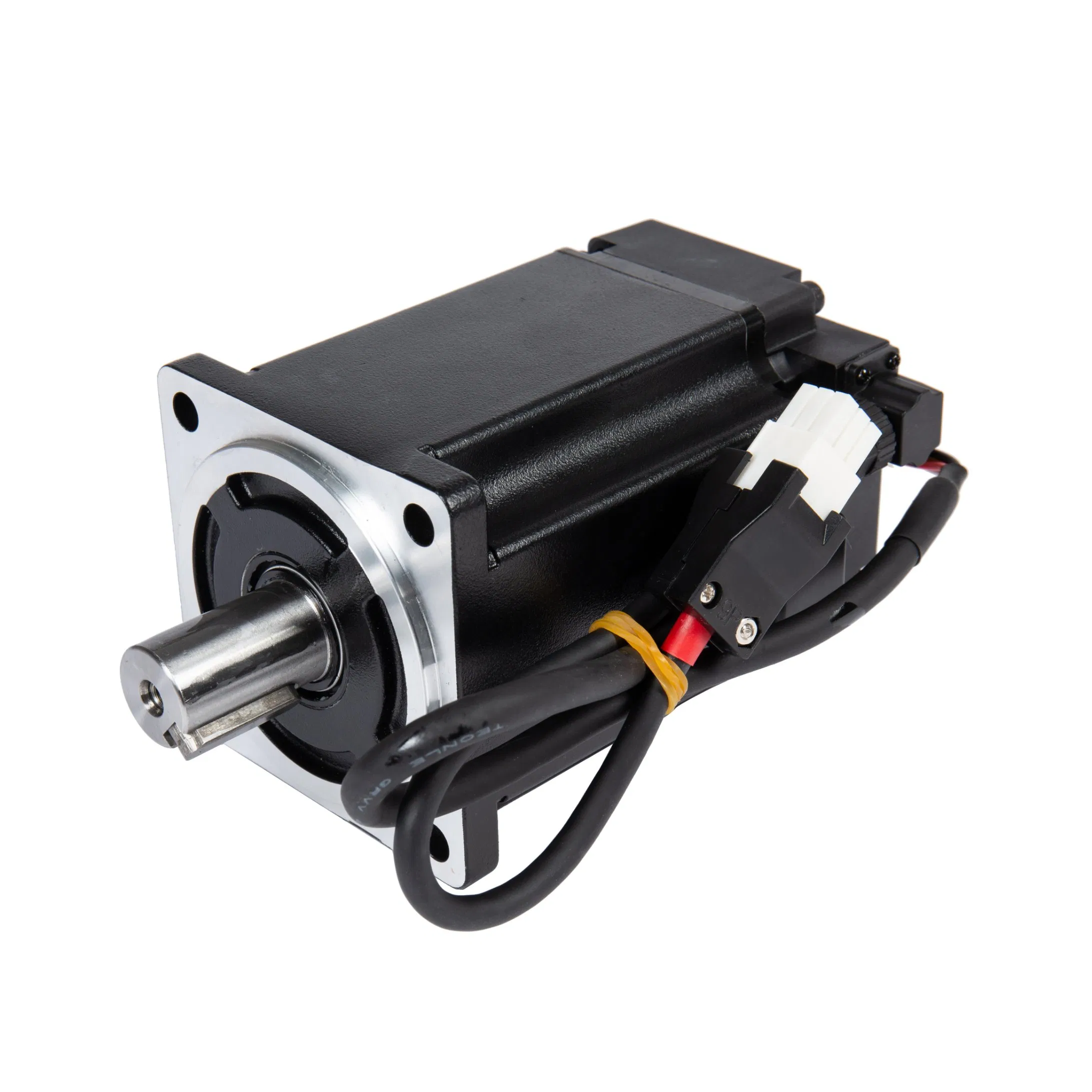

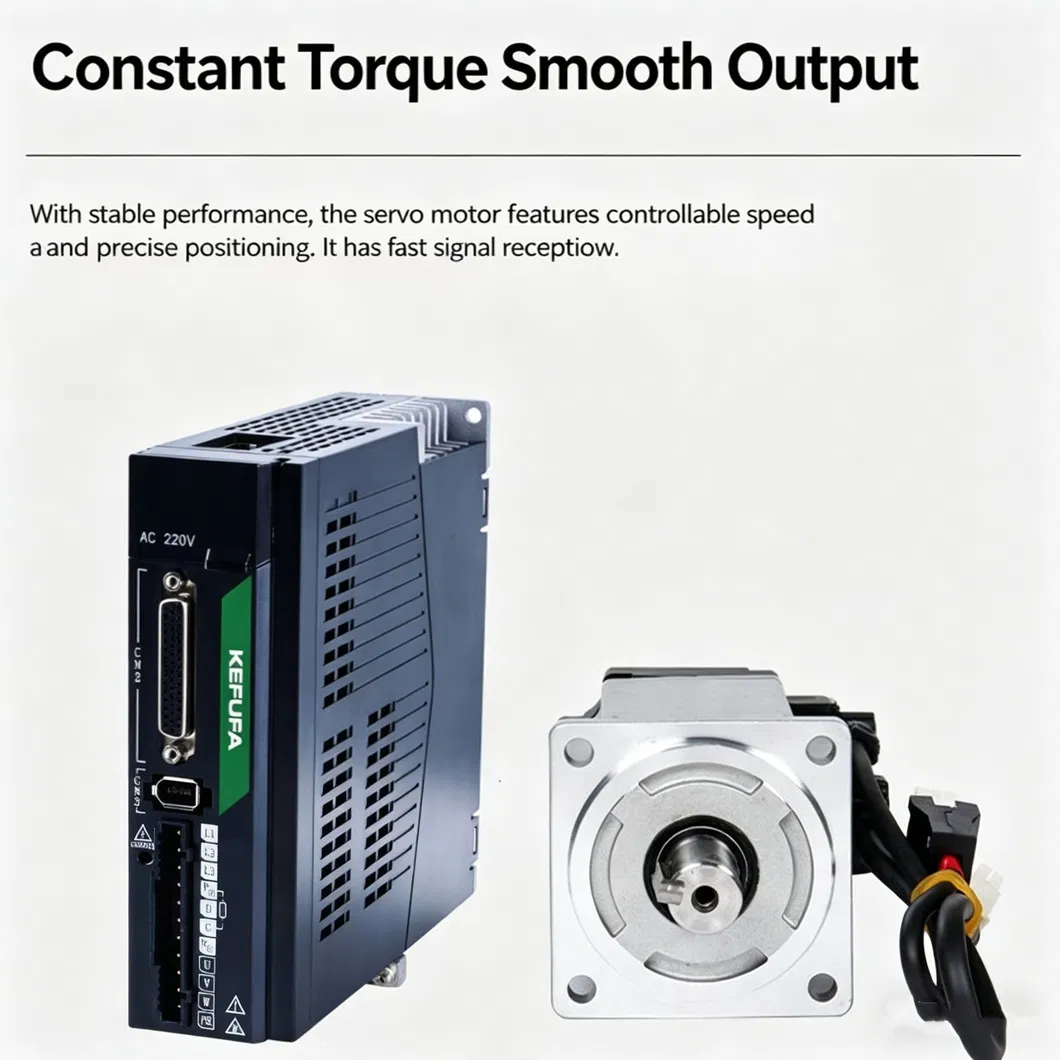

The K100 Series 1000W Servo Motor is a high-performance EtherCAT servo system designed for small-to-medium power automation applications. Combining industrial-grade reliability, exceptional precision, and cost-effectiveness, it delivers stable and efficient motion control for diverse industrial scenarios. Ideal for users seeking high-quality servo solutions, this motor stands out as a top choice for modern automation upgrades.
High Precision & Accuracy
Equipped with a 17-bit multi-turn absolute encoder, the motor ensures ultra-high positioning accuracy and reliable position memory, eliminating the need for homing after power-off. With a speed loop frequency response of 2.0kHz and a powerful 800MHz main control chip.
EtherCAT Communication
Features EtherCAT bus communication with a minimal cycle time of 125μs and a synchronization error as low as 15ns, enabling seamless multi-axis networking and coordinated control.
Stable & Durable Performance
Built with a robust structure and an oil-sealed design, the motor boasts an IP65 protection rating, effectively resisting dust intrusion and water splashes. It supports multi-stage notch filter settings to suppress mechanical resonance.
Powerful & Efficient

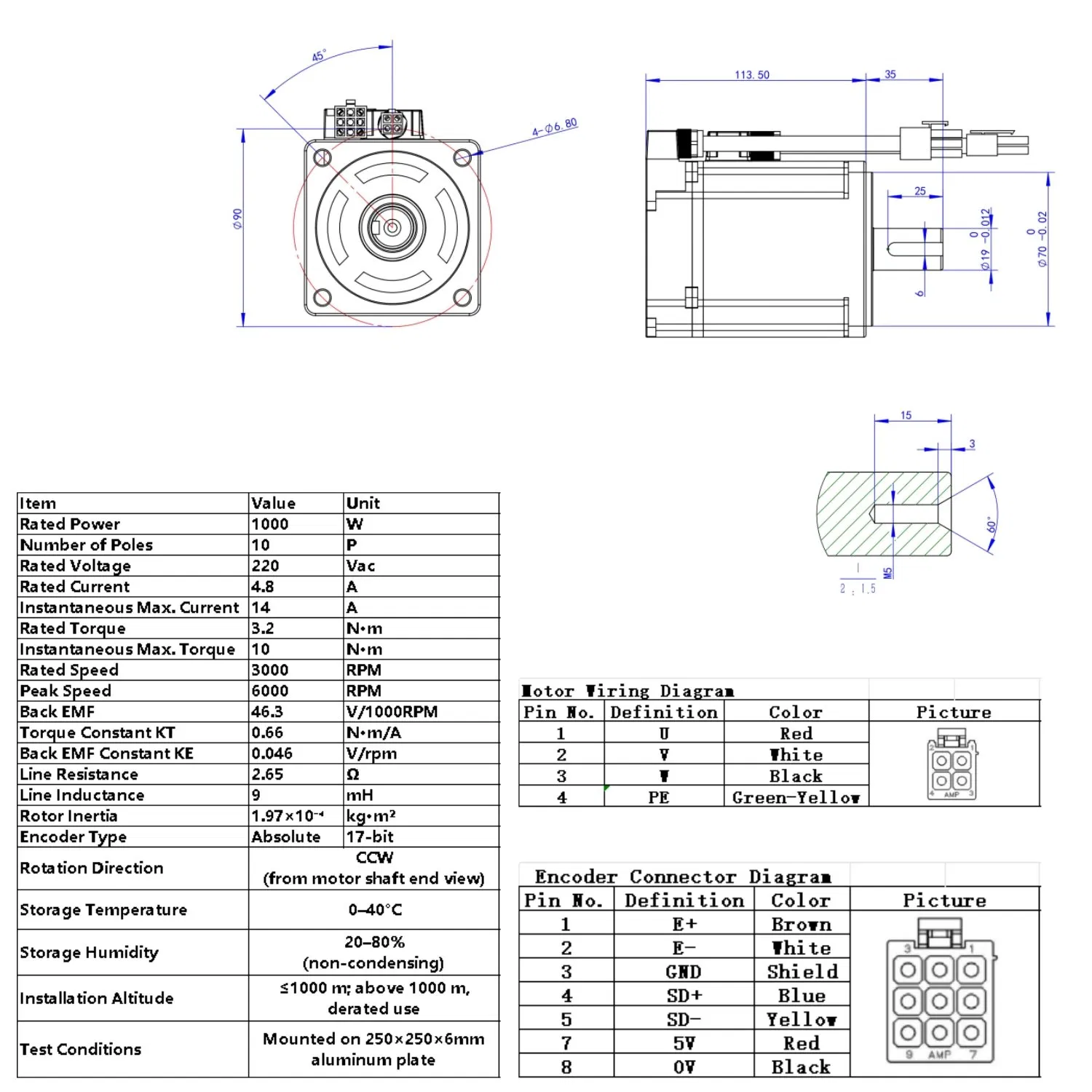

Rated at 1000W power, 3.2N·m rated torque, and 3000rpm rated speed, the motor delivers strong and consistent power output. Compatible with AC220V single/three-phase voltage input.
User-Friendly Operation
Comes with built-in filtering and vibration suppression functions, as well as one-click automatic tuning for quick configuration. Optional customizable Brake and 23bit multi-turn absolute encoder.
❓ Frequently Asked Questions
What communication protocol does this servo system use?
The system utilizes EtherCAT bus communication, supporting a minimal cycle time of 125μs and high-precision synchronization (15ns).
Does the motor require homing after a power-off?
No, the motor is equipped with a 17-bit multi-turn absolute encoder that provides position memory, eliminating the need for homing operations.
Is the motor suitable for harsh industrial environments?
Yes, the motor features an IP65 protection rating and an oil-sealed design, making it resistant to dust and water splashes.
What is the maximum speed of the K100 Series 1000W motor?
The motor has a rated speed of 3000rpm and can reach an instantaneous peak speed of 6000rpm.
How does the system handle mechanical resonance?
It includes multi-stage notch filter settings specifically designed to suppress mechanical resonance and ensure smooth operation.
Is there an automatic tuning feature available?
Yes, the system supports one-click automatic tuning, allowing users to configure parameters quickly and efficiently.
