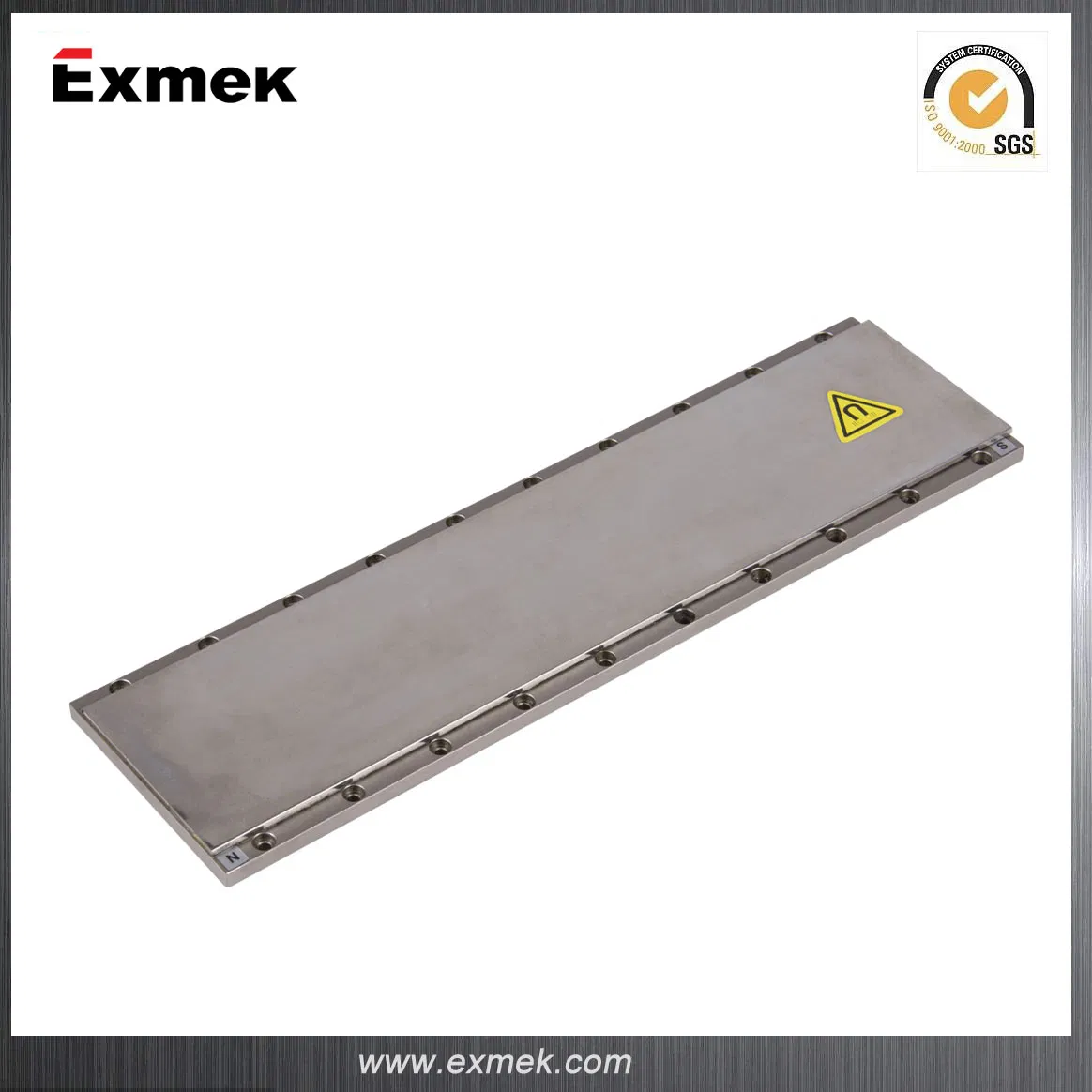

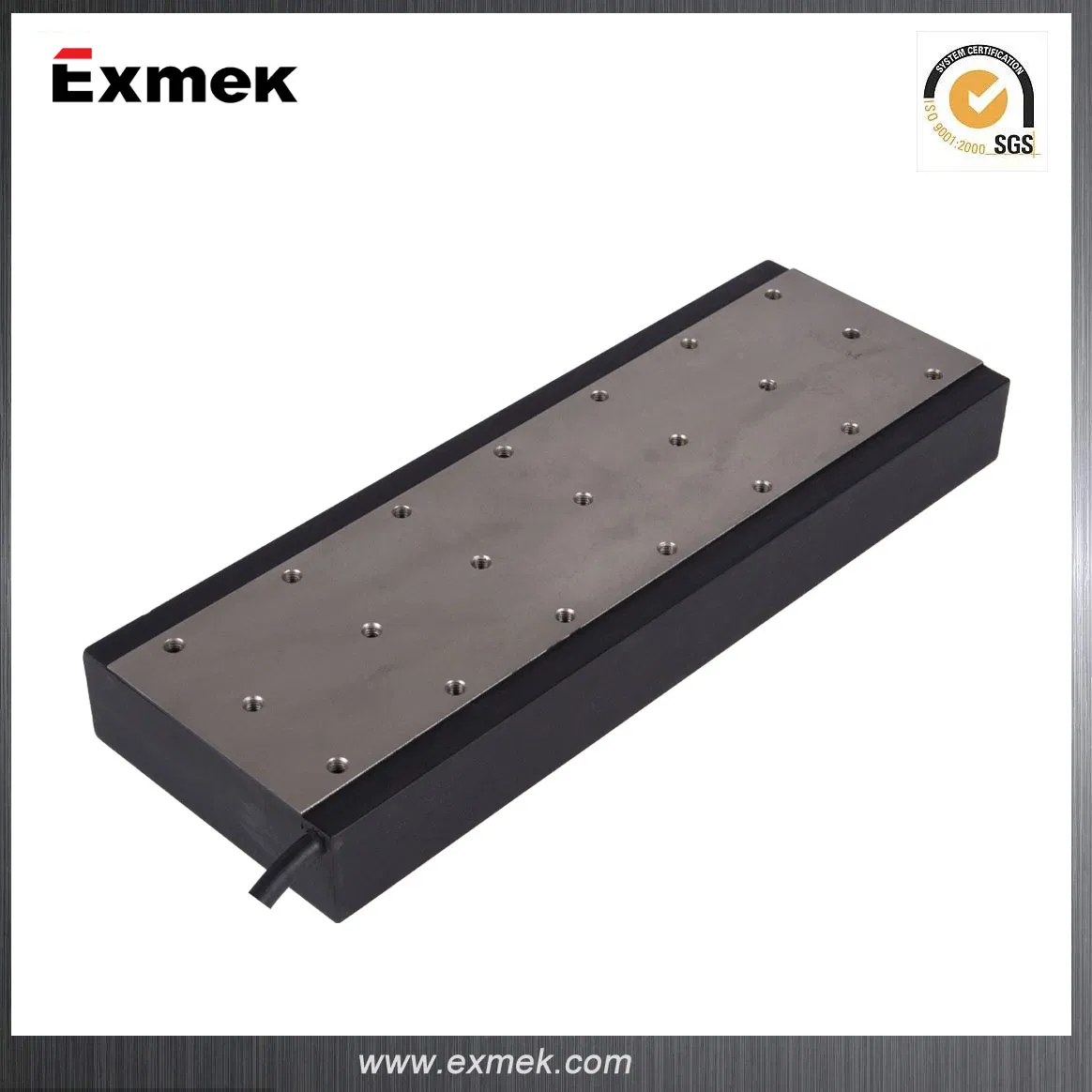

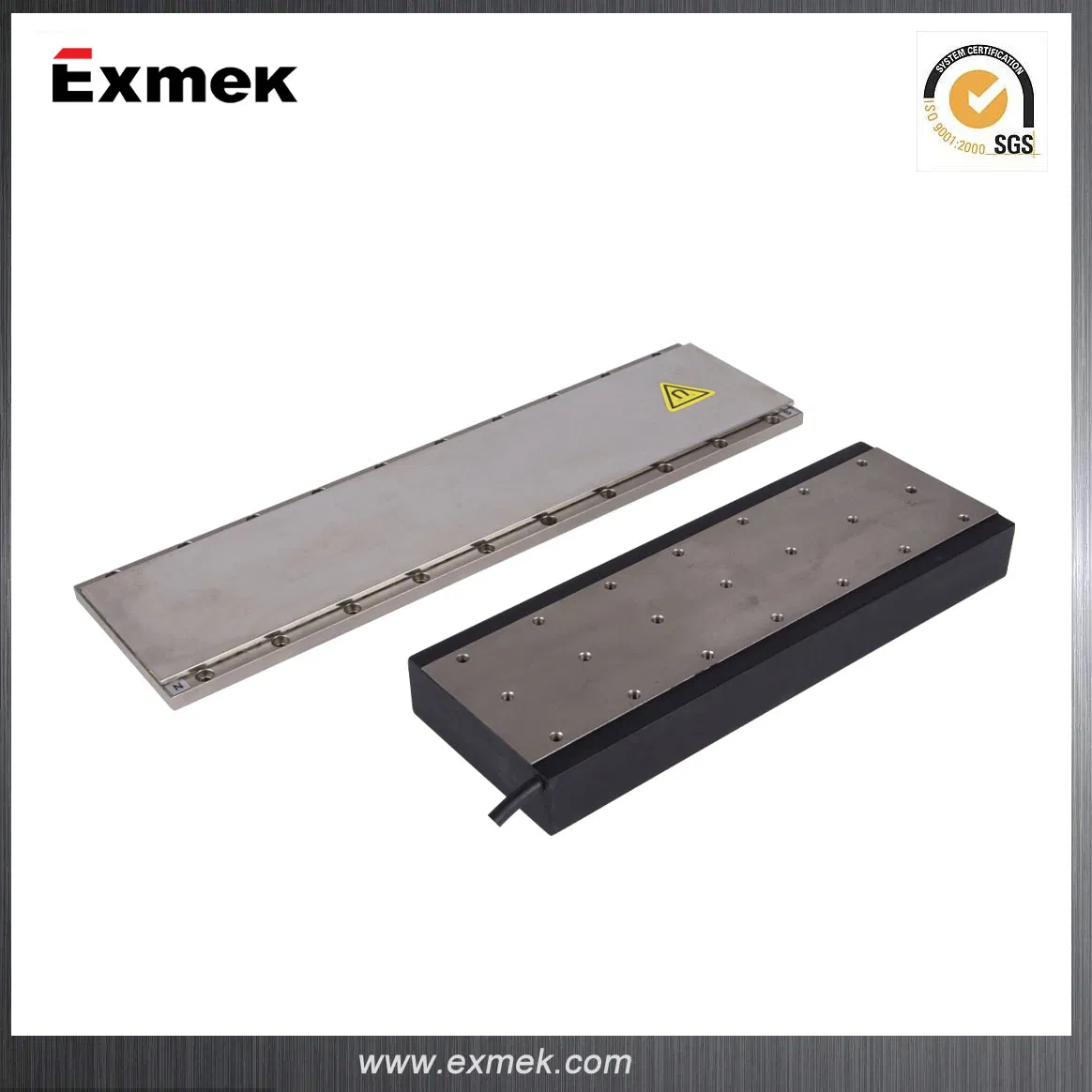

Linear Motor

Customization:	Available
Application:	Industrial, Automobile
Operating Speed:	Adjust Speed

Basic Information

Model NO.

LN XXX SXXX MXXX

Excitation Mode

No

Function

Driving

Casing Protection

Closed Type

Number of Poles

No

Certification

ISO9001

Transport Package

Carton and Wood Pallet

Specification

CE, RoHS

Origin

Jiangsu

HS Code

8501310000

Production Capacity

500,000PCS/Year

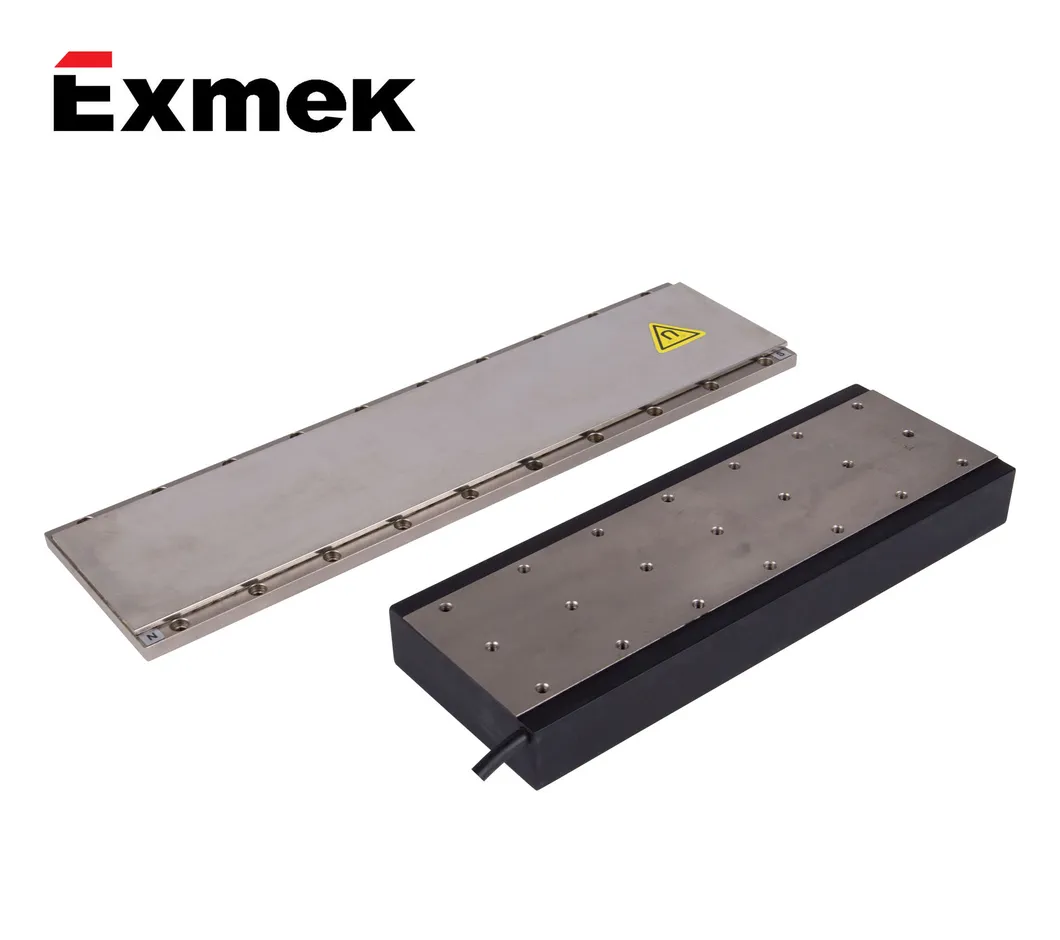

Product Overview

Iron core technology
Low cogging
Integrated with hall sensor
High force, reliable and long life

Model Nomenclature

Technical Specifications

Specification	Unit	LN56S130MXXX	LN67S076MXXX	LN92S068MXXX	LN92S184MXXX	LN92S260MXXX
Peak Force	N	388	150	388	1080	1555
Continuous Force	N	129	50	129	360	518
Peak Current	A	9	4.2	9	15	15
Rated Current	A	3	1.4	3	5	5
Force Constant	N/Arms	43	35.7	43	72	103.6
Back-EMF Constant	Vpk/m/s	35.1	27.5	35.1	58.8	84.6
Max.Speed	m/s	4	4	4	4	4
Inductance(L-L)	mH	10.2	18	10.2	20.8	20.4
Resistance(L-L)	Ohms	2.2	10	2.1	2.6	4.3
Pole Distance	mm	32	18	32	36	32
Stator Weight	g	986	670	1228	2110	3945
Magnet Weight	g/mm	3.39	4.32	6.7	6.66	6.79

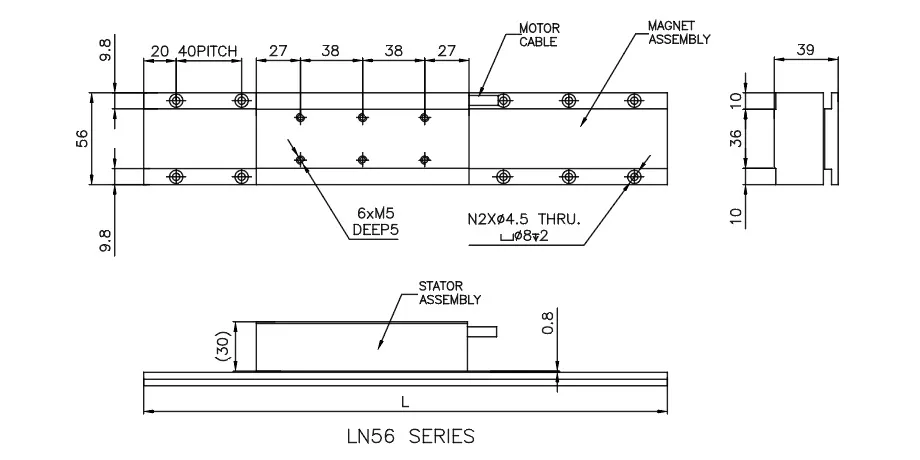

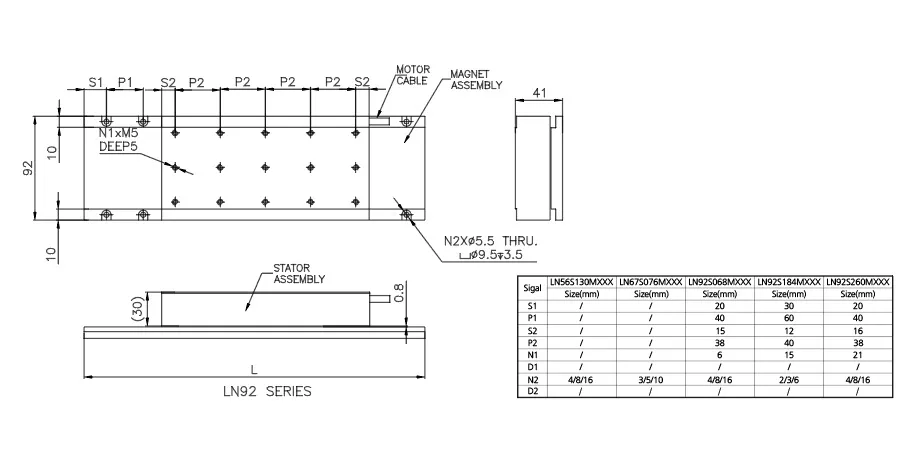

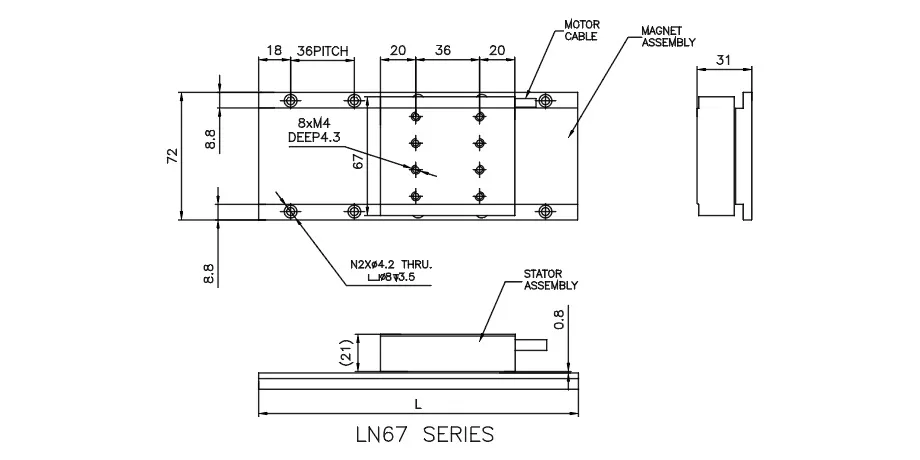

Mechanical Drawings

Customization & Capabilities

Various Customization Optional on mechanical and electric performances!

Professional Advantages

Modern Motor Design and Manufacture
Part Set Design and Manufacture
Magnetic Design Software Utilization
In-house Molding capabilities
Global shipping and on-time delivery
Talented engineering team for innovative solutions
One stop supplier for complete sub-systems

Industry Applications

Our linear motors are widely used across various sectors:

Swimming pools, automotive, semiconductor, chemical & medical, industrial automation, power tools, instruments, measuring equipment, office automation, and various OEM applications.

Frequently Asked Questions

What are the primary benefits of iron core technology in these motors?

Iron core technology provides high force density, excellent reliability, and a long operational life, making them ideal for heavy-duty industrial driving functions.

Are these linear motors compatible with sensors?

Yes, these motors come integrated with Hall sensors for precise motion control and positioning.

Can the mechanical performance be customized?

Absolutely. We offer various customization options for both mechanical and electrical performances to meet specific application requirements.

What certifications do your products hold?

Our products are fully compliant with ISO 9001, UL, CE, and RoHS standards, ensuring international quality and safety levels.

What is the maximum speed these motors can achieve?

Based on the technical specifications, most models in this series can achieve a maximum speed of 4 m/s.

What industries typically use these linear motors?

They are commonly used in semiconductor manufacturing, medical equipment, automotive automation, and precision measuring instruments.
