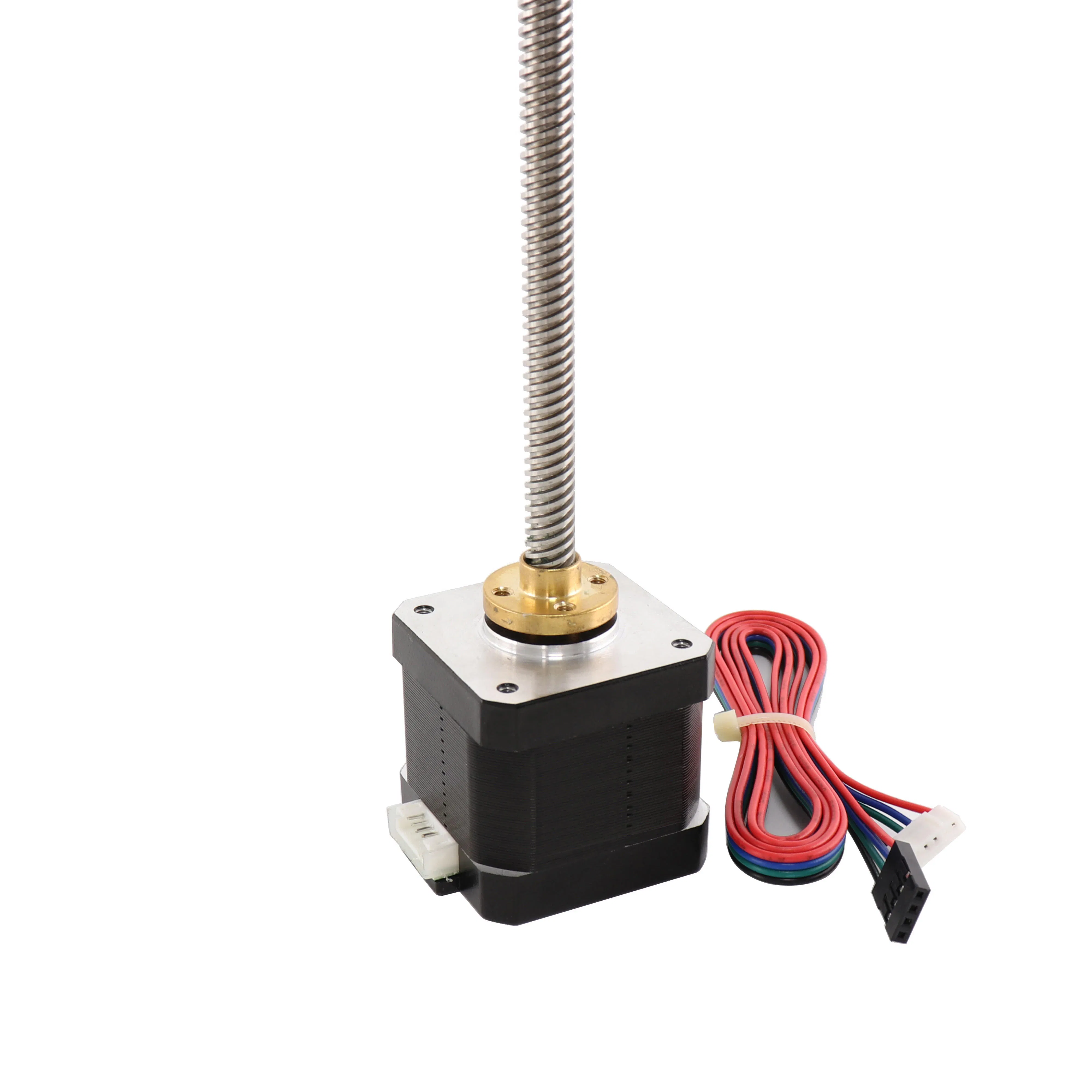

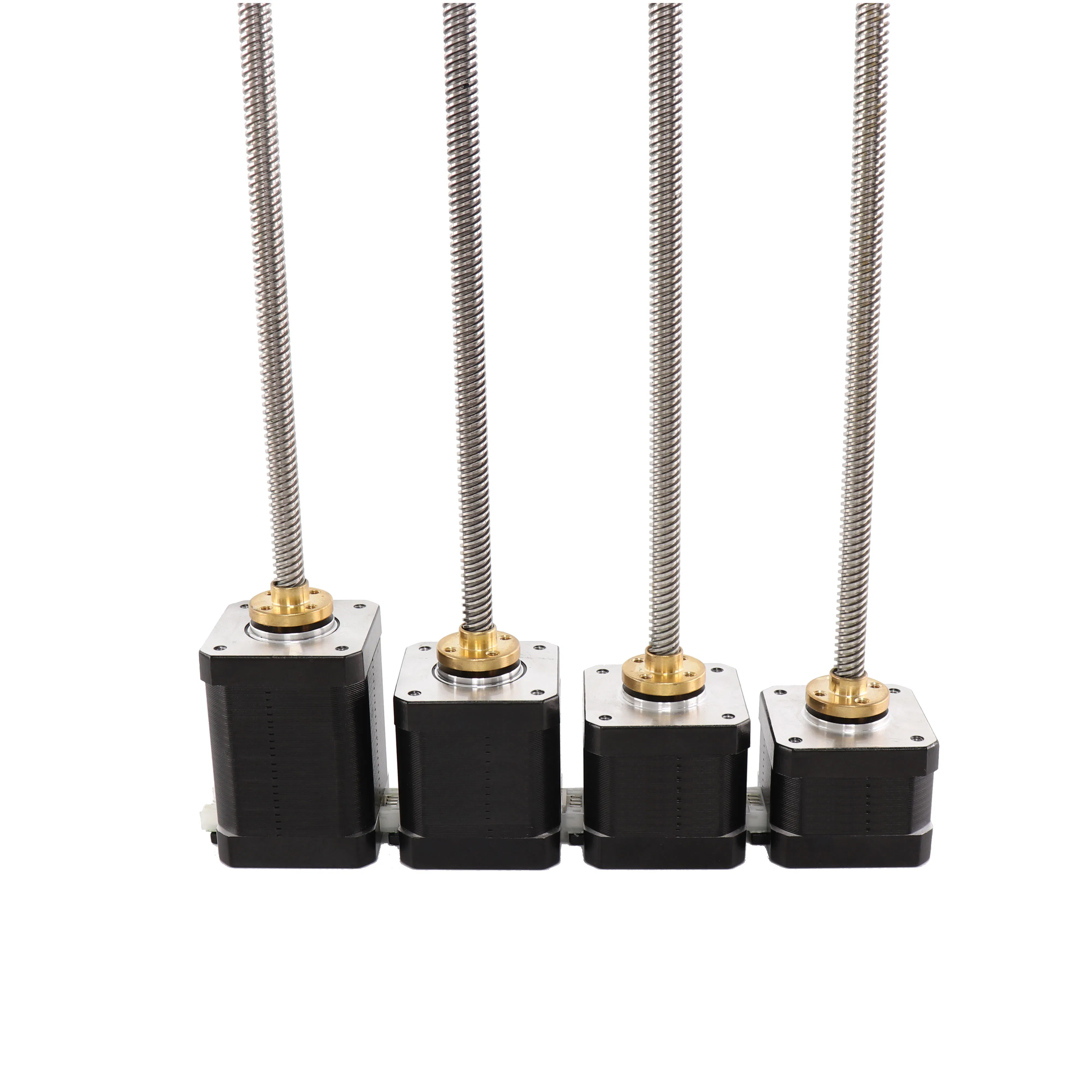

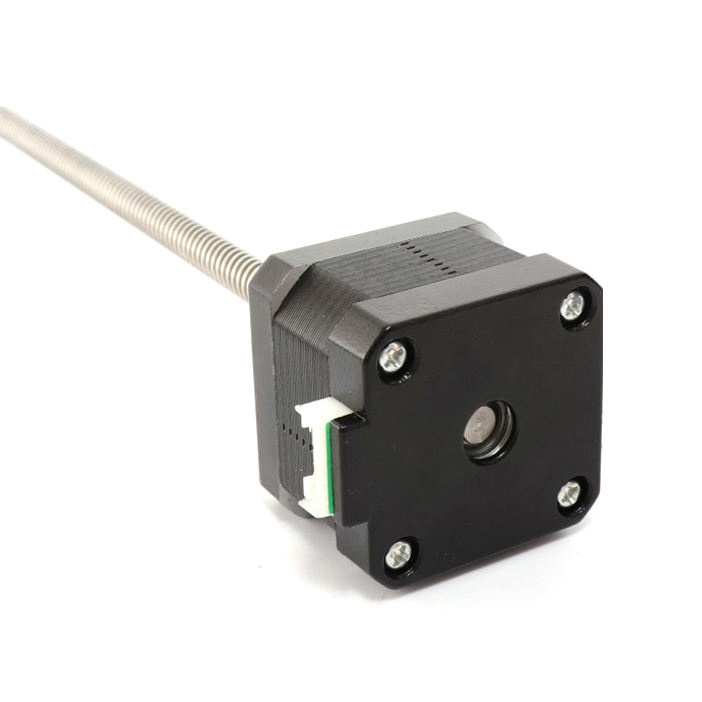

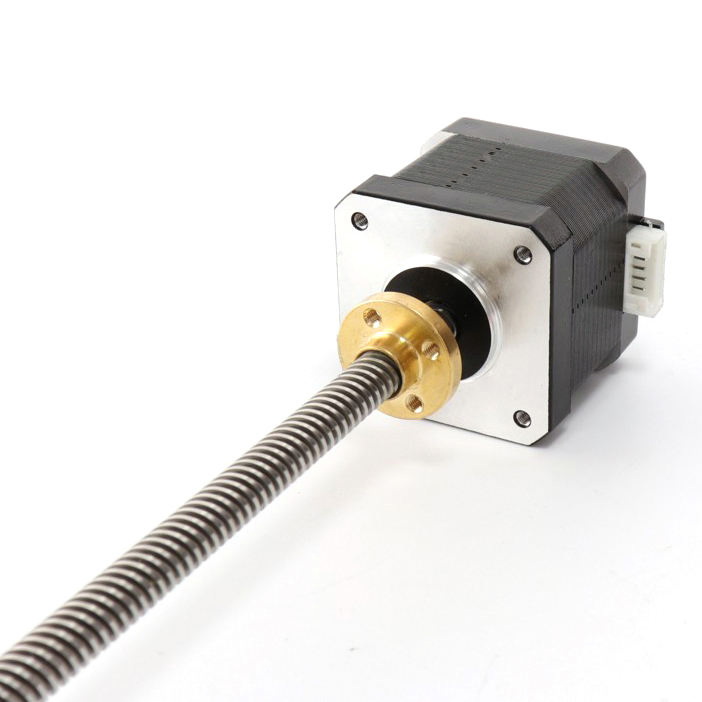

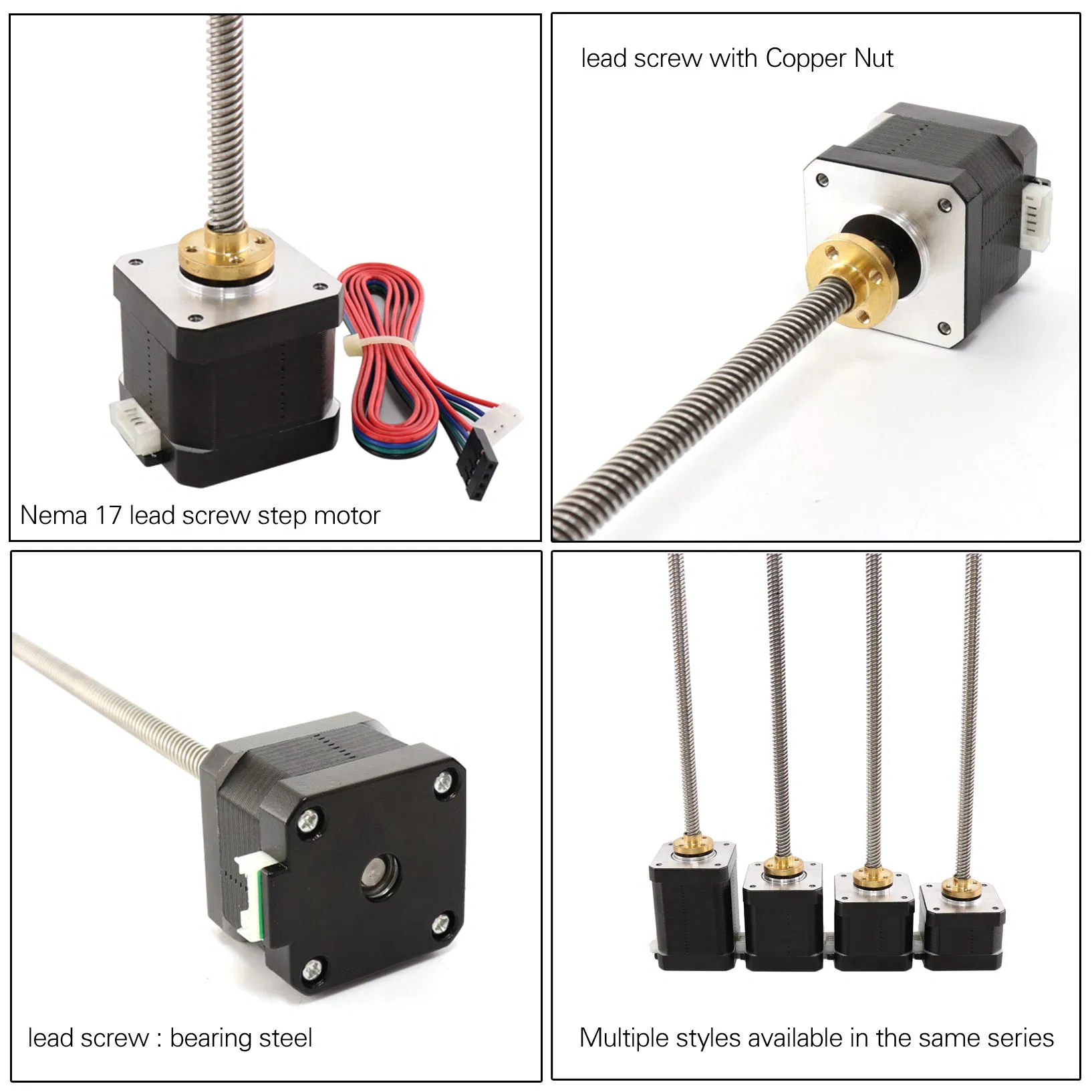

Nema 17 lead screw linear stepper motor with T8*8 lead screw
The screw length is less than 300 mm and the price is the same. The screw length can be customized.

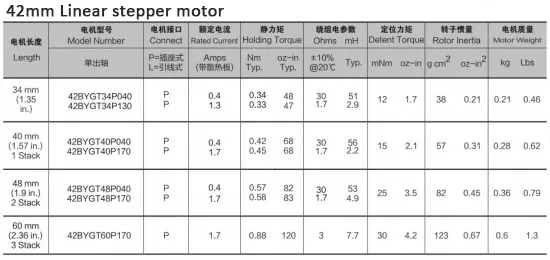

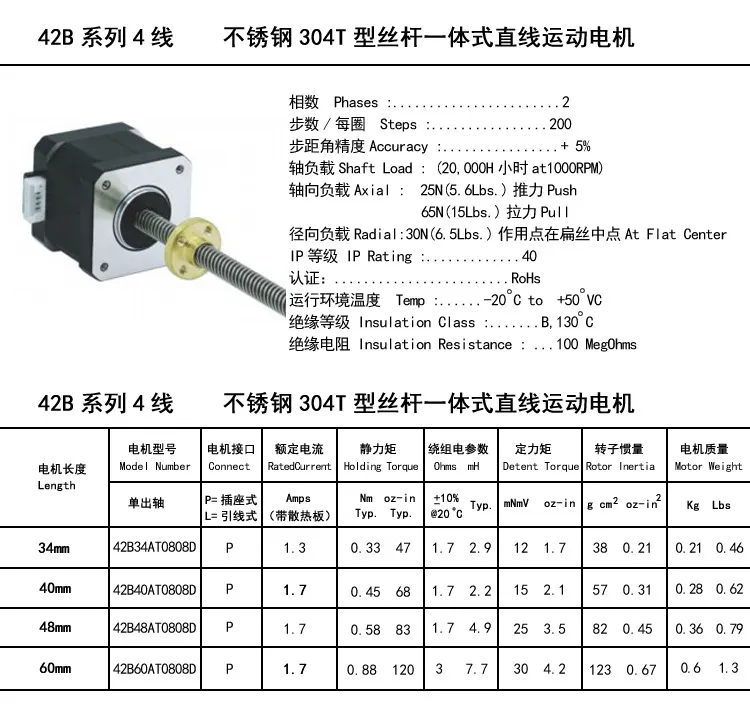

| Phase No. | Voltage (V) | Current (A) | Inductance (mh) | Holding Torque (N.m) | Rotor Inertia | Weight (kg) | Wire No. |
|---|---|---|---|---|---|---|---|
| 2 | 24 | 1.3 | 1.7 | 0.33 | 38 | 0.21 | 4 |
Note: The motor contains magnets, so magnetic inspection fees may be incurred during transportation. Large quantities can be exempt from this.
