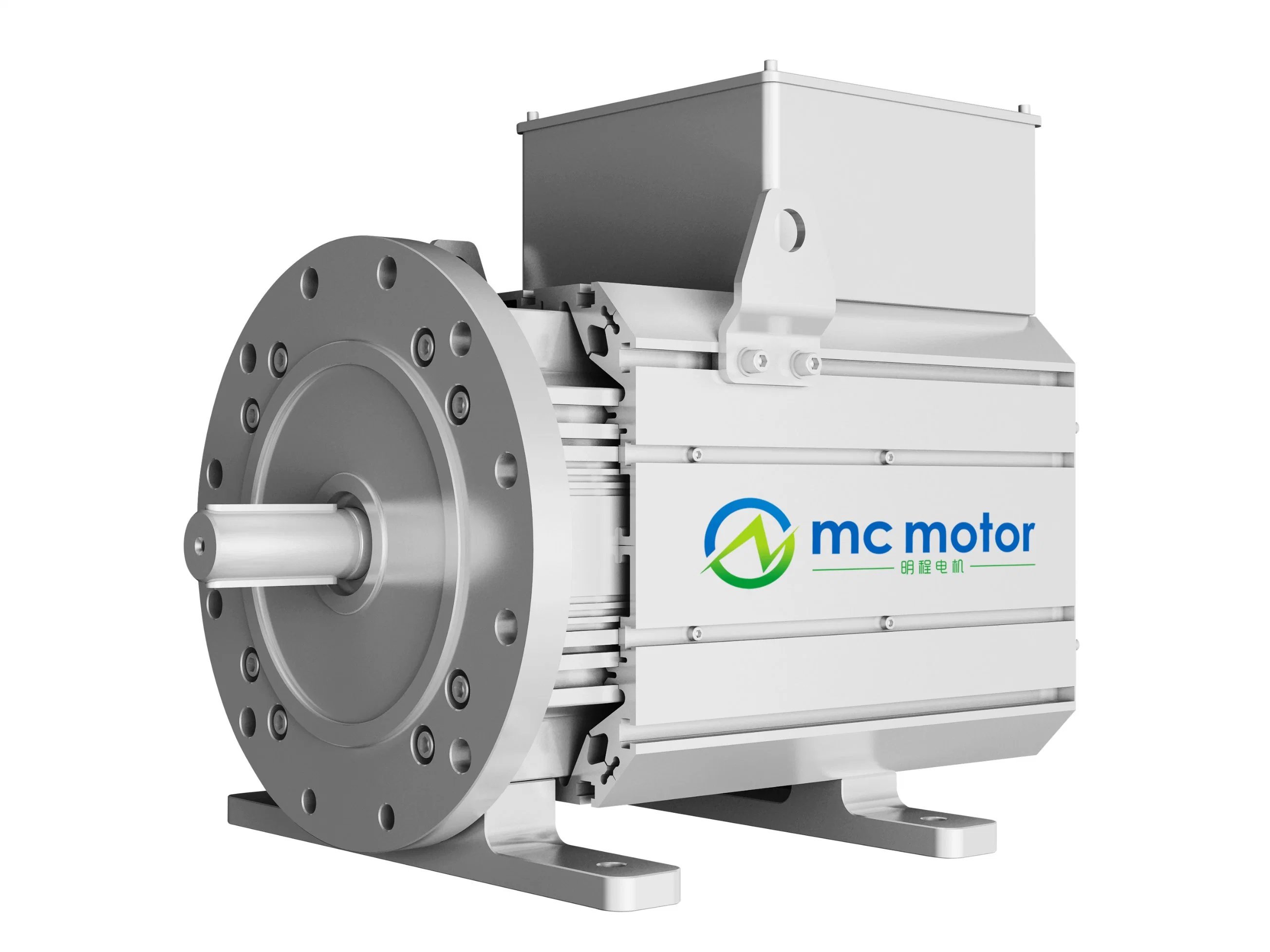

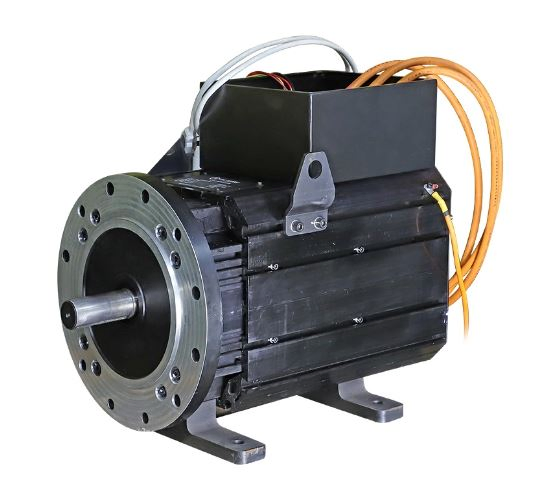

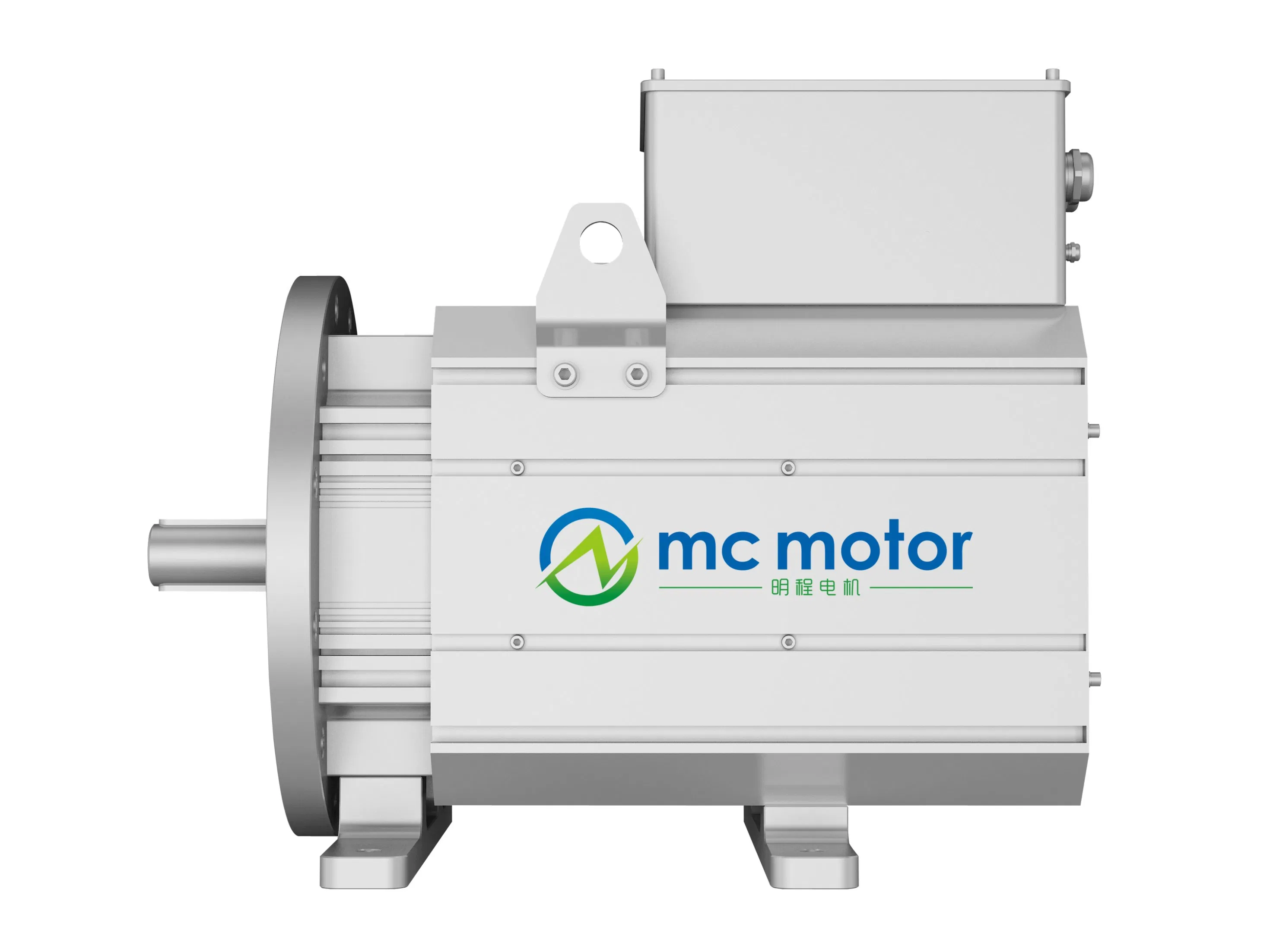

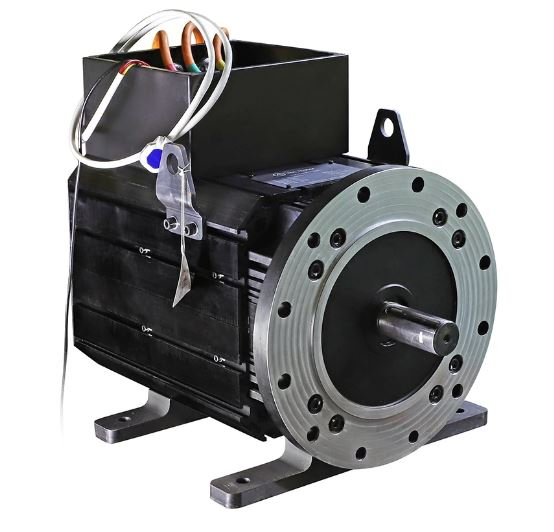

110kw 132kw 7200rpm Synchronous High Speed Permanent Magnetic Electric Motor
110kw 132kw 7200rpm Synchronous High Speed Permanent Magnetic Electric Motor
110kw 132kw 7200rpm Synchronous High Speed Permanent Magnetic Electric Motor
110kw 132kw 7200rpm Synchronous High Speed Permanent Magnetic Electric Motor
110kw 132kw 7200rpm Synchronous High Speed Permanent Magnetic Electric Motor
1 / 5
110kw 132kw 7200rpm Synchronous High Speed Permanent Magnetic Electric Motor
110kw 132kw 7200rpm Synchronous High Speed Permanent Magnetic Electric Motor
110kw 132kw 7200rpm Synchronous High Speed Permanent Magnetic Electric Motor
110kw 132kw 7200rpm Synchronous High Speed Permanent Magnetic Electric Motor
110kw 132kw 7200rpm Synchronous High Speed Permanent Magnetic Electric Motor

110kw 132kw 7200rpm Synchronous High Speed Permanent Magnetic Electric Motor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
SRPM210L8F132
Operation Mode
Electric Motor
Magnetic Structure
Permanent Magnet
Function
Driving
Structure
Rotating Armature Type
Number of Poles
8
Certification
ISO9001, CE, RoHS
Rotating Speed
7000rpm
Power Range
80kw - 160kw
Insulation
H
IP Level
IP54
Usage
Compressor, Blower, Fan, Test Bench
Rated Power
110kw / 132kw
Cooling
Air/Water/Oil Cooling Optional
Origin
China
Production Capacity
100000 Sets
Product Description

Synchronous High Speed PMS Electric Motor (110kw-132kw, 7200rpm)

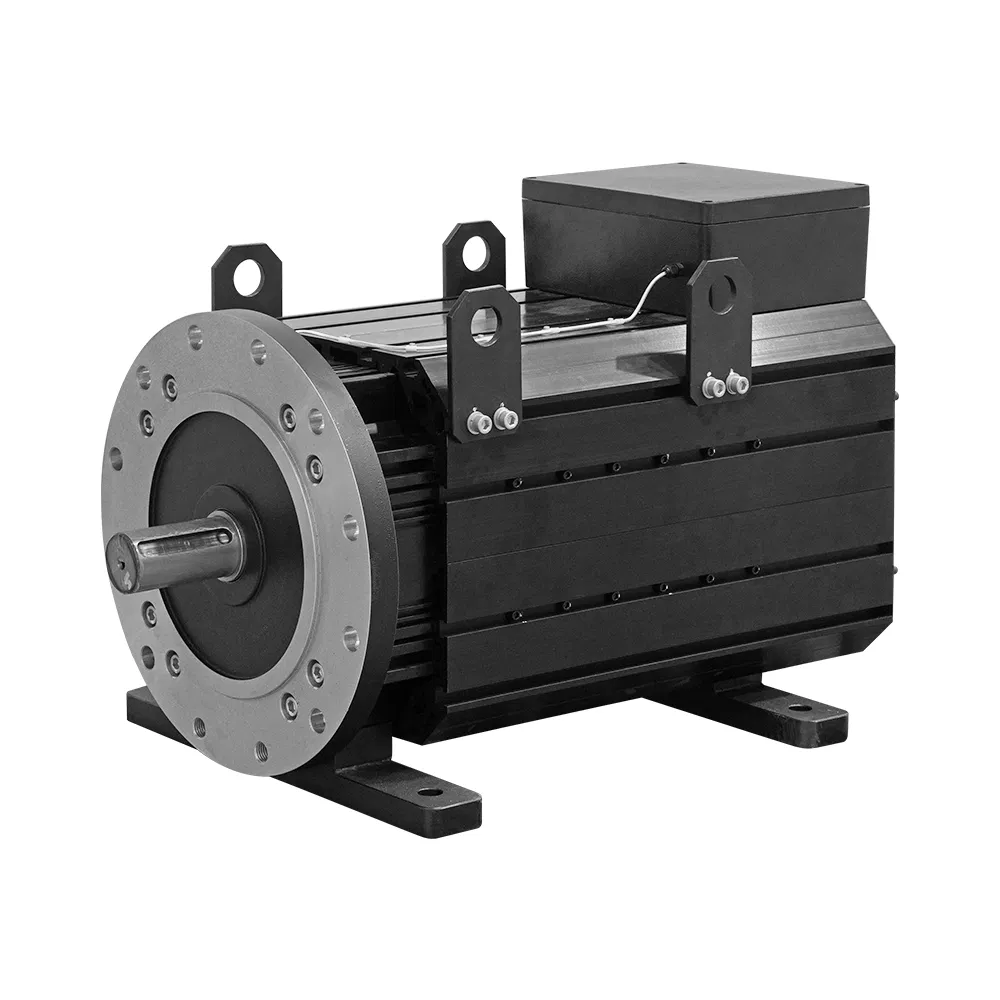

Synchronous High Speed PMS Motor 110kw
High Speed Permanent Magnetic Electric Motor
⚡Suitable for 6000-7000rpm Rated Speed
🛡️Large margin of security
📉Low power & low torque
💎High efficiency: 96.5%
📦Small size & Compact design
🔇Low noise & low vibration
❄️Autonomous patented cooling structure
Technical Specifications
Model Type
SRPM290L8F132
Voltage
380-400V AC
Isolation
H / F
Duty Type
S1 (Continuous)
Rated Torque
180N.m
Net Weight
180KG

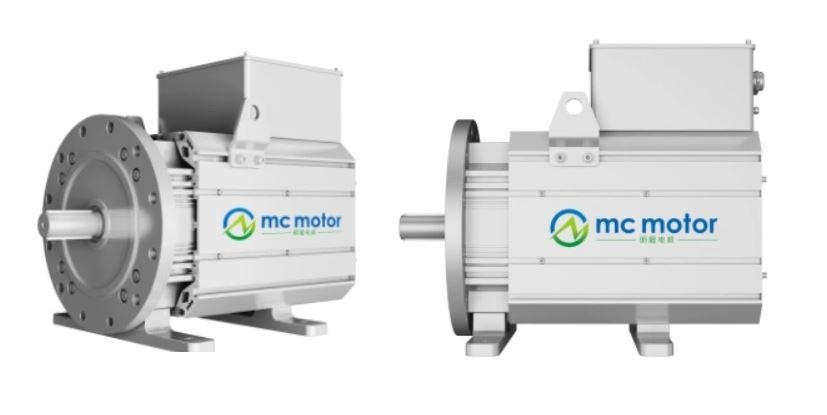

Detailed Product View

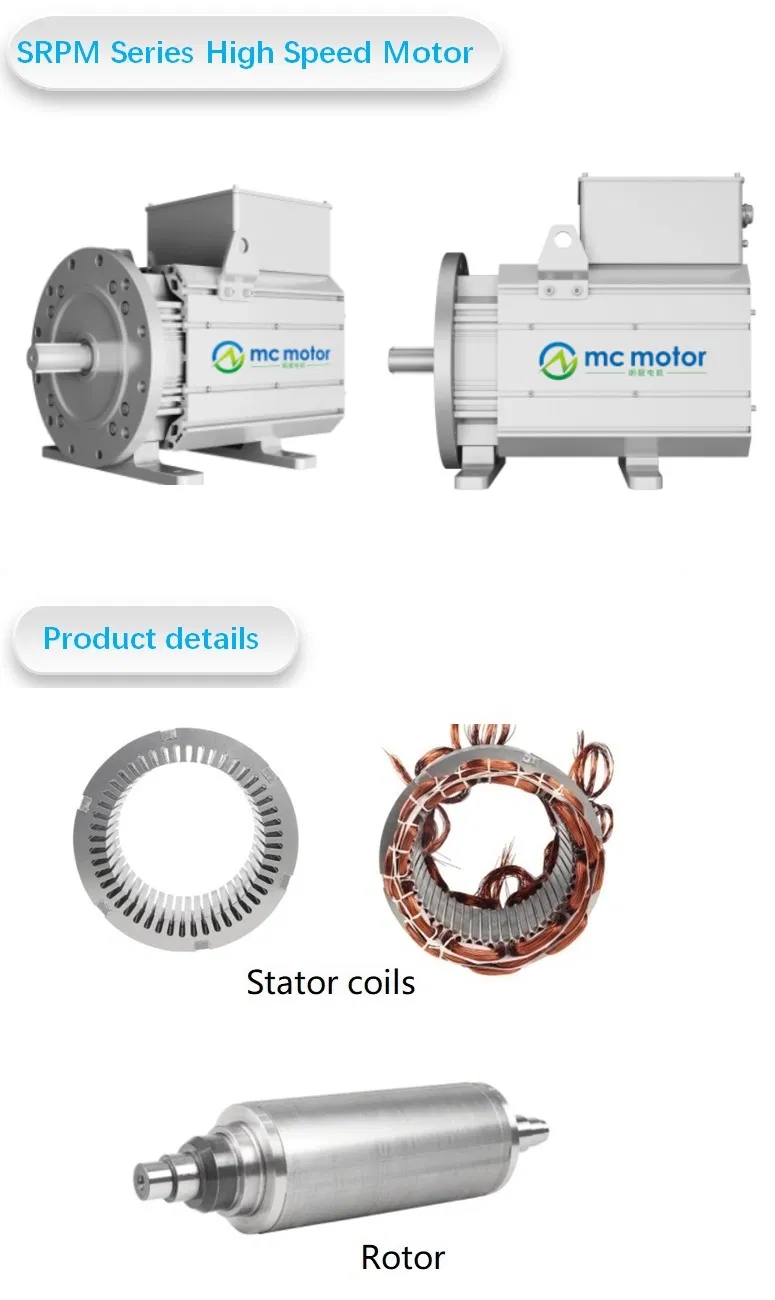

Motor Dimension Detail

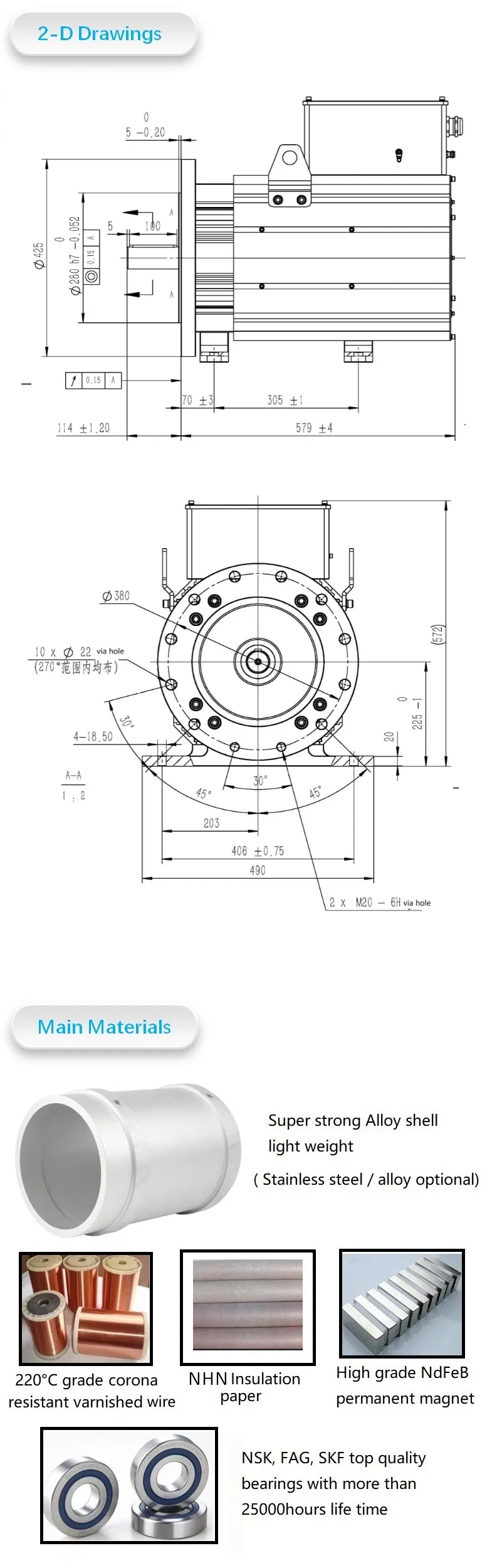

Motor Component View
Manufacturing Excellence

This high-tech manufacturing enterprise focuses on special permanent magnet motors. We lead high-speed motor technology globally with strong R&D capabilities and more than 100 intellectual property patents. Products are applied to high-speed compressors, fans, turbines, pumps, superchargers, and new energy fuel cell systems.

All production processes strictly abide by ISO9001-2015 standards. We provide customized services according to specific application scenarios to help customers save costs and improve efficiency.

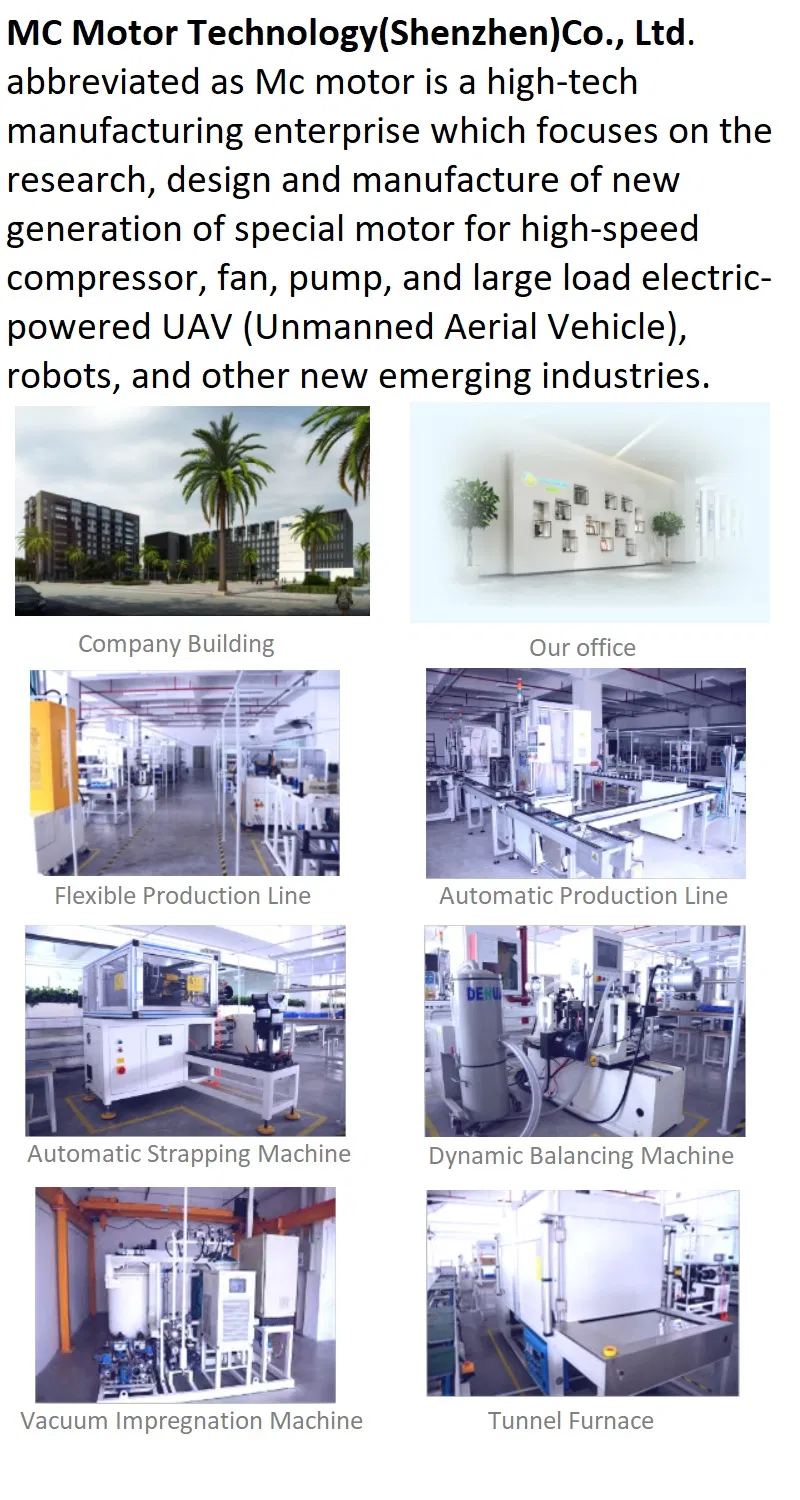

Factory Overview

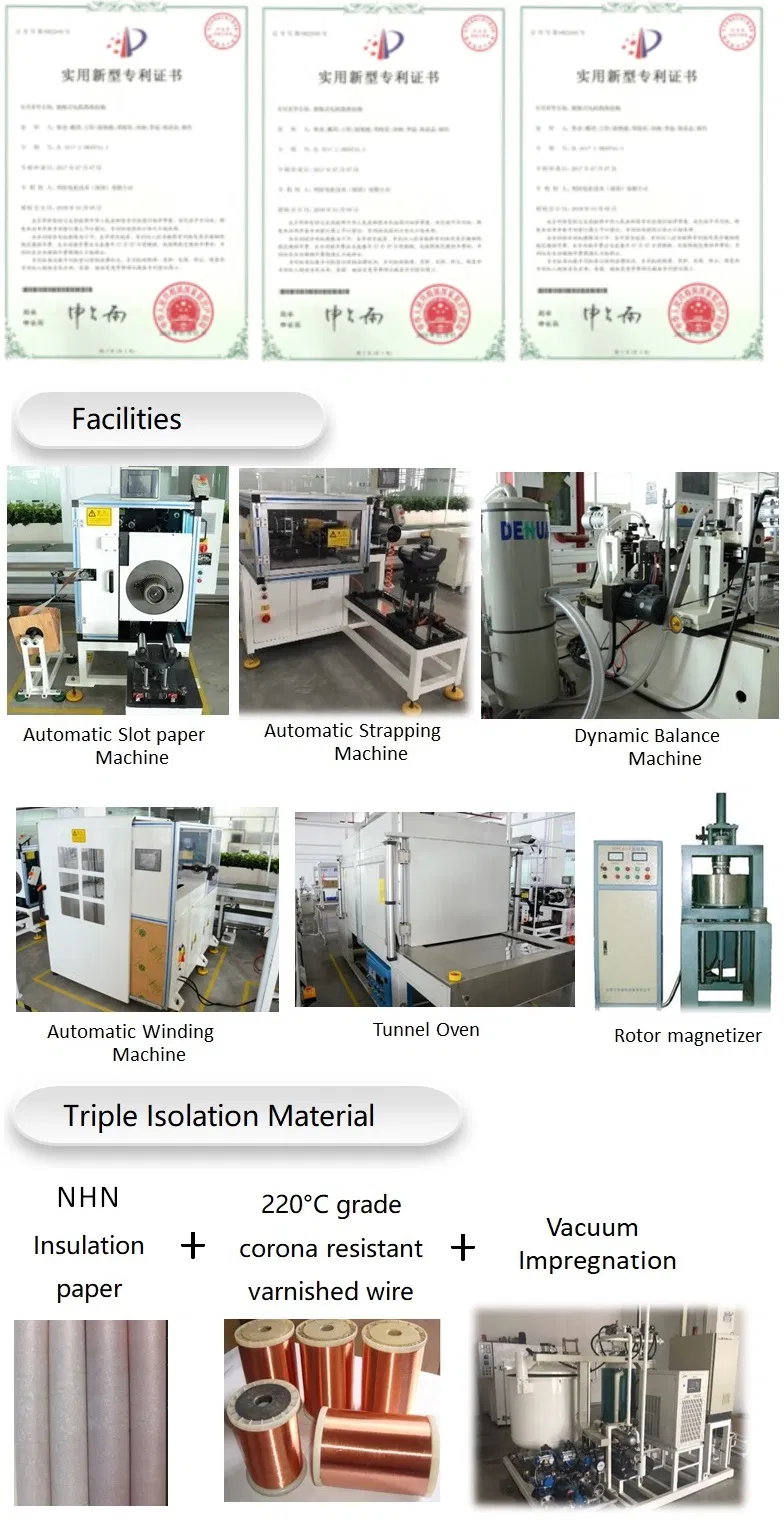

R&D Department
Customization Range
Power: 5KW - 2MW
Speed: 2500rpm - 100,000rpm
Voltage: 110V - 690V
Custom Motor Solution 1
Custom Motor Solution 2
Custom Motor Solution 3
More Motor Models
Motor Type Voltage (V AC) Rated Power (kW) Rated Torque (N.m) Rated Speed (rpm) Efficiency IP Level Cooling Method
SPRM (General)3805.5-11010-42010000-8000095.00%IP54/IP67Water
SPRM (General)3804-3735-46315000-2400095.00%IP54/IP67Air
SRPM112H4F7.5C3807.53.42100095%IP54Air
SRPM130H4F373803719.631800095%IP54Air
SRPM168H2F75C3807521.073400095%IP54Air
SRPM205H4XO16038016076.42000096.5%IP67Oil
Frequently Asked Questions
1. Can a permanent magnet synchronous motor be used as a generator?
Yes. It can work as a generator due to its working theory. If it runs CW as a motor, it can run CCW as a generator. Note that you will need a suitable motor controller with AFE function.
2. Why can't I directly use three-phase AC supply to start it?
Because the rotor has significant inertia and the magnetic fields spin so fast that a static rotor cannot synchronize with the magnetic field immediately.
3. Are there special technical requests for the VFD driver?
Yes, it requires a vector control VFD with specialized software, such as Siemens 6SE70, ABB ACS800, or our matching MH300 series VFD.
4. How is the permanent magnet rotor protected from failure?
Each rotor undergoes corrosion resistance, consistency, and high-temperature demagnetization tests. The demagnetization index is kept within 2%.
5. Where are these motors typically used?
These motors are primarily used in variable frequency speed situations such as high-speed compressors, fans, and specialized pumps.
6. What cooling options are available?
We offer Air cooling, Water (glycol) cooling, and Oil cooling options based on your specific application and power requirements.
