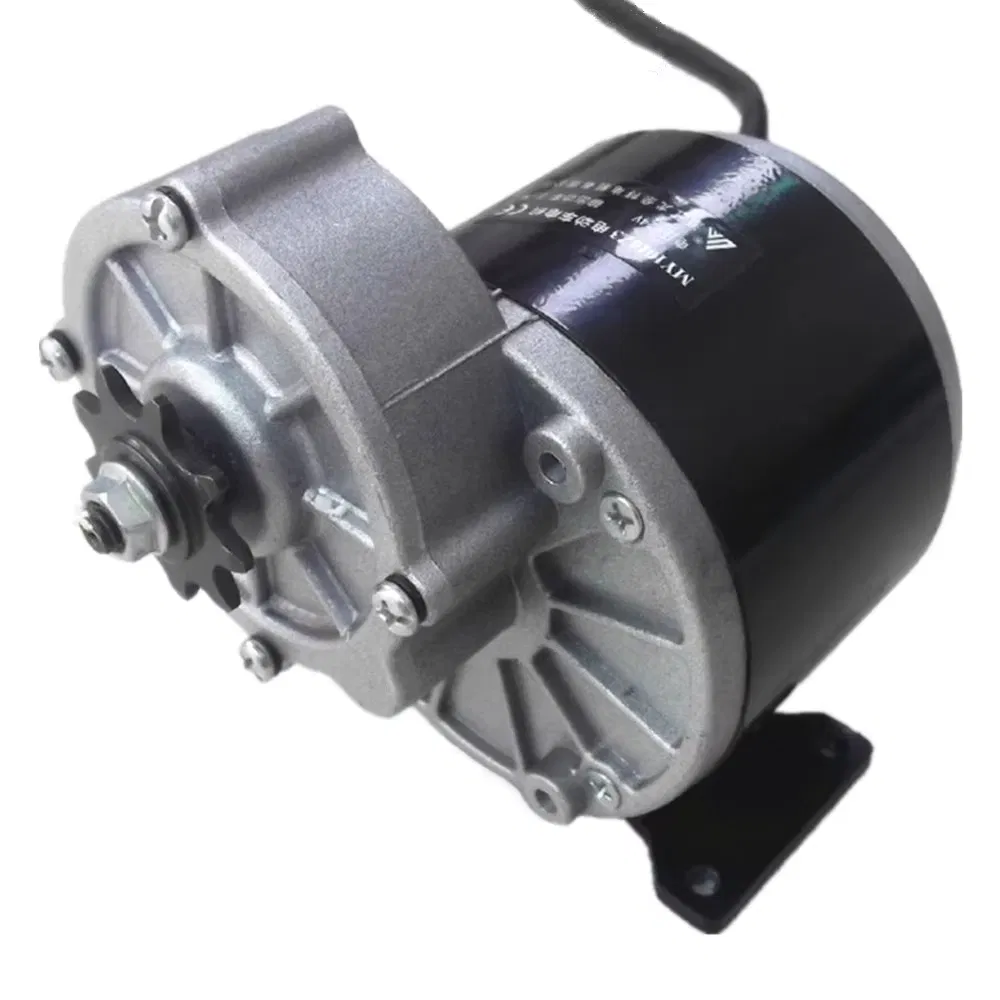

350W 24V 36V DC Gear Motor for Wheelchair Electric Tricycle Vehicle Motorcycle My1016z
350W 24V 36V DC Gear Motor for Wheelchair Electric Tricycle Vehicle Motorcycle My1016z
350W 24V 36V DC Gear Motor for Wheelchair Electric Tricycle Vehicle Motorcycle My1016z
350W 24V 36V DC Gear Motor for Wheelchair Electric Tricycle Vehicle Motorcycle My1016z
350W 24V 36V DC Gear Motor for Wheelchair Electric Tricycle Vehicle Motorcycle My1016z
1 / 5
350W 24V 36V DC Gear Motor for Wheelchair Electric Tricycle Vehicle Motorcycle My1016z
350W 24V 36V DC Gear Motor for Wheelchair Electric Tricycle Vehicle Motorcycle My1016z
350W 24V 36V DC Gear Motor for Wheelchair Electric Tricycle Vehicle Motorcycle My1016z
350W 24V 36V DC Gear Motor for Wheelchair Electric Tricycle Vehicle Motorcycle My1016z
350W 24V 36V DC Gear Motor for Wheelchair Electric Tricycle Vehicle Motorcycle My1016z

350W 24V 36V DC Gear Motor for Wheelchair Electric Tricycle Vehicle Motorcycle My1016z

Customization: Available
Application: Electric Tricycle, Wheelchair
Operating Speed: Constant Speed
Send Inquiry

Product Description

📋

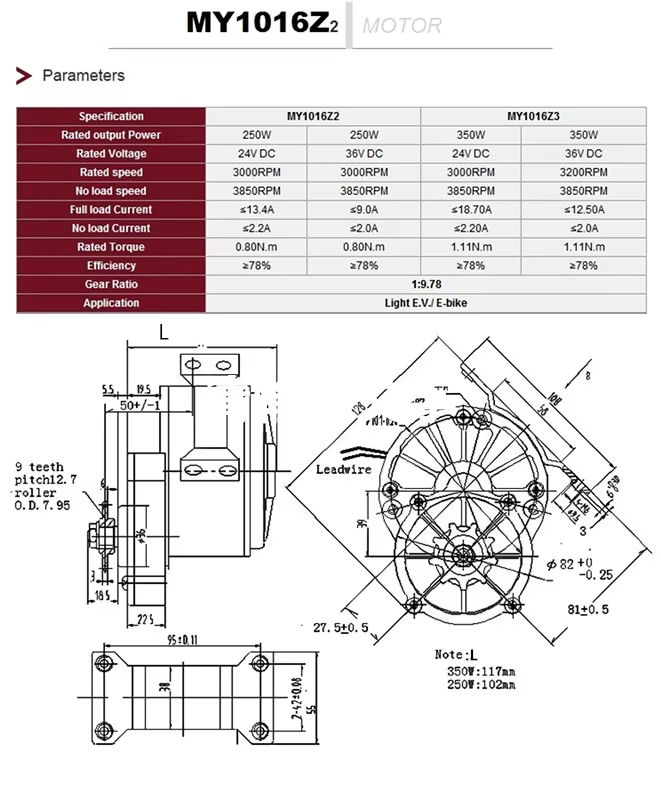

Basic Specifications

Model NO.
MY1016Z3
Excitation Mode
Compound
Function
Driving
Casing Protection
Closed Type
Number of Poles
8
Structure
Brush
Output Power
350W
Rated Voltage
24V / 36V DC
Speed
300 Rpm
Continuous Current
<=2.2A
Torque
1.11n.M
Origin
China
📦

Packaging & Delivery

Package Size
23.00cm * 19.00cm * 15.00cm
Gross Weight
3.700kg
Lead Time
15 days (1 - 100 Pieces)
30 days (101 - 500 Pieces)
Negotiable (> 500 Pieces)
⚙️

Product Description

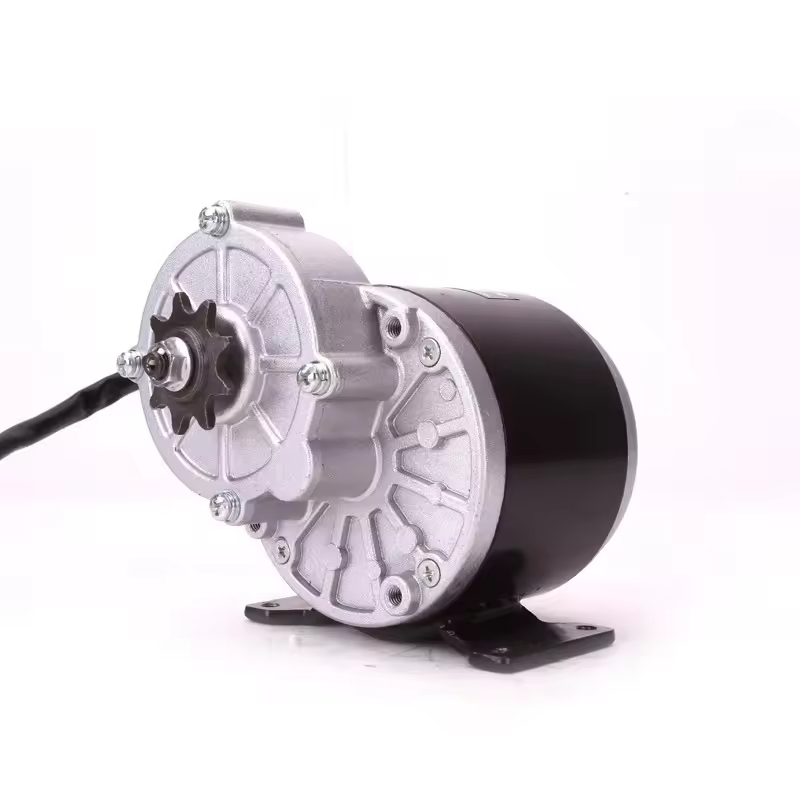

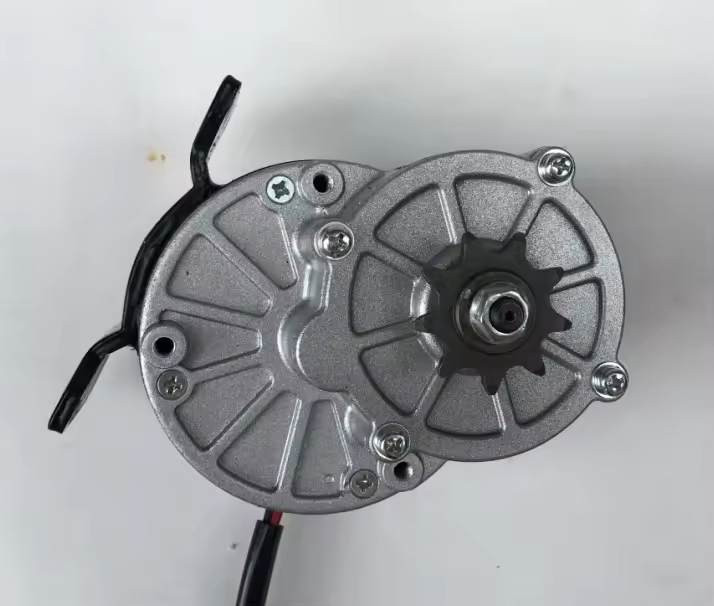

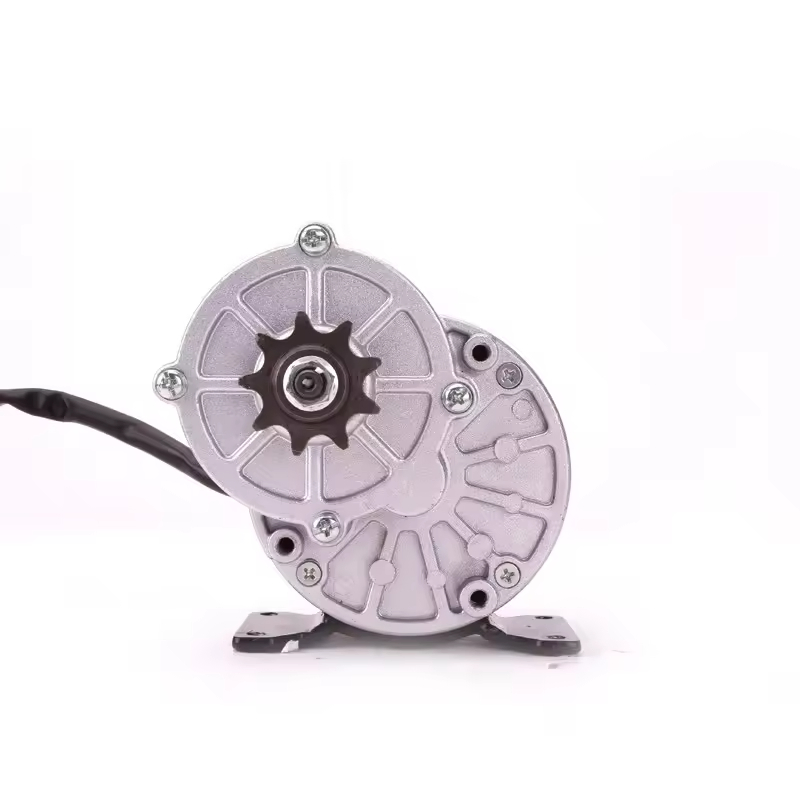

350W 24V 36V DC Gear Motor for Wheelchair Electric Tricycle Vehicle Motorcycle Parts MY1016Z3
Motor Parameters:
Rated speed: 3000rpm
Gear Ratio: 9.78:1
Actual speed: 300 rpm
Weight: 2.97 kg

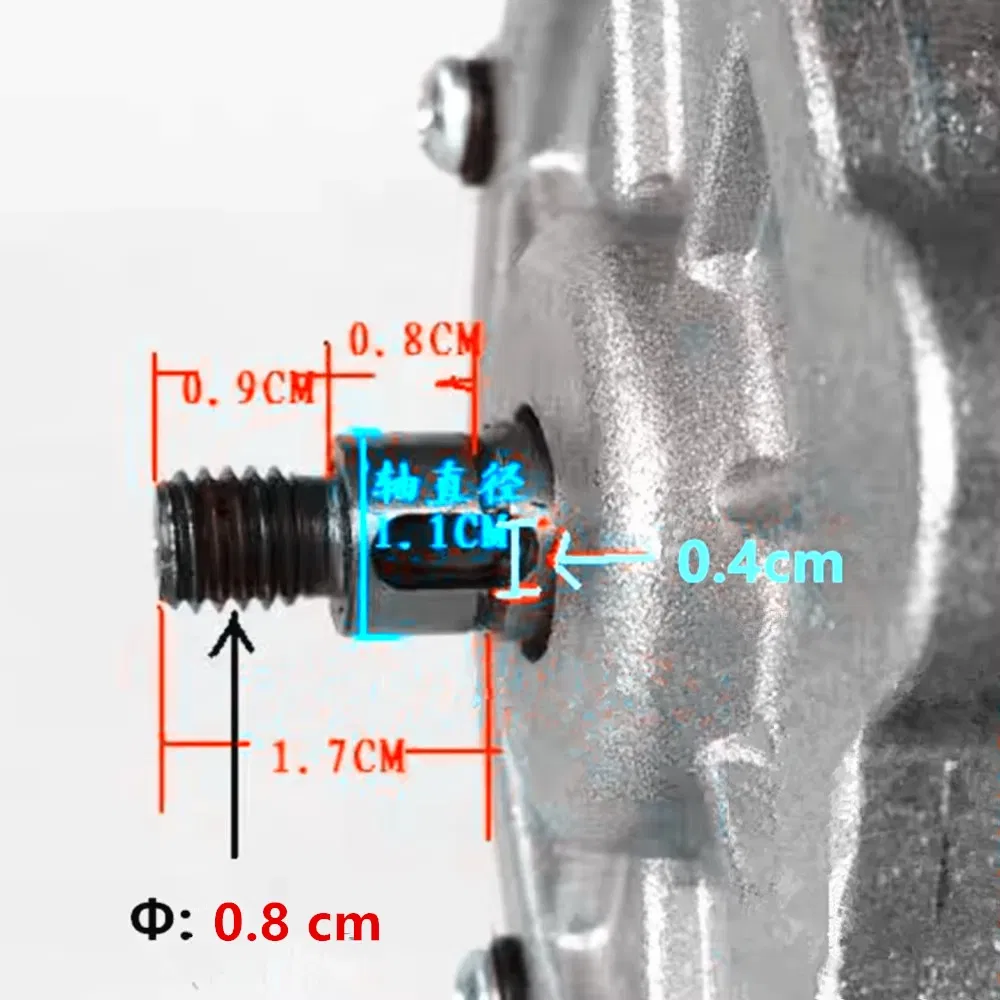

Sprocket: 9 teeth sprocket 410 		Sprocket Details:
Teeth: 9
Pitch: 12.7
Tooth thickness: 3mm
Inside diameter: 11mm
Outside diameter: 41mm
DC Gear Motor Side View MY1016Z3 Motor Detail Motor Sprocket View Technical Dimensions 1 Motor Components Wiring Setup Motor Application 1 Motor Application 2 Internal Structure Test Performance Quality Control Packaging Box View Final Product Assembly
❓

Frequently Asked Questions

Q1: What is the primary use of the MY1016Z3 motor?
A: This motor is specifically designed for driving applications in electric wheelchairs, tricycles, and small electric vehicles.
Q2: Can I use this motor with both 24V and 36V systems?
A: Yes, this model is compatible with both 24V and 36V DC power sources, providing flexible integration for different vehicle setups.
Q3: What is the difference between the rated speed and actual speed?
A: The motor core has a rated speed of 3000rpm, but due to the internal gear reduction ratio of 9.78:1, the actual output speed at the sprocket is 300 rpm.
Q4: What type of sprocket is installed on the motor?
A: It comes equipped with a 9-tooth sprocket designed for 410 series chains, with a pitch of 12.7mm and a thickness of 3mm.
Q5: What is the production capacity and lead time for bulk orders?
A: We have a production capacity of 100,000 pieces per year. For orders up to 100 pieces, the lead time is typically 15 days.
Q6: Is the motor housing protected against external elements?
A: Yes, the motor features a Closed Type casing protection, which helps safeguard the internal brush structure and components.
