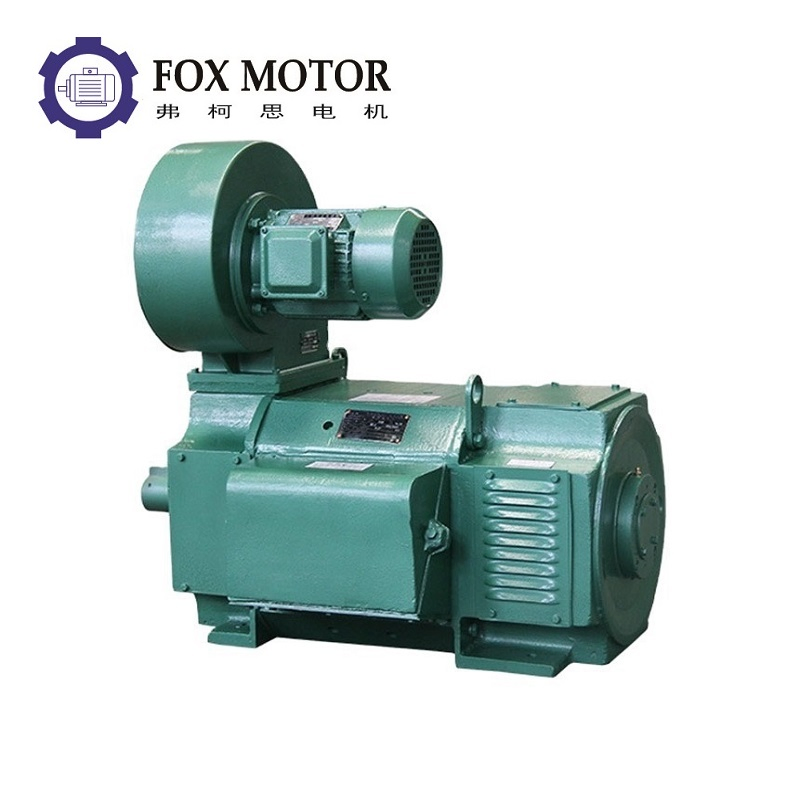

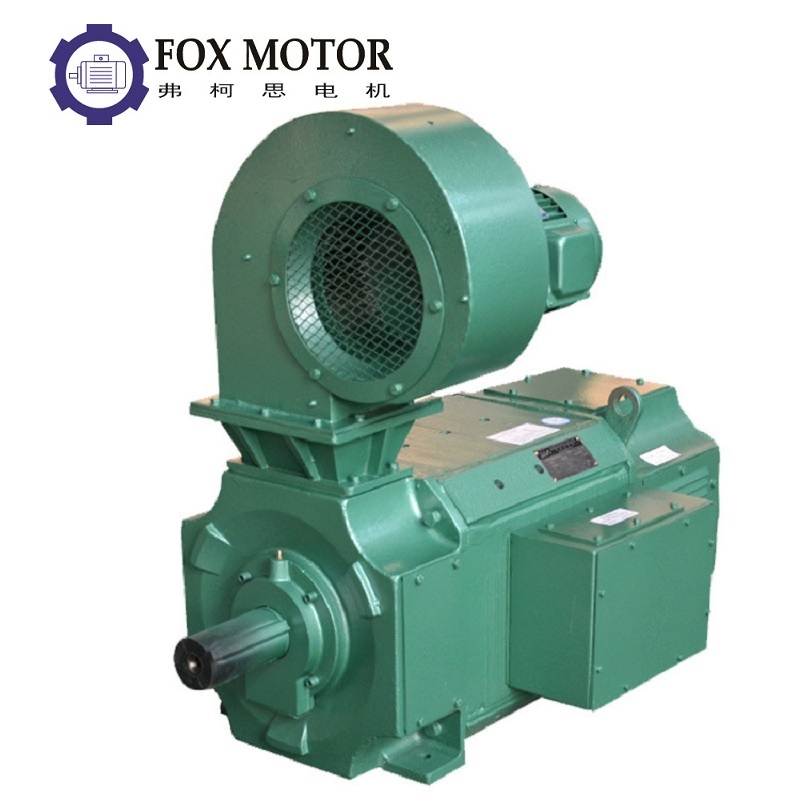

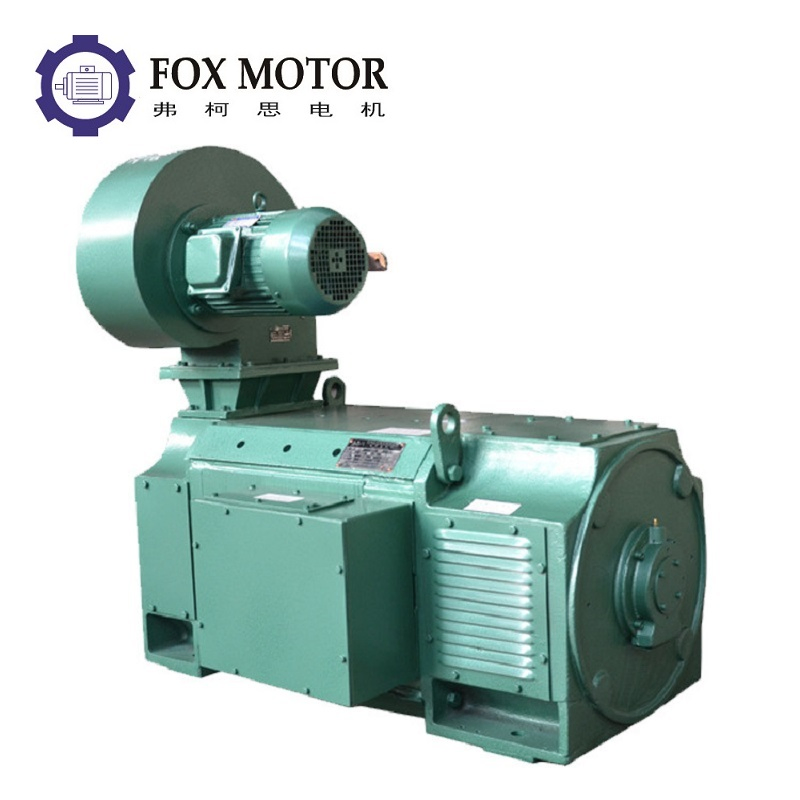

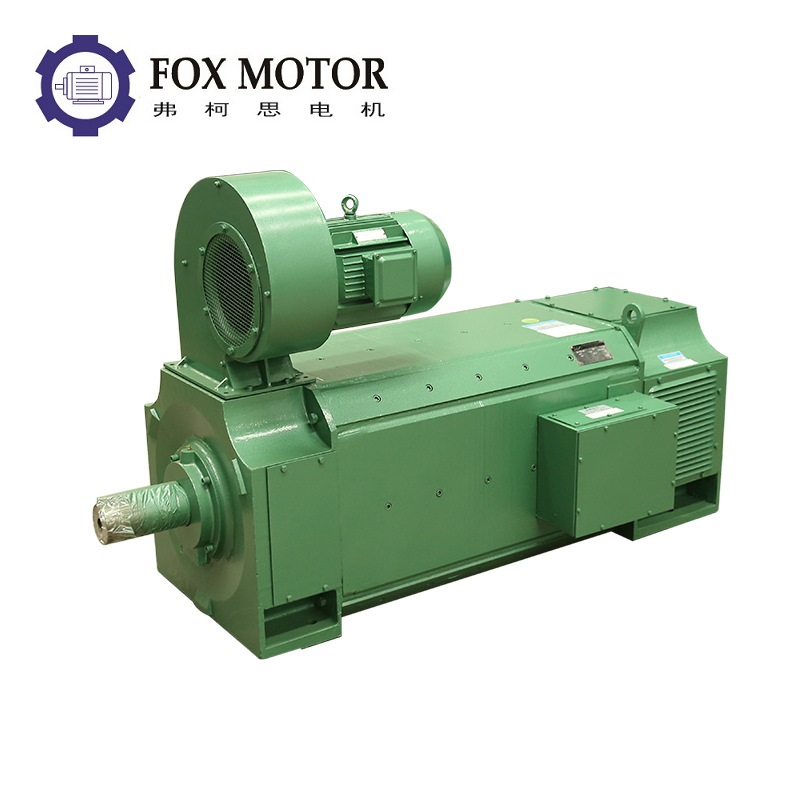

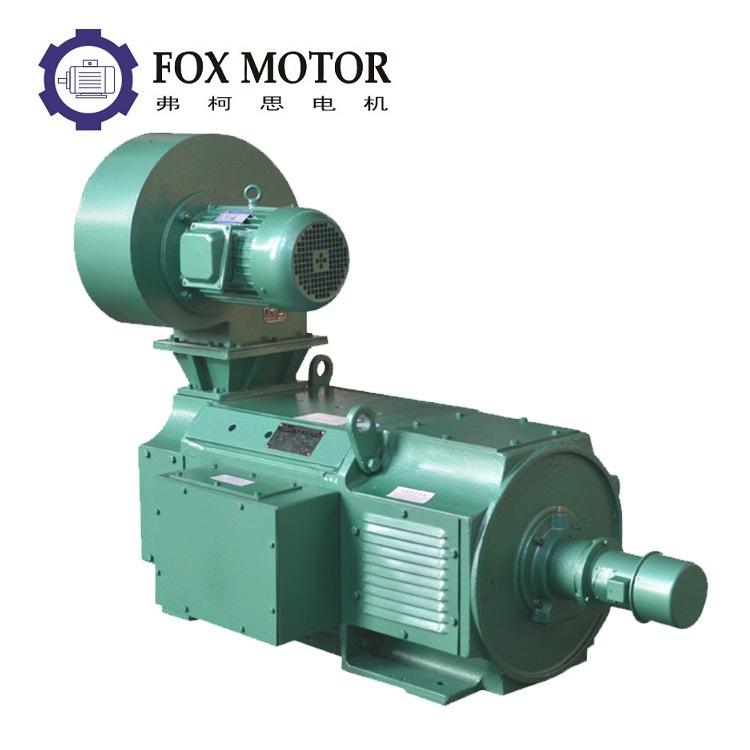

Z4 series Z4-180-21 Rolling Mill Medium Size Z, Z4 40KW 16.5KW 18.5KW Electric DC Motor
Z4 series Z4-180-21 Rolling Mill Medium Size Z, Z4 40KW 16.5KW 18.5KW Electric DC Motor
Z4 series Z4-180-21 Rolling Mill Medium Size Z, Z4 40KW 16.5KW 18.5KW Electric DC Motor
Z4 series Z4-180-21 Rolling Mill Medium Size Z, Z4 40KW 16.5KW 18.5KW Electric DC Motor
Z4 series Z4-180-21 Rolling Mill Medium Size Z, Z4 40KW 16.5KW 18.5KW Electric DC Motor
1 / 5
Z4 series Z4-180-21 Rolling Mill Medium Size Z, Z4 40KW 16.5KW 18.5KW Electric DC Motor
Z4 series Z4-180-21 Rolling Mill Medium Size Z, Z4 40KW 16.5KW 18.5KW Electric DC Motor
Z4 series Z4-180-21 Rolling Mill Medium Size Z, Z4 40KW 16.5KW 18.5KW Electric DC Motor
Z4 series Z4-180-21 Rolling Mill Medium Size Z, Z4 40KW 16.5KW 18.5KW Electric DC Motor
Z4 series Z4-180-21 Rolling Mill Medium Size Z, Z4 40KW 16.5KW 18.5KW Electric DC Motor

Z4 series Z4-180-21 Rolling Mill Medium Size Z, Z4 40KW 16.5KW 18.5KW Electric DC Motor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

⚙️

Basic Info

Model NO.:Z4-180-21
Excitation Mode:Excited
Function:Driving
Casing Protection:Protection Type
Number of Poles:8
Structure:Brush
Certification:ISO9001, CCC
Frame Size:180mm
Voltage:160V/440V (Customizable)
Speed:400-3000rpm
Cooling:IC06/IC17/IC37
Protection:IP21S
Thermal Protection:PT100 or PTC140
Ambient Temp:40°C, 1000 M. a.S.L
Terminal Box:Right or Upper
Connection:Flexible Coupling
Supply Type:Direct Manufacture
Transport Package:Wooden Case
Specification:100% Copper wire
Origin:China
HS Code:8501330000
⚡

Product Description

Power: 1.5kw - 600kw Frame No.: 100-450mm
Frequency: 50/60HZ Excitation Mode: Separate Excitation
Insulation Class: F Speed: 3000, 1500, 1000, 750, 600, 500, 400, 300, 200 r/min
Protection Grade: IP21S Voltage: 160V/440V (can be done as your need)
Enamelled Wire: 100% Copper Wire Mounting Way: B3 Foot / B5 Flange / B35 Foot and Flange
Motor Body: Cast Iron Body Duty: S1
🖼️

Product Showcase

DC Motor Detail 1

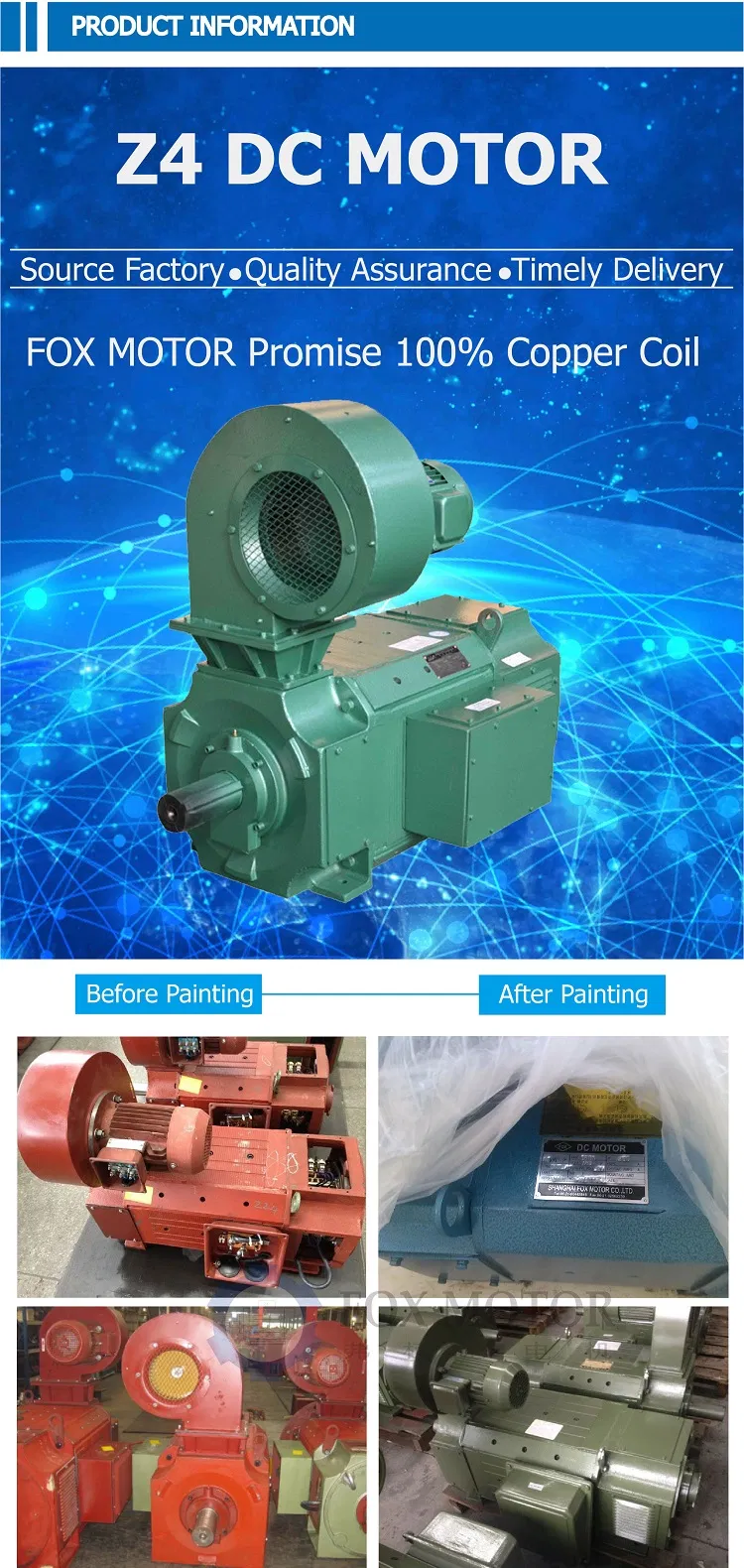

DC Motor Detail 2

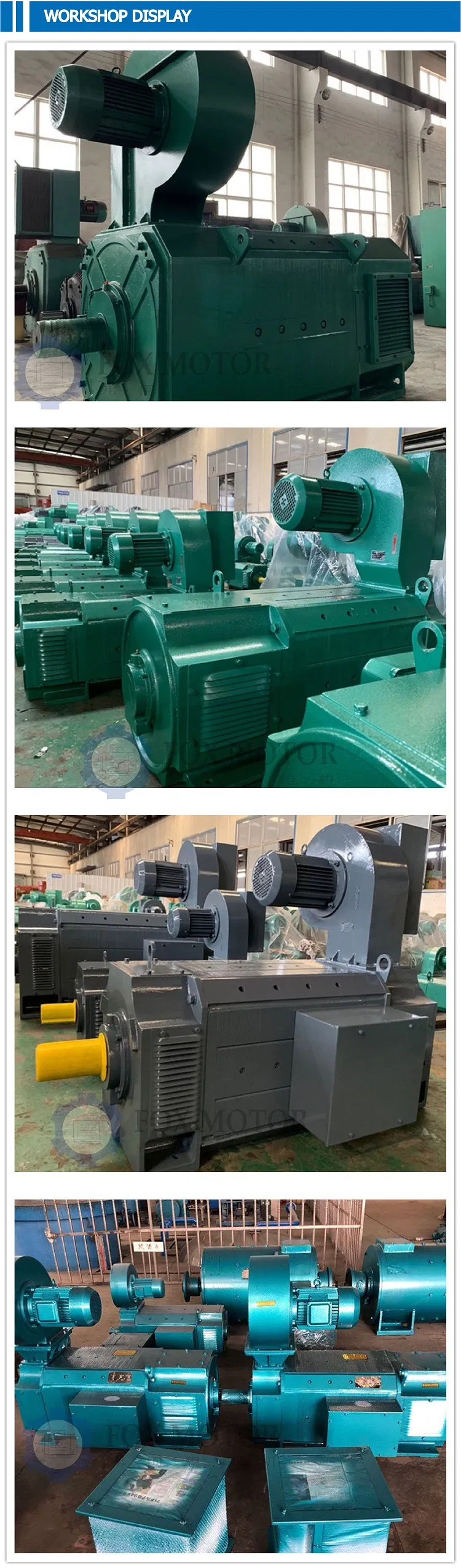

DC Motor Detail 3

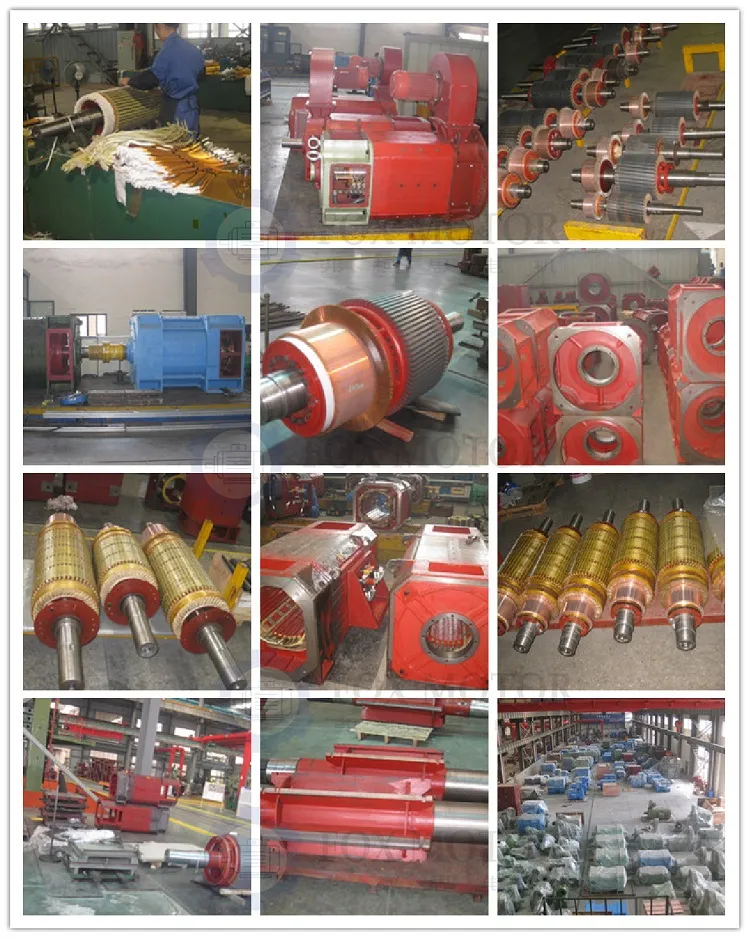

DC Motor Detail 4
DC Motor Detail 5
DC Motor Detail 6
DC Motor Detail 7
❓

Frequently Asked Questions

What is the power range available for the Z4 series DC motor?
The Z4 series offers a wide power range from 1.5kW up to 600kW, catering to various industrial driving needs.
Can the voltage and speed be customized?
Yes, while standard voltages are 160V and 440V, we can customize the voltage and speed (ranging from 400-3000rpm) according to your specific requirements.
What type of cooling methods are supported?
The motor supports IC06, IC17, and IC37 cooling modes to ensure stable operation under different working environments.
What materials are used in the motor construction?
The motor is built with a high-durability cast iron body and utilizes 100% pure copper wire for maximum efficiency and longevity.
What mounting options are provided for the Z4-180-21 model?
It supports various mounting ways including B3 Foot, B5 Flange, and B35 (both Foot and Flange) for flexible installation.
What certifications does this product hold?
The motor is certified under ISO9001 and CCC standards, ensuring compliance with international quality and safety benchmarks.
