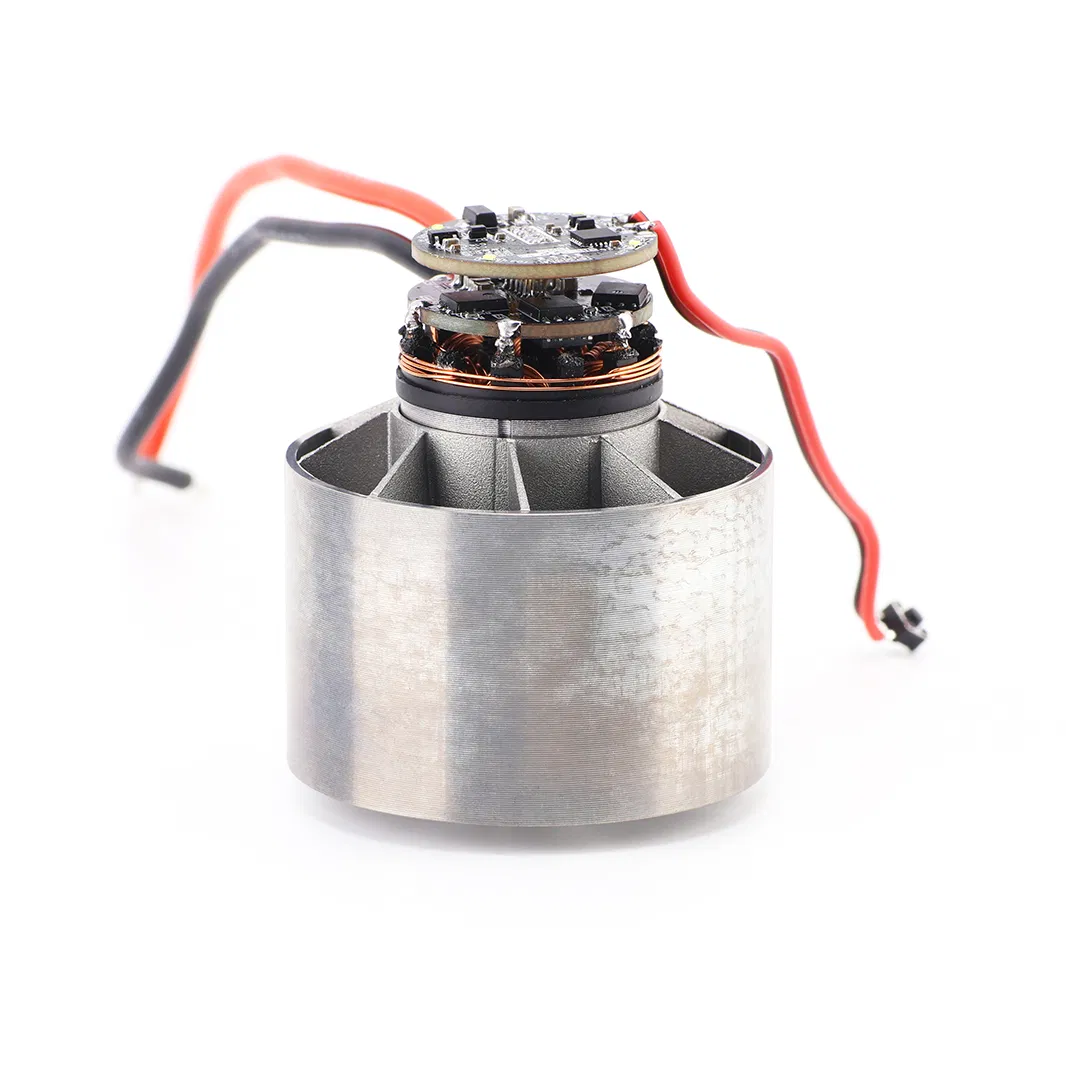

Mc5055bl 16.8V/21V/24V/220V 50mm 60K Rpm High Speed DC Electric Motor Brushless Three-Phase Motor with Waterproof
Mc5055bl 16.8V/21V/24V/220V 50mm 60K Rpm High Speed DC Electric Motor Brushless Three-Phase Motor with Waterproof
Mc5055bl 16.8V/21V/24V/220V 50mm 60K Rpm High Speed DC Electric Motor Brushless Three-Phase Motor with Waterproof
Mc5055bl 16.8V/21V/24V/220V 50mm 60K Rpm High Speed DC Electric Motor Brushless Three-Phase Motor with Waterproof
Mc5055bl 16.8V/21V/24V/220V 50mm 60K Rpm High Speed DC Electric Motor Brushless Three-Phase Motor with Waterproof
1 / 5
Mc5055bl 16.8V/21V/24V/220V 50mm 60K Rpm High Speed DC Electric Motor Brushless Three-Phase Motor with Waterproof
Mc5055bl 16.8V/21V/24V/220V 50mm 60K Rpm High Speed DC Electric Motor Brushless Three-Phase Motor with Waterproof
Mc5055bl 16.8V/21V/24V/220V 50mm 60K Rpm High Speed DC Electric Motor Brushless Three-Phase Motor with Waterproof
Mc5055bl 16.8V/21V/24V/220V 50mm 60K Rpm High Speed DC Electric Motor Brushless Three-Phase Motor with Waterproof
Mc5055bl 16.8V/21V/24V/220V 50mm 60K Rpm High Speed DC Electric Motor Brushless Three-Phase Motor with Waterproof

Mc5055bl 16.8V/21V/24V/220V 50mm 60K Rpm High Speed DC Electric Motor Brushless Three-Phase Motor with Waterproof

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
MC5055BL
Excitation Mode
Permanent Magnet
Function
Control
Casing Protection
Protection Type
Number of Poles
4
Working Principle
Brushless
Type
Pm-BLDC
Certification
ISO9001, CE, RoHS, Reach
HS Code
8501310000
Package Size
20.00cm * 20.00cm * 20.00cm
🚀 Main Features
⚡High Speed
🔋Energy Saving
🎯High Efficiency
⏳Long Life
🔇Low Noise
💧Waterproof
🖼️ Product Display

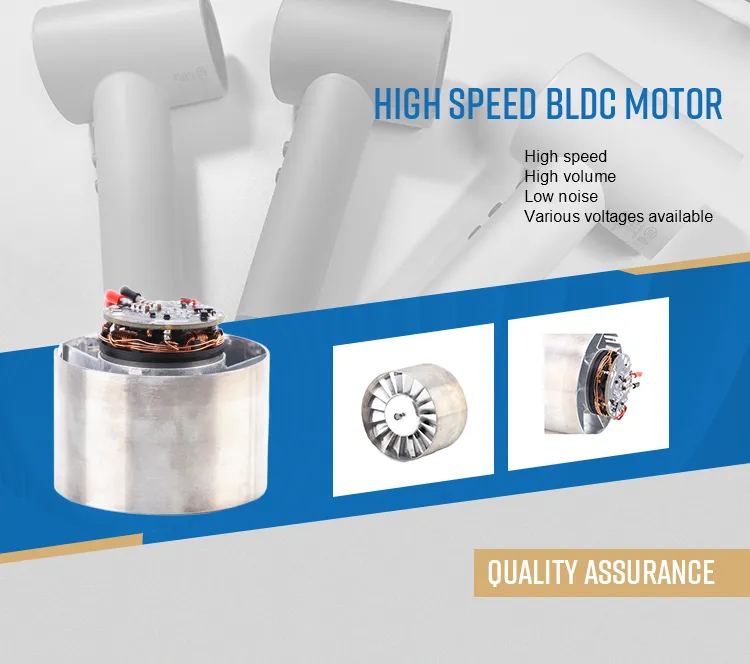

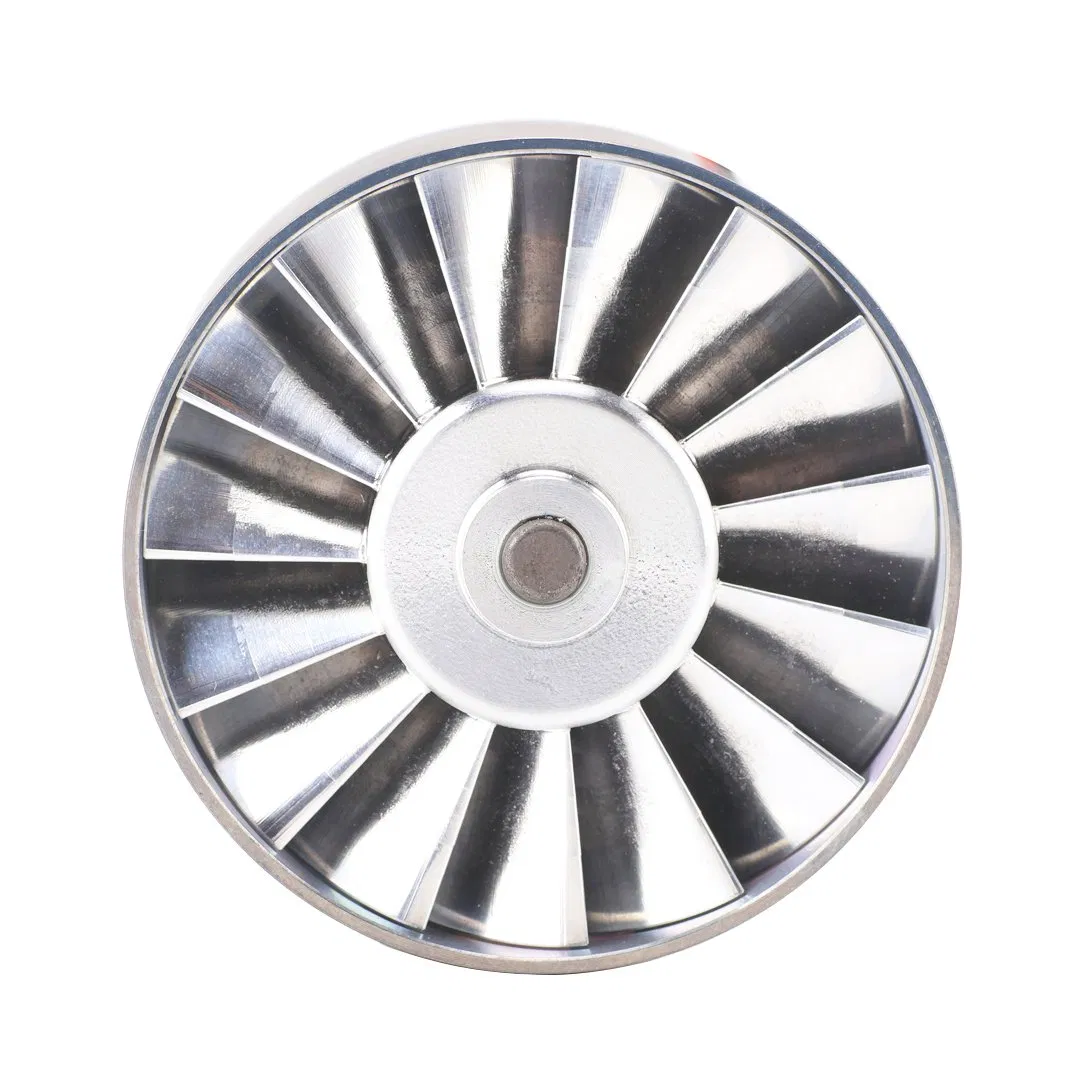

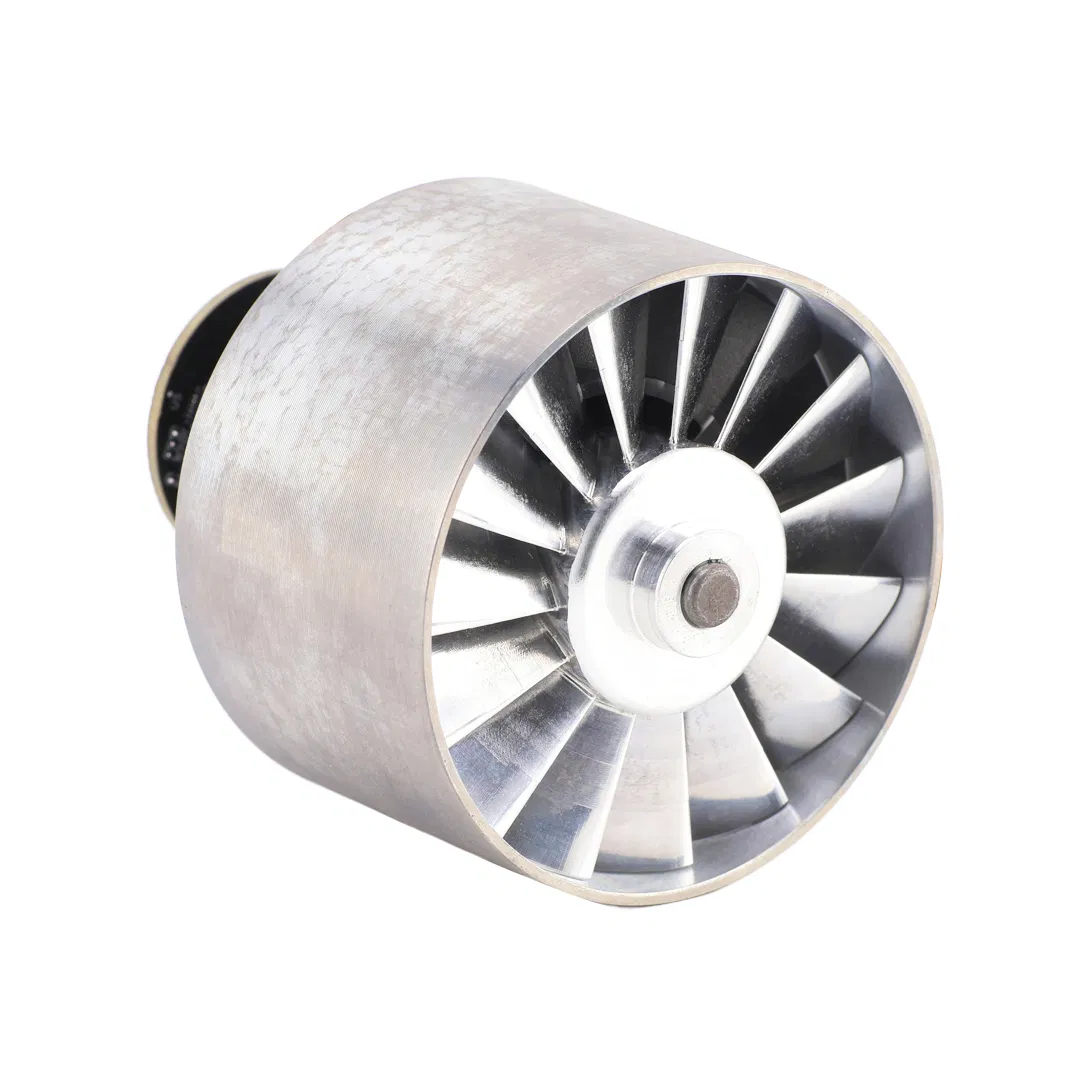

High Speed DC Electric Motor

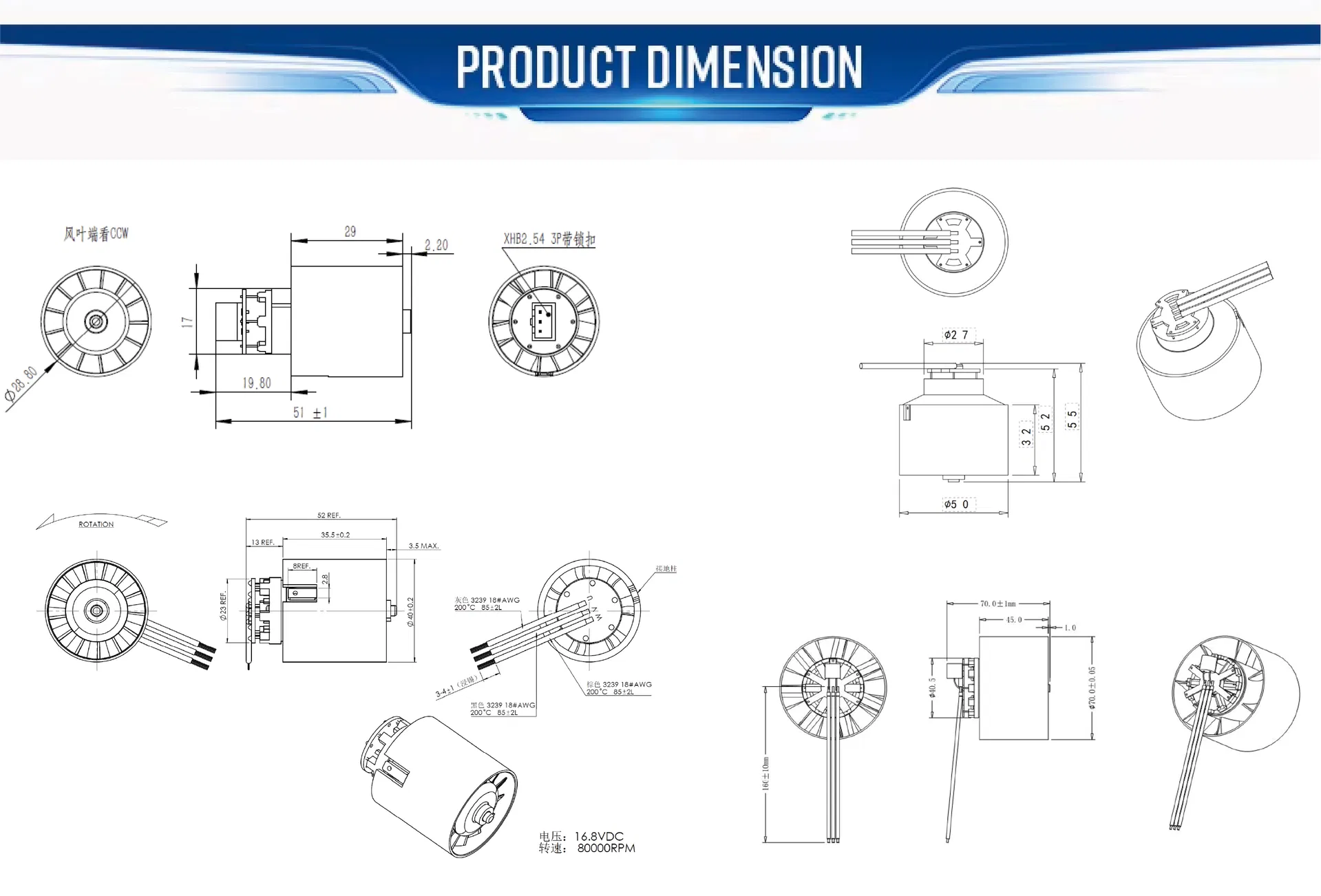

Motor Details 1

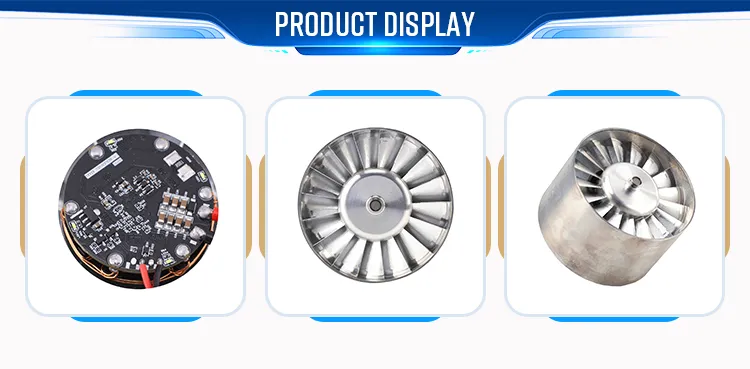

Motor Details 2
Motor Details 3
📊 Technical Specifications

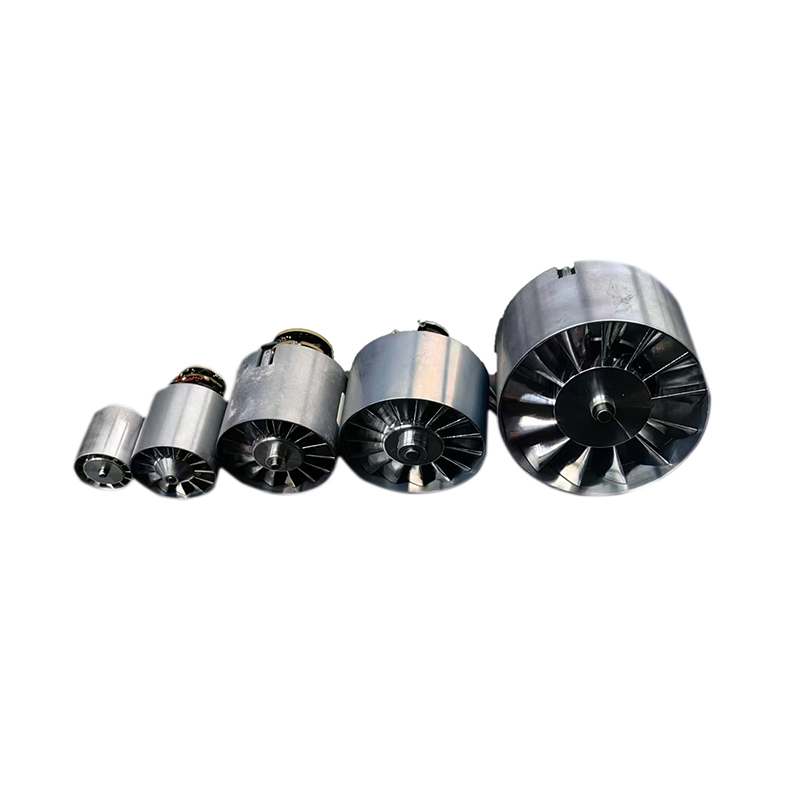

SIZE VOLTAGE POWER SPEED Wind Pressure Fan Blades
25Custom5-50W39,500 rpmMax 15g13
28.87.4V/12V/24V/220V100W - 180W110K - 130K rpmMax 220g13
4012V/16.8V/21V/24V/220V250W - 500W96K rpmMax 600g15
5016.8V/21V/24V/220V350W - 450W60K rpmMax 850g15
5316.8V/21V/24V/220V400W - 500W60K rpmMax 1000g15
7016.8V/21V/24V/220V900W - 1100W50K rpmMax 1600g17

Control Modes: Potentiometer speed control, Step speed control, PWM speed control.

🛡️ Speed Driver & Protections

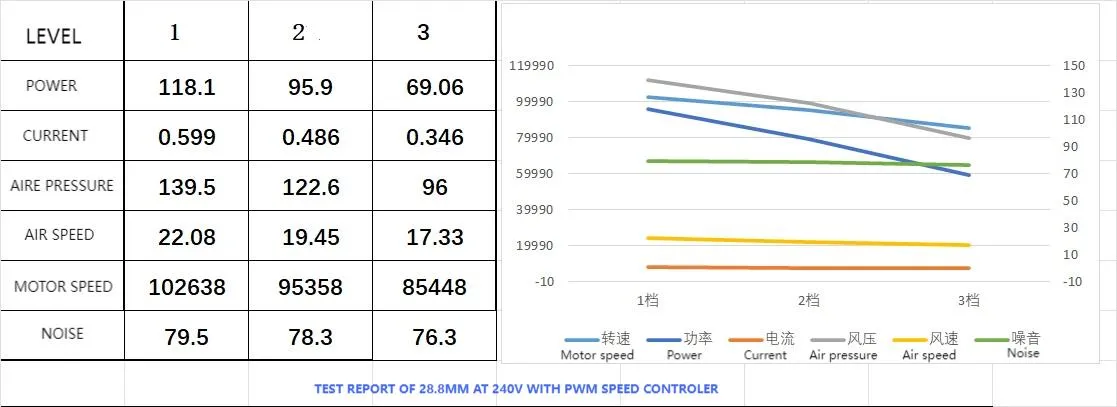

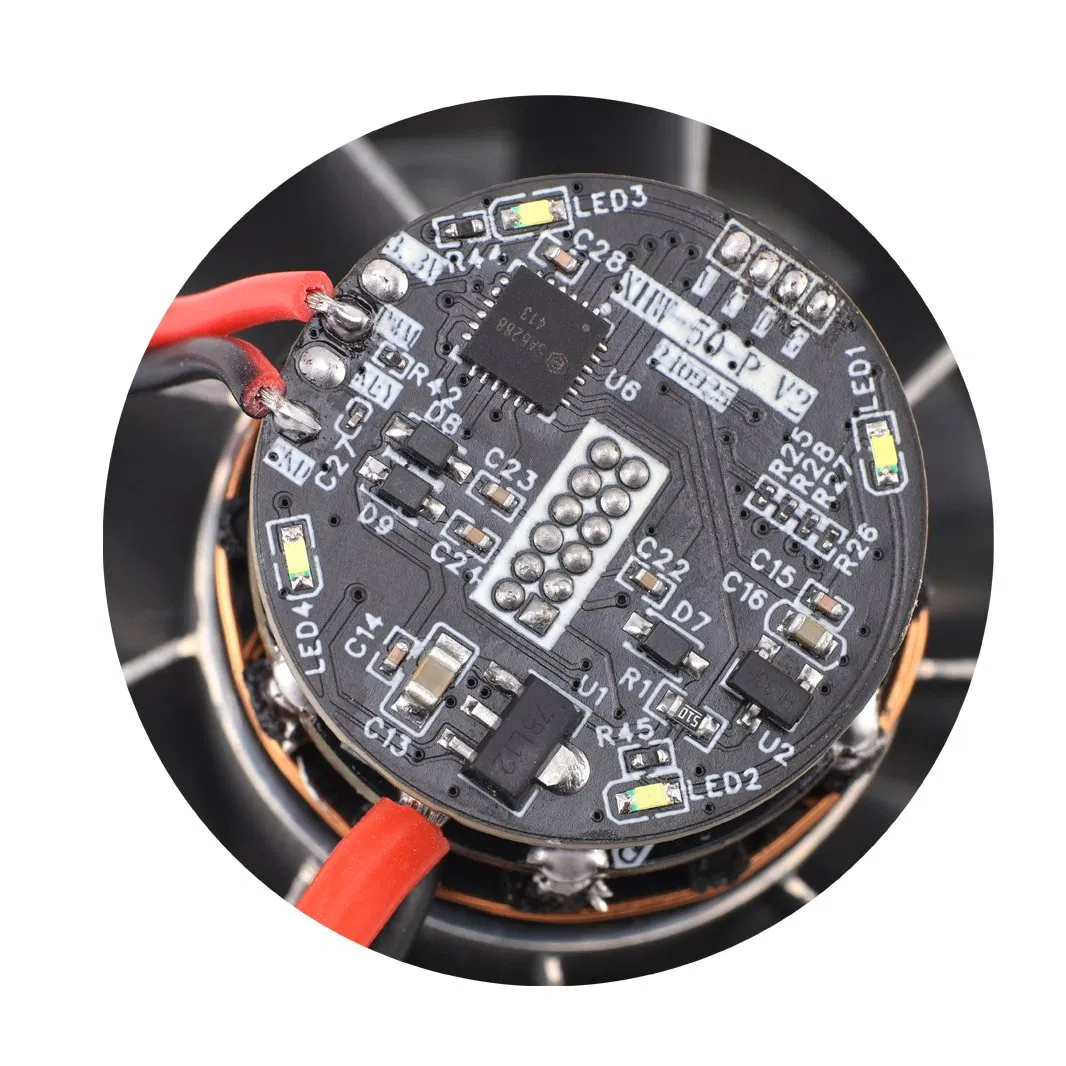

Driver Board

I. Electrical Protection

  • Overcurrent Protection: Dual hardware & software mechanism
  • Overvoltage Protection: Triggered at 15% - 20% above nominal
  • Undervoltage Protection: Triggered at 15% - 20% below nominal
  • Short Circuit Protection: Automatic circuit cutoff

II. Motor Operation Protection

  • Phase Loss Protection: Detects abnormal power supply
  • Locked Rotor Protection: Sudden current increase detection
  • Power Limit Protection: Dynamic power limitation
🏭 Production & Quality Control

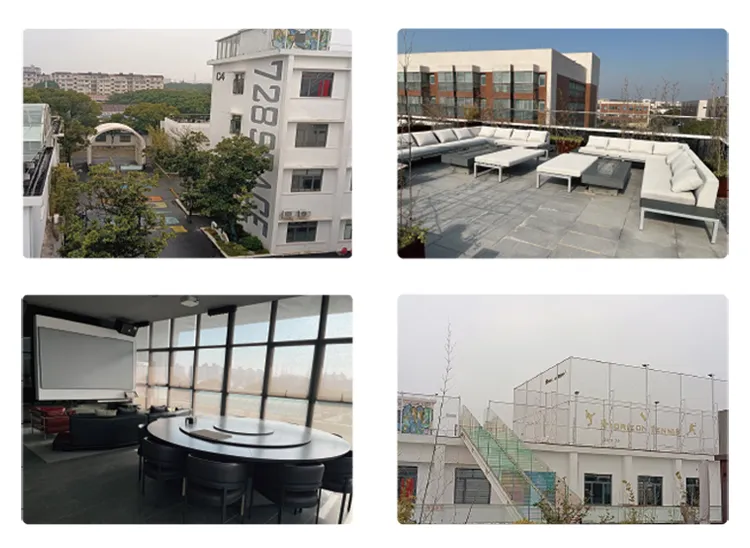

Production Line

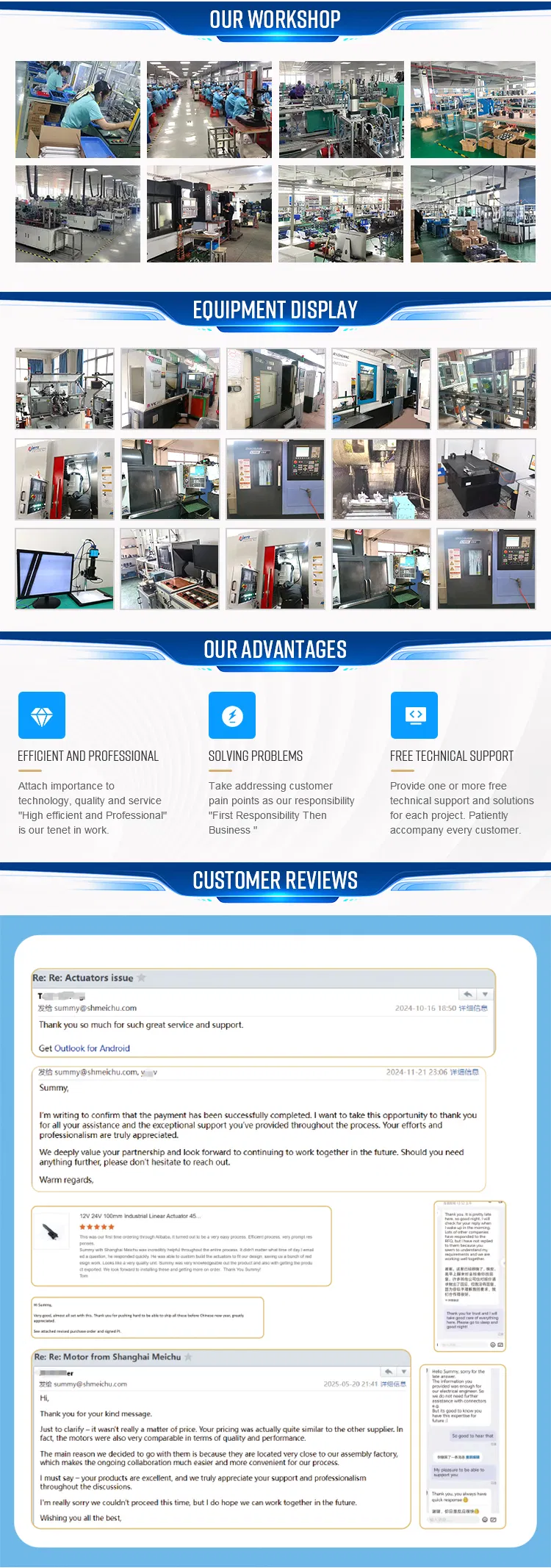

Equipment
Testing
Certification Showcase
Frequently Asked Questions
Q: Is the online price accurate for all models?
A: The online prices are rough estimates for standard models. Please contact us with your specific requirements to receive an accurate and competitive quote.
Q: What is your standard after-sales service policy?
A: We typically provide a one-year guarantee after delivery. While lifespan varies based on duty cycles, we remain committed to helping resolve any technical issues.
Q: What certifications do your motors hold?
A: All materials are RoHS compliant. For specific certifications like CE, UL, ETL, or WEEE, we can apply for them based on client requests, typically taking 2-3 months.
Q: Can you handle customized motor specifications?
A: Yes, over 98% of our products are customized. We specialize in OEM/ODM manufacturing to meet specific transmission and structural design requirements.
Q: What are the available speed control modes?
A: We offer three primary control modes: Potentiometer speed control, Step speed control, and PWM speed control.
Q: Do you offer technical support for new projects?
A: We provide free technical support and resolution solutions for each project, accompanying our customers until full satisfaction is reached.
