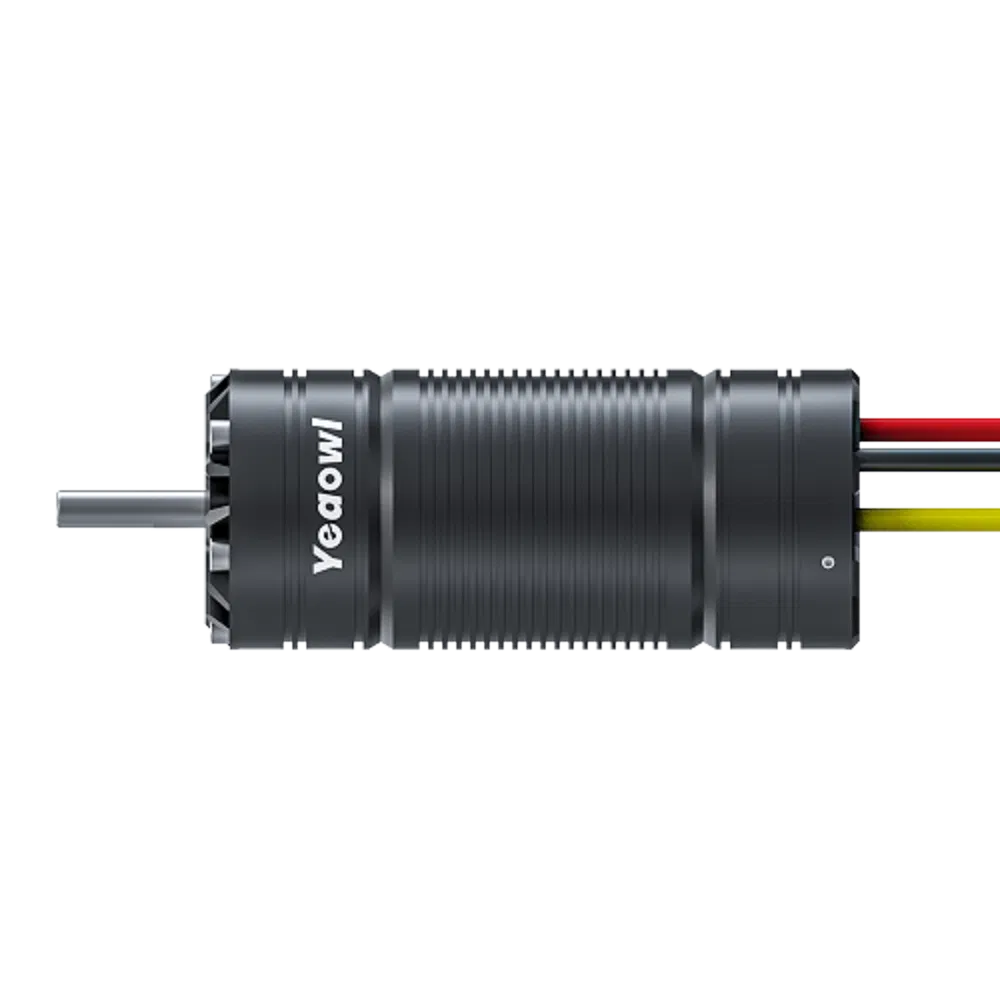

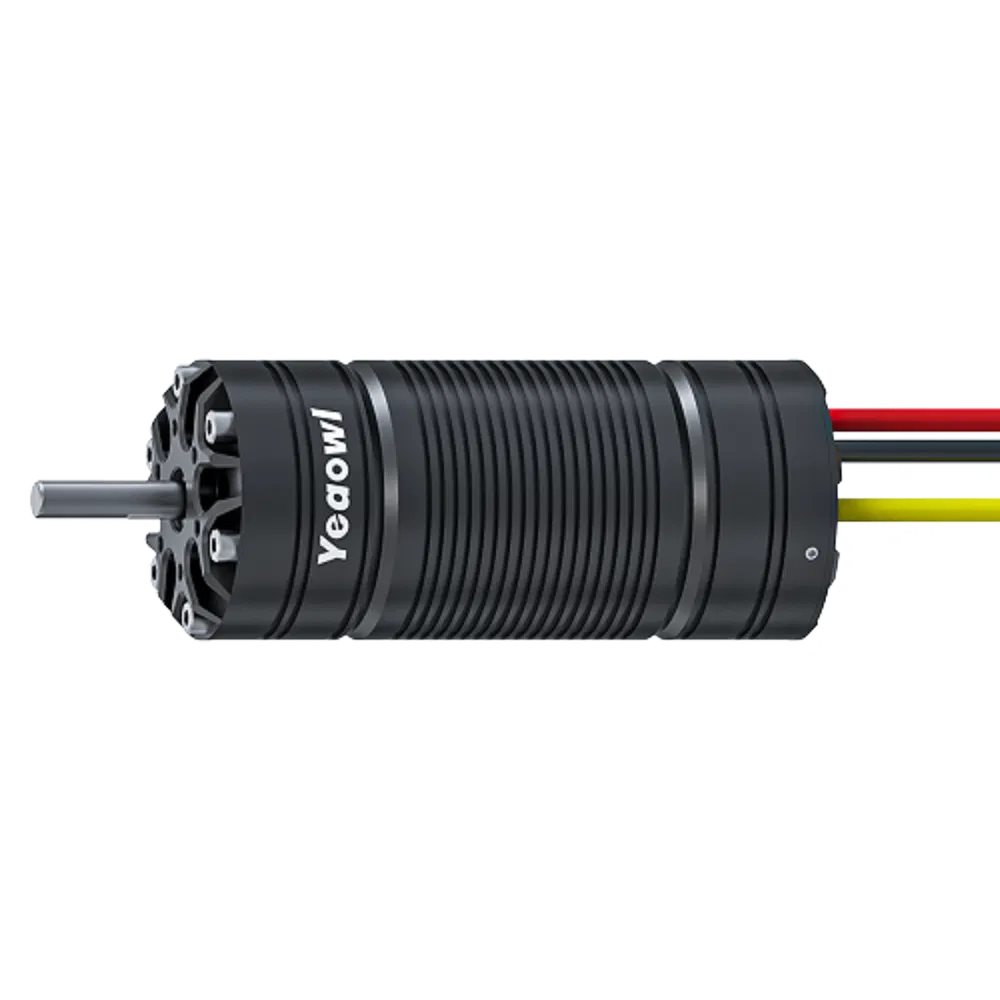

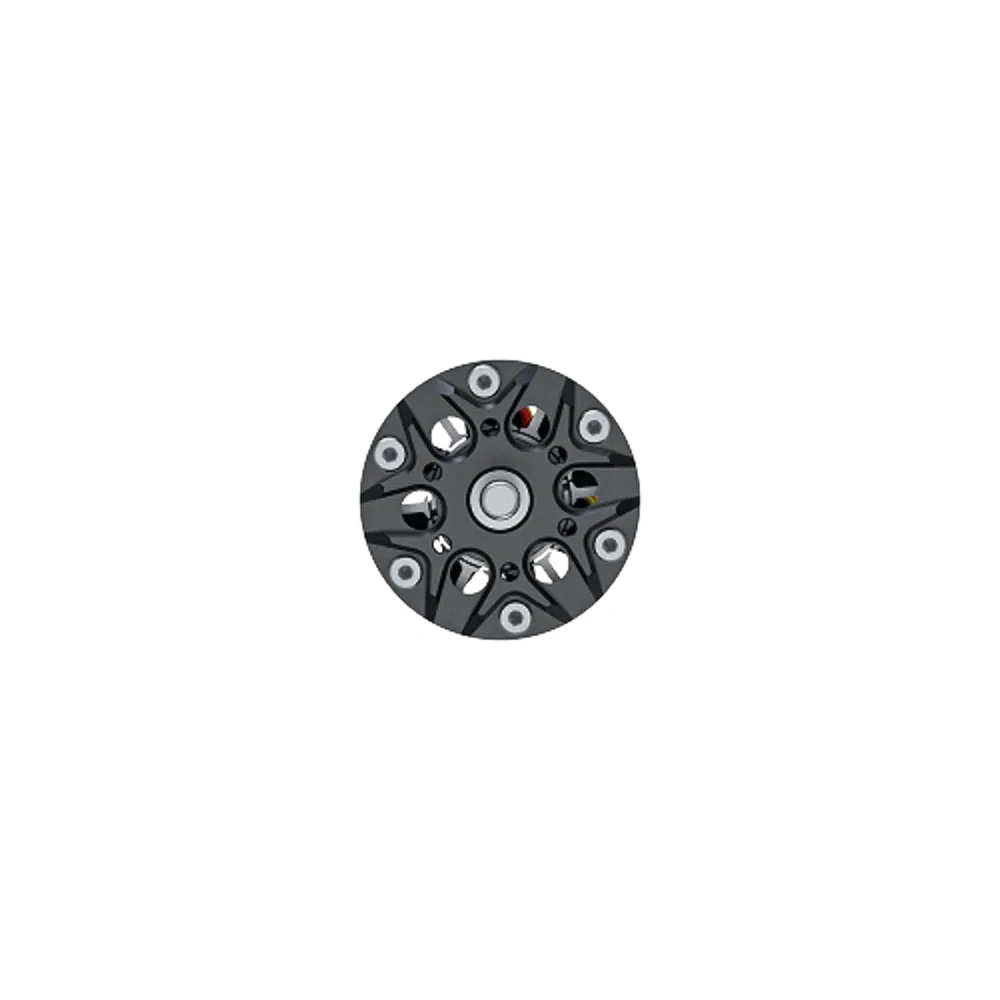

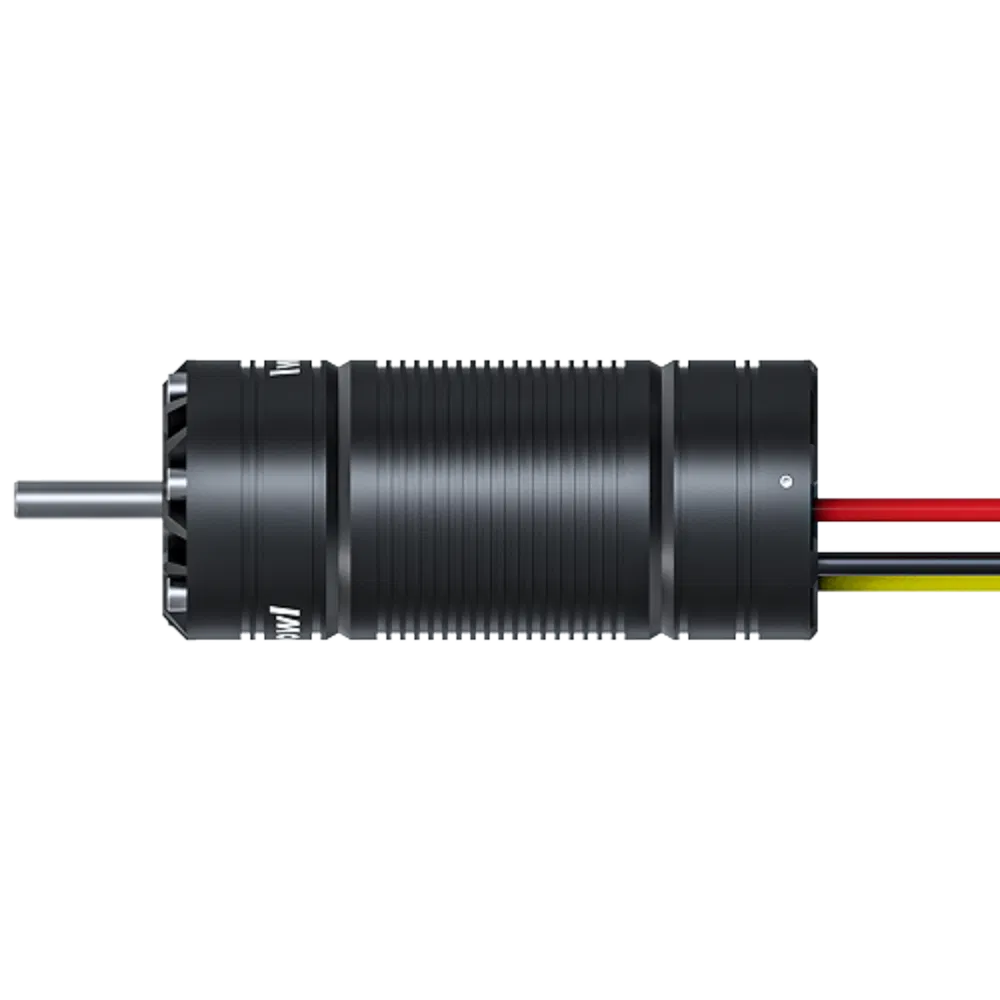

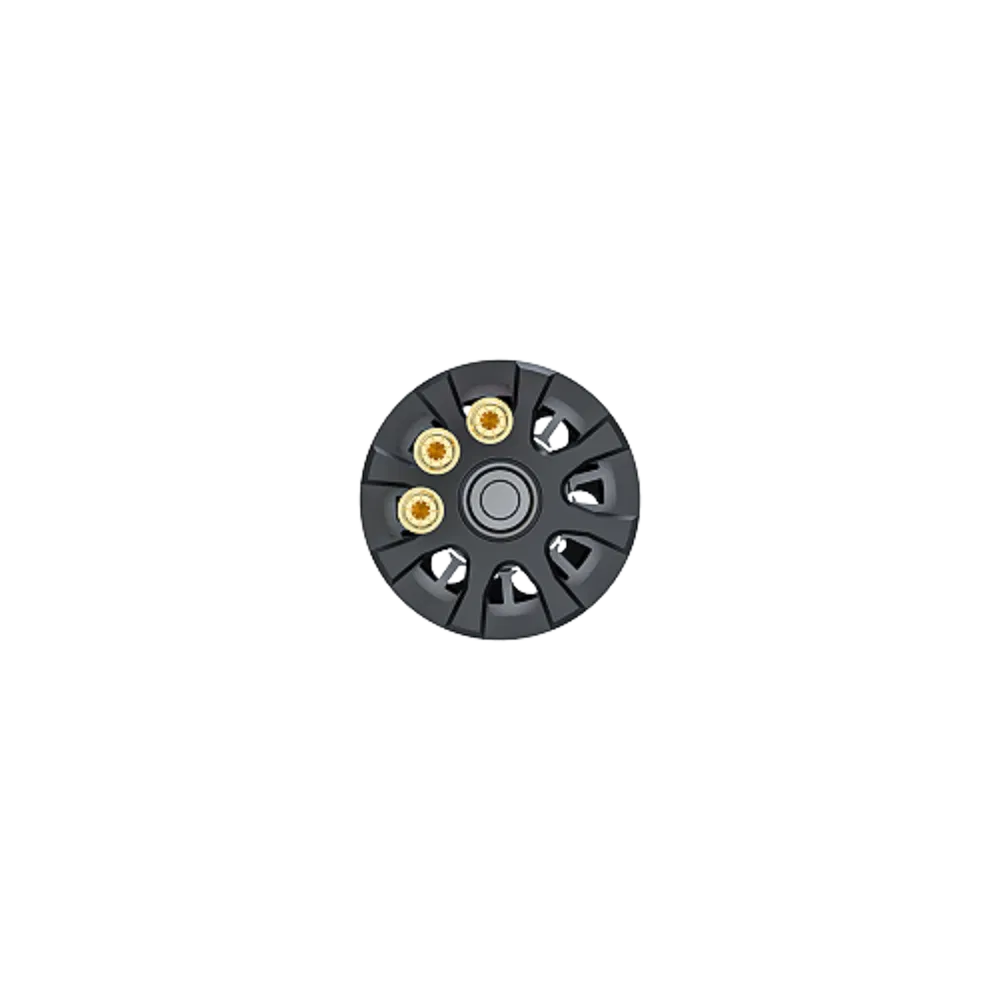

Advanced BLDC Motor with 4500W Power for DIY Electric Motor Projects Brushless DC Motor

Still deciding? Get samples of $ !
Order Sample

Product Description

📦 Basic Information
Model NO.YO58135
Excitation ModeExcited
FunctionControl
Casing ProtectionProtection Type
Number of Poles6
StructureBrushless
CertificationISO9001
Max Volt96V
Max Amps99A
Continuous Power4000W
No-Load Current3.0A
Weight1520g
Advanced BLDC Motor Brushless DC Motor Feature
⚙️ Product Features
Rated Power: 4000W
Speed Adjustment: Easy and precise
Low Noise: Range from 57.8mm to 135mm
Long Lifetime: Above 10,000 hours continuous
Protection: IP68 rank available
Efficiency: Above 92% energy efficiency
Extended Lifespan: Crafted with robust materials and cutting-edge engineering, significantly reducing wear and tear. This design ensures long-lasting reliability and delivers substantial cost savings over time.
📊 Technical Specifications
Model No T KV Max Amps Max Volt Continuous (W) Max Power (W) Max RPM Weight (g) Poles
581352.66T560190A50V450095002800015206P
581353T490190A55V4500100002800015206P
581354T370140A72V4500100002800015206P
581355T300110A90V4500100002800015206P
581356T25090A110V4500100002800015206P
581353Y29099A96V400095002800015206P
🔍 Motor Display & Customization

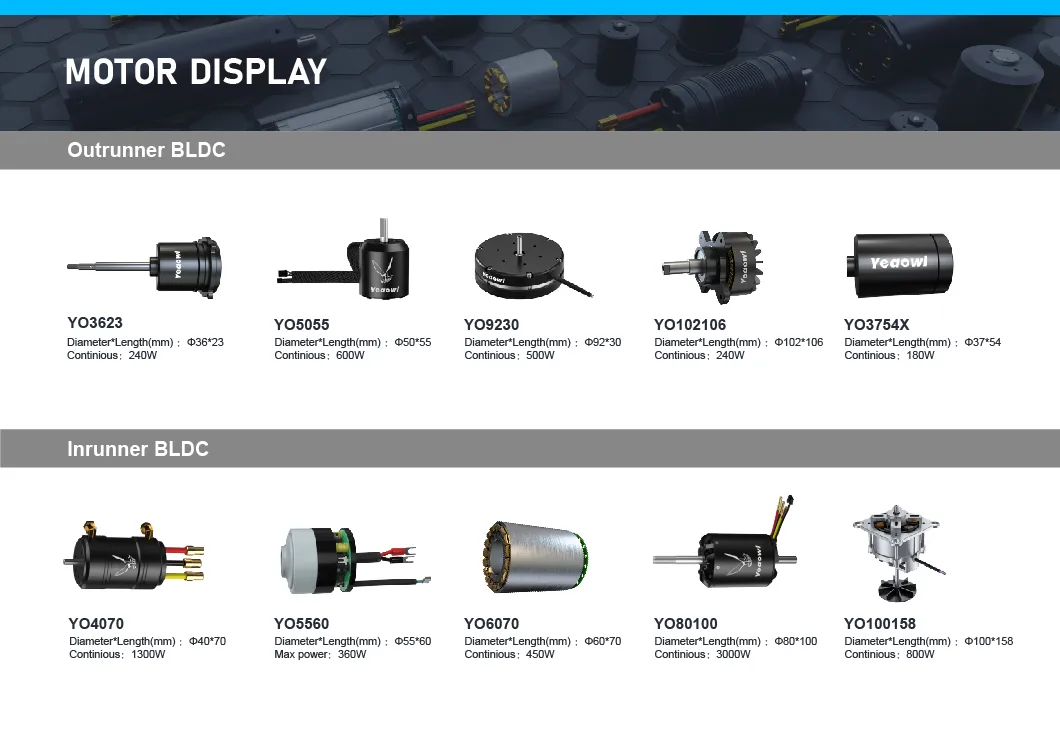

Motor Display

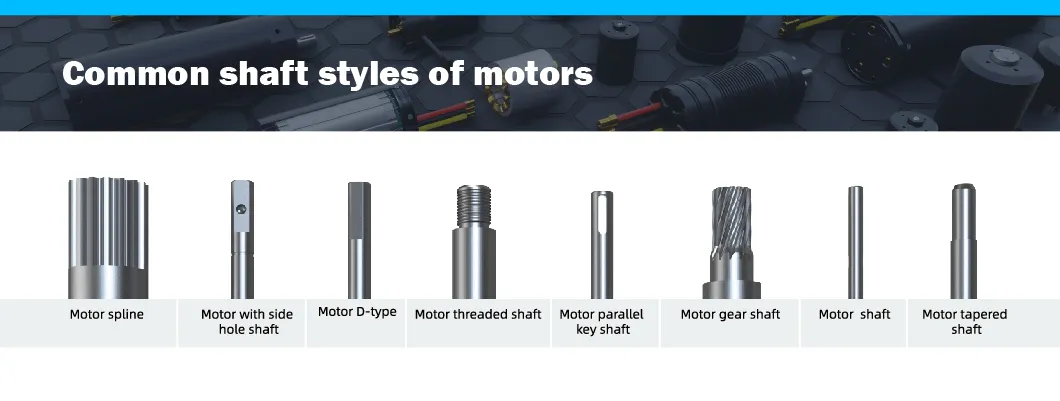

Motor Technical Detail

Tailored Perfection: Shape and refine the technical parameters of our brushless motor to perfectly align with your unique specifications. We offer tailor-made solutions to support your research and development endeavors.

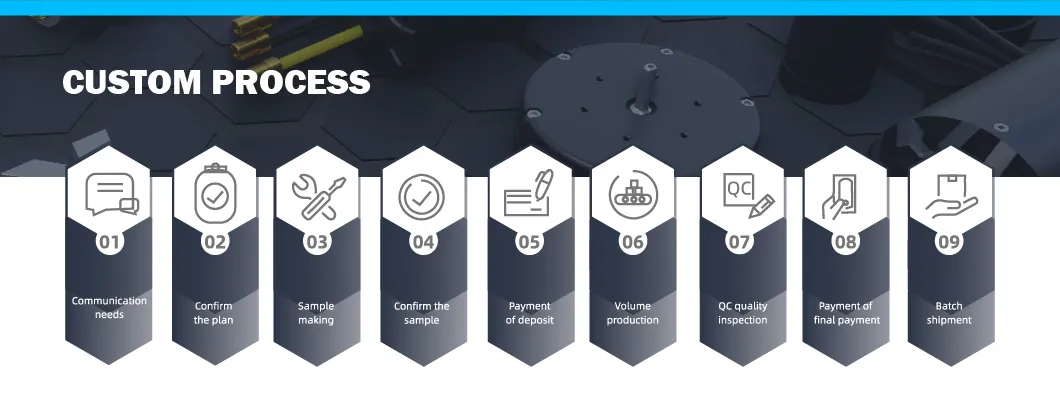

🛠️ Customization Process
Process Step 1 Process Step 2

Through streamlined processes, efficient communication, and stringent quality checks, we ensure the delivery of motors that exemplify peerless craftsmanship and performance.

🏭 Manufacturing Excellence

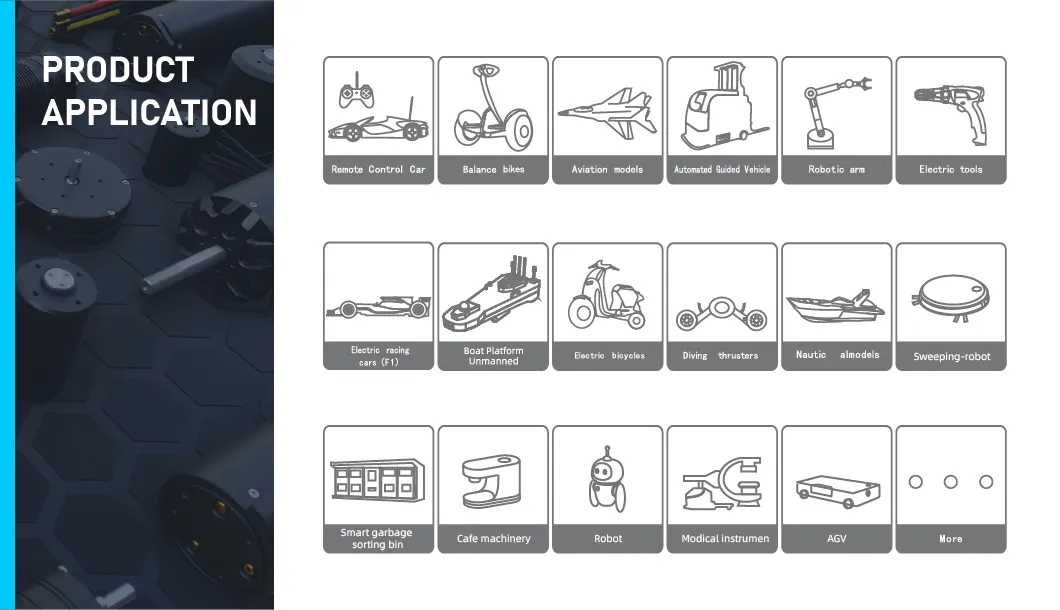

Application Areas

We specialize in delivering robust power solutions tailored to your product's spatial constraints, offering waterproofing, dustproofing, and custom motor housings. Our professional team masterfully blends R&D, production, and top-tier service to deliver superior motor solutions worldwide.

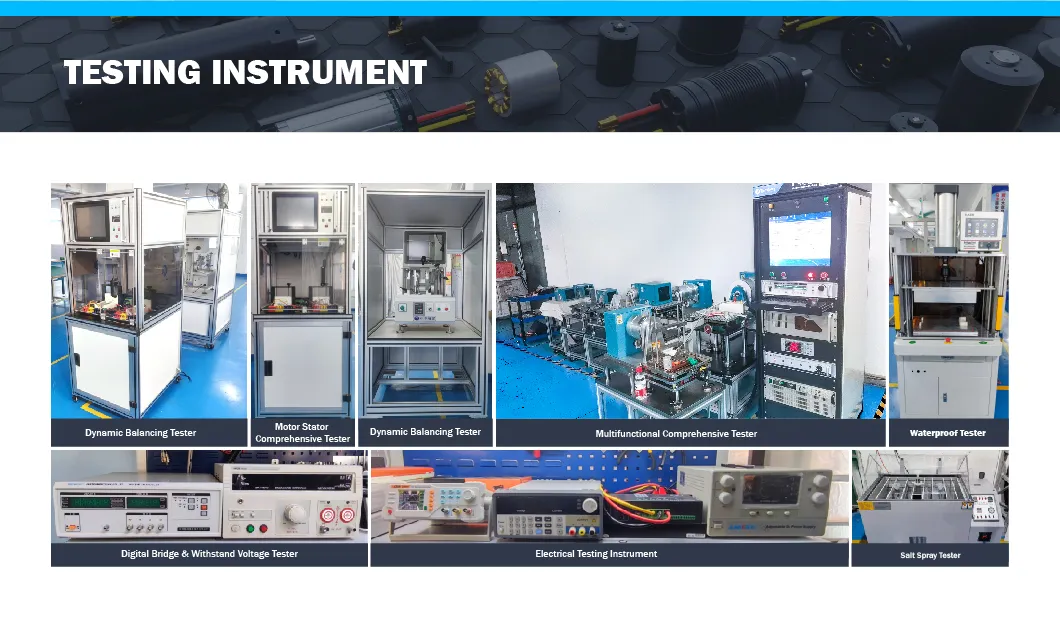

Quality Control
❓ Frequently Asked Questions
What kind of motors do you provide?
We mainly provide DC permanent magnet motors, DC brushless motors, waterproof motors, BLDC motors, motor drives, and comprehensive solutions for electric drive products.
Is there a MOQ for your motors?
Yes, our minimum order quantity is 100 units or more, but we can accept 1 piece for sample testing. Sample pricing may differ from bulk pricing.
Are your motors reversible?
Yes, nearly all DC and AC motors we offer are reversible. Our technical team can provide guidance on wire connections to achieve this function.
Can you develop new motors if we provide the tooling cost?
Yes. We can evaluate new developments based on your detailed requirements for performance, size, and annual quantity.
What is the typical delivery time?
For brushless DC motors, sample delivery time is approximately 45-60 days; bulk lot production typically takes 50-70 days.
What are your warranty terms?
We provide a standard one-year warranty on our products.
