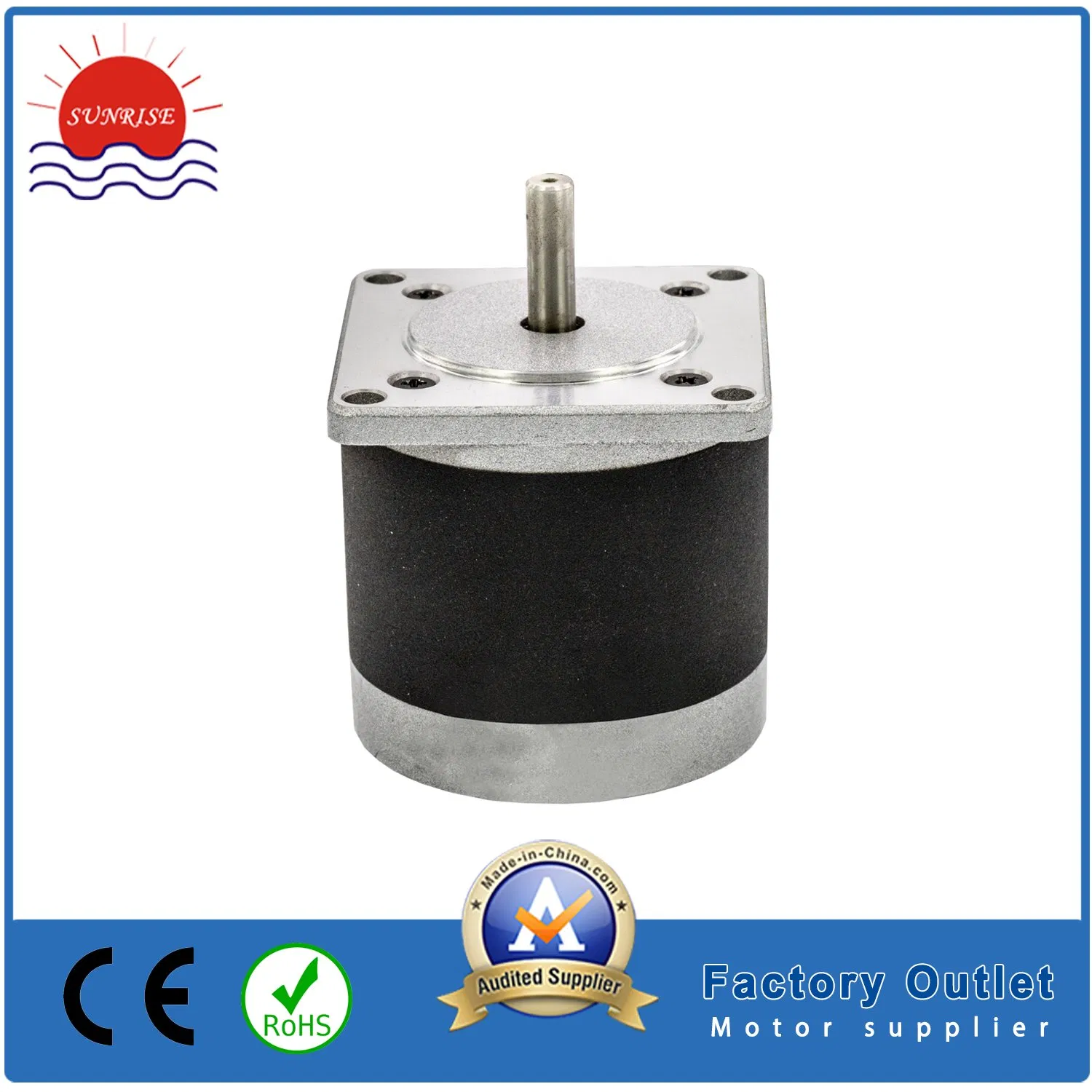

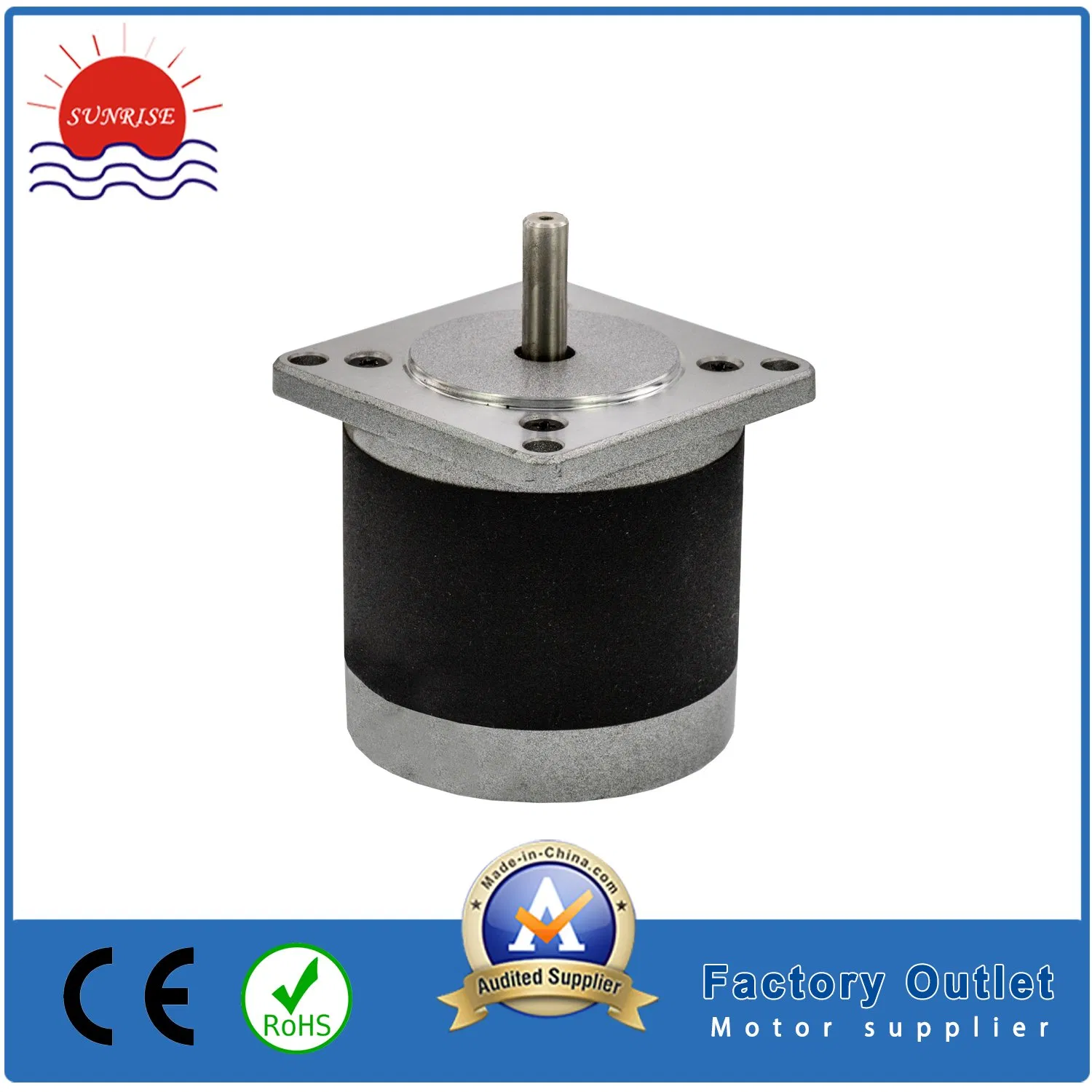

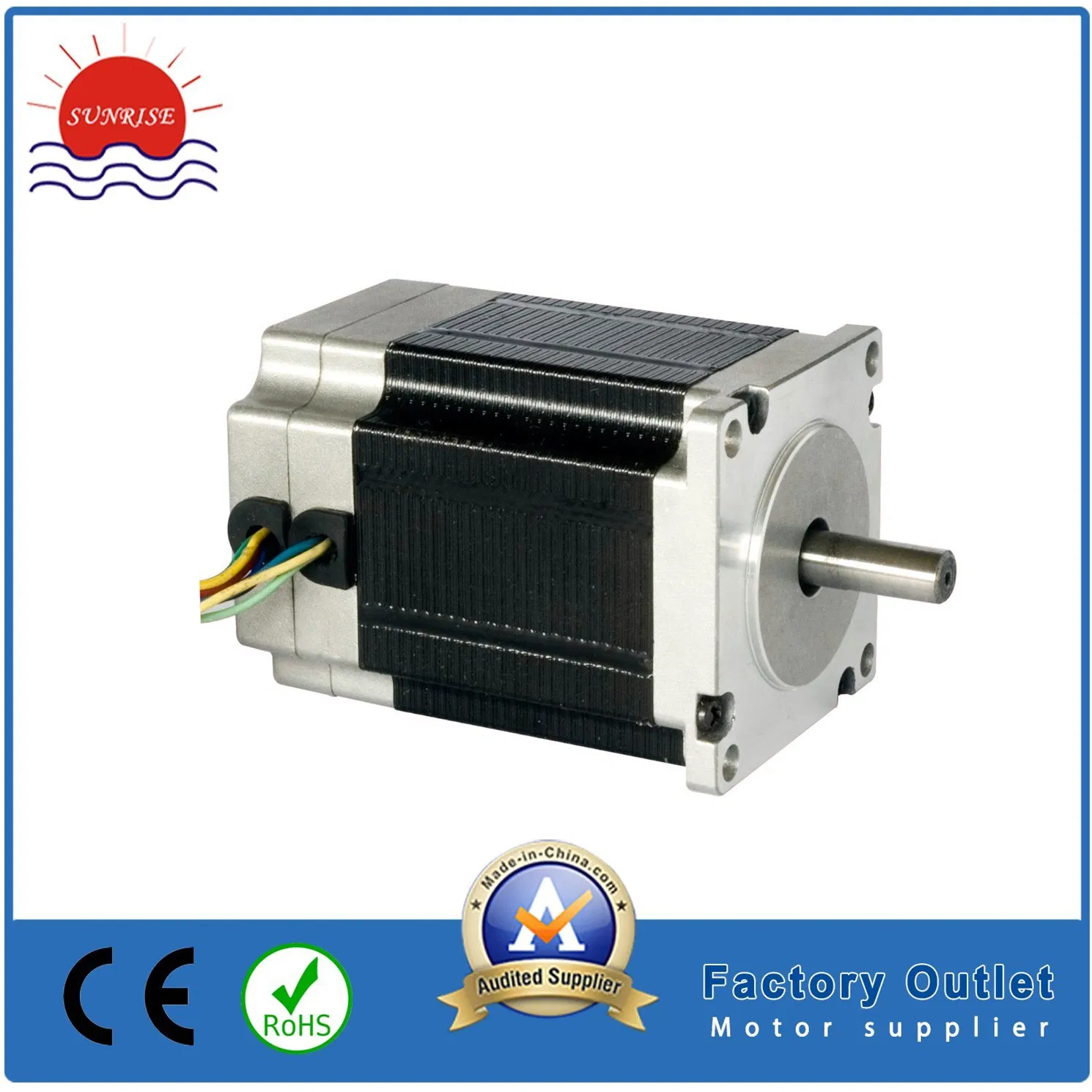

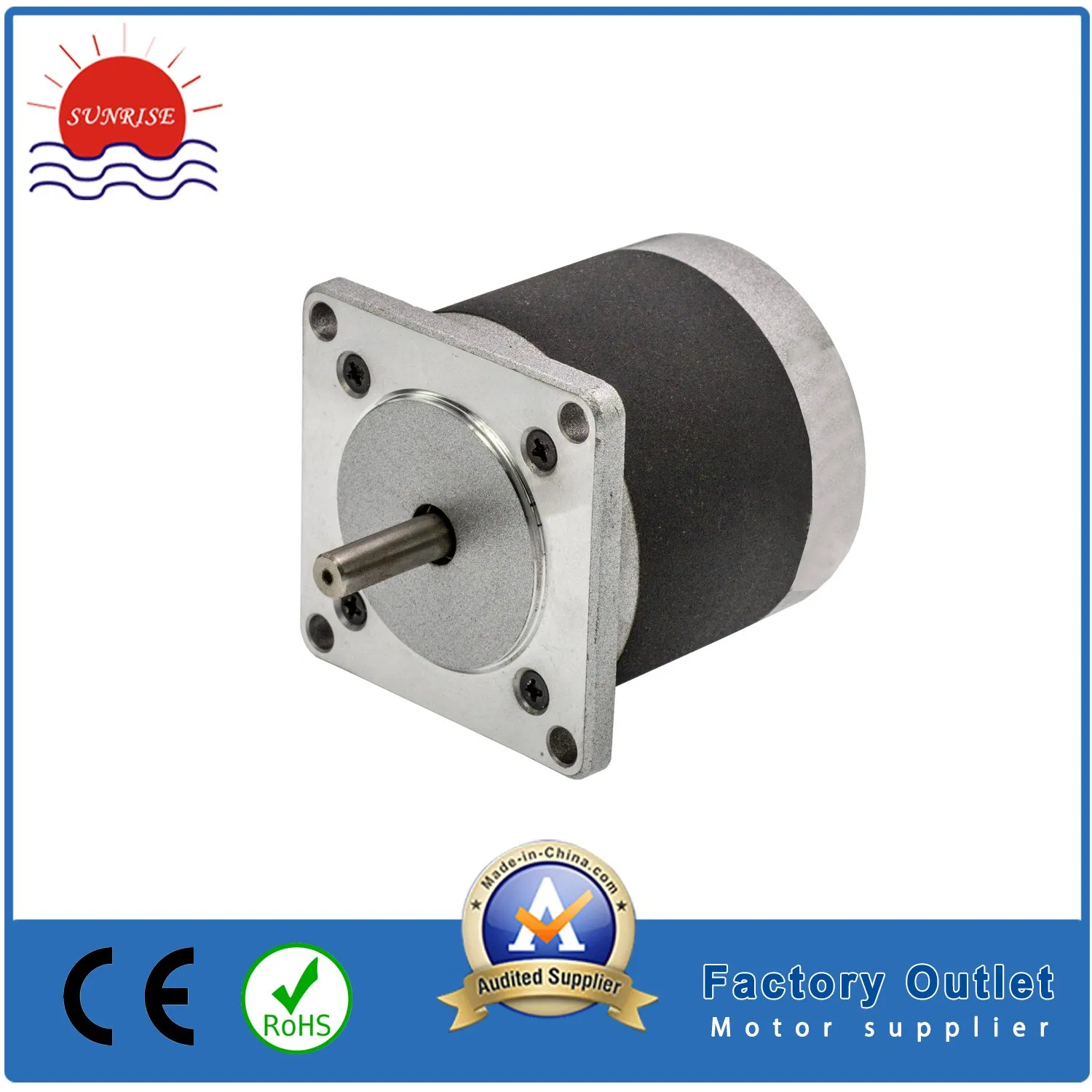

57BLY3A90 36V 8poles 3000rpm 185W Electric Brushless DC BLDC Motor
57BLY3A90 36V 8poles 3000rpm 185W Electric Brushless DC BLDC Motor
57BLY3A90 36V 8poles 3000rpm 185W Electric Brushless DC BLDC Motor
57BLY3A90 36V 8poles 3000rpm 185W Electric Brushless DC BLDC Motor
57BLY3A90 36V 8poles 3000rpm 185W Electric Brushless DC BLDC Motor
1 / 5
57BLY3A90 36V 8poles 3000rpm 185W Electric Brushless DC BLDC Motor
57BLY3A90 36V 8poles 3000rpm 185W Electric Brushless DC BLDC Motor
57BLY3A90 36V 8poles 3000rpm 185W Electric Brushless DC BLDC Motor
57BLY3A90 36V 8poles 3000rpm 185W Electric Brushless DC BLDC Motor
57BLY3A90 36V 8poles 3000rpm 185W Electric Brushless DC BLDC Motor

57BLY3A90 36V 8poles 3000rpm 185W Electric Brushless DC BLDC Motor

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview

Basic Info.

Model NO.:57BL3A90
Excitation Mode:Shunt
Function:Driving
Casing Protection:Closed Type
Number of Poles:8
Structure:Brushless
Type:BLDC
Certification:ISO9001
Voltage:36VDC/48VDC
Speed:3000 rpm
Winding Class:B
Motor Weight:1.4kg
Rated torque:0.6Nm
Transport Package:Carton/ Pallets
Origin:China
HS Code:85013100

Packaging & Delivery

Package Size:40.00cm * 32.00cm * 25.00cm
Gross Weight:3.000kg
Product Description
57bl3a90 36V 24V 48V 8poles 3000rpm 185W 62W 125W 0.2N.m 0.4N.m Electric Brushless DC BLDC Motor
Brushless DC Motor:
The BLDC motor offers exceptional torque and speed, higher efficiency, as well as package sizes suited to meet the most stringent of application requirements. These brushless DC motors are electronically commutated and can be supplied in either sensored or sensorless versions, with all having 3 phase windings.
  • Winding Type: Star
  • Hall effect angle: 120°Electrical angle
  • Insulation Class: B
  • Ambient Temperature: -20ºC~+50ºC
  • Insulation Resistance: 100MΩ Min.500V DC
  • Dielectric Strength: 600VAC 1 minute
  • Max Radial Force: 75N (10mm from front flange)
  • Max Axial Force: 15N
Brushless DC Motor Series 57BLY
The 57BLY Brushless DC motor is a synchronous electric motor powered by direct-current electricity (DC). It features an electronically controlled commutation system instead of mechanical brushes, ensuring linear current, torque, voltage, and RPM.
Motor Highlights:
  • Round shape design
  • 3 phase system
  • Integrated Hall sensors
  • 4 poles, Bonded NdFeB Magnets
  • Rated torque up to 440 mNm

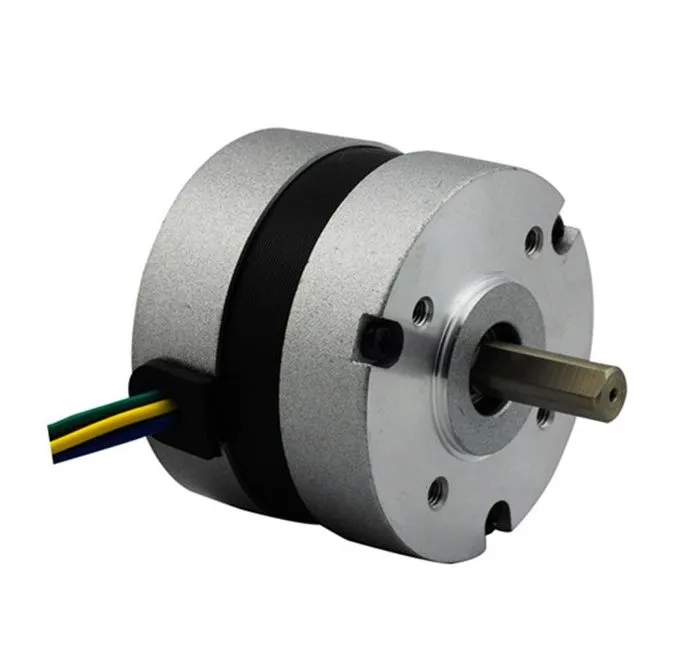

57BLY Brushless Motor
BLDC Motor View
Product Parameters
Brushless DC Motor Series 57BL (NEMA 23)
Model 57BL3A50 57BL3A70 57BL3A90
Specification Unit -A-B-B-C-B-C
Rated voltageUV243636483648
Rated out powerPoutW6262125125185185
Rated speedn Nrpm300030003000300030003000
Rated currentI NA3.32.24.43.26.54.8
Rated torqueT NN.m0.20.20.40.40.60.6
Peak torqueT pN.m0.580.61.291.311.92
Number of polesN P888888
Motor weightKg0.650.65111.41.4

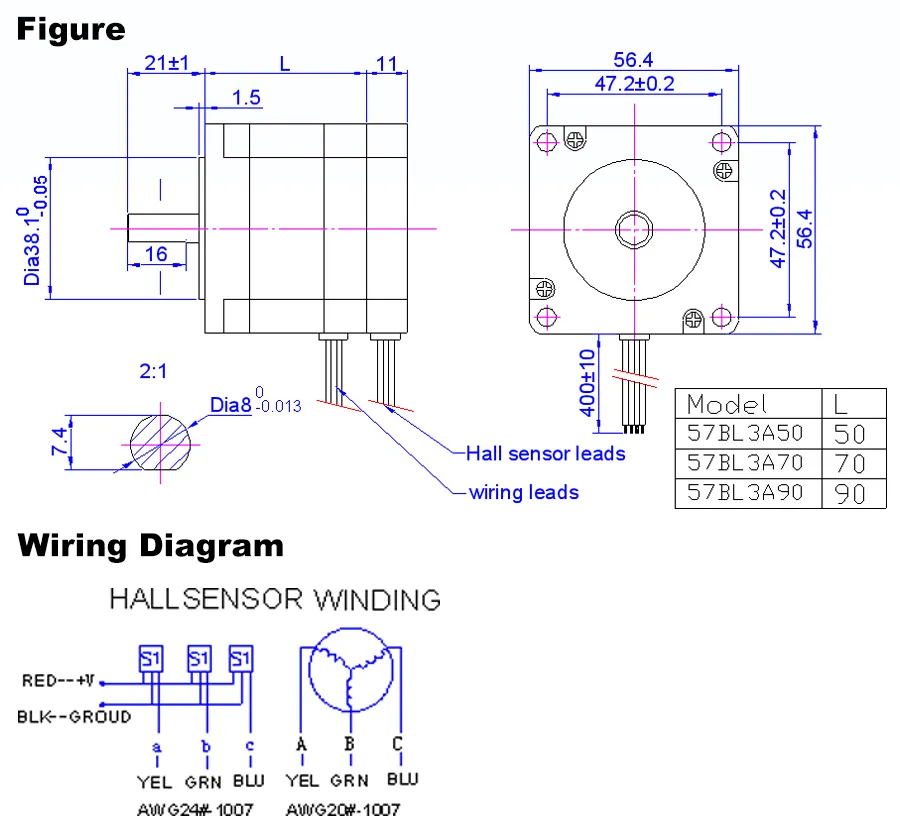

Motor Dimension Drawing
Wiring Diagram
ELECTRICAL CONNECTION TABLE
FUNCTIONCOLORWIRE GAGE
+5VREDUL1007 26AWG
HALL AYELLOW
HALL BGREEN
HALL CBLUE
GNDBLACK
PHASE AYELLOWUL1015 20AWG
PHASE BGREEN
PHASE CBLUE
Wiring Scheme
Recommended Products

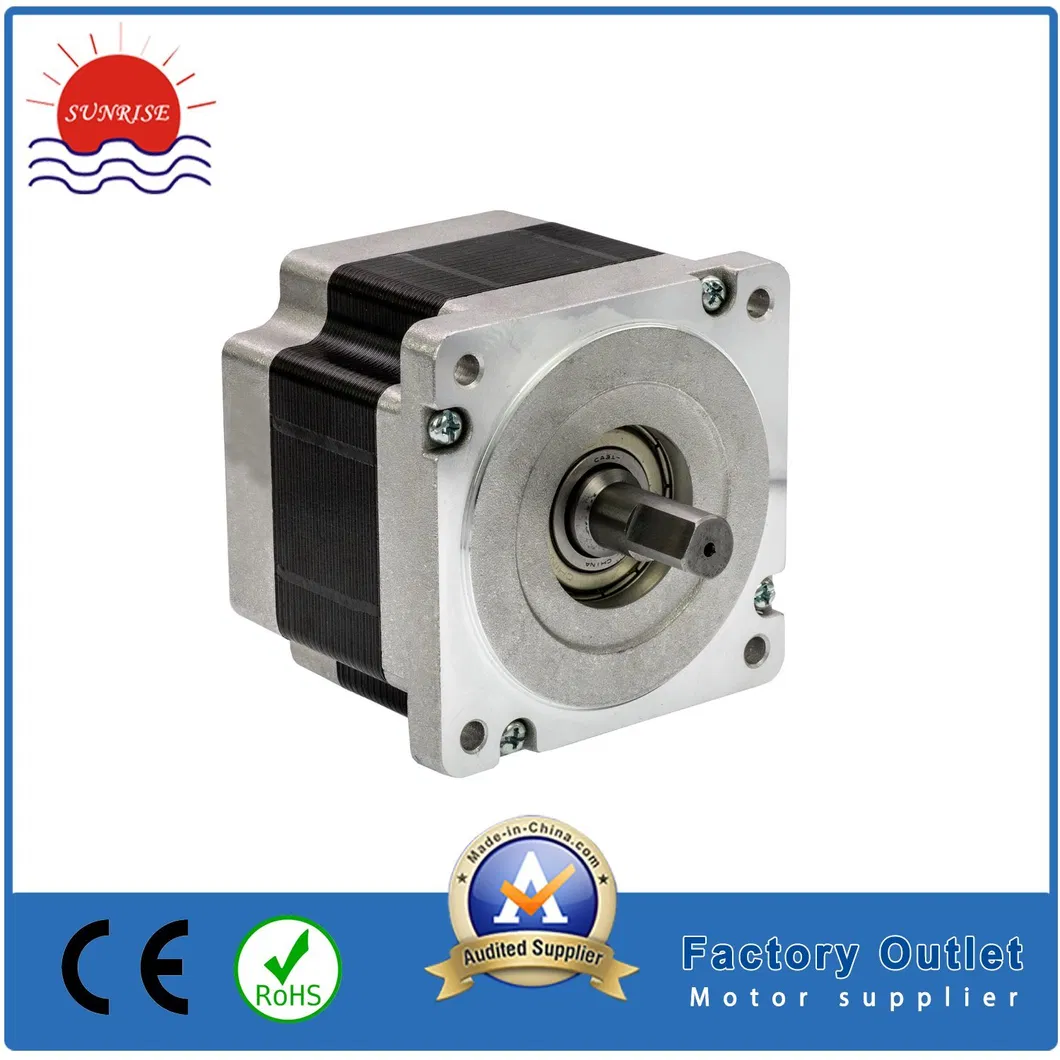

Servo Motor 1

86bls3a125 Brushless Servo Motor

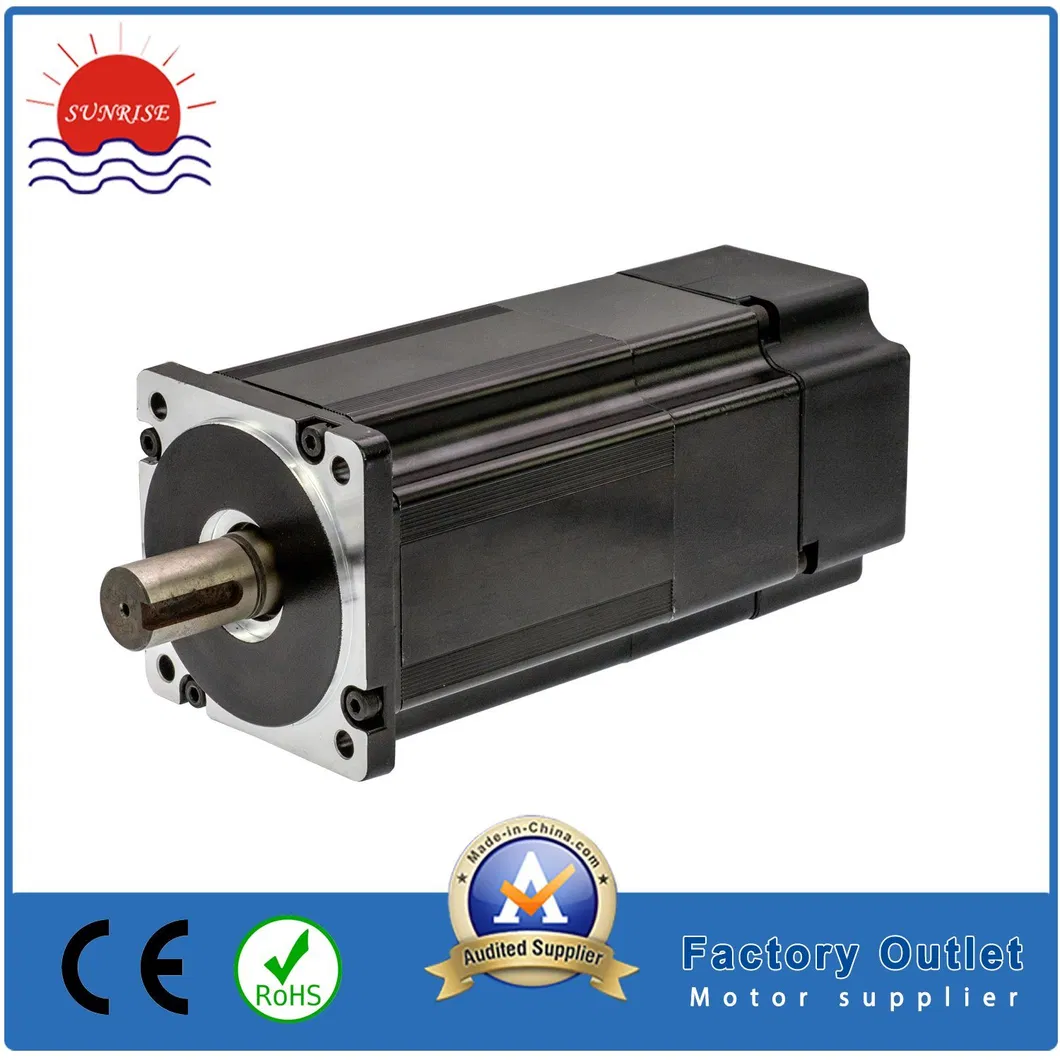

Servo Motor 2

Es6004A-40d30A1 Brushless Servo Motor

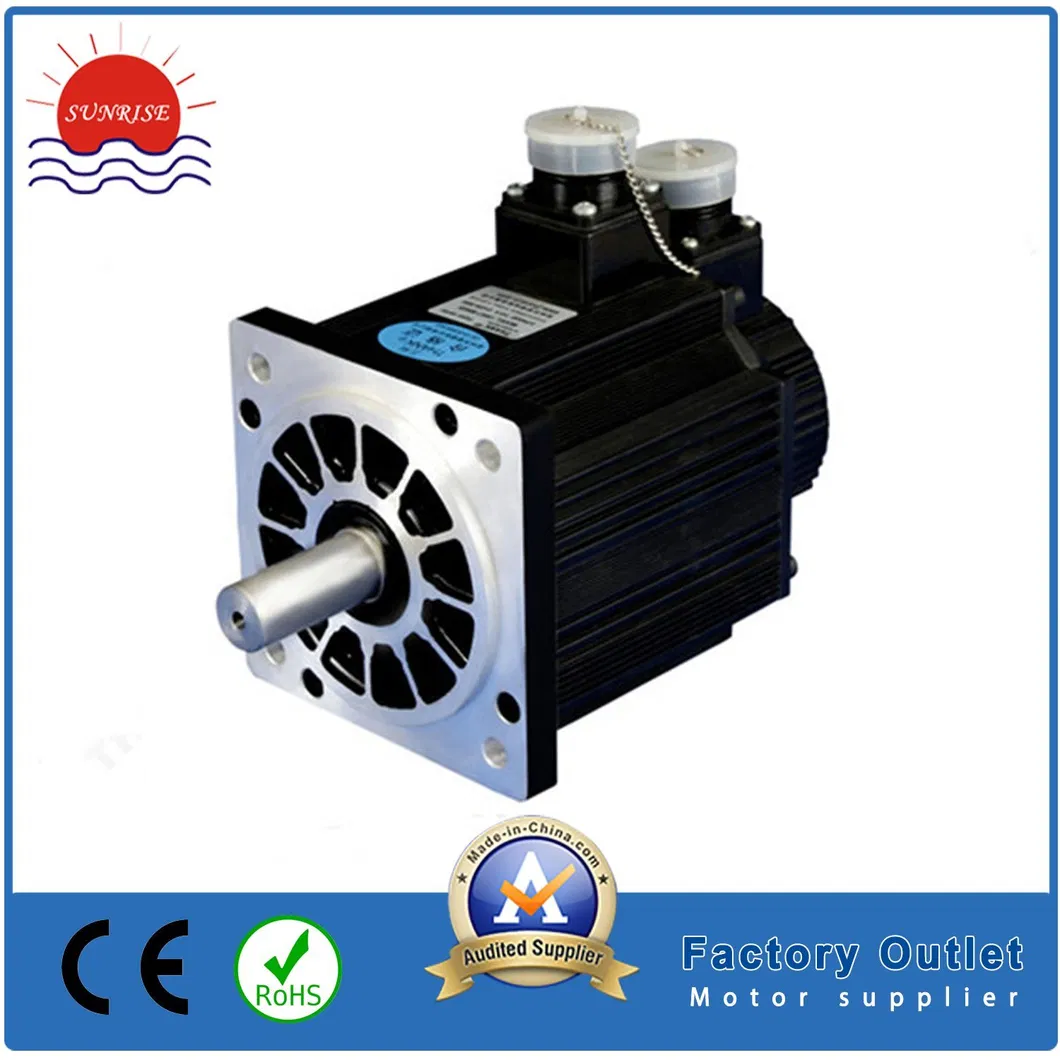

Servo Motor 3

130st-M5025 1300W AC Motor

Production & Quality

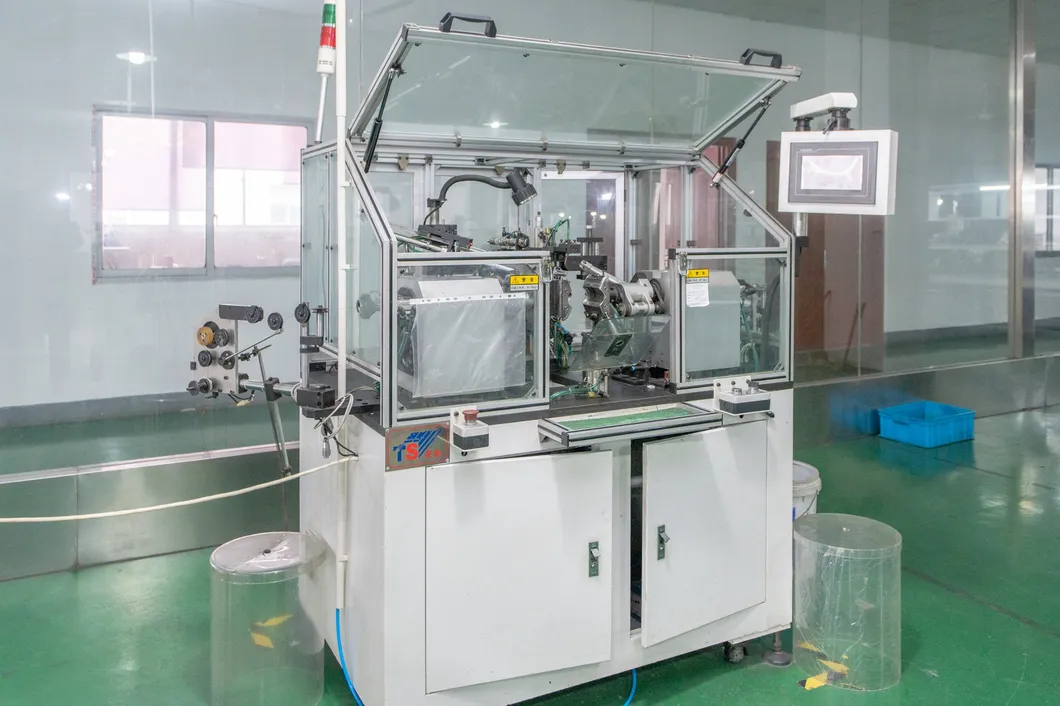

Factory Facility

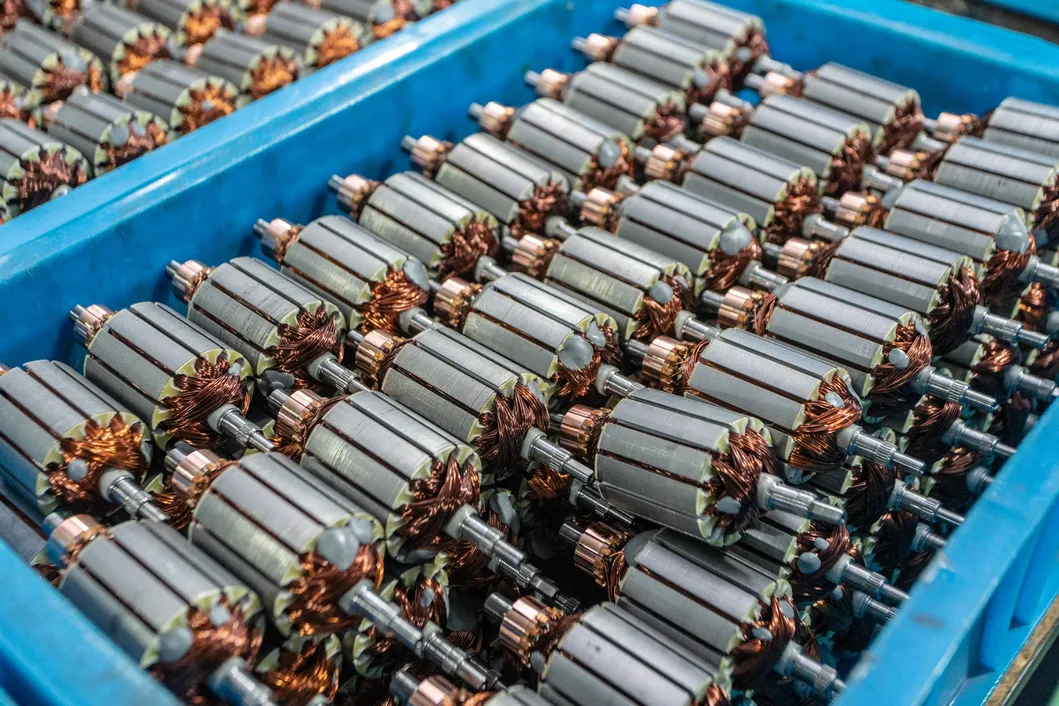

Production Line

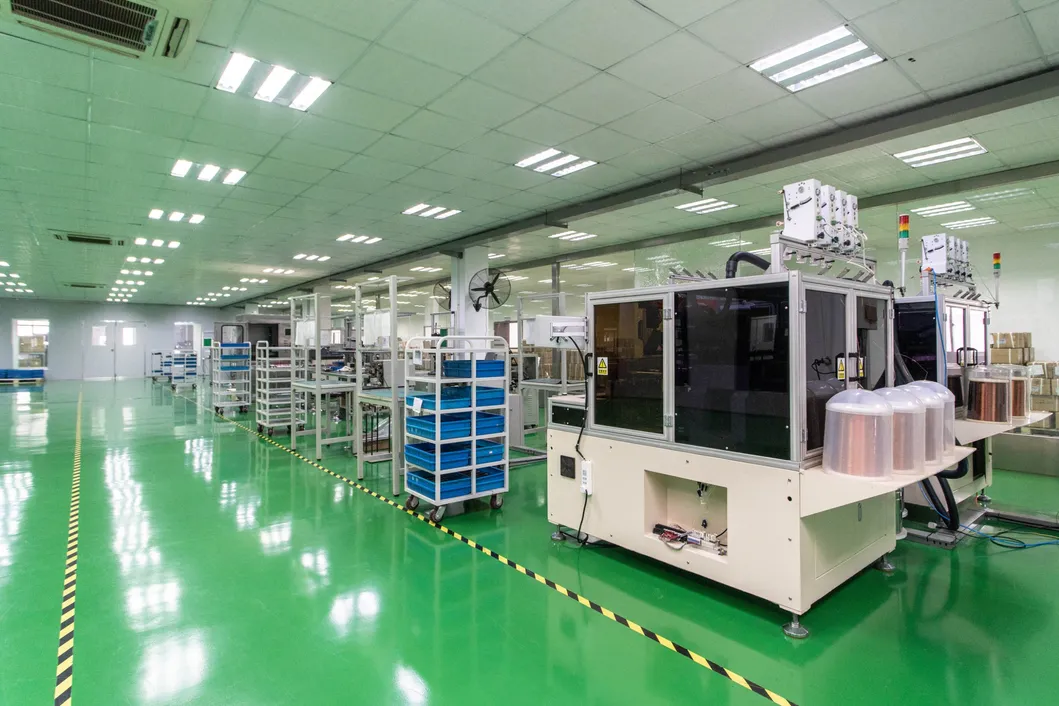

Testing Area

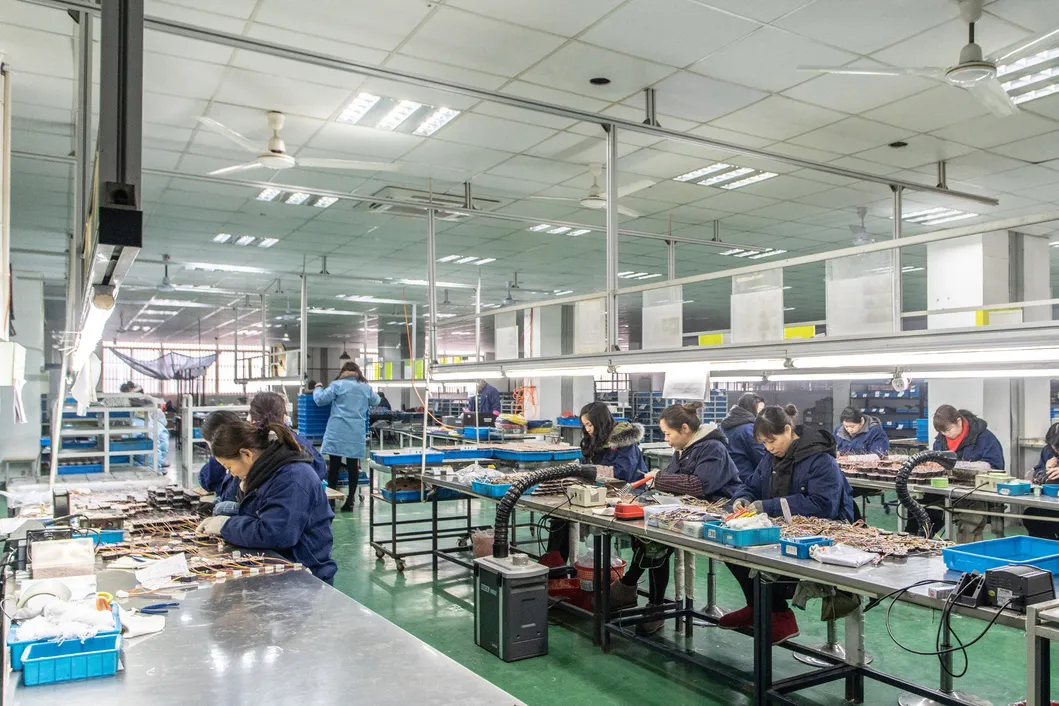

Warehouse

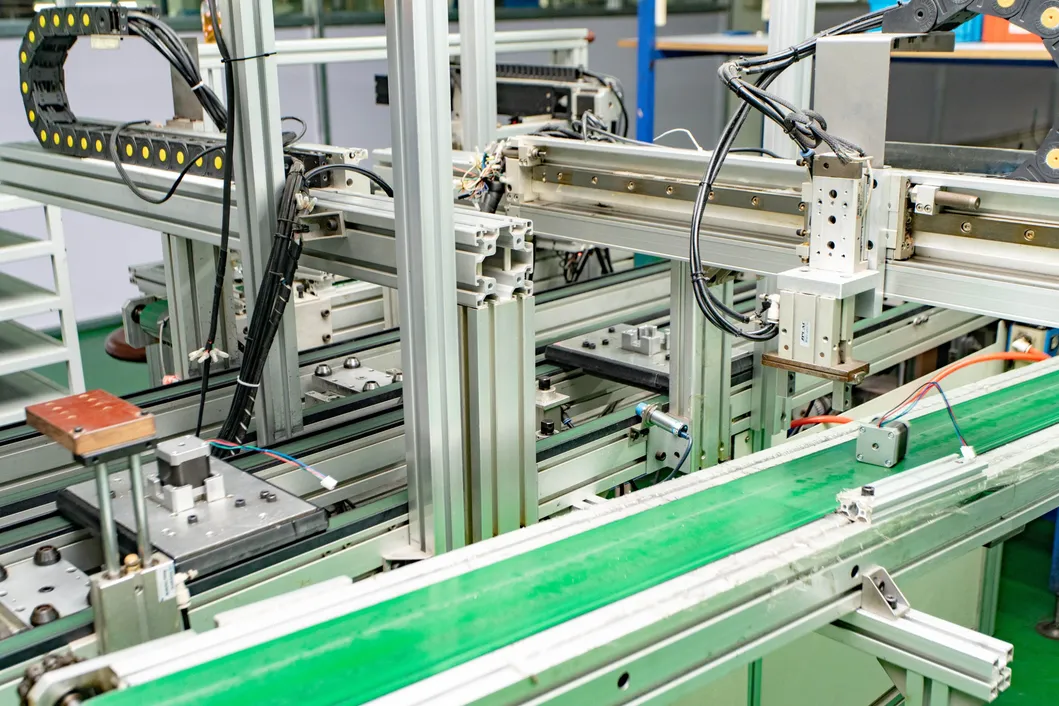

Equipment

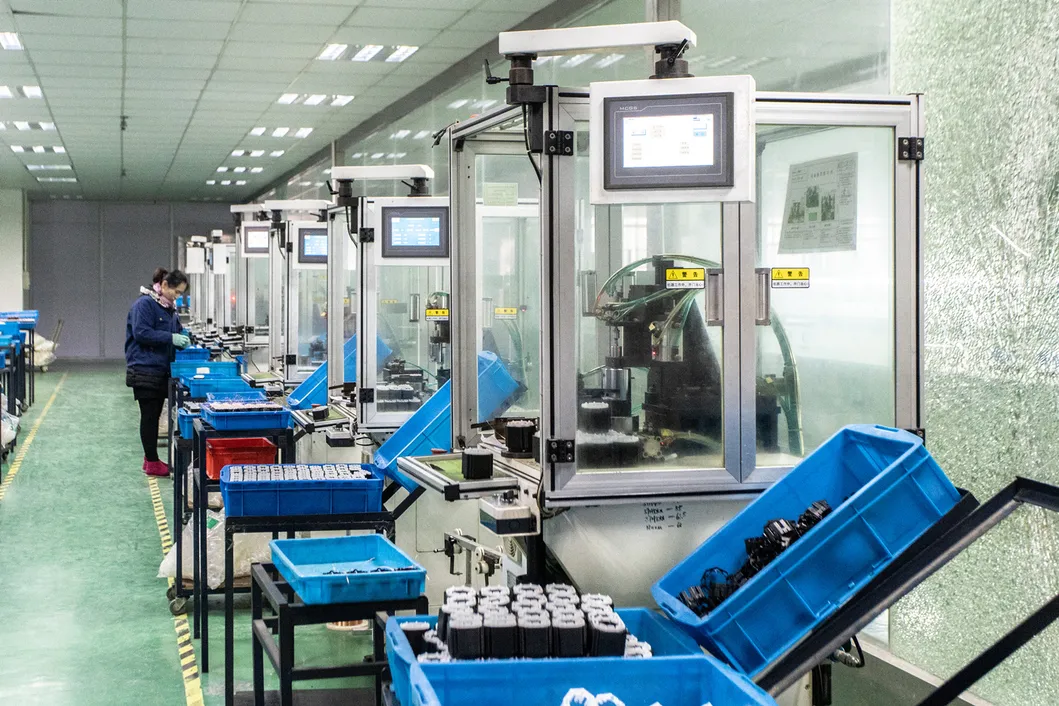

Office
