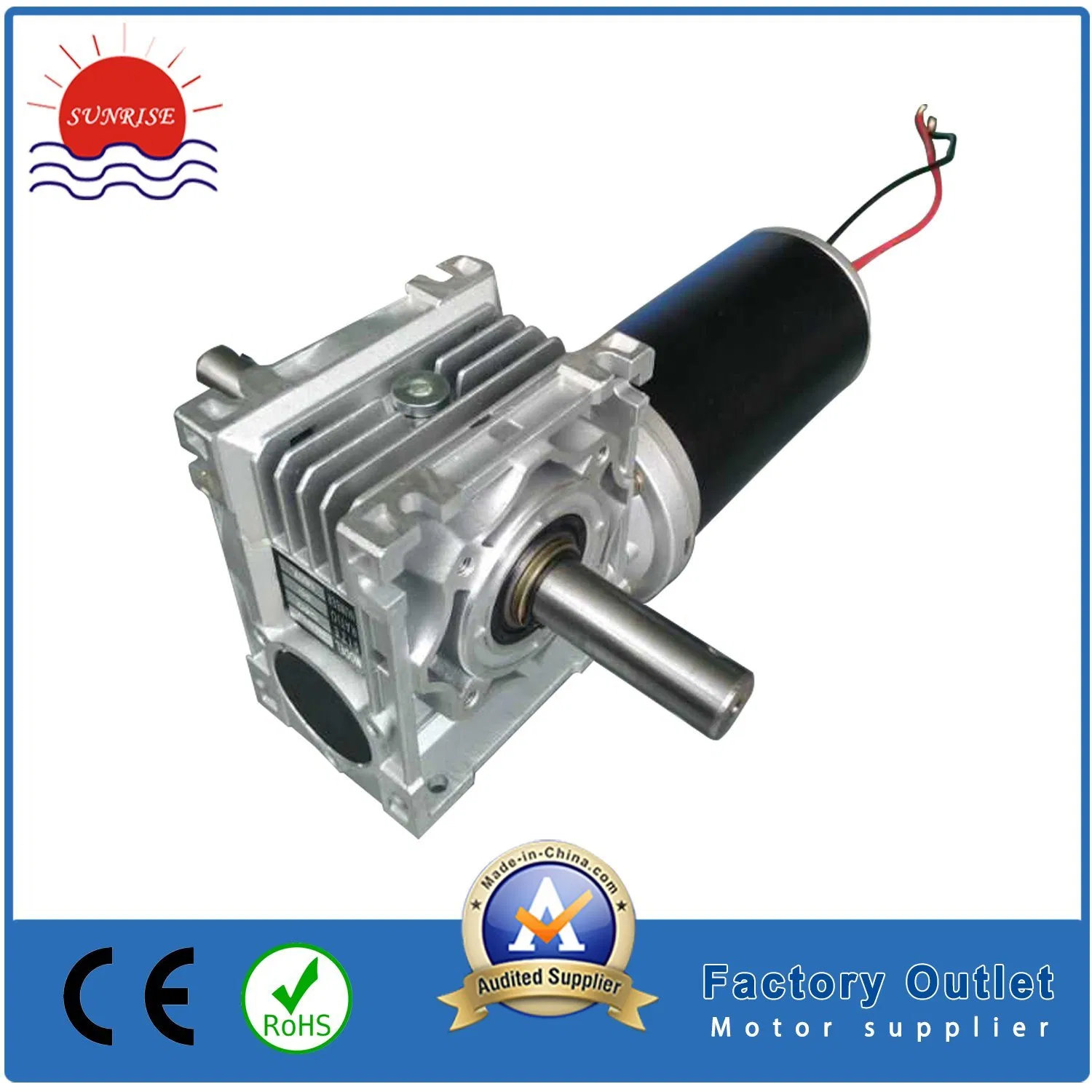

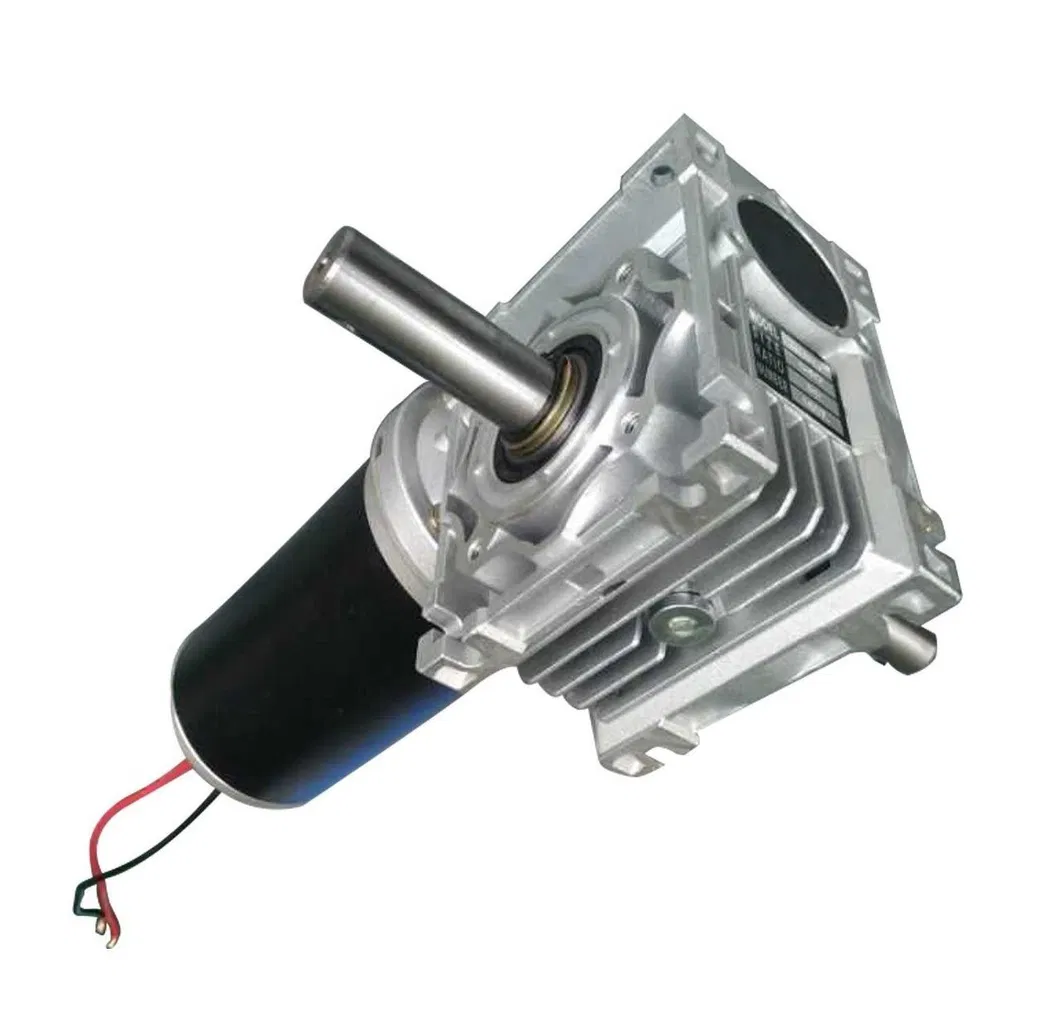

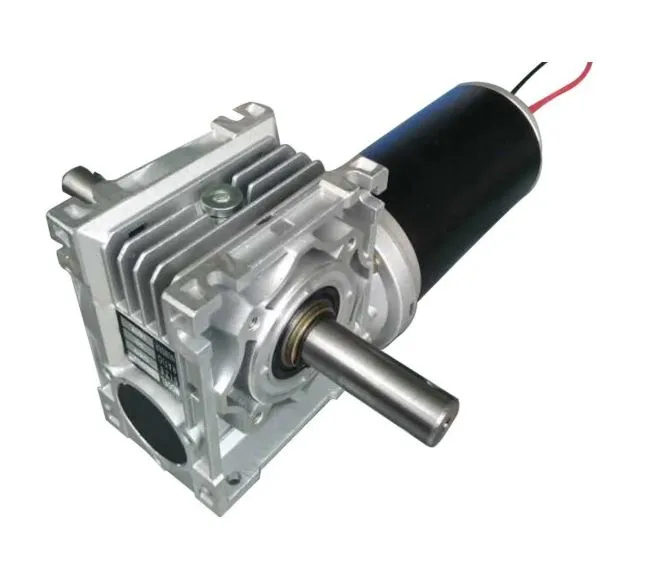

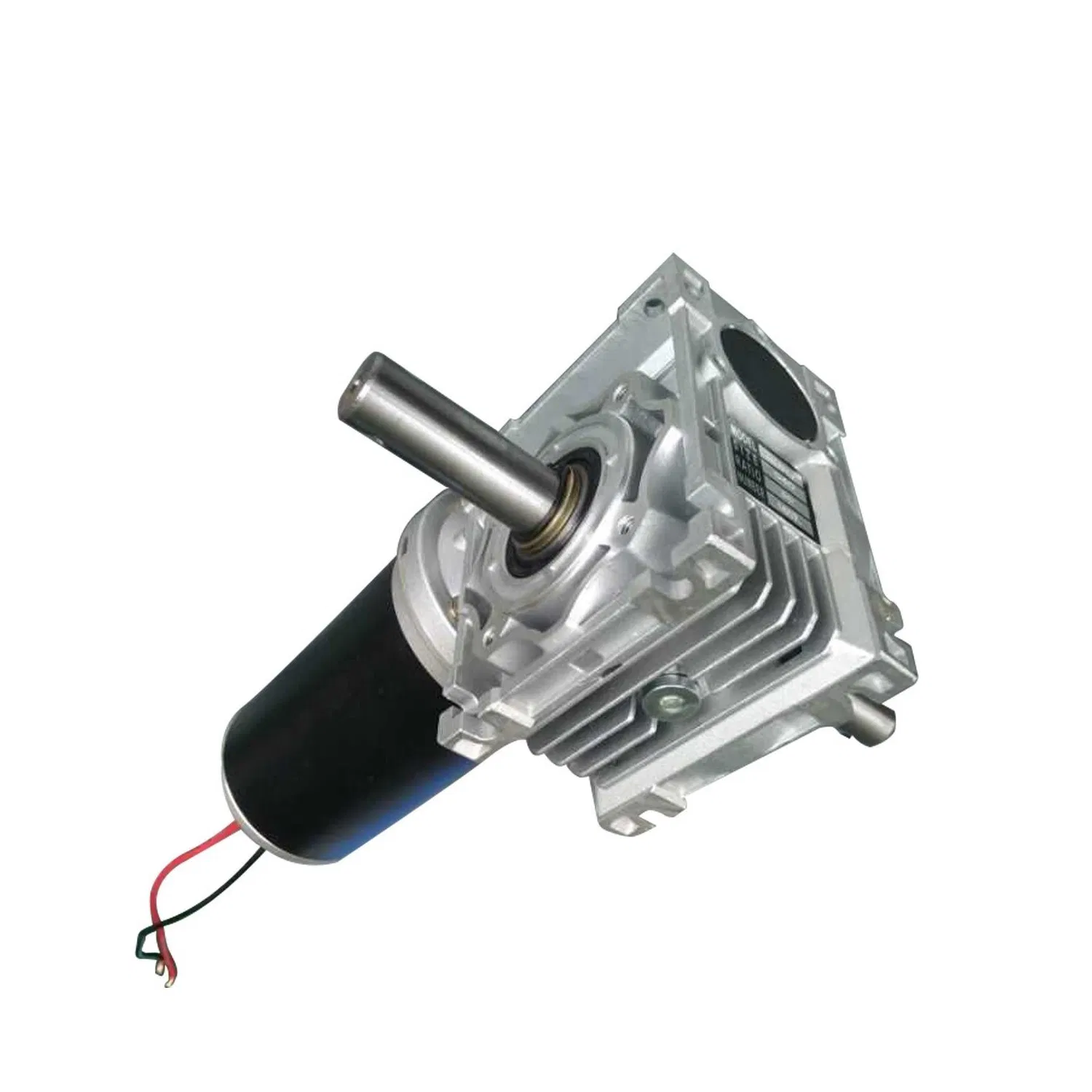

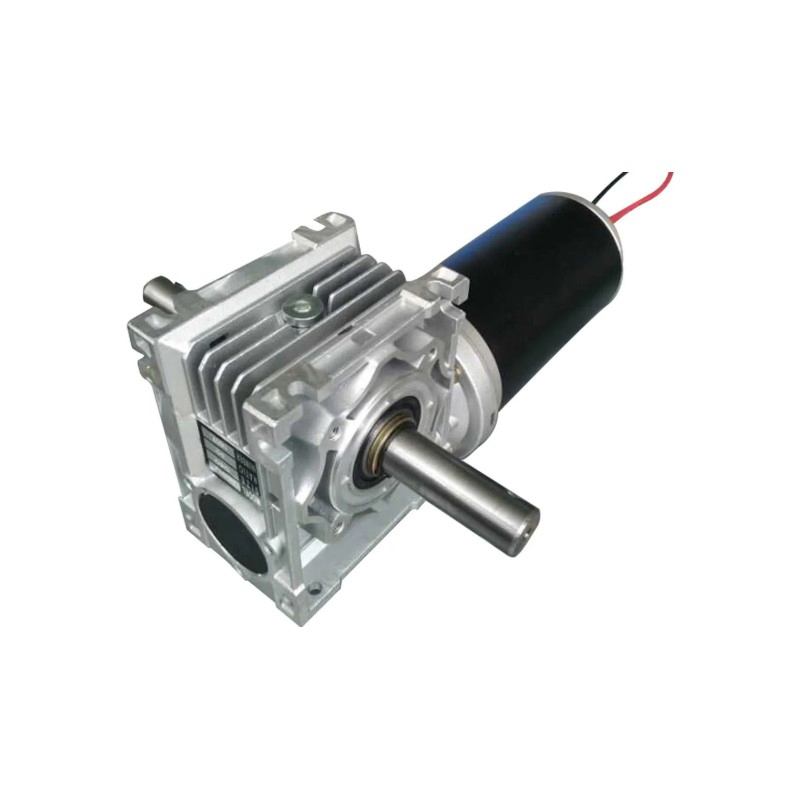

Permanent Magnet DC (PMDC) Brushed Motor (80ZYT165-2420-30RV25)
In a Permanent Magnet DC (PMDC) motor, permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings. PMDC motors are generally smaller but still offer an impressive output performance, making them an excellent choice for use in mobility, patient care, industrial and leisure products.
Advantages of PMDC motors: Cost-effective and with a high starting torque, PMDC motors are generally smaller but still offer an impressive output performance. They are most often combined with gearboxes to reduce speed and increase torque for the ultimate geared motor solution.

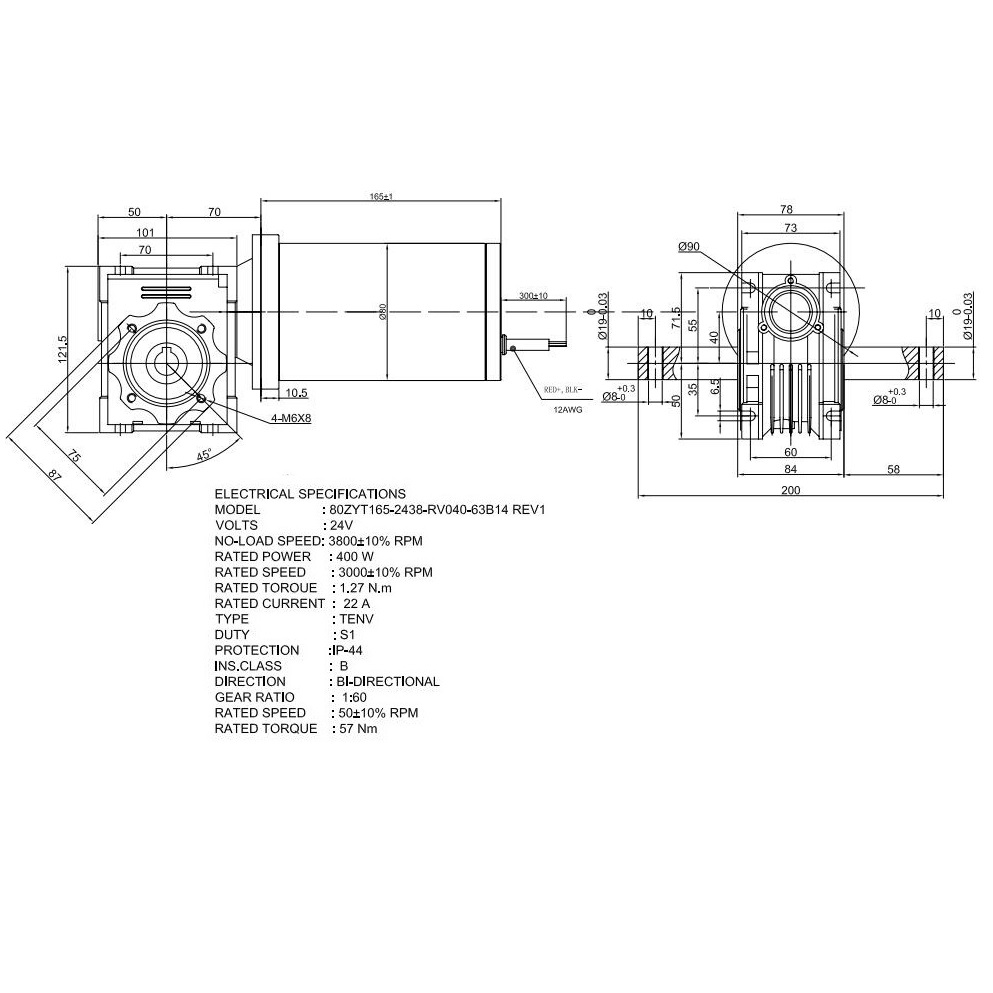

| Motor Specifications | |
|---|---|
| MODEL | 80ZYT165-2438-RV040-63B14 REV1 |
| VOLTS | 24V |
| NO-LOAD SPEED | 3800±10%RPM |
| RATED POWER | 400W |
| RATED SPEED | 3000±10%RPM |
| RATED TORQUE | 1.27 N.m |
| RATED CURRENT | 22A |
| PROTECTION | IP-44 |
| INS. CLASS | B |
| DIRECTION | BI-DIRECTIONAL |
| MODEL | VOLTAGE (VDC) | No load Speed (r/min) | Rated Torque (N.M) | Rated Current (A) | Output Power (W) | Rated Speed (r/min) | Gear Ratio | Duty | Protection |
|---|---|---|---|---|---|---|---|---|---|
| 80ZYT165-2420-30RV25 | 24 | 2000 | 1.4 | 11.5 | 220 | 1500 | 25:1 | S1 | IP44 |
Customization Options: We offer several levels of PMDC motor customization, including shaft variations, output flange options, various cable lengths, brakes, encoders, paint finishes, and terminal boxes.
86bls3a125 Brushless Servo Motor

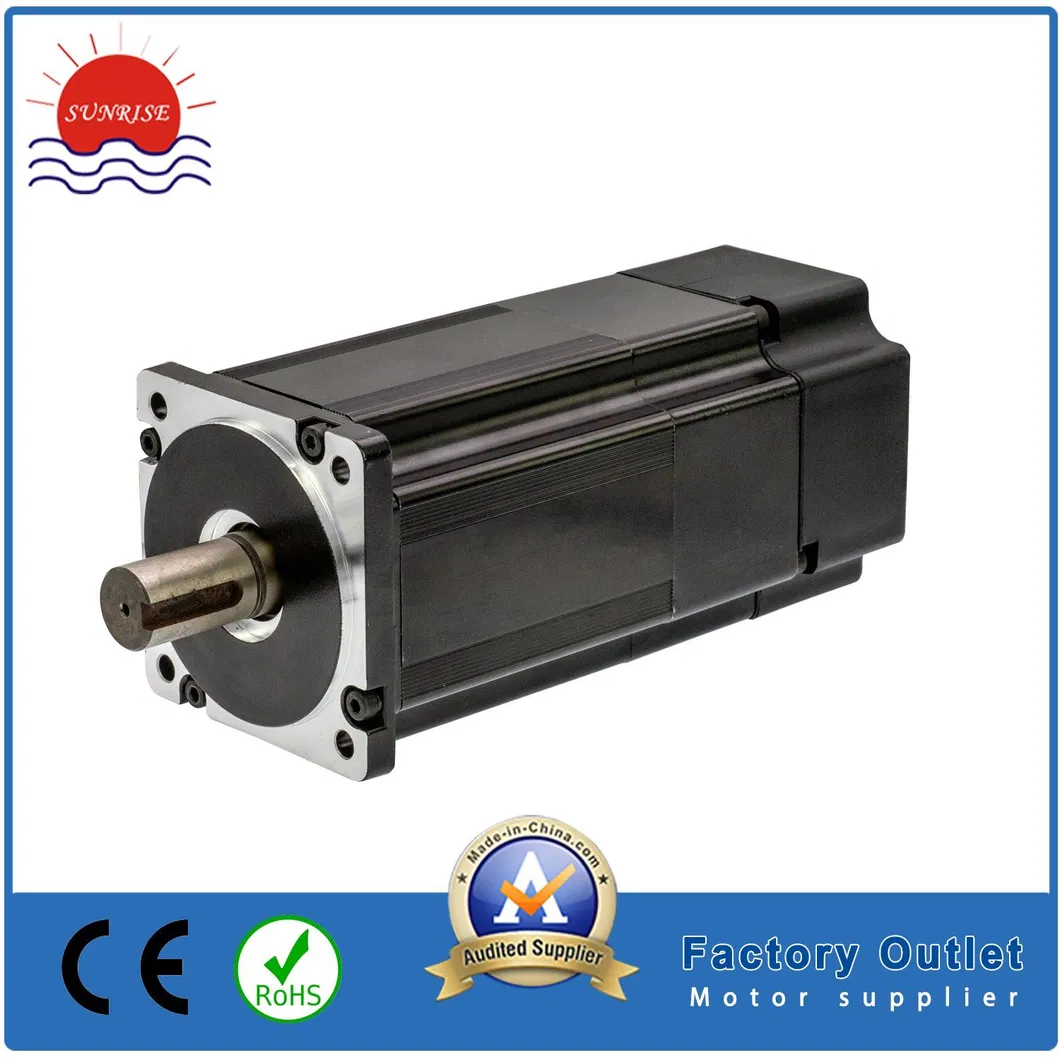

Es6004A-40d30A1 Brushless Servo Motor

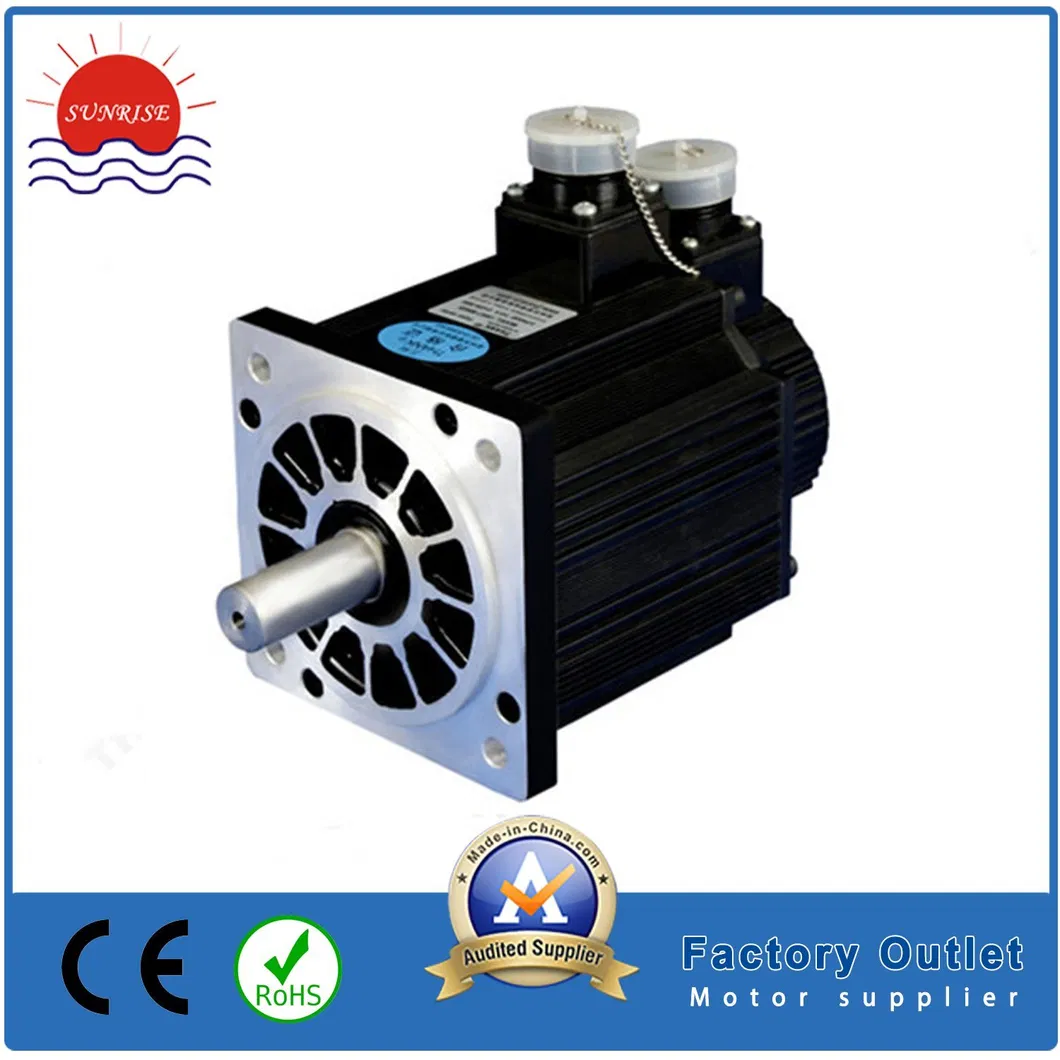

130st-M5025 1300W 5A AC Motor
