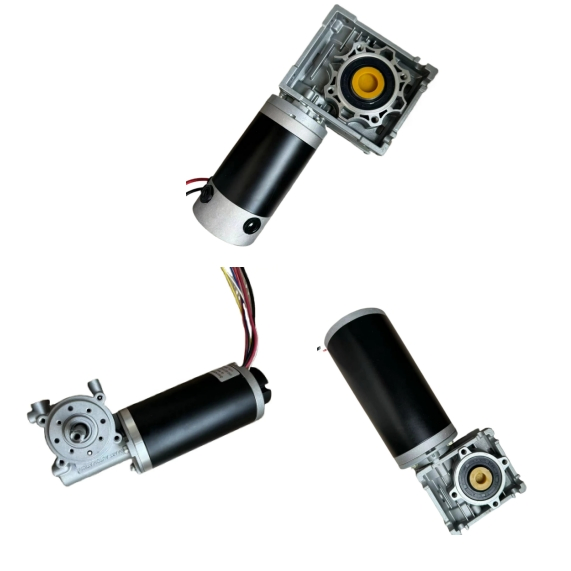

Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
1 / 5
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors
Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors

Custom Good Quality Power 10W-1500W Permanent Magnet Brushed DC Motor 24V 12V 36V 48V 60V to 320V PMDC Brush Electric Worm Gearbox and Planetary Gear Motors

Customization: Available
Application: Universal, Industrial, Household Appliances, Car, Power Tools, Machine, Robot
Operating Speed: Constant Speed
Send Inquiry

Product Description

⚙️ Basic Specifications
Model NO.
Zyt series
Excitation Mode
Pm
Function
Control, Driving
Casing Protection
Closed Type
Number of Poles
2
Working Principle
Brushless
Type
ZSN
Certification
ISO9001, CE, RoHS
Power Range
10W Upto 2000W
Voltage
12V 24V Upto 380VDC
Specification
size 30mm TO 110mm
Production Cap.
10000 PCS Per Month
📦 Packaging & Delivery
Package Size
10.00cm * 10.00cm * 20.00cm
Gross Weight
2.000kg
📄 Product Description

Customized Brushed Dc Motors / DC Gearmotor

We provide Customizable solutions for voltage, dimensions, performance, shafts, and mounting requirements. Our capabilities include integrated encoders, gearboxes, and brakes to meet specific application needs.

Please Send Inquiry for the Best and Most Cost-Effective Solution/Proposal.
🛠️ Technical Options
Diameter30mm up to 130mm (various steps)
Rated Voltage10V, 12V, 18V, 24V, 36V, 48V up to 380VDC
Rated TorqueUp to 10Nm (with gearbox up to 120Nm)
Rated Speed1rpm up to 15000rpm
Rated Power10W up to 2000W
Protection ClassOptions: IP00, IP40, IP50, IP54, IP56, IP66, IP67
EMIEMI suppression available
ThermalThermal protection available
GearboxOption with planetary or worm gearbox assembled
BrakeOption with electric brake assembled
EncoderOption with Optical or Magnetic encoders assembled
ControllerOption with controller integrated for motors
📸 Typical Models Display

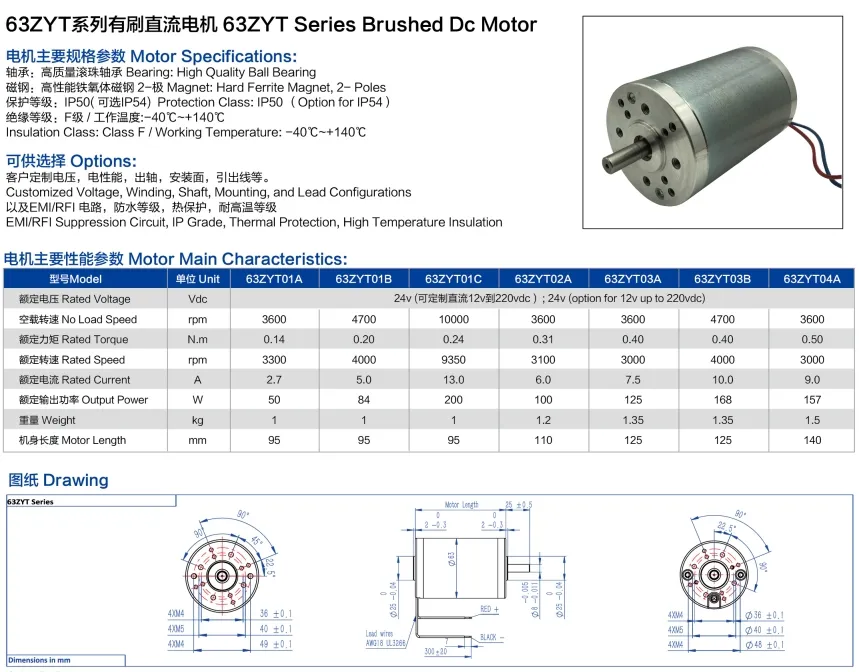

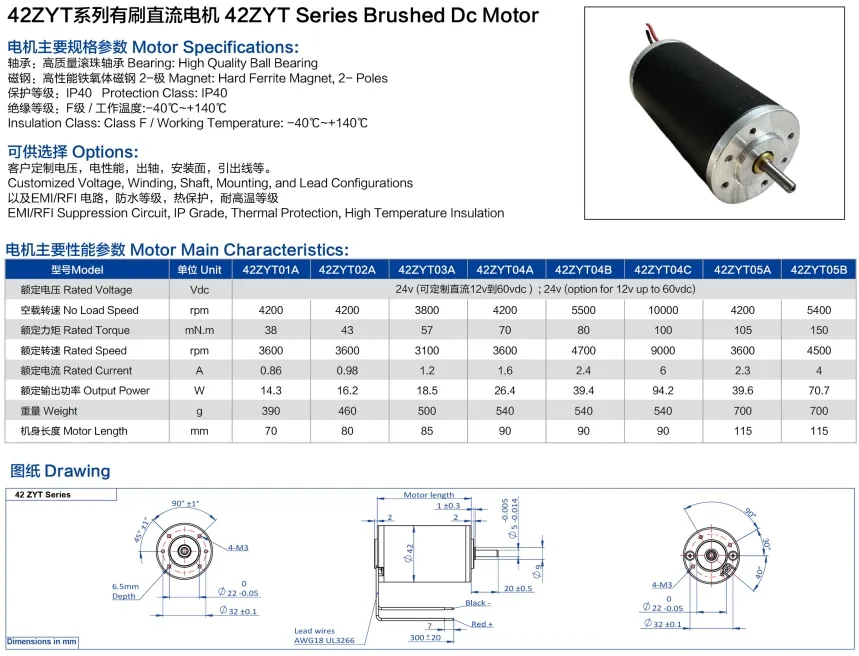

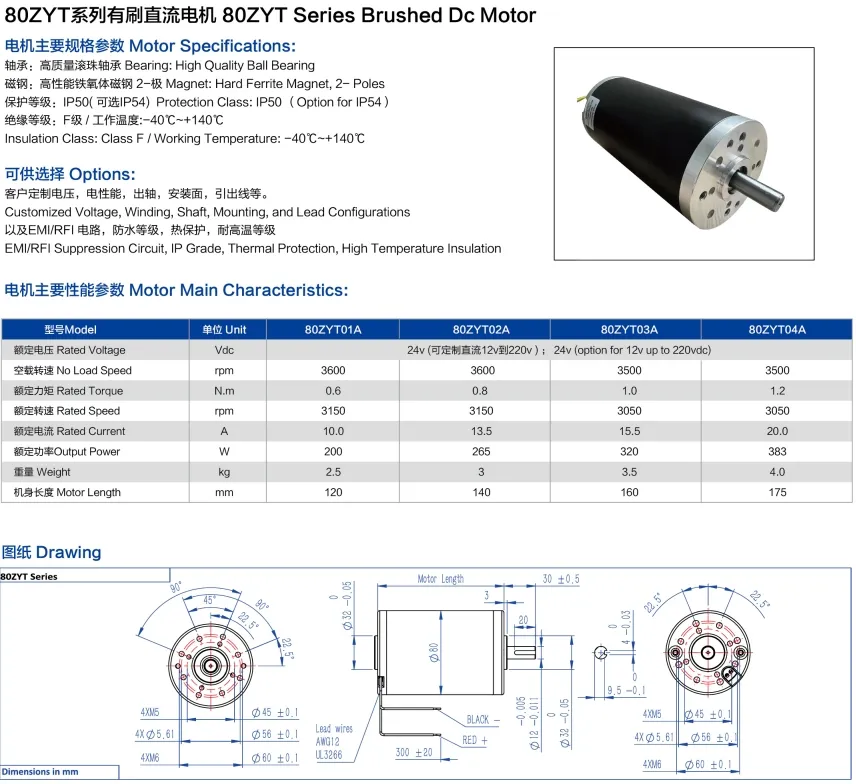

Typical Model 1 Typical Model 2 Typical Model 3

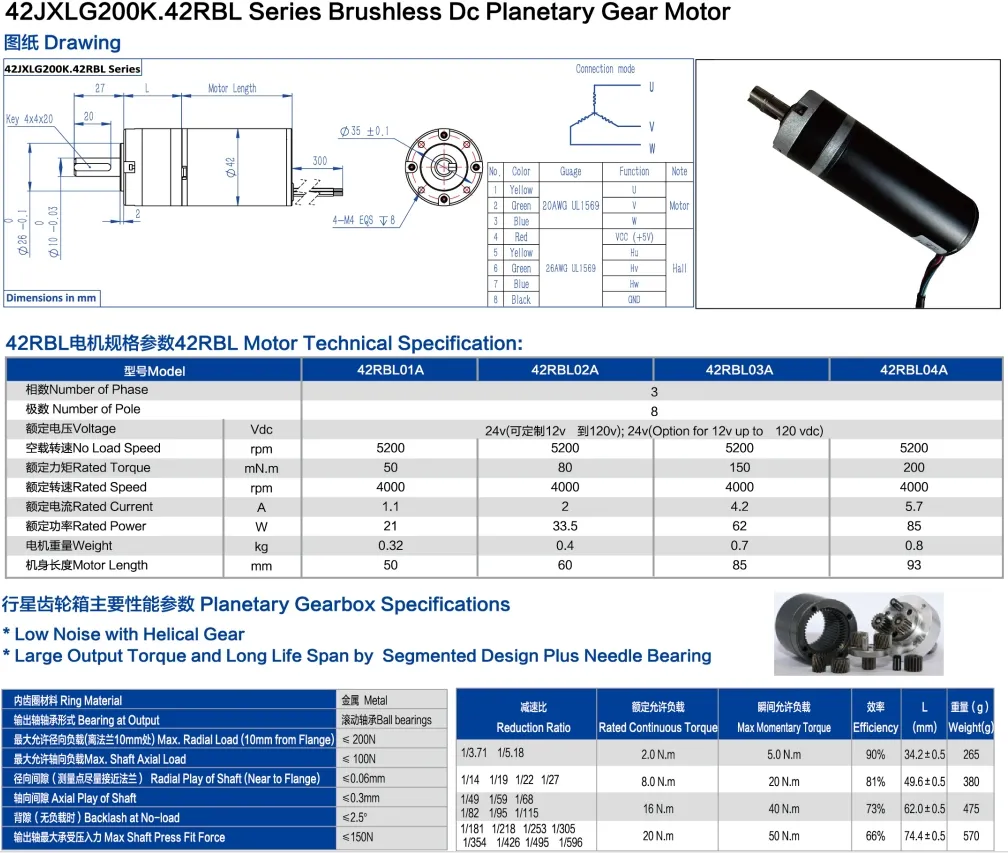

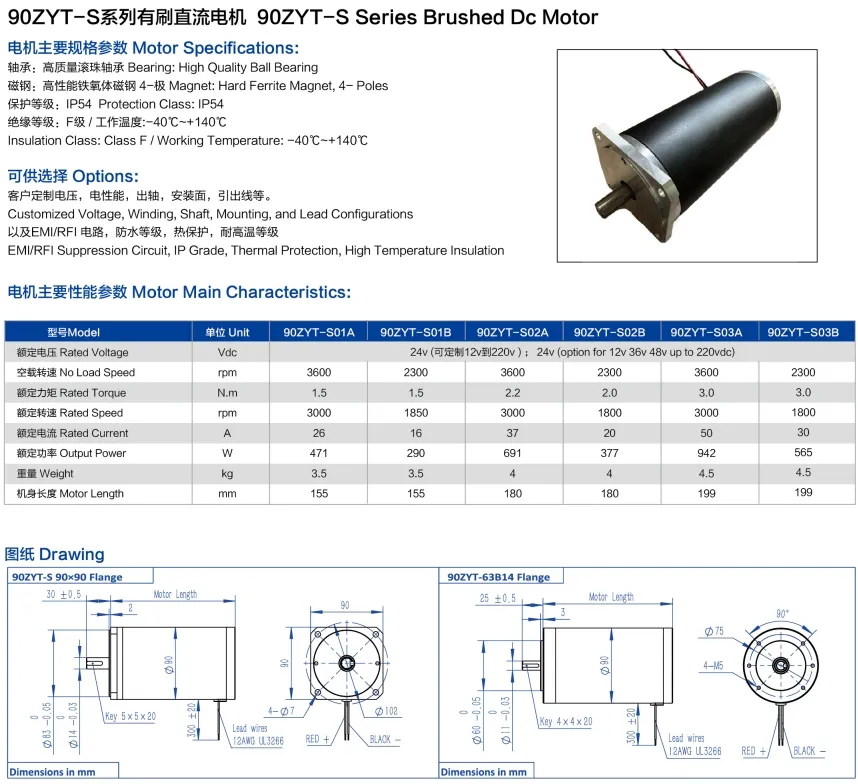

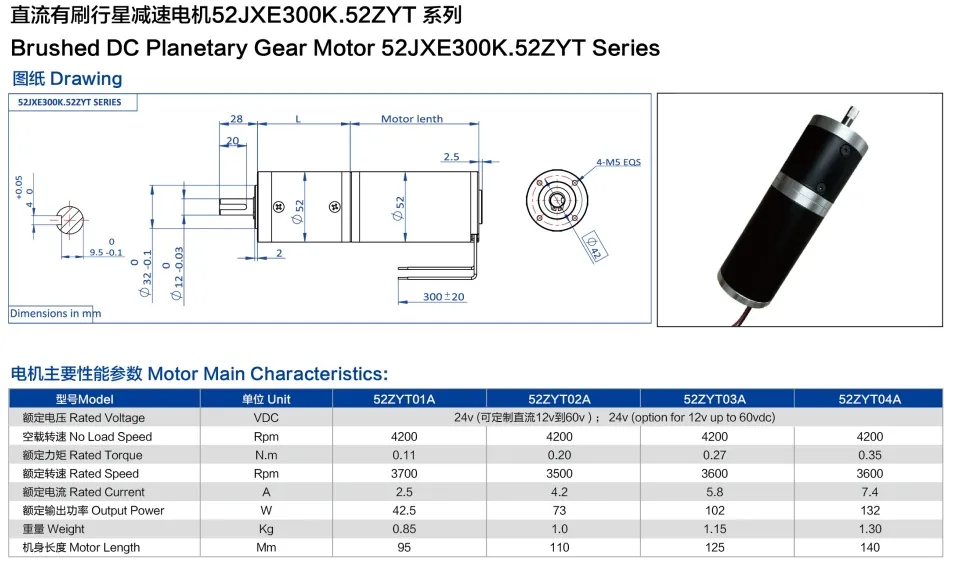

Typical Model 4 Planetary Gear Motor Gear Motor System

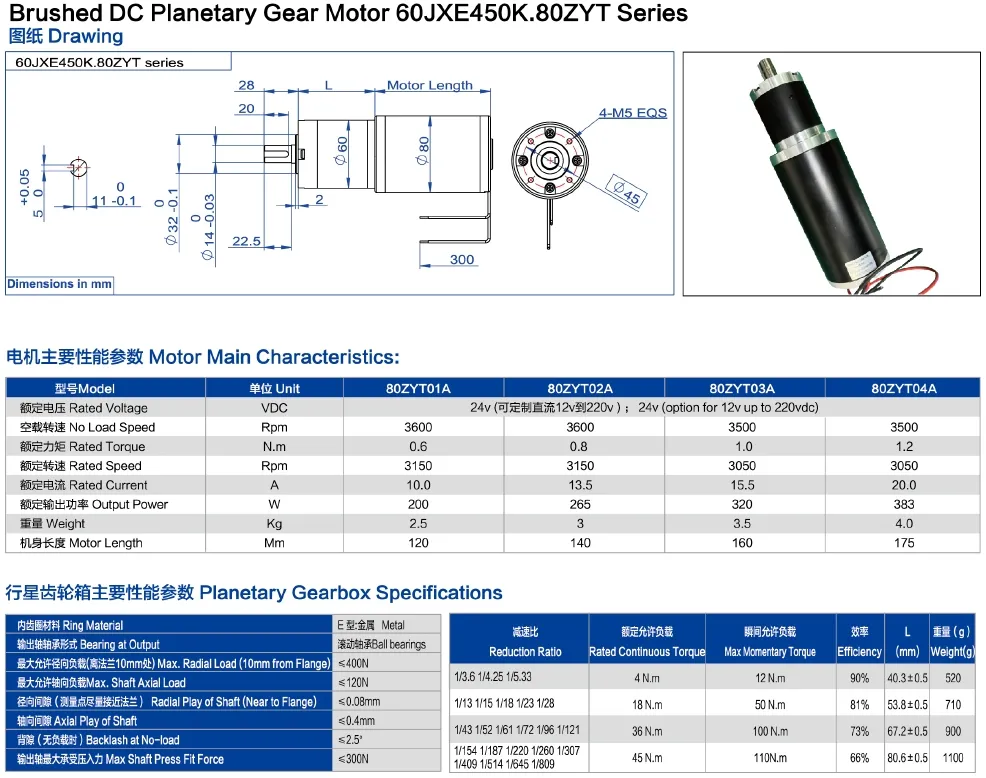

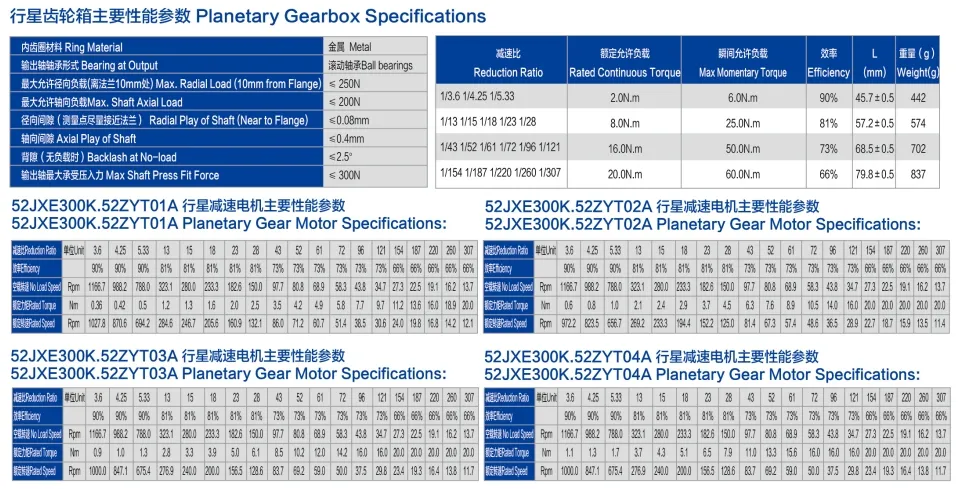

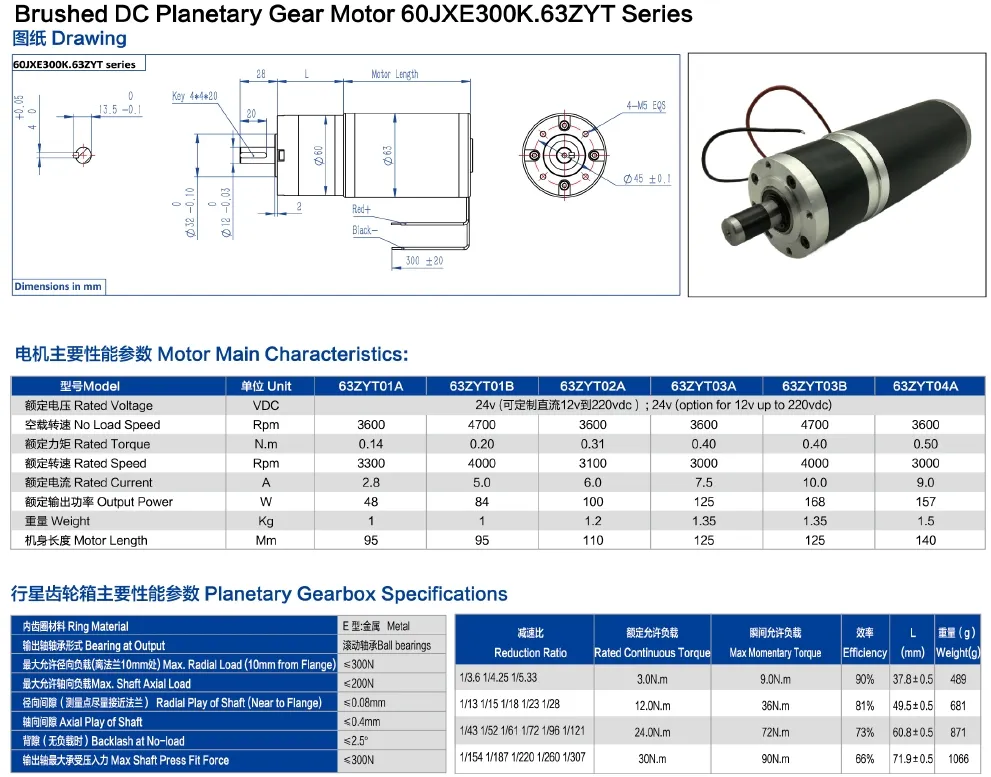

Motor Chart Worm Gear Motor Detail Planetary Gear Detail

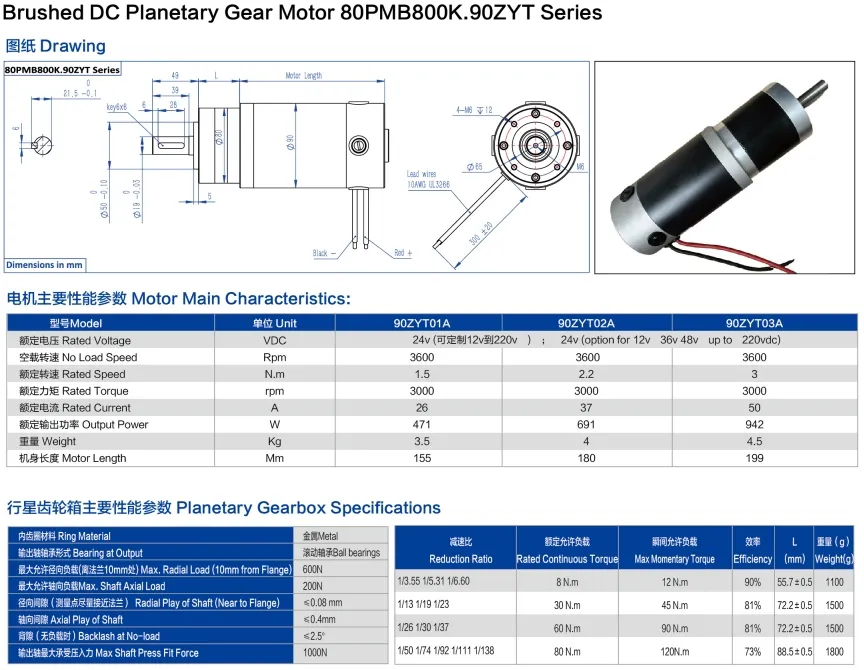

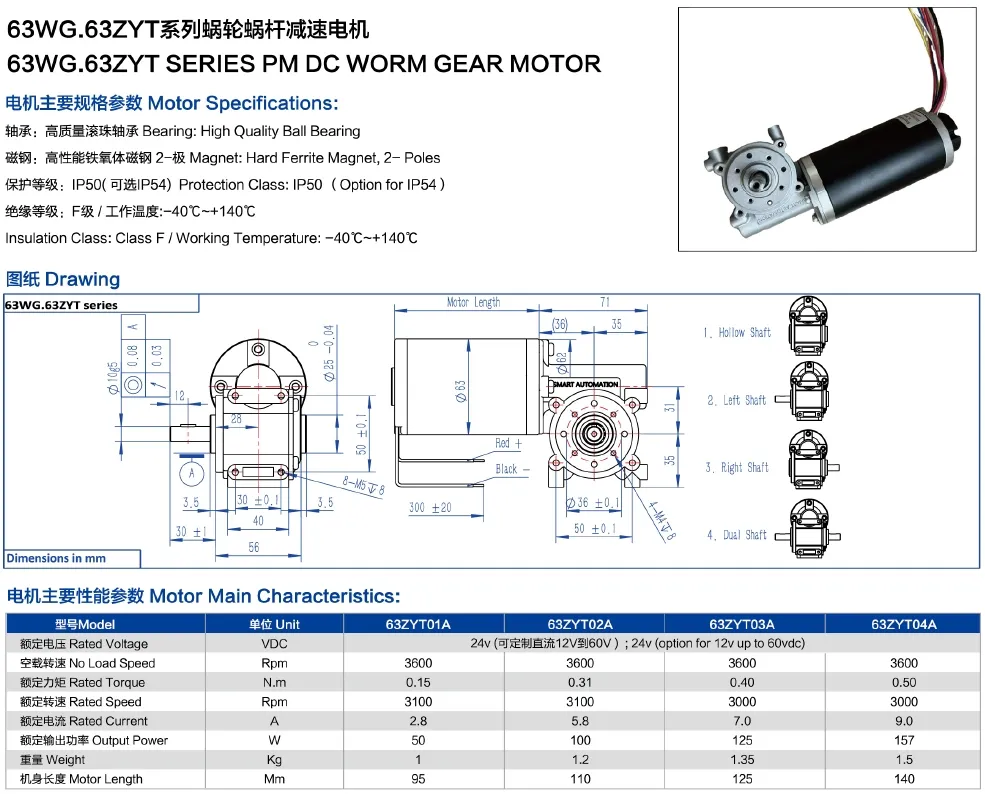

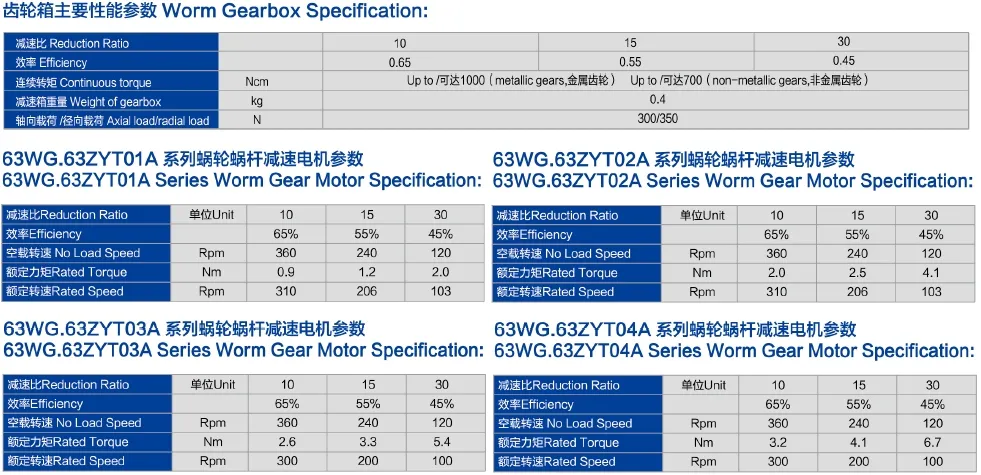

Motor Assembly Worm Gear Design Worm Gear Setup

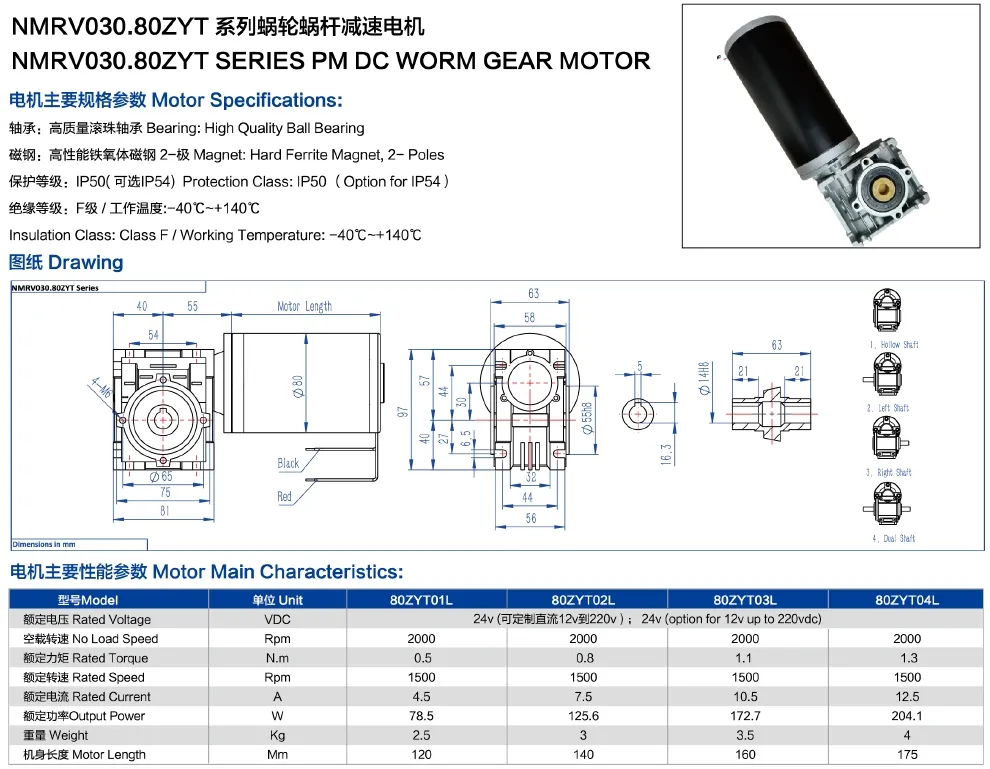

Worm Gearbox Overview
❓ Frequently Asked Questions
What is the range of power available for these DC motors?
We offer a wide power range starting from 10W up to 2000W to suit various industrial and commercial applications.
Can I customize the voltage and motor dimensions?
Yes, we specialize in customization. We can adjust the voltage (from 10V to 380VDC), shaft dimensions, mounting configurations, and overall performance specs.
What types of gearboxes can be integrated with the motors?
Our motors can be assembled with either planetary gearboxes or worm gearboxes, depending on your torque and speed requirements.
What are the available protection ratings for harsh environments?
We provide multiple IP rating options ranging from IP00 for closed environments up to IP66 and IP67 for waterproof and dustproof requirements.
Are feedback systems like encoders supported?
Yes, we offer integrated Optical or Magnetic encoders, as well as electric brakes and motor controllers for precise control.
