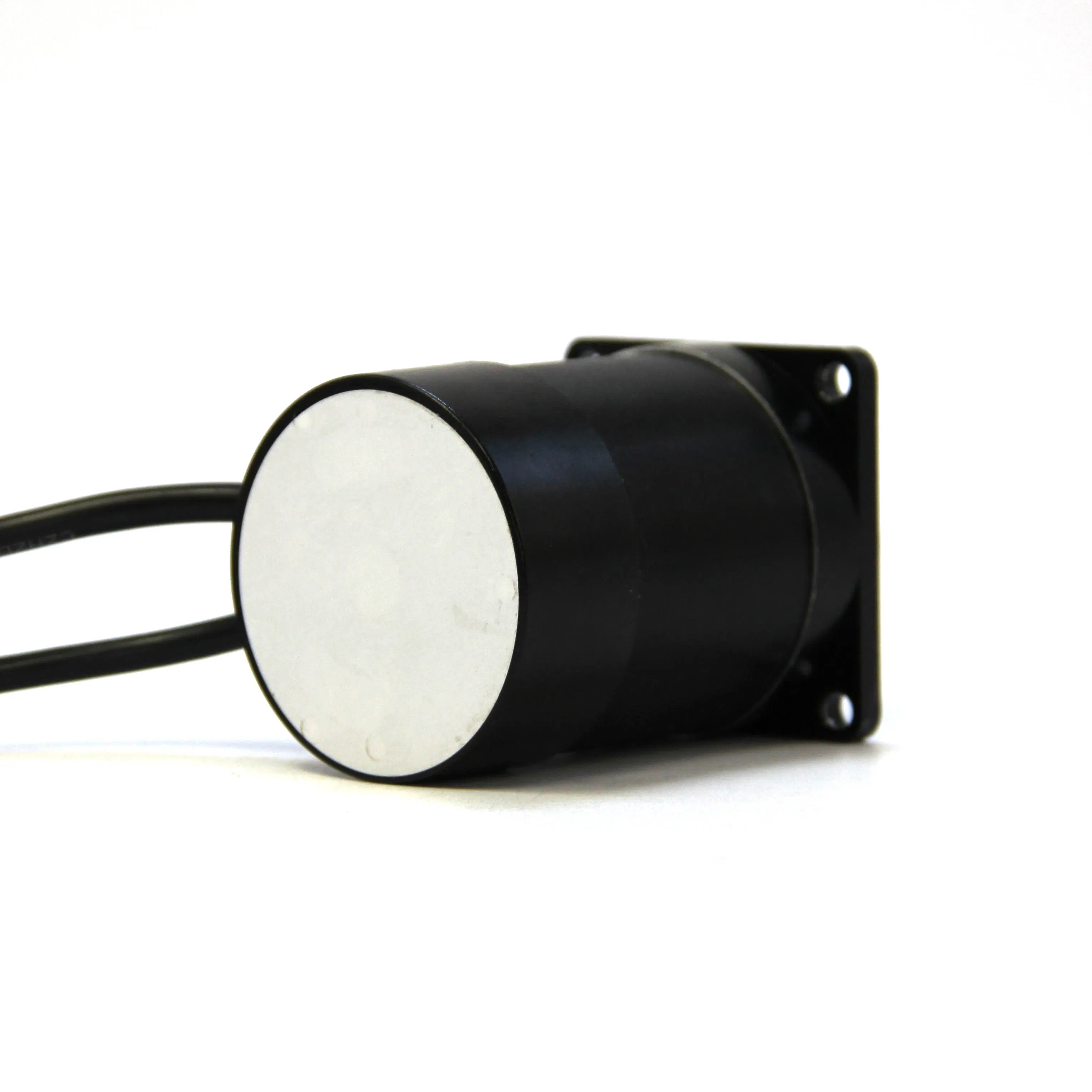

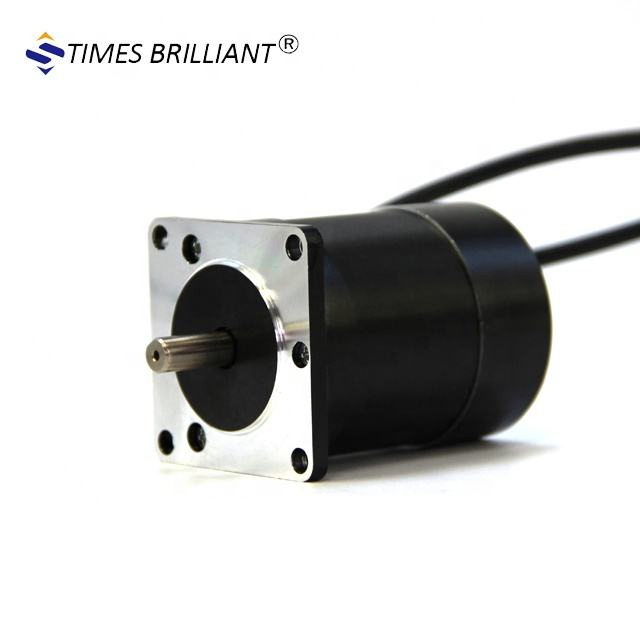

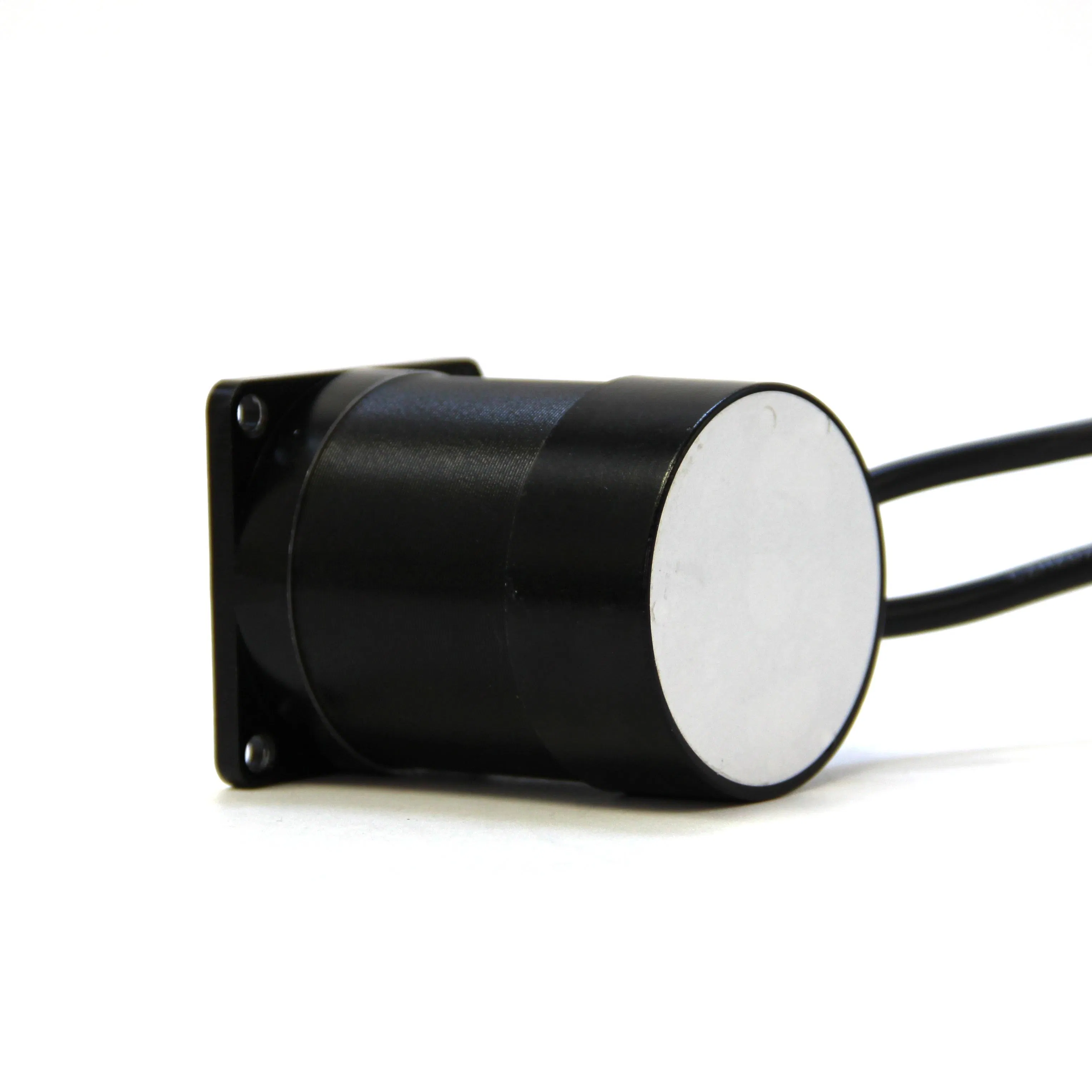

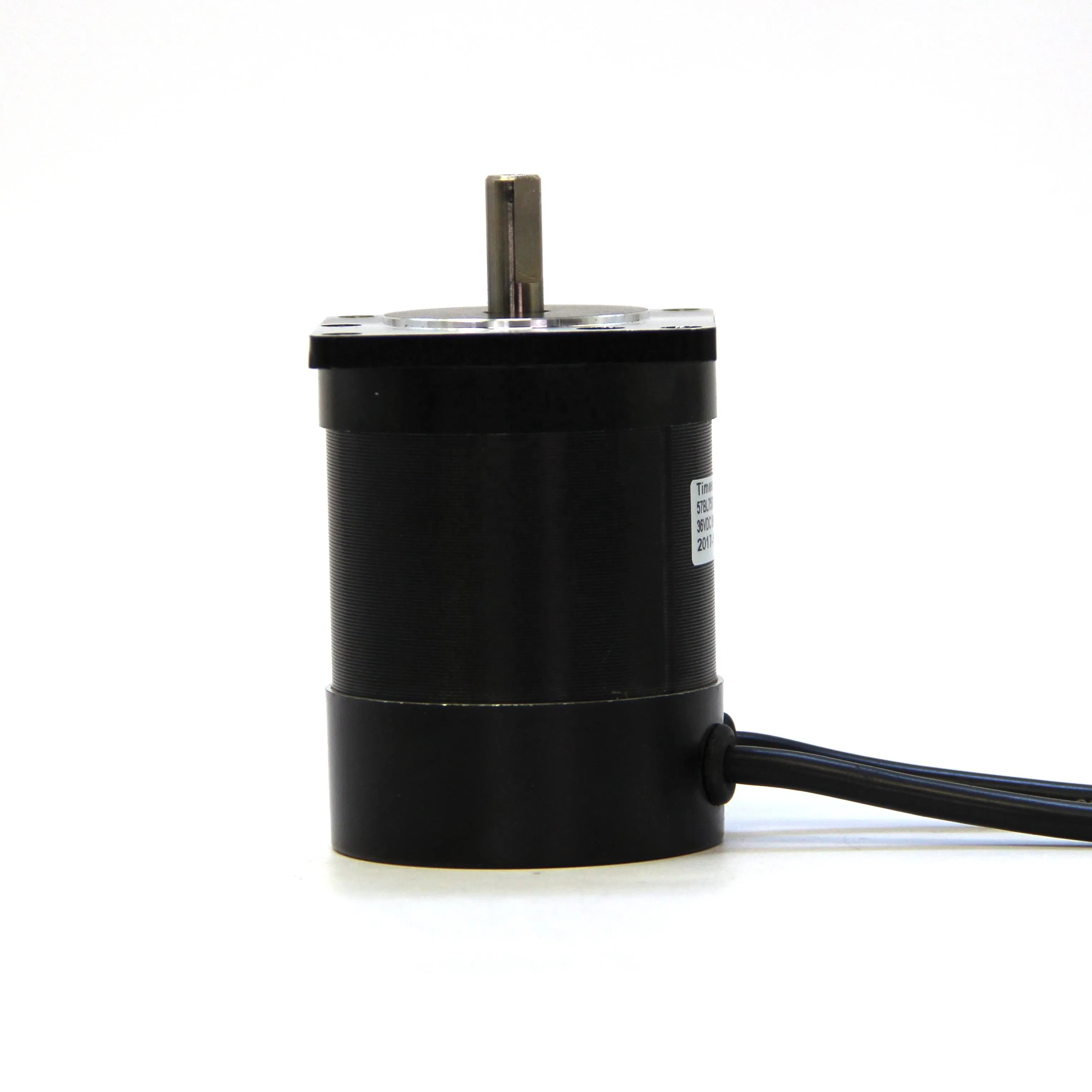

DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
1 / 5
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)
DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)

DC Electric 3 Phase Permanent Magnet Brushless BLDC Motor (57mm flange 24V 100W 3000rpm)

Customization: Available
Application: Industrial
Operating Speed: High Speed
Send Inquiry

Product Description

Basic Information
Model NO.
57BL75S10-230TF9
Excitation Mode
Compound
Function
Driving
Number of Poles
4
Structure
Brushless
Type
Micro Motor
Rated Voltage
24V
Rated Power
100W
Rated Speed
3000rpm
Rated Torque
0.32nm
Construction
Permanent Magnet
Certification
CE
Product Description

3000RPM High Speed Low Noise 100W BLDC Brushless DC Motor 24V

  • High efficiency Brushless DC technology for household appliances and industrial usage.
  • Low noise operation with high-speed performance (3000RPM Rated).
  • Compact design with a 57mm flange size.
Note: As the motor contains magnetic components, magnetic inspection fees may apply during transportation. Please consult for details regarding large quantity orders.

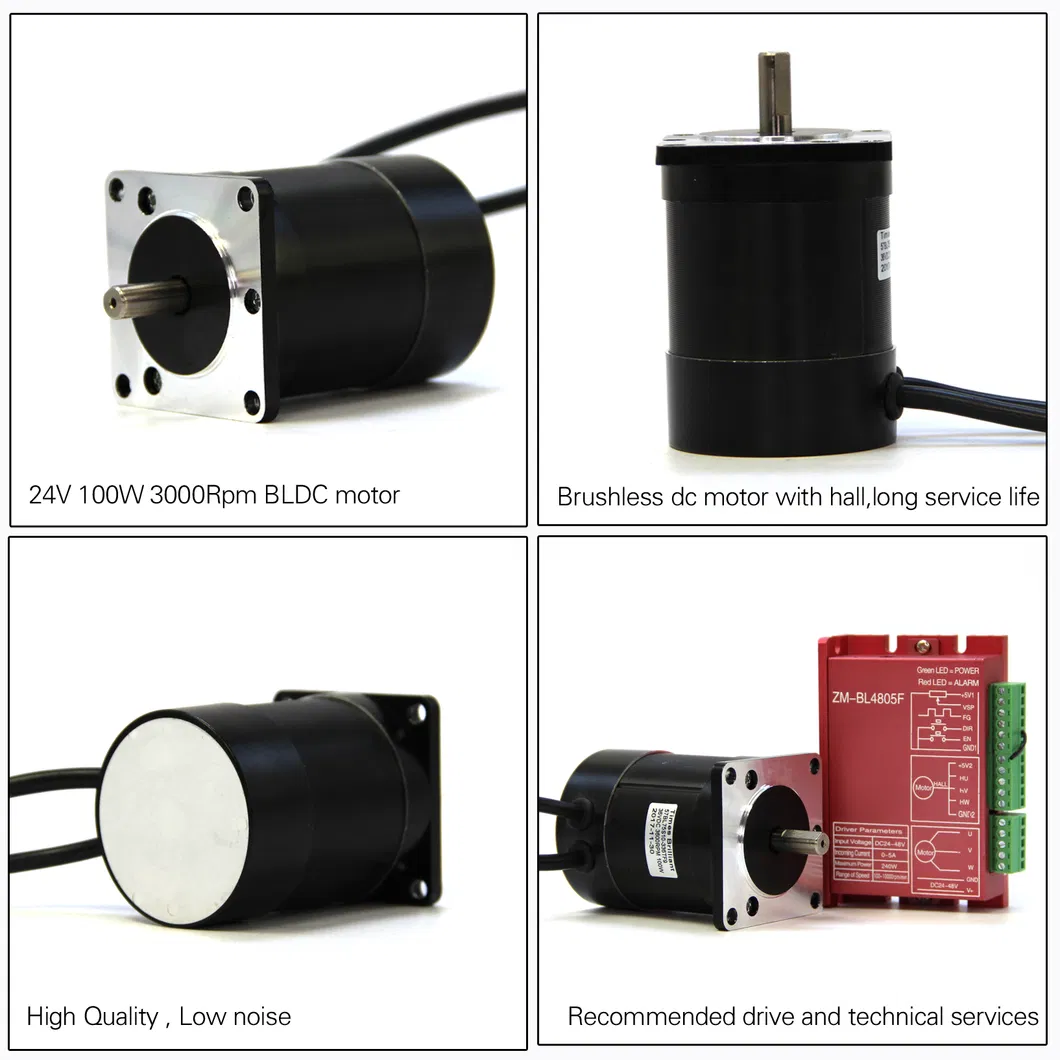

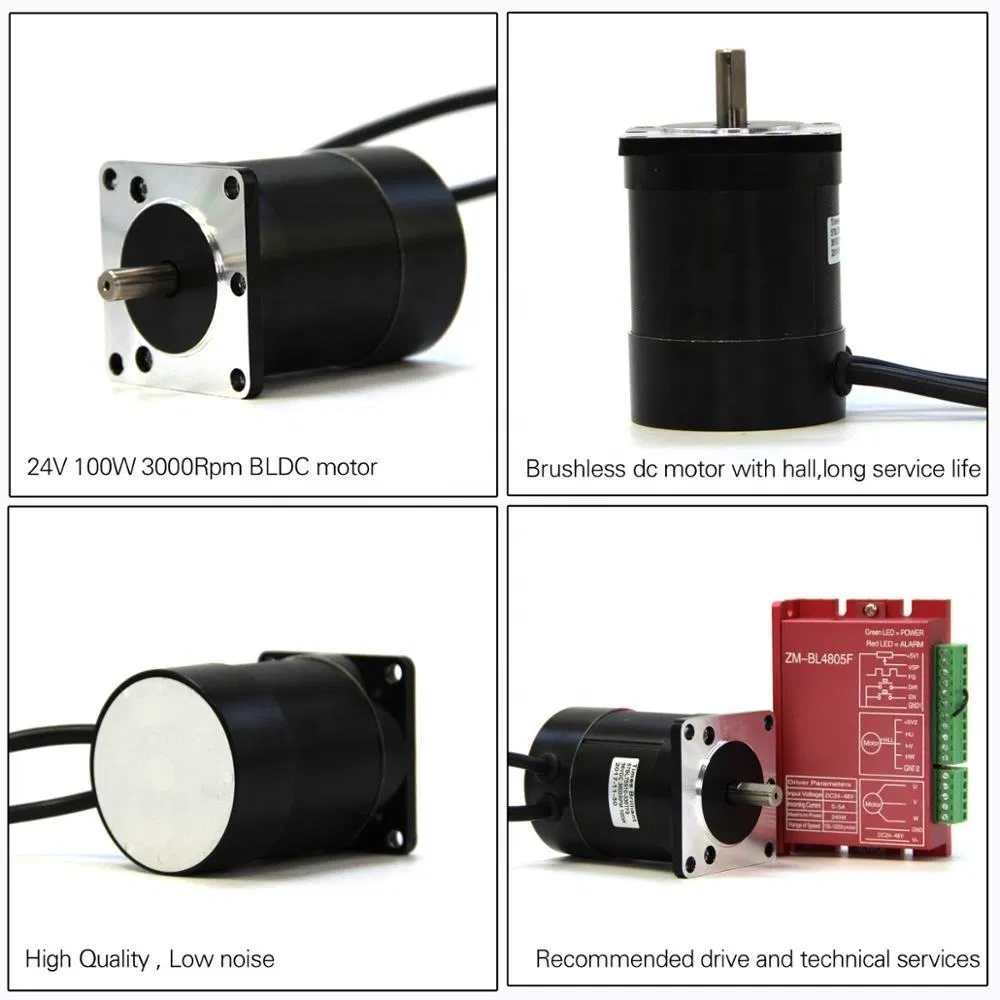

BLDC Motor Overview Product Detail View
Detailed Specifications
Parameters Values
Phase3
Rotor Poles8
Resistance @25°C0.42±10%Ω
Inductance1.12±20%mH
No Load Speed4500 ±10% RPM
No Load Current (Max)0.8A
Rated Speed3000 ±10% RPM
Rated Torque0.32 NM
Rated Power100W
Rated Current (Max)5.9A
Insulation ClassB
IP ClassIP40
Mass0.6 Kg
Dimensions & Diagrams
Technical Banner

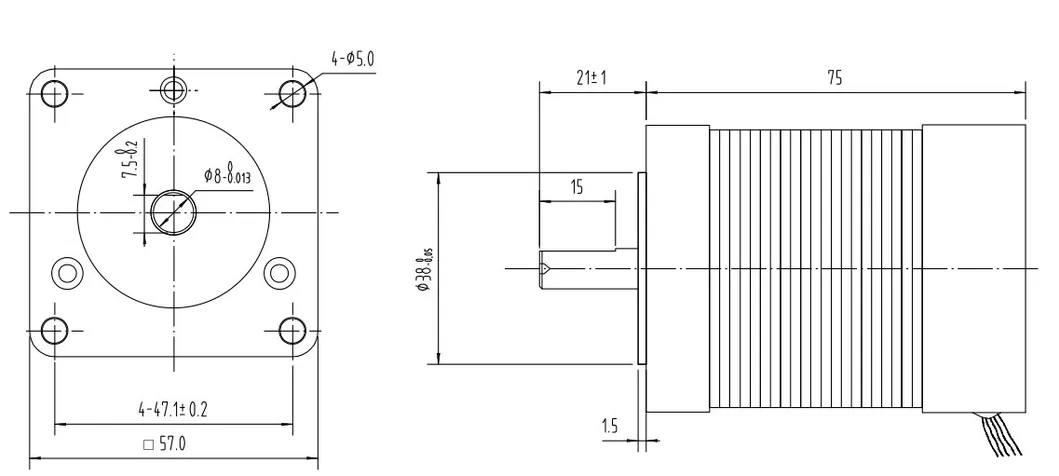

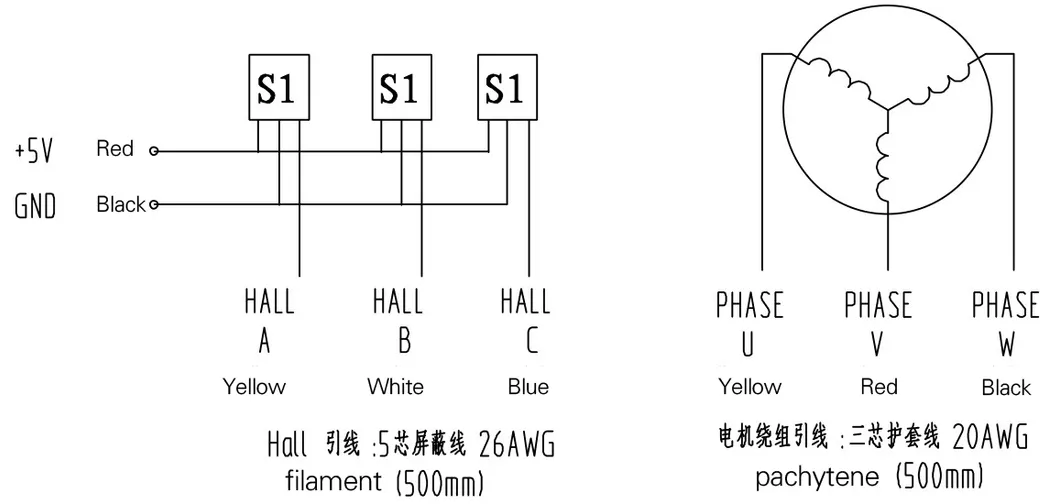

Dimensional Drawing 1 Dimensional Drawing 2
Packaging & Services
Service Standards

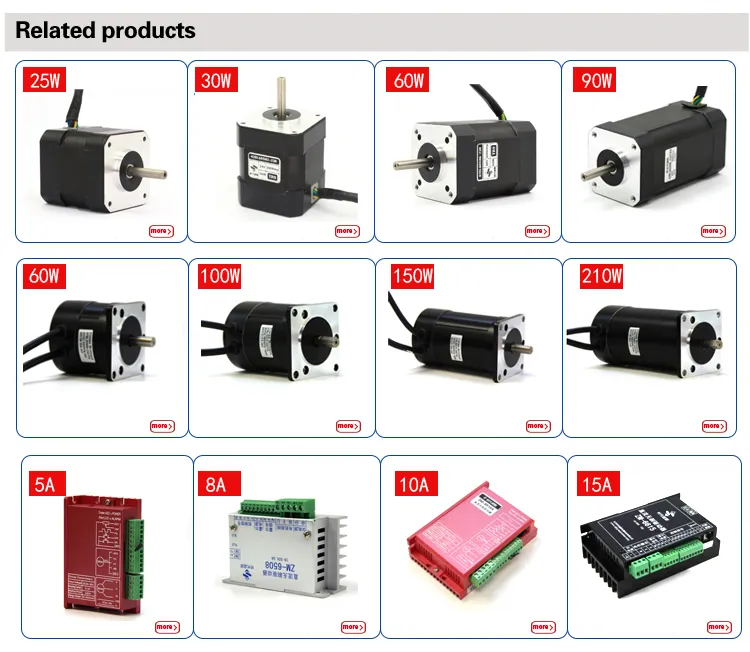

Recommended Setup Certifications
Frequently Asked Questions
1. What are the primary applications for this 100W BLDC motor?
This brushless DC motor is designed for high-speed, low-noise applications, making it ideal for home appliances, medical equipment, and small industrial automation machinery.
2. What is the rated speed and torque of the 57BL75S10-230TF9 model?
The motor has a rated speed of 3000 RPM (with a no-load speed up to 4500 RPM) and provides a rated torque of 0.32 NM.
3. Does the motor require a specific controller?
Yes, as a 3-phase brushless DC motor, it requires a compatible BLDC motor driver/controller that supports 24V input to operate correctly.
4. What is the protection rating and insulation class?
This motor features an IP40 protection rating and is built with Class B insulation, ensuring reliability and durability in standard working environments.
5. What are the physical dimensions and weight?
The motor has a 57mm flange and weighs approximately 0.6kg, offering a lightweight yet powerful solution for compact spaces.
6. Is there a quality guarantee provided for this product?
Yes, the product comes with a 1-year quality guarantee, covering manufacturing defects under normal usage conditions.
