RedCat Motors
1 / 5
| Model NO. | BL Series |
| Function | Control, Driving |
| Casing Protection | Closed Type |
| Number of Poles | 8 |
| Certification | ISO9001, CE, RoHS |
| Power Range | 10W Up to 2000W |
| Voltage Range | 12V 24V Up to 380VDC |
| Specification Size | 28mm TO 110mm |
| HS Code | 8501310000 |
| Production Capacity | 10000 PCS Per Month |
| Package Size | 10.00cm * 10.00cm * 20.00cm |
| Gross Weight | 2.000kg |

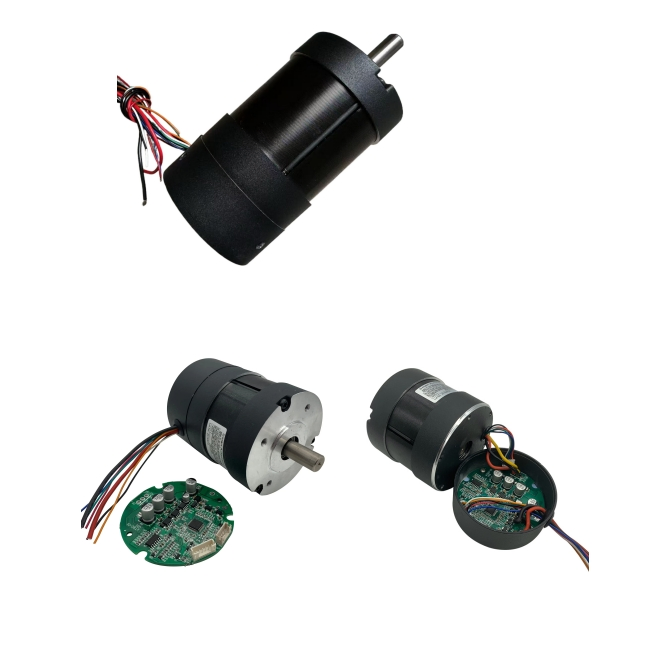

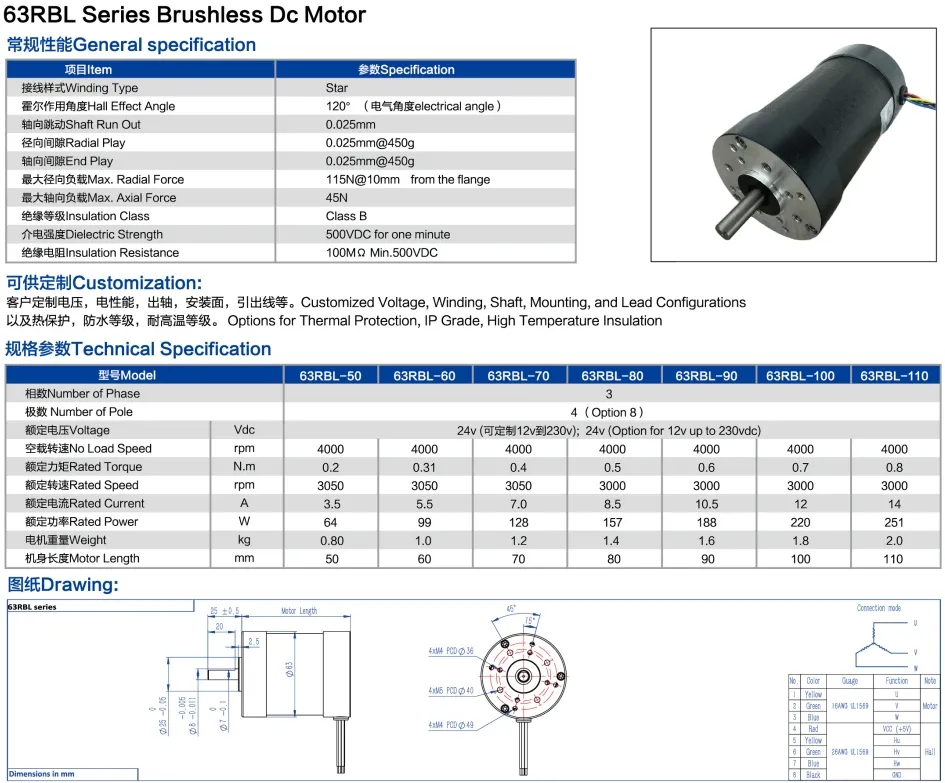

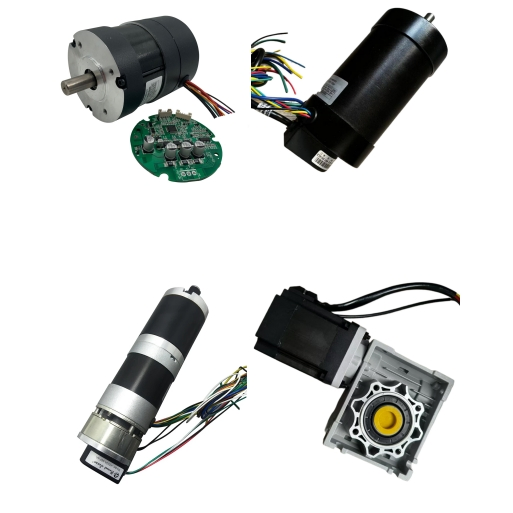

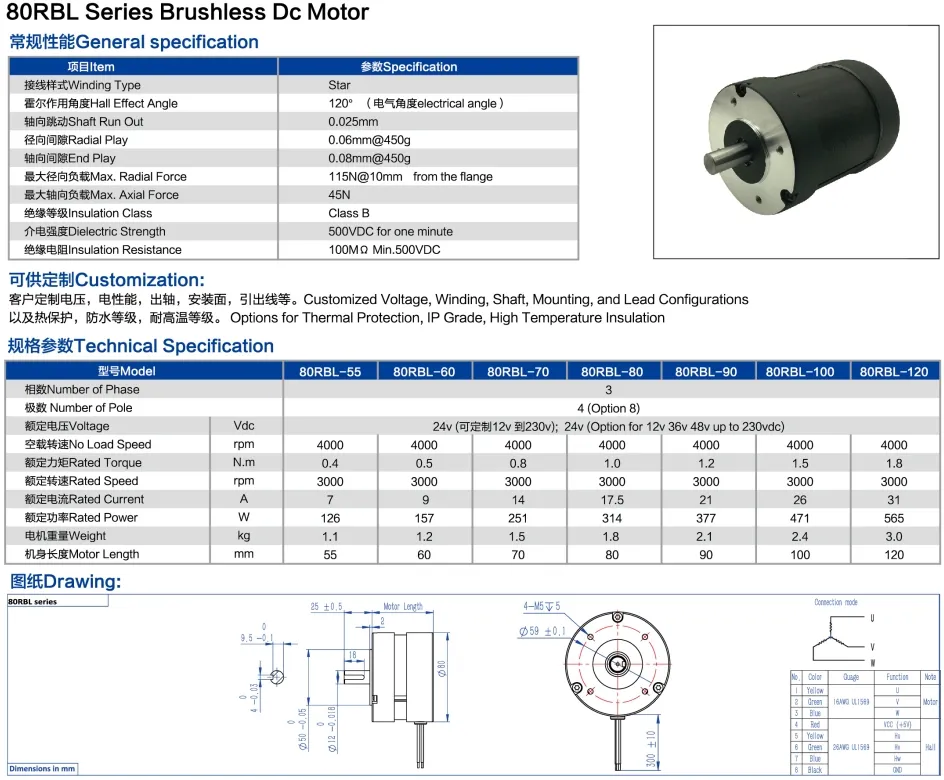

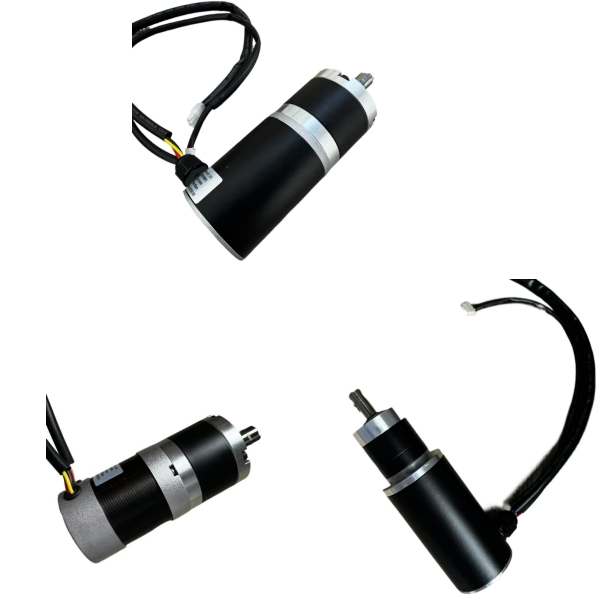

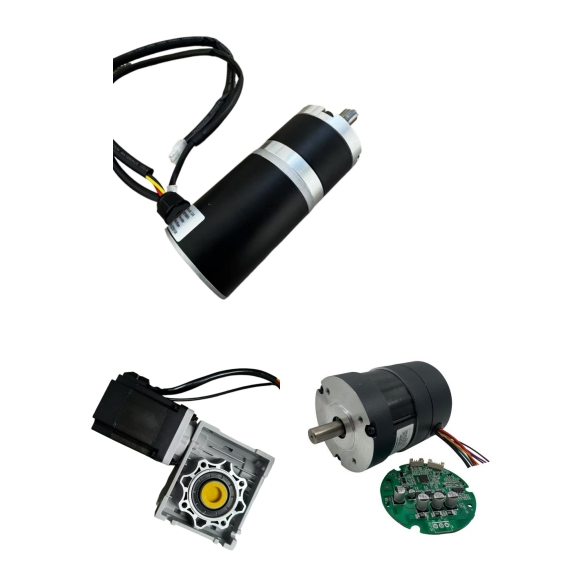

Customized Brushless DC Motors / BLDC Gear Motor
High-performance motors featuring customizable options for voltage, dimensions, performance, shaft, and mounting configurations. These units can be seamlessly integrated with encoders, gearboxes, brakes, and controllers to meet specific application requirements.
| Feature Options | Technical Range |
|---|---|
| Diameter | 30mm to 130mm |
| Rated Voltage | 10V, 12V, 18V, 24V, 36V, 48V up to 380VDC |
| Rated Torque | Up to 10Nm (With gearbox up to 120Nm) |
| Rated Speed | 1rpm up to 15000rpm |
| Rated Power | 10W up to 2000W |
| Protection Class | IP00, IP40, IP50, IP54, IP56, IP66, IP67 |
| EMI/Thermal | Suppression & Thermal protection available |

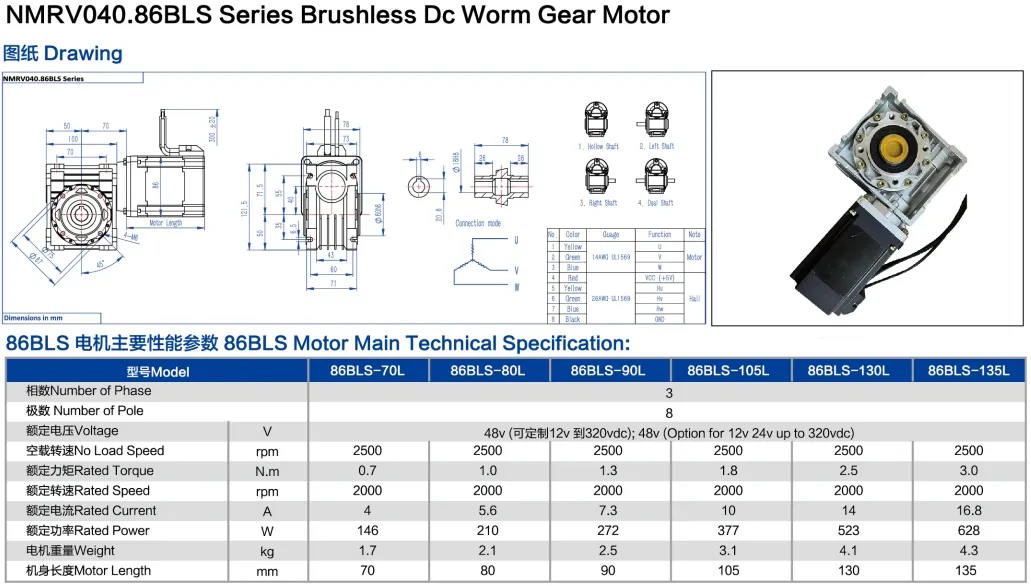

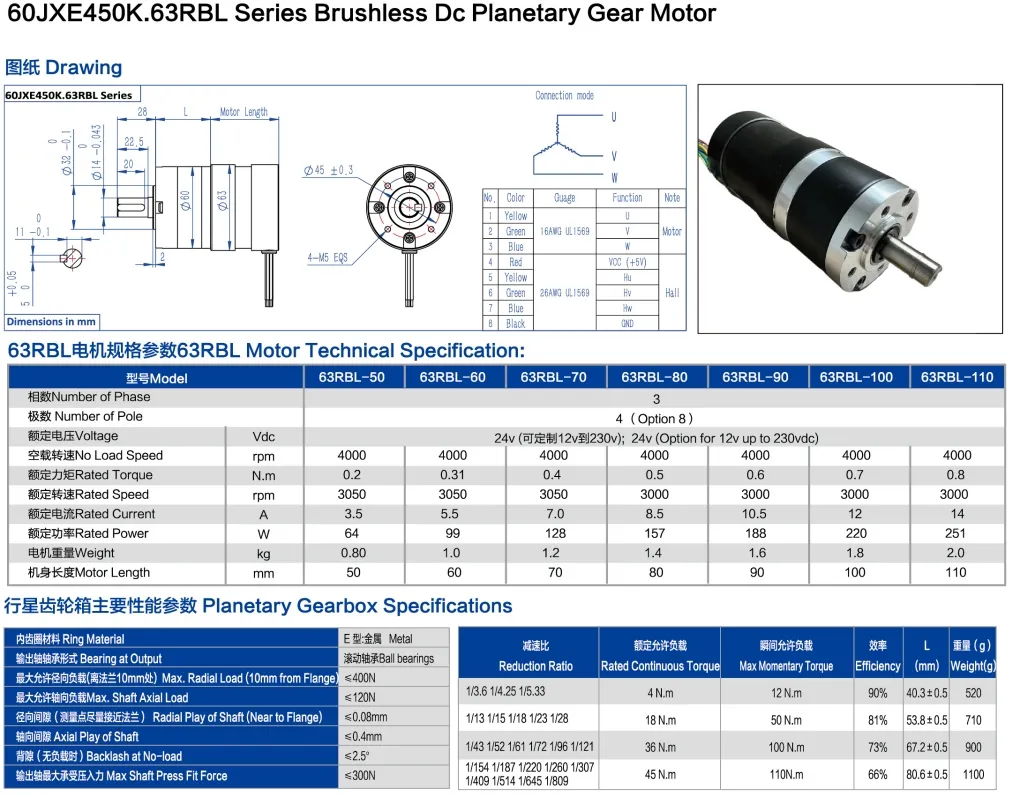

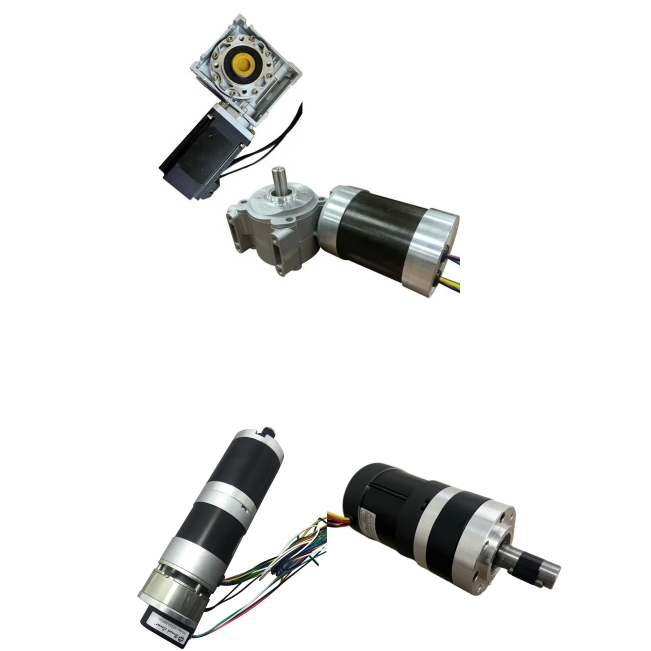

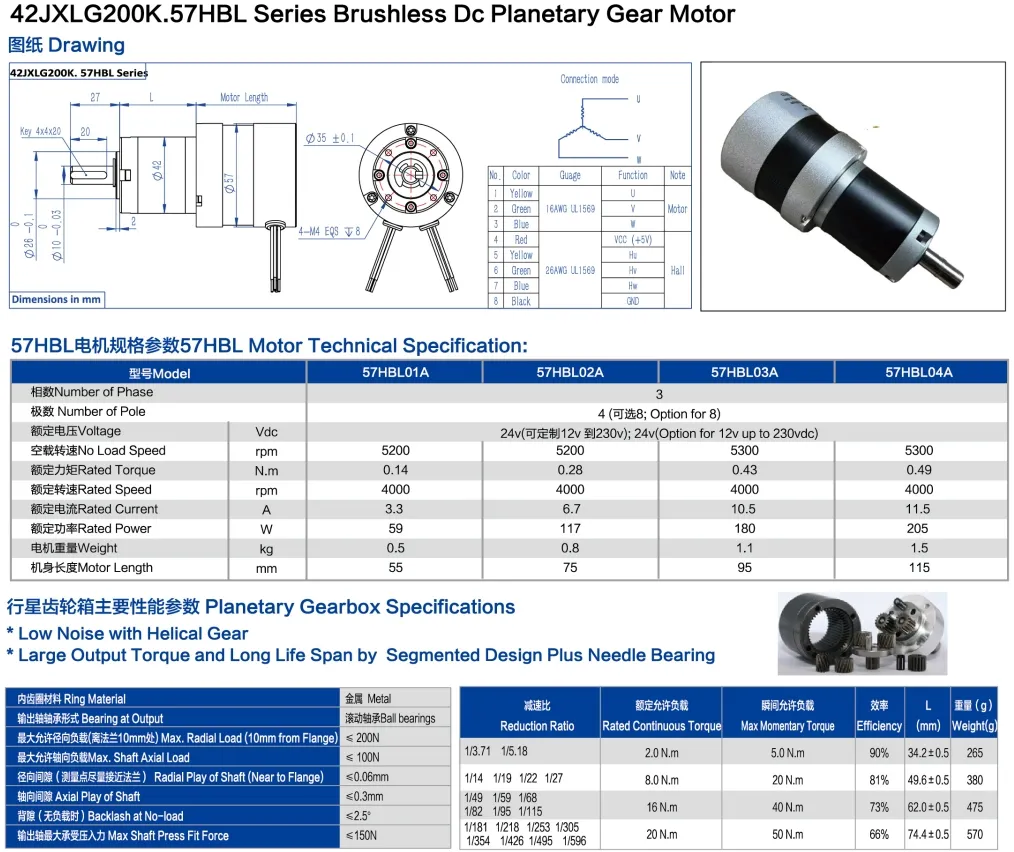

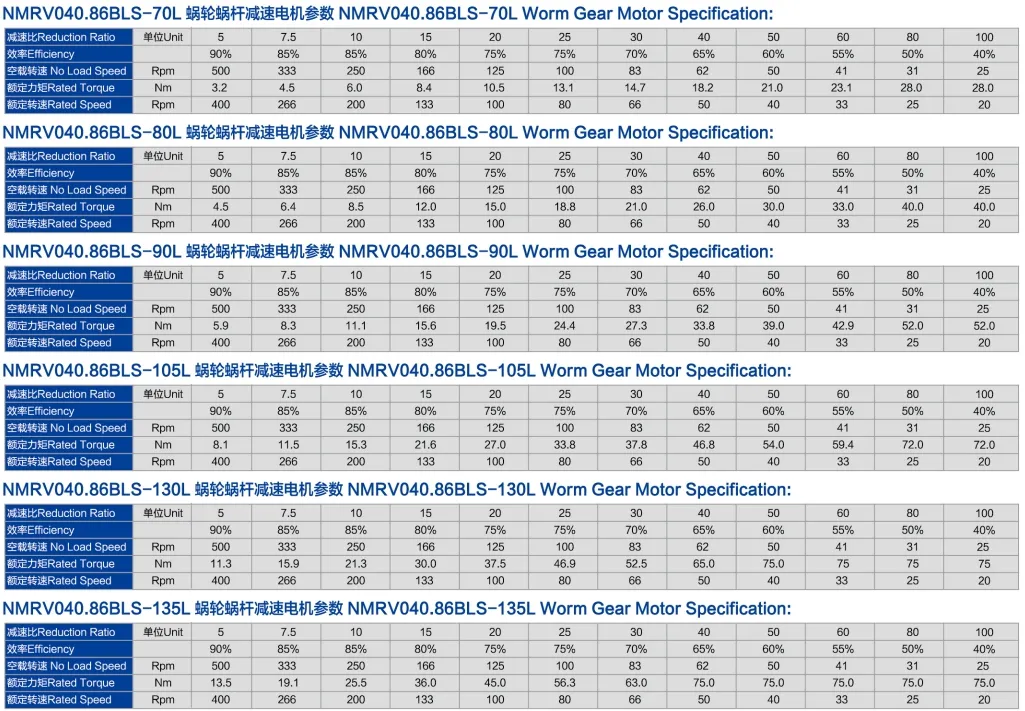

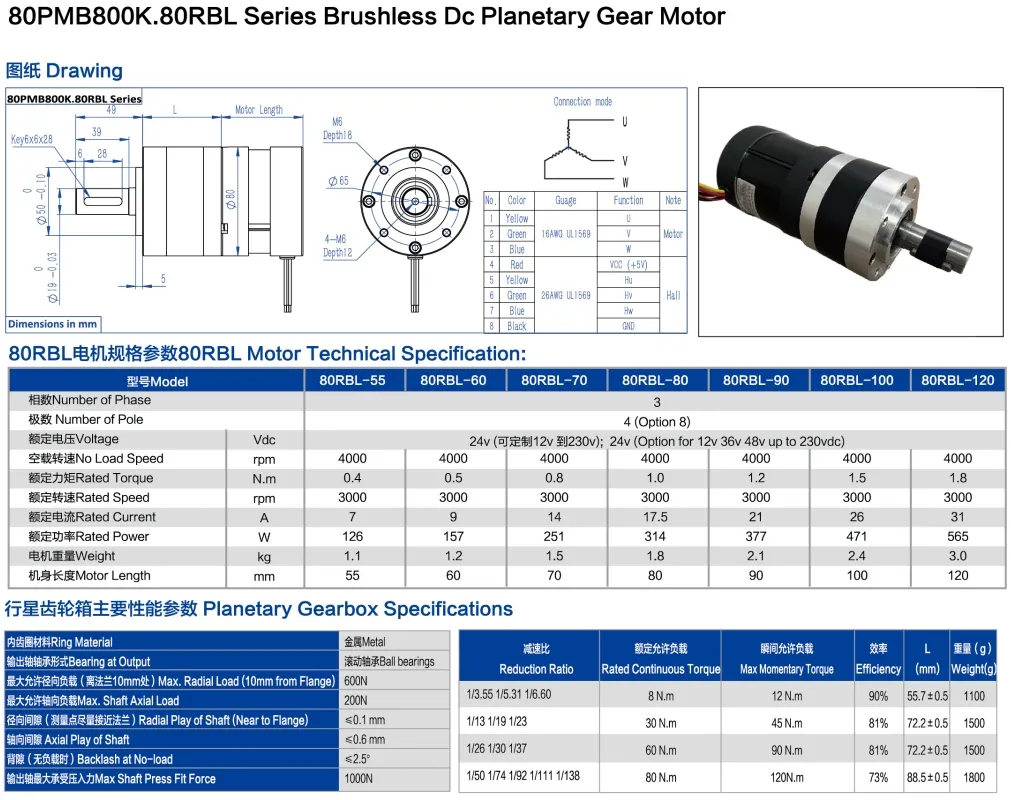

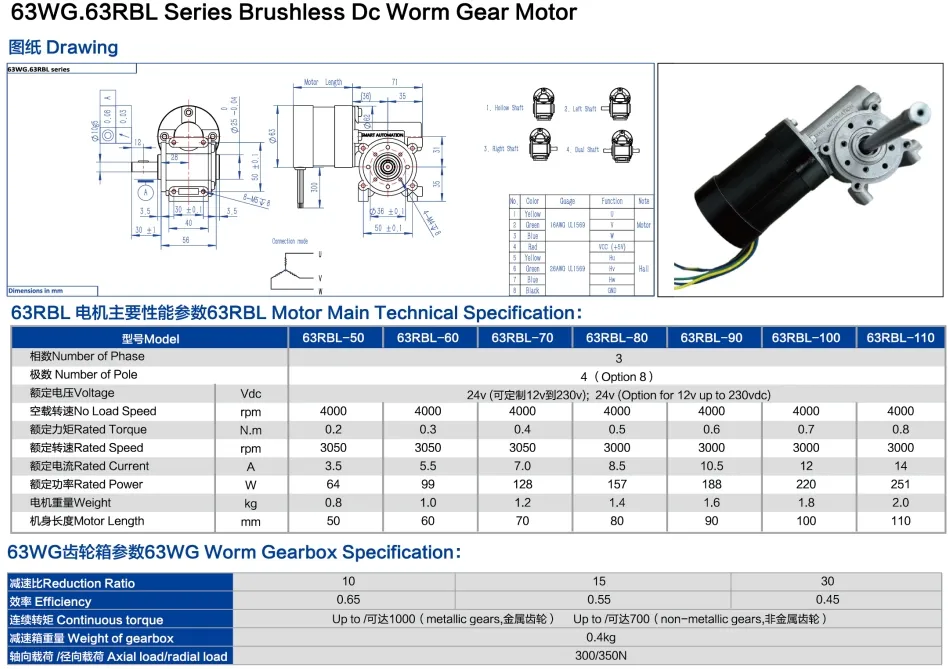

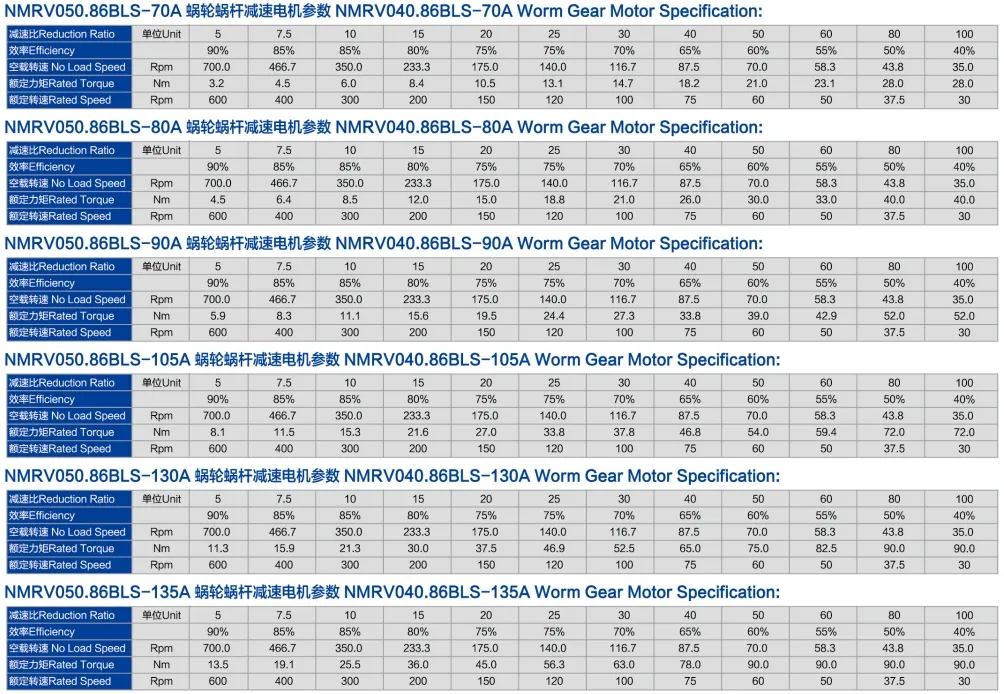

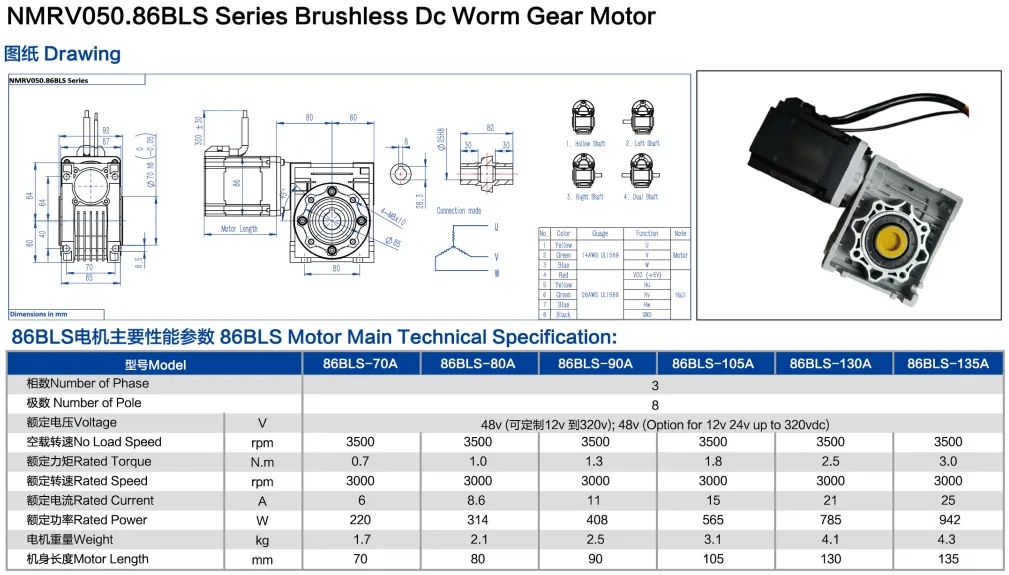

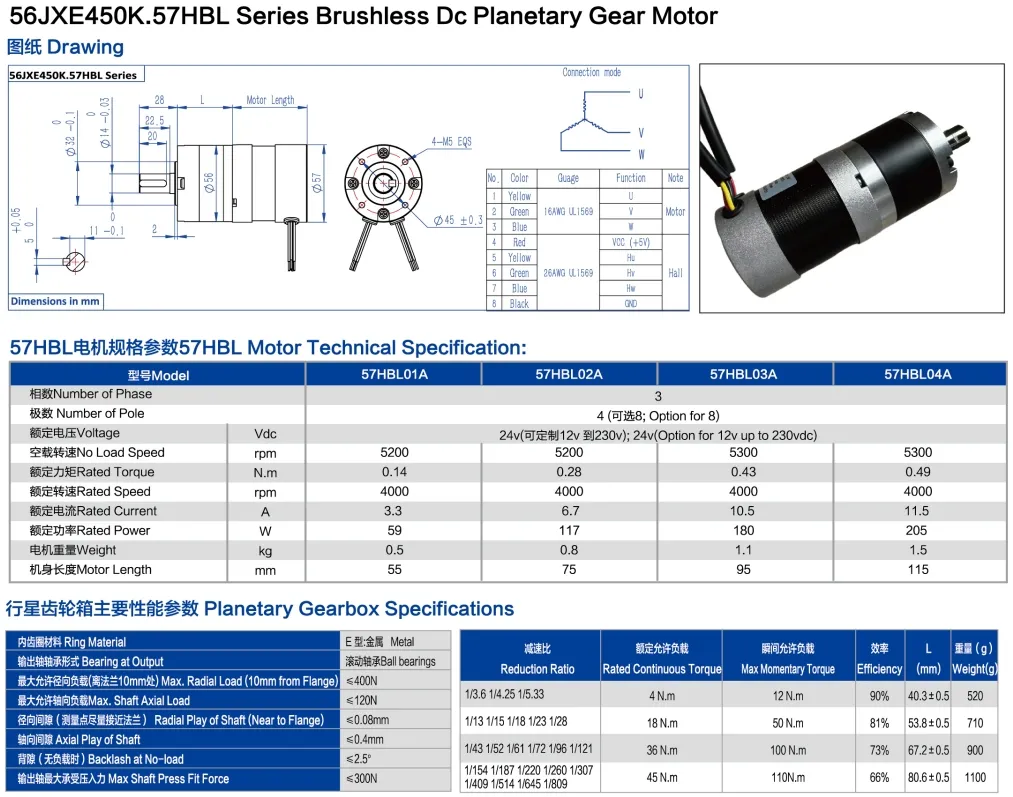

| Gearbox Type | Planetary or Worm gearbox options |
| Brake/Encoder | Electric brake, Optical or Magnetic encoders |

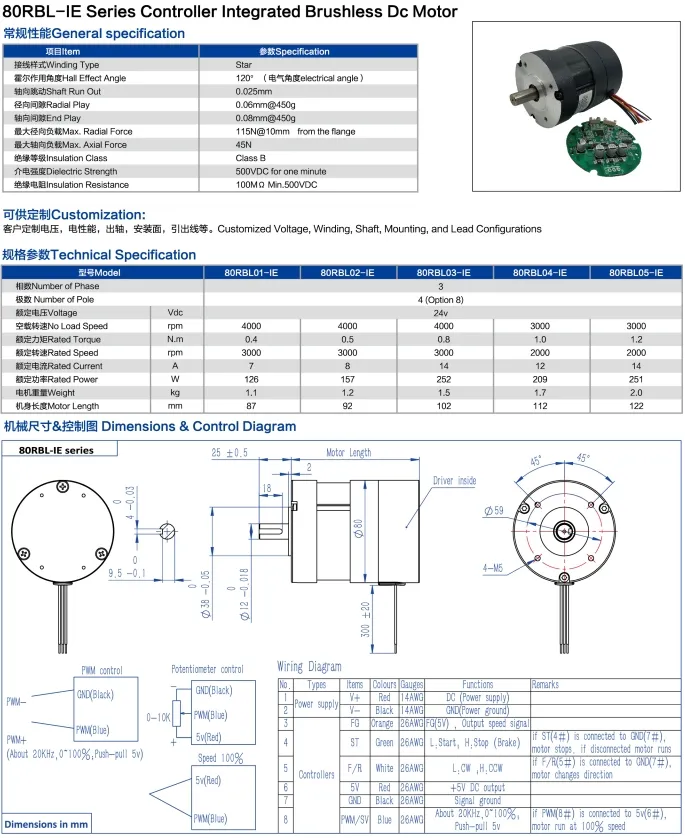

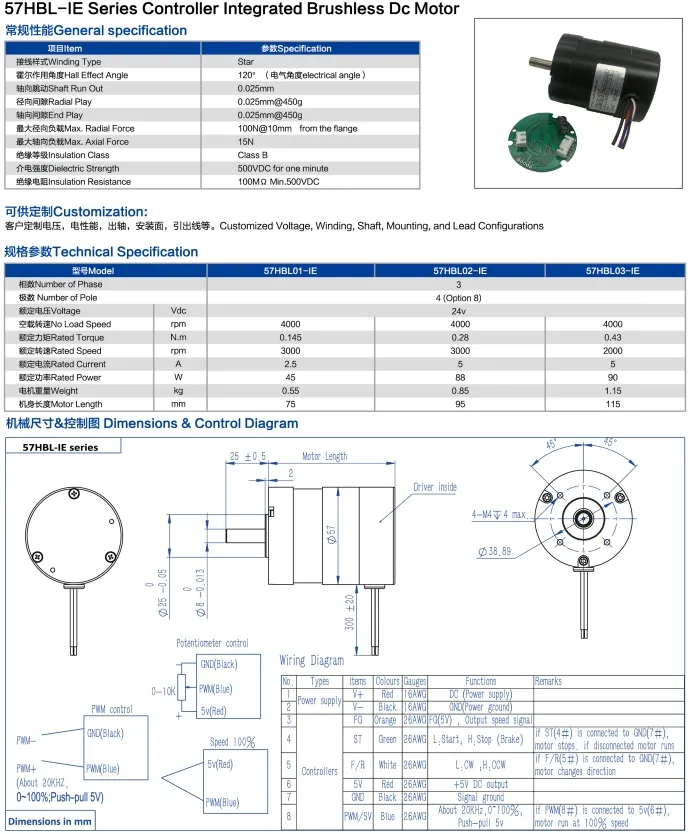

| Controller | Integrated controller options available |
