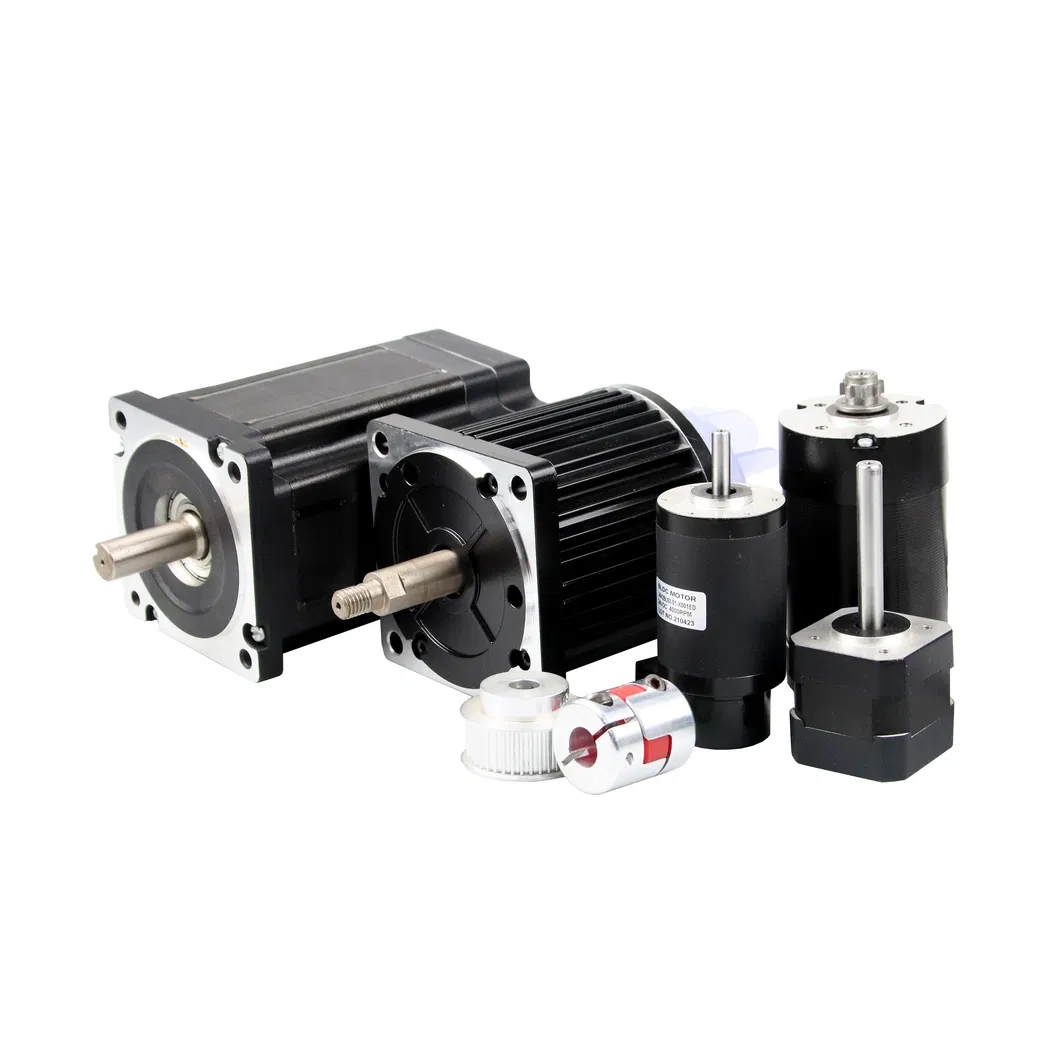

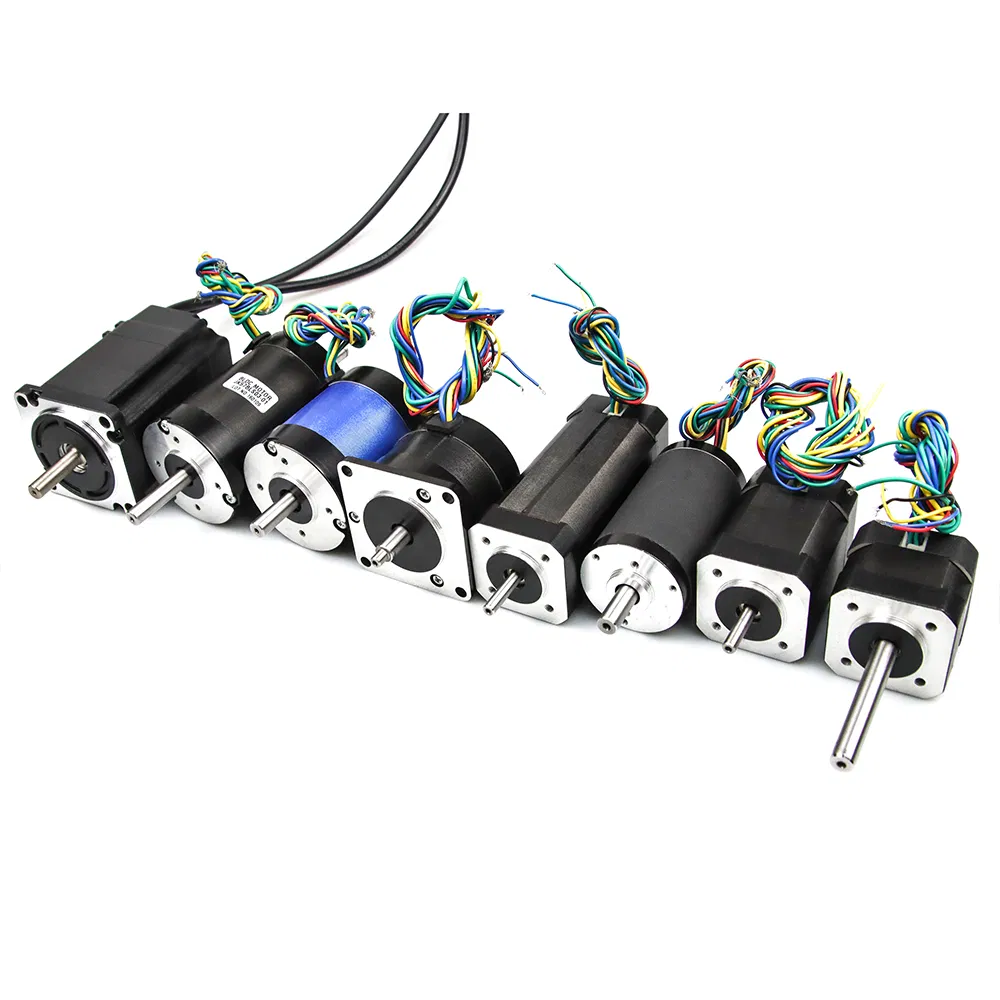

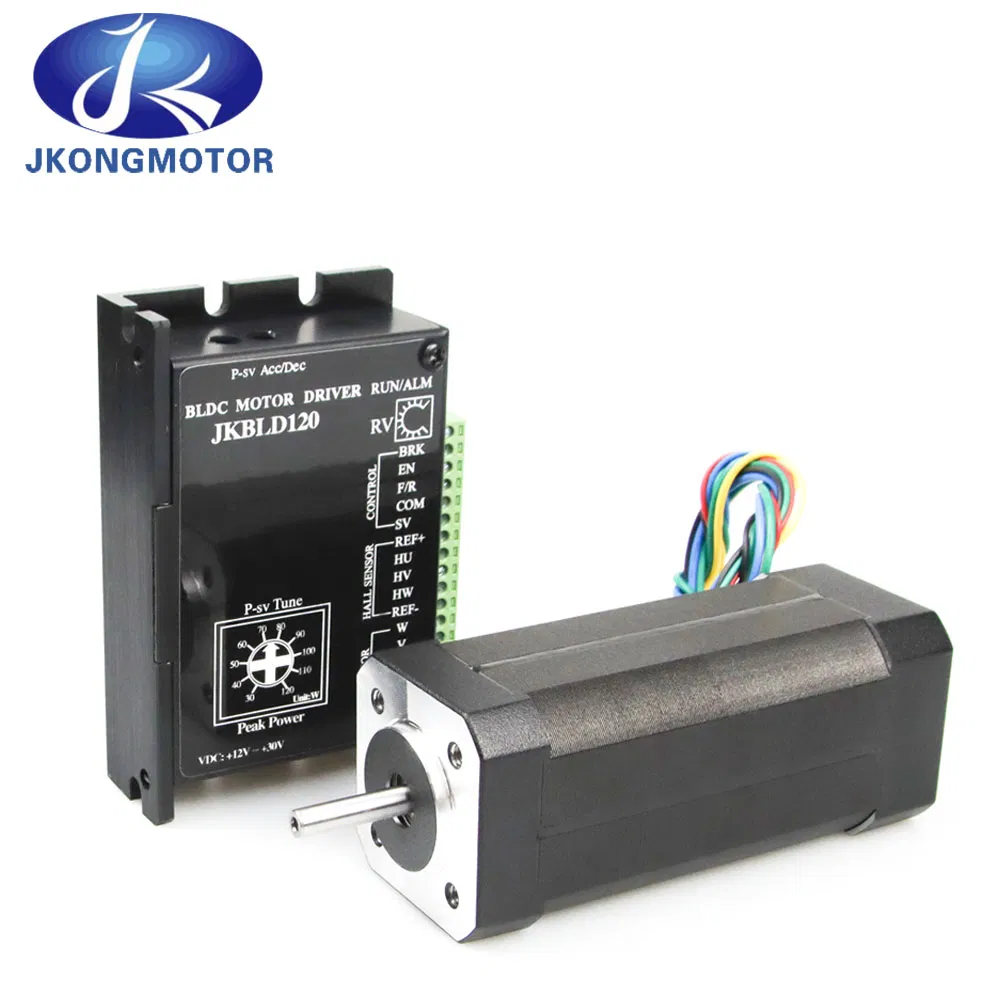

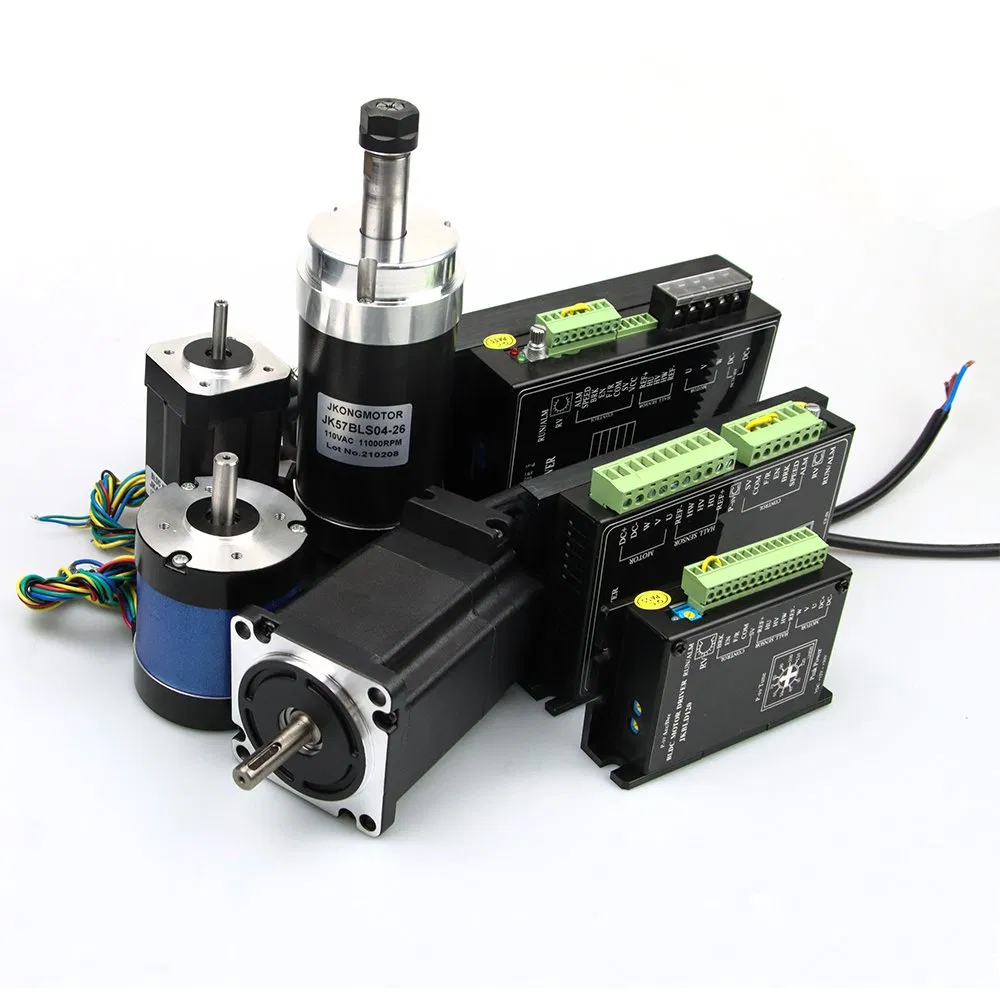

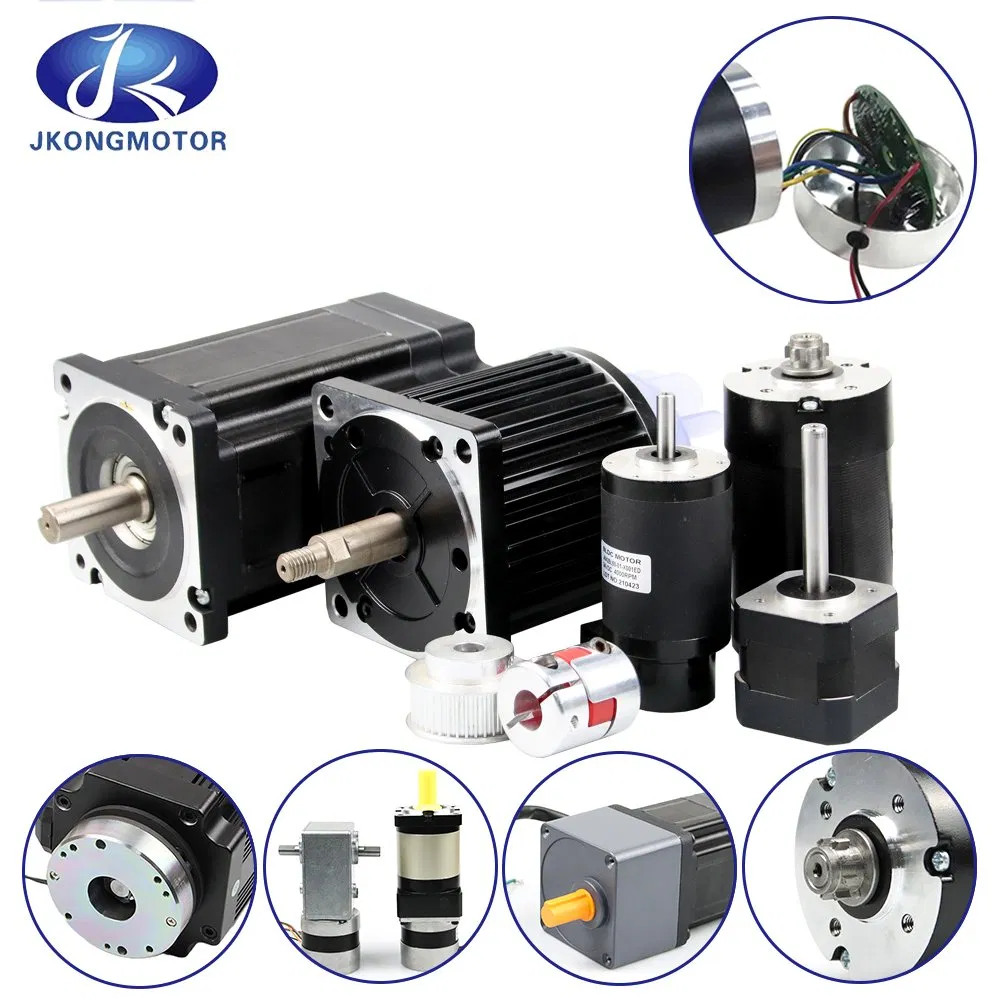

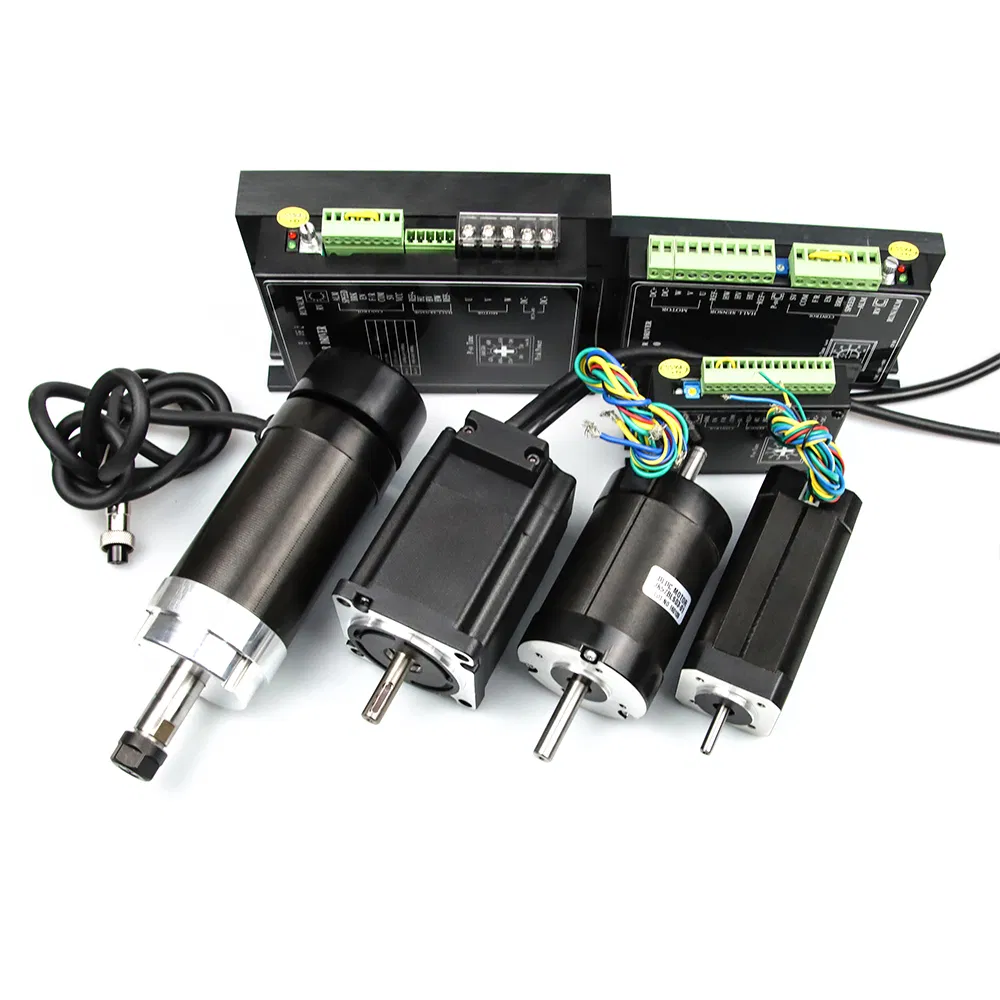

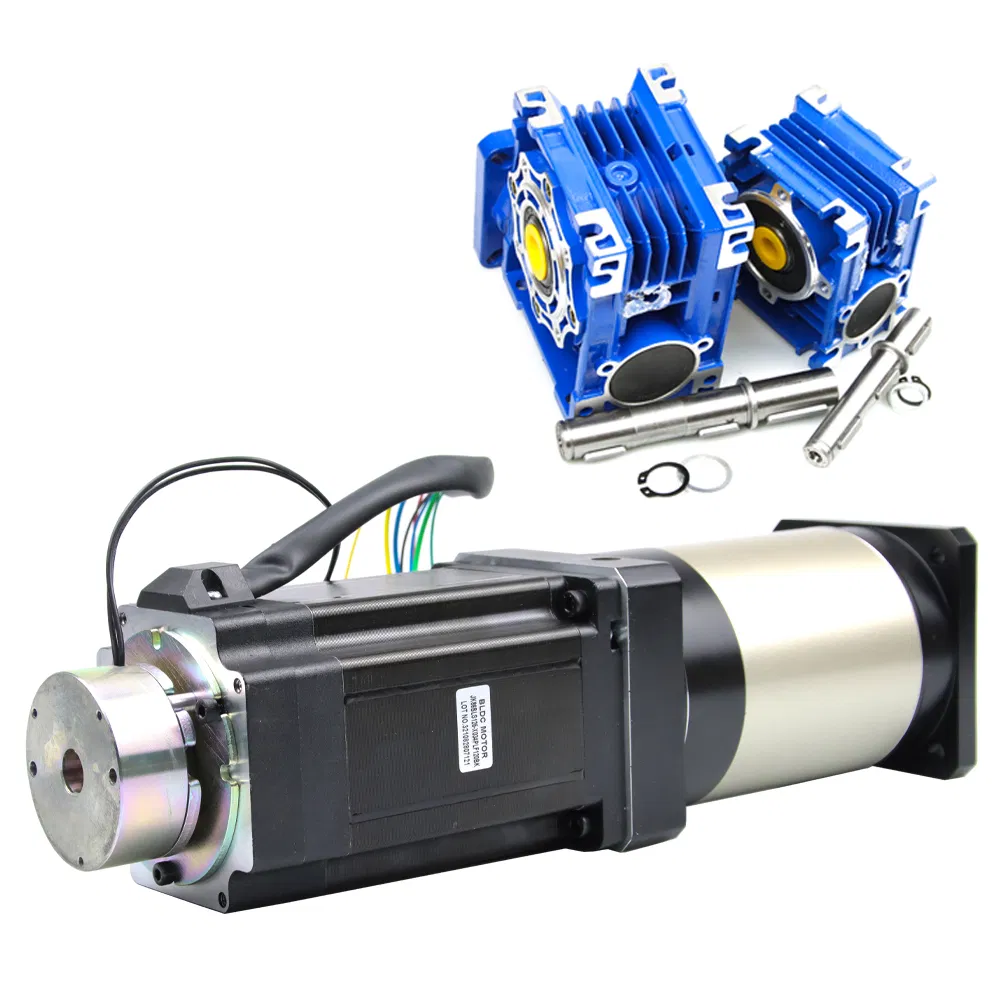

High-performance DC Servo Motors equipped with options for Gearbox, Brake, Encoder, or Controller. Suitable for a wide range of applications including Lawn Mowers, CNC machines, and medical equipment.
| Specification (42mm Series) | Unit | JK42BLS01 | JK42BLS02 | JK42BLS03 | JK42BLS04 |
|---|---|---|---|---|---|
| Rated Voltage | VDC | 24 | 24 | 24 | 24 |
| Rated Speed | Rpm | 4000 | 4000 | 4000 | 4000 |
| Rated Torque | N.m | 0.0625 | 0.125 | 0.185 | 0.25 |
| Rated Power | W | 26 | 52.5 | 77.5 | 105 |
| Specification (60mm Series) | Unit | JK60BLS01 | JK60BLS02 | JK60BLS03 | JK60BLS04 |
|---|---|---|---|---|---|
| Rated Voltage | VDC | 48 | 48 | 48 | 48 |
| Rated Speed | Rpm | 3000 | 3000 | 3000 | 3000 |
| Rated Torque | N.m | 0.3 | 0.6 | 0.9 | 1.2 |
| Rated Power | W | 94 | 188 | 283 | 377 |

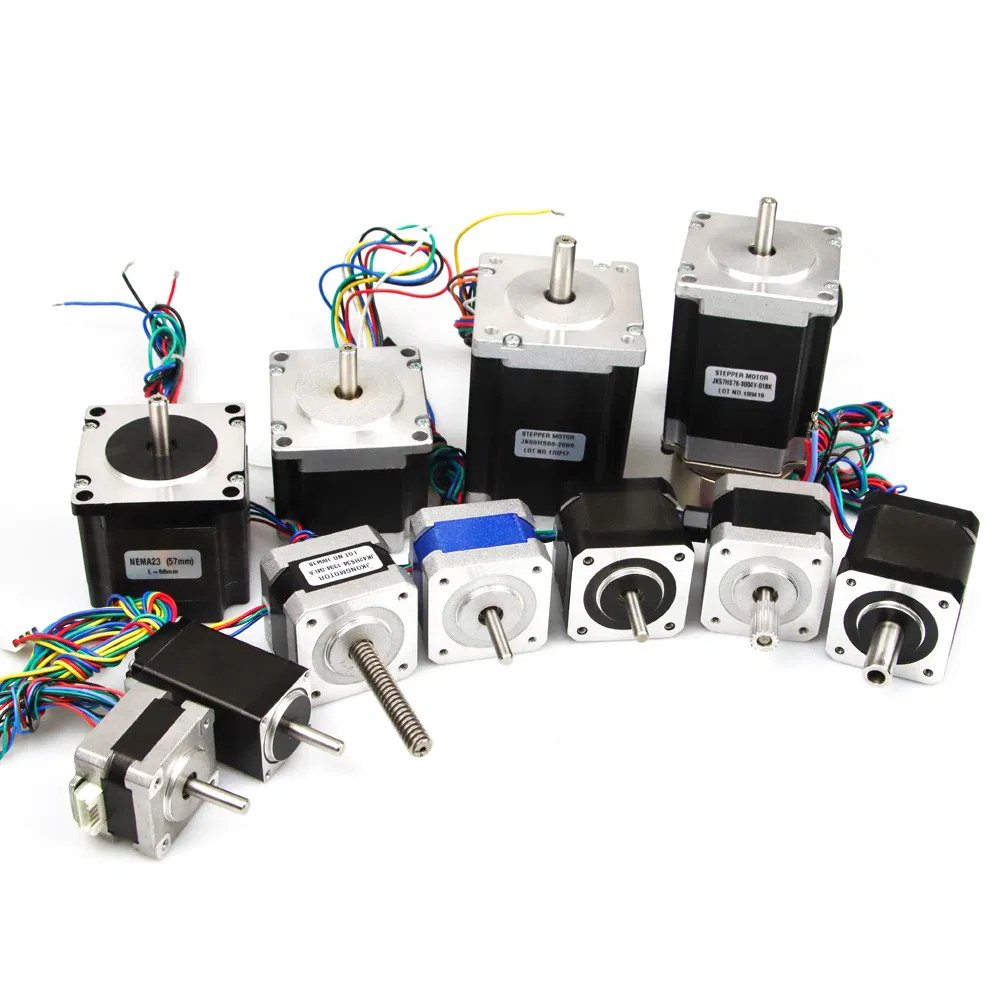

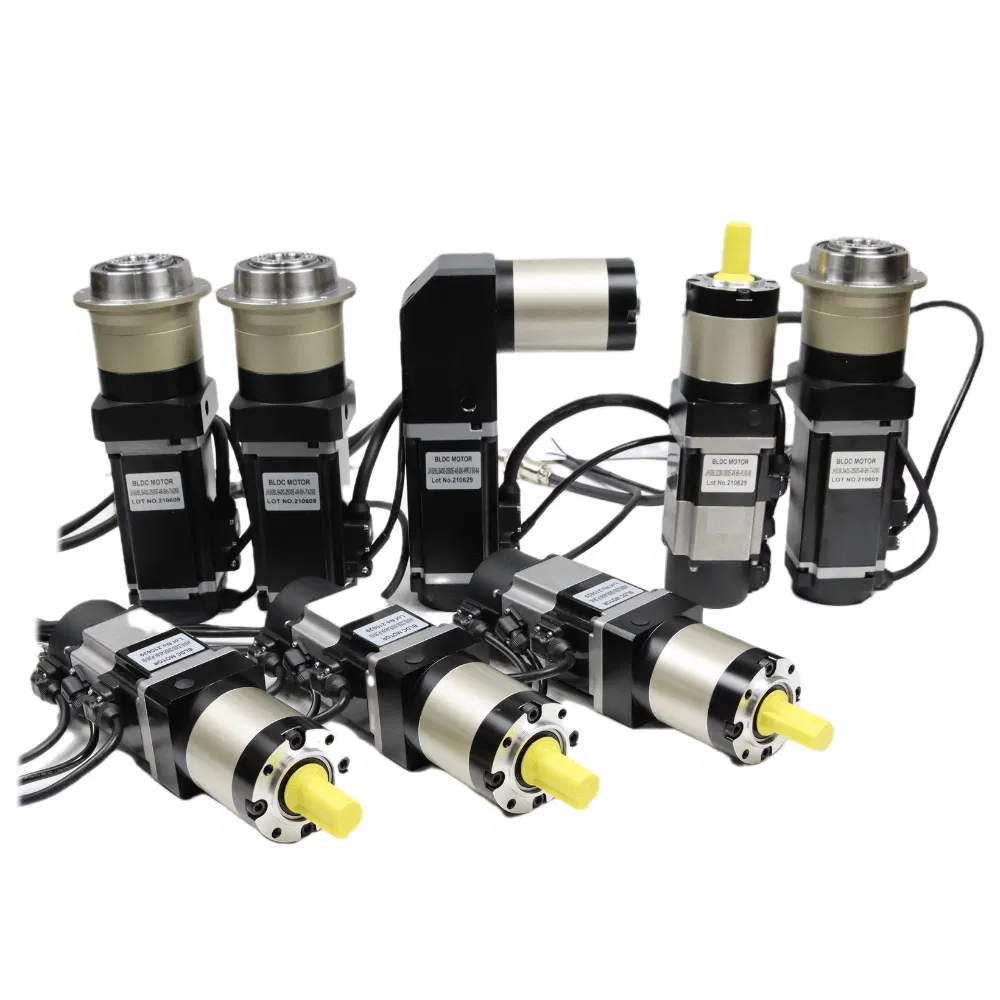

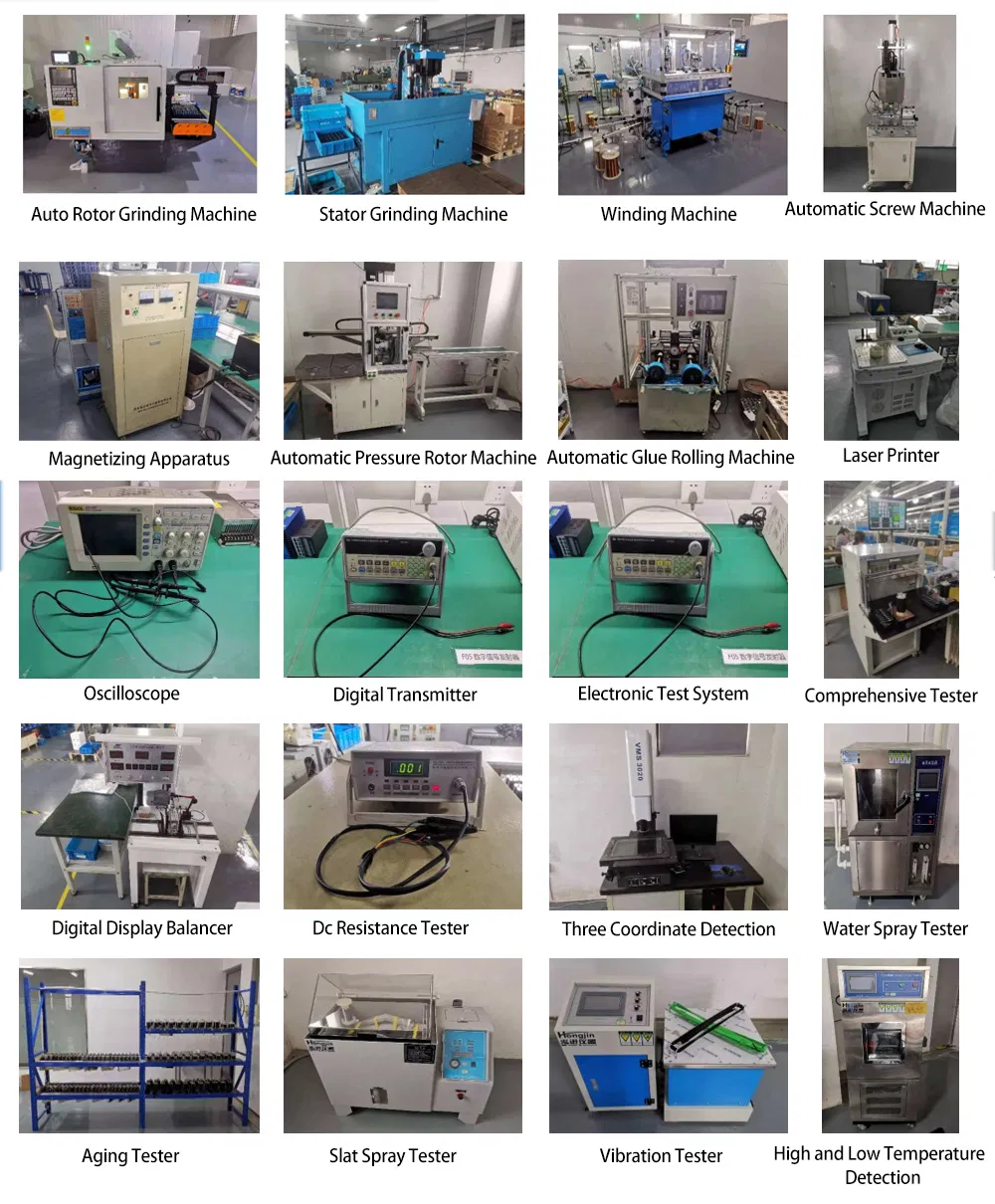

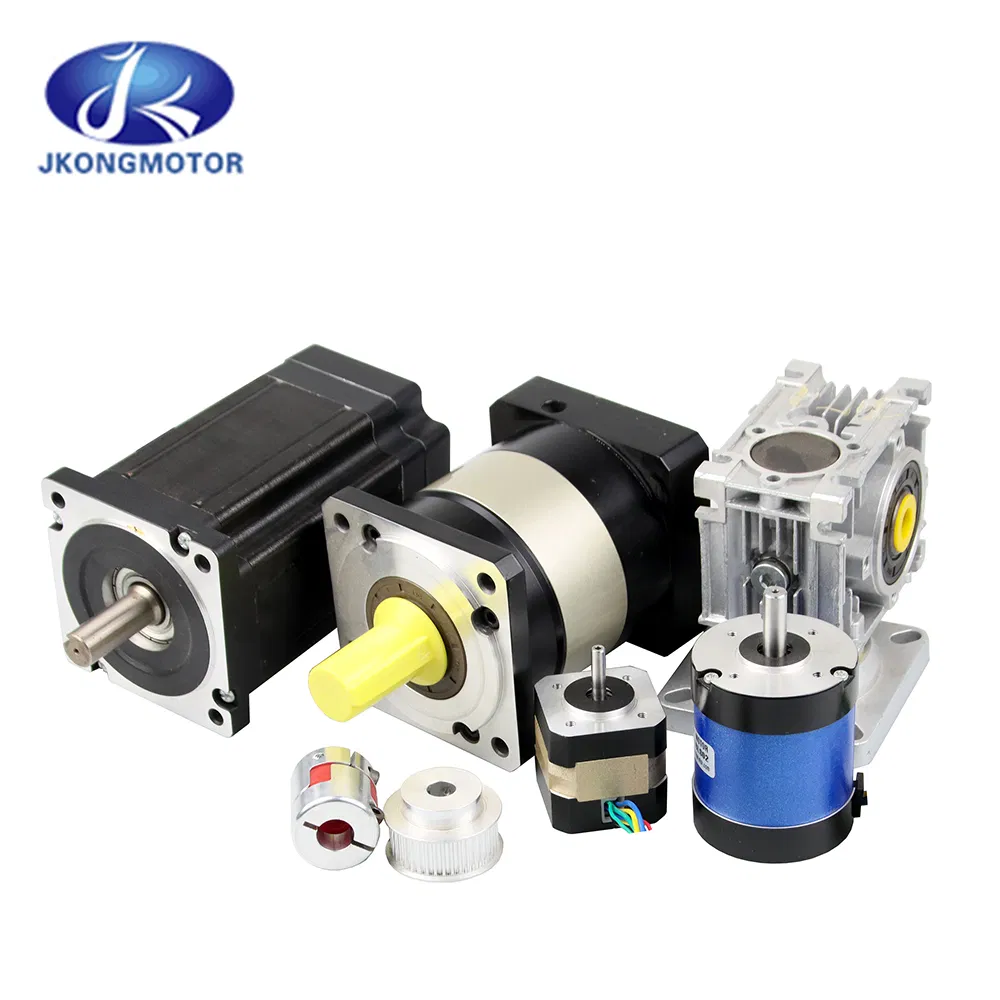

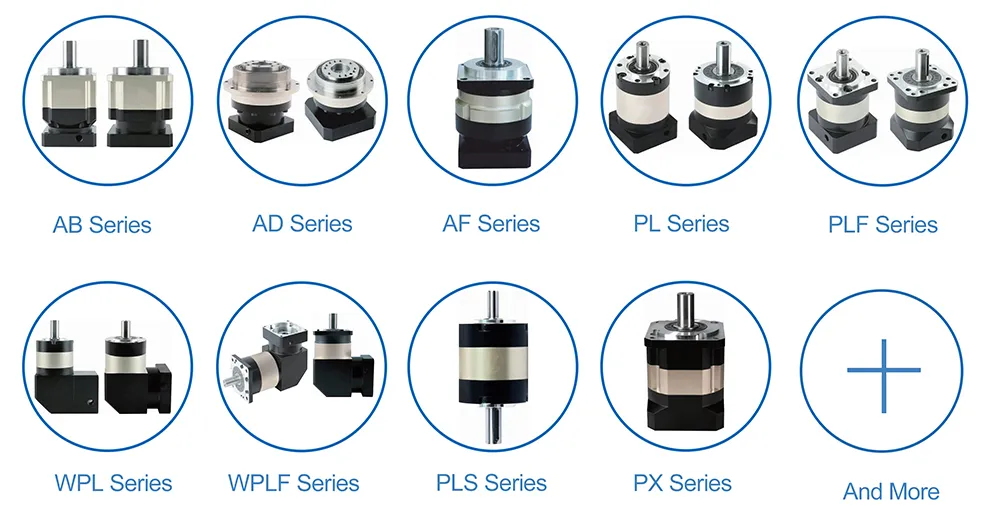

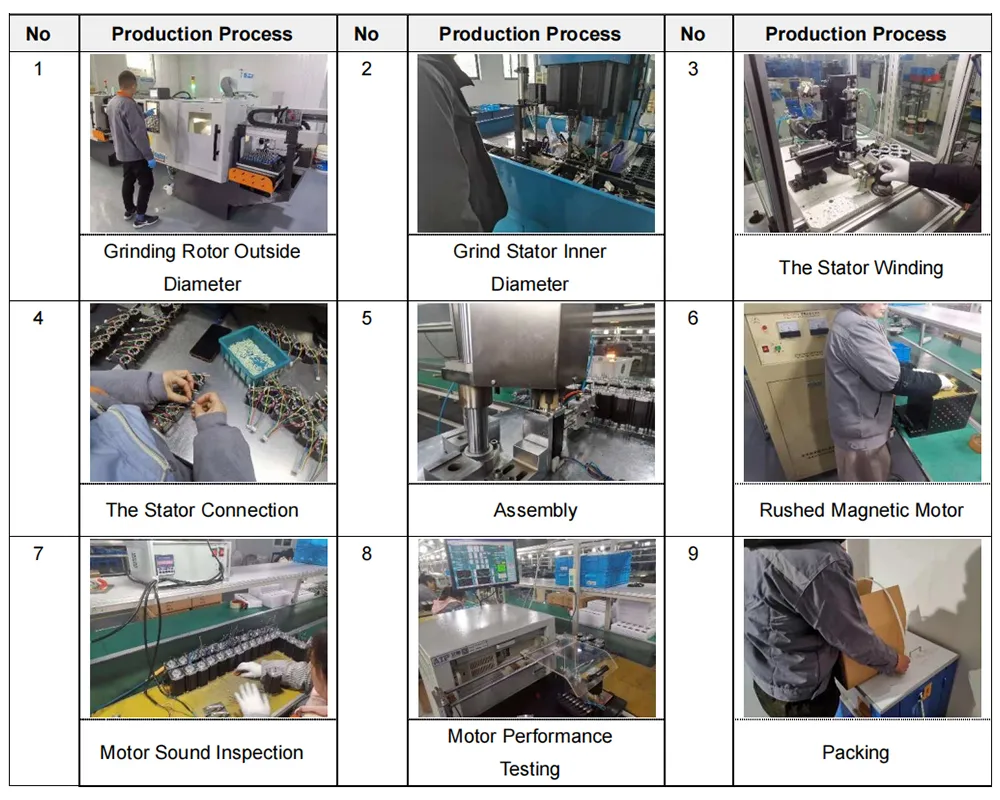

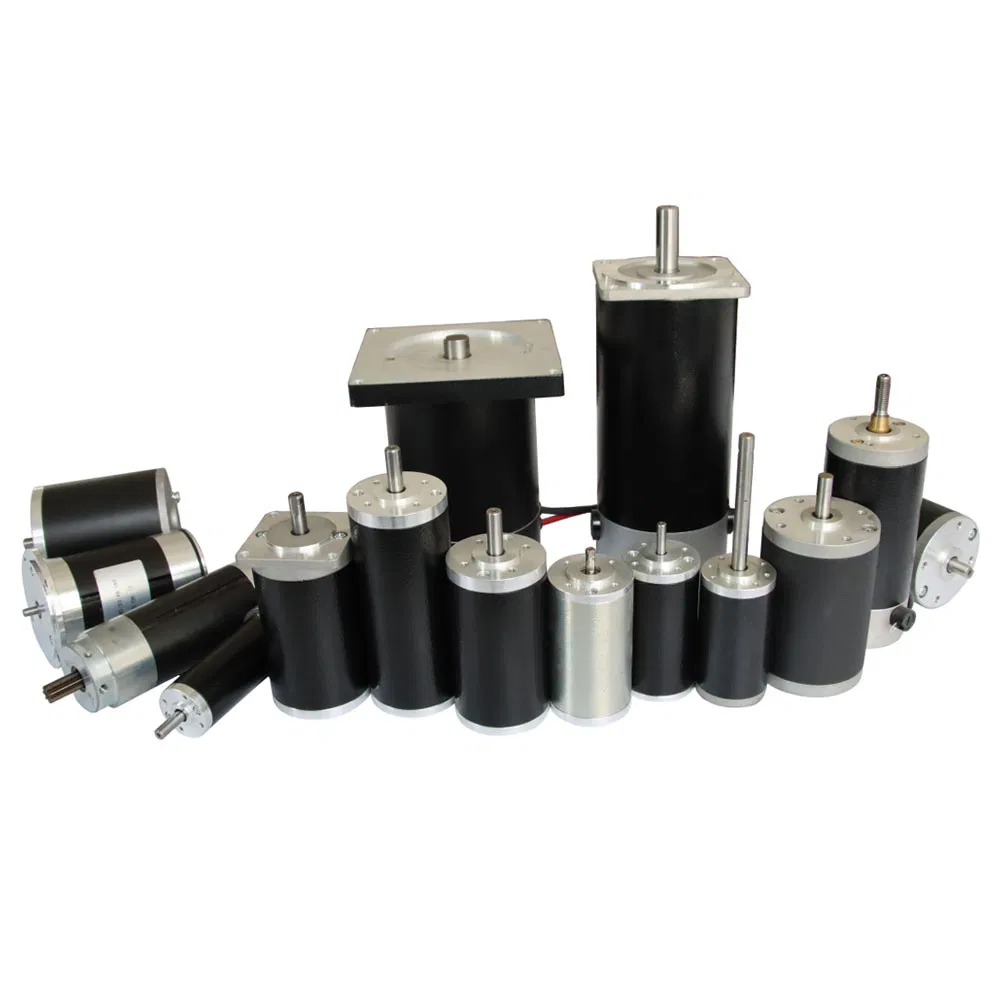

Our micro motor production lines include Stepper Motors, DC Servo Motors, AC Motors, and Planetary Gearboxes. We provide flexible solutions for various industrial automation situations through technical innovation.
