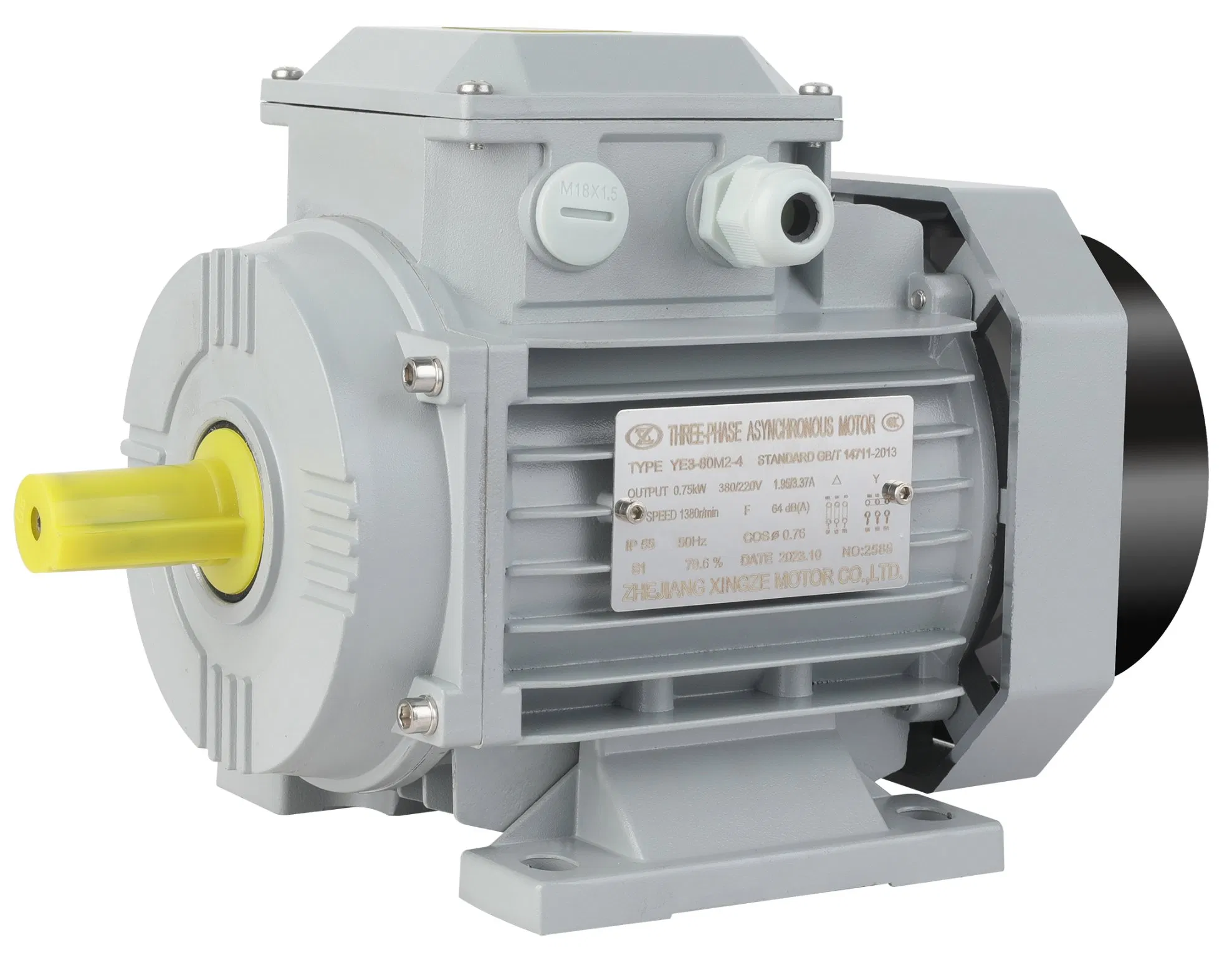

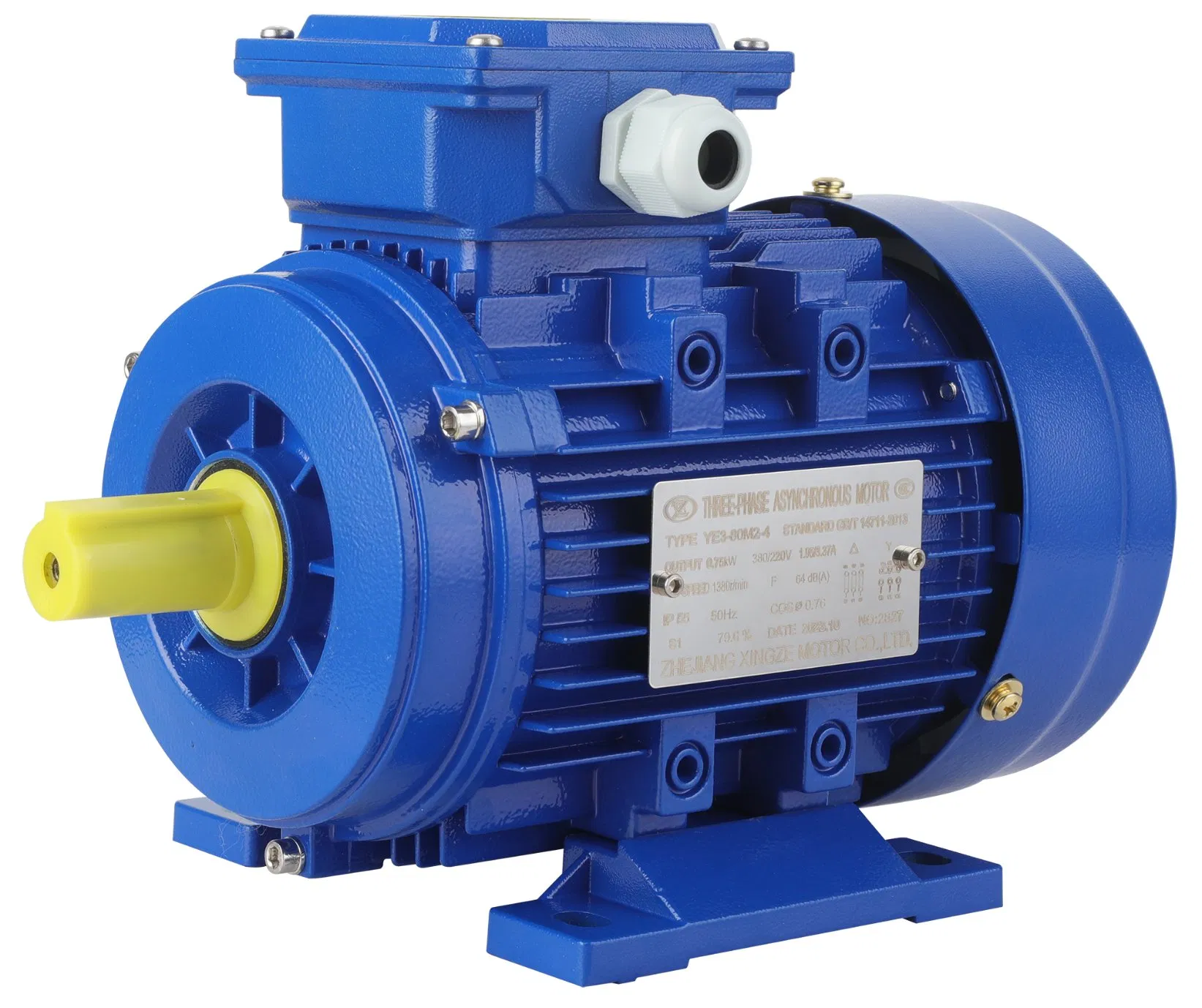

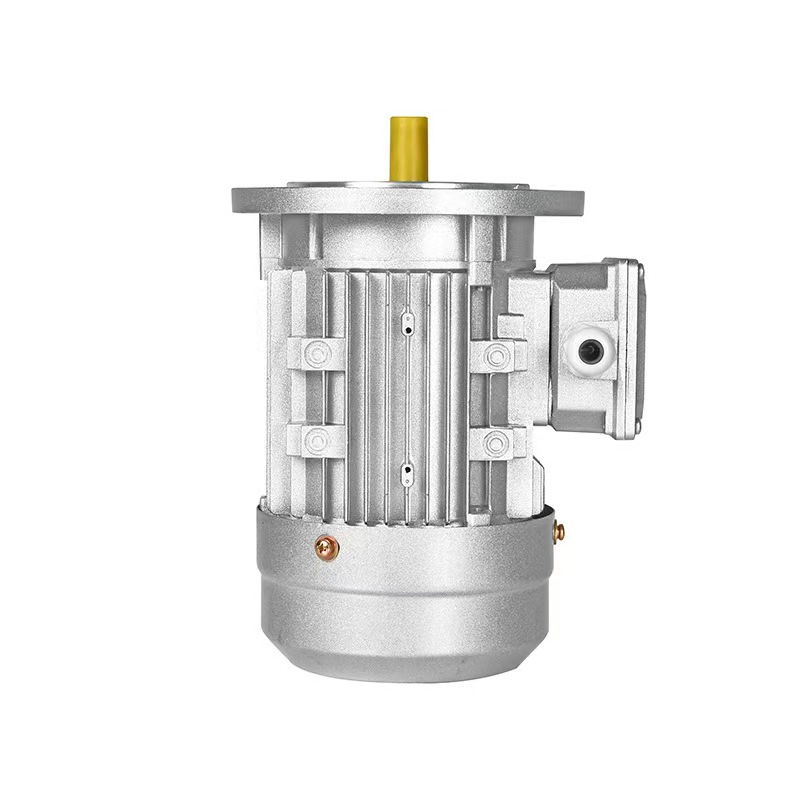

3 Phase AC 380V Yvf Three-Phase Variable Frequency Speed Motor

Customization:	Available
Application:	Industrial
Speed:	Low Speed

Basic Specifications

Model NO.

YVF

Stator

Three-Phase

Function

Driving

Casing Protection

Closed Type

Number of Poles

2

Starting Mode

y-δ Starting

Certification

ISO9001, CCC, IEC

Material

Aluminium

Rated Current

0.53

Efficiency

65

Package Size

18.00cm * 31.00cm * 21.00cm

Gross Weight

15.000kg

Product Description

YVF Three-phase Variable Frequency Speed Motor
High-performance driving solution designed for low-frequency region stability.

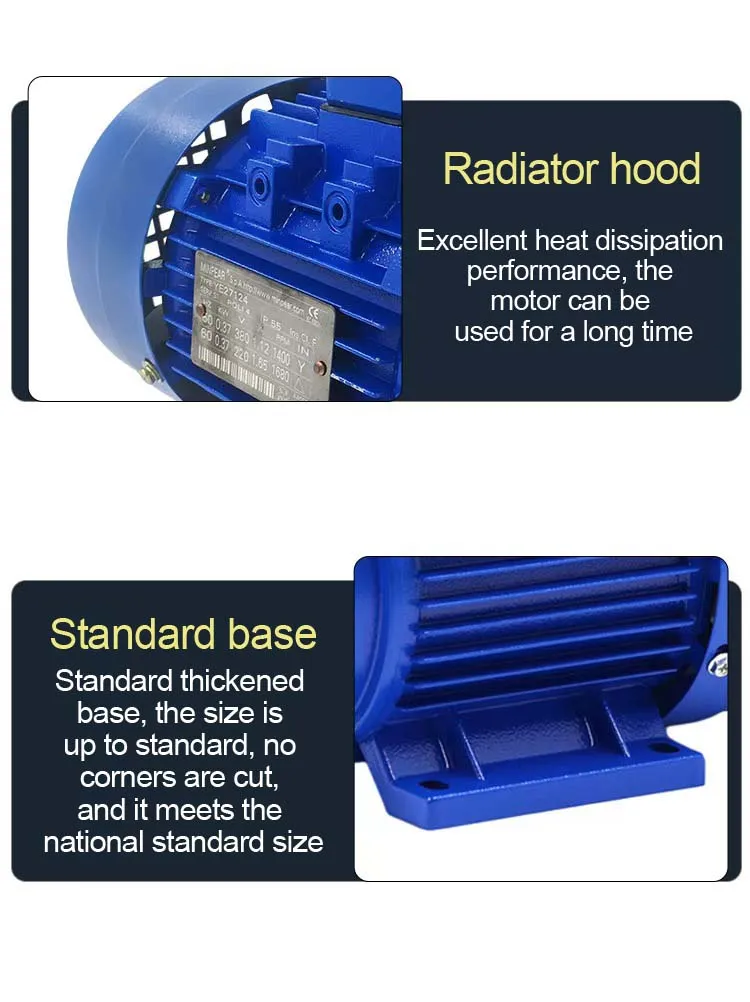

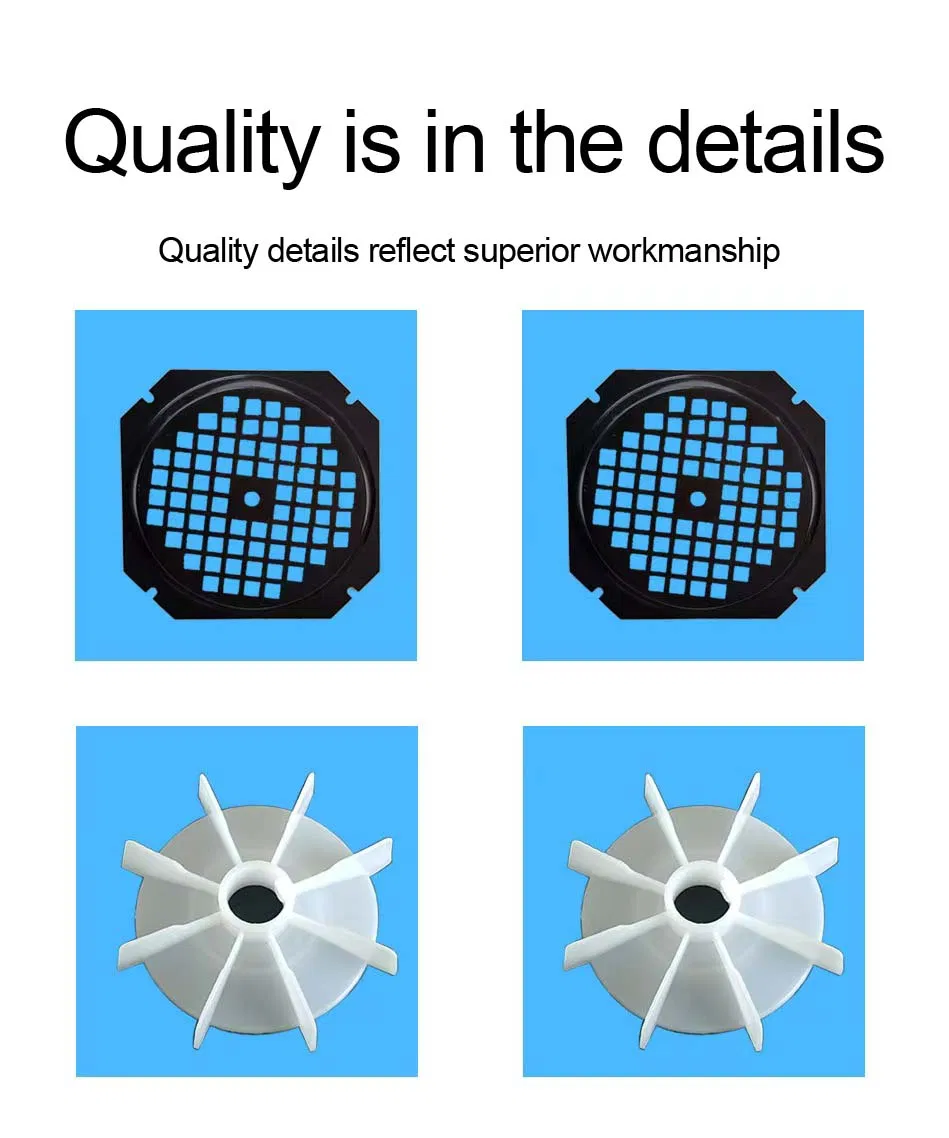

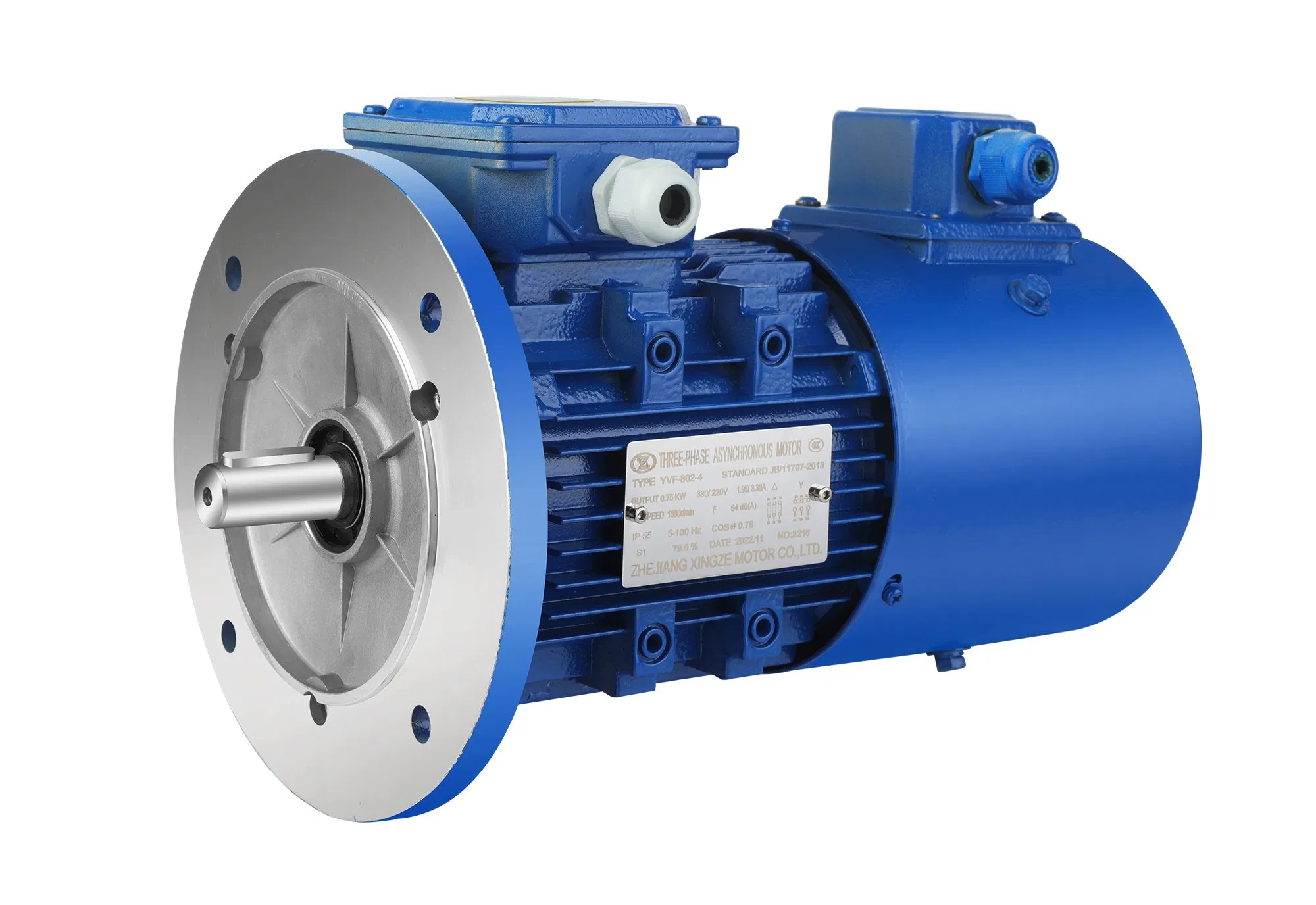

The motor features a specialized cooling system to address heat rise at reduced speeds. Since standard ventilation efficiency drops with speed, the rear end is equipped with an independent axial cooling fan (Single-phase 220V or Three-phase 380V). This ensures effective cooling across the entire speed range.

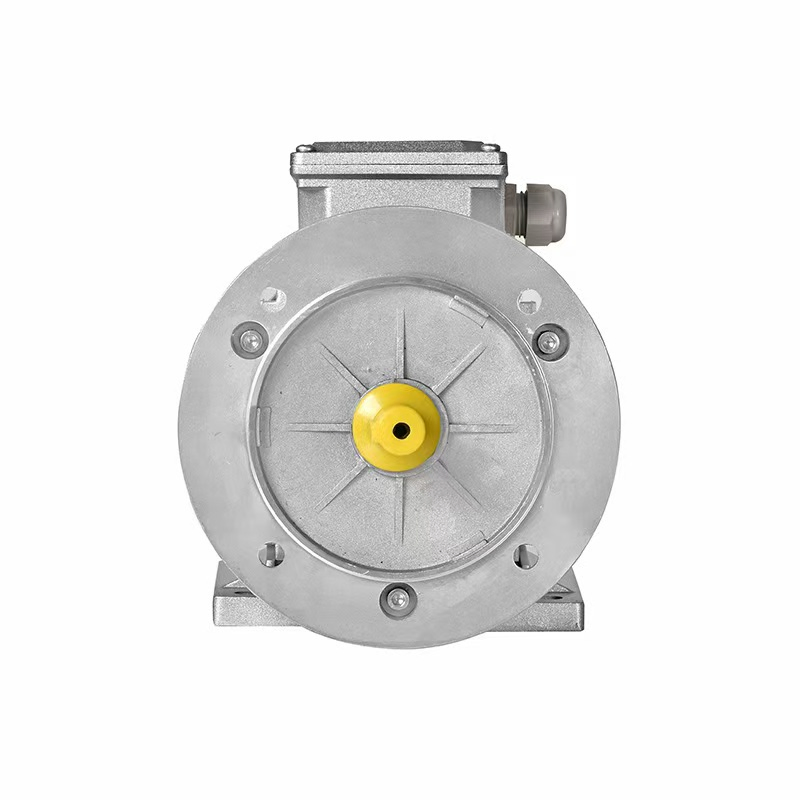

YVF motors can be equipped with brakes or encoders to achieve precise low stepless speed control. Built with IEC standard flange installation dimensions, these motors maintain excellent versatility and are fully interchangeable with general standard motors.

Packaging Specifications

Manufacturing Excellence

Our production utilizes advanced CNC machining, automatic wire winding machines, and electric testing equipment. We specialize in industrial air products, high-efficiency motors, and utilize premium NSK/SKF bearings for longevity and performance.

Frequently Asked Questions

1. What is the warranty for the YVF motor?

The motor comes with a 1-year warranty. You can contact us for any quality-related questions regarding the product itself.

2. How do I operate and wire the machine?

Operation is straightforward: connect the wiring and turn on the power. We provide specific guidance based on your local voltage and phase requirements.

3. Are you a trading company or a manufacturer?

We are a specialized manufacturer, capable of providing long-term supply with fast lead times.

4. What makes the YVF motor suitable for variable speeds?

It is equipped with an independent axial cooling fan that ensures effective heat dissipation even when the motor is running at very low speeds.

5. Can this motor be interchanged with standard motors?

Yes, the YVF motor follows IEC standard flange installation dimensions, ensuring it is interchangeable with general standard motors.

6. Can I add accessories like brakes or encoders?

Absolutely. YVF motors can be equipped with brakes and encoders to achieve precise, stepless speed control for various industrial applications.
