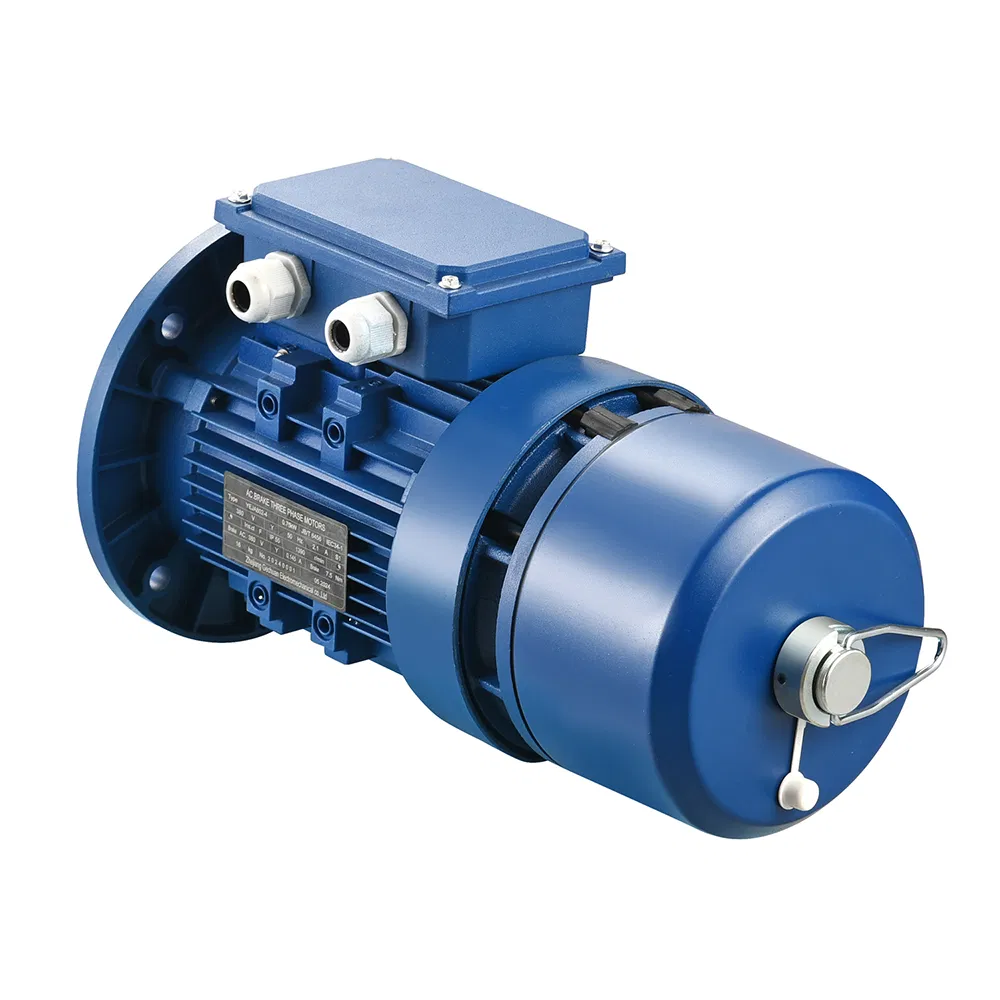

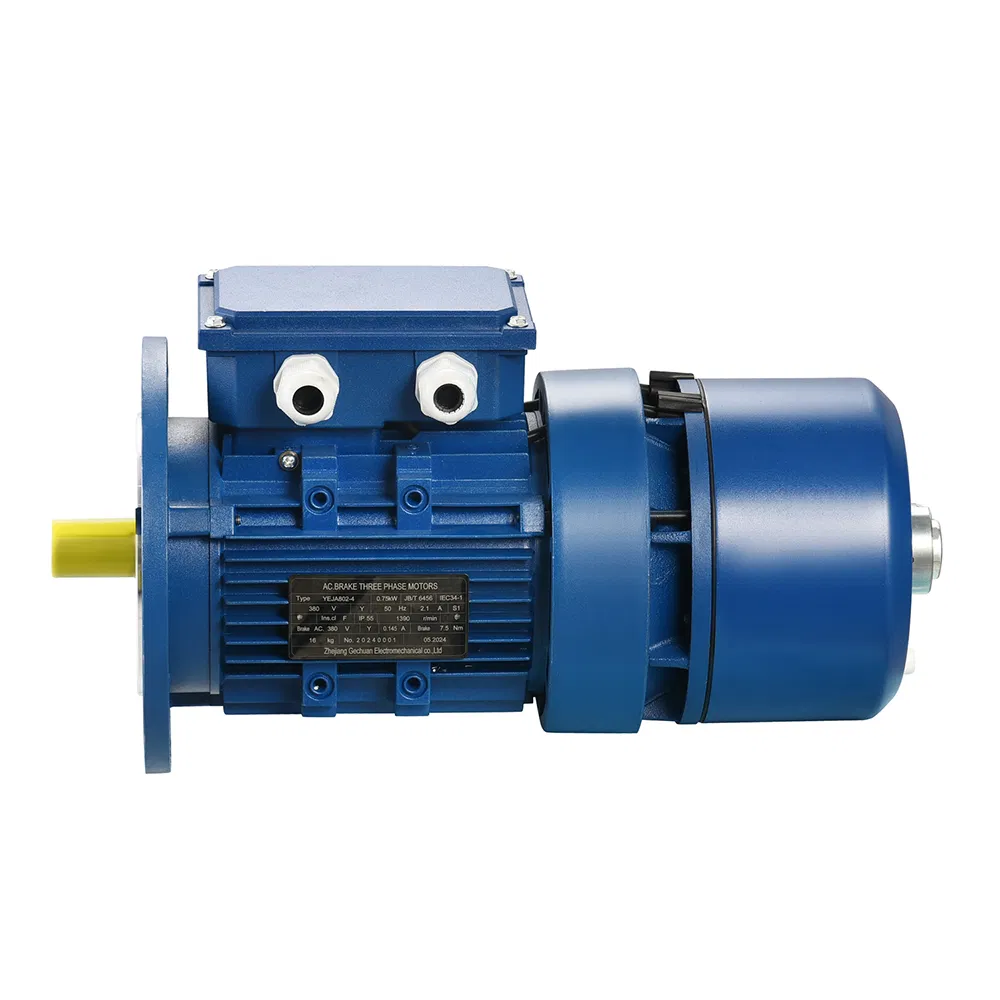

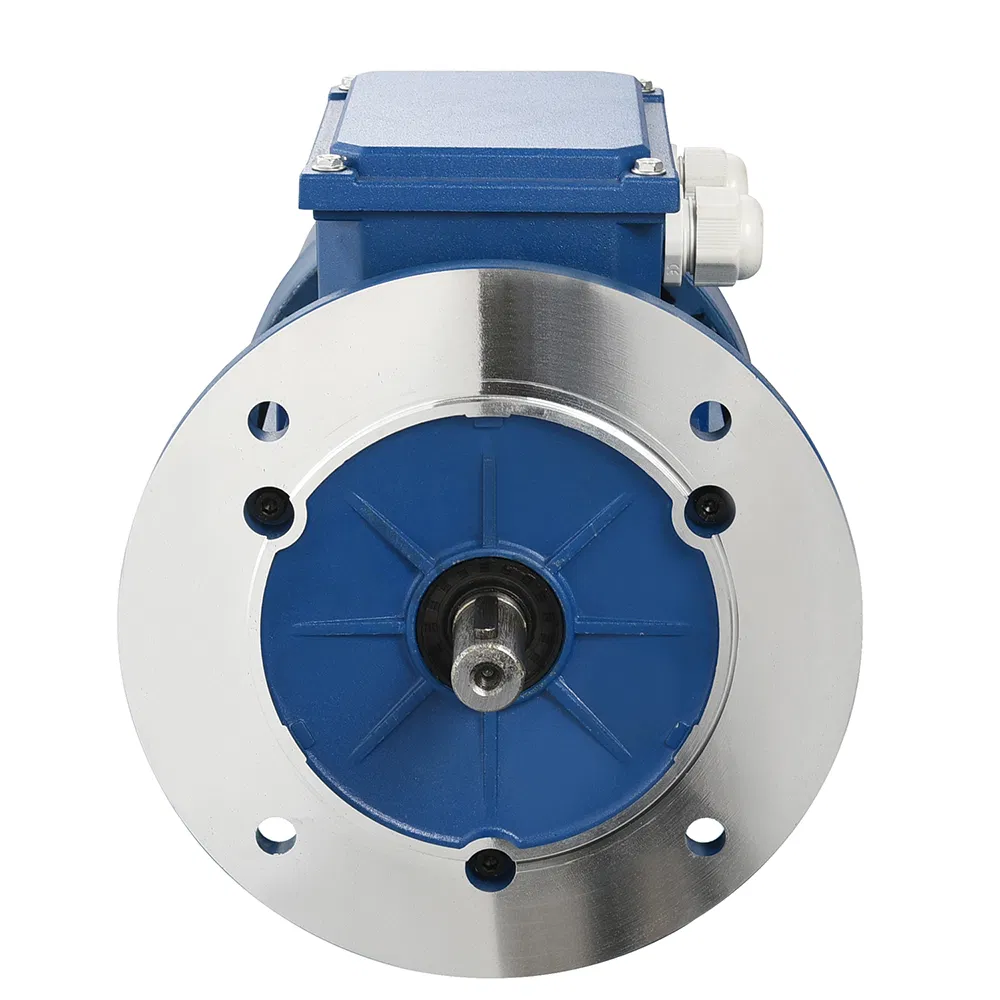

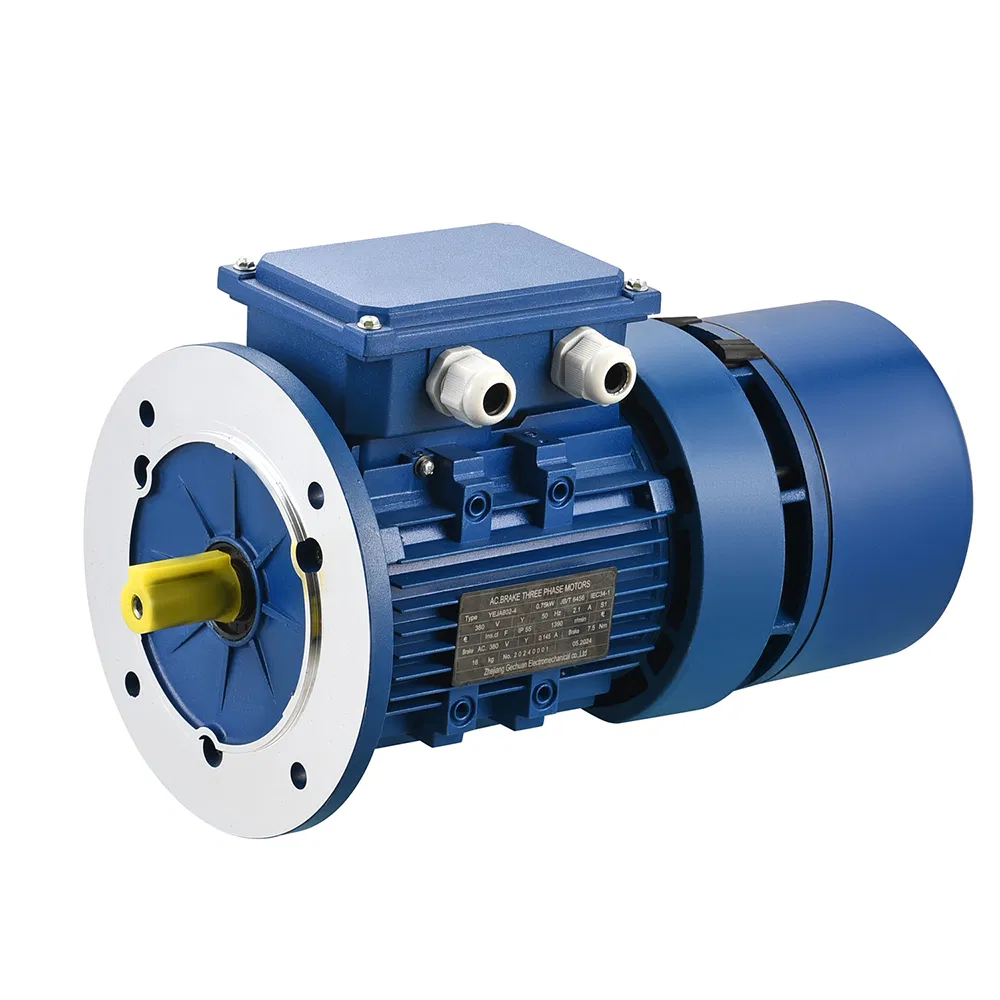

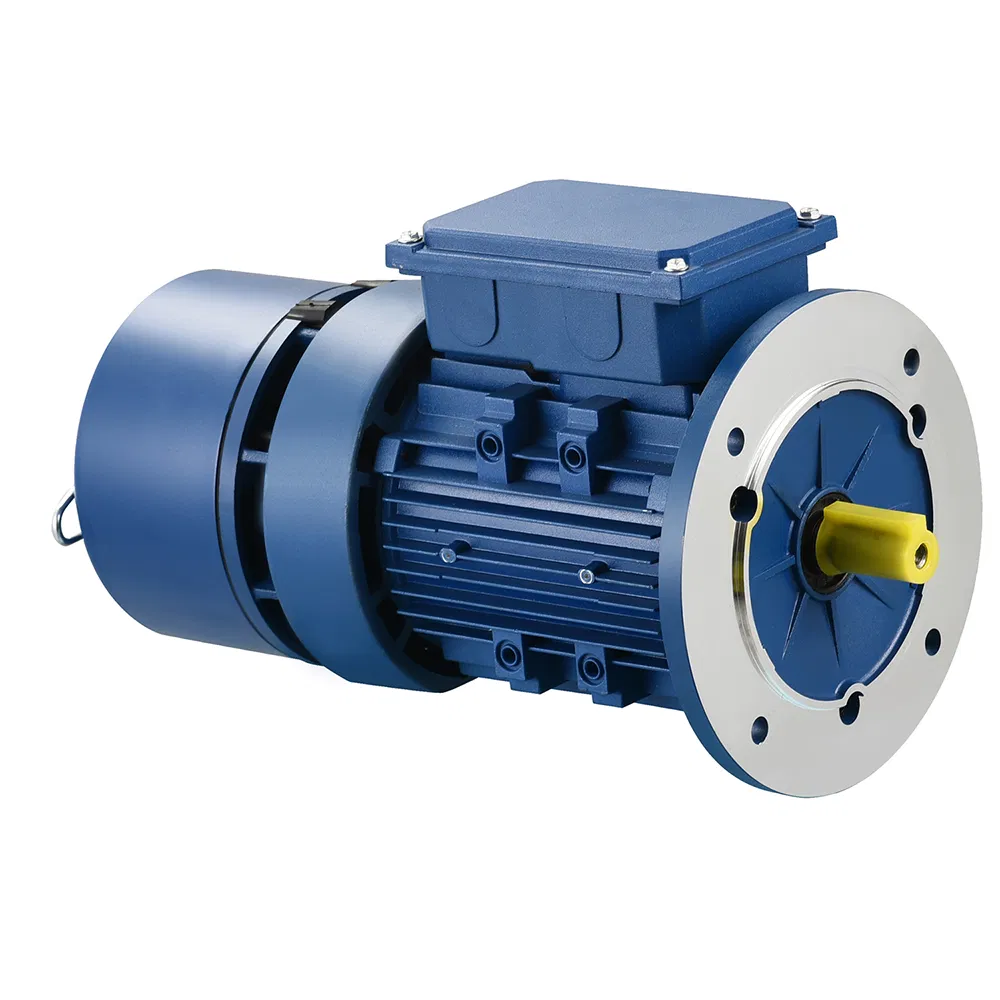

Variable Frequency Vf Adjustable-Speed Speed Regulation Three Phase Brake AC Electric/Electrical Motors
Variable Frequency Vf Adjustable-Speed Speed Regulation Three Phase Brake AC Electric/Electrical Motors
Variable Frequency Vf Adjustable-Speed Speed Regulation Three Phase Brake AC Electric/Electrical Motors
Variable Frequency Vf Adjustable-Speed Speed Regulation Three Phase Brake AC Electric/Electrical Motors
Variable Frequency Vf Adjustable-Speed Speed Regulation Three Phase Brake AC Electric/Electrical Motors
1 / 5
Variable Frequency Vf Adjustable-Speed Speed Regulation Three Phase Brake AC Electric/Electrical Motors
Variable Frequency Vf Adjustable-Speed Speed Regulation Three Phase Brake AC Electric/Electrical Motors
Variable Frequency Vf Adjustable-Speed Speed Regulation Three Phase Brake AC Electric/Electrical Motors
Variable Frequency Vf Adjustable-Speed Speed Regulation Three Phase Brake AC Electric/Electrical Motors
Variable Frequency Vf Adjustable-Speed Speed Regulation Three Phase Brake AC Electric/Electrical Motors

Variable Frequency Vf Adjustable-Speed Speed Regulation Three Phase Brake AC Electric/Electrical Motors

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
YVF-180L-4(22KW)
Number of Stator
Three-Phase
Function
Driving
Casing Protection
Closed Type
Number of Poles
4
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC, Test Report
Insulation Class
F
Voltage
220V, 380V, 440V, 660V
Winding
100% Pure Copper
Power Range
120W to 630kW
Package Gross Weight
210.000kg

Product Description & Parameters

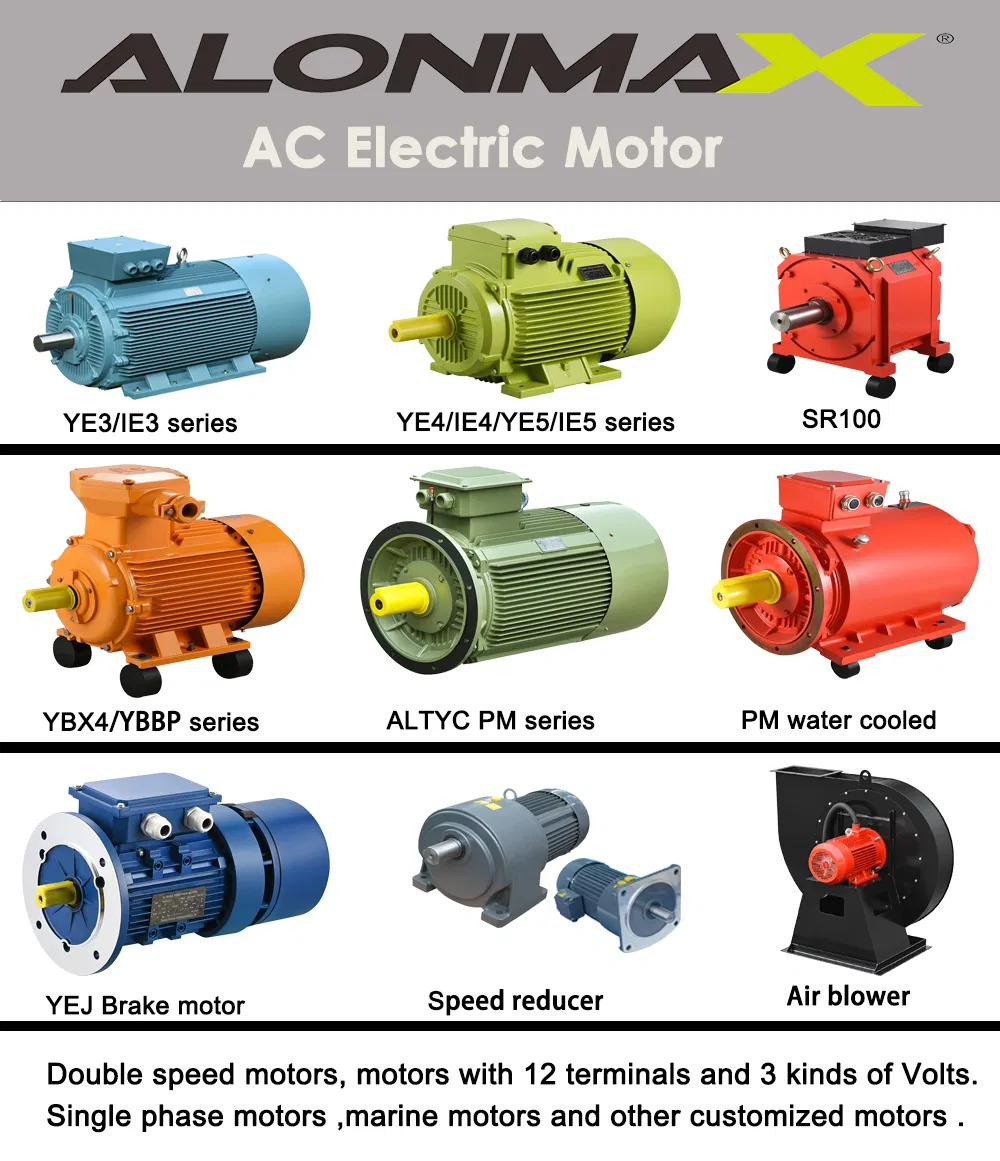

Three Phase Brake AC Electric Motors

YEJ Brake Electric Motors Technical Data

Type Rated Power Rated Current(A) Rated Speed(r/min) Efficiency(%) Power Factor
KW HP
380V 50HZ Synchronous Speed 3000r/min (2 Poles)
YE3-80M1-20.7511.7288080.70.82
YE3-90S-21.523.2289084.20.84
YE3-112M-245.57.8291088.10.88
380V 50HZ Synchronous Speed 1500r/min (4 Poles)
YE3-100L1-42.234.8145086.70.81
YE3-132S-45.57.511.2147089.60.83
YE3-160L-4152028.8147592.10.86
380V 50HZ Synchronous Speed 1000r/min (6 Poles)
YE3-112M-62.235.495584.30.74
YE3-160L-6111523.198090.30.8

Core Advantages

  • Strict Quality Control: Each incoming part is 100% inspected according to standards; every motor is tested during each process.
  • Premium Materials: Using 100% full copper 180# enamelware wire and high-end silicon steel sheets (800# for IE3, 270# for IE4/IE5).
  • Superior Insulation: Longer middle insulation paper and vacuum dipping processes ensure excellent insulation and durability.
  • High-End Components: Default bearing brands include Tianma or Renben, paired with high-performance high/low temperature bearing oil.
  • Advanced Manufacturing: Integrated drilling and milling equipment for large frames (315+) ensures high precision and efficiency.
  • Professional Expertise: Over 36 years of specialized experience in high-quality electric motor manufacturing.

Technical Features

• Frame Size: H63-450
• Power: 0.75-630KW
• Voltage: 220-660V
• Frequency: 50Hz / 60Hz
• Poles: 2, 4, 6, 8, 10, 12
• Protection: IP54 to IP65
• Duty: Continuous (S1)
• Cooling: IC411 Standards

Product Gallery

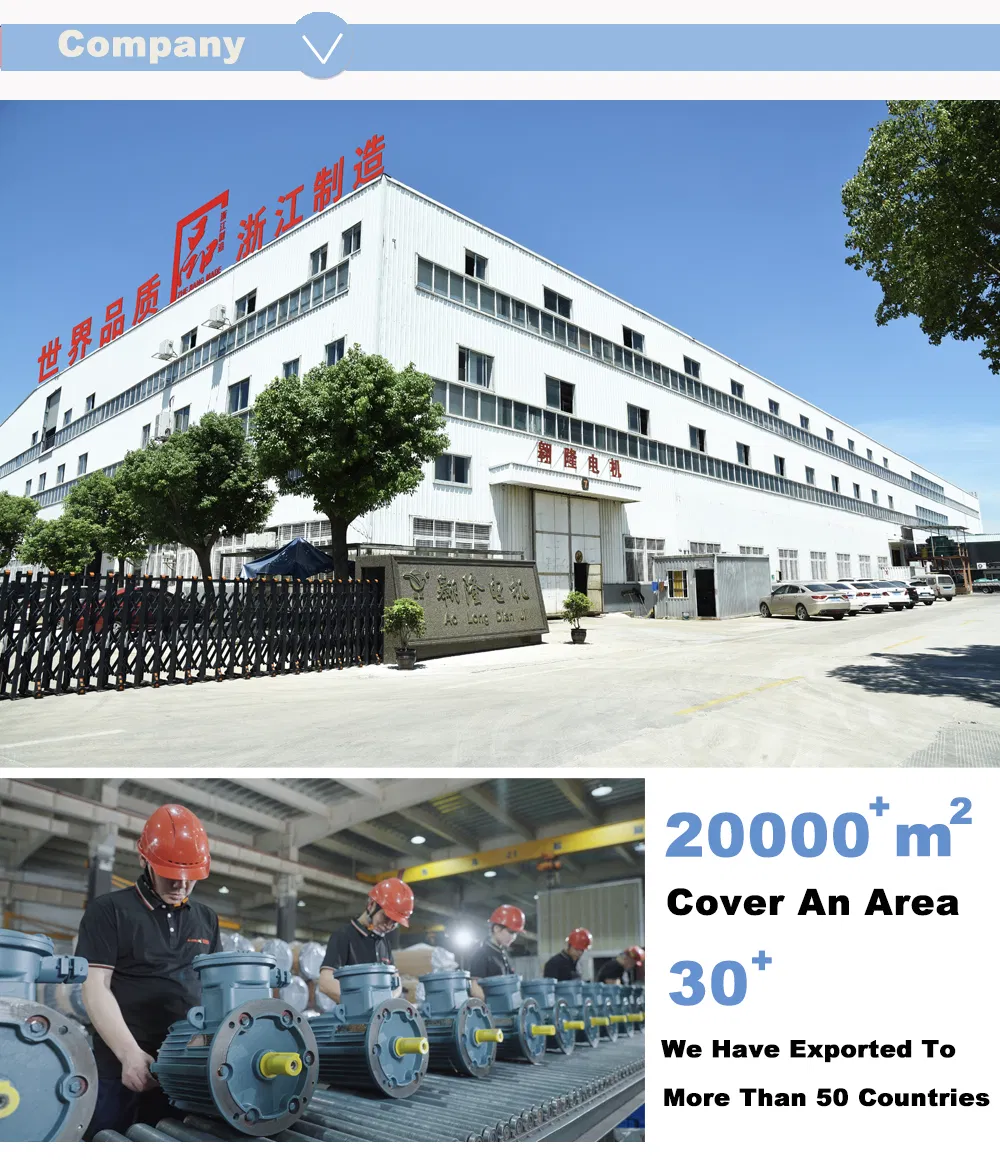

Motor Overview

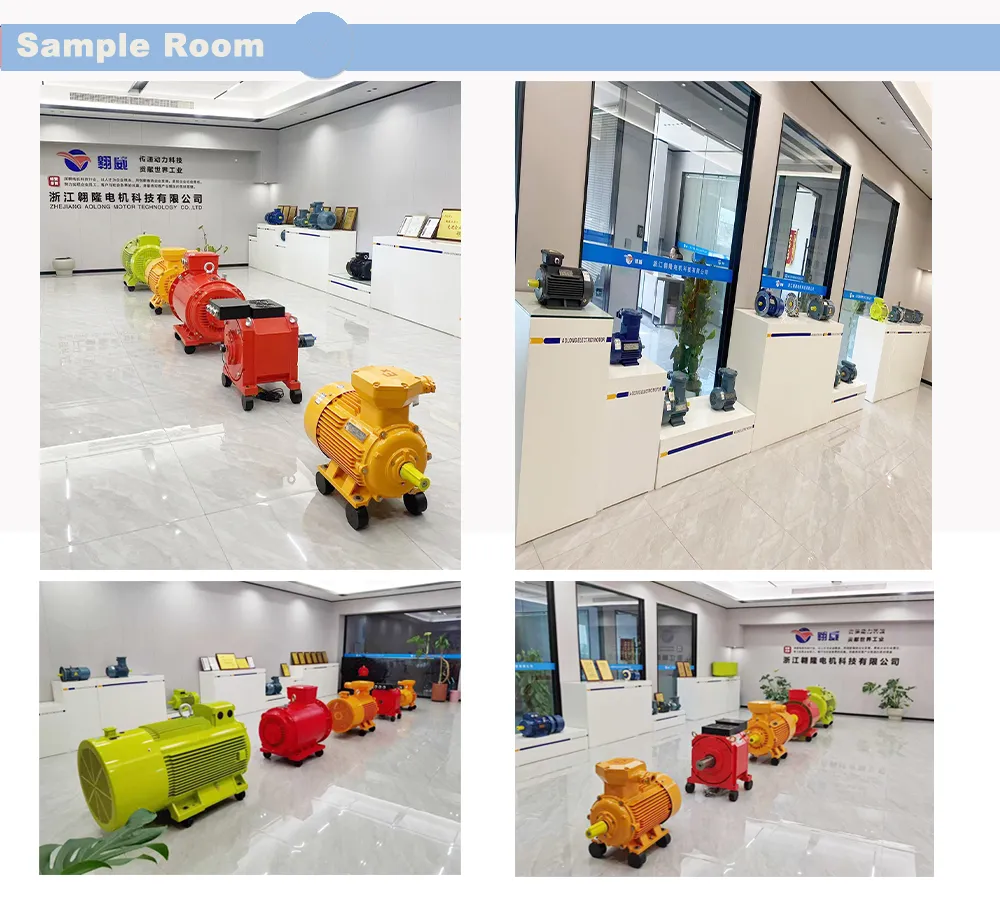

Motor Components

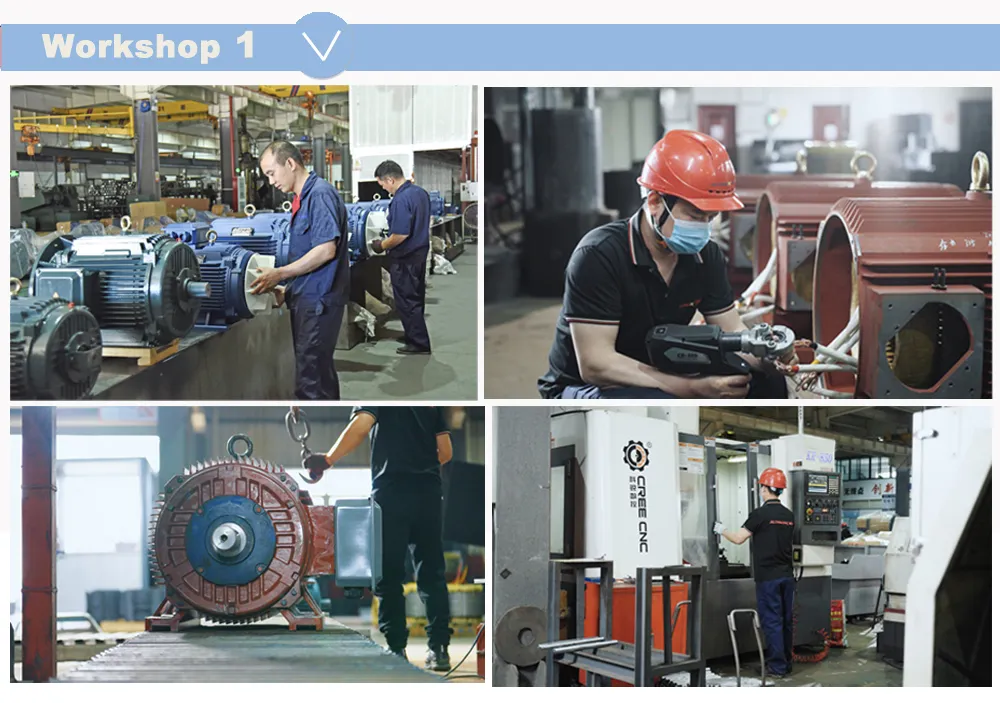

Industrial Application

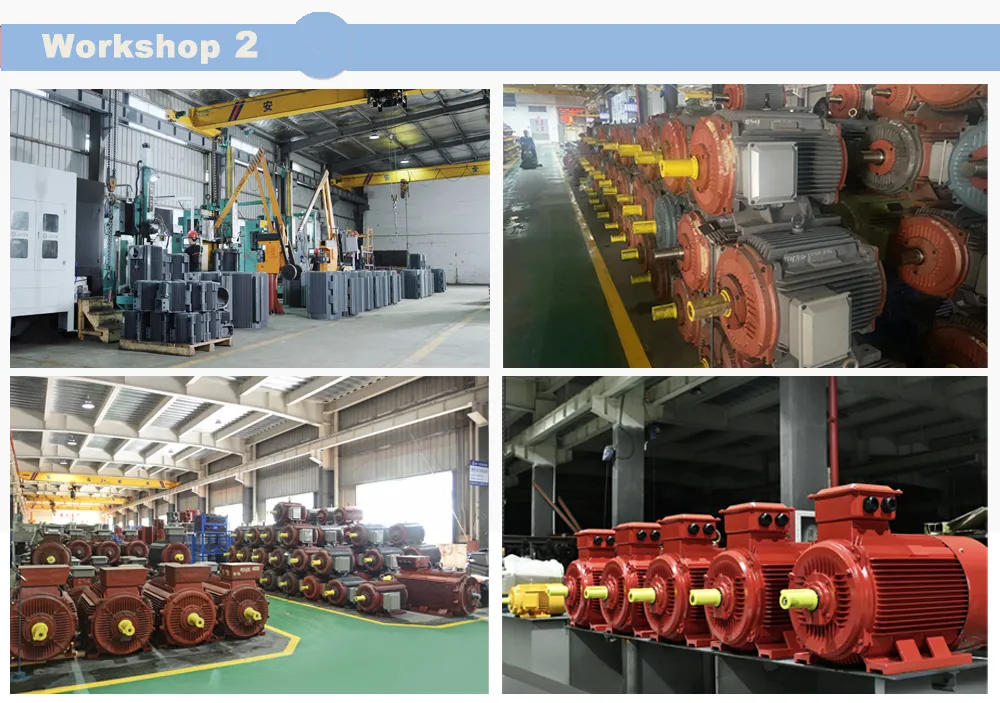

Manufacturing Process
Quality Testing
Motor Detail

Frequently Asked Questions

1. Are you a factory or a trading company?
We are a professional factory focused on manufacturing and developing high-quality electric motors for more than 36 years.
2. Is customized service available for these motors?
Yes, both OEM and ODM services are available to meet specific customer requirements.
3. How do you handle quality control?
We maintain professional quality control standards, including 100% inspection of incoming parts and multi-stage testing for every motor during production.
4. What is the typical lead time for orders?
The lead time is approximately 15-30 days after receiving the deposit or original L/C.
5. What kind of warranty do you provide?
We provide a one-year quality warranty. During this period, we supply free replacements for parts with possible problems, excluding those caused by incorrect operation.
6. What certifications do your products hold?
Our motors are certified with CE, ISO9001-2015, CCC, and Carbon Footprint certificates, along with explosion-proof test reports.
