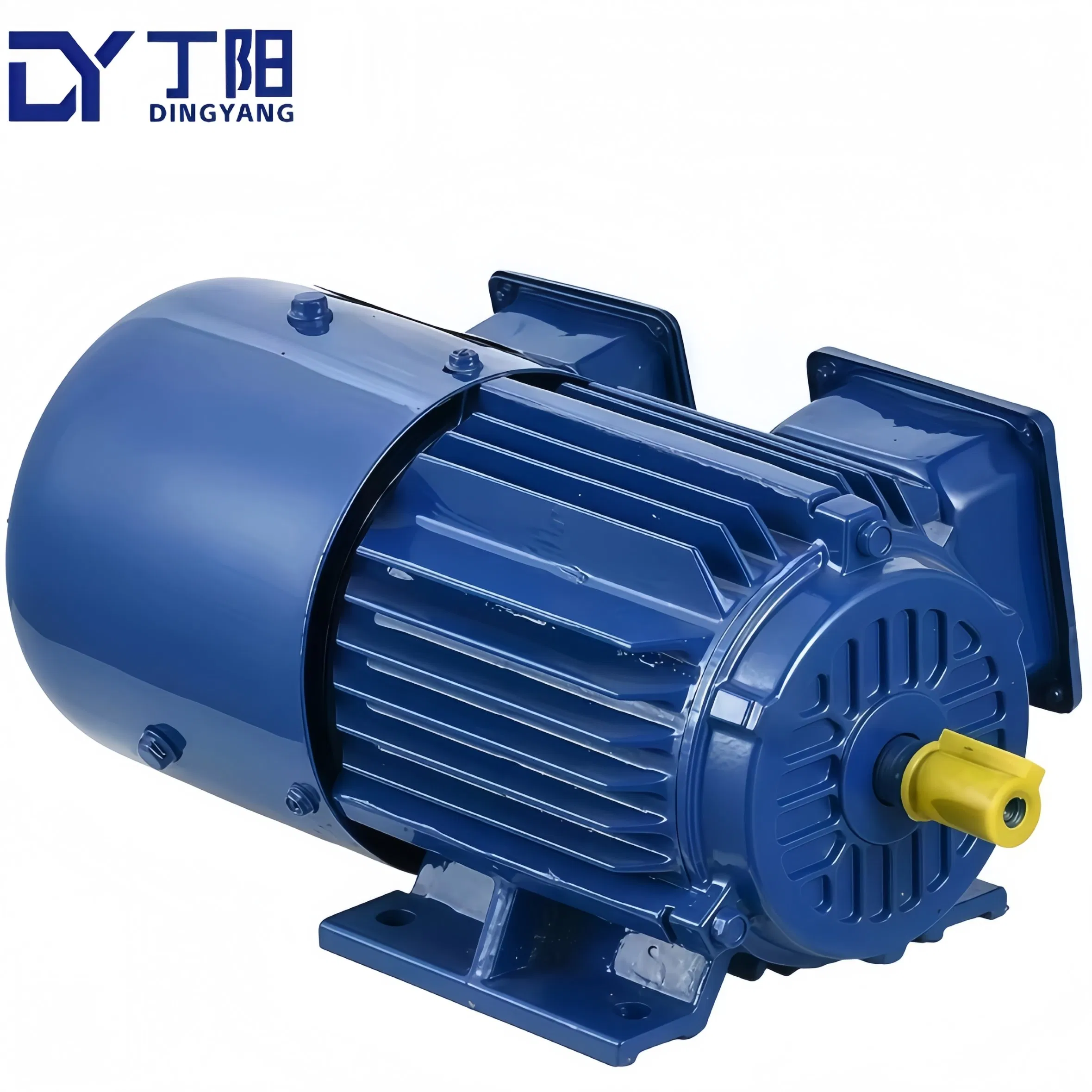

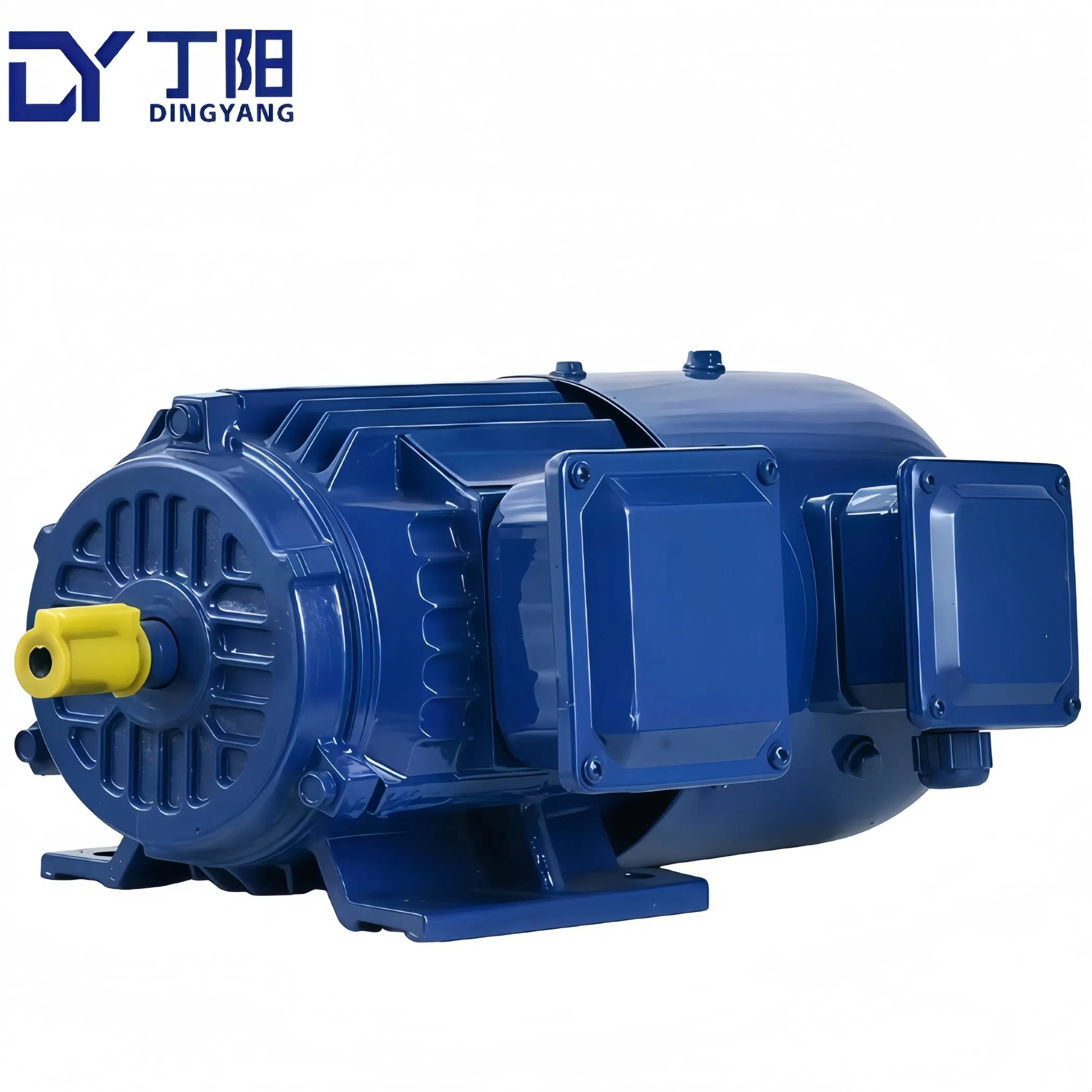

Yvf Series 380V Three-Phase Speed Control AC Electric Induction Asynchronous Electric Motor Variable Frequency
Yvf Series 380V Three-Phase Speed Control AC Electric Induction Asynchronous Electric Motor Variable Frequency
Yvf Series 380V Three-Phase Speed Control AC Electric Induction Asynchronous Electric Motor Variable Frequency
Yvf Series 380V Three-Phase Speed Control AC Electric Induction Asynchronous Electric Motor Variable Frequency
Yvf Series 380V Three-Phase Speed Control AC Electric Induction Asynchronous Electric Motor Variable Frequency
1 / 5
Yvf Series 380V Three-Phase Speed Control AC Electric Induction Asynchronous Electric Motor Variable Frequency
Yvf Series 380V Three-Phase Speed Control AC Electric Induction Asynchronous Electric Motor Variable Frequency
Yvf Series 380V Three-Phase Speed Control AC Electric Induction Asynchronous Electric Motor Variable Frequency
Yvf Series 380V Three-Phase Speed Control AC Electric Induction Asynchronous Electric Motor Variable Frequency
Yvf Series 380V Three-Phase Speed Control AC Electric Induction Asynchronous Electric Motor Variable Frequency

Yvf Series 380V Three-Phase Speed Control AC Electric Induction Asynchronous Electric Motor Variable Frequency

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Model NO.:YVF2-132S-4
Number of Stator:Three-Phase
Species:YVP Series Frequency Control
Rotor Structure:Winding Type
Casing Protection:Closed Type
Number of Poles:2.4.6.8.10.12
Starting Mode:Variable Frequency Starting
Certification:ISO9001, CCC
Protection Level:IP44, IP54, IP55
Working Way:S1 or Customized
Voltage:380V±5%
Frequency:50/60Hz
Bearing:C&U or Customized
Mounting Type:B3, B5, B35, B14, B34, V1 etc
Package Size:52.50cm * 33.50cm * 27.00cm
Gross Weight:68.000kg

Product Features & Advantages

✓Frame range from 80 - 355, output from 0.5HP to 430HP
✓Multiple mounting types: B3, B35, B5, B14, B34
✓Optional voltages: 110V, 120V, 220V, 240V, 380V, 400V, 660V
✓High protection standards: IP44, IP54, IP55
✓Durable cast iron or lightweight aluminum frame options
✓Class F insulation (Standard) or Class H (Optional)
✓Compliance with GOST, RoHS, and IEC standards
✓High efficiency performance: IE3, IE4, IE5

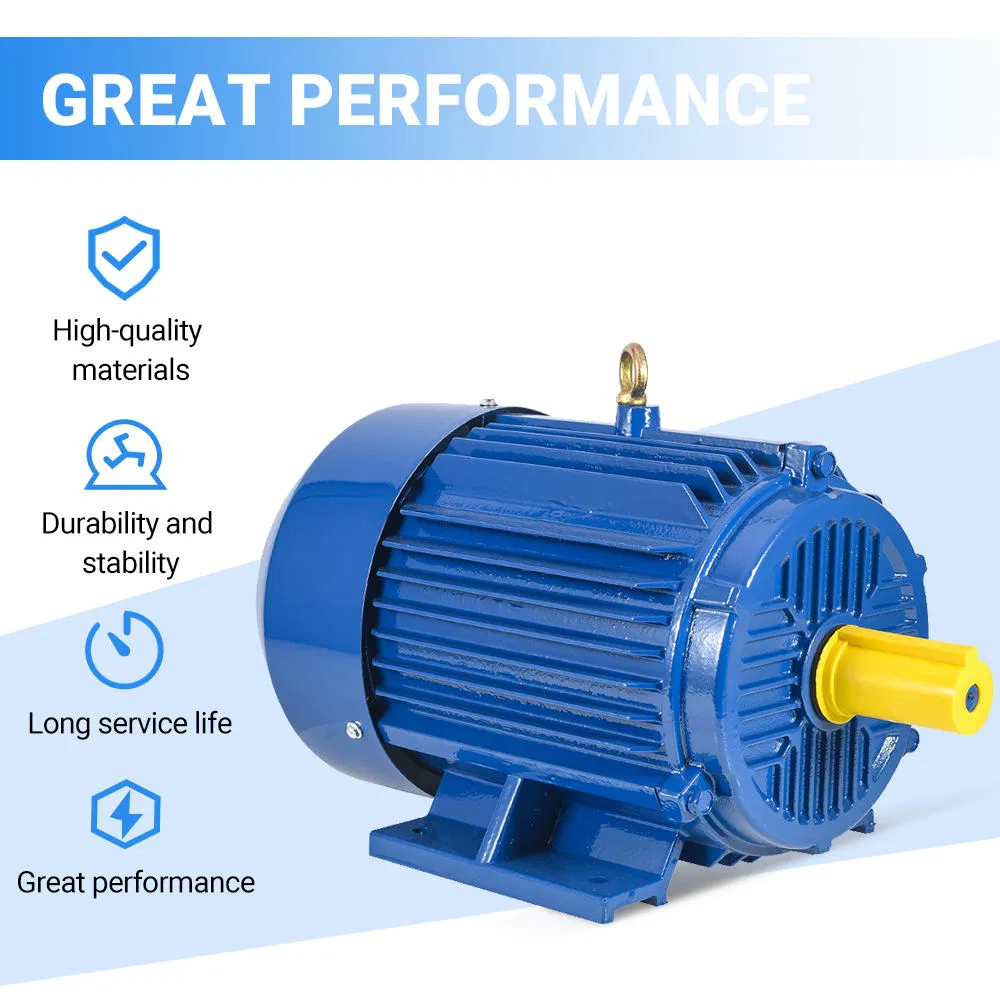

Induction Electric Motor Overview

Technical Parameters

Operational Environment: Duty S1, Altitude ≤ 1000M, Temp -15°C to 40°C.
Applications: Reducers, Air Compressors, Water Pumps, Oil Pumps, Packaging and Food Machinery.

Type Output (kW) Output (HP) Voltage (V) Current (A) Torque (N.m) Weight (kg)
YVF2-80M1-20.7513801.92.416
YVF2-80M2-21.11.53802.683.517
YVF2-90S-21.523803.514.821
YVF2-100L-2343806.49.632
YVF2-132S1-25.57.538011.217.566
YVF2-160M2-2152038028.947.8118
YVF2-200L1-2304038056.595.5225
YVF2-250M-25575380102175.1404

Detailed Product Photos

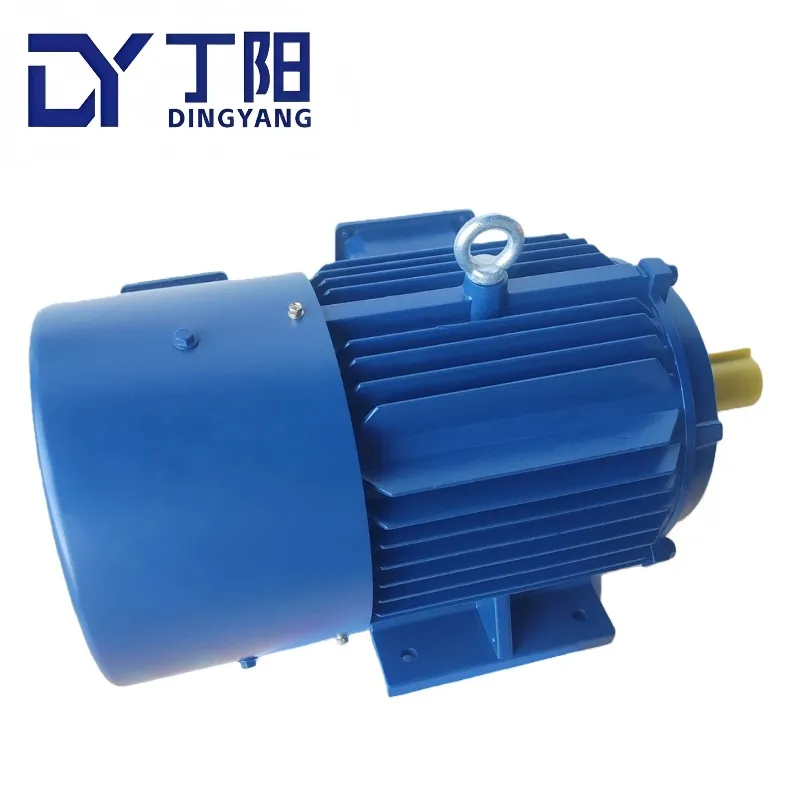

Motor Detail 1

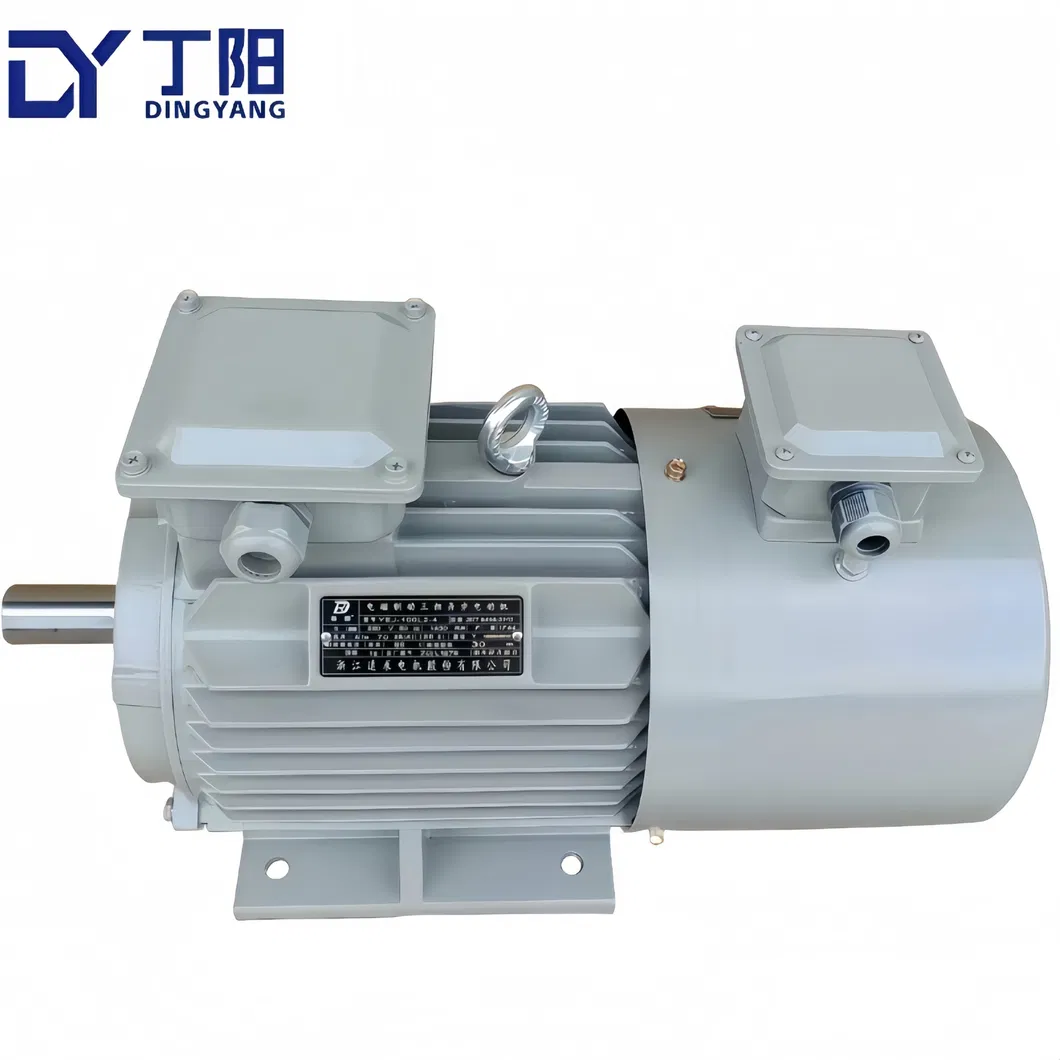

Motor Detail 2

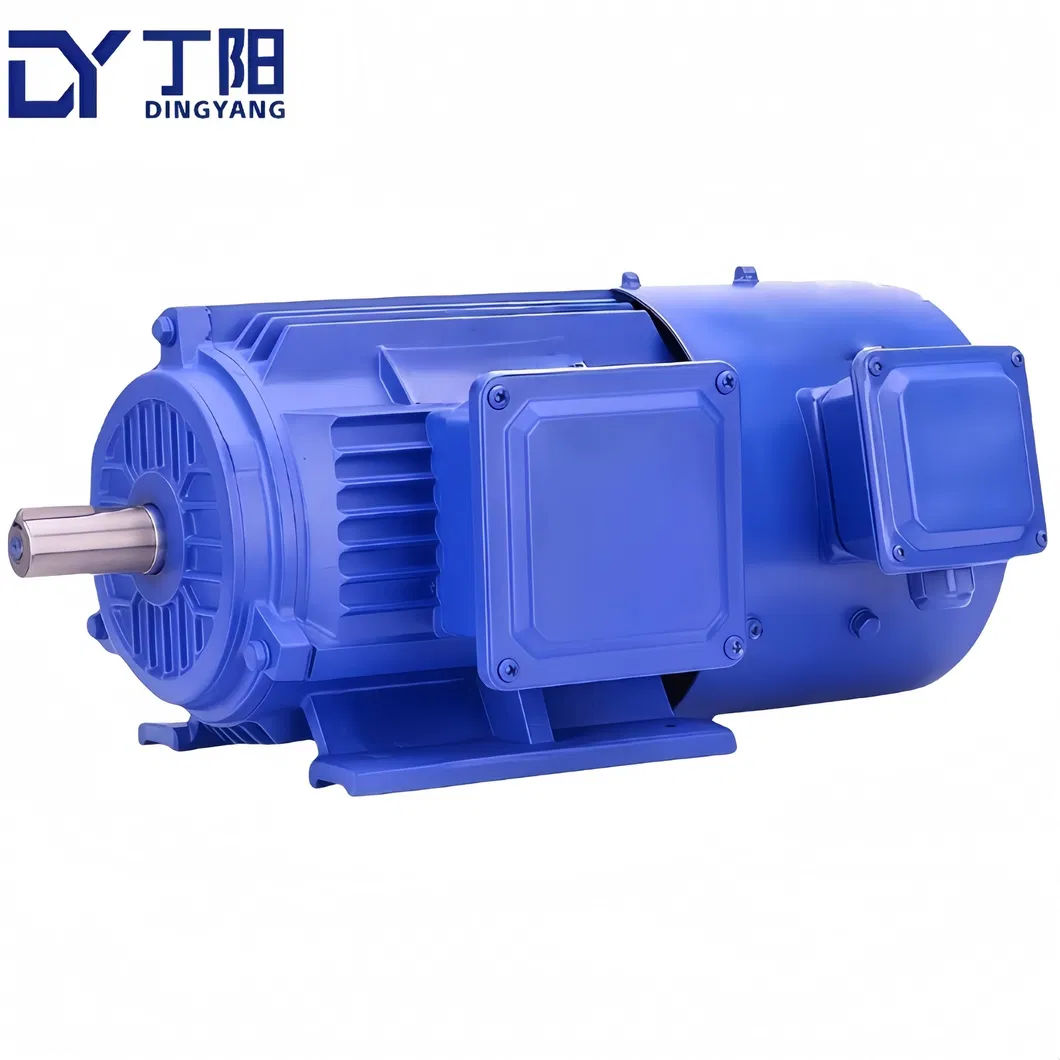

Motor Detail 3

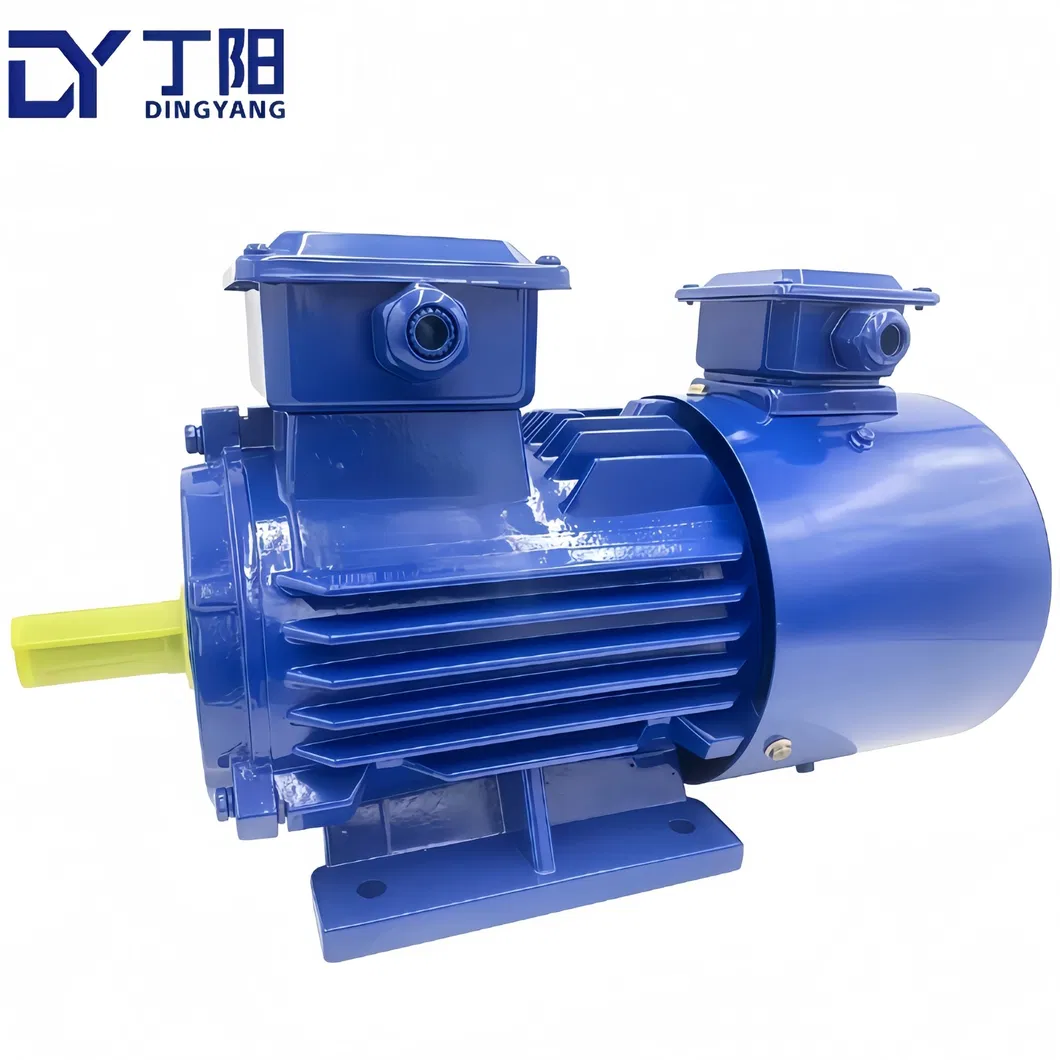

Motor Detail 4

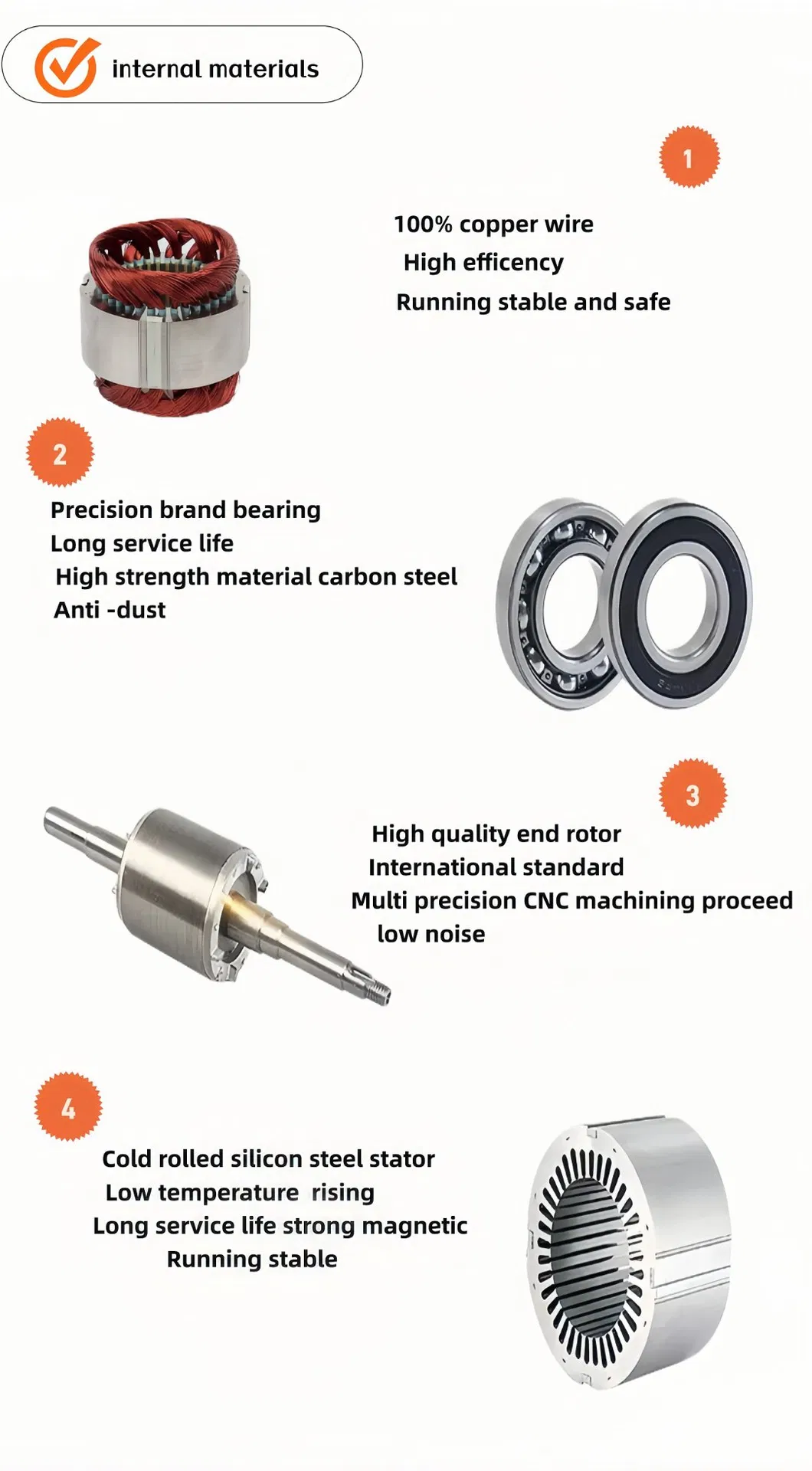

Motor Detail 5

Packaging & Shipping

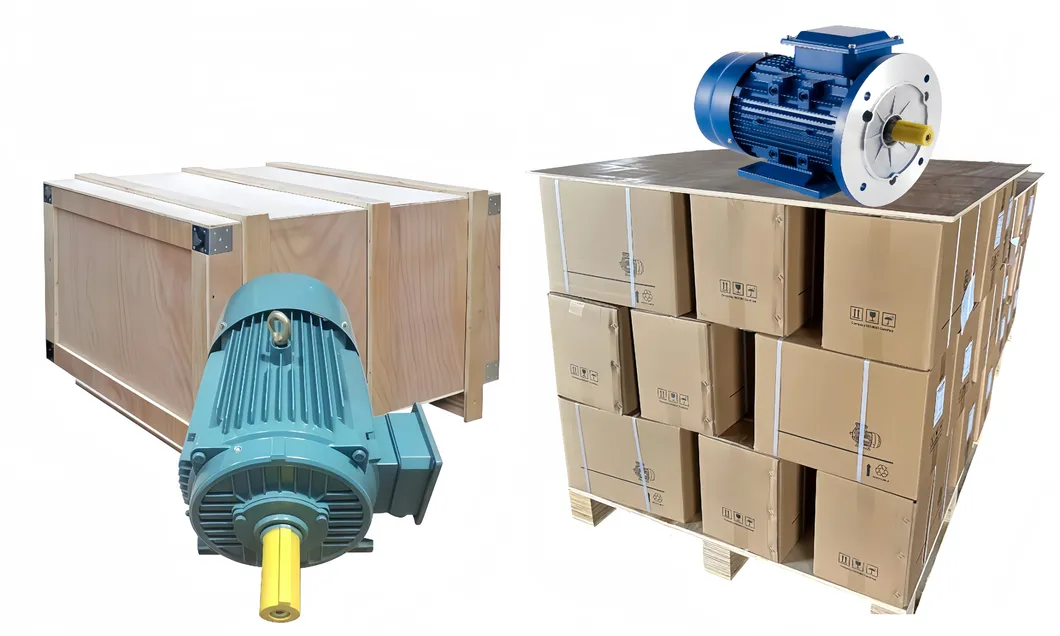

Packaging Box
Shipping Logistics

Frequently Asked Questions

Are you a trading company or a manufacturer?
We are a professional manufacturer specializing in electric motors.
How long is your standard delivery time?
For in-stock products, we can ship within three days. Customized orders are shipped according to the specific production schedule and situation.
Do you provide samples for testing?
Yes, we can provide samples upon request. Please contact our team for details.
How is the shipping cost calculated?
Shipping costs are calculated based on your specific delivery address, zip code, and the total volume and weight of the goods.
What international standards do your motors comply with?
All our products are manufactured according to GOST, RoHS, and IEC standards to ensure global compatibility and quality.
What are the main applications for these motors?
These motors are widely used in reducers, air compressors, water pumps, oil pumps, and packaging or food machinery.
