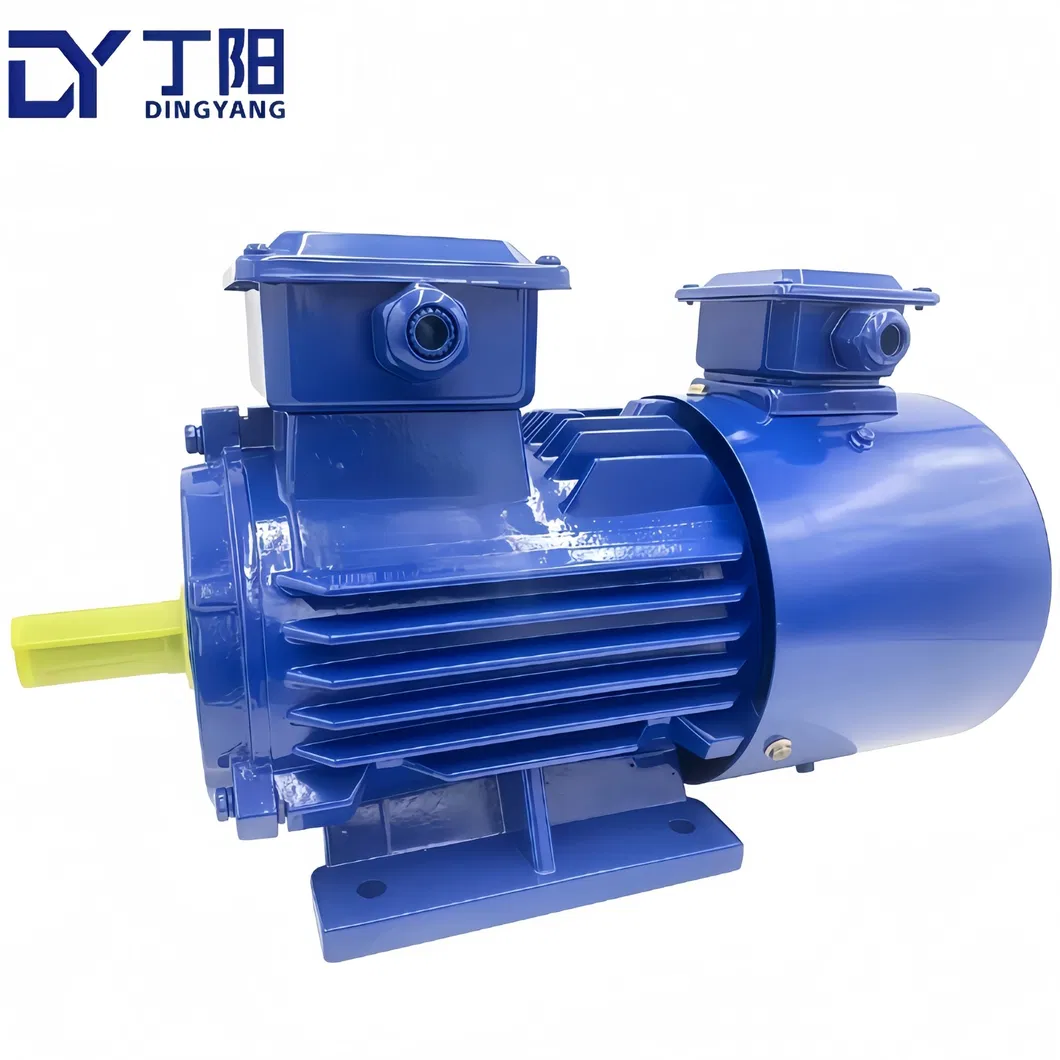

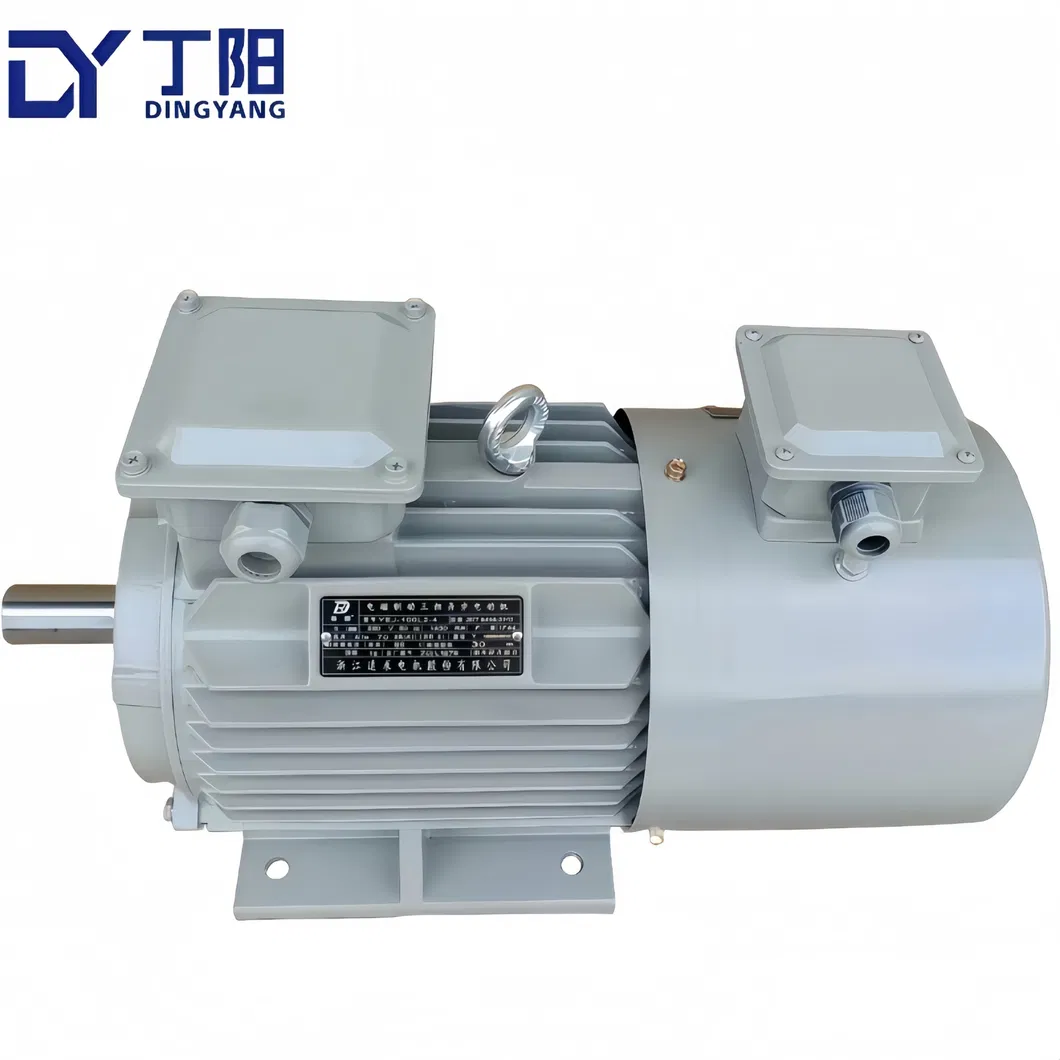

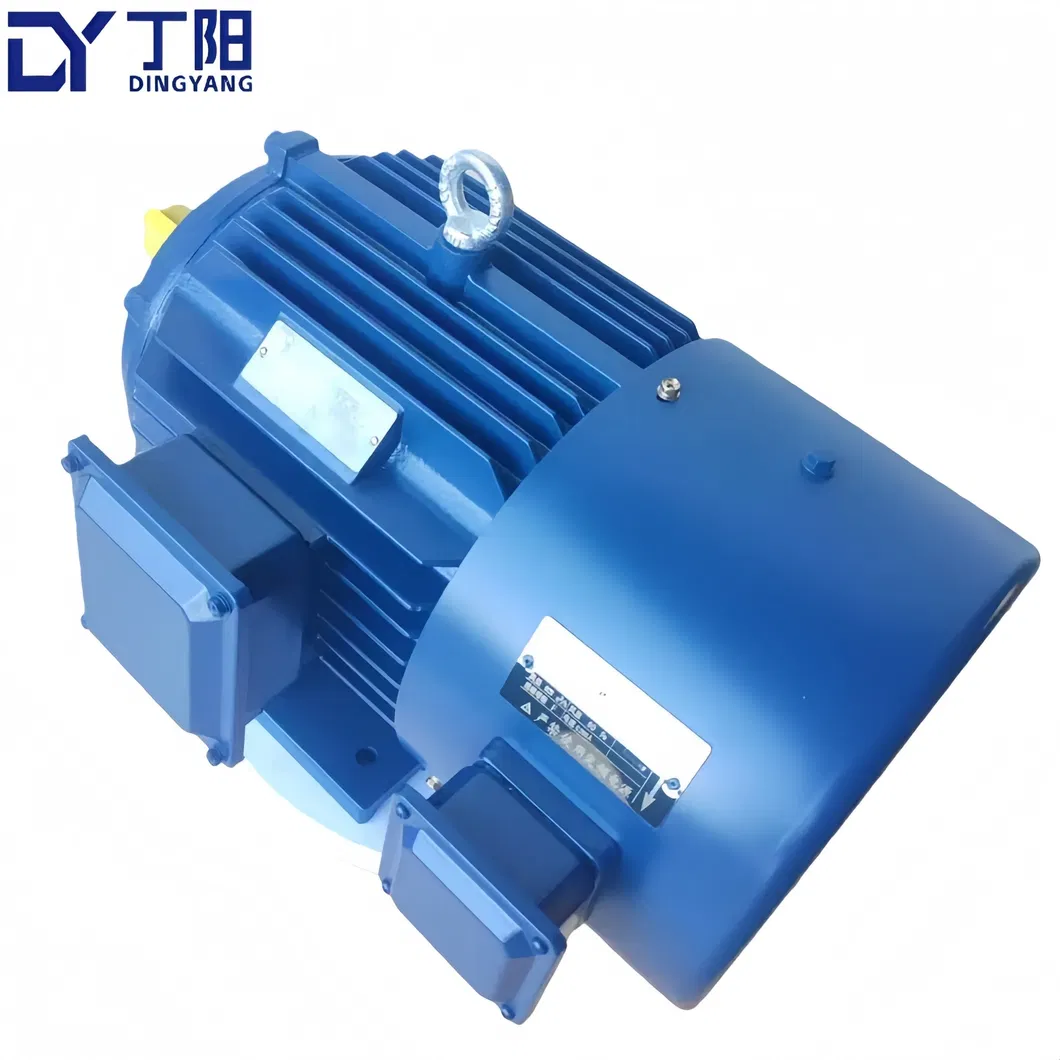

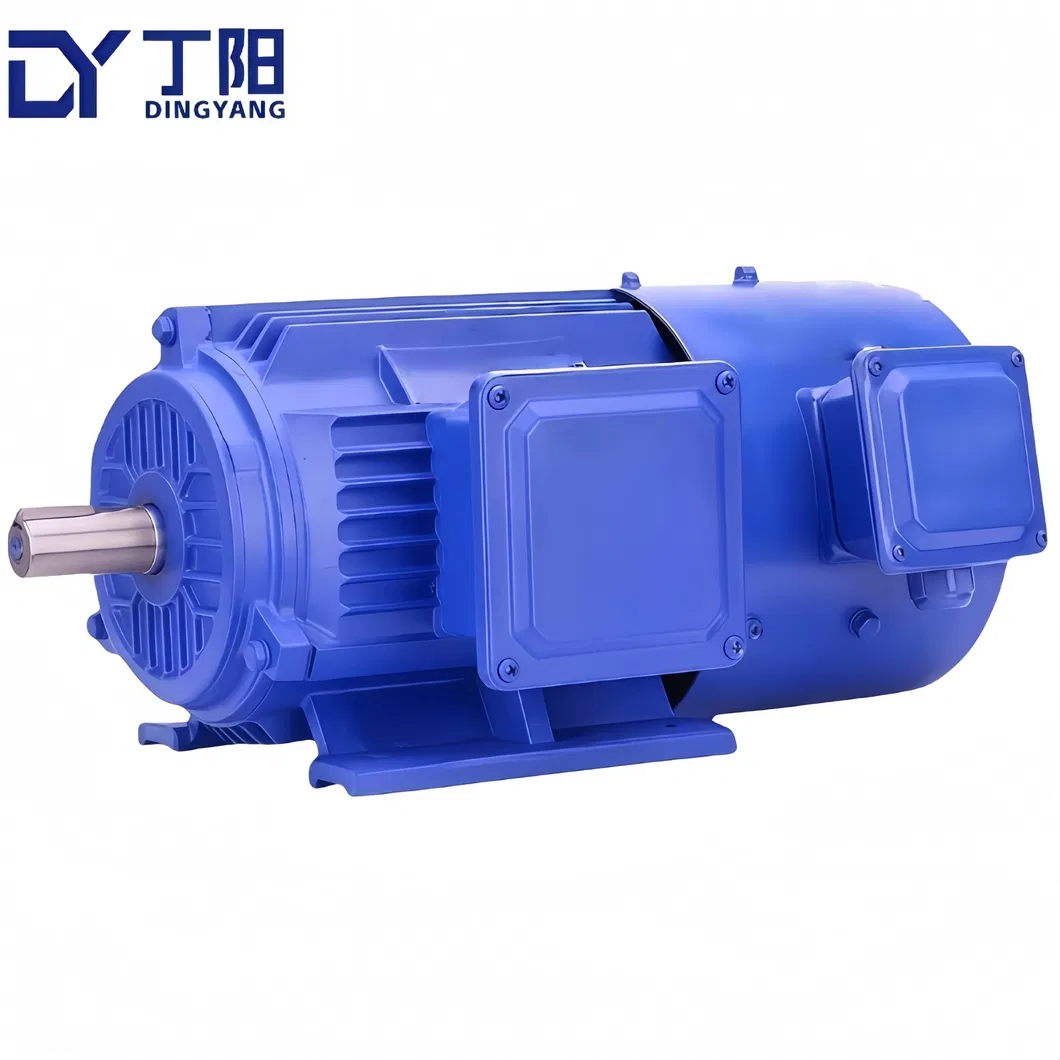

Electric motor frame from 80 - 355, output range from 0.5HP to 430HP. Multiple mounting types available: B3, B35, B5, B14, B34.
Strong cast iron frame and optional aluminum frame/end shields. Features 45# steel or stainless steel shafts with superior paint finish.
High performance IE3, IE4, and IE5 efficiency. Vacuum impregnation for insulation with Class F (standard) or Class H (optional).
Manufactured according to ISO9001, CE, UL, CCC, and GS requests. Products comply with GOST, RoHS, and IEC standards.
| Type | Output (kW) | Output (HP) | Voltage (V) | Current (A) | RT (N.m) | Constant Torque Range (Hz) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| YVF2-80M1-2 | 0.75 | 1 | 380 | 1.9 | 2.4 | 5-50 | 16 |
| YVF2-80M2-2 | 1.1 | 1.5 | 380 | 2.68 | 3.5 | 5-50 | 17 |
| YVF2-90S-2 | 1.5 | 2 | 380 | 3.51 | 4.8 | 5-50 | 21 |
| YVF2-100L-2 | 3 | 4 | 380 | 6.4 | 9.6 | 5-50 | 32 |
| YVF2-132S1-2 | 5.5 | 7.5 | 380 | 11.2 | 17.5 | 5-50 | 66 |
| YVF2-160M1-2 | 11 | 15 | 380 | 21.4 | 35 | 5-50 | 108 |
| YVF2-160M2-2 | 15 | 20 | 380 | 28.9 | 47.8 | 5-50 | 118 |
| YVF2-200L1-2 | 30 | 40 | 380 | 56.5 | 95.5 | 5-50 | 225 |
| YVF2-250M-2 | 55 | 75 | 380 | 102 | 175.1 | 5-50 | 404 |
| YVF2-315M-2 | 132 | 180 | 380 | 238 | 420.2 | 5-50 | 1050 |
| YVF2-355M1-2 | 220 | 300 | 380 | 391 | 700.3 | 5-50 | 1560 |
