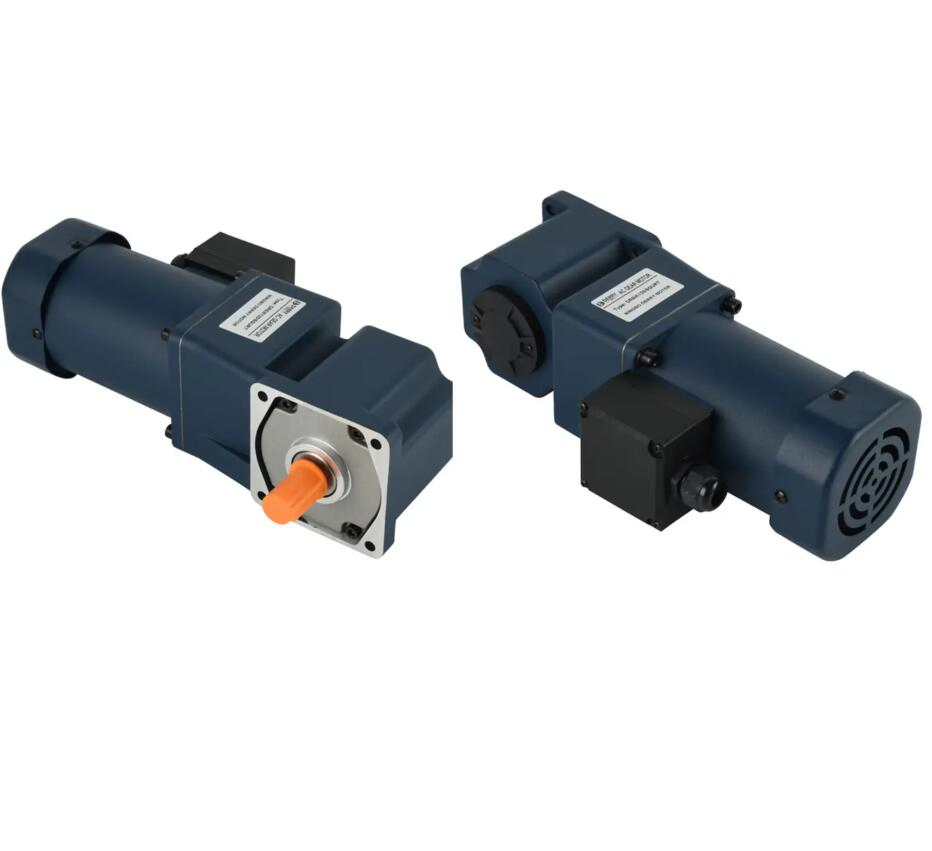

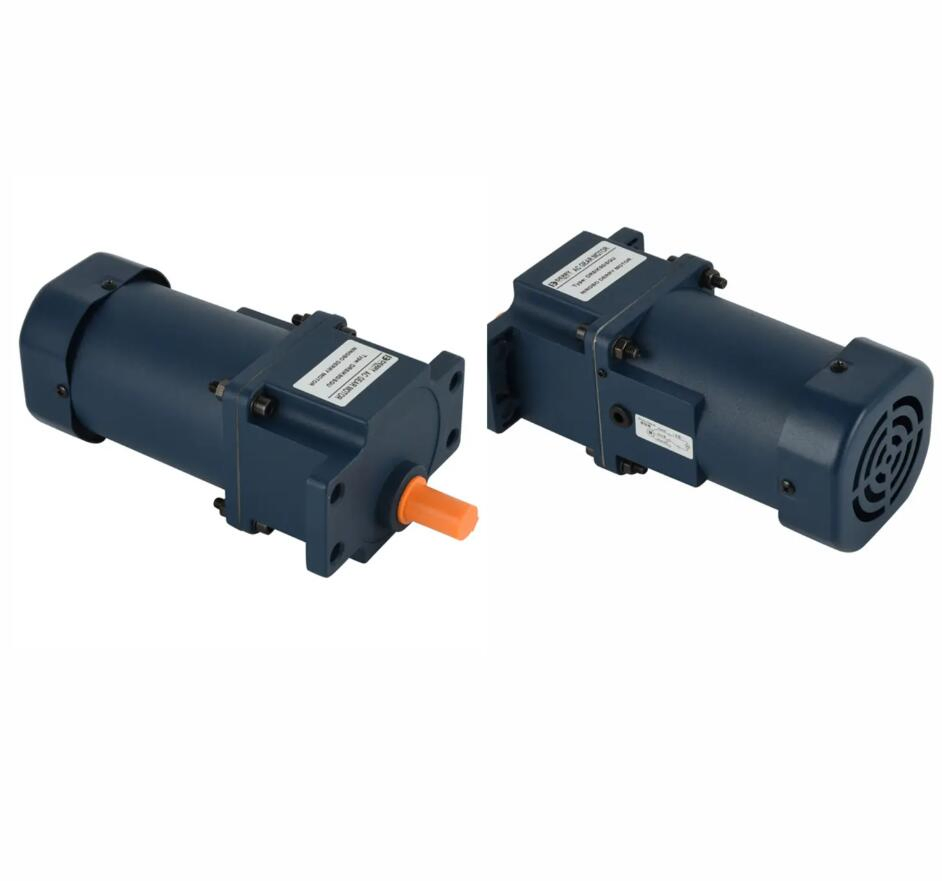

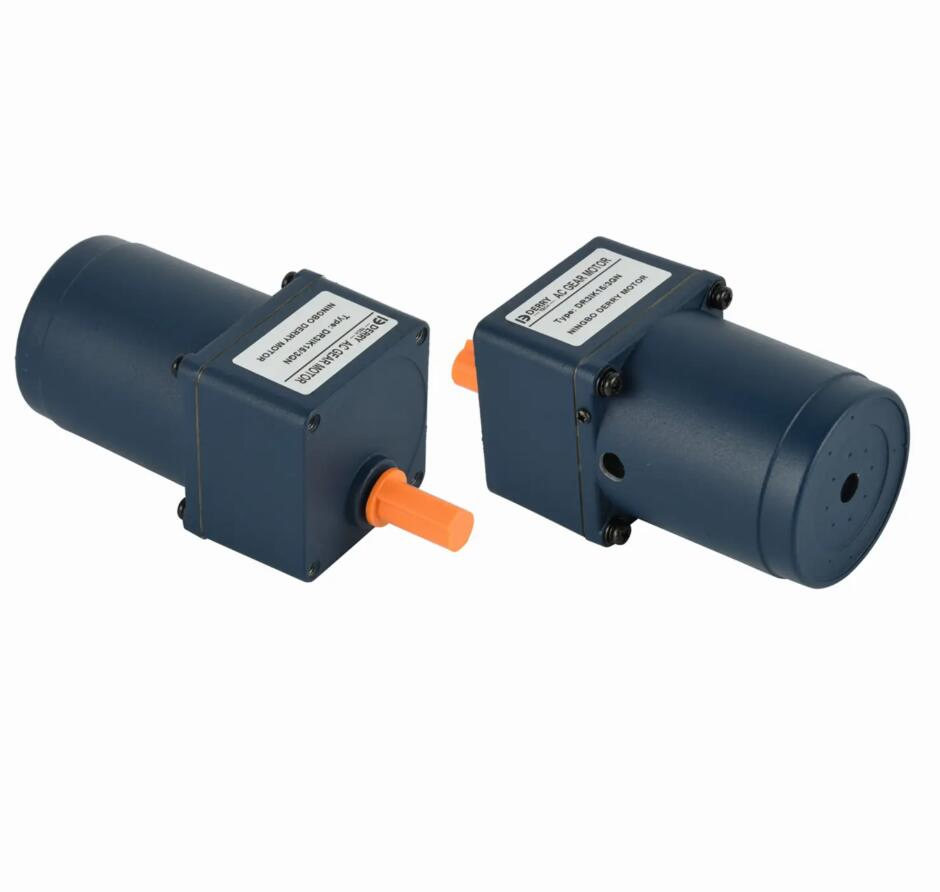

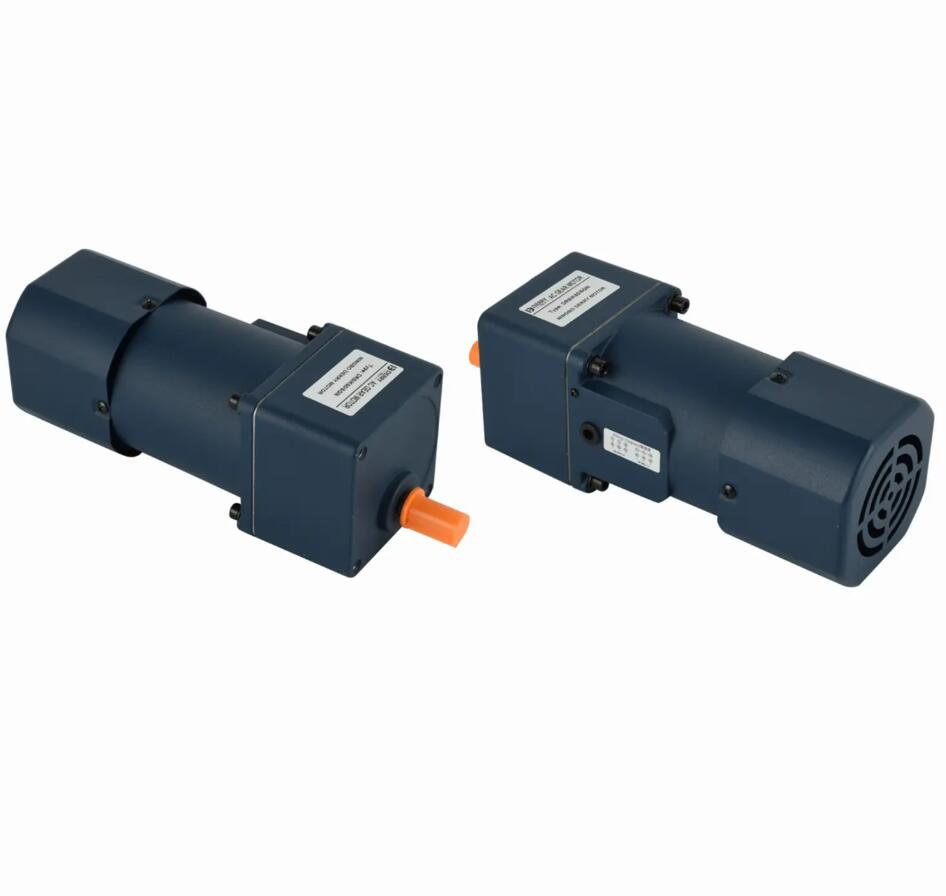

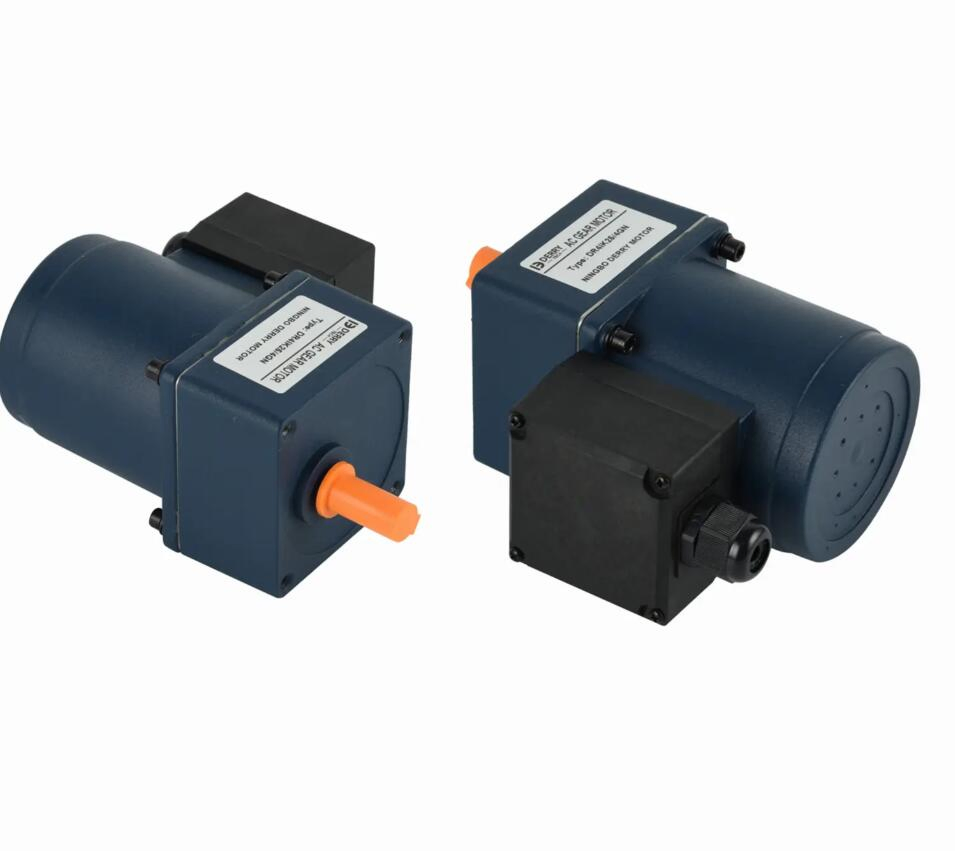

40W 5ik40 Low-Speed High Torque Single-Phase Three-Phase Electric AC Induction Variable Speed Gear Motor for Solar Tracking
40W 5ik40 Low-Speed High Torque Single-Phase Three-Phase Electric AC Induction Variable Speed Gear Motor for Solar Tracking
40W 5ik40 Low-Speed High Torque Single-Phase Three-Phase Electric AC Induction Variable Speed Gear Motor for Solar Tracking
40W 5ik40 Low-Speed High Torque Single-Phase Three-Phase Electric AC Induction Variable Speed Gear Motor for Solar Tracking
40W 5ik40 Low-Speed High Torque Single-Phase Three-Phase Electric AC Induction Variable Speed Gear Motor for Solar Tracking
1 / 5
40W 5ik40 Low-Speed High Torque Single-Phase Three-Phase Electric AC Induction Variable Speed Gear Motor for Solar Tracking
40W 5ik40 Low-Speed High Torque Single-Phase Three-Phase Electric AC Induction Variable Speed Gear Motor for Solar Tracking
40W 5ik40 Low-Speed High Torque Single-Phase Three-Phase Electric AC Induction Variable Speed Gear Motor for Solar Tracking
40W 5ik40 Low-Speed High Torque Single-Phase Three-Phase Electric AC Induction Variable Speed Gear Motor for Solar Tracking
40W 5ik40 Low-Speed High Torque Single-Phase Three-Phase Electric AC Induction Variable Speed Gear Motor for Solar Tracking

40W 5ik40 Low-Speed High Torque Single-Phase Three-Phase Electric AC Induction Variable Speed Gear Motor for Solar Tracking

Send Inquiry

Product Description

Product Parameters
✔
AC Gear Motor Type: Induction, Reversible, Break, Torque, Speed Control Motor
✔
Frame Size: 60mm, 70mm, 80mm, 90mm, 104mm
✔
Power Output: 6W - 200W+
✔
Ratio Range: 3-200K
✔
Voltage Options: 110V / 200V / 220V / 380V / 415V (50/60Hz, Single/Three-Phase)
✔
Typical Applications: Packing Machinery, Barrier Gate Systems, Conveyors, and Solar Tracking.
MOTOR FRAME SIZE 60 mm / 70mm / 80mm / 90mm / 104mm
MOTOR TYPE INDUCTION MOTOR
OUTPUT POWER 6W, 10W, 15W, 25W, 40W, 60W, 90W, 120W, 140W, 180W, 200W (Customizable)
OUTPUT SHAFT 8mm / 10mm / 12mm / 15mm; Round Shaft, D-Cut Shaft, Key-Way Shaft (Customizable)
VOLTAGE TYPE 110V, 120V, 220V, 230V, 380V, 415V
FREQUENCY 50/60Hz
ACCESSORIES Terminal Box / Fan / Thermal protector / Electric Brake / Controller
GEARBOX FRAME SIZE 60 mm / 70mm / 80mm / 90mm / 104mm
GEAR RATIO 3K - 200K
TYPE OF PINION GN Type / GU Type
Technical Presentation

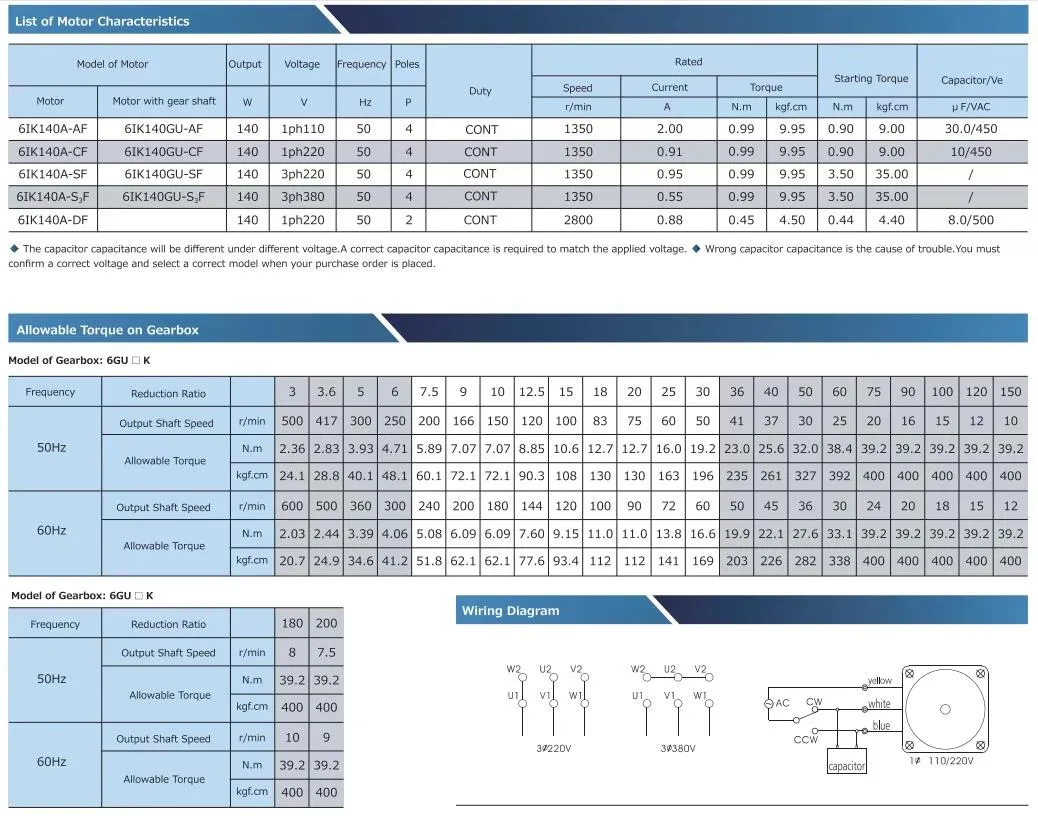

AC Induction Gear Motor Specification
Product Photos

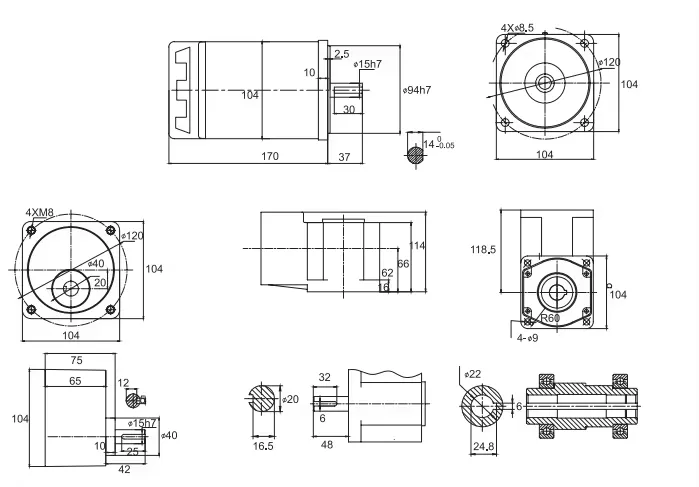

Electric AC Induction Motor

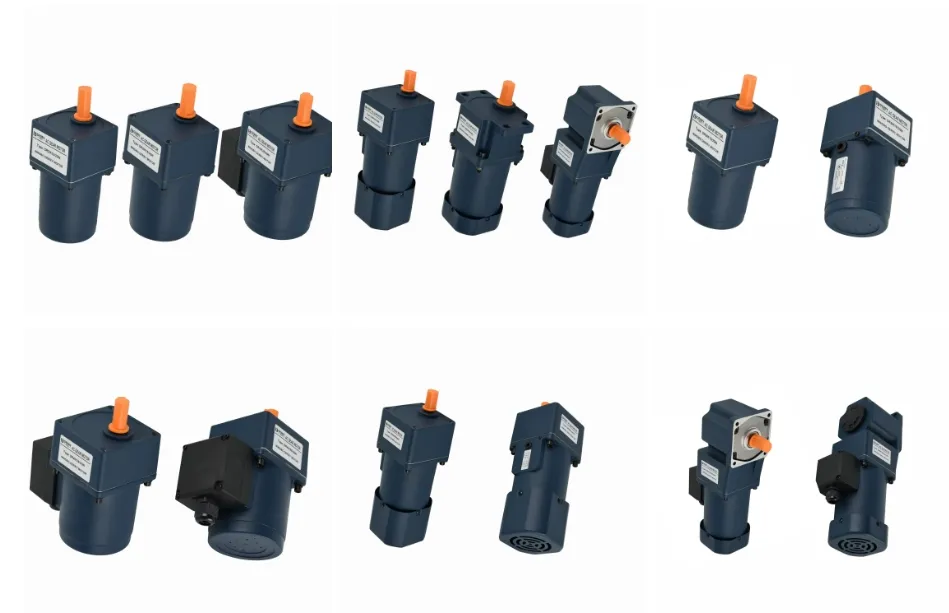

Variable Speed Gear Motor
High Torque Induction Motor
Solar Tracking Motor
Single Phase Gear Motor
AC Motor Components
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer with 20 years of production experience. Our automated production lines ensure high quality, consistency, and large-scale manufacturing capabilities.
Do you provide OEM or ODM services?
Yes, we warmly welcome OEM and ODM collaborations. We work with various companies to establish stable, long-term technical partnerships.
What is the Minimum Order Quantity (MOQ)?
Our MOQ is 2 units. We offer scaled discounts for larger quantity orders to provide the best value for our customers.
What is your warranty policy?
We provide a standard 12-month warranty for all products. For orders shipped via sea freight, we extend the warranty to 15 months.
Is on-time delivery guaranteed?
Absolutely. Operating our own factory allows us to maintain strict control over the production schedule and ensure timely delivery. Please consult our team for specific lead times based on your order.
Can the motor specifications be customized?
Yes, we offer customization for output power, shaft types (Round, D-cut, Key-way), and accessories like terminal boxes or brakes to meet your specific application requirements.
