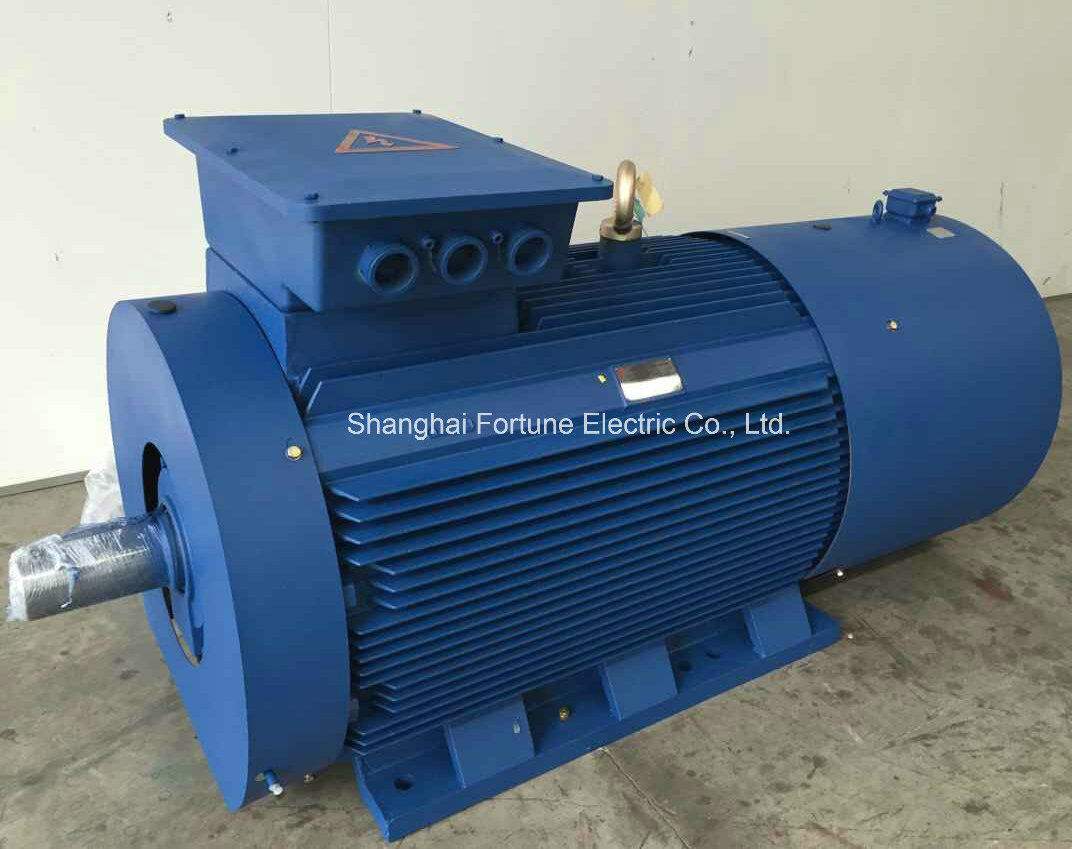

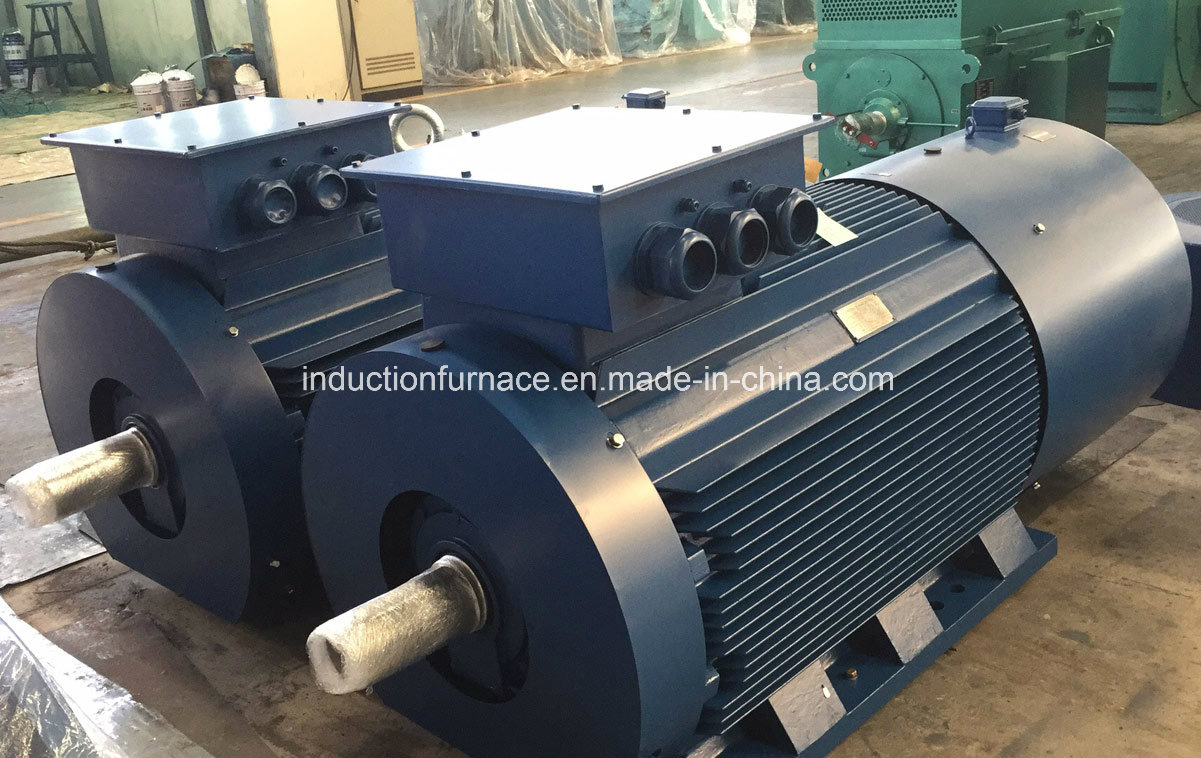

Yvf2 Y2vp Yjp Ysp Variable Frequency Speed VFD Converter Duty AC Motor
Yvf2 Y2vp Yjp Ysp Variable Frequency Speed VFD Converter Duty AC Motor
Yvf2 Y2vp Yjp Ysp Variable Frequency Speed VFD Converter Duty AC Motor
Yvf2 Y2vp Yjp Ysp Variable Frequency Speed VFD Converter Duty AC Motor
Yvf2 Y2vp Yjp Ysp Variable Frequency Speed VFD Converter Duty AC Motor
1 / 5
Yvf2 Y2vp Yjp Ysp Variable Frequency Speed VFD Converter Duty AC Motor
Yvf2 Y2vp Yjp Ysp Variable Frequency Speed VFD Converter Duty AC Motor
Yvf2 Y2vp Yjp Ysp Variable Frequency Speed VFD Converter Duty AC Motor
Yvf2 Y2vp Yjp Ysp Variable Frequency Speed VFD Converter Duty AC Motor
Yvf2 Y2vp Yjp Ysp Variable Frequency Speed VFD Converter Duty AC Motor

Yvf2 Y2vp Yjp Ysp Variable Frequency Speed VFD Converter Duty AC Motor

Customization: Available
Application: Industrial
Operating Speed: Adjust Speed
Send Inquiry

Product Description

Basic Information
Model NO.
YVF2, YVF, YVP, Y2VP, YVP, YJP, YP2
Number of Stator
Three-Phase
Species
YVP Series Frequency Control
Rotor Structure
Squirrel-Cage
Casing Protection
Closed Type
Number of Poles
2, 4, 6, 8, 10, 12
Starting Mode
Variable Frequency Starting
Certification
ISO9001, CCC
Cooling
IC416, IC06
Protection Rating
IP23, IP54, IP55
Voltage
380/660, 415/690, 440, 480V
Frequency
50 or 60 Hz
Duty
S1
Insulation Class
F
Power
5.5~100 Kw - 250 Kw - 400 Kw - 500 Kw
Frame Size
80 ~ 450
Efficiency
Ie2
Structure
Round Shape Cast Iron Motor Body
Transport Package
Plywood Case
Specification
0.5~1000 kW
HS Code
8501530090
Production Capacity
500 PCS Per Month
Product Description

YVF2 YVF YVP Y2VP YSP YJP YP2 Series Low Voltage Variable Frequency Speed Adjustable VFD AC Motor

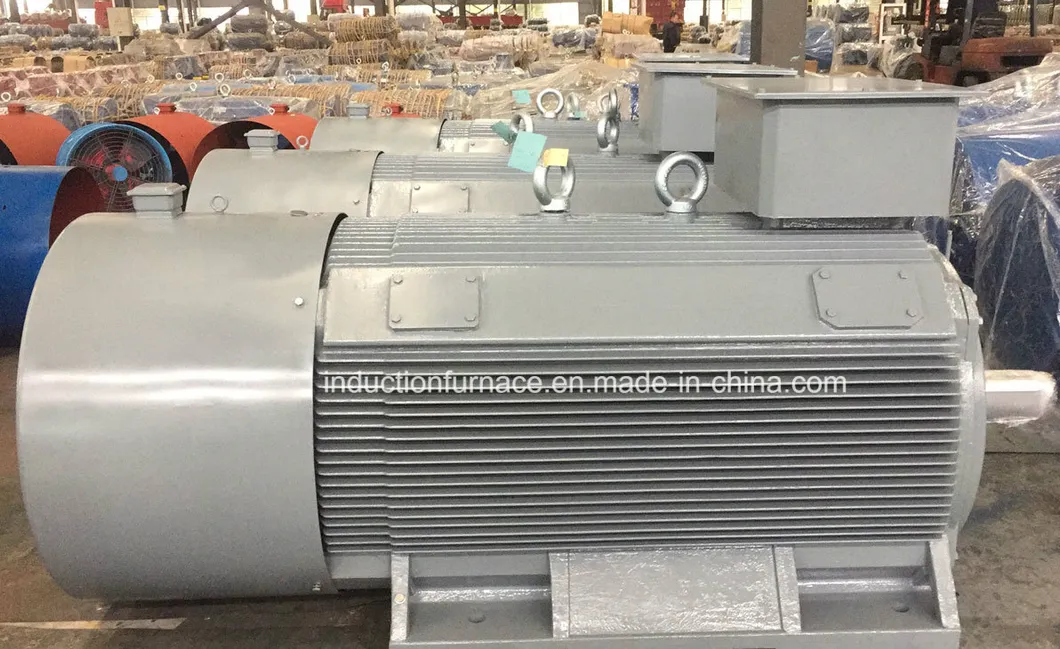

Variable Frequency Speed VFD Converter Duty AC Motor
▶

The series motors comply with the applicable IEC or European standards. The motors also comply with various national standards.

▶

The motors are totally enclosed, separate-fan cooled, IP55 degree of protection, temperature class F, IMB3 mounting arrangement (others available).

▶

The motors are inverter-fed. Constant torque frequency range is 5 to 50 Hz. When frequency above 50 Hz is required, please be stated.

▶

The motors have rated efficiency above IE4. The motors, at different load, still have much more high efficiency than three-phase induction motor. The motors also have high power factor, small current and low heat.

▶

The motors are widely used at air blower, water pump, belt machine, machine tool etc. in the petrochemical industry, power industry, transportation industry, textile industry, mining industry etc.

▶

Cooling method: IC416, IC06 | Duty: S1

Product Showcase

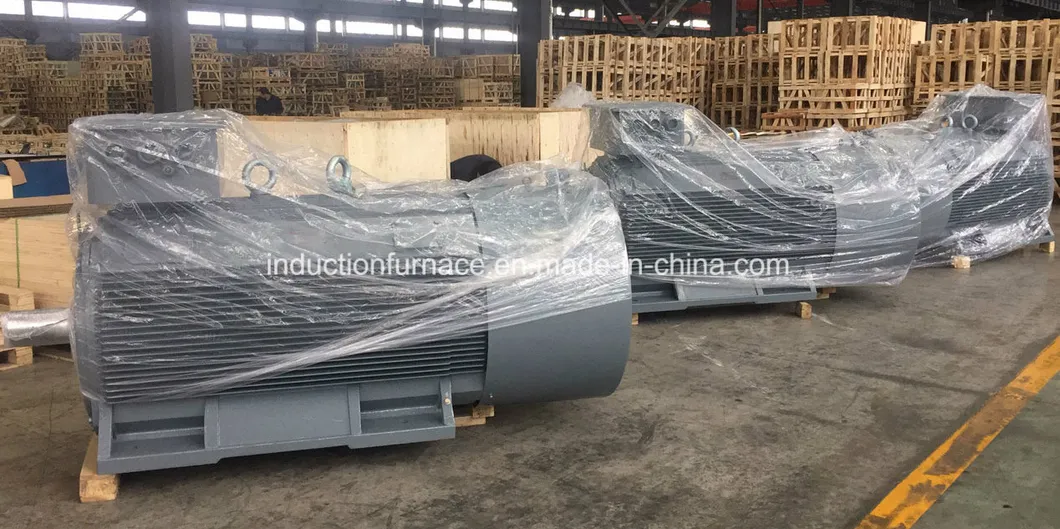

VFD Converter AC Motor View 1

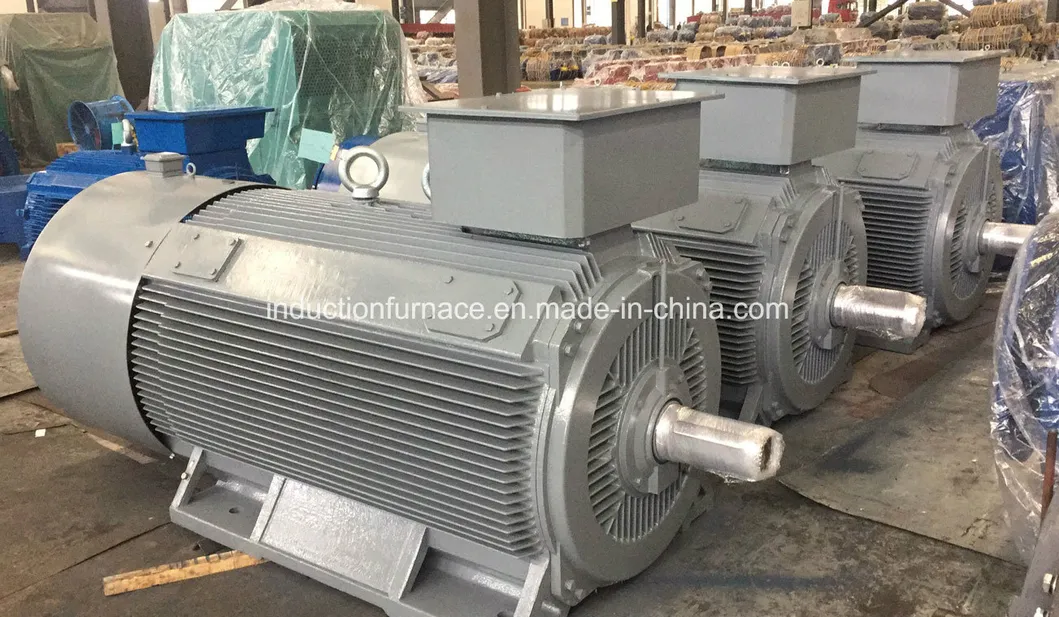

VFD Converter AC Motor View 2

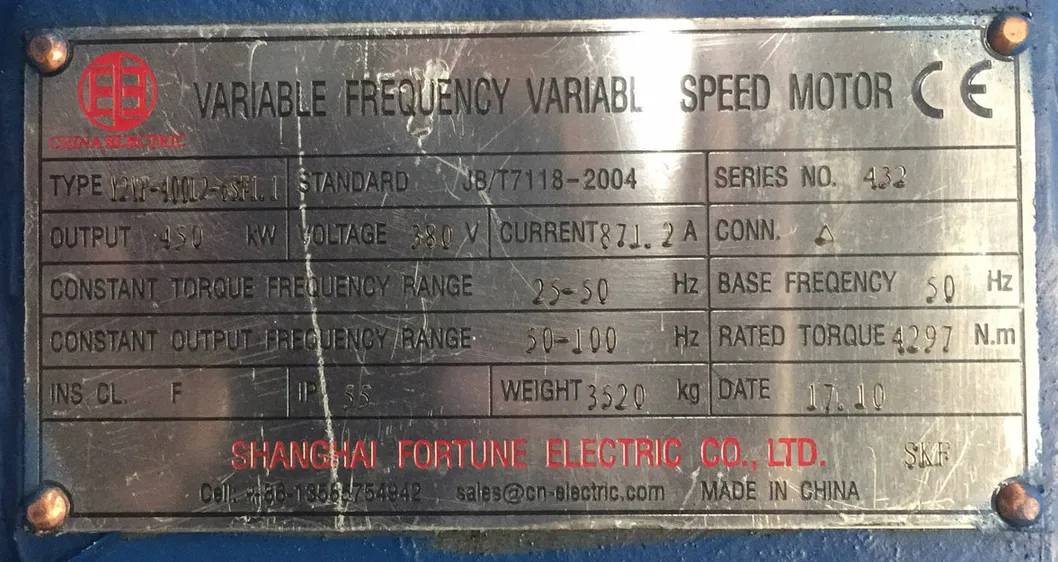

VFD Converter AC Motor View 3

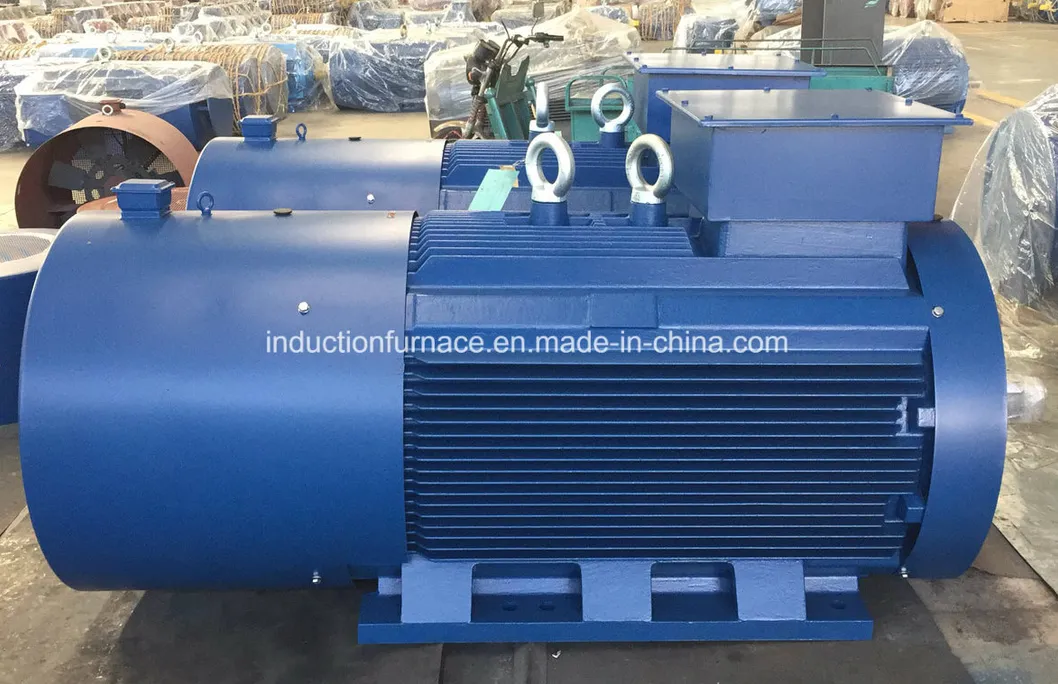

VFD Converter AC Motor View 4
Frequently Asked Questions
1. What standards do these variable frequency motors comply with?
These motors comply with applicable IEC or European standards, as well as various national standards for global compatibility.
2. What is the standard protection rating and insulation class?
The motors offer IP55 degree of protection (IP23 and IP54 also available) and are built with Temperature Class F insulation.
3. What is the frequency range for constant torque?
The constant torque frequency range is typically 5 to 50 Hz. If requirements exceed 50 Hz, they can be customized upon request.
4. How efficient are these VFD motors compared to standard induction motors?
These motors feature high efficiency ratings (above IE4). They maintain significantly higher efficiency even at different loads compared to traditional three-phase induction motors.
5. What are the common applications for this motor series?
They are widely used for air blowers, water pumps, belt machines, and machine tools across industries such as petrochemical, power, transportation, and mining.
6. What cooling methods are utilized for these motors?
The motors utilize separate-fan cooling systems, specifically IC416 or IC06 cooling methods, ensuring optimal temperature management during operation.
