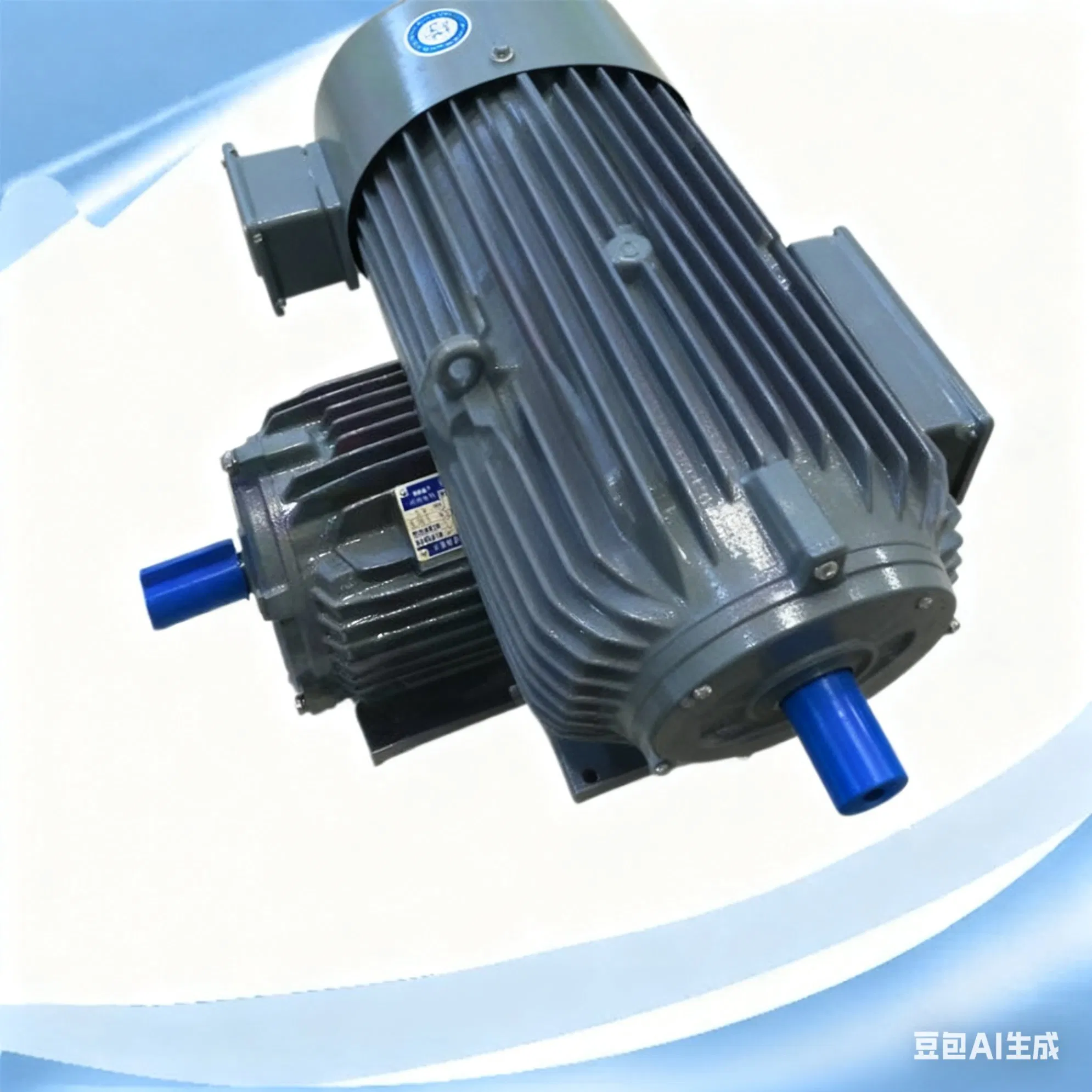

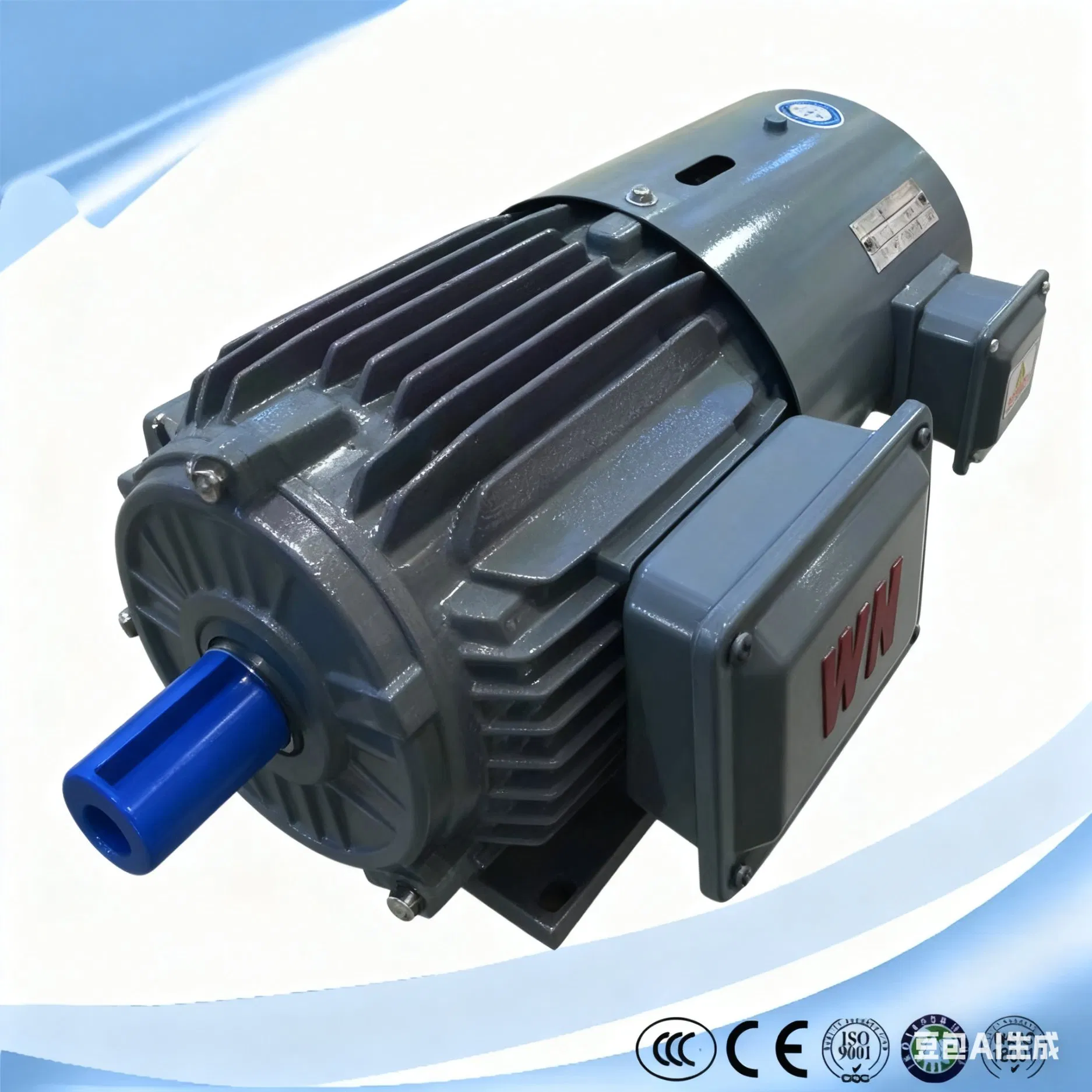

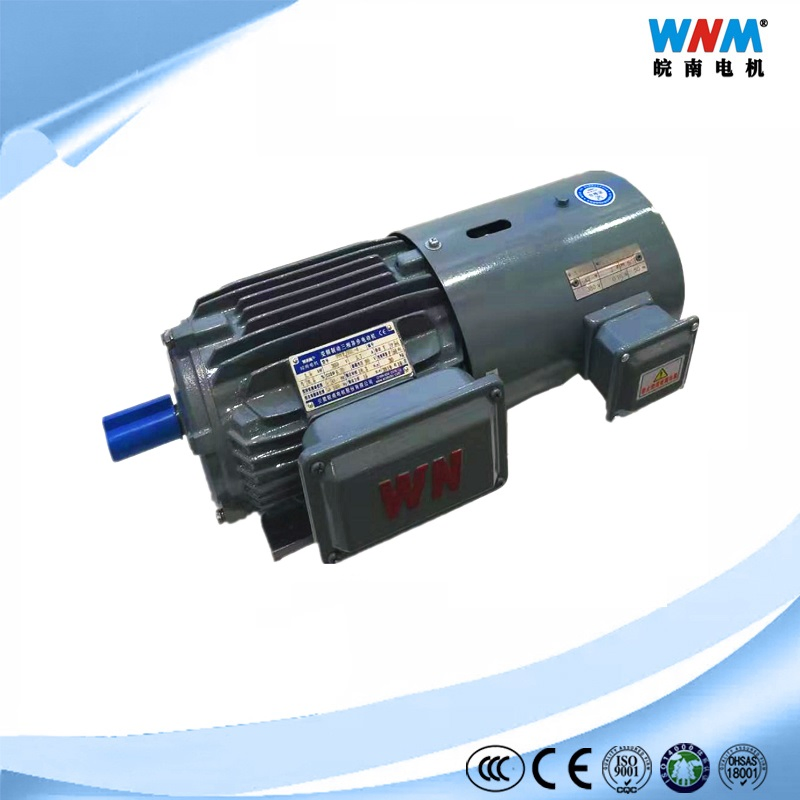

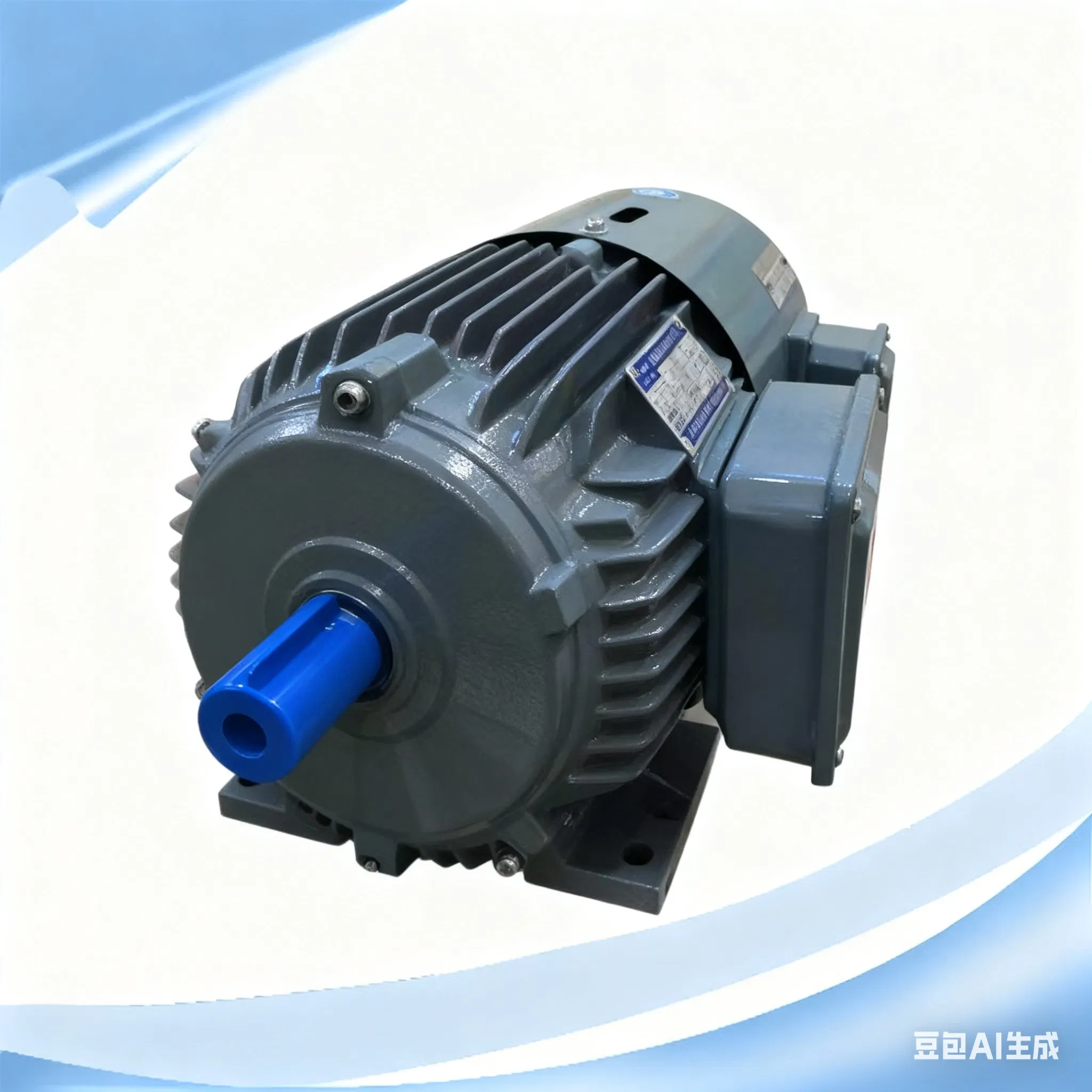

YXVF IEC Three Phase Induction AC Electric Frequency Variable Inverter Duty Motor

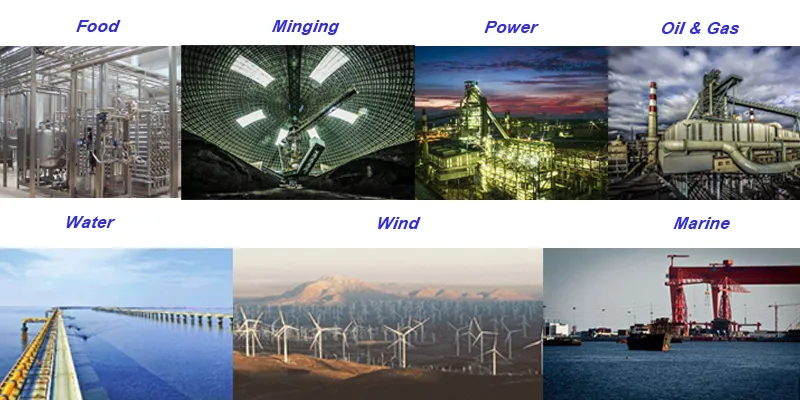

๐ Applications
Widely applied in metallurgy, chemistry, textile, pharmacy, printing, packing and food industry on the machine or equipment by which adjustable speed is needed, like fan, pump, numerical control machine, machining center, etc.
๐ General Description
- Frame sizes: 80 to 355
- Rated output: 0.37 to 375kW
- Insulation class: F
- Voltage: 380V
- Efficiency levels: IE2 IE3
- Frequency range for 2P: (3) 5-100Hz (frame 80-250), 5-70Hz (frame 280), 5-60Hz (frame 315-355)
- Frequency range for 4, 6, 8, 10P: (3) 5-100Hz
โญ Key Features
- Stepless speed regulation in a wide range
- Excellent performance and energy saving
- High-grade insulation material to withstand high frequency pulse impact
- Separated fan design for efficient forced-ventilation
โ๏ธ Optional Features
Electrical: Insulation Class H, Thermal Protection (PTC Thermistor, Thermostat or PT100).
Mechanical: Custom mountings, Protection Degree IP56/IP65, Sealing (Lip seal, Oil seal), Space Heater, Drain Hole.
๐ Specifications of Cooling Blower and Brake
| Motor Frame |
80 | 90 | 100 | 112 | 132 | 160 | 180 | 200 | 225 | 250 | 280 | 315 | 355 |
| Fan Power (W) |
30 | 42 | 52 | 55 | 55 | 80 | 80 | 150 | 200 | 230 | 320 | 700 | 700 |
| Current (A) |
0.09 | 0.16 | 0.18 | 0.18 | 0.19 | 0.26 | 0.30 | 0.6 | 0.6 | 0.6 | 1.1 | 1.8 | 1.9 |
| Voltage |
Standard 380V (Customizable upon request) |
| Encoder |
Optional Incremental Encoder |
๐ Mounting Type Configuration
| Frame |
B3 | B5 | B35 | V1 | V3 | V5 | V6 | B6 | B7 | B8 | V15 | V36 | B14 |
| 80~112 | โ | โ | โ | โ | โ | โ | โ | โ | โ | โ | โ | โ | โ |
| 132~160 | โ | โ | โ | โ | โ | โ | โ | โ | โ | โ | โ | โ | - |
| 180~280 | โ | โ | โ | โ | - | - | - | - | - | - | - | - | - |
| 315~355 | โ | - | โ | โ | - | - | - | - | - | - | - | - | - |

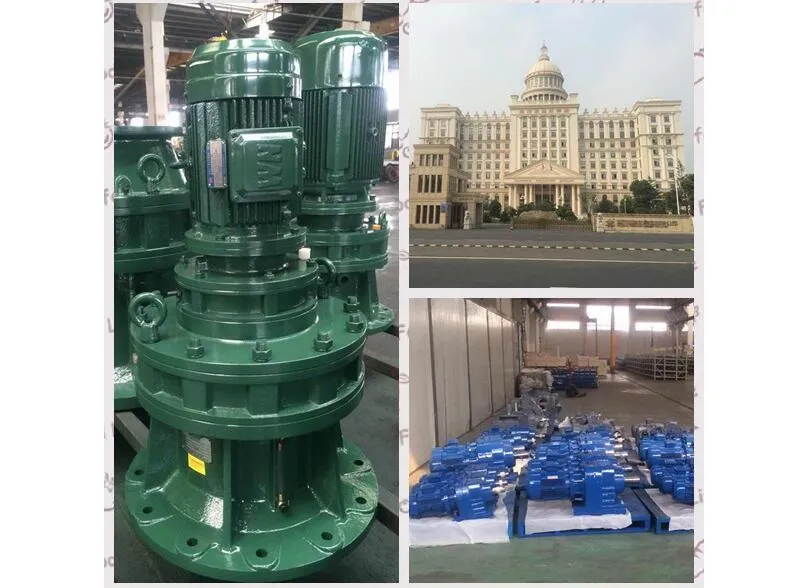

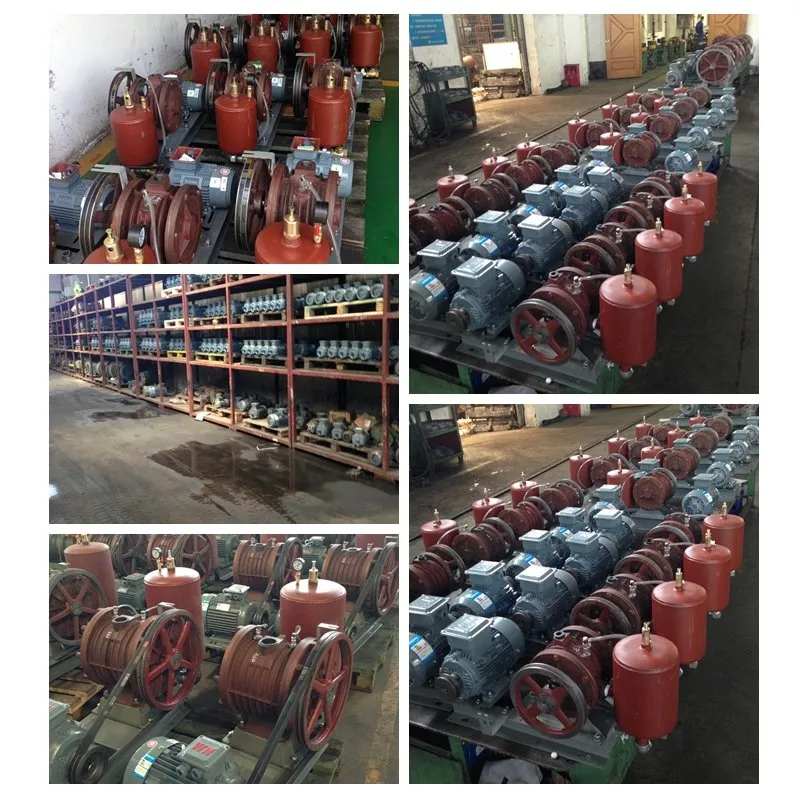

๐ธ Product Gallery & Site Display

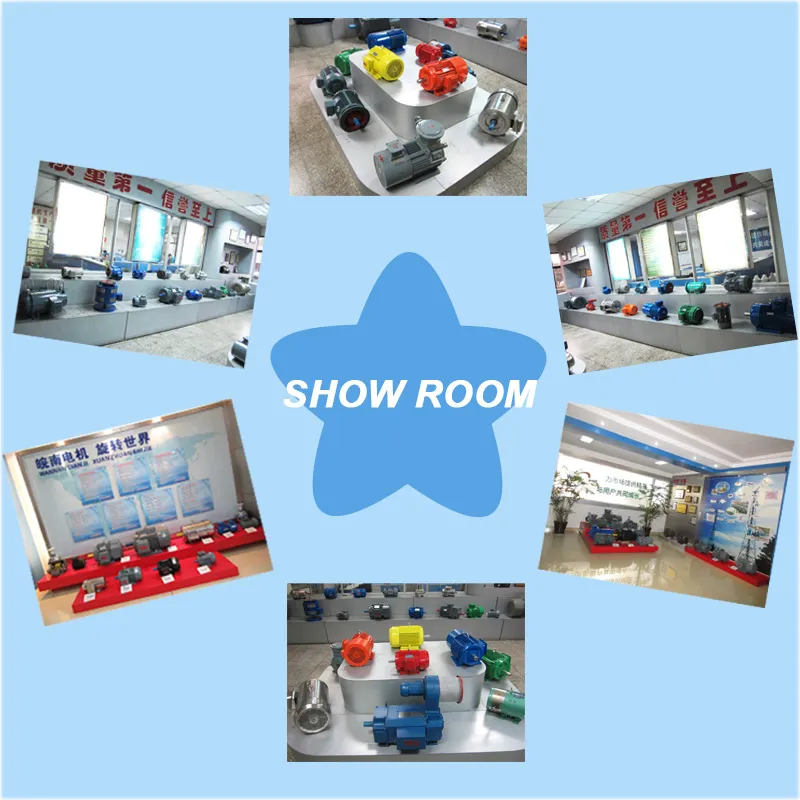

๐ข Showroom & Production

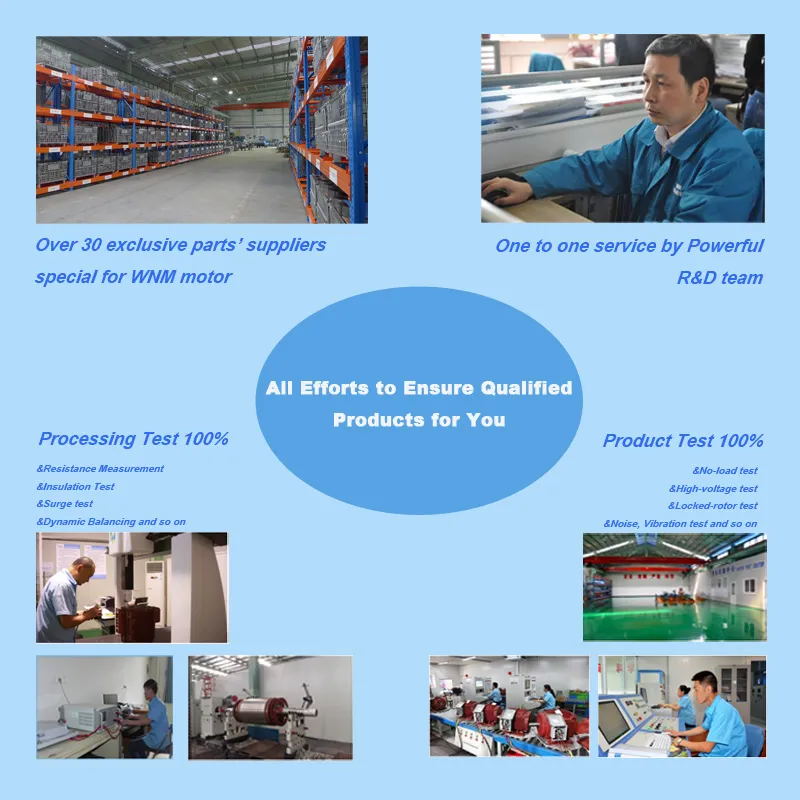

๐ Certificates & Quality Control

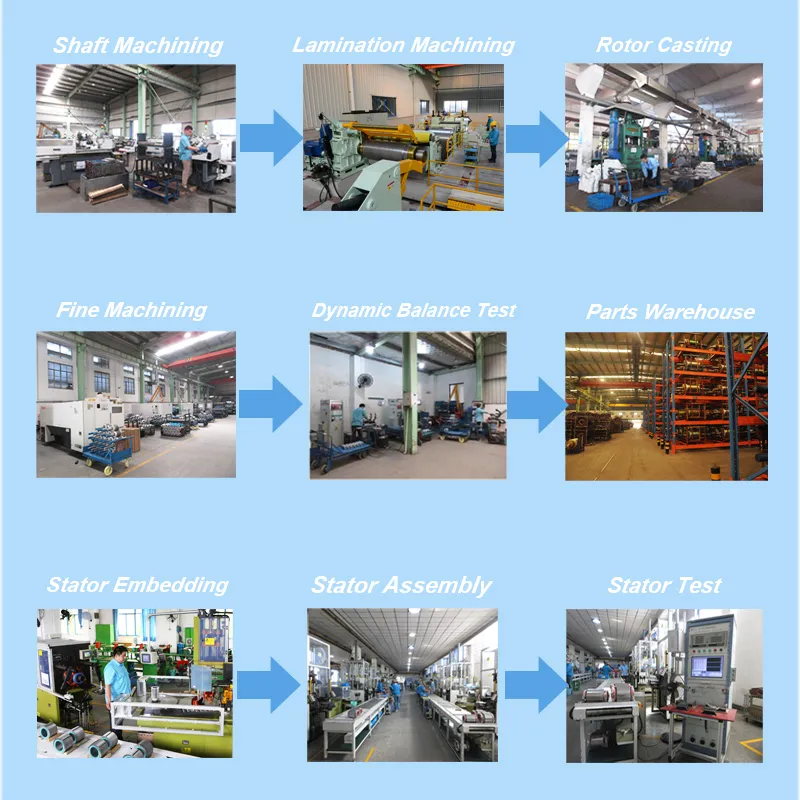

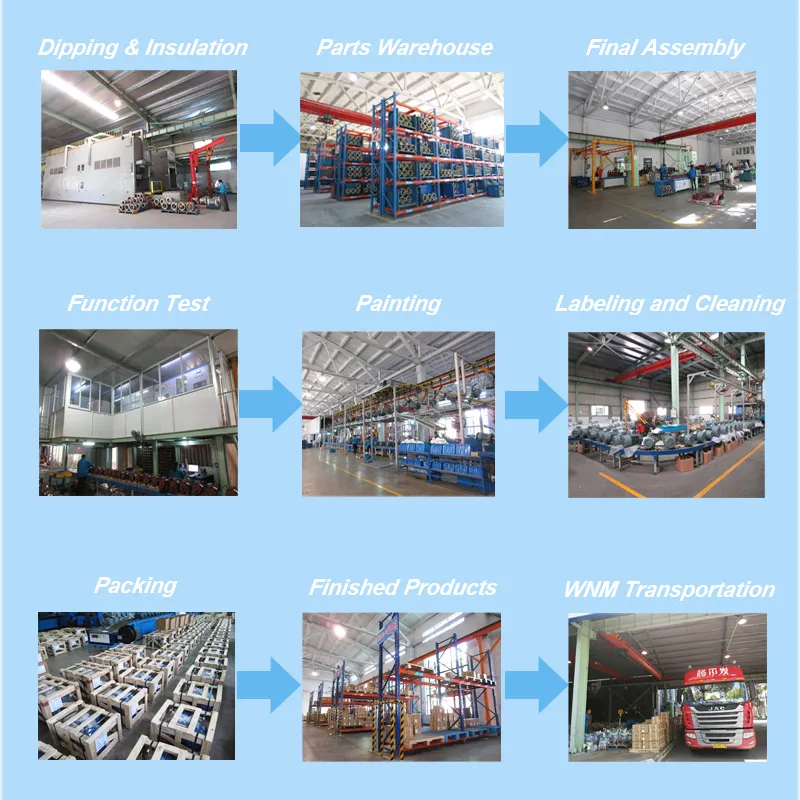

๐ญ Production Workshop
โ Frequently Asked Questions
Q1: What is the main application of the YXVF series motor?
A: It is widely used in industries like metallurgy, chemistry, textiles, and food processing for equipment requiring adjustable speeds, such as fans, pumps, and CNC machines.
Q2: Does this motor support stepless speed regulation?
A: Yes, the motor is designed for stepless speed regulation across a wide frequency range (typically 5-100Hz depending on frame size).
Q3: What are the available efficiency levels for this AC motor?
A: This series is available in IE2 and IE3 high-efficiency levels to help reduce energy consumption.
Q4: Can the cooling fan voltage be customized?
A: While the standard voltage for the cooling blower is 380V, other voltages can be customized according to specific user requirements.
Q5: What insulation and protection classes are provided?
A: The standard insulation class is F (H is optional), and the protection degree ranges from standard IP55 up to IP56 or IP65.
Q6: Are thermal protections available for the motor?
A: Yes, optional thermal protections include PTC Thermistors, Thermostats, or PT100 sensors.
